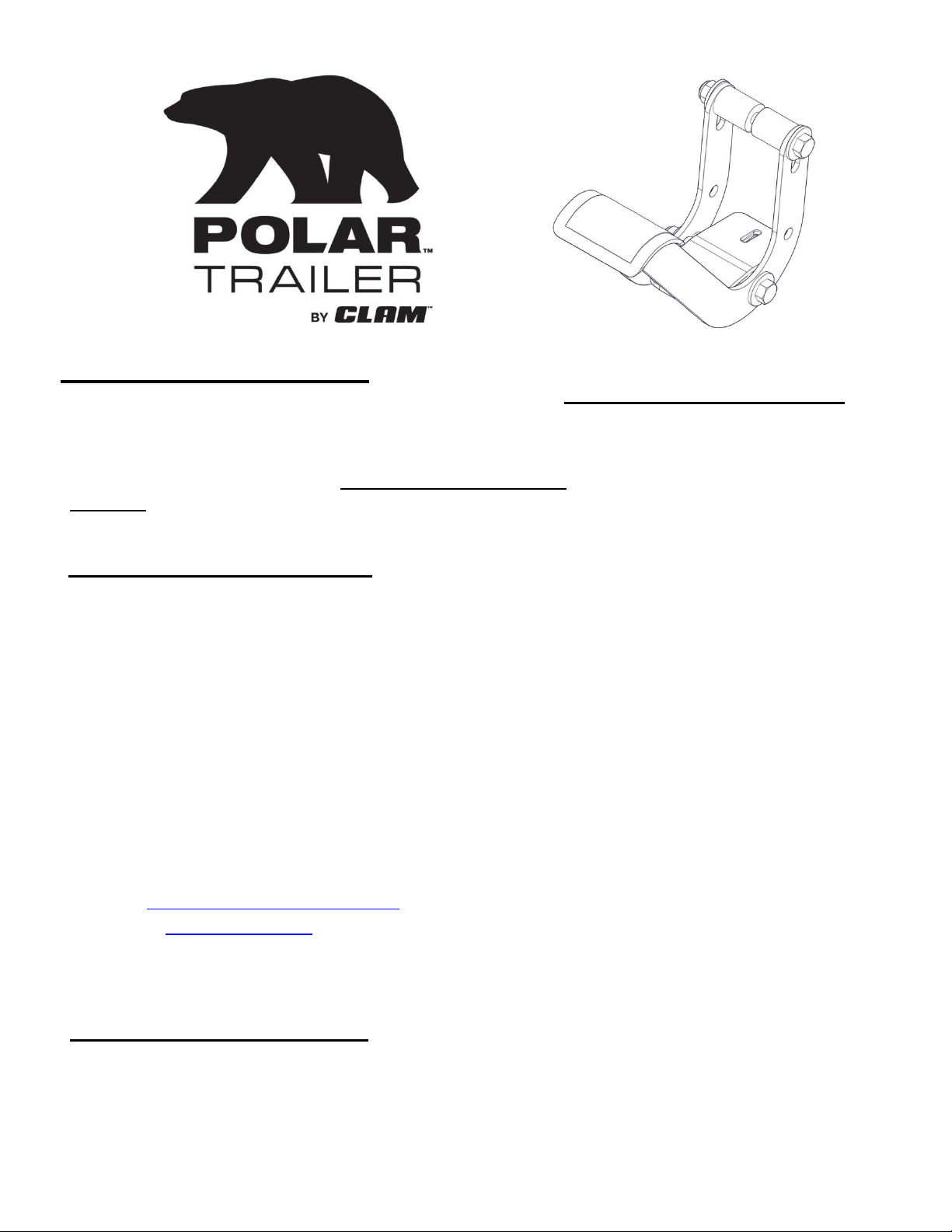

Clam Polar Trailer 10537 User manual

FOOT PEDAL LATCH
PRODUCT ITEM NUMBER -110537
DIMENSIONS: L 8”X W 6”X H 3”
WEIGHT: 2.5lbs.
MANUAL NUMBER- 104828-B
LIMITATION OF LIABILITY
NOTICE: Once used, this kit cannot be returned to the store. If you have a warranty claim, please read
and follow Warranty Information directions below
.
WARRANTY INFORMATION
CLAM OUTDOORS INC. warrants to the original retail purchaser its product be free from manufacturers
defects for (5) years from the date of the original purchase. Clam Outdoors Inc will replace or repair any part
found defective within the (5) years time limit. All parts must be returned to Clam Outdoors Inc. Before returning
any parts, you must first call or write and acquire a return authorization. All returns must be returned postage-
prepaid and include the originalcash register receipt (date and purchase price).
To submit a warrantyclaim request, please use one of the following methods:
Customer Service Hrs: 9am to 4pm, Monday –Friday Central Standard Time
Clam Corporation
Attn: Customer Service –Warranty Department
12135 Brockton Lane
Rogers, MN 55369
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: Clamoutdoors.com
The warranty does not apply to any Polar Trailer accessory which has been subjected to an accident,
improper installation, modification, adjustment, repair, misuse, misapplication, neglect, including but not
limited to improper maintenance, or use of unauthorizedparts or attachments.
LIMITATION OF LIABILITY
It is expressly understood that Clam Outdoors Inc. liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Outdoor
Inc. is not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not
limited to loss of use, income, profit, or damage to material arising in connection with the sale, installation, use
of, inability to use, or the repair or replacement of Clam Outdoor Inc. products. Clam Outdoor Inc. reserves the
right to make alterations or modifications in its products at any time, which in its opinion, may improve the
performance and efficiency of the product. It shall not be obligated to make such alterations or modifications to
products already in service.
MODEL ITEM 10537

QTY.
PART NO.
DESCRIPTION
1
104820
WLDMT, FOOT PEDAL
2
104817
BUSHING, PIVOT, FOOT PEDAL
1
104821
PLATE, FLAT, FOOT PEDAL
1
104824
WLDMT, PLATE, FOOT PEDAL
2
101899
NUT, 5/16-18 NYLOCK
2
104826
BOLT, 5/16-18 X 3.00 HEX
4
102035
WASHER, 5/16 WIDE FLAT
1
104828
INSTRUCTION, FOOT PEDAL
3
104829
SCREW, M5 X 1 HEX, DRILLING SCREW
TRAILER SPECIFIC PART
SEE ASSEMBLY DETAILS
TRAILER SPECIFIC PART
SEE ASSEMBLY DETAILS

1. SECURELY SNUG ALL FASTNERS (DO NOT OVER TIGHTEN)
2. FOOT PEDAL SHOULD FREELY MOVE AFTER BEING SNUGGED
RE-USE HITCH BLADE
RE-USE SPRING
STEP-1
TOP VIEW
FINAL ASSEMBLY
CRADLE (104824) IN PLACE AND MARK
HOLE LOCATIONS. DRILL TWO 1/8” HOLES
AND THEN SCREW (104824) IN PLACE
WITH TWO (104829) AND TIGHTEN
SECURELY.
SOME UNITS MAY HAVE BEEN PRE-
DRILLED ALREADY.
STEP-2
BOTTOM VIEW

`
`
1. SECURELY SNUG ALL FASTNERS (DO NOT OVER TIGHTEN)
2. FOOT PEDAL SHOULD FREELY MOVE AFTER BEING SNUGGED
FINAL ASSEMBLY
STEP-1
STEP-2
STEP-1
BOTTOM VIEW
MARK HOLE LOCATIONS AS SHOWN AND DRILL
TWO 1/8 DIAMETER HOLES. SOME UNITS MAY
HAVE BEEN PRE-DRILLED ALREADY.
12-13/16”
2-1/8”
BOTTOM HOLE LOCATION THIS SIDE OF LEVER ASSEMLBY
SIDE VIEW AND PARTS SHOWN TO
CLARIFY HOLE LOCATIONS.
INSTRUCTIONS FOR TRAILERS WITH PRE-DRILLED SIDE HOLE
INSTRUCTIONS FOR LG10 AND LG900 TRAILERS WITHOUT PRE-DRILLED SIDE HOLE

`
1. SECURELY SNUG ALL FASTNERS (DO NOT OVER TIGHTEN)
2. FOOT PEDAL SHOULD FREELY MOVE AFTER BEING SNUGGED
STEP-1
STEP-2
MARK HOLE LOCATIONS AS SHOWN AND DRILL
TWO 1/8 DIAMETER HOLES.
18-1/2”
2-1/8”
BOTTOM HOLE LOCATION THIS SIDE OF LEVER ASSEMLBY
SIDE VIEW AND PARTS SHOWN TO
CLARIFY HOLE LOCATIONS.
INSTRUCTIONS FOR TRAILERS WITH PRE-DRILLED SIDE HOLE
INSTRUCTIONS FOR CF18 AND HD1200 TRAILERS WITHOUT PRE-DRILLED SIDE HOLE
FINAL ASSEMBLY
STEP-1

`
1. SECURELY SNUG ALL FASTNERS (DO NOT OVER TIGHTEN)
2. FOOT PEDAL SHOULD FREELY MOVE AFTER BEING SNUGGED
STEP-1
STEP-2
MARK HOLE LOCATIONS AS SHOWN AND DRILL
TWO 1/8 DIAMETER HOLES. SOME UNITS MAY
HAVE BEEN PRE-DRILLED ALREADY.
24-3/4”
2-1/8”
BOTTOM HOLE LOCATION THIS SIDE OF LEVER ASSEMLBY
SIDE VIEW AND PARTS SHOWN TO
CLARIFY HOLE LOCATIONS.
INSTRUCTIONS FOR TRAILERS WITH PRE-DRILLED SIDE HOLE
INSTRUCTIONS FOR HD1500 TRAILERS WITHOUT PRE-DRILLED SIDE HOLE
FINAL ASSEMBLY

IMPLEMENT HOLDER
SIDE RAIL KITS
TOOL AND CUP HOLDER
VISIT OUR WEB-SITE FOR ADDITIONAL ACCESSORIES THAT MAY BE AVAILABLE FOR YOUR TRAILER
