Clarion FZ709 User manual

Bluetooth·US~iMp3IWMAlAAC RECEIVER
ICeN.ETCONTROL.
r?b~t~~~(~E8eEJJf~:~ ... ~~~~PTN)~~~AG
· Bluetooth.t RECEPTORUSBIMP3IWMtv AAC
~ ICONTROL CeNJ:T
.,

English
CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
Dear Customer:
Congratulations on your purchase of aClarion mobile electronic products. We are confident that you'll
enjoy your Clarion experience.
There are many benefits to registering your product.
We invite you to visit our website at www.clarion.com
to register your Clarion product.
We have made product registration simple with oureasyto use website. The registration form is short and
easy to complete. Once you're registered, we can keep you informed of important product information.
Register at www.clarion.com -it's easy to keep your Clarion product up to date.
Fran<;:ais
INFORMATIONS SUR L'ENREGISTREMENT DES PRODUITS CLARION
Seulomont pour los Etats-Unis et Ie Canada
Cher client. chOre cliente:
Nous vaus rernercions ej'avoir chaisi un produit ()lectroniqLle mobile Clarion.
VOLlS apprecierez sans aUCLln
doute votre experience avec Clarion.
L'enregistrement de votre produit peut vous faire beneficier de nombreLlx avantages.
NOLlS vallS invitans a
visiter notre site Web aI'adresse ~Y'!~.~I~rlQ-'l~~PI1J pour enregistrer votre produit Clarion.
L'enregistrement de produit sur notre site Web est une procedure simple. Le formulaire d'enregistrement
est simple et facile arernplir. Une fois votre produit enregistre, vous pourrez rester intorrne(e) des infor-
mations produit importantes.
Enregistrez-vous sur www.clarion.com pour que votre produit Clarion reste ajour en toute simplicite.
Espanol
INFORMACION DE REGISTRO DE PRODUCTO CLARION
S610 para los EE.UU. yCanada
Estimado Cliente:
Felicidades por cornprar un producto electr6nico m6vil Clarion. Confiamos en que disfrutara de su ex-
periencia Clarion.
Existen muchas ventajas de registrar su producto. Los invitamos a visitar nuestro sitio web en:
www.clarion.com to para registrar su producto Clarion.
Hemos simplificado nuestro registro de producto atraves de nuestro sitio web facil de usar.
EI formulario
de registro es breve ytacil de completar. Una vez se haya registrado, Ie mantendremos informado acerca
de informaci6n importante del producto.
Regfstrese en www.clarion.com -es facil mantener
su producto Clarion actualizado.
USA Representative:
CLARION CORPORATION OF AMERICA
6200 Gateway Drive, Cypress, CA 90630, U.S.A.
Tel:
1-3103279100 Fax: [phone]
www.clarion.com
2FZ709

Contents
1. FEATURES 3
2. PRECAUTIONS 4
3. CONTROLS 5
MAIN UNIT 5
4. NOMENCLATURE 6
Names of the Buttons and Their Functions 6
Slider's Key Operation 7
Display Items 8
OEL Display 8
5. REMOTE CONTROL 9
Inserting the Battery 9
Functions of Remote Control Unit Buttons 10
6. OPERATIONS 11
Basic Operations 11
Radio Mode Operations 16
USB Operations 18
iPod Operations 22
Satelite Radio Operations 26
Bluetooth'~ Operations 28
Common Operations 33
7. TROUBLESHOOTING 37
8. ERROR DISPLAYS 40
9. SPECIFICATIONS 41
,1. FEATURES
•OEL Display and Touch Sensor Operation.
•BBE
MP for compressed Audio Improvement.
•USB Direct Connection for
iPod'~.
~ eIi
'i:'A';;".:'.J :. ~
READY
mp3
ID3TAG
lusnl rQ7NET 8)
10: 8015518
FZl09 3

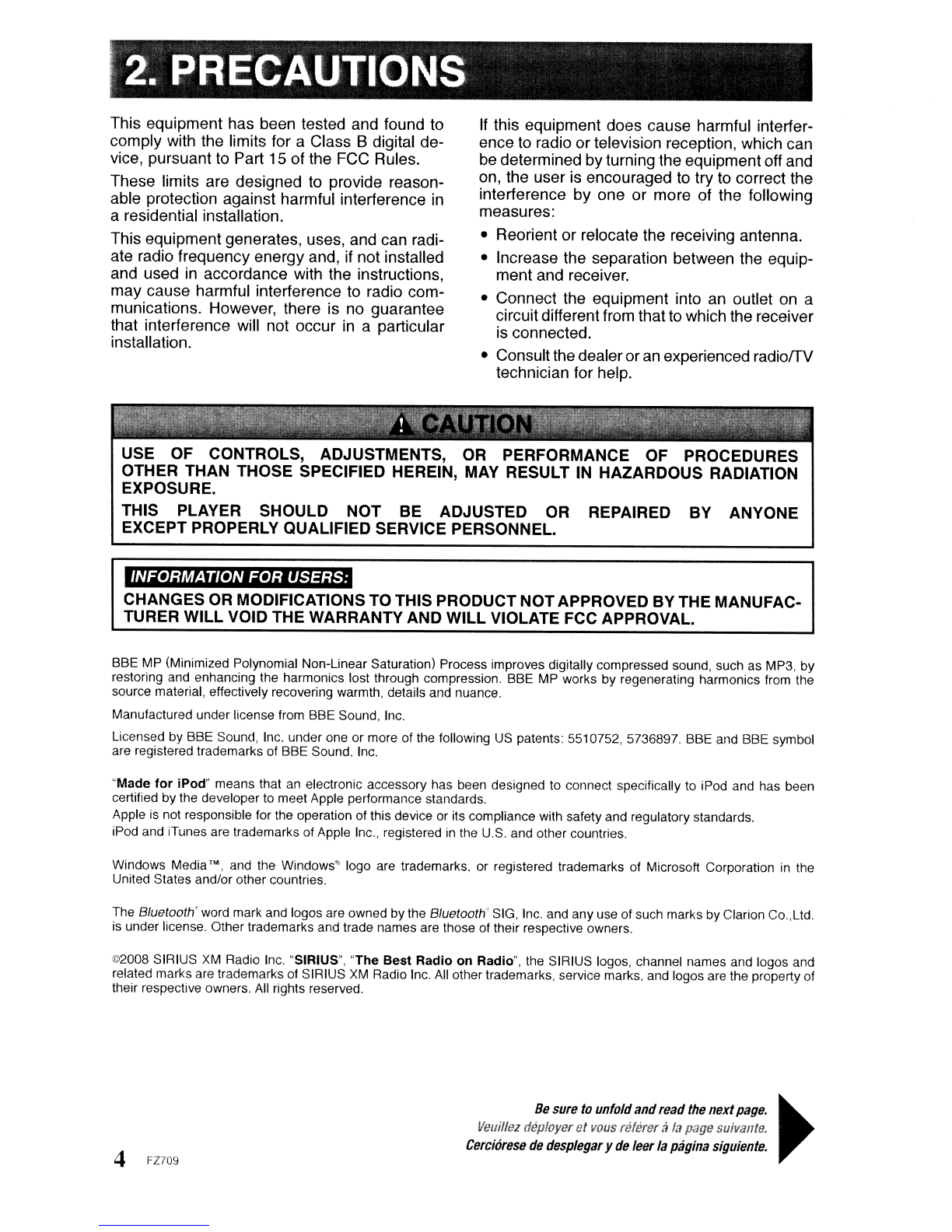

; 2. PRECAUTIONS
This equipment has been tested and found to
comply with the limits for aClass Bdigital de-
vice, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference
in
aresidential installation.
This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed
and used
in accordance with the instructions,
may cause harmful interference to radio com-
munications. However, there is no guarantee
that interference will not occur
in aparticular
installation.
If this equipment does cause harmful interfer-
ence to radio or television reception, which can
be determined by turning the equipment off and
on, the user is encouraged
to try to correct the
interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equip-
ment and receiver.
•Connect the equipment into
an outlet on a
circuit differentfrom that
to which the receiver
is connected.
•Consult the dealeror
an experienced radiofTV
technician for help.
USE OF CONTROLS, ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN,
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THIS PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS TO THIS PRODUCT NOTAPPROVED BY THE MANUFAC-
TURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.
SSE MP (Minimized Polynomial Non-Linear Saturation) Process improves digitally compressed sound, such as MP3, by
restoring and enhancing the harmonics lost through compression. SSE MP works by regenerating harmonics from the
source material, effectively recovering warmth, details and nuance.
Manufactured under license from SSE Sound, Inc.
Licensed by SSE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. SSE and SSE symbol
are registered trademarks of SSE Sound. Inc.
"Made
for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been
certified by the developer to meet Apple performance standards.
Apple
is not responsible for the operation of this device or its compliance with safety and regulatory standards.
iPod and iTunes are trademarks of Apple Inc., registered
in the U.S. and other countries.
Windows Media
TM, and the Windows'!- logo are trademarks. or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
The Bluetooth' word mark and logos are owned by the Bluetooth' SIG, Inc. and any use of such marks by Clarion Co.,Ltd.
is under license. Other trademarks and trade names are those of their respective owners.
©2008 SIRIUS
XM Radio Inc. "SIRIUS", "The Best Radio on Radio", the SIRIUS logos, channel names and logos and
related marks are trademarks of SIRIUS
XM Radio Inc. All other trademarks, service marks. and logos are the property of
their respective owners.
All rights reserved.
4FZ709
Be sure to unfold and read the next page. ~
Veuillez deployer et vous referer a la page suivante.
Cerciorese de desplegar y de leer la p;igina siguiente.

3. CONTROLSI LES COMMANDESI
CONTROlll
MAIN UNITIAPPAREIL PRINCIPAL I
APPARECCHIO PRINCIPALE
[ ell} ]
[.2] ~-:ii-
[<]/ [>]
[ ~]
MODEL
FZ709
clarion
12V =15A max
AM 530-1710kHzl FM 87.9-107.9MHz
FCC 10: Q2ZFZ709
THIS DEVICE COMPLIES WITH PART' 5 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(I) THIS DEVICE M,W NOT CAUSE HARMFUL INTERFERENCE. AND
(2)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED.
INCI.UDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
IC: 419D-FZ709
THIS CLASS BDIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CETAPPAREIL NUMERIQVE DE LACLASSE
BEST CONFORME ALA NORME
NMB·003 DU CANADA.
FUSE RATING:
15A 32VOC
MANUFACTURED: CL'IRION MALAYSIA D
SERIAl-No.
PE-8502B
276~0520-00
Clarion C.o .. Ltd.
MADE
IN MALAYSIA
Bottom View of Source Unit
Vue
de I'appareil Pilote Par Dessous
Vista Inferior de la Unidad Fuente
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Rell1arque: Veuillez deplier cette page Elt vous ref(ner <lUX schemas quand vous lisen chaquEl chapitre.
Nota: Assicurarsi di aprire questa pagina e fare riferimento aquesti diagrammi quando si legge ciascun capitola.
5FZ709

,4. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter "3. CONTROLS" on page 5.
Names of the Keys and Their Functions
L£] key ~
•Touch the l.~J key to power on the unit.
•Touch and hold the key for 1second or longer
to turn off the power.
•Switch to Source menu.
[.,))] key
•RecalliSR radio station in memory.
•Touch and hold the key for 2seconds or longer:
Store current station into ISR memory (Radio
mode only).
[iii] key
•Switch to ADJ menu.
LS'J key
•Switch Title display.
•Touch and hold the key for 1second or longer
to switch the display layout (Title mode ~
Indicator mode ~ Clock).
[<]1[>] key
•Seek astation while in the Radio mode.
•Select atrack while in the USB mode.
•Touch and hold the key for 1second orlongerto
enter the Fast-forward or Fast backward mode
while in USB mode.
[II] key
•Switch the band, or seek tuning or manual tuning
while in the Radio mode.
•Switch to List Search, orTop folder while in the
USB mode.
• Switch between last menu level and Play
display, or Top iPod menu while in the iPod
mode.
6FZ709
[
~II ]k
MUTEENT ey
•Play or pause atrack while in the USB mode.
•Toggle Mute on/off while in the Radio mode.
•Touch and hold the key for 2seconds or longer
to memory new value during setting mode.
•Dial the selected phone number thorugh call
method.
[ V~L ]slider
•Adjust the volume.
/\
[S~RL] slider
•Select astation while in the Radio mode.
•Select the folder while in the USB mode.
•End acall or reject an incoming call.
•This key is used to make various settings.
USB PORT
• USB memory device insertion port (at rear
panel).
AUX input
•The inputjack for connecting an external device
(at rear panel).

Slider's Key Operation
•Slide
•Touch &hold slider [+] will
increase volume continu-
osly.
•Touch and release [+] once
will increase the volume
1step.
•Touch &hold slider [- ] will
decrease volume continu-
osly.
•Touch and release [-] once
will decrease the volume
1step.
•Touch &hold [1\] will to scroll
up items continuosly.
•Touch and release [1\] once
will scroll up items 1step.
•Touch &hold [V] will to scroll
down items continuosly.
•Touch and release [V] once
will scroll down items 1
step.
FZ709 7

Display Items
Title display
Trick Play indication
USB
K"'ti ~. :Scan play
.:~ :J. :Repeat play
• :a I] ~. :Random play
r:'IO"'t1ll ~I :All scan play
r:w:a::i. :All repeat play
r:'l :a I] ~I :All random play
iPod
.SI::i_SlI]~1 :Repeat/Random play
.SI::inSlI]~1 :Repeat/All Random play
:
::=SI:I]~~I :Random play
:.SlI]~1 :All Random play
Function display
IYIP:I :MP3 indication
lUl'I1f1 :WMA indication
RRe :AAC indication
Radio mode :Band/Preset no.
Satellite mode: Band/Channel no.
USB mode :Mode name/Folder no.!
Track no.!Playback time
:Mode namelTrack no.!
Playback time (iPod mode)
Adjust mode :Previous layer/Current item
BT Audio mode
Telephone mode
ISR mode
AUX mode
Operation
status
indication
'To111I :Mobile phone's network signal
indication
(IJJJJ: Mobile phone's battery
indication
:t- : BJuetootH~ connection indication
Source icon
Radio mode
C<SJ» :Stereo indication
MRNIJ :Manual indication
FI §j :Auto store indication
SeN :Scan indication
OEl Screen
Sound mode
"'-Ei :MAGNA BASS EX indication
EiI:G! :Beat EO indication
1,",Lq. =t :MUTE indication
I'5AT :Satellite indication
,11'9. :Category indication
liII i • :Channel indication
The organic electro-luminescence display (GEL Display) of this product is made by high technology
basis.
However, it is possible that there might be part of the pixels which is always lighting or not lightning.
Sometimes unevenness of color and brightness might be occurred depend on the point of view to watch
in acharacteristic.
Adescending line across the screen will be displayed regularly to prevent GEL Display burn-in.
Please note that these are not hardware/software failures as it happens to be the structure of the organic
electro-luminescence display.
8FZ709

5. REMOTE CONTROL
r 'K 'NDl
[SRC] ----:-1-:--:' Q! ~ II [BND]
• [~1I1
I~" ~~
, [I~"'l, [ ~~ ]
'-+:-:-~~
II':"'~ ~:"~~,:' ,
[MUTE]--*-E:) 0 G"'"--H11--[D'SP]
II MUTE./ ISR DISP
[lSR]J (II ~ ~S? II [ROM]
[SCN]~ PSI.. T_VlVT_' --+:---[RPT]
clarion
Inserting the Battery
1. Turn over the remote control unit and slide the
cover in the direction indicated by the arrow in
the illustration.
2. Insert the battery (CR202S) into the insertion
guides, with the printed side (+) facing
upwards.
3. Pressthe battery in the direction indicated bythe
arrow so that it slides into the compartment.
4. Replace the
cover and slide in until itclicks into
place.
Notes:
Misuse may result in rupture of the battery, producing
leakage of fluid and reSUlting in personal injury or
damage to surrounding materials. Always follow these
safety precautions:
•Use only the designated battery.
•When replacing the battery, insert properly, with
+/- polarities oriented correctly.
• Do not subject battery to heat, or dispose of in fire or
water.
Do not attempt to disassemble the battery.
•Dispose of used batteries properly.
FZ709 9

Functions of Remote Control Unit Buttons
[SRCI Press the button to power on.
Press and hold the button for 1second or longer: Power off.
Switch among radio, Satellite radio receiver, USB, BT Audio, AUX and iPod.
[BNO] Switch reception
band. Play the first track. iPod menu
Top play. No function.
[A], ['I
Increase and decrease volume (in all modes).
Move preset
[~"'I, [~~] channels up and
down.
Move tracks up and down.
Press and hold the button for 1second or
longer: Fast-forward/fast-backward.
Move tracks No function.
up and
down.
[~1I1
No function. Switch between playback and pause. No function.
[MUTE) Turn mute on and off.
Recall ISR radio station
in memory.
[lSR) Press and hold for 2seconds or longer: Store current station into ISR memory (Radio mode
only).
[OISP)
Switch among title Switch among title display.
display (Satellite
only).
No function.
Press and hold for 1second or longer: Switch among title display, indicator display and
clock display.
Preset scan. Scan play. No function.
No function.
Press and hold Press and hold
[SCN] the button for 2the button for 1
seconds or longer: second or longer to
Auto store. perform folder scan
play.
No function. Repeat play. Toggle repeat on/off. No function.
Press and hold the
[RPT] button for 1second
or longer to perform
folder repeat play.
No function. Random play. Random play.
No function.
Press and hold the Press and hold the
[ROM) button for 1second button for 1second
or longer to perform or longer to perform
folder random play. folder random play.
*Some of the corresponding buttons on the main unit and remote control unit have different functions.
* TVNTR is not supported in this model.
10 Fn09

~ 6. OPERATIONS
Basic Operations
Be sure to lower the volume before switching
off the unit power or the ignition key. The
unit remembers its last volume setting. If
you
switch the power off with the volume
up, when you
switch the power back on, the
sudden
loud volume may hurt your hearing
and damage
the unit.
Please operate
this unit by the finger. It is not
possible to operate it normally with gloves
worn.
Turning onloff the power
Note:
•
Be careful about using this unit for along time
without running
the engine. If you drain the car's
battery too
far, you may not be able to start the
engine and this can reduce the service life of the
battery.
n.
1. Touch the L~R] key to power on the unit.
2. The unit automatically remembers its last
Operation mode and will automatically switch
to display that mode.
n.
3. Touch and hold the [.~] key for 1second or
longer to turn off the power for the unit.
Note:
•System check
The first time this unit is turned on after the wire
connections are completed, it must
be checked
what equipment
is connected. When the power is
turned on, the "SYSTEM CHECK" appears in the
display. This unit will switch
to Radio mode after
system check.
Selecting a mode
1. Touch the [0 ]key to switch to Source menu.
.PWR
2. Touch the corresponding keybeside the Source
mode name to enter into desired mode.
3. There are 6selections in the Source menu:
Note:
Be sure to read this chapter referring to the
front diagrams
of chapter "3. CONTROLS" on
page 5.
* iPod can connect to this unit via USB SLOT.
*SIRIUS and XM mode only available when a
Satellite Radio Receiver
is connected through
the CeNET cable.
Adjusting the volullle
1. Slide up along the [ VOL] slider or touch the
[+]key to increases the volume.
2. Slide down along the [V~L] slider or touch the
[
-] key to decreases the volume.
*The volume level is from 0(minimum) to 33
(maximum).
Switching the title display
1. Touch the LE'p] key to switch the title display.
2. Each time you touch the l.E'p] key, the display
switches in the following order:
•Tuner/AUXlBTnmode
No Title display.
•SAT mode
CHANNEL (CATEGORY) ~ CATEGORY (TITLE)
~ TITLE (ARTIST) ~ ARTIST (RADIO TEXT)~
RADIO TEXT (CHANNEL)~
CHANNEL (CATEGORY)
•iPod mode
TRACK (ALBUM) ~ ALBUM (ARTIST) ~
ARTIST (TRACK) ~ TRACK (ALBUM)
•USB mode
ALBUM (TRACK) ~ ARTIST (TITLE) ~
ARTIST (TRACK) ~ FOLDER (TRACK) ~
FOLDER (TITLE) ~ ALBUM (TRACK)
TUNER
XM
RU)(
UEiB
SIRIUS
BTn
FZl09 11

Basic Operations
*Once selected, the preferred title display becomes
the display default. When afunction adjustment
such
as volume is made, the screen will momen-
tarily switch
to that function's display, then revert
back
to the preferred title display several seconds
after the adjustment.
"If the
key operation is performed with the screen
saver function on, the operation display corre-
sponding to
the key operation is shown for about
30 seconds and the display returns to the screen
saver display. For details, refer to the subsection
"Turning
the screen saver function on or off" in
section "Common Operations".
Switching the display layout
1. Touch the LEJpJ key for more than 1second to
switch display layout.
2. Each time you touch the l.EJpl key for more
than 1second, the display layout switches in
the following order:
Title mode ~ Indicator mode ~ Clock
Example: iPod
~
G123LlS67S90
&~ 8Abcdefgh ijk l
~---R-R-C----------
(Title mode)
~
&~
00 : 00 «E~===============»
~---R-R-C----------
(Indicator mode)
~
(Clock)
Sound adjustments
You can adjust asound effect or tone quality to
your preference.
To change sound setting
O. Touch the [Sll key to switch to ADJ menu.
8. Select "SOUND" in the menu to enter
Sound Adjustmen~ mode.
@). Slide along the [s~RLl slider or touch [ 1\ J/
[V 1key, the Sound Adjustment mode
changed as following order:
"BEAT EO" ~ ("BASS" ~ "MID" ~
"TREBLE")" ~ "BBE MP'''2 ~
"BALANCE" ~ "FADER" ~
"M-BEX" ~ "HPF" ~ "S-W LPF" ~
"S-W VOL" ~ "BEAT EO"...
Notes:
*1 :BASS/MIDfTREBLE are only available if
"CUSTOM"
is selected in "BEAT EO".
*2 :BBE MP is only available if "USB" is
selected in source mode and the "OUTPUT
FORM" is set to "DIGITAL". (Please refer to
page 25)
•Setting the BEAT EQ
This unit is provided with 4types of sound tone
effects stored in memory. Select the one you pre-
fer.
*The factory default setting is "OFF".
• CD. Select "BEAT EO".
.®. Touch [>1 key to enter detail setting stage.
• ® During detail sKtting stage, each time your
slide along
[S~L 1slider or touch [1\ J/ [ V1
key, the tone effect changes in the following
order:
"OFF" ~ "BASS BOOST' ~ "IMPACT'
~ "EXCITE" ~ "CUSTOM"
OFF :No sound effect
BASS BOOST: Bass emphasized
IMPACT :Bass and treble emphasized
EXCITE :Bass and treble emphasized
mid emphasized
CUSTOM :User custom
12 FZl09

Basic Operations
When "BASS BOOST"f'IMPACT"1
"EXCITE"
is set:
"BASS BOOST'f'IMPACT'f'EXCITE" will appear
after the "BEAT EQ" item in the sound Adjust-
ment mode.
• ®-eD Selectthe item and touch [>]keyto enter
detail setting stage.
/\
o-®-®. Slide along [SCRL] slider or touch [A]/[V]
key to adjust ttYe setting in the range of -3
to +3.
*The factory default setting is "0".
8-@-@. After completing settings, touch the [ENT]
key to return to the 1
5t
selected item.
When "CUSTOM" i~ set:
.®-<D. Slide along [S~RL] slider or touch [A]I[vl
key to select the "BASS", "MID" or "TRE-
BLE" mode to adjust.
• Adjusting the bass
This adjustment can be performed only when the
BEAT EQ is set to "CUSTOM".
• eD. Select "BASS".
• ®. Touch I>] key to enter detail setting stage.
~
: BASS ::> IT
MID •U
.@. Touch [< ]/[ >] key to select Gain("G"),
center frequency("F") or Qfactor("Q").
/\
• @. Slide along [ SCRL ]slider or touch [A ]/[ V]
key to adjust th~ value.
*The factory default setting:
G : "0" (Adjustment range: +7 to -7)
F : "50Hz" (Adjustment range: 50/100/200)
Q : "1.0" (Adjustment range: 0.7/1.0/1.4/2.0)
~
BRSS
~+ll [;i SO LiilO.7 rmi
::>
~
BRSS
~+ll [;i SO LiilO.7 rmi
<:::>
~
'~+ll [;i SO LiilO.7 rmi
<::
.®. After completing settings, touch the [ENT]
key to return to the 1
5t
selected item.
• Adjusting the mid
This adjustment can be performed only when the
BEAT EQ is set to "CUSTOM".
.eD Select "MID".
.®. Touch I>] key to enter detail setting stage.
~
-~
: m 10 .:> II
TREBLE • li
@)-@. Touch [<] I[ > ]key to select Gain("G"),
center frequency("F") or Qfactor("Q").
/\
.@ Slide along [ SCRL ]slider or touch [A ]/[ V]
key to adjust th~ value.
*The factory default setting:
G : "0" (Adjustment range: +7 to -7)
F : "500Hz" (Adjustment range: 500/1 k/2k)
Q : "1.0" (Adjustment range: 0.7/1.0/1.4/2.0)
FZl09 13

Basic Operations
~
hi 10
~+Lt [;iSOO ~O.7 rmi
:-:>
hi 10
~+Lt [;iSOO ~O.? rmi
<::-:>
hi 10
~+Lt c:iSOO ~O.7 rmi
<::
8-@. After completing settings, touch the [ENT]
key to return to the 1
51
selected item.
•Adjusting the treble
This adjustment can be performed only when the
BEAT EO is set to "CUSTOM".
8-<D Select "TREBLE".
8-®. Touch [>] key to enter detail setting stage.
~
: TREBLE : -:> II
BBE hiP • II
8-®. Touch [<] I[ >] key to select Gain("G"),
center frequency("F") or 0factor(liQ").
t<.
8-@ Slide along [ SCRL] slider or touch [;\]/[ V]
key to adjust th~ value.
*The factory default setting:
G : "0" (Adjustment range: +7 to -7)
F : "10kHz" (Adjustment range: 5k/10k/15k)
Q: "1.0" (Adjustment range: 0.7/1.0/1.4/2.0)
~
TREBLE
~+Lt c:i Sk ~O.7 mil
::>
~
TREBLE
~+Lt [;i Sk ~O .... mil
<::>
TREBLE
~+Lt [;i 5k ~O.? mil
<::
8-®. After completing settings, touch the [ENT]
key to return to the 1
51
selected item.
•Setting the BBE MP (Sound
Enhancement and Restoration
for
compressed audio files)
BBE MP (Minimized Polynomial Non-Linear Sat-
uration) Process improves digitally compressed
sound, such as MP3, by restoring and enhancing
the harmonics lost through compression. BBE
MP works by regenerating harmonics from the
source material, effectively recovering warmth,
detail and nuance.
*This function is effective for the audio files in the
USB/iPod mode, but it is ineffective for the video
in the USBliPod mode.
8-<D. Select "BBE MP".
8-®. Touch [>] key to enter detail setting stage.
/\
8-® Slide along [ SCRL ]slider or touch [;\ ]/[VJ
key to select th¥value in sequence of
"OFF"~"ON"
*The factory default setting is ·'OFF".
14 Fn09

Basic Operations
When "ON" is set:
8-®-CD· Touch [>] key to enter detail setting
stage. 1\
8-®-®· Slide along [S~RL] slider or touch [A]I[V]
key to select the value in sequence of
"HIGH" ~ "MID" ~ "LOW"
*The factory default setting is "MID".
8-@. After completing settings, touch the [ENT]
key to return to the 1
51
selected item.
• Adjusting the balance
8-CD· Select "BALANCE".
8-®. Touch [>] key to enter detail setting stage.
1\
8-® Slide along [ S~RL] slider or touch [A)I[ V ]
key to adjust the balance of the right and left
speakers.
*The factory default setting is "CENTER".
(Adjustment range: RIGHT 12
to LEFT 12)
&@. After completing settings, touch the [ENT]
key to return to the 1
51
selected item.
• Adjusting the fader
&CD. Select "FADER".
8-@. Touch [>] key to enter detail setting stage.
1\
8-® Slide along [ S~RL] slider or touch [A ]/[ V]
keyto adjustthe balance ofthe rear and front
speakers.
*The factory default setting is "CENTER".
(Adjustment range: FRONT 12 to REAR 12)
8-@. After completing settings, touch the [ENT]
key to return to the 1
51
selected item.
• Adjusting the M-BEX
&CD Select "M-BEX".
8-®. Touch [>] keY}El enter detail setting stage.
&® Slide along [ S~RL ]slider or touch [A ]/[ V]
key to turn on or turn off the MAGNA BASS
EXTEND effect.
*The factory default setting is "OFF".
(Adjustment range: ON/OFF)
8-@. After completing settings, touch the [ENT]
key to return to the 1
51
selected item.
• Adjusting the high pass filter
8-CD· Select "HPF".
8-®. Touch [>] key to enter detail setting stage.
1\
8-®. Slide along [ SCRL ]slider or touch [A]I[ V ]
key to select th~ setting in sequence
"60"
~ "90" ~ "120" ~ "THROUGH"
*The factory default setting is "THROUGH".
* This is supported only with amplifiers
equipped with this function. Output is not
supported from RCA cables.
•Setting the subwoofer
You can set the low pass filter of subwoofer.
8-CD. Select "S-W LPF".
8-®. Touch [>] key to enter detail setting stage.
1\
8-®. Slide along [ SCRL ]slider or touch [A ]/[V ]
key to select
th~ setting in sequence
"THROUGH" ~ "60" ~ "90" ~ "120"
*The factory default setting is "THROUGH".
• Adjusting the subwoofer output
volume
You can adjust the volume output from the unit's
subwoofer output terminal.
This adjustment can be performed only when the
"S-W LPF" is set to "60", "90"
or "120".
8-CD Select "S-W VOL".
8-®. Touch [>] key W enter detail setting stage.
8-®. Slide along [
S~RL ]slider or touch [A ]/[ V]
key to increases or decreasesthe subwoofer
volume.
*The factory default setting is "0".
(Adjustment range: +6
to -6)
*When the volume level is more than 30, the
subwoofer volume adjustment value can not
reach +6.
Note:
•During SOUND Adjustment mode, if no operation
is performed for more than 10 seconds, this mode
can be cancelled and return
to previous mode.
FZl09 15

Radio Mode Operations
Listening to the radio
1. Touch the [ 0] key to switch to Source menu.
.PWR
2. Select 'TUNER" to enter Radio mode.
3. To select apreset band, touch the [ 1&] key and
then select one of the preset bands such as
FM1, FM2, FM3 or AM1.
Every time the [II] key is touched, the band
switches in the following order:
FM1~FM2 ~ FM3~ AM1~FM1 ...
4. Touch the [< ]/[ >]key to tune in the desired
station.
Tuning
There are 3types of tuning mode available. seek
tuning, manual tuning and preset tuning.
Seek tuning
1. Touch the ['I] key and select the desired band
(FM or AM).
'" If MRI\IU is lit in the display, touch and hold the
[II] key for 1second or longer. MRI\IU in the
display goes off and seek tuning is now avail-
able.
2. Touch the [< ]It >] key to start automatic sta-
tion tuning.
When the [>] key is touched, the station is
sought in the direction of higher frequencies;
if the [ <] key is touched, the station is sought
in the direction of lower frequencies.
Manual tuning
There are 2ways available:
Quick tuning and step tuning.
When you are in the step Tuning mode, the fre-
quency changes one step at atime. In the Quick
Tuning mode, you can quickly tune the desired
frequency.
1. Touch the [II] key and select the desired band
(FM or AM).
* If MRI\IU is not lit in the display, touch and hold
the ['I] key for 1second or longer. MRNU is lit
in the display and manual tuning is now avail-
able.
2. Tune into astation.
•Quick tuning
Touch and hold the [ <] / [>] key for 1second or
longer to begin station tuning.
•Step tuning
Touch the [ <] /[ >]key to perform manual tun-
ing.
Radio function
You need to enter the TUNER OPTION to per-
form the Radio function.
TUNER OPTION
O. During Tuner mode, touch the [a] key to
switch to ADJ menu.
8. Select "OPTION" in the menu to enter
Tuner Option ~ode.
8. Slide along [S~L] slider or touch [A]/[V]
key, the TUNEti OPTION mode changed
as following order:
"P.CH MEMORY" ~ "PRESET SCAN"
~ "AUTO STORE" ~ "TITLE INPUT'
~ "P.CH MEMORY" ...
•Preset memory function
Preset memory function can store up to 24 sta-
tions: Six stations for each of FM1, FM2, FM3,
and AM1.
•Manual memory function
8-CD· Select "P.CH MEMORY".
8-® Touch [>] key to enter detail setting stage.
1\
8-®. ;~~~oa~~7~c~ ~~:L ~r~~~~~~~~~~~~~~~~~~
be stored.
8-@. Touch [ENT) key for 2seconds to store the
frequency into the selected preset channel.
8-®. "MEMORY" is displayed for 2seconds before
revert to main display.
16 Fn09

Radio Mode Operations
•Preset scan
Preset scan receives the stations stored in pre-
set memory in order. This function is useful when
searching for adesired station in memory.
8-CD· Select "PRESET SCAN".
8-®. Touch [ENT] key to start scan preset chan-
nel.
8-@ When adesired station is tuned in, touch
the [<]I[ >] key to continue receiving that
station.
• Auto store
Auto store is afunction for storing upto 6stations
that are automatically tuned in sequentially. If 6
receivable stations cannot be received, aprevi-
ously stored station remains un-overwritten at
the memory position.
8-CD. Select "AUTO STORE".
8-®. Touch [ENT] key to start performing auto
store function.
8-@. The stations with good reception are stored
automatically to the preset channels.
* If auto store is performed in the FM bands,
the stations are stored in FM3 even if FM 1or
FM2 was chosen for storing stations.
*"AUTO STORE" will appears in the display.
~
: AUTO STORE :mn II
TITLE I NPUT ~ II
~
RUTO STORE
~ P 1 1 00 . oomHz
--------------
AS
Recalling apreset station
Atotal of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM1) exists to store individual radio sta-
tions in memory.
1. Touch the [1I]l\key to select the desired band.
2. Slide along [S~RL] slider or touch [I\]J[V] key
to select the desired preset station.
3. Touch [ENT] key to recall the stored radio
frequency.
Entering titles
Titles up to 10 characters long can be stored in
memory and displayed for Radio stations.
8-CD· Select "TITLE INPUT'.
8-®. Touch [>] key to enter detail setting stage.
8-@. Touch [ <] I [> ]key to move the cursor.
8-@. Slide along [ Se&L ]slider or touch [1\ ]/[ V ]
key to input the text.
8-@. Touch and hold the [ENT] key for 2seconds
or longer to store the title into memory.
*Entered titles will be deleted when back up
power is disconnected.
Instant station recall (lSR)
Instant station recall is aspecial radio preset that
instantly accesses afavorite radio station at a
touch of akey. The ISR function even operates
with the unit in other modes.
•ISR memory
1. Select the station that you wish to store in ISR
memory.
2. Touch and hold the [.t)] key for 2seconds.
•Recalling a station with ISR
In any mode, touch the [.tl)] key to turn on the
radio function and tune the selected radio sta-
tion.Touch the [ .t) ]key again to return to the
previous mode.
FZl09 17

USB Operations
USB memory device operation
About USB memory
•USB is an acronym for Universal Serial Bus, and
refers to an external bus standard supporting
data transfer rates of 12 Mbps.
•This unit is compatible with USB 1.1/2.0 with
maximum data transfer rates of 12 Mbps.
•USB memory devices that can be played by
connecting to the unit's USB cable are limited
to those recognized as "USB mass storage
class devices"; operation is not guaranteed
with all USB memory devices.
'" Devices compatible with "USB Mass Storage
Class" can be used merely by connecting to the
host device, without need for special drivers or
application software.
•Consult the manufacturerof your USB memory
device for information regarding whether it
is supported by "USB Mass Storage Class"
standards.
•Audio files playable on this unit are limited to
MP3IWMAlAAC files.
• To prevent the accidental loss of data, always
back up important data on your computer.
•This unitdoes not supportconnectionsto acom-
puter. In addition, connections made through a
USB hub device are also not supported.
•When aUSB memory device is composed of
two or more drives, only one of the drives will
be detected.
•USB memory devices with security functions
cannot be played.
•The order in which tracks are recorded maydif-
fer depending on the USB memorydevice con-
nected (the actual playback order may not be
the same as that indicated on your computer's
display).
•If you continuously operate folder up/down, the
play time keeps as "00:00", and the sound is
not emitted.
What is MP3?
MP3 is an audio compression method and clas-
sified into audio layer 3of MPEG standards. This
audio compression method has penetrated into
PC users and become astandard format. This
MP3 features the original audio data compres-
sion to about 10 percent of its initial size with a
high sound quality. This means that several mu-
sic CDs can be recorded on aUSB memory de-
vice to allow along listening time"'.
'" Depends on the USB memory device storage
capacity.
What is WMA?
WMA is the abbreviation of Windows Media Au-
dio, an audio file format developed by Microsoft
Corporation.
Notes:
• If you playa file with DRM (Digital Rights Manage-
ment) for WMA remaining ON, no audio is output
(The u __ : __ " and WI'I'IA indicator blinks for 5seconds
and go to next track).
•Windows Media"', and the Windows' logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
• To disable DRM
(Digital Rights Management)
1. When using Windows Media Player 9/10/11,
click on TOOL ~ OPTIONS ~ MUSIC RE-
CORD tab, then under Recording settings, un-
clickthe check box for RECORD PROTECTED
MUSIC. Then, reconstruct files.
Personally constructed WMA files are used at
your own responsibility.
18 Fn09

USB Operations
What isAAC?
•AAC is an acronym for "Advanced Audio
Coding" and refers to the audio compression
method used with video compression standards
MPEG-2 and MPEG-4.
•AAC files composed with the following condi-
tions can be played:
•AAC files encoded with iTunes.
•iTunes
Ver. 7.0 or earlier.
•File extension ".m4a" (".M4A")
•Tracks purchased at an iTunes Store, and
copyright-protected files cannot be played.
•When playingAAC files that include image data,
additional time may
be required before playback
begins.
•Files may not play properly, depending on the
iTunes version under which
an AAC file is en-
coded.
Precautions when creating MP31
WMAlAAC file
•Usable sampling rates and bit rates
See "USB" (page 42) for details.
•File extensions
1. Always add afile extension ".MP3", ".WMA"
or ".M4A" to MP3, WMA or AAC file by using
single byte letters. If you add afile extension
other than specified or forget to add the file
extension, the file cannot be played.
2. Files without MP3IWMA/AACdata will not play.
The indication "NO FILE" appears in the play
time display if you attempt to play files without
MP3IWMA/AAC data.
'" When VBR files are played, the play time display
may differ the play location.
* When MP3IWMA/AAC files are played, alittle
no sound part is caused between tunes.
•Logical format (File system)
1. When writing MP3/WMA/AAC file, please
select "FAT12", "FAT16" or "FAT32" as the
file system format. Normal play may not be
possible if the files are recorded on another
format.
2. The folder name and file name can be dis-
played as the title during MP3/WMA/AAC
play but the title must be within 64 single byte
alphabetical letters and numerals (including
an
extension).
3. Do not affix aname to afile inside afolder
having the same name.
Note:
•
File names in small letters with less than 8charac-
ters (not
inclUding file extension) will be displayed
in capital letters.
•Folder structure
1. AUSB with afolder having more than 8hier-
archicallevels will
be impossible.
•Number of files or folders
1. Up to 255 files per folder can be recognized.
Up to 512 folders can be recognized and up
to total of 130560 files can played.
2. Tracks are played in the order that they were
recorded onto aUSB. (Tracks might not always
be played
in the order displayed on the PC.)
3. Some noise may occur depending on the type
of encoder software used while recording.
•
Insert and remove aUSB memory device
only when the device is not being accessed.
Connecting or disconnecting the device at
the following times may result in the loss of
data:
-
If the USB memory device is removed or
power is disconnected during writing to
the device.
-
When the device is subjected to static
electricity or electric noise.
•Do
not leave aUSB memory device unat-
tended in an automobile. Exposure to direct
sunlight or high temperatures may cause
deformation or other malfunction of the USB
memory device.
Fl109 19

USB Operations
Connecting aUSB
memory device
1. Connect the USB memory device to the USB
slot.
Playback will begin from the first file recorded
on the device. r"l!
,~ If the device is not recognized, touch the [ IV]
key to switch to the Source menu and s~~ct
the source to the device.
'" Always insert the device fully into the connector.
Incomplete connections may cause the device
not to be recognized.
*Depending on the number of tracks recorded,
some amount of time may be required until all
tracks are read into the unit.
*The order in which tracks are recorded may
differ depending on the device connected (the
actual playback order may not be the same as
that indicated on your computer's display).
To listen to tracks on aconnected
USB
memorx device
1. Touch the [IV ]key to switch to the Source
menu and ·se1ect the "USB". When USB
memory device is selected, playback (except
DRMfiles) will begin from the location at which
playback was previously stopped.
*When aUSB memory device is connected the
USB mode will be displayed.
,; When aUSB memory device is disconnected
and then reconnected, playback will begin
from the previous position where playback is
stopped.
*When aUSB memory device is disconnected
and then adifferent USB memory device is
connected, playback will begin from the first file
recorded on the device.
To stop pla~
1. Touch the [ IV] key and switch the function to
asource otner than the USB memory device.
Do not remove the USB memory device when
the
USB mode is selected, since it may result
in
loss or damage to data on the USB memory
device.
Always backup and save
important data on
your computer.
2. Remove the USBmemorydevicefrom the USB
slot.
Pausing pial
1. Touch the [ II] keyto pause play. "PAUSE"
rrl'::'TE Et{T
appears in tne display.
2. To resume play, touch the Lu'::I~NT] key again.
Selecting a track
•Track-up
1. Touch the [ >] key to move to the beginning
of the next track.
2. Each time the [>]key is touched, playback
proceeds to another track in the advancing
direction.
•Track-down
1. Touch the [ <] key to move to the beginning
of the current track.
2. Touch the [<] keytwice to movetothe begin-
ning of the previous track.
Fast-forward/fast-backward
•Fast-forward
Touch and hold the [>]key for 1second or lon-
ger.
•Fast-backward
Touch and hold the [ <] key for 1second or lon-
ger.
Top function
Touch the [rei] key for 1second or longer, then
the USB memory device will start playing the first
track of current folder.
20 Fn09
