This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Cet appareil a été testé et jugé conforme aux limites des appareils numériques de Classe B, aux
termes de la Section 15 des Règlements FCC.
Ces limites ont pour but d’assurer une protection raisonnable contre les interférences parasites
dans une installation résidentielle.
Cet appareil engendre, utilise et peut émettre une énergie radioélectrique et, s’il n’est pas installé
et utilisé en stricte conformité avec ces instructions, il peut provoquer des interférences parasites
sur les liaisons radiophoniques. Ceci ne garantit par pour autant qu’une installation particulière ne
provoquera aucune interférence.
Si l’appareil engendre des interférences sur la réception des ondes radio ou de télévision, ce qui
peut être vérifié en mettant l’appareil hors tension puis sous tension, l’utilisateur est invité à
consulter son revendeur ou un technicien exprimenté en radio/télévision pour lui demander conseil.
Este equipo ha sido probado y se ha comprobado que cumple con los límites de un dispositivo
digital de clase B, según lo indicado en la Parte 15 de las Normas de FCC.
Estos límites se han establecido para ofrecer una protección razonable contra interferencias
perjudiciales en instalaciones residenciales.
Este equipo genera, emplea, y puede radiar energía de radiofrecuencia y, si no se instala y emplea
de acuerdo con las instrucciones, puede causar interferencias perjudiciales en las
radiocomunicaciones. Sin embargo, no se garantiza que las interferencias no ocurran en una
instalación en particular.
Si este equipo causa interferencias perjudiciales en la recepción de radio o de televisión, lo cual
podrá determinarse conectando y desconectando la alimentación del equipo, se aconseja al
usuario que consulte al abastecedor o que pida ayuda a un técnico en radio/televisión
experimentado.
Bottom View of Source Unit
Fond de l’appareil pilote
Vista inferior de la unidad fuent
e
Be sure to unfold and read the next page.
Veuillez déplier et vous référer à la page suivante.
Cerciórese de desplegar y de leer la página siguiente.
DXZ775USB
Owner’s manual
Mode d’emploi
Manual de instrucciones
CD/USB/MP3/WMA/AAC RECEIVER WITH CeNET CONTROL
AUTORADIO CD/USB/MP3/WMA / AVEC COMMANDE CeNET
RECEPTOR DE CD/USB/MP3/WMA/AAC CON CONTROL CeNET
Clarion Co., Ltd.
All Rights Reserved. Copyright © 2006: Clarion Co., Ltd.
Printed in China / Imprimé en Chine / Impreso en China
2006/12
PE-2899B
280-8465-00
DXZ775USB_cover.fm 1 ページ ２００６年１２月２５日 月曜日 午前１１時３６分

Français EspañolEnglish
English Français
ii
DXZ775USB
iii
DXZ775USB
133
DXZ775USB
Español
CONTROLS / LES COMMANDES / CONTROLES
[ ENT]
[ISR]
[IR RECEIVER]
[SRC]
[RELEASE]
[TITLE]
[VOL][P.CH]
[OPTION]
[] (EJECT)
[ ] (MUTE)
[MENU]
[] (SOUND)
[SEEK PANEL]
Source unit / Appareil pilote / Unidad fuente
With the MOTORIZED FACE opened/ Ouvrez la FACE MOTORISÉE
Apertura del FRONTAL MOTORIZADO
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
[CD SLOT]
CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of a Clarion mobile electronic products. We are
confident that you’ll enjoy your Clarion experience.
There are many benefits to registering your product. We invite you to visit our website at
www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registration
form is short and easy to complete. Once you’re registered, we can keep you informed of
important product information.
Register at www.clarion.com - it’s easy to keep your Clarion product up to date.
INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION
Pour les Étas Unis et le Canada seulement
www.clarion.com
Cher client:
Nous vous remercions d’avoir acheté ce produit électronique mobile Clarion. Nous
sommes confiants que vous apprécierez votre expérience Clarion.
Il y a beaucoup d’avantage à enregistrer votre produits. Nous vous invitons à visiter notre
site Web www.clarion.com pour enregistrer votre produit Clarion.
Nous avons facilité la tache d’enregistrement de produit simple et facile grâce à notre
site Web. Le formulaire d’enregistrement est court et facile à compléter. Lorsque vous
êtes enregistrer, nous pouvons vous tenir informé des informations important de produits.
Enregistrer à www.clarion.com - c’est facile de mettre à jour votre produit Clarion.
INFORMACIÓN DEL REGISTRO DE PRODUCTO DE CLARION
Para USA y Canada nomas
www.clarion.com
Querido Cliente:
Felicitaciones por su compra de producto electrónico móvil de Clarion. Estamos seguros
que usted gozará de su experiencia con el producto de Clarion.
Hay muchas ventajas al registrar su producto. Le invitamos a que visite nuestro sitio en
internet www.clarion.com para registrar su producto de Clarion.
Hemos hecho el registro de producto fácil en nuestro sitio. La forma de registro es corta
y fácil de completar. Una vez que lo registre, podremos proporcionarle la información de
su producto.
Registrese en www.clarion.com - es fácil mantener su producto de Clarion actualizado.
DXZ775USB_cover.fm 2 ページ ２００６年１２月２５日 月曜日 午前１１時３６分

English
1DXZ775USB
Thank you for purchasing this Clarion product.
∗Please read this owner’s manual in its entirety before operating this equipment.
∗After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗Check the contents of the enclosed warranty card and keep it carefully with this manual.
∗This manual includes the operating procedures of the iPod®interface, CD/DVD changer, Satellite
Radio Receiver and TV tuner connected via the CeNET cable. The iPod interface, CD/DVD changer
and TV tuner have their own manuals, but no explanations for operating them are described.
“iPod” is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
Contents
CONTROLS............................................................................................................................................ ii
1. FEATURES...................................................................................................................................... 1
2. PRECAUTIONS ............................................................................................................................... 2
Motorized Face................................................................................................................................. 2
Handling Compact Discs.................................................................................................................. 3
3. NOMENCLATURE........................................................................................................................... 4
Names of the Buttons and Their Functions...................................................................................... 4
Display Items.................................................................................................................................... 5
LCD Screen...................................................................................................................................... 5
4. DCP.................................................................................................................................................. 6
5. REMOTE CONTROL ....................................................................................................................... 7
Inserting the Battery ......................................................................................................................... 7
Functions of Remote Control Unit Buttons....................................................................................... 8
6. OPERATIONS................................................................................................................................ 10
Basic Operations............................................................................................................................ 10
Radio Operations ........................................................................................................................... 20
CD/MP3/WMA/AAC Operations..................................................................................................... 22
Operations Common to Each Mode............................................................................................... 26
7. OPERATIONS OF ACCESSORIES .............................................................................................. 30
USB Operations ............................................................................................................................. 30
iPod BB Operations........................................................................................................................ 32
Satellite Radio Operations.............................................................................................................. 34
CD Changer Operations................................................................................................................. 36
DVD Changer Operations .............................................................................................................. 38
TV Operations ................................................................................................................................ 39
8. IN CASE OF DIFFICULTY............................................................................................................. 40
9. ERROR DISPLAYS ....................................................................................................................... 42
10. SPECIFICATIONS ......................................................................................................................... 43
• Digital Time Alignment Control with 3-way Crossover
• Motorized Full Dot LCD with SLIDETRAK
• 6ch/6V RCA Output / 53W X 4 Built-in MOSFET Amplifier
1. FEATURES
DXZ775USB_EN.book 1 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
2
DXZ775USB
2. PRECAUTIONS
1. When the inside of the car is very cold and
the player is used soon after switching on the
heater moisture may form on the disc or the
optical parts of the player and proper
playback may not be possible. If moisture
forms on the disc, wipe it off with a soft cloth.
If moisture forms on the optical parts of the
player, do not use the player for about one
hour. The condensation will disappear
naturally allowing normal operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
3. This unit uses a precision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
CAUTION
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT
BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE
PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.

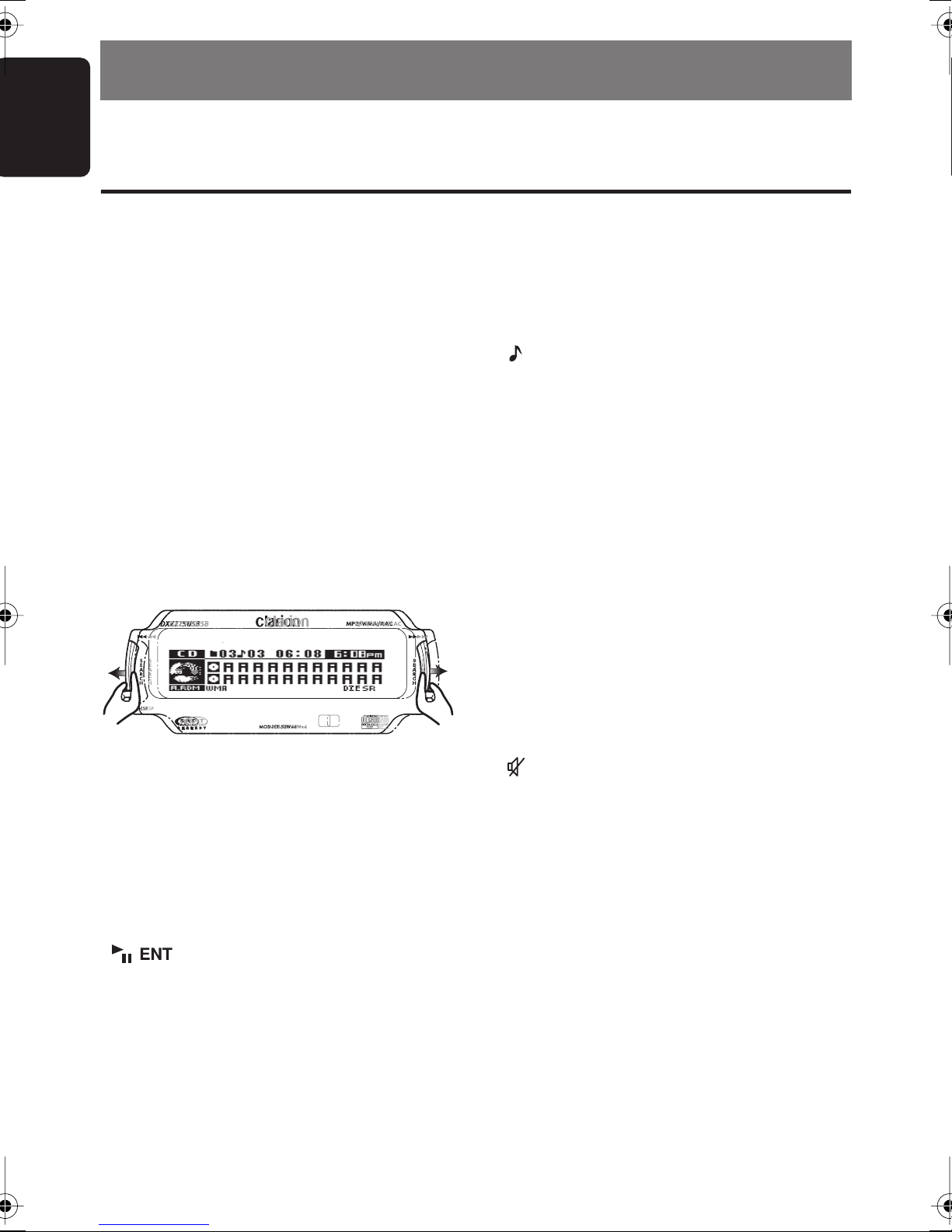

Motorized Face
This unit uses motorized face to make large-screen displays possible.
When you use the motorized face, be sure to close it.
CAUTION
BE CAREFUL NOT TO GET YOUR FINGERS
CAUGHT WHEN OPENING AND CLOSING
THE MOTORIZED FACE.
1. For safety’s sake, always close the
MOTORIZED FACE before leaving this unit
unused for a prolonged period or switching
OFF the ignition key.
If you switch OFF the ignition key with the
MOTORIZED FACE tilted, the MOTORIZED
FACE does not close.
2. Before the MOTORIZED FACE closes, there
may be a braking sound from the safety
mechanism. This is normal.
3. If you move the MOTORIZED FACE by
hand, this may create play. To correct this
play, with the power on for the unit, press the
[ Q ] button to close the MOTORIZED FACE.
4. After a disc is ejected, the MOTORIZED
FACE automatically returns to the tilted or
closed state. If there is any obstruction when
the MOTORIZED FACE tries to close, the
safety mechanism is triggered and the
MOTORIZED FACE returns to the open
state. If this happens, remove the
obstruction, then press the [ Q ] button.
5. To avoid scratching the compact disk, keep
the CD level when inserting or removing
them.
INFORMATION FOR USERS:
DXZ775USB_EN.book 2 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
3
DXZ775USB
Handling Compact Discs
Use only compact discs bearing the or
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded in CD-R/CD-RW mode
may not be usable.
Handling
• Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played.
Therefore, do not leave them for a long time
in the car.
• New discs may
have some
roughness
around the
edges. If such
discs are used,
the player may
not work or the
sound may skip. Use a ball-point pen or the
like to remove any roughness from the edge
of the disc.
• Never stick labels on the surface of the
compact disc or mark the surface with a
pencil or pen.
• Never play a compact disc with any
cellophane tape or other glue on it or with
peeling off marks. If you try to play such a
compact disc, you may not be able to get it
back out of the CD player or it may damage
the CD player.
• Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use
of such discs may cause misoperation or
damage.
• To remove a compact disc from its storage
case, press down on the center of the case
and lift the disc out, holding it carefully by the
edges.
• Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc
or cause breakdown of the internal
mechanism.
Storage
• Do not expose compact discs to direct
sunlight or any heat source.
• Do not expose compact discs to excess
humidity or dust.
• Do not expose compact discs to direct heat
from heaters.
Cleaning
• To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the
center of the compact disc to the
circumference.
• Do not use any solvents, such as
commercially available cleaners, anti-static
spray, or thinner to clean compact discs.
• After using special compact disc cleaner, let
the compact disc dry off well before playing it.
Ball-point pen
Roughness
DXZ775USB_EN.book 3 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
4
DXZ775USB
3. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “ CONTROLS ” on page ii (unfold).
Names of the Buttons and Their Functions
[RELEASE] button
• Deeply push in the button to unlock the DCP.
[SRC] button
• Press the button to turn on the power.
• Press and hold the button for 1 second or
longer to turn off the power.
• Switch the operation mode among the radio
mode, etc.
[OPTION] button
• Press the button to enter the option mode.
• Press and hold the button for 1 second or
longer to enter the adjust mode.
[SEEK PANEL]
• The [ SEEK PANEL ] allows the controls on
the ends to be moved to right or left to permit
station tuning (radio), track selection (CD),
and to perform various settings in the
adjustment mode.
[MENU] button
• Switch the band, or seek tuning or manual
tuning while in the radio mode.
•Press the button to enter the list search mode
while in the CD/MP3/WMA/AAC mode.
• Press and hold the button for 1 second or
longer to play the first track while in the CD/
MP3/WMA/AAC mode.
• Press the button to change the character.
[]button
• Play or pause a track while in the CD/MP3/
WMA/AAC mode.
• Press the button to enter the preset memory
mode (radio).
• Confirm various settings.
[P.CH] button
•Push the button upward or downward to recall
the stored station while in the radio mode.
•Select the folder while in the MP3/WMA/AAC
mode.
• Perform various settings.
[](SOUND) button
• Press the button to enter the sound mode.
• Press and hold the button for 1 second or
longer to enter the sound setting mode.
[ISR] button
• Recall ISR radio station in memory.
• Press and hold the button for 2 seconds or
longer: Store current station into ISR memory
(radio mode only).
[IR RECEIVER]
• Receiver for remote control unit. (Operating
range: 30° in all directions)
[TITLE] button
• Use the button to switch the user titles or
track titles, etc. while in the CD/MP3/WMA/
AAC mode.
• Press and hold the button to switch the
display indication (Action display, Title display
and Clock time display).
[](MUTE) button
• Turn mute on or off.
[ Q ] (EJECT) button
• Press to open the MOTORIZED FACE and
insert a CD into the CD SLOT.
• Press to eject a CD loaded in the unit.
[VOL] button
• Push the button upward or downward to
adjust the volume.
[CD SLOT]
• CD insertion slot.
DXZ775USB_EN.book 4 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
5
DXZ775USB
Display Items
LCD Screen
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.
• FM1-3, AM : Radio mode
• SR1-3 : Satellite radio mode (SIRIUS)
• XM1-3 : Satellite radio mode (XM)
• CD : CD/MP3/WMA/AAC mode
• USB : USB mode
• iPod : iPod BB mode
• CDC1-4 : CD changer mode
• DVDC1-4 : DVD changer mode
• TV1-2 : TV mode
• AUX : AUX mode
• TEL : Telephone mode
Source icon
Clock time
indication
Operation status indication
Titles indication
CH MODE : Channel mode indication
A.RDM
A.RPT
A.SCN
RDM
RPT
SCN
AS
: Disc/Folder random
: Disc/Folder repeat
: Disc/Folder scan
: Track random
: Track repeat
: Track/Preset/Service scan
: Auto store
ST : Stereo indication (radio only)
Source indication
• Radio mode: Preset No. / frequency
• CD mode : Track No. / playback time
• MP3/WMA/AAC mode
: Folder No. /track No. / playback time
• CD / DVD changer mode
: Disc No. / track No. / playback time
• TV mode : Preset No. / channel
(3 patterns)
MP3
WMA
CAT MODE
: MP3 indication
: WMA indication
: Category mode indication
SAT : Satellite indication
SR : Sound restorer indication
MANU : Manual indication
DZE : Digital Z-Enhancer indication
DXZ775USB_EN.book 5 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
6
DXZ775USB
4. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. With the MOTORIZED FACE closed, turn off
the power.
2. Press the [ RELEASE ] button deeply to open
the DCP.
3. Pull the DCP toward you and remove it.
CAUTION
• Always close the MOTORIZED FACE
before removing the DCP.
• If you remove the DCP with the
MOTORIZED FACE open, the MOTORIZED
FACE closes immediately. Be careful not
to get your fingers caught.
Attaching the DCP
1. Insert the DCP so that the A section on the
right side of the DCP catches on the hook B
on the unit.
2. Press the left side C of the DCP carefully to
fit it in place.
CAUTION
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• If the [RELEASE] button is pressed and
the DCP is not locked into place, it may fall
out from vibration of the car. This can
break the DCP, so after removing it, either
install it on the unit or put it in its DCP
case.
•The connector connecting the unit and the
DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, screwdrivers, etc.
Note:
•If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
[RELEASE] button
DCP
DXZ775USB_EN.book 6 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
7
DXZ775USB
5. REMOTE CONTROL
Inserting the Battery
1 Turn over the remote control unit and slide
the cover in the direction indicated by the
arrow in the illustration.
2 Insert the battery (CR2025) into the insertion
guides, with the printed side (+) facing
upwards.
3 Press the battery in the direction indicated by
the arrow so that it slides into the
compartment.
4 Replace the cover and slide in until it clicks
into place.
Notes:
Misuse may result in rupture of the battery,
producing leakage of fluid and resulting in personal
injury or damage to surrounding materials. Always
follow these safety precautions:
• Use only the designated battery.
• When replacing the battery, insert properly, with
+/– polarities oriented correctly.
•Do not subject battery to heat, or dispose of in fire
or water. Do not attempt to disassemble the
battery.
• Dispose of used batteries properly.
C
R
2
0
2
5
Insertion guide
DXZ775USB_EN.book 7 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
8
DXZ775USB
Functions of Remote Control Unit Buttons
∗ Some buttons on the remote control unit have different functions from the corresponding buttons on the main
unit.
● Shared modes
[SRC] button
• Press the button to turn on the power.
Press and hold the button for 1 second or
longer to turn off the power.
• Use to alternate operation mode among the
various modes.
[ w ], [ z ] buttons
• Increases and decreases volume.
[MUTE] button
• Turns mute function on and off.
[ISR] button
• Recalls ISR radio station stored in memory.
• Press and hold the button for 2 seconds or
longer to store current station in ISR memory
(radio mode only).
[DISP] button
• Press to alternate among action display, title
display and Clock time display, etc.
● Radio/Satellite Radio modes
[BND] button
• Switches reception band.
[ x ], [ v ] buttons
• Moves preset channels up and down.
[SCN] button
• Press to perform preset scan.
• Press and hold the button for 2 seconds or
longer to perform auto store.
• In the Satellite Radio mode, press once to
perform category scan; hold depressed for 1
second or longer to perform preset scan.
● CD/MP3/WMA/AAC and USB
modes
[BND] button
• Press to play the first track.
[ x ], [ v ] buttons
• Press to move the tracks up and down.
• Press and hold the button for 1 second or
longer to perform fast-forward/fast-backward.
[SRC][BND]
[MUTE]
[ISR]
[SCN]
[DISP]
[RDM]
[RPT]
Signal transmitter
DXZ775USB_EN.book 8 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Functions of Remote Control Unit Buttons
English
9
DXZ775USB
[]button
• Switches between playback and pause.
[SCN] button
• Press to perform scan play.
• When in MP3/WMA/AAC and USB modes,
press and hold the button for 1 second or
longer to perform folder scan play.
[RPT] button
• Press to perform repeat play.
• When in MP3/WMA/AAC and USB modes,
press and hold the button for 1 second or
longer to perform folder repeat play.
[RDM] button
• Press to perform random play.
• When in MP3/WMA/AAC and USB modes,
press and hold the button for 1 second or
longer to perform folder random play.
● CD changer/DVD changer modes
[BND] button
• Press to switch to next disc in ascending
order.
[ x ], [ v ] buttons
• Press to move the tracks up and down.
• Press and hold the button for 1 second or
longer to perform fast-forward/fast-backward.
[]button
• Switches between playback and pause.
[SCN] button
• Press to perform scan play.
• Press and hold the button for 1 second or
longer to perform disc scan play.
[RPT] button
• Press to perform repeat play.
• Press and hold the button for 1 second or
longer to perform disc repeat play.
[RDM] button
• Press to perform random play.
• Press and hold the button for 1 second or
longer to perform disc random play.
● iPod BB mode
[ x ], [ v ] buttons
• Press to move the tracks up and down.
• Press and hold the button for 1 second or
longer to perform fast-forward/fast-backward.
[]button
• Switches between playback and pause.
[RPT] button
• Press to perform repeat play.
• Press and hold the button for 1 second or
longer to perform all repeat play.
[RDM] button
• Press to perform random play.
• Press and hold the button for 1 second or
longer to perform all random play.
● TV mode
[BND] button
• Switches reception band.
[ x ], [ v ] buttons
• Moves preset channels up and down.
[SCN] button
• Press to perform preset scan.
• Press and hold the button for 2 seconds or
longer to perform auto store.
[RDM] button
• Press to alternate between TV and VTR.
DXZ775USB_EN.book 9 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

English
10
DXZ775USB
6. OPERATIONS
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “ CONTROLS ” on page ii (unfold).
Basic Operations
CAUTION
Be sure to lower the volume before
switching off the unit power or the ignition
key. The unit remembers its last volume
setting. If you switch the power off with the
volume up, when you switch the power back
on, the sudden loud volume may hurt your
hearing and damage the unit.
Selecting speaker system
When this product is turned on for the first time,
it allows you to select a speaker system.
Speaker system
● Normal speaker system (NORMAL)
● 3way speaker system (3WAY)
● 2way speaker system (2WAY)
1. Push the [ SEEK PANEL ] leftward or
rightward to select the setting.
Each time you push the [ SEEK PANEL ]
leftward or rightward, the setting change in
the following order:
“ NORMAL ” ↔ “ 3WAY ” ↔ “ 2WAY ” ↔
“ NORMAL ”...
2. Press the [ ] button.
3. Push the [ SEEK PANEL ] leftward or
rightward to select “ OK ” or “ CANCEL ”.
4. Press the [ ] button to store the
setting.
∗ Refer to the section “ Adjusting Sound Mode ”
(page 12) and “
Adjusting Sound Setting Mode ”
(page 16).
Note:
• The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power is
turned on, “
SYSTEM CHECK ” appears in the
display, then the unit returns to the selecting
speaker system.
System check function
If you change your speaker system while the
power of this unit is on, perform the System
check function to select the appropriate speaker
system again. See “ Performing a system
check ” (page 28) for details.
CAUTION
Select the speaker system suited to your
speaker configuration. Failing to do so can
damage your speakers.
Speaker
system Speaker configuration
NORMAL
(Normal) Front 2ch Rear 2ch Subwoofer 2ch
3WAY
(3way) High 2ch Mid 2ch Subwoofer 2ch
2WAY
(2way) High 2ch Mid 2ch Rear 2ch
Subwoofer
Front speaker
(left)
Front speaker
(right)
Rear speaker
(right)
Rear speaker
(left)
Subwoofer
Tweeter (left) Tweeter (right)
Front speaker
(left) Front speaker
(right)
Tweeter (left) Tweeter (right)
Front speaker
(left) Front speaker
(right)
Rear speaker
(ri
g
ht)
Rear speaker
(left)
DXZ775USB_EN.book 10 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
11
DXZ775USB
Turning on/off the power
Note:
• Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [ SRC ] button.
The mode that was previous active is
displayed.
2. Press and hold the [ SRC ] button for 1
second or longer to turn off the power for the
unit.
Selecting a mode
1. Press the [ SRC ] button to change the
operation mode.
2. Each time you press the [ SRC ] button, the
operation mode changes in the following
order:
Radio ➜ (Satellite radio) ➜ CD/MP3/WMA/
AAC ➜ USB ➜ (iPod BB) ➜ (CD changer) ➜
(DVD changer) ➜ (TV) ➜ AUX ➜ Radio...
∗ External equipment not connected with
CeNET is not displayed.
Adjusting the volume
1. Push the [ VOL ] button upward or downward
to adjust the volume.
∗ The volume level is from 0 (minimum) to 33
(maximum).
Switching the display
Press and hold the [ TITLE ] button for 1 second
or longer to select the desired display.
● When the power is turned on
1. Each time you press and hold the [ TITLE ]
button for 1 second or longer, the display
switches in the following order:
Action display ➜ Title display ➜ Clock time
display ➜ Action display...
● When the power is turned off
1. Each time you press the [ TITLE ] button, the
clock time appears or disappears in the
display.
Mute
Use this function to turn off the sound
immediately.
1. Press the [ ] button.
The sound turns off and “ MUTE ” blinks in the
display.
2. Press the [ ] button again to cancel the
mute mode.
DXZ775USB_EN.book 11 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
12
DXZ775USB
Adjusting Sound Mode
● Adjusting the subwoofer output
volume
You can adjust the volume output from the unit’s
subwoofer output terminal.
“ S-W VOLUME ” can be adjusted only when
“ SUB WOOFER ” is set to “ ST ” or “ MONO ”
(page 19).
2-1. Select the “ S-W VOLUME ”.
3-1. Push the [ P.CH ] button upward or
downward to change the output volume.
∗ The factory default setting is “ 0 ”.
(Setting range: +6 to –6)
● Setting the Digital Z-Enhancer
This unit are provided with 3 types of sound
tone effects stored in memory. Select the one
you prefer.
∗ The factory default setting is “ DZE OFF ”.
2-1. Select the “ DZE ”.
3-1. Press the [ ] button.
3-2. Push the [ SEEK PANEL ] leftward or
rightward to select the tone effect. Each
time you push the [ SEEK PANEL ], the tone
effect changes in the following order:
“ DZE OFF ” ↔ “ DZE 1 ” ↔ “ DZE 2 ” ↔ “ DZE
3 ”
DZE OFF : no sound effect
DZE 1 : Suitable for genuine speakers
DZE 2 : Suitable for separate
speakers
DZE 3 : Suitable for co-axial speakers
3-3. When the “ DZE 1 ”, “ DZE 2 ” or “ DZE 3 ” is
set, push the [ P.CH ] button upward or
downward to change the DZE level from +3
to –3.
∗ The factory default setting is “ 0 ”.
To change sound mode
1. Press the [ ] button and select the sound
mode to adjust.
2. Push the [ SEEK PANEL ] leftward or
rightward to select the “item
name”.
When speaker system is “ NORMAL ”:
“ S-W VOLUME ” ↔ “ DZE ” ↔ “ P.EQ ” ↔
“BASS” ↔“TREBLE” ↔“S RESTORER”
↔“HPF” ↔“S-W LPF” ↔“BALANCE” ↔
“FADER”
When speaker system is “3WAY”:
“S-W VOLUME” ↔“DZE” ↔“P.EQ” ↔
“BASS” ↔“TREBLE” ↔“S RESTORER”
↔“BALANCE”
When speaker system is “2WAY”:
“DZE” ↔“P.EQ” ↔“BASS” ↔“TREBLE”
↔“S RESTORER” ↔“BALANCE” ↔
“FADER”
3. Push the [P.CH] button upward or
downward to select the “desired setting
value”.
∗In the case of item names appearing with
the “ENT” suffix after the item name, the
[]button must be pressed to display
the setting value.
∗“P.EQ” can be adjusted only when the
“P.EQ ON/OFF” is set to “ON” (page 19)
and “EQ SELECT” is set to “P.EQ” (page
19).
∗“BASS” and “TREBLE” can be adjusted
only when “DZE” is set to “DZE OFF” (page
12) and “EQ SELECT” is set to “B/T” (page
19).
∗After completing settings, press the []
button to return to the previous mode.
Note:
•During sound adjustment mode, if no operation
is performed for more than 10 seconds, this
mode can be canceled and return to the
previous mode.
DXZ775USB_EN.book 12 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
13
DXZ775USB

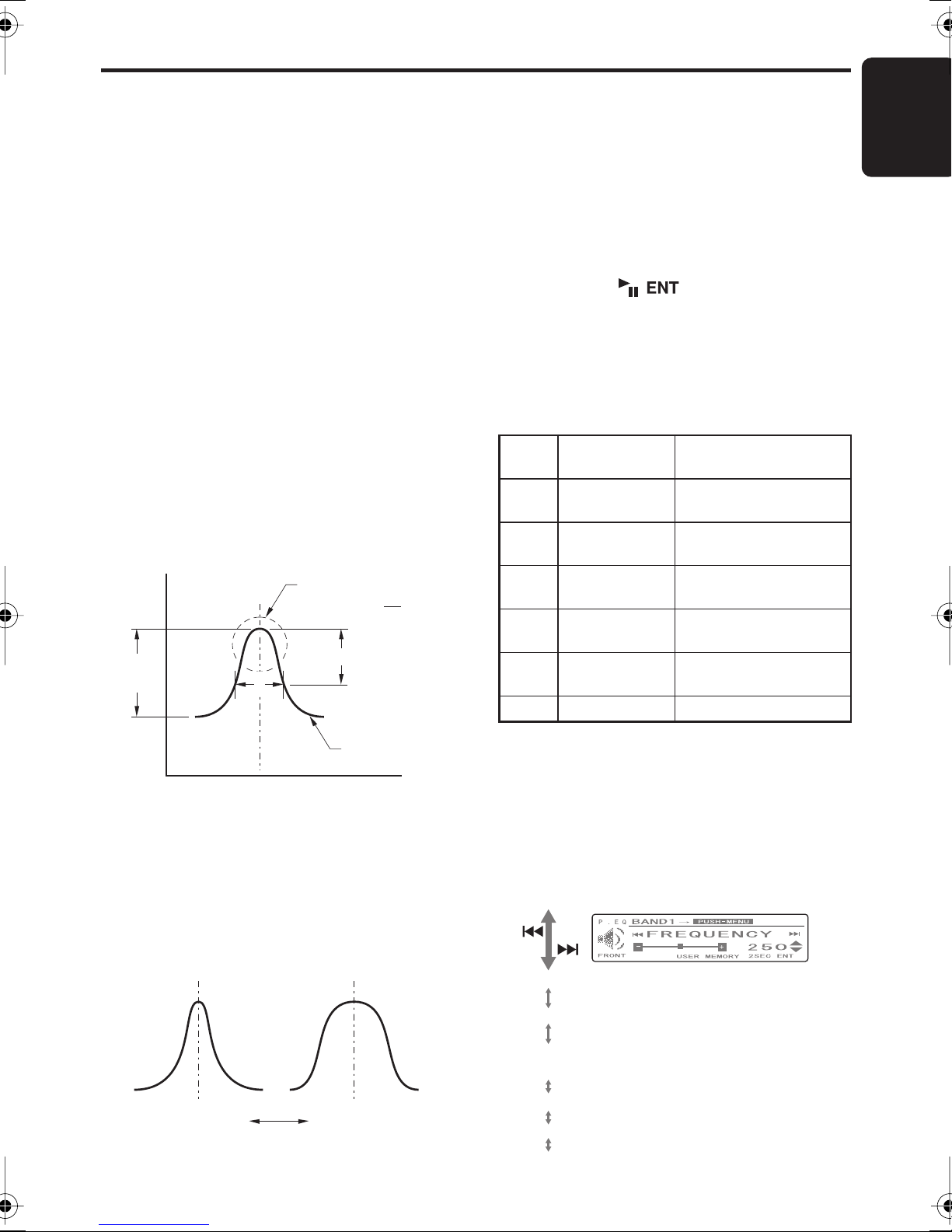

● Compensation
There is no need to compensate frequency
characteristics if they are flat (no peaks or
valleys) when you have measured the
frequency characteristics with a measuring
device. However, sometimes the frequency
characteristics rise or fall in some places. If this
happens, the frequency characteristics must be
compensated. Create a frequency curve having
characteristics that are opposite to the center
frequency of parts where the characteristics rise
and fall to cancel out these peaks and values,
and make the frequency characteristics as flat
as possible.
Making the frequency characteristics as flat as
possible is called “Compensation”.
On this unit, frequency characteristics can be
compensated by P.EQ (Parametric Equalizer).
● Compensation of frequency
characteristics
The figure below shows the relationship
between the center frequency, gain and Q
curve.
● Q curve
The Q curve becomes sharper when the
numerical value is increased, and smoother
when the numerical value is decreased.
Flat frequency characteristics can be made by
selecting a Q curve opposite to that of the curve
to be compensated.
● Setting P.EQ
P.EQ (Parametric Equalizer) allows you to
compensate the entire frequency level range in
detail by smooth curve using frequency
compensation matched to the type of your car.
The item corresponding to the system set in the
section “ Selecting speaker system ” (page 10)
will be displayed.
2-1. Select “ P.EQ ”.
3-1. Press the [ ] button.
When speaker system is “NORMAL”:
3-2. Push the [ SEEK PANEL ] leftward or
rightward and select from:
“ SEDAN-1 ” ↔ “ SEDAN-2 ” ↔ “ MINI VAN-1 ”
↔ “ MINI VAN-2 ” ↔ “ WAGON ” ↔ “ USER ”...
P.EQ basic menu
3-3. Press the [ OPTION ] button.
3-4. Press the [ MENU ] button and select from:
“ BAND1 ” ➜ “ BAND2 ” ➜ “ BAND3 ” ➜
“ BAND1 ”...
3-5. Push the [ SEEK PANEL ] leftward or
rightward and select from:
3dB
Q = F
f
f
Center
Frequency (F)
Frequency
(Hz)
Q curve(Q)
Frequency
curve
Level
(dB)
Gain
Q curve : 20 Q curve : 1
No. Display name Speaker Mounting
position
1 SEDAN-1
(sedan-1) Front: Front door Rear: Rear parcel
2 SEDAN-2
(sedan-2) Front: Front door Rear: Rear door
3 MINI VAN-1
(mini van-1) Front: Front door Rear: Luggage (side)
4 MINI VAN-2
(mini van-2) Front: Front door Rear: Rear door
5 WAGON
(wagon) Front: Front door Rear: Luggage (side)
6 USER (user) User preference
• FRONT
• FREQUENCY
• GAIN
• Q
• REAR
• FREQUENCY
• GAIN
• Q
• FRONT
(Front speaker)
(Frequency) (20 Hz to 20 kHz)
(Gain) (–12 dB to +12 dB)
(–12 dB to +12 dB)
(Q curve) (1, 3, 5, 7, 20)
(1, 3, 5, 7, 20)
(Rear speaker)
(20 Hz to 20 kHz)
DXZ775USB_EN.book 13 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
14
DXZ775USB
P.EQ basic menu setting values
F: Center frequency, Q: Q curve, G: Gain (output level)
3-6. Push the [ P.CH ] button upward or
downward to adjust the frequency, the gain
and the Q.
3-7. Press and hold the [ ] button for 2
seconds or longer to store the adjusting in
USER memory and auto return to the
USER mode.
When speaker system is “3WAY” or
“2WAY”:
3-2. Press the [ MENU ] button and select from:
“ BAND1 ” ➜ “ BAND2 ” ➜ “ BAND3 ” ➜
“ BAND1 ”...
3-3. Push the [ SEEK PANEL ] leftward or
rightward and select from:
3-4. Push the [ P.CH ] button upward or
downward to adjust the frequency, the gain
and the Q.
3-5. Press the [ ] button to return to the
previous mode.
Note:
• Press and hold the
[]
button for 2
seconds or longer to copy the settings between
left and right (for 3WAY or 2WAY speaker
system).
No. (car type)
Parametric Equalizer Parameters (default)
Channel Band 1 Band 2 Band 3
FQG FQG FQG
1 (SEDAN-1) Front 250 Hz 3 –8 dB 2 kHz 1 –4 dB 5 kHz 1 –4 dB
Rear 250 Hz 3 –10 dB 1.25 kHz 5 0 dB 8 kHz 5 0 dB
2 (SEDAN-2) Front 250 Hz 7 –10 dB 800 Hz 3 –4 dB 8 kHz 1 –5 dB
Rear 80 Hz 7 +3 dB 125 Hz 5 –12 dB 1.25 kHz 5 0 dB
3
(MINI VAN-1) Front 125 Hz 5 –4 dB 1.25 kHz 3 –4 dB 2 kHz 7 +3 dB
Rear 250 Hz 1 –6 dB 630 Hz 3 –4 dB 8 kHz 5 0 dB
4
(MINI VAN-2) Front 250 Hz 3 –4 dB 1.25 kHz 3 –8 dB 80 Hz 3 +3 dB
Rear 250 Hz 3 –8 dB 500 Hz 5 –5 dB 8 kHz 5 0 dB
5 (WAGON) Front 250 Hz 3 –8 dB 1 kHz 3 –8 dB 10 kHz 1 –6 dB
Rear 250 Hz 3 –8 dB 800 Hz 1 –8 dB 8 kHz 5 0 dB
6 (USER) Front 500 Hz 1 0 dB 1 kHz 1 0 dB 5 kHz 1 0 dB
Rear 500 Hz 1 0 dB 1 kHz 1 0 dB 5 kHz 1 0 dB
• LEFT
• FREQUENCY
• GAIN
• Q
• RIGHT
• FREQUENCY
• GAIN
• Q
• LEFT
3WAY mode
(Frequency)
(Gain)
(Q curve)
(Front speaker (left))
(Front speaker (right))
Items Adjustable
range Initial value
FREQUENCY
(Frequency) 20 Hz to 20 kHz 500 Hz
GAIN (Gain) –12 dB to +12
dB 0 dB
Q (Q curve) 1, 3, 5, 7, 20 1
• LEFT
• FREQUENCY
• GAIN
• Q
2WAY mode
• RIGHT
• FREQUENCY
• GAIN
• Q
• LEFT
(Front speaker (left))
(Front speaker (right))
(Frequency)
(Gain)
(Q curve)
DXZ775USB_EN.book 14 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
15
DXZ775USB
● Adjusting the bass
2-1. Select “ BASS ”.
3-1. Press the [ ] button.
3-2. Push the [ P.CH ] button upward or
downward to adjust the gain from –6 to +6
(The factory default setting is “ 0 ”).
3-3. Press the [ ] button to return to the
previous mode.
● Adjusting the treble
2-1. Select “ TREBLE ”.
3-1. Press the [ ] button.
3-2. Push the [ P.CH ] button upward or
downward to adjust the gain from –6 to +6
(The factory default setting is “ 0 ”).
3-3. Press the [ ] button to return to the
previous mode.
● Adjusting the sound restorer
The sound restorer enriches the playback of all
types of music files that have undergone any
level of data compression.
2-1. Select “ S RESTORER ”.
3-1. Push the [ P.CH ] button upward or
downward to adjust.
Each time you push the [ P.CH ] button, the
sound restorer changes in the following
order:
“ OFF ” ↔ “ 1 ” ↔ “ 2 ” ↔ “ 3 ”
∗ The factory default setting is “ OFF ”.\
Set this adjustment in accordance with the
music source used
OFF: For music sources compressed at
high bit rate
1: For music sources compressed for high
quality at low bit rate
2: For music sources compressed for
standard quality at low bit rate
3: For music sources compressed for low
quality at low bit rate
● Adjusting the balance
2-1. Select “ BALANCE ”.
3-1. Push the [ P.CH ] button upward to
emphasize the sound from the right
speaker, push the button downward to
emphasize the sound from the left speaker.
∗ The factory default setting is “ 0 ”.
(Adjustment range: L12 to R12)
● Adjusting the fader
“ FADER ” can be adjusted only when the
speaker system is set to “ 2WAY ” or “ NORMAL ”.
2-1. Select “ FADER ”.
3-1. Push the [ P.CH ] button upward to
emphasize the sound from the front
speaker, push the button downward to
emphasize the sound from the rear
speaker.
∗ The factory default setting is “ 0 ”.
(Adjustment range: R12 to F12)
● Setting high pass filter
“HPF” can be adjusted only when the speaker
system is set to “NORMAL”.
2-1. Select “HPF”.
3-1. Push the [P.CH] button upward or
downward to select the setting. Each time
you push the [P.CH] button, the setting
changes in the following order:
“THRGH” ↔“50Hz” ↔“80Hz” ↔“125Hz”
∗The factory default setting is “THRGH”
(through).
● Setting low pass filter
“S-W LPF” can be adjusted only when the
speaker system is set to “NORMAL” .
∗If subwoofer function is set to “ST” or “MONO”,
“S-W LPF” can be selected.
2-1. Select “S-W LPF”.
3-1. Push the [P.CH] button upward or
downward to select the setting.
Each time you push the [P.CH] button, the
setting changes in the following order:
“THRGH” ↔“50Hz” ↔“80Hz” ↔“125Hz”
∗The factory default setting is “THRGH”
(through).
DXZ775USB_EN.book 15 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
16
DXZ775USB
Adjusting Sound Setting
Mode
● Setting the preset setting
This function allows you to recall, save or
initialize the sound settings.
If your speaker system is “ 3WAY ” or “ 2WAY ”,
you can store and recall up to three adjustments
you have made to “ P.EQ ON/OFF ”, “ X-OVER ”,
“ T ALIGNMENT ”, “ SPEAKER GAIN ”.
LOAD : To recall the stored sound settings.
SAVE : To save the sound settings.
INITIAL : To initialize the sound settings.
The load and the save can be adjusted as
follows.
2-1. Select “ PRESET ”.
3-1. Press the [ ] button.
3-2. Push the [ SEEK PANEL ] leftward or
rightward and select from:
“ LOAD ” ↔ “ SAVE ” ↔ “ INITIAL ” ↔
“ LOAD ”...
3-3. Push the [ P.CH ] button upward or
downward to adjust the load and the save.
LOAD :“ SELECTING 1 ” to “ SELECTING
3 ” (The factory default setting is
“ SELECTING 1 ”)
SAVE :“ 1 ” to “ 3 ” (The factory default
setting is “ 1 ”)
3-4. Press and hold the [ ] button to
store into memory.
(LOAD: Press and hold the button for 1
second or longer.
SAVE: Press and hold the button for 2
seconds or longer.)
● Setting the all seat
The setting of “ T ALIGNMENT ” and “ SPEAKER
GAIN ” temporarily returns to the factory default
setting. When the setting that is adjusted for the
driver's seat returns to the factory default
setting, a sound suitable for all seats is
provided.
∗ The factory default setting is “ OFF ”.
2-1. Select “ ALL SEAT ”.
3-1. Push the [ P.CH ] button upward or
downward to select “ ON ” or “ OFF ”.
To change sound setting mode
1. Press and hold the [ ] button for 2
seconds or longer and select the sound
setting mode to adjust.
2. Push the [ SEEK PANEL ] leftward or
rightward to select the “item name”.
When speaker system is “ NORMAL ”:
“PRESET” ↔“ALL SEAT” ↔“T
ALIGNMENT” ↔“P.EQ ON/OFF” ↔“EQ
SELECT” ↔“SUB WOOFER” ↔
“PRESET”...
When speaker system is “3WAY”:
“PRESET” ↔“ALL SEAT” ↔“X-OVER”
↔“T ALIGNMENT” ↔“SPEAKER GAIN”
↔“P.EQ ON/OFF” ↔“EQ SELECT” ↔
“SUB WOOFER” ↔“PRESET”...
When speaker system is “2WAY”:
“PRESET” ↔“ALL SEAT” ↔“X-OVER”
↔“T ALIGNMENT” ↔“SPEAKER GAIN”
↔“P.EQ ON/OFF” ↔“EQ SELECT” ↔
“PRESET”...
∗In the case of item names appearing with
the “ENT” suffix, after the item name, the
[]button must be pressed to display
the setting value.
∗After completing settings, press the []
button to return to the previous mode.
DXZ775USB_EN.book 16 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
17
DXZ775USB
● Setting the X-OVER
This function allows you to adjust the speaker
setting such as cutoff frequencies or slope
matched to the speakers you are using.
(Crossover).
2-1. Select “ X-OVER ”.
3-1. Press the [ ] button.
3-2. Push the [ SEEK PANEL ] leftward or
rightward and select from:
3-3. Push the [ P.CH ] button upward or
downward to adjust the “ HPF ”, “ HPF
SLOPE ”, “ PHASE ”, “ LPF ” and “ LPF
SLOPE ”.
● HIGH
● MID
● SUB-W (3WAY)/REAR (2WAY)
3-4. Press the [ ] button to store into
memory.
• HIGH
• HPF
• HPF SLOPE
• PHASE
• MID
• LPF
• LPF SLOPE
• HPF
• HPF SLOPE
• PHASE
• SUB-W
• LPF
• LPF SLOPE
• HPF
• HPF SLOPE
• PHASE
• HIGH
3WAY mode
(High pass filter)
(HPF slope)
(Phase)
(Front speaker (high))
(Front speaker (mid))
(Subwoofer)
(Low pass filter)
(LPF slope)
• HIGH
• HPF
• HPF SLOPE
• PHASE
• MID
• LPF
• LPF SLOPE
• HPF
• HPF SLOPE
2WAY mode
• PHASE
• REAR
• LPF
• LPF SLOPE
• HPF
• HPF SLOPE
• PHASE
• HIGH
(Front speaker (high))
(Front speaker (mid))
(Rear speaker)
(High pass filter)
(HPF slope)
(Phase)
(Low pass filter)
(LPF slope)
Items Adjustable
range Initial value
HPF THRGH
(through), 25
Hz to 20 kHz
2 kHz
HPF SLOPE –6 dB, –12 dB,
–18 dB –12 dB
PHASE NOR (normal),
REV (reverse) NOR (normal)
Items Adjustable
range Initial value
LPF 630 Hz to 10
kHz, THRGH
(through)
2 kHz
LPF SLOPE –6 dB, –12 dB,
–18 dB –12 dB
HPF THRGH
(through), 25
Hz to 10 kHz
THRGH
(through)
HPF SLOPE –6 dB, –12 dB,
–18 dB –12 dB
PHASE NOR (normal),
REV (reverse) NOR (normal)
Items Adjustable
range Initial value
LPF 25 Hz to 10
kHz, THRGH
(through)
80 Hz
LPF SLOPE –6 dB, –12 dB,
–18 dB –12 dB
HPF THRGH
(through), 16
Hz to 250 Hz
THRGH
(through)
HPF SLOPE –6 dB, –12 dB,
–18 dB –12 dB
PHASE NOR (normal),
REV (reverse) NOR (normal)
DXZ775USB_EN.book 17 ページ ２００６年１２月２５日 月曜日 午前１１時３７分

Basic Operations
English
18
DXZ775USB
● Setting the time alignment
The distance from the listener up to each
speaker can be entered in 2.3 cm steps, and the
time that the sound reaches the listener from
each speaker can be adjusted (Time alignment).
2-1. Select “ T ALIGNMENT ”.
3-1. Press the [ ] button.
3-2. Push the [ SEEK PANEL ] leftward or
rightward and select from:
3-3. Push the [ P.CH ] button upward or
downward to adjust “ HIGH L SP ”, “ HIGH R
SP ”, “ MID L SP ”, “ MID R SP ”, “ SUB-W L
SP ”, “ SUB-W R SP ”, “ REAR L SP ”, “ REAR
R SP ”, “ FRONT L SP ” and “ FRONT R SP ”.
Above 12 adjustment item's adjustable
range: 0 to 501.4 cm (The factory default
setting is “ 0 ”)
3-4. Press the [ ] button to return to the
previous mode.
● Setting the speaker gain
This function allows you to adjust the speaker
output level. Adjust so that the volumes that are
output from each speaker are well-balanced
(Speaker gain).
2-1. Select “ SPEAKER GAIN ”.
3-1. Press the [ ] button.
3-2. Push the [ SEEK PANEL ] leftward or
rightward and select from:
3-3. Push the [ P.CH ] button upward or
downward to adjust the “ HIGH L SP ”,
“ HIGH R SP ”, “ MID L SP ”, “ MID R SP ”,
“ SUB-W L SP ”, “ SUB-W R SP ”, “ REAR L
SP ” and “ REAR R SP ”.
Above 10 adjustment item's adjustable
range: –20 dB to 0 (The factory default
setting is “ 0 ”)
3-4. Press the [ ] button to return to the
previous mode.
• HIGH
• HIGH L SP
• HIGH R SP
• MID
• MID L SP
• MID R SP
• SUB-W
• SUB-W L SP
• SUB-W R SP
• HIGH
3WAY mode
(Front speaker (high))
(Front speaker (mid))
(Subwoofer)
(Left)
(Right)
(Left)
(Right) (Left)
(Right)
• HIGH
• HIGH L SP
• HIGH R SP
• MID
• MID L SP
• MID R SP
• REAR
• REAR L SP
• REAE R SP
• HIGH
2WAY mode
(Left)
(Right)
(Left)
(Right) (Left)
(Right)
(Front speaker (high))
(Front speaker (mid))
(Rear speaker)
• FRONT
• FRONT L SP
• FRONT R SP
• REAR
• REAR L SP
• REAR R SP
• SUB-W
• SUB-W L SP
• SUB-W R SP
• FRONT
NORMAL mode
(Front speaker)
(Rear speaker)
(Subwoofer)
(Left)
(Right)
(Left)
(Right)
(Left)
(Right)
• HIGH
• HIGH L SP
• HIGH R SP
• MID
• MID L SP
• MID R SP
• SUB-W
• SUB-W L SP
• SUB-W R SP
• HIGH
3WAY mode
(Left)
(Right)
(Front speaker (high))
(Front speaker (mid))
(Subwoofer)
• HIGH
• HIGH L SP
• HIGH R SP
• MID
• MID L SP
• MID R SP
• REAR
• REAR L SP
• REAR R SP
• HIGH
2WAY mode
(Left)
(Right)
(Front speaker (high))
(Front speaker (mid))
(Rear speaker)
(Left)
(Right)
(Right)
(Left)
DXZ775USB_EN.book 18 ページ ２００６年１２月２５日 月曜日 午前１１時３７分
