Clarion NX501E Safety guide





































NX501E
N Z 501E
Owner’s manual & Installation manual
Mode d’emploi et manuel d’installation
Benutzerhandbuch und Montageanleitung
Manuale dell’utente e manuale di installazione
Gebruikershandleiding en installatiehandleiding
Manual de instrucciones y de instalación
Bruksanvisning och installationsanvisning
Podręcznik użytkownika i podręcznik instalacyjny
Εγχειρίδιο λειτουργίας & Εγχειρίδιο εγκατάστασης

3NX501E/NZ501E
English
English Owner’s Manual
Contents
1. FEATURES ...........................................................................................................5
Expanding Systems ..............................................................................................5
2. PRECAUTIONS ....................................................................................................6
3. CAUTIONS ON HANDLING.................................................................................8
Operation Panel ....................................................................................................8
USB Port ...............................................................................................................8
Cleaning ................................................................................................................8
Handling Discs ......................................................................................................9
4. PANEL CONTROLS ...........................................................................................10
NX501E Functions of Buttons .............................................................................10
NZ501E Functions of Buttons .............................................................................11
5. REMOTE CONTROL..........................................................................................13
Functions of Remote Control Buttons ................................................................14
6. MAIN MENU OPERATIONS ..............................................................................16
Front Zone Source ..............................................................................................16
Rear Zone Source ...............................................................................................16
7. DVD SYSTEM ....................................................................................................17
DVD Video Features ............................................................................................17
Discs ...................................................................................................................17
About the registered marks, etc. ........................................................................18
8. DVD VIDEO PLAYER OPERATIONS .................................................................19
Change DVD System Settings ............................................................................19
Watching to a disc ..............................................................................................20
Operate the DVD Player menu ............................................................................20
Operate the Video files Player menu ...................................................................23
9. DVD AUDIO PLAYER OPERATIONS ................................................................24
Showing CD Player mode screen .......................................................................24
Operate the CD Player menu ..............................................................................24
Listening To MP3/WMA ......................................................................................25
10. USB AUDIO OPERATIONS .............................................................................28
Notes on using USB memories ...........................................................................28
Select USB Audio mode .....................................................................................28
Playing MP3/WMA files in USB memory ............................................................29
11. USB VIDEO OPERATIONS ..............................................................................31
Notes on using USB memories ...........................................................................31
Select USB Video mode .....................................................................................31
Playing video files in USB memory .....................................................................31
USB Video Menu Operations ..............................................................................32
12. iPod/iPhone OPERATIONS .............................................................................33
Notes on using Apple iPod/iPhone .....................................................................33
Controlling the iPod/iPhone ................................................................................33
Selecting the iPod Video mode...........................................................................35
13. Bluetooth AUDIO PLAYER OPERATIONS .....................................................37
Selecting the Bluetooth Audio mode ..................................................................37
Bluetooth audio player settings ..........................................................................37
Registering your Bluetooth audio player (Pairing)...............................................37
Selecting the Bluetooth audio player ..................................................................38
Controlling the Bluetooth audio player ...............................................................38

4 NX501E/NZ501E
English Owner’s Manual
14. Bluetooth TELEPHONE OPERATIONS ............................................................39
Select the BT Phone mode .................................................................................39
Bluetooth Telephone settings .............................................................................39
Register your cellular phone (Pairing) .................................................................40
Select the cellular phone ....................................................................................41
Obtaining the Phone Book data .........................................................................41
Telephone operations ..........................................................................................41
15. RADIO OPERATIONS ......................................................................................43
16. RDS OPERATIONS .........................................................................................44
17. DVB-T OPERATIONS ......................................................................................47
18. AUX 1 / AUX 2 OPERATIONS .........................................................................48
19. CAMERA OPERATIONS ..................................................................................48
20. REAR SOURCE OPERATIONS .......................................................................49
DVD Video in Rear ..............................................................................................49
AUX 1 in Rear ......................................................................................................50
AUX 2 in Rear ......................................................................................................50
iPod Video in Rear ..............................................................................................50
21. SETTING OPERATIONS ..................................................................................51
General Setup Menu ...........................................................................................51
Video Setup Menu ..............................................................................................51
Audio Setup Menu ..............................................................................................51
Navigation Setup Menu ......................................................................................52
Others Setup Menu .............................................................................................52
Set the Anti-Theft code .......................................................................................52
22. MONITOR OFF ................................................................................................53
23. TROUBLESHOOTING .....................................................................................54
GENERAL ............................................................................................................54
DVD PLAYER ......................................................................................................54
USB DEVICE .......................................................................................................55
Bluetooth ............................................................................................................55
TV/VTR (When connecting an optional TV tuner, etc.) ........................................56
24. ERROR DISPLAY .............................................................................................56
25. SPECIFICATIONS ............................................................................................57
INSTALLATION / WIRE CONNECTIONGUIDE ....................................................59

5NX501E/NZ501E
English
English Owner’s Manual
1. FEATURES
Double Din 6.2” Touch Panel Control
(NX501E)
Motorized 7” Touch Panel Control
(NZ501E)
DVD Video/CD-DA/MP3/WMA
PlaybackCapability
Built-In Bluetooth
®
OEM Steering Wheel Remote Ready
Compatible with iPod
®
/ iPhone
®
via
USB
Expanding Systems
NOTE:
The items listed outside the frames are the commercial products generally sold.
Expanding visual features
Rear Monitor
iPod
Rear Vision Camera
Expanding audio features
External Power
Amplifier
iPhone
USB
Memory
Bluetooth
Telephone
DVB-T Tuner (DTX501E)
Green
White
Red
Video In
Audio/L
Audio/R
Steering Wheel
Remote Control Terminal
Yellow
RearZone
Monitor
Yellow
Yellow
GPS
Antenna
External
Microphone
Connection
Radio Antenna
Gray
Black
Black
Black
Black
Video Out
4-Channel Amplifier
Subwoofer 1
Subwoofer 2
Line Out
Rear R
Line Out
Rear L
Line Out
Front R
Line Out
Front L
Purple
Gray
Black
White
Red
White
Red
White
Red
CAMERA
VISUAL IN
SWI
VIDEO OUT
DTV
2 ZONE OUT
Black
Red
White
Red
EX MIC
DVB-T Tuner (DTX501E)
iPod/iPhone
CCA-748 (sold separately)
Video Out Rear Vision Camera
SUB WOOFER
AUX IN 2
Expanding DVB-T tuner features

6 NX501E/NZ501E
English Owner’s Manual
2. PRECAUTIONS
• For your safety, the driver should not watch any video sources and/or operate the controls while driving. Please
note that watching and operating any video sources while driving are prohibited by law in some countries. Also,
while driving, keep the volume to a level at which external sounds can be heard.
• When using the navigation system, follow the precautions listed below. After reading this manual, be sure to
keep it in a handy place (such as the glove box of your car).
• This navigation system should not be used to replace your own judgment. No itinerary suggested by this
navigation system should ever override any highway regulations, your own judgment, or a knowledge of safe
driving practices. Do not follow the navigation system’s suggested itinerary if it would cause you to perform a
dangerous or illegal act, place you in a dangerous situation, or take you into an area you consider unsafe.
• The advice provided by the navigation system is to be regarded as a suggestion only. There may be times when
the navigation system displays the vehicle’s location incorrectly, fails to suggest the shortest route, or fails to
direct you to your desired destination. In such instances, rely on your own driving judgment, taking into account
the driving conditions at the time.
• Do not use the navigation system to locate emergency services. The database does not contain a complete
listing of emergency services such as police stations, fire halls, hospitals and walk-in clinics. Please show
discretion and ask for directions in such instances.
• As the driver, you alone are responsible for your driving safety.
• In order to avoid a traffic accident, do not operate the system while driving.
• In order to avoid a traffic accident, operate the system only when the vehicle is stopped at a safe place and the
parking brake is on.
• In order to avoid a traffic accident or traffic offense, remember that actual road conditions and traffic regulations
take precedence over the information contained on the navigation system.
• The software may contain inaccurate or incomplete information due to the passage of time, changing
circumstances, and the sources of information used. Please respect current traffic conditions and regulations at
all times while driving.
• Where actual road conditions and highway regulations differ from the information contained on the navigation
system, abide by the highway regulations.
• Keep the amount of time spent viewing the screen while driving to a strict minimum.
• The navigation system does not provide, nor represent in any way information on: traffic and highway
regulations; technical aspects of the vehicle including weight, height, width, load and speed limits; road
conditions including grade, percentage of incline and surface conditions; obstacles such as the height and
width of bridges and tunnels; and other current driving or road conditions. Always rely on your own judgment
when driving a car, taking into account current driving conditions.
• Do not disassemble or modify this unit. It may cause an accident, fire, or electric shock.
• Do not use this unit when a trouble exists, such as no screen content appears or no sound is audible. It may
cause an accident, fire, or electric shock. For that case, consult your authorized dealer or a nearest Clarion
service center.
• In case of a problem, such as any material has been entered in the unit, the unit gets wet, or smoke or strange
smells come out of the unit, etc., stop using this unit immediately, and consult your authorized dealer or a
nearest Clarion service center.
Using it in that condition may cause an accident, fire, or electric shock.
• Use a fuse with the same specification only when replacing the fuse.
Using a fuse with a different specification may causes a fire.
• For the installation of this unit or a change in the installation, ask your authorized dealer or a nearest Clarion
service center for safety. Professional skills and experiences are required to do so.
WARNING

7NX501E/NZ501E
English
English Owner’s Manual
1. When the inside of the car is very cold and the
player is used soon after switching on the heater,
moisture may form on the disc (DVD/CD) or the
optical parts of the player and proper playback may
not be possible. If moisture forms on the disc (DVD/
CD), wipe it off with a soft cloth. If moisture forms
on the optical parts of the player, do not use the
player for about one hour. The condensation will
disappear naturally allowing normal operation.
2. Driving on extremely bumpy roads which cause
severe vibration may cause the sound to skip.
3. This unit uses a precision mechanism. Even in the
event that trouble arises, never open the case,
disassemble the unit, or lubricate the rotating parts.
CAUTIONS:
This appliance contains a laser system and is
classified as a “CLASS 1 LASER PRODUCT”.
To use this model properly, read this owner's
Manual carefully and keep this manual for
your future reference. In case of any trouble
with this player, please contact your nearest
“AUTHORIZED service station”. To prevent
direct exposure to the laser beam, do not try to
open the enclosure. NZ501E
NX501E

8 NX501E/NZ501E
English Owner’s Manual
3. CAUTIONS ON HANDLING
Operation Panel
For a longer service life, be sure to read the following cautions.
• The operation panel will operate properly in a
temperature range of 0˚ to 60˚ C.
• Do not allow any liquids on the set from drinks,
umbrellas etc. Doing so may damage the internal
circuitry.
• Do not disassemble or modify the set in any way.
Doing so may result in damage.
• Subjecting the operation panel to shocks may result
in breakage, deformation or other damage.
• Do not let cigarettes burn the display.
• If a problem should occur, have the set inspected at
your store of purchase.
• Do not insert objects or poke in the space between
the operation panel and the main unit when the
panel is tilted.
• The remote control unit may not work if the remote
control sensor is exposed to direct sunlight.
• In extremely cold weather, the display movement
may slow down and the display may darken, but this
is not a malfunction. The display will work normally
when the e temperature increases.
• Small black and shiny spots inside the liquid crystal
panel are normal for LCD products.
USB Port
• The USB memory stick may stick out when inserted,
so it may cause danger during driving. In such
cases, you can use a commercial USB extension
cable, etc., but use it safely under your own
judgment.
• The USB memory sticks must be recognized as
“USB mass storage class” to work properly. Some
models may not operate correctly.
When the memorized data is lost or damaged by any
chance, Clarion shall not be liable for any damage.
When using an USB memory stick, we recommend
that you backup your data stored on it before by
using a personal computer etc.
• Data files may be broken when using USB memory
sticks in the following situation:
When disconnecting the USB memory stick or
turning the power off during writing or reading data.
When affected by static electricity or electric noise.
Connect/disconnect the USB memory stick when it
is not accessed.
• Some USB memory sticks cannot be inserted to the
main unit because of their shape. In such cases, use
a commercial USB extension cable to connect them.
• Connecting with the computer is not covered.
• Music files (MP3, WMA, etc.) stored in the USB
memory stick can be played back.
Cleaning
• Cleaning the cabinet
Use a soft, dry cloth and gently wipe off the dirt. For
tough dirt, apply some neutral detergent diluted in
water to a soft cloth, wipe off the dirt gently, then
wipe again with a dry cloth.
Do not use benzene, thinner, car cleaner, etc., as
these substances may damage the cabinet or cause
the paint to peel. Also, leaving rubber or plastic
products in contact with the cabinet for long periods
of time may cause stains.
• Cleaning the liquid crystal panel
The liquid crystal panel tends to collect dust, so
wipe it off occasionally with a soft cloth. The surface
is easily scratched, so do not rub it with hard
objects.

9NX501E/NZ501E
English
English Owner’s Manual
Handling

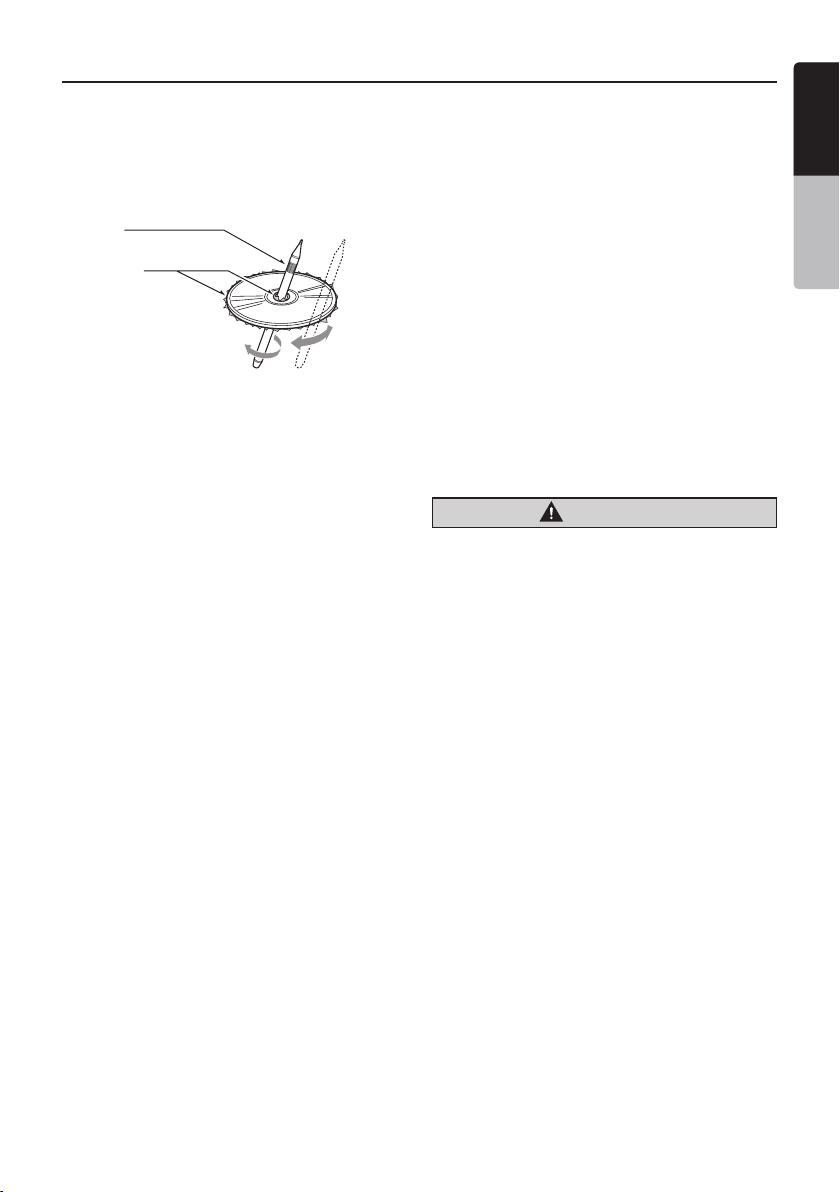

• New discs may have some roughness around the
edges. If such discs are used, the player may not
work or the sound may skip. Use a ball-point pen or
the like to remove any roughness from the edge of
the disc.
Ball-point pen
Roughness
• Never stick labels on the surface of the disc or mark
the surface with a pencil or pen.
• Never play a disc with any cellophane tape or other
glue on it or with peeling off marks. If you try to play
such a disc, you may not be able to get it back out
of the DVD player or it may damage the DVD player.
• Do not use discs that have large scratches, are
misshapen, cracked, etc. Use of such discs may
cause misoperation or damage.
• To remove a disc from its storage case, press down
on the center of the case and lift the disc out,
holding it carefully by the edges.
• Do not use commercially available disc protection
sheets or discs equipped with stabilizers, etc. These
may damage the disc or cause breakdown of the
internal mechanism.
Storage
• Do not expose discs to direct sunlight or any heat
source.
• Do not expose discs to excess humidity or dust.
• Do not expose discs to direct heat from heaters.
Cleaning
• To remove fingermarks and dust, use a soft cloth
and wipe in a straight line from the center of the disc
to the circumference.
• Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner to
clean discs.
• After using special disc cleaner, let the disc dry off
well before playing it.
On Discs
• Exercise a good precaution when loading a disc. The
operation panel will close automatically when leaving
it open for a while.
• Never turn off the power and remove the unit from
the car with a disc loaded.
CAUTION
For your safety, the driver should not
insert or eject a disc, opening the
operation panel while driving.
Handling Discs

10 NX501E/NZ501E
English Owner’s Manual
4. PANEL CONTROLS
NX501E Functions of Buttons
Note: Be sure to read this chapter while referring to front
diagram “PANEL CONTROLS”.
[PWR/VOL] Knob
• Press this key to power on the system in power off
mode.
When the power is already turn on, it moves to the
current position by Navigation mode automatically.
• Keep pressing this key more than 2 second to turn
off the system when system is in power on mode.
• Rotate the knob to increase or decrease the volume.
[NAVI/AV] Button
• Press this button to enter navigation mode; press
again to return current source.
• Press and hold this button for 3 seconds to display
the brightness setting panel.
[ ] Eject
• Press to eject disc from unit.
[MENU] Button
• Press this button to display main menu, press again
to return current source.
• Press and hold this button for 3 seconds to turn off
the monitor. Press any place of the screen to turn on
the monitor again.
[RESET] Button
• Press this button to hardware reset the unit.
Note: When the [RESET] button is pressed, frequencies
of radio stations, titles, etc. stored in memory are
cleared.
[microSD]
• Insert a microSD in this.
Note: The microSD card is only for navigation. Please
don’t remove it, otherwise, the navigation function will
be disabled.
[AUX IN]
AUX 1 Connector.
[Microphone]
• Internal microphone for use during Bluetooth phone
calls. Sensitivity can be adjusted from the Settings
menu.
[IR] SENSOR
• Receiver for the remote control unit (operating
range: 30 degree in all directions).
[ ]
[Microphone]
[MENU]
[NAVI/AV]
[PWR/VOL]
[RESET]
[microSD]
[AUX IN]
[IR]

11NX501E/NZ501E
English
English Owner’s Manual
NZ501E Functions of Buttons
Note: Be sure to read this chapter while referring to front
diagram “PANEL CONTROLS”.
[MENU/PWR] Key
• Press this key to power on the system in power off
mode.
• Keep pressing this key more than 2 second to turn
off the system when system is in power on mode.
• Press this button to display main menu, press again
to return current source when system is in power on
mode.
[NAVI/AV] Button
• Press this button to enter navigation mode; press
again to return current source.
• Press and hold this button for 3 seconds to display
the brightness setting panel.
[ ] Eject
• Press to eject disc from unit.
[Microphone]
• Internal microphone for use during Bluetooth phone
calls. Sensitivity can be adjusted from the Settings
menu.
[RESET] Button
• Press this button to hardware reset the unit.
Note: When the [RESET] button is pressed, frequencies
of radio stations, titles, etc. stored in memory are
cleared.
[microSD]
• Insert a microSD in this.
Note: The microSD card is only for navigation. Please
don’t remove it, otherwise, the navigation function will
be disabled.
[AUX IN]
AUX 1 Connector.
[OPEN]
[ISR/SEND]
[ / ]
[-]
[+]
[IR]
[ ]
[ ]
[ ]
[BAND/END PS]
[NAVI/AV]
[Microphone]
[RESET]
[AUX IN]
[MENU/PWR]
[microSD]

12 NX501E/NZ501E
English Owner’s Manual
[ , ] Buttons
• Press to search previous or next station or channel
in Tuner modes.
• Press to search previous or next track or chapter in
CD, MP3/WMA, iPod and DVD video modes.
• Press and hold to fast forward or fast backward by
2x, 4x, 8x or 16x step in CD, MP3/WMA and DVD
video mode.
• Press and hold to fast forward or fast backward in
iPod music.
• Press and hold to enter manual seek status in Tuner
mode, then press briefly to seek station by step.
[ ] Button
• Press to play, pause or scan audio or video.
• Press shortly to scan.
• Press and hold one time Audio or video file will be
paused, if then press briefly, file will be resumed to
play.
[+][-] Buttons
• Press to Increase and decrease volume.
[OPEN] Button
• Use this button to open/close TFT panel.
[MENU/PWR] Button
• Press this button to display main menu, press again
to return current source.
• Press this button to turn on the power.
• Keep pressing this knob more than 2 second to turn
off the power
[BAND/END PS] Button
• Press this button to enter AM/FM tuner mode from
any source.
• Once in AM/FM tuner mode, you can press it to
change bands between FM1, FM2, FM3, AM bands.
• Press to stop Preset Scan.
[ISR/SEND] Button
ISR Function:
When in tuner mode, press and hold this button for
3 seconds to save current station and band to ISR
memory, and at the same time, the tuner will enter ISR
mode with current station.
Note:
In ISR mode, the tuning operation is disabled. Press this
button again to quit ISR mode.
When in the other mode but not tuner mode, press
this key will go to ISR memory station directly, it likes
a shortcut. Press this key again to go back to previous
mode.
SEND Function:
Only be available when there is a coming call. Press
this key to accept the coming call or end a call.
[IR] SENSOR
• Receiver for the remote control unit (operating
range: 30 degree in all directions).

13NX501E/NZ501E
English
English Owner’s Manual
5. REMOTE CONTROL
Replacing the batteries
1. Press the retention tab and pull out the battery tray
and remove the old battery.
2. Insert the new CR2025 battery and slide the battery
tray back in the remote control the same direction
that you removed it.
Please ensure the tray is inserted in the correct
direction.
Note:
Using batteries improperly can cause them to explode.
Take note of the following points:
• When replacing batteries, replace both batteries with
new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
WARNING
Lithium (CR) battery contain
Perchlorate
Dispose of discharged batteries properly.
Signal transmitter
Operating rang : 30°in all directions
[ / ]
[0-9]
[SRCH]
[BACK]
[ , , , ]
[TITLE]
[ ], [ ]
[ZOOM]
[MUTE]
[AUDIO]
[POWER / SRC]
[VOLUME]
[SET]
[PIC]
[TA]
[RPT]
[ ], [ ]
[SUB.T]
[OPEN]
[ANGLE]
[NAVI / AV]
[MENU]
[BAND]
[ROOT]
[ENT]

14 NX501E/NZ501E
English Owner’s Manual
[ / ] Button
• Press this button to play or pause video and audio
media.
• Press this button more than 1 second to stop video
and audio media.
[MUTE] Button
• Mute or Unmute the speaker.
• The symbol on upper right area of the screen
indicates that speaker is muted.
[POWER/SRC] Button
• Press this button to move the focus to next available
source item on main menu.
• Press this button to power on when the unit is
power off.
• Press this button more than 1 second to power off
when the unit is power on.
[0 - 9] Buttons
• Use in the Key Pad screen to select the radio or
DVB-T channels.
• Use to select the track in the track list screen.
• Press to enter DVD video chapters/titles in the Key
Pad screen.
[VOLUME] Buttons
• Increase and decrease volume.
[NAVI/AV] Button
• Press this button to switch between current source
and current position on navigation map.
[SRCH] Button
• Press this button to open chapter or title search
window while playing DVD.
[BAND] Button
• Switch to next band alternately.
[SET] Button
• Press this button to open the Audio setting menu in
any mode.
[BACK] Button
• Press this button to quit main menu if current screen
is main menu.
[ ], [ ], [ ], [ ] Buttons
• Press this button for cursor movement in main menu
or Setting mode.
• From the main menu, you can select your desired
source or change your settings.
[MENU] Button
• Press this button to enter the MAIN MENU or return
current resource.
[PIC] Button
• Press this button to change your monitor brightness.
[ENT] Button
• Press to fix the entered data in the Key Pad screen
or enter the item the cursor is on.
[TA] Button
• Press to TA On/Off.
[TITLE] Button
• Press to go to the title menu on the DVD.
[ROOT] Button
• Press to go to the root menu on the DVD.
[RPT] Button
• Press to perform chapter repeat / title repeat /
repeat off while playing DVD mode.
• Press to perform track repeat/repeat off while
playing CD.
• Press to perform repeat track /repeat folder/ repeat
off while playing MP3/WMA, or video files on disc.
• Press to perform repeat track /repeat folder/ repeat
off while playing MP3/WMA, or video files in USB
memory.
• Press for AF On/Off.
[ ], [ ] Buttons
• Press to seek the next available higher or lower
station in Tuner mode.
• Press to select the next higher or lower chapter
number in DVD video mode.
• Press to select the next higher or lower track in DVD
Audio, USB Video, USB Audio mode.
• Press for movement of background source in
Navigation mode.
Functions of Remote Control Buttons
You can use the remote control unit to control the NX501E and NZ501E.
Note:
• The wireless remote control operation may not be optimal in direct sunlight.

15NX501E/NZ501E
English
English Owner’s Manual
Functions of Remote Control Buttons
[ ], [ ] Buttons
• Press to manually select the next higher or lower
station in Tuner modes.
• Press to perform fast-forward or fast-backward
searching. Press again to change the speed to 2x,
4x, 8x or 16x.
• Press for movement of background source in
Navigation mode.
[ZOOM] Button
• Press to turn on and zoom in while playing DVD. You
can zoom in up to 3x. (No all DVD disc supports this
function).
[AUDIO] Button
• Press to switch the AUDIO channel of the disc while
playing DVD.
[SUB-T] Button
• Press to switch next available subtitle while playing
DVD.
• Press to display Video menu in iPod mode.
[ANGLE] Button
• Press to switch the different ANGLE while playing
DVD. (No all DVD disc supports this function)
• Press to display Audio menu in iPod mode.
[OPEN] Button
• Press this button to OPEN or CLOSE the motorized
screen. Please ensure there are no obstructions
before starting the operation. (NZ501E only)

16 NX501E/NZ501E
English Owner’s Manual
Front Zone Source
[Tuner]-Press the button to display the Tuner mode.
[Disc Audio]-Press the button to display the Disc
Audio mode.
[Bluetooth Audio]-Press the button to display the
Bluetooth Audio mode.
[USB Audio]-Press the button to display the USB
Audio mode.
[AUX 1]- Press the button to display the AUX 1 mode.
[iPod Audio]-Press the button to display the iPod
Audio mode.
[DVB-T]-Press the button to display the DVB-T mode.
[Disc Video]-Press the button to display the Disc
Video mode.
[Camera]-Press the button to display the Camera
mode.
[USB Video]-Press the button to display the USB
Video mode.
[AUX 2]-Press the button to display the AUX 2 mode.
[iPod Video]-Press the button to display the iPod
Video mode.
[Navigation]-Press the button to display the
Navigation mode.
[Telephone]-Press the button to display the Telephone
mode.
[Rear Button]-Press the button to display the rear
menu.
[Setting Button]-Press the button to display the
setting menu.
Rear Zone Source
[Rear Disc Video]-Press the button to display the
Rear Disc Audio mode.
[Rear AUX 1]-Press the button to display the Rear
AUX 1 mode
[Rear iPod Video]-Press the button to display the
Rear iPod Video mode.
[Rear AUX 2]-Press the button to display the rear AUX
2 mode.
[2-Zone Off]-Press the button to closed the rear
activity.
[Front Button]-Press the button to display the front
main menu.
[Setting Button]-Press the button to display the
setting menu.
6. MAIN MENU OPERATIONS
Scrolling the menu
Press screen and scrolling to right or left it will
switch to next or previous page of mainmenu.
Moving the menu position
1. Press any quadrate icon on mainmenu more than
2seconds, the icon will float on mainmenu.
2. Scrolling the floating icon to any position you want.

17NX501E/NZ501E
English
English Owner’s Manual
DVD Video Features
This unit provides the following functions in addition to
the high image quality and sound quality of DVD video.
Note:
• The functions described in this section,for example,
the recorded language,subtitles, angles, etc. differ
depending on the DVD video disc.
Refer to the instructions provided with the DVD video.
• Some disc functions may operate differently from
described in this manual.
Multi-sound function
DVD video can store up to 8 languages for one film;
select the language of your preference.
• The languages stored on the disc are indicated by
the icon shown below.
Multi-angle function
A DVD video that is filmed from multiple angles allows
you to select the angle of choice.
• The number of recorded angles are indicated by the
icon shown below.
Subpicture (subtitles) function
A DVD video can record subtitles for up to 32
languages and you can select the language of the
subtitles you wish to see.
• The number of recorded subtitle languages are
indicated by the icon shown below.
Multi-story function
When a DVD video contains more than one story for
a film, you can select the story you wish to enjoy.
The operation procedures vary with the disc; observe
the instructions for selecting a story provided during
playback.
Menu screens
Menu can be called up during DVD video playback to
perform menu setting.
• Example showing menu display
Discs
Playable discs
This DVD video player can play the following discs.
Playable discs
CD TEXTDVD video discs Audio CDs
Playable media files
MP3/WMA
About CD Extra discs
A CD Extra disc is a disc in which a total of two
sessions have been recorded. The first session is
Audio session and the second session is Data session.
Your personally-created CDs with more than second
data sessions recorded cannot be played on this DVD
video player.
Note:
• When you play a CD Extra disc, only the first session
will be recognized.
About playing a CD-R/CD-RW disc (MP3, WMA)
This player can play CD-R/CD-RW discs previously
recorded in music CD format (MP3, WMA).
7. DVD SYSTEM
DVD video is a high-quality digital video source that provides crisp and clear images. One 12 cm disc contains
either one film or four hours of music.

18 NX501E/NZ501E
English Owner’s Manual
About playing a DVD-R/RW or DVD+R/RW disc
This player cannot play DVD-R/RW and DVD+R/ RW
discs previously recorded in video CD format.
However, MP3/WMA files recorded on DVD-R/ RW and
DVD+R/RW discs can be played.
Discs that cannot be played back
This DVD video player cannot play back DVD-Audio,
DVD-RAM, Photo CDs, etc.
Note:
• It may also not be possible to play back CDs recorded
on a CD-R unit and CD-RW unit. (Cause: disc
characteristics, cracks, dust/dirt, dust/dirt on player’s
lens, etc.)
• If a CD-R or CD-RW disc that has not been finalized is
played, it will take a long time to start playing. Also, it
may not be possible to play depending on its recording
conditions.
• You cannot play SuperAudio CDs Playback of the CD
player is not supported even if it is a hybrid disc.
About MP3/WMA playback
This unit can play back CD-R/CD-RW, DVD-R/ RW
and DVD+R/RW discs on which MP3/WMA music data
have been recorded.
For a detailed information, see the section entitled
“Listening to MP3/WMA”.
Note on region numbers
The DVD video system assigns a region number to
DVD video players and DVD discs by sales area.
DVD video players sold in the Europe can play back
DVD discs with the region number “ALL”, “2” or any
combination of numbers that also incorporate a “2”.
The DVD video region number is marked on the disc
jacket as shown below.
ALL
46
2
2
• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering or disassembly is prohibited.
• Manufactured under license from Dolby
Laboratories.“Dolby”, “Pro Logic” and the double-D
symbol are trademarks of Dolby Laboratories.
• “Made for iPod,” and “Made for iPhone” mean
that an electronic accessory has been designed to
connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet
Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless
performance. iPhone and iPod are trademarks
of Apple Inc., registered in the U.S. and other
countries.
• The Bluetooth
®
word mark and logos are owned
by the Bluetooth
®
SIG, Inc. and any use of such
marks by Clarion Co., Ltd. is under license. Other
trademarks and trade names are those of their
respective owners.
About the registered marks, etc.

19NX501E/NZ501E
English
English Owner’s Manual
Change DVD System Settings
Note: If the set up operation is performed in the
middle of DVD video play, the disc will restart from the
beginning.
Selecting DVD Set Up Menu
1. Press the [Setting] button on the Main Menu to
access the Video set up menu.
2. Press [Video] button. The video menu is displayed.
Setting up the Screen Size
Press the [DVD Wide Screen Mode] button to turn on
or turn off the DVD wide screen mode.
The factory default setting is “On”.
Note: Not all DVD disc supports this function.
DVD Wide Screen Mode On
DVD Wide Screen Mode Off
Setting up the password for parental level
control
The factory default pass code is “0000”.
1. In Main Menu press [Setting] button. Press
[Others] button on the display. Touch the [Set
Password] ---- and a numerical key pad will appear.
Input the old password,and touch the [OK] key,or
input “4356” to reset password.
Input a new password,and touch the [OK] key.
Input the same new password again, and touch the
[OK] key.
Note: When a disc with view restrictions is inserted, you
will be prompted to input this password. The disc will not
be viewable until the correct password is entered.
Set rating for parental level control
1. Select Others screen while in Setting mode. Press
[Parental Control] button. Press the desired rating
for level control. Use this table to set the parental
level.
Kid Safe Kid Safe
G General Audiences
PG Parental Guidance Suggested
PG-13 Parents Strongly Cautioned
PG-R Parental Guidance Restricted
R Restricted
NC-17 No One 17 And Under Admitted
Adult Only Adult
• The contents that the parental level restricts vary
with the country code.
Note: The rating can be selected only under the
password unlocked status, and the limits can be set only
under the password locked status.
8. DVD VIDEO PLAYER OPERATIONS

20 NX501E/NZ501E
English Owner’s Manual
Watching to a disc
1. To load a disc:
Insert the disc into the center of the insertion slot the
label side facing up.
CAUTION
For your safety, the driver should not
insert or eject a disc, opening the
operation panel while driving.
Note:
• Never insert foreign objects into the disc insertion slot.
• If the disc is not inserted easily, there may be another
disc in the mechanism or the unit may require service.
• 8cm (single play) discs cannot be used.
2. Disc starts playing automatically.
WARNING
Some videos may be recorded at higher
than desired volume levels. Increase the
volume gradually from the minimal setting
after the video has started.
Ejecting a disc
1. To eject a disc press eject [ ] button. The play
mode then switches to the Tuner mode.
If the disc is left in the ejected position for 15
seconds, the disc is automatically reloaded. In this
case, the play mode will remain in the Tuner mode.
Note: If you force a disc into before auto reloading, it
may damage a disc.
Showing DVD Player mode screen
After disc is loaded, the play mode is automatically
engaged.
Touch any place of the screen to display DVD Video
menu touch the screen again to return the playback
screen. The display will return to the playback screen,
if you do not touch the screen for 10 seconds.
1 2 3 4 5 6 7 8
9
1011
12 13 14 15 16 17
1 - Next page Buttons
2 - Previous Track /Fast Backward Button
3 - Play/Pause Button
4 - Next Track/Fast Forward Button
5 - Elapsed playing time
6 - Seek bar
7 - Total time
8 - Top Menu Button
9 - System time
10 - Bluetooth status
11 - DVD playback info
12 - Previous page Button
13 - Repeat switching Button
14 - Audio Channel switching Button
15 - Subtitle switching Button
16 - INFO Button
17 - Direct chapter or title searching Button
Operate the DVD Player menu
You can select the button items displayed in the DVD
menu by directly touching it.
Play/Pause Playback
1. Touch [ ] button to pause during playback.
2. Touch [] button again to resume playback.
Skip (Search) a Chapter
1. Press [ ] or [ ] button during playback.
Chapters are skipped down or up from current
locations, as many times as the button is pressed, and
playback starts.
Skip use seek bar
Press the triangle [ ] on seek bar and drag it to any
position where you want to start playback.

21NX501E/NZ501E
English
English Owner’s Manual
Fast Forward/Fast Backward
1. Press [ ] or [ ] button and hold 2 seconds to
start fast backward or fast forward during playback.
The playback speed starts at 2x, then will increase
to 4x, 8x, and 16x. Release the button will continue
playing with normal speed.
2. [] or [ ] button on remote control can also be
used to start fast backward or fast forward during
playback.
Note:
• No audio is reproduced during fast forward and fast
backward operation.
• The fast forward and fast backward speed may differ
depending on the disc.
Stop Playback
1. Press the [ ] button on remote control more than
1second. Playback is stopped.
2. To resume playback, press the [ ] button.
Playback resumes from start of the disc.
Search with a Chapter/Title Number
You can locate the beginning of a scene using the
chapter numbers or title numbers recorded on the
DVD Video disc.
1. Showing the DVD Video menu, touch [] button.
The Key Pad screen appears with the chapter/Title
number input mode.
Touching [] button turns the Key Pad to the
chapter number input mode.
Touching [] button turns the Key Pad to the title
number input mode.
• Title
A large segment to divide the data area of the disc.
• Chapter
A small segment to divide the data area of the disc.
2. Input the number of the title/chapter that you want
to play with the [0] to [9] key.
3. Touch the [] button.
Playback starts from the scene of the input title
number or chapter number.
Note:
If the input title/chapter number does not exist or
searching with a title/chapter number is not allowed, the
screen image will not change.
4. Touch [] button to close the key pad.
Repeat Playback
This operation plays back chapters recorded on the
DVD-Video repeatedly.
1. Showing the DVD Video menu, touch [] button.
2. Touch [] button once for Chapter Repeat, again
for Title Repeat.
3. Press [] button again to turn off the repeat
playback.
Using the Title Menu
On DVD discs containing two or more titles, you can
select from the title menu for playback.
1. Showing the DVD Video menu, touch [ ]
button during playback.
The title menu screen appears.
* Depending on the disc, the title menu may not be
called.
2. Touch the title menu screen.
3. Select the items in the title menu screen by
directional buttons.
* Depending on the disc, items may not be selected
with the directional buttons.
4. Touch [] button to fix on the selected item.
5. Touch [] button.
