Clarion CZZ09 User manual

Owner's manual
Mode d'emploi
Manual de instrucciones
CZZ09
CD/USB/MP3IWMA RECEIVER
AUTORADIO CD/USB/MP3IWMA
RECEPTOR CD/USB/MP3IWMA

CLARION PRODUCT REGISTRATIONINFORMATION
For USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of aClarion mobile electronic products.
We are confident
that you'll enjoy your Clarion experience.
There are many benefits to registering your product. We invite you to visit our website at
www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registration form
is short and easy to complete. Once you're registered, we can keep you informed of important
product information.
Register at www.clarion.com -it's easy to keep your Clarion product up to date.
INFORMATIONS DE L'ENREG/STREMENT DE PRODUITS CLARION
Pour les Etas Unis et Ie Canada seulement
www.clarion.com
Cher client:
Nous vous remercions d'avoir achete ce produit electronique mobile Clarion. Nous sommes
confiants que vous apprecierez votre experience Clarion.
II y a beaucoup d'avantage aenregistrer votre produits. Nous vous invitons avisiter notre site
Web www.clarion.com pour enregistrer votre produit Clarion.
Nous avons facilite la tache d'enregistrement de produit simple et facile grace anotre site Web.
Le formulaire d'enregistrement est court et facile acompleter. Lorsque vous etes enregistrer,
nous pouvons vous tenir informe des informations important de produits.
Enregistrer awww.clarion.com -c'est facile de mettre ajour votre produit Clarion.
INFORMACION DEL REGISTRO DE PRODUCT 0 DE CLARION
Para USA y Canada nomas
www.clarion.com
Querido Cliente:
Felicitaciones por
su compra de producto electronico movil de Clarion. Estamos seguros que
usted gozara de
su experiencia con el producto de Clarion.
Hay muchas ventajas
al registrar su producto. Le invitamos aque visite nuestro sitio en internet
www.clarion.com para registrar
su producto de Clarion.
Hemos hecho
el registro de producto facil en nuestro sitio. La forma de registro es corta yfacil
de completar. Una vez que
10 registre, podremos proporcionarle la informacion de su producto.
Registrese
en www.clarion.com - es facil mantener su producto de Clarion actualizado.
2 CZ209

Thank you for purchasing this Clarion product.
*Please fully read this owner's manual before operating this equipment.
*Check the contents of the enclosed warranty card and store it in asafe place with this manual.
Contents
1. FEATURES 3
2. PRECAUTIONS 4
3. CONTROLS 5
Names of the Buttons and Their Main Functions 5
4. DCP (DETACHABLE CONTROL PANEL) 6
5. REMOTE CONTROL 7
Functions of Remote Control Unit Buttons 7
Inserting the Battery 8
6. OPERATIONS 8
Basic Operations 8
Radio Operations 10
CD/MP3IWMA Operations
11
Operations Common to Each Mode 14
7. ACCESSORIES 15
USB Operations 15
iPod Operations 17
8. TROUBLESHOOTING 20
9. ERROR DISPLAYS 21
10. SPECIFICATIONS 22
1. FEATURES
lusnl
[Q]DO~~
OIOITALAUOIO
I TEXT I
IR?3
ID3TAG
1
_. Plays 1
Windows
-.'" Media'" J
fa Madefor
@J iPod
•USB Audio for iPod
•4ch/2V RCA Output with Non Fader Volume Control
•Front Panel 3.5mm Auxiliary Input
CZ209 3

2. PRECAUTIONS
This equipment has been tested and found to
comply with the limits for aClass Bdigital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference
in a
residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used
in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur
in a
particular installation.
If this equipment does cause harmful
interference to radio reception, which can be
determined by turning the equipment off and on,
the user is encouraged to consult the dealer
or
an experienced radio technician for help.
MODEL I12V 8GROUND
AM 530-1710kHz/FM 87.9-107.9MHz
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDmONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR
SUBCHAPTER JAPPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,L TO
7·2, SHINTOSH1N,CHUO·KU,SAITAMA-S)1I,SAtTAMA 330-0081 ,JAPAN
This producl includes technology owned by
Microsoft Corporation and cannot be used or distributed
without alicense from
MSLGP.
MANUFACTURED:
1 •• :.::'\l;;;~:;·.'.;;:; •• ·r:·.·.li:GAUit'·Qf4i·(f:im::!;i;i.;:;;:;J;I:,;1
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN,
MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
THECOMPACTrnSCPLAYERSHOULDNOT
BE ADJUSTED OR REPAIRED BY ANYONE
EXCEPT PROPERLY QUALIFIED SERVICE
PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED
BYTHE
MANUFACTURER FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS
PRODUCT UNAPPROVED
BY THE
MANUFACTURER
WILL VOID THE
WARRANTY
AND VIOLATE FCC APPROVAL.
Handling Compact Discs
•Compared to ordinary music CDs, CD-R and
CD-RW discs are easily affected by high
temperatures and humidity, potentially
making them unplayable. Therefore, do not to
leave them
in the car for along time.
•Do not stick labels on compact discs or mark
the surface with pens or pencils.
4
SERiAl No.
PE-c:::::::::J
CZ209
tf?\ 276c=::J
~ Clarion Co., Ltd.
MADEIN[=:J
o
Display Screen
• In extreme cold, the screen movement may
slow down and the screen may darken, but
this
is normal.
The screen will recover when it returns to
normal temperature.

Names of the Buttons and Their Main Functions
3. CONTROLS
[~] (EJECT) --:-.;;.-.,:..
[RELEASE]=j;[ ::]~~ND] _f-=[C=D=S=L=O=T]====p;;.\;;;;;==t::\[IR RECEIVER]
@~ 7~ 0 ~
o [AUX]
[j.llI~], [~]---;"-':l ~ 7r- ~1J' ~~\ J- ~ J
[SRC] == [DISP]J=~~==== [SOUND]
[SCN] [UP]
[ISR] [RPT] [ON]
[ROTARY] [ROM] [DIRECT]
[RELEASE] button [ROM] button
•Press to unlock DCP. •Perform random play while in CD/MP3/wMAI
[~~I~] button USB/iPod mode.
•Perform preset scan while
in the radio mode. [RPT] button
•Play or pause atrack while in CD/MP3/wMAI •Perform repeat play while in CD/MP3/wMAI
USB/iPod mode. USB/iPod mode.
[BND] button [SCN] button
•Change bands, or select seek tuning or •Perform scan play in CD/MP3/wMAlUSB
manual tuning while
in radio mode. mode.
[CD SLOT] [DISP] button
•Insert CDs here. •Switch display mode.
[IR RECEIVER] [ROTARY] knob
•Receiver for remote control unit. (Operating •Rotate to adjust the volume.
range: 30° all directions) [ISR] button
[AU X] input jack •RecalliSR station stored in memory.
•Input jack for connecting external device. •Press and hold
(2 sec.) to store current
[SOUND] button station in ISR memory (radio mode only).
•Press to switch to the sound adjust mode. [SRC] button
[UP],
[ON] buttons •Turn the power on/off.
•Select folders while in MP3/wMAlUSB mode. [~], [~] buttons
[DIRECT] buttons •Commence fast-forward/fast-reverse mode.
•Store radio stations
in memory or recall it [~] (EJECT) button
directly while in radio mode. •Press to eject disc.
CZ209 5

4. DCP (DETACHABLE CONTROL PANEL)
Main Unit Front
ACAtJ'TION
DCP
connector
• After removal, be careful not to drop the
DCP or subject it to strong impacts, to
prevent damage.
•Once the [RELEASE] button is pressed
and the
DCP is unlocked, car vibrations
can cause the DCP to fall.
•The connector
for the main unit and DCP
is extremely important. Be careful not to
damage it by pressing with fingernails or
sharp objects.
Note:
• If the DCP is dirty, wipe offwith asoft, dry cloth
only.
Removing the DCP
1. Press and hold the [SRC] button (1 sec.) to
switch off power.
2. Press the [RELEASE] button.
* DCP is unlocked.
3. Remove DCP.
Attaching the DCP
1. Insert the right end of DCP into main unit.
2. Press left end of DCP into main unit.
6 CZ209

5. REMOTE CONTROL
Functions of Remote
Control Unit Buttons
*Some buttons on the remote have different
functions from those on the main unit.
rSignal transmitter
~-:::::::='K :::::::::::::". 1
[SRC] ----=-I+-I Qowu ~ Q---!Ii..:-
I-[BNO]
TOP [.11]
[A],[']
II [1+11. [~l
[MUTE] II':'~ 0 G II [OISP]
II MUTE./ ISR DISP
[ISR] -.J II 8QG[ROM]
[SCN]~~ .PT'-~T~:':::/':,,;,.~I~I __ [RPT]
Clarion
•Shared modes
[SRC] button
•Press to turn on power.
Press and hold (1 sec.) to turn off power.
•Use to change operation mode.
[.], [T] buttons
•Increases/decreases volume.
[MUTE] button
•Turns mute function on/off.
[ISR] button
•Recalls ISR station stored in memory.
•Press and hold (2 sec.) to store current
station in ISR memory (radio mode only).
[DISP] button
•Press to select desired display.
•Radio mode
[BND] button
•Switches reception band.
[~], [~] buttons
•Change preset channels.
[SCN] button
•Press for preset scan play.
•Press and hold (2 sec.) for auto store.
•CDIMP31WMAIUSB modes
[~], [~] buttons
•Press to select tracks.
•Press and hold (1 sec.) for fast-forward/fast-
reverse.
[~II] button
•Switches between playback and pause.
[SCN] button
•Press for scan play.
•In MP3IWMAlUSB mode, press and hold (1
sec.) for folder scan play.
[RPT] button
•Press for repeat play.
•In MP3IWMAlUSB mode, press and hold (1
sec.) for folder repeat play.
[ROM] button
•Press for random play.
•In MP3IWMAlUSB mode, press and hold (1
sec.) for folder random play.
• iPod mode
[ ......... ], [~] buttons
•Press to select tracks.
•Press and hold (1 sec.) for fast-forward/fast-
reverse.
[~II] button
•Switches between playback and pause.
[RPT] button
•Press for repeat play.
[ROM] button
•Press for random play.
•Press and hold (1 sec.) for all random play.
CZ209 7

Inserting the Battery
ill Slide remote control unit's rear cover in the
direction shown.
®Insert battery (CR2025) into insertion guides
with printed side (+) up.
@Press battery into compartment as shown.
@Replace and slide cover until it clicks into
place.
Insertion guide
Notes:
Misuse may result in battery rupture and fluid
leakage, resulting
in personal injury or damage.
Always follow these safety precautions:
•Use only the designated battery.
•
When replacing the battery, insert with +/-
polarities correctly oriented.
•Do notsubject battery
to heat, or dispose in fire
or water. Do not attempt to disassemble the
battery.
•Dispose
of used batteries properly.
6. OPERATIONS
Note:
•Refer to the diagrams in "3. CONTROLS"
(page 5) when reading this chapter.
Basic Operations
·ACAUTION
Be sure to lower the volume before
switching off the unit power or car's ignition
key. The
unit remembers its last volume
setting.
Turning power on/off
1. Press the [SRC] button to turn on power.
2. Press and hold the [SRC] button (1 sec.) to
turn off power.
Selecting modes
1. Press the [SRC] button to change operation
mode.
2. Each time the [SRC] button is pressed, the
operation mode changes as follows:
Radio
~ CD/MP3IWMA ~ USB/iPod ~ AUX
~ Radio ...
An iPod can be connected via aUSB cable.
Adjusting the volume
1. Turn the [ROTARY] knob clockwise to
increase volume; turn counterclockwise to
decrease volume.
*Volume range is 0(minimum) to 33 (maximum).
Switching the display
Press the [DISP] button to select desired
display.
8 CZ209

Sound Adjustment
Sound effects and tone can be adjusted as
desired.
To change sound settings
1. Press the [SOUND] button to switch to the
sound adjustment display.
*The factory default sound setting is "Z-
EHCR+".
2. Press [~] or [~] to select the sound
adjustment mode.
Each time [~] or [~] is pressed, the
sound adjustment mode changes as
follows:
"Z-EHCR+"
+--+ "BASS" +--+ "TREBLE" +--+
"BALANCE" +--+ "FADER" +--+ "NF VOL"
* When "ENT" is flashing in the display, press
the
[ENT] button to adjust the setting value.
~III
* The sound adjustment mode is displayed
for 2seconds before showing
the sound
setting.
3. Turn the [ROTARY] knob to adjust the
selected audio mode.
4. After completing settings, press the
[SOUND] button to return to the previous
mode.
•Setting the Z-Enhancer Plus
This unit has 4sound tone effects stored in
memory.
Select the effect you prefer.
*The factory default setting is "OFF".
2-1. Select "Z-EHCR+".
3-1. When you turn the [ROTARY] knob, the
tone effect changes as follows:
"OFF"
+--+ "B-BOOST' +--+ "IMPACT" +--+
"EXCITE" +--+ "CUSTOM"
OFF :No sound effect
B-BOOST :Enhanced bass
IMPACT :Enhanced bass and treble
EXCITE :Enhanced bass, mid, and
treble
CUSTOM :User customized
When set to "B-BOOSTIIMPACT/EXCITE":
3-2. Press the
[;71~] button.
3-3. Turn the [ROTARY] knob to adjust the
setting (Setting range:
-3 to +3).
* The factory default setting is "0".
3-4. Press the [;71~ ]button to return to the
previous mode.
When
set to "CUSTOM":
3-2. Press and hold the [;~~] button (1 sec.).
Bass/treble characteristics become flat and
"FLAT' is show in the display.
3-3. Turn the [ROTARY] knob to change to the
"OFF" mode.
•Adjusting the bass
This adjustment is supported only when
Z-Enhancer Plus is set to "CUSTOM".
2-1. Select "BASS".
3-1. Press the
[;71~] button.
3-2. Press
[~] or [~] to change and select
settings as follows:
"B<G 0>"
+--+ "B<F 60>" +--+ "Q 1"
3-3. Turn the [ROTARY] knob to adjust values
for gain, F(center frequency) and Qcurve.
B<G 0> :The factory default setting is "0".
(Adjustment range: +7 to
-7)
B<F 60> :The factory default setting is
"60".
(Adjustment range:
60/80/100/200)
Q1:The factory default setting is "1".
(Adjustment range: 1/1.25/1.5/2)
3-4. Press the
[;71~] button to return to the
previous mode.
•Adjusting the treble
This adjustment is supported only when
Z-Enhancer Plus is set to "CUSTOM".
2-1. Select ''TREBLE''.
3-1. Press the
[;71~] button.
3-2. Press
[~] or [~] to change and select
settings as follows:
"T<G 0>" +--+ "T<F 10K>"
3-3. Turn the [ROTARY] knob to adjust values
for gain and F(center frequency).
T<G 0> :The factory default setting is "0".
(Adjustment range: +7 to
-7)
T<F 10K>:The factory default setting is
"10K".
(Adjustment range:
101</12.51</
151</17.5K)
3-4 Press the
[ENT] button to return to the
• ~/II
previous mode.
CZ209
9

• Adjusting the balance
2-1. Select "BALANCE".
3-1. Turn the [ROTARY] knob to adjust balance
between right and left speakers.
*The factory default setting is "CENTER".
(Adjustment
range: RIGHT12 to LEFT12)
•Adjusting the fader
2-1. Select "FADER".
3-1. Turn the [ROTARY] knob to adjust balance
between front and rear speakers.
*The factory default setting is "CENTER".
(Adjustment
range: FRONT12 to REAR12)
•Adjusting the non-fader volume
Adjust volume output from the unit's non-fader
output terminal.
2-1. Select "NF VOL".
3-1. Turn the [ROTARY] knob clockwise to
increase volume; turn counterclockwise to
decrease volume.
*The factory default setting is "0".
(Adjustment range: +6 to -6)
Note:
•When in the sound adjustment mode, if no
operation is performed for
10 seconds or more,
the
mode is cancelled and the unitreturns to the
previous mode.
Setting the MAGNA BASS EXTEND
The MAGNA BASS EXTEND function does not
adjust low frequencies like normal sound
adjustments, but emphasizes the deep bass
range with dynamic sound.
*The factory default setting is "OFF".
1. Press and hold the [SOUND] button (1 sec.)
to enable MAGNA BASS EXTEND.
2. Press and hold the [SOUND] button
(1 sec.)
to disable MAGNA BASS EXTEND.
10 CZ209
Radio Operations
Listening to broadcasts
1. Press the [SRC] button and select radio
mode.
2. Press the [BND] button and select the
reception band. Each time the button is
pressed, the band changes as follows:
F1 (FM1) -+ F2 (FM2) -+ F3 (FM3) -+ AM -+
F1 (FM1 )...
Tuning
3tuning modes are available: seek tuning,
manual tuning and preset tuning.
Seek tuning
1. Press the [BND] button and select the
desired band (FM/AM).
*If "MANU" appears in the display, press and
hold
the [BND] button (1 sec.). "MANU" will
turn
off, and seek tuning will be enabled.
2. Press [~] or [~] to automatically seek a
station.
Manual tuning
2modes are available: Quick tuning and step
tuning.
•Quick tuning
Press and hold [~] or [~] (1 sec.) to tune a
station.
•Step tuning
Press [~] or [~] to manually tune astation.
Recalling apreset station
Atotal of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) can be used to store broadcast
stations
in memory. Press the corresponding
[DIRECT] button to automatically recall the
stored frequency.

Manual memory
1. Use seek tuning or manual tuning to select
the desired station.
2. Press and hold one of the [DIRECT] buttons
(2 sec.) to store the current station in preset
memory.
Auto store
The auto store function stores up to 6stations
automatically tuned in sequential order. If 6
stations cannot be found, any previously stored
station remains in its memory position.
1. Press the [BND] button and select the
desired band (FM/AM).
2. Press and hold the [:~~] button (2 sec.). The
stations with good reception are stored
automatically to the preset channels.
* If auto store is performed in the FM bands, the
stations are stored in FM3 even if FM1 or FM2
was chosen for storing stations.
Preset scan
Preset scan sequentially receives stations
stored in preset memory. This function is useful
when searching for astation stored in the
memory.
1. Press the [:~I~] button.
2. When the desired station is received, press
the
[:~I~ ]button again to continue receiving
that station.
Note:
•
Do not press and hold the [:~I~ Jbutton (2 sec.),
or
the auto store function will begin and the unit
will begin storing stations.
Instant station recall (lSR)
The ISR function allows instant access to a
favorite preset station. The function operates
even when the unit is
in other modes.
.ISR memory
1. Select the station you wish to store in ISR
memory.
2. Press and hold the [ISR] button (2 sec.).
•Recalling astation with ISR
While in any mode, press the [ISR] button to
turn
on the radio function and tune the selected
station.
"ISR" appears on the display. Press the
[ISR] button again to return to the previous
mode.
CDIMP31WMA Operations
MP3/WMA
This unit supports to play MP3IWMA files.
Notes:
•If you playa WMA file with active DRM (Digital
Rights Management), no audio is output (WMA
indicator flashes).
•Windows Media
TM, and the Windows ®logo are
trademarks,
or registered trademarks of
Microsoft Corporation in the United States and/or
other countries.
•To disable DRM (Digital Rights
Management)
1. In Windows Media Player 9/10/11, click on
TOOL
~ OPTIONS ~ MUSIC RECORD tab.
Under Recording settings, unclick the check
box for RECORD PROTECTED MUSIC.
Then reconstruct files.
Use personally constructed WMA files at
your own responsibility.
Precautions when creating MP31
WMA files
•Usable sampling rates and bit rates
1. MP3: Sampling rate: 8kHz-48 kHz,
Bit rate: 8kbps-320 kbps 1VBR
2. WMA: Bit rate: 48 kbps-192 kbps
•File extensions
1. Always add afile extension ".MP3" or
".WMA" to MP3 or WMA files using single
byte characters. If adifferent or no file
extension is appended, the file cannot be
played.
2. Files without MP3IWMA data will not play.
Instead,
"- -:- -" will appear in the play time
display.
•Logical format (File system)
1. When writing MP3IWMA files on aCD-R or
CD-RW disc, select
"IS09660 level 1, 2, or
JOLIET
or Romeo" as the software format.
Normal playback may not be possible if
recorded
in other formats.
2. The folder name and file name can be
displayed as the title during MP3IWMA play.
However titles must be within 64 single byte
alphabetical letters and numbers (including
extension).
3. Do not affix aname to afile inside afolder
with the same name.
CZ209 11

• Number of files or folders
1. Up to 256 files can be recognized per folder.
Up to 578 files can
be played.
2. Tracks are played in the order they were
recorded onto the disc. (Tracks may not
always be played
in the order displayed on
the PC.)
3. Some noise may occur depending on the
type of encoder software used for recording.
Disc-In-Play function
This function automatically turns on unit power
and begins disc play if adisc is inserted when
the car's ignition key
is turned to the ON or ACC
position.
I' ..... >j AJCA"l"JPlt
I>
<. ·····•··••·• .... ····1
•Do not insert hands, fingers, or other
foreign objects into the disc insertion slot.
•Do
not insert discs with adhesives such as
cellophane tape
or rental CD labels
attached,
or discs with marks left from
removal of such adhesives, since the disc
may become stuck and damage the unit.
Backup Eject function
Press the [~] button to eject the disc even when
the unit's power
is turned off.
1. Press the [~] button. Remove disc after it is
ejected.
Notes:
•Ifyou force aCD in before auto reloading, you
may damage the
CD.
•If aCD (12 cm) is left ejected for 15 seconds, it
will be automatically reloaded (auto reload).
Listening to adisc alreadyloaded in
the
unit
Press the [SRC] button to select CD/MP3IWMA
mode.
When the unit enters this mode, playback starts
automatically.
If no disc is loaded, "NO DISC" appears
in the
title display.
12 CZ209
Loading a CD
1. Insert aCD into the centre of the CD SLOT
with label facing
up. "LOADING" appears in
the display, the CD enters the slot, and play
begins.
Notes:
•
If the CD does not enter easily, another CD may
be in the unit, or the unit may require service.
•Discs without the
~~j or •mark and CD-
ROMs are
not supported.
•Some CD-RICD-RW discs may not be usable.
Pausing play
1. Press the [~~I~] button to pause play.
"PAUSE" appears
in the display.
2. To resume CD play, press the [~~~] button
again.
Displaying CD titles
This unit can display title data for CD-text/MP31
WMA discs.
1. Each time the [DISP] button is pressed, the
title display will change.
•CD-TEXT
discs
Track ~ Disc ~ Artist ~ Track ...
•MP3JWMA discs
Track ~ Folder ~ Title ~ Album ~ Artist ~
Track ...
Notes:
•If the CD playing is notaCD-text disc
or no user
title has been input, "NO TITLE" appears
in the
display.
•
If an MP31WMA disc has no Tag input, "NO
TITLE" appears in the display.
•
This unit supports MP31D3 Tags V2.3 I 2.2 /1.1 I
1.0.
•Tag display gives priority to V2.3 12.2.
•For
WMA album Tags, the information written into
the extension headeris displayed.
•IS08859-1, ASCII, S-JIS characters can be
displayed in Tags.
UNKNOW characters can be turned into
IS08859-1 characters.
•Titles up to 32 bytes can be displayed in COl
MP31WMA mode.

Selecting atrack
•Track advance
1. Press the [~] button to move to the
beginning of the next track.
2. Each time the
[~] button is pressed, the
track advances to the beginning of the next
track.
•Track back
1. Press the [~] button to return to the
beginning of the current track.
2. Press the [~] button twice to return to the
beginning of the previous track.
Fast-forwardlfast-reverse
•Fast-forward
1. Press and hold the [~] button (1 sec.).
•Fast-reverse
1. Press and hold the [~] button (1 sec.).
* For MP3IWMA discs, some time is required until
to initiate movement between tracks. Also, some
error may occur
in the playing time.
Folder select
Select afolder containing MP3IWMA files and
begins playing the first track in the folder.
1. Press [UP] or [ON].
Press the [UP] button to move to the next
folder. Press the [ON] button to move to the
previous folder.
2. To select atrack, press [~] or [~].
Other playmodes
•Scan play
This function locates and plays the first 10
seconds of all tracks recorded on adisc.
1. Press the [SCN] button for scan play.
•Folder scan play
This function locates and plays the first 10
seconds of the first tracks of all folders on an
MP3IWMA disc.
1. Press and hold the [SCN] button (1 sec.) for
folder scan play.
•Repeat play
This function plays the current track repeatedly.
1. Press the [RPn button for repeat play.
•Folder repeat play
Repeatedly plays all tracks of the current folder
on an MP3IWMA disc.
1. Press and hold the [RPn button (1 sec.) for
folder repeat play.
•Random play
This function plays all tracks recorded on adisc
in random order.
1. Press the [ROM] button for random play.
•Folder random play
This function plays all the tracks of all the folders
recorded on
an MP3IWMA disc in random order.
1. Press and hold the [ROM] button (1 sec.) for
folder random play.
•To cancel play modes
1. Press the button previously selected.
* The play mode is canceled and the off mode
appears
in the display for 2seconds.
* If the error display "- -:- -" appears, these
modes (Scan/Repeat/Random) can be canceled
while still
in play mode.
CZ209 13

Operations Common to
Each Mode
To change settings
1. Press and hold the [DISP] button (1 sec.)
to switch to the adjustment display.
2. Press
[~] or [~] to select the "item
name" as follows:
"CLOCK" -"SETTINGS" -"SCRN SVR"
-"SCROLL" -"DIMMER" -"TEL-SP"
-"TEL-SW"
*The adjustment item will be displayed for 2
seconds before showing the desired value.
3. Turn the [ROTARY] knob to select the
desired value.
*When "ENT' is flashing in the display, press
the
[;~I~] button to adjust setting value.
4. After completing settings, press the [DISP]
button to return to the previous mode.
•Setting the clock
2-1. Select "CLOCK".
3-1. Press the
[;~I~] button
3-2. Press
[~] or [~] to select the hour or
minute.
3-3. Turn the [ROTARY] knob to set the time.
*The clock is displayed in 12-hour format.
3-4. Press the
[;~I~] button to store the time in
memory and return to the previous mode.
Note:
• You cannotset the clock when it is displayed
with only the car's ignition
on. Ifthe car's battery
dies
or is removed, or the unit is removed, the
clock will be reset. Ifanother button/operation
is
selected while setting the clock, the clock set
mode
is canceled.
•Displaying the settings
You can see the state of current settings at any
operation mode.
2-1. Select "SETTINGS".
3-1. Turn the [ROTARY] knob to display the
current settings.
*When the setting is selected, the current
state will
be displayed after 1second.
•Turning the screen saver on/off
This unit has ascreen saver function in which
various patterns and random characters can be
displayed on the operation status indication
area. This function can be turned on/off. If a
button is pressed while the screen saver is on,
the corresponding operation display is shown
for about 30 seconds, and then the display
returns to the screen saver.
*The factory default setting is "ON".
2-1. Select "SCRN SVR".
3-1. Turn the [ROTARY] knob
to select "ON" or
"OFF".
•Setting title scroll method
Set how to scroll in CD-TEXT and MP3IWMA
titles.
*The factory default setting is "ON".
2-1. Select "SCROLL".
3-1. Turn the [ROTARY] knob
to select "ON" or
"OFF".
•ON: Scroll automatically.
•OFF: Scroll 1time only.
•Setting dimmer control
Dimmer control can be set "ON" or "OFF".
* The factory default setting is "ON".
2-1. Select "DIMMER".
3-1. Turn the [ROTARY] knob to select "ON" or
"OFF".
•Setting car speaker output for cell
phones
When the AUX input jack is used to connect an
AUX BLUETOOTH BB (BLT370) (sold
separately):
*The factory default setting is "RIGHT'.
*To output the telephone calls, set cell phone
interrupt
to "ON".
2-1. Select "TEL-SP".
3-1. Turn the [ROTARY] knob to select "RIGHT"
or "LEFT'.
•RIGHT: Telephone calls can
be heard on
the front right speaker connected to this
unit.
•LEFT: Telephone calls can be heard on
the front left speaker connected to this
unit.
14
Example:
n1- II c: \I
I II '-_"
CZ209
After 1second:
( f1- II

•Cell phone interrupt setting
If you connect this unit and your cell phone with
an optional cable, you can listen to your calls on
your car speakers.
When the AUX input jack is used to connect an
AUX BLUETOOTH BB (BLT370) (sold
separately):
*The factory default setting is "OFF".
2-1. Select "TEL-SW".
3-1. Turn the [ROTARY] knob to select setting.
When turning the [ROTARY] knob, the
setting changes as follows:
"OFF"
+--+ "ON" +--+ "MUTE"
•OFF: This unit continues normal
operation even when the cell phone is
used.
•ON: Telephone calls can be heard from
the speakers connected to the unit.
* When listening to calls on your car speakers,
turn
the [ROTARY] knob to adjust the
volume.
•MUTE: The sound from this unit is muted
during telephone calls.
Note:
•Ifconnecting ahands-free kit, make sure the
setting
is ON to receive telephone audio through
the system.
AUX function
An external input jack (AUX) is provided on the
front panel to allow playback of sound and
music from external devices.
•Selecting AUX IN sensitivity
Make the following settings to adjust sensitivity
when the sound from an external device is
difficult to hear even after adjusting the volume.
*The factory default setting is "MID".
1. Press and hold the [DISP] button (1 sec.).
2. Select "AUX SENS".
3. Turn the [ROTARY] knob to select "HIGH",
"MID" or "LOW".
Note:
• When AUXmode is selected, AUX IN sensitivity
can be
set.
7. ACCESSORIES
USB Operations
USB memorydevice operation
Note:
• The following operations are the same as CD
mode:
*Titles up to 64 bytes can be displayed in USB
mode.
*Pause
*Track selection
*Fast-forwardlfast-reverse
*Scan play
*Repeat play
*Random play
*Folder selection
See "CDIMP3IWMA
Operations" (page 11-13)
for details.
About USB memory
•USB stands for Universal Serial Bus, and
refers to an external bus standard supporting
data transfer rates of 12 Mbps.
•This unit is compatible with USB 1.1/2.0 with
maximum data transfer rates of 12 Mbps.
•USB memory devices playable via the unit's
USB cable are limited to those recognized as
"USB mass storage class devices"; operation
is not guaranteed with all USB memory
devices.
*Devices compatible with "USB Mass Storage
Class" can
be used by connecting to the host
device without special drivers or application
software.
•Consult the manufacturer of your USB
memory device for information regarding
whether it is supported by "USB Mass
Storage Class" standards.
•Audio files playable on this unit are limited to
MP3IWMA files. For details, see "MP3/WMA"
(page 11).
Copy-protected
WMA files cannot be played
on this unit.
•To prevent accidental loss of data, always
back up important data on your computer.
•Connections to acomputer,
or through aUSB
hub device are not supported.
CZ209 15

•When aUSB memory device is composed of
two or more drives, only one of the drives will
be detected.
•USB memory devices with security functions
are not supported.
•The order in which tracks are recorded may
differ depending on the USB memory device
(the actual playback order may not be the
same as that indicated on your computer's
display).
1······t .. ~.·:'~;~~'~;t'~;~eAonDN·;.}\H:j1~.'i~·:',·,··c;"'1
•Insert and remove aUSB memory device
only when the device is not being
accessed. Connecting/disconnecting the
device at the following times may result
in
the loss of data:
•If the USB memory device is removed or
power is disconnected during writing to
the device.
•When the device is subject to static
electricity or electric noise.
•Do not leave aUSB memory device
unattended
in an automobile. Exposure to
direct sunlight or high temperatures may
cause deformation
or other malfunction of
the USB memory device.
Connecting aUSB memory device
1. Connect the USB memorydevice to the USB
cable. Press the [SRC] button to switch the
source to the device.
Playback will begin from the first file
recorded on the device.
*Always insert the device fully into the
connector. Incomplete connections may
cause the device not to be recognized.
*Depending on the number of tracks recorded,
some of time may be required until
all tracks
are read into the unit.
To listen to tracks on aconnected
USB memory device
1. Press the [SRC] button to switch sources
When USB memory device is selected,
playback will begin from the location at which
playback was previously stopped.
* When a USB memory device is disconnected
and reconnected, playback will begin
from the
previous track of the USB memory device.
16 CZ209
To stop play
1. Press the [SRC] button and switch the
source to something other than the USB
memory device.
2. Remove the USB memory device from the
USB cable.
Do not remove the USB memory device
while USB mode is selected, as it
may result
in loss of or damage to data on the USB
memory device.
Always backup and save important data on
your computer.

iPod Operations
This section describes operations when
connected to an Apple iPod via the USB cable.
Notes:
•See the iPod Owner's Manual for details
regarding operations.
•
The unit will notoperate, or mayoperate
improperly with unsupported versions.
•For alist
of Apple iPod models compatible with
this unit, please contact your Clarion dealer
or
www.clarion.com.
•Made for iPod means that an electronic
accessory has been designed
to connect
specifically
to iPod and has been certified by the
developer to meetApple performance
standards.
Apple is notresponsible for the operation
of this
device
or its compliance with safety and
regulatory standards.
iPod
and iTunes are trademarks of Apple Inc.,
registered in the
U. S. and other countries.
Connecting an iPod
When an iPod is connected to the USB cable,
the "Shuffle" setting on the iPod will become as
follows:
•"Shuffle (Albums)" play
~ Random play
•"Shuffle (Songs)" play
~ All random play
The iPod has two modes: the "Play mode" and
the "iPod menu mode" for selecting tracks.
Switch between these modes by pressing the
[BND] button.
Note:
•
To connect an iPod, please use the USB cable
that came with your iPod.
Select iPod mode
1. Press the [SRC] button.
Playback will begin from the last file that was
played on the iPod.
Notes:
•
The following operations in Play mode operate
the same as in CD mode: .
*Track selection: [~], [~]
*Fast·forwardlfast·reverse: [~], [~]
*Pause" [ENT]
" ~/II
See "CDIMP3IWMA Operations" (page 11-13)
for details.
•AfteraPodcastfile has completedplayback, the
pause display,
or the track-end position Play-
Time display will appear. At that time, select a
music file once again.
•If the iPhone is used for telephone call in the
other operation mode
and you wish to switch to
the iPod mode, you mustfinish the telephone call
and press the [~~11] button to enterthe iPod
mode.
Setting iPod simple mode
Use this function if you wish to operate through
your iPod connected to this unit via the USB
cable.
* The factory default setting is "OFF'.
1. Press and hold the [DISP] button (1 sec.).
2. Press [1+1II] or [~] to select "S-CTRL".
3. Press the [~~11] button.
4. Turn the [ROTARY] knob to select "ON" or
"OFF".
•ON: Operations can be made through your
iPod.
•OFF: Operations cannot be made through
your iPod.
5. Press and hold the [~~11] button (1 sec.) to
store the setting and return to the previous
mode.
Notes:
•
When performing iPod operations using simple
control mode, make the operations slowly. If
repetitive operations are performed too quickly,
unforseen errors may occur.
•Some
iPod models do not support this function.
Consultyour nearest Clarion dealer
or website to
confirm which models do not supportthis
function.
CZ209 17

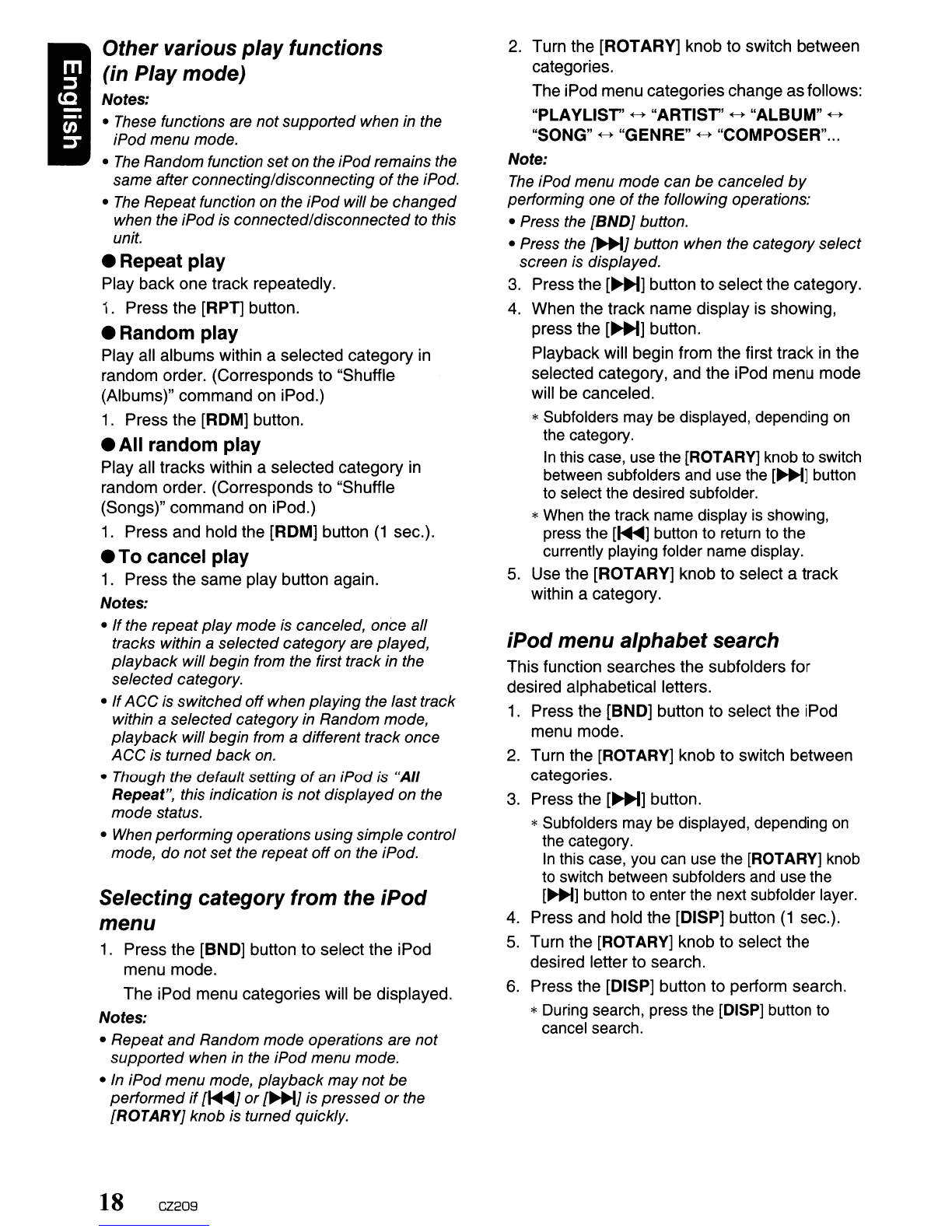

Other various play functions
(in Play mode)
Notes:
•These functions are notsupported when in the
iPod menu mode.
•
The Random function seton the iPodremains the
same after connecting/disconnecting of the iPod.
•
The Repeatfunction on the iPod will be changed
when the iPod
is connected/disconnected to this
unit.
•Repeat play
Play back one track repeatedly.
1. Press the [RPT] button.
•Random play
Play all albums within aselected category in
random order. (Corresponds to "Shuffle
(Albums)" command on iPod.)
1. Press the [RDM] button.
•All random play
Play all tracks within aselected category in
random order. (Corresponds to "Shuffle
(Songs)" command on iPod.)
1. Press and hold the [RDM] button (1 sec.).
•To cancel play
1. Press the same play button again.
Notes:
•Ifthe repeat playmode is canceled, once all
tracks within aselected category are played,
playback will begin from the first track in the
selected category.
•IfACCis switchedoffwhen playing the lasttrack
within aselected category in Random mode,
playback will begin from adifferent track once
ACC is turned back on.
•Though the default setting of an iPod is "All
Repeat", this indication is not displayed on the
mode status.
•
When performing operations using simple control
mode,
do notset the repeat offon the iPod.
Selecting category from the iPod
menu
1. Press the [BND] button to select the iPod
menu mode.
The iPod menu categories will be displayed.
Notes:
•Repeat
and Random mode operations are not
supported when in the iPod menu mode.
•In iPod menu mode, playback may not be
performed
if [~] or [~] is pressed or the
[ROTARY] knob is turned quickly.
18 CZ209
2. Turn the [ROTARY] knob to switch between
categories.
The iPod menu categories change as follows:
"PLA YLlST' +--+ "ARTIST' +--+ "ALBUM" +--+
"SONG" +--+ "GENRE" +--+ "COMPOSER"...
Note:
The iPod menu mode can be canceled by
performing one of the following operations:
•Press the
[BND] button.
•Press the
~] button when the category select
screen is displayed.
3. Press the [~] button to select the category.
4. When the track name display is showing,
press the
[~] button.
Playback will begin from the first track in the
selected category, and the iPod menu mode
will be canceled.
*Subfolders may be displayed, depending on
the category.
In this case, use the [ROTARY] knob to switch
between subfolders and use the
[~] button
to select the desired subfolder.
* When the track name display is showing,
press the
[~] button to return to the
currently playing folder name display.
5. Use the [ROTARY] knob to select atrack
within acategory.
iPod menu alphabet search
This function searches the subfolders for
desired alphabetical letters.
1. Press the [BND] button to select the iPod
menu mode.
2. Turn the [ROTARY] knob to switch between
categories.
3. Press the [~] button.
*Subfolders may be displayed, depending on
the category.
In this case, you can use the [ROTARY] knob
to switch between subfolders and use the
[~] button to enter the next subfolder layer.
4. Press and hold the [DISP] button
(1 sec.).
5. Turn the [ROTARY] knob to select the
desired letter to search.
6. Press the [DISP] button to perform search.
*During search, press the [DISPj button to
cancel search.

Selecting category using preset
memory
1. Press the [BND] button to select the iPod
menu mode.
The category can be set as follows in the
[DIRECT] (1-6) buttons.
[1] :PLAYLiST
[2]: ARTIST
[3]: ALBUM
[4]: SONG
[5]: GENRE
[6] :COMPOSER
2. Press the desired [DIRECT] (1-6) button to
select the category.
*Subfolders may be displayed, depending on
the category.
In this case, use the [ROTARY] knob to switch
between subfolders and use the [~] button
to select the desired subfolder.
3. When the track name display is showing,
press the [~] button.
Playback will begin from the first track in the
selected category, and the iPod menu mode
will be canceled.
* Use the [ROTARY] knob to select atrack
within acategory.
About title display
This unit supports the display of title information
obtained from aconnected iPod.
•Character code information is UTF-8;
displayable characters include English
alphanumerics, some symbols, and some
umlaut characters.
•Unsupported characters will be replaced by
asterisks (*).
CZ209 19

8. TROUBLESHOOTING
Nothing happens Microprocessor malfunction
when buttons are due to noise, etc.
pressed.
Consult your dealer.
1. Turn the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for possible short circuits
using an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the power
antenna lead one by one. If the amplifiers turn off
before all wires are attached, use an external relay
to provide remote power-on voltage (excessive
current required).
Replace with afuse ofthe same amperage. If the fuse
blows again, consult your dealer.
Wipe dirt off with asoft cloth dampened with cleaning
alcohol.
Write MP3IWMA files onto disc properly.
Use properly encoded MP3IWMA files.
1. Turn off power, then press the
[RELEASE] button and remove
the DCP.
2. Use athin rod to hold reset
button depressed (2 sec.).
If the reset button is pressed
when adisc is loaded, please
eject the disc and load it once
again before attempting to play
it.
1. Turn down sound volume. Function can also be
restored by turning power off and on again.
(Speaker volume is reduced automatically when
the speaker protection circuit operates).
2. If the sound is still muted, consult your dealer.
Replace with aCD without scratches.
Use IS09660 level 1 ,2 or JOLIET or Romeo file
system.
Use properly encoded MP3IWMA files.
Clean the CD with asoft cloth.
Let dry for about 1hour with power on.
Use IS09660 level 1, 2or JOLIET or Romeo file
system.
Incorrect wiring.
Power antenna lead is short
circuited, or excessive
current is required for
remotely powering on the
amplifiers or power antenna.
DCP or main unit connectors
are dirty.
File system is not correct.
MP3IWMA files are absent
on disc.
The speakerprotection circuit
is operating.
CD is heavily scratched/
warped.
Files are not recognized as
MP3IWMA files.
CD is dirty.
Condensation may form on
the internal lens when the car
is parked in ahumid place.
MP3IWMA files are not
encoded properly.
File system is not correct.
Power does not
turn on.
(No sound)
No sound when
operating the unit
with amplifiers or
power antenna
attached.
Sound is poor
when power is
first turned on.
20 CZ209
