Clarity XL50 User manual

User Guide
E
S
P
A
Ñ
O
L
F
R
A
N
Ç
A
I
S
E
N
G
L
I
S
H
Amplified Telephone
XL50TM

TABLE OF CONTENTS
Introduction........................................................................................ 4
Parts Checklist .................................................................................. 6
Quick Reference Guide .................................................................. 7
Connecting the phone ................................................................. 9
Introduction to Digital Clarity Power.....................................10
Clarity Power Boost...................................................................10
Tone Settings................................................................................12
Getting Started
Installing backup batteries.........................................................14
Desktop and Wall Mount Installations ...................................15
Placing and receiving calls..........................................................17
Features
Memory Storage..........................................................................18
Adding a memory location........................................................18
Audio Output ..............................................................................20
Notification Options .....................................................................21
Troubleshooting..............................................................................24
Technical Specifications .............................................................27
Safety Instructions.........................................................................28
FCC Requirements and Regulations.......................................30
Warranty and Service ..................................................................33

4
Thank you for purchasing the Clarity Professional XL50
Amplified Telephone.
Clarity is proud to offer you the only certified 60dB phone
in the market.The Clarity Professional XL50 offers our
patented Digital Clarity Power that uses digital technology
to enhance the volume and clarity of your phone conversa-
tions.This User Guide and Quick Start Guide will provide
you with the information you need to use your XL50
effectively, easily and safely. Read this manual thoroughly
before using your telephone.
Keep the manual near the telephone for easy reference.
INTRODUCTION

5
FEATURES
Digital Clarity Power™Technology
With Digital Clarity Power, high frequency sounds are amplified
more than low frequency sounds so words are not just louder,
but clearer and easier to understand. It also provides intelligent
amplification to make soft sounds audible, while keeping loud
sounds bearable.
Tone Selection
Another added benefit of our patented Digital Clarity Power
is the ability to customize the phones performance to your
specific hearing needs.The XL50 has four available tone settings
that each provide different solutions to help you better hear
phone conversations.
Smart-PlexingTechnology
Smart-Plexing is the new and advanced way that the XL50 deals
with possible feedback issues and is unique to Clarity phones.
Feedback occurs when the sound coming out of the earpiece is
detected by the microphone on the handset and is reprocessed
by the telephone.This causes the telephone to squeal or howl.
Most phones will temporarily shut off the microphone to fix this
problem, but that results in only one person being able to talk
at a time.The Clarity Professional XL50 uses a “smart plexing”
system where it enables full functionality on both ends of the
conversation at all times. Only Clarity offers such a solution
that will allow full conversation while controlling feedback.
Notification Accessories
A Wireless Lamp Flasher and Bed Shaker can be connected
to the phone to allow for a variety of ways to alert the user
that the phone is ringing.The Wireless Lamp Flasher will cause
any connected light source to flash when the phone rings.The
Bed Shaker is an accessory that will begin to vibrate when the
phone rings.

6

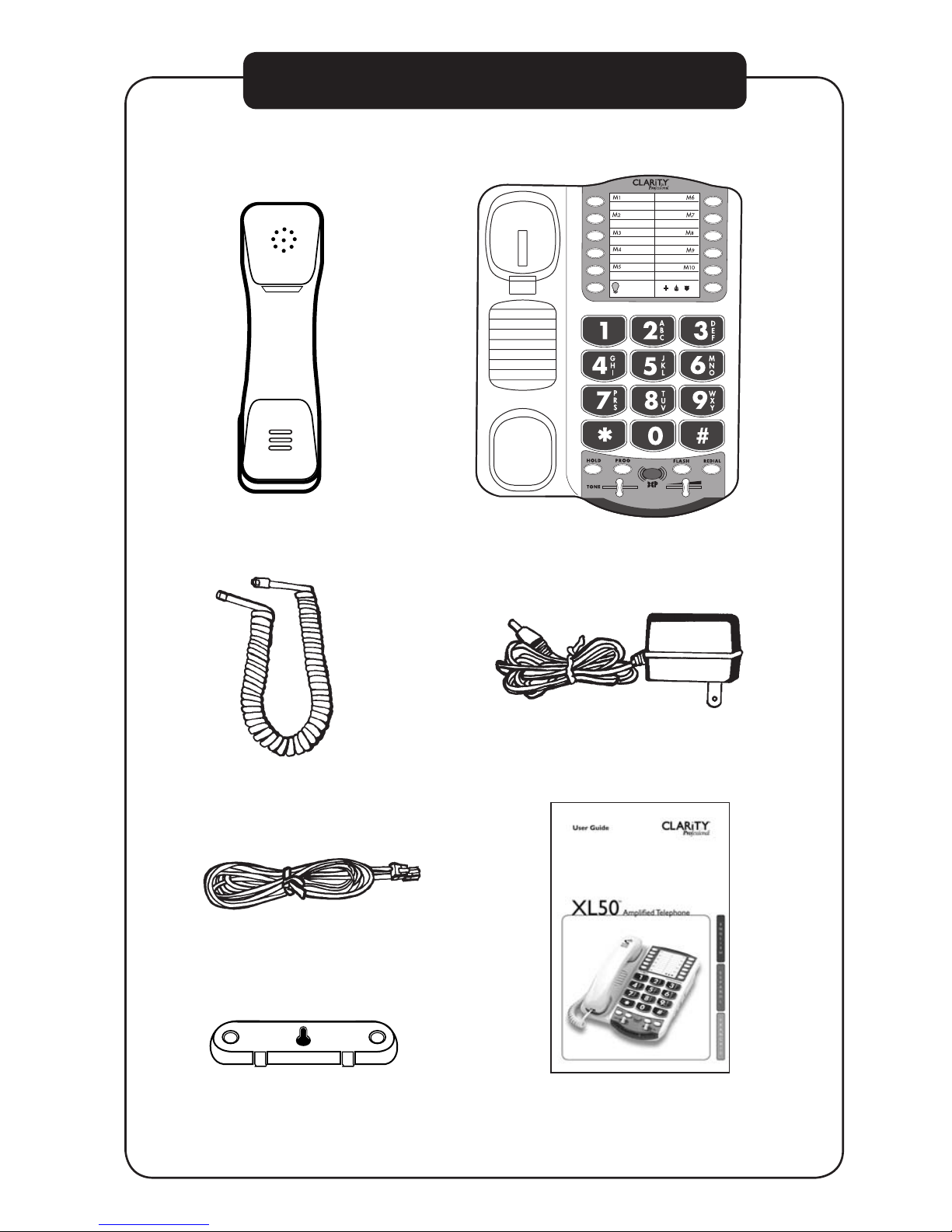

CONTENTS & PARTS CHECKLIST
User guideMounting bracket
Telephone line cord
Handset coil cord
Handset
AC adapter
Base unit
BOOST
VOLUME
1 2 3 4
LAMP
AMERIPHONE®XL50

7

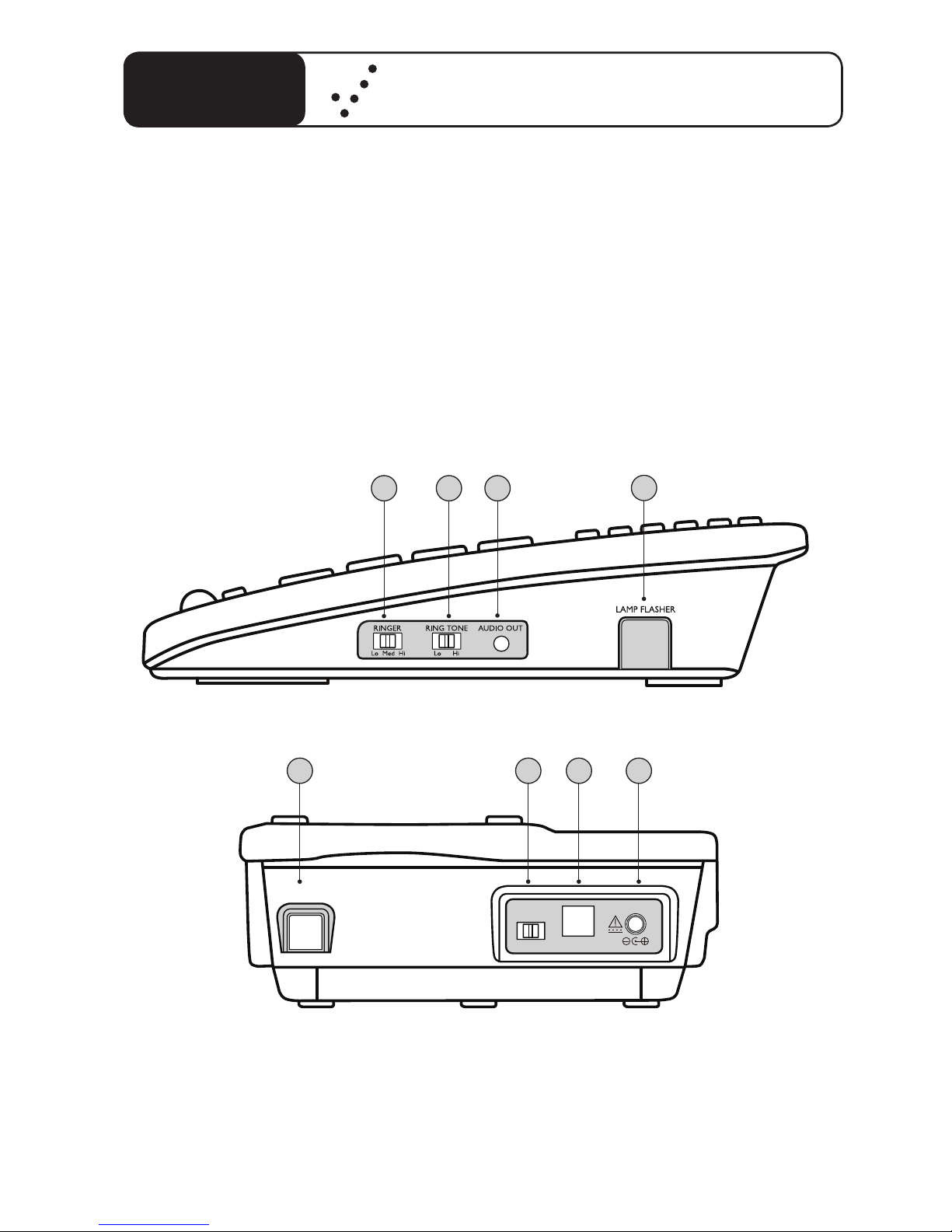

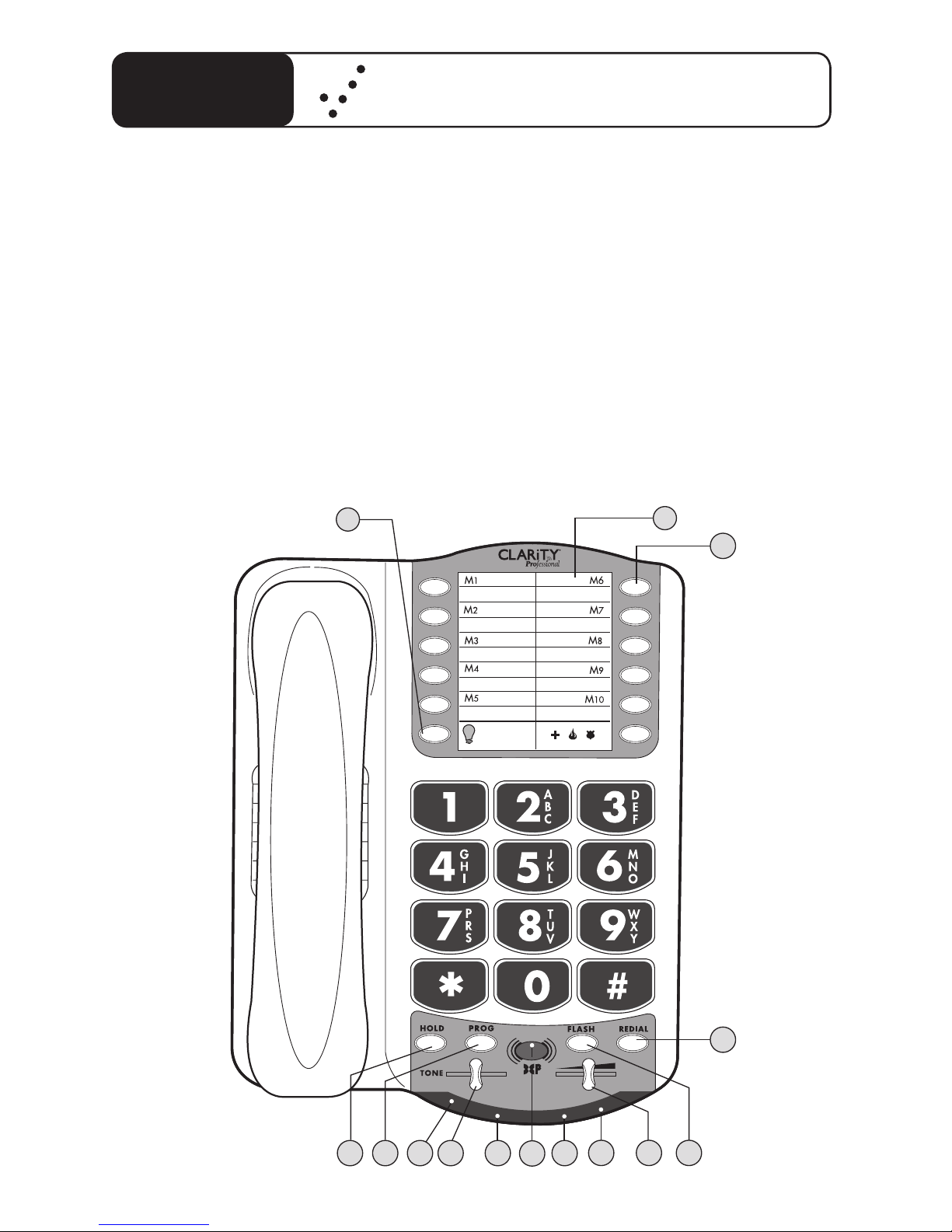

XL50 Quick Reference Guide
FEATURES
1Phone Number Directory
2Memory Button
3Redial Button
4Flash Button
5Volume Slider
6Low Battery Indicator
7Visual Ringer
8Boost Button
9Boost/Missed calls
Voice Mail/Extension
10 Tone Control
11 Hold Indicator
12 Program Button
13 Hold Button
14 Lamp Flasher Button
1
BOOST
VOLUME
1 2 3 4
LAMP
AMERIPHONE®XL50
3
2
6
7911 45
8
101213
14

8
XL50 Quick Reference Guide
FEATURES
1RingerVolume Switch
2Ring Tone Switch
3 Audio Output Port
4 Wireless Lamp Flasher Port
1 2 3 4
5 Bed Shaker Port
6Pulse/Tone Switch
7Phone Line Connection
8AC Adapter Connection
DIAL
BED SHAKER
LINE
P T
DC12V
SIDE VIEW
BACK VIEW
5 6 7 8

9

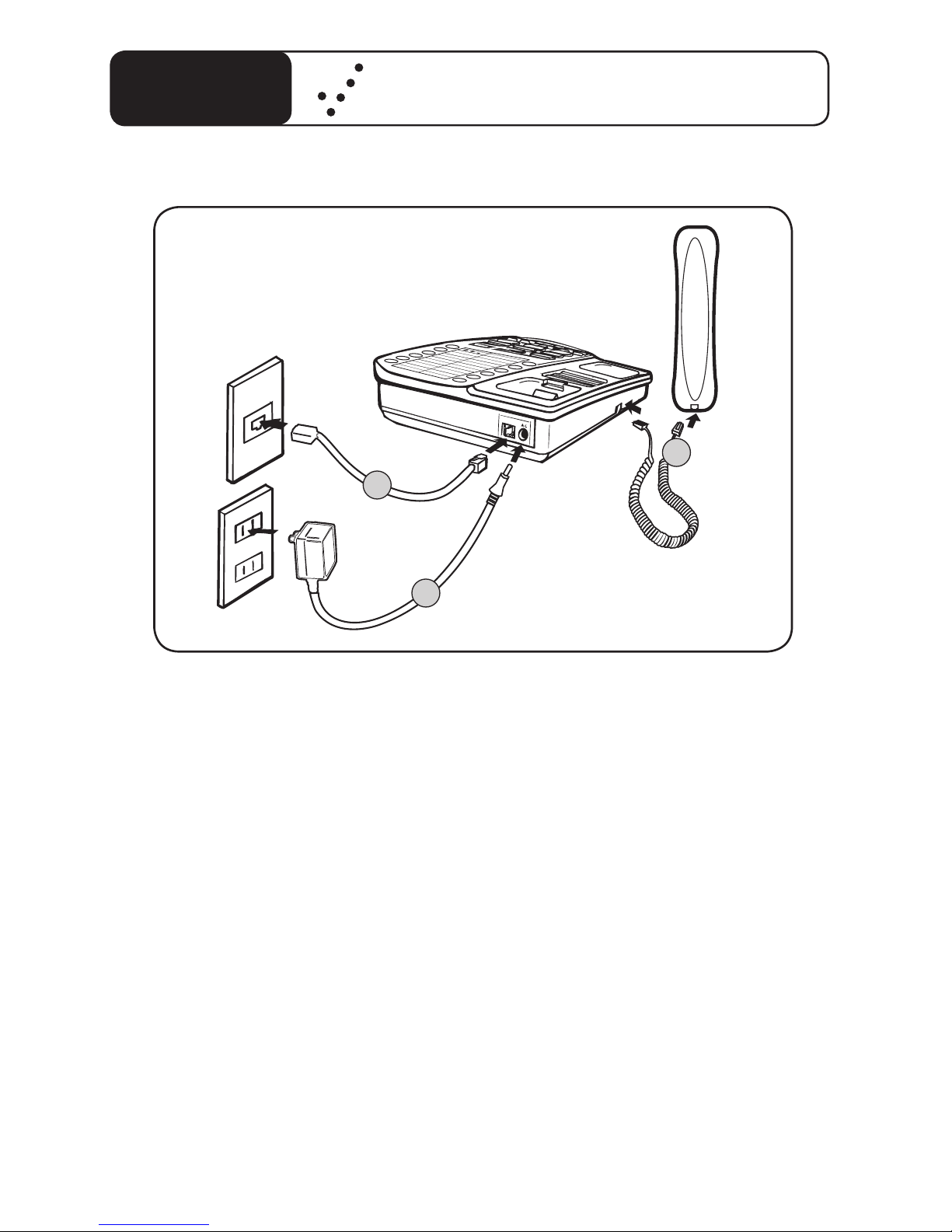

HOW TO CONNECT THE XL50 PHONE FOR DESKTOP USE
XL50 Quick Reference Guide
1. Connect one end of the telephone line cord to the “Line” jack on the
back of the XL50 and the other end to the phone outlet on your wall.
2. Connect the handset cord to the telephone as shown above.
3. Plug the other end into the AC jack on the telephone. Plug the AC
adapter into an electric outlet.
4. Lift the handset and listen for a dial tone.The phone is ready to use.

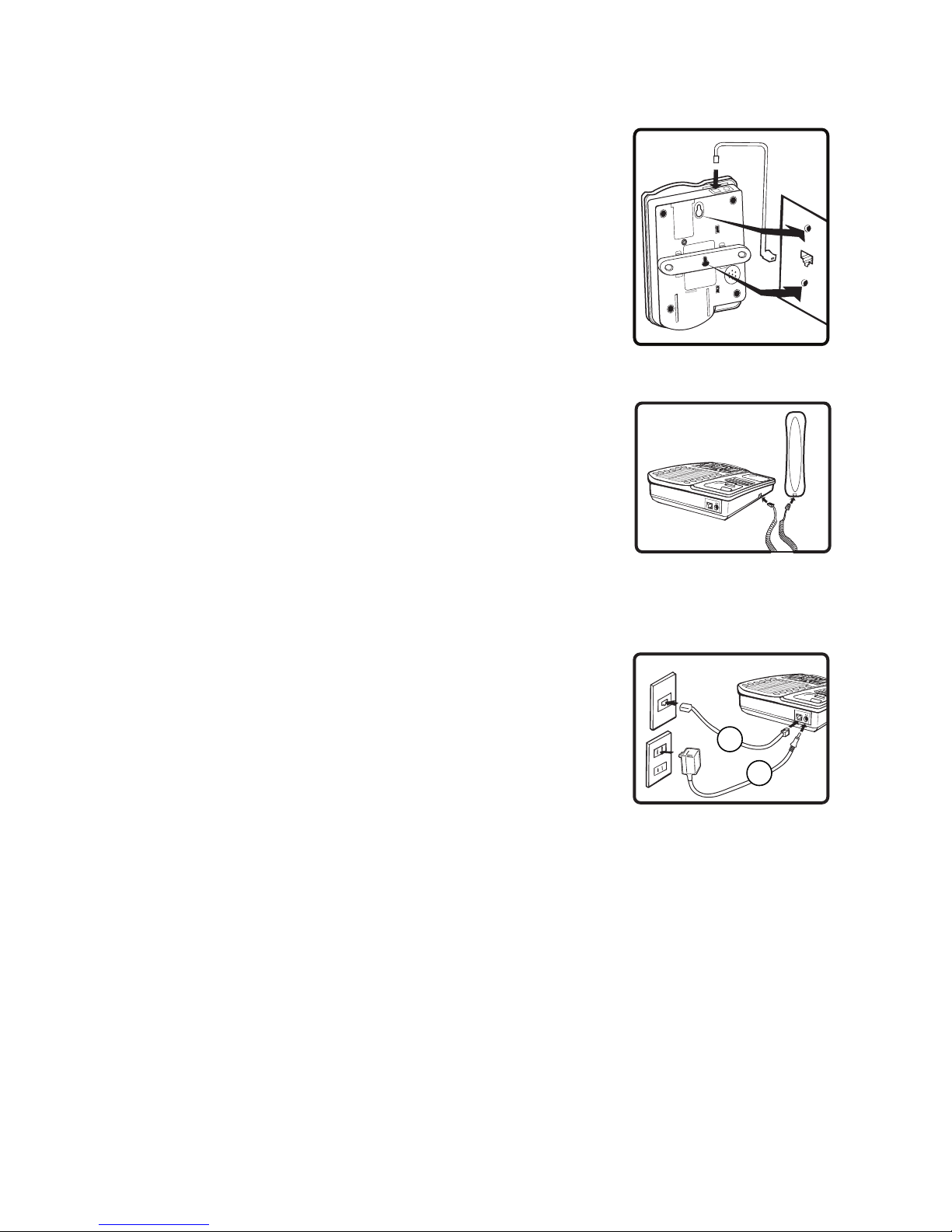

The XL50 phone may also be used as a wall mounted phone.
(Please see page 16 of this guide for instructions.)
M
1
M
2
M
5
M
6
M
7
M
8
M
9
M
10
M
11
M
3
M
4
1
2
3

10
BOOST
VOLUME
1 2 3 4
Figure A
INTRODUCTION TO DIGITAL CLARITY POWER
Digital Clarity Power™Technology
With Digital Clarity Power, the high frequency sounds are amplified
more than the low frequency sounds so words are not just louder,
but clearer and easier to understand. It also provides intelligent
amplification to make soft sounds audible while keeping loud
sounds tolerable.
To enable this type of technology, there is actually a computer
running information inside the phone. Each time the handset is
picked up, the computer will take a little less than a second to
engage. This means that any numbers that are dialed or words that
are spoken before the computer engages, will not be recognized
or heard by the phone.

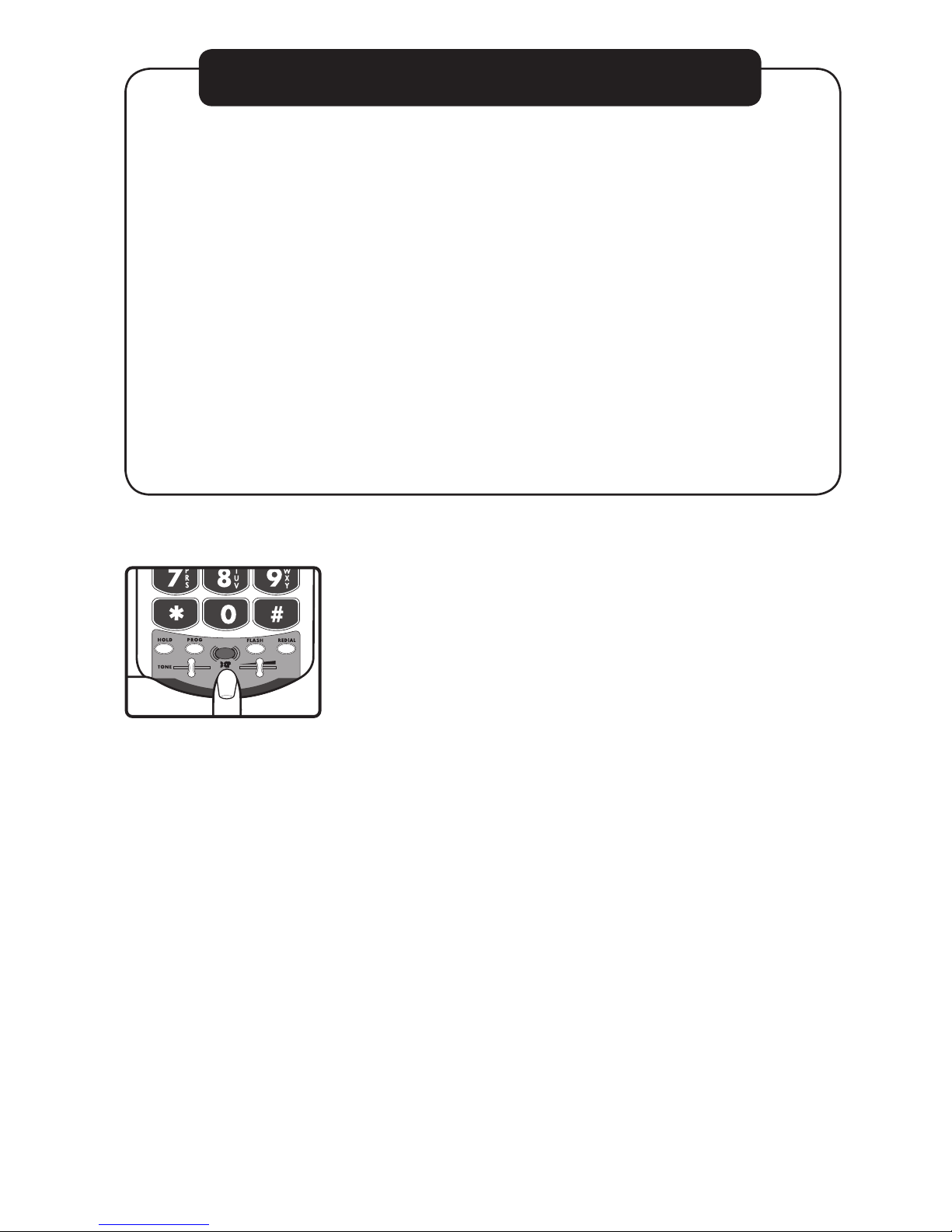

Clarity Power BOOST Button
The XL50 has a BOOST button that controls the
loudness of the receiver. See Figure A. Once the BOOST
button is pressed, an extra level of amplification is added
over the entire range of theVolume Control. During a
call, the BOOST button can toggle the Clarity Power
function on or off according to the user’s needs.The
BOOST button will reset automatically every time the
phone is hung up for at least 5 seconds.The BOOST light
will illuminate while the BOOST function is activated.
See Page 23.
Warning: Volume may be at a high level. To protect
hearing, lower the Clarity Power Volume Control before
using the phone.

11
-OFF
ON
-
Volume
Reset
Override

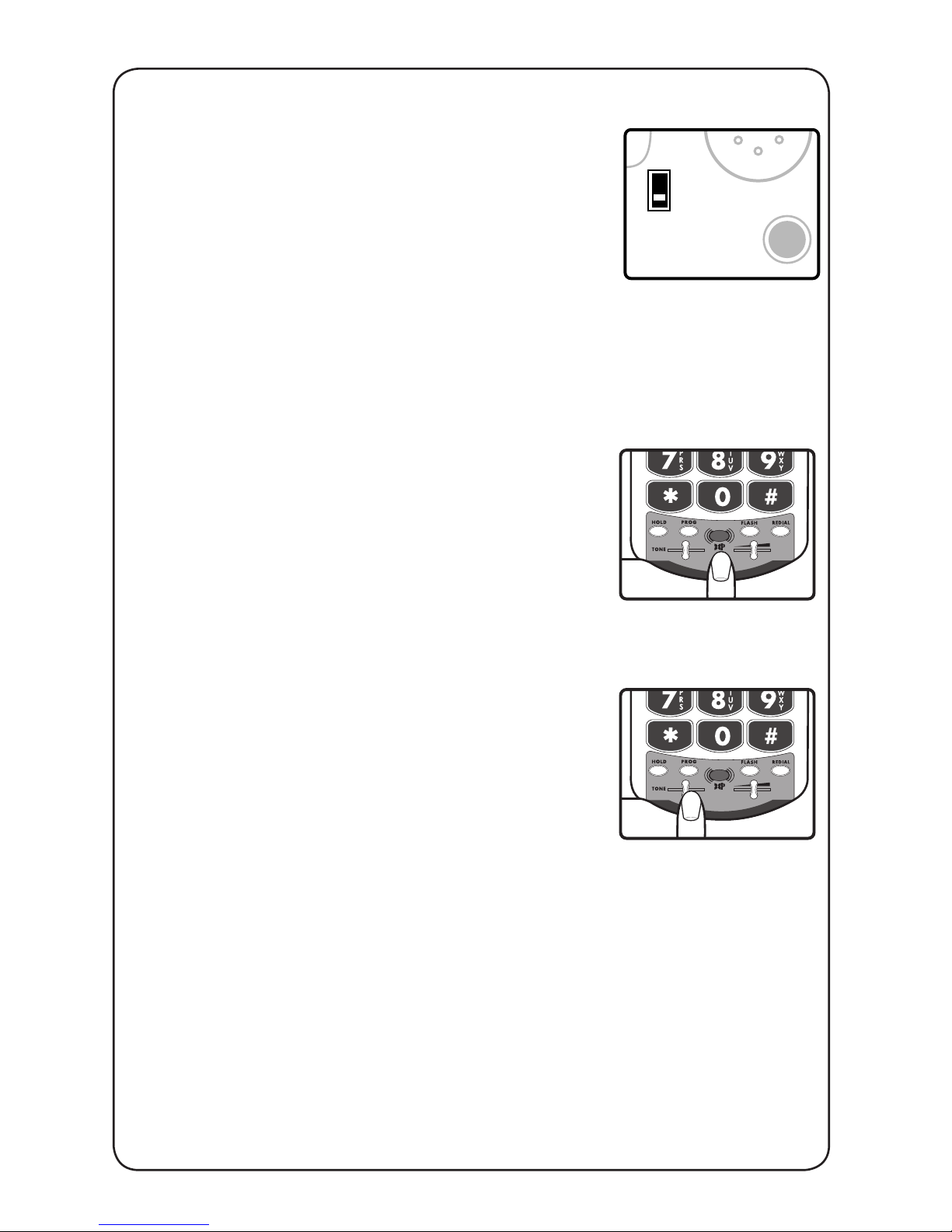

Volume Reset Override
On the bottom of the XL50, there is aVolume Reset
Override switch. When this is set to “On” the
Boost function is automatically enabled every time
the phone is picked up. In standard use, when the
Override is set to “Off” the Boost function will turn
off after the phone is hung up. Setting this switch
to “On” is suggested if all the users of the phone
need the amplification. Setting this switch to “Off”
is useful when people with varying hearing ability use
the phone. See Figure B.
Clarity PowerVolume Control
The Clarity PowerVolume Control adjusts the level
of volume the handset both in Boost or non-Boost
modes.The volume dial provides up to 15dB of
volume before the BOOST button is activated. Once
the BOOST button is pressed, the XL50 will provide
up to 60dB of gain. See Figure C.
TONE Switch
Adjusting the TONE switch allows you to customize
your hearing experience. Since we all have different
hearing preferences we suggest exploring each
setting to find the one most comfortable for you.
The available settings are: low frequency amplifica-
tion, flat amplification, Clarity Power (high frequency)
amplification, and Multi-band Compression (high
frequency) amplification. See Figure D and the over-
view of tone settings featured on pages 12-13.
BOOST
VOLUME
1 2 3 4
Figure C
Figure B
BOOST
VOLUME
1 2 3 4
Figure D

12

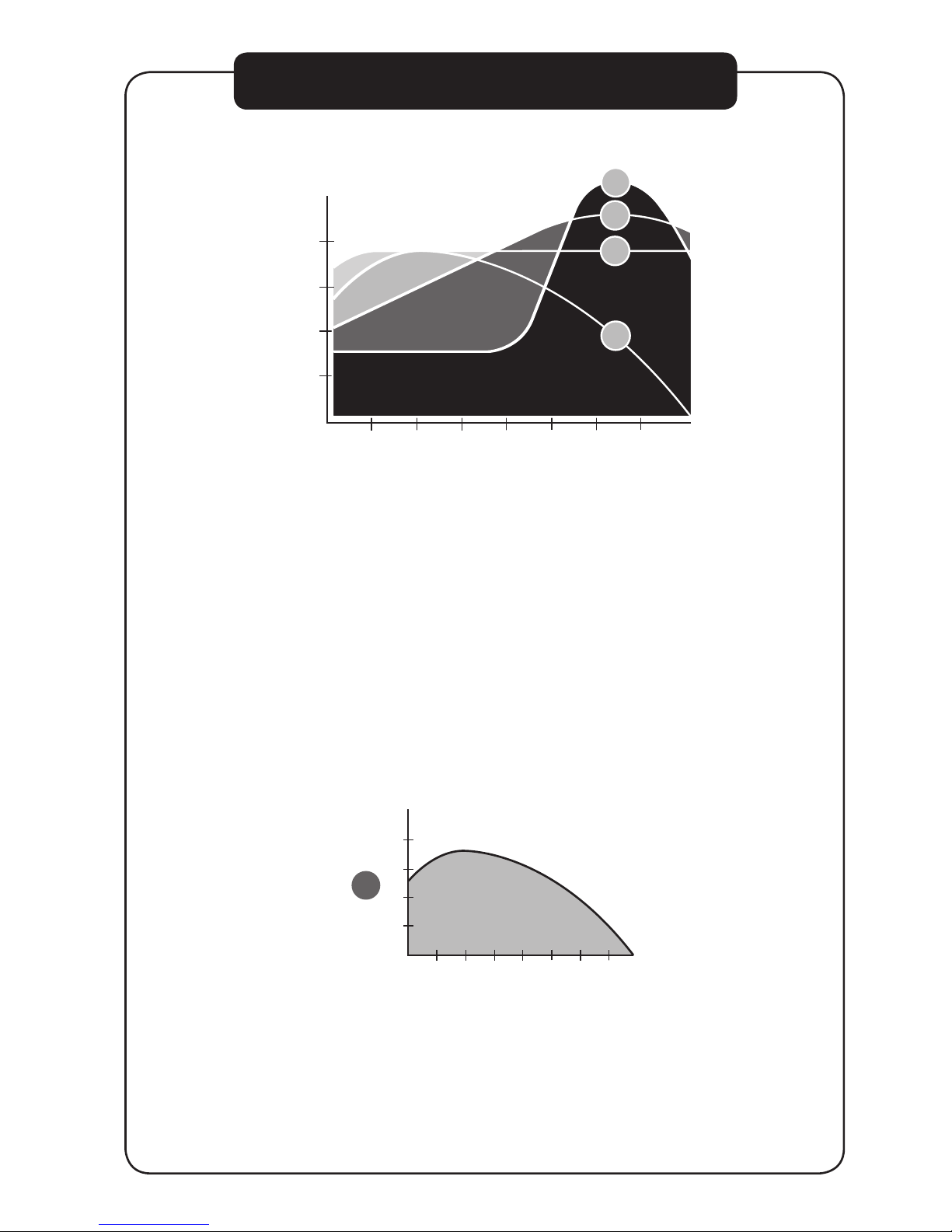

OVERVIEW OF XL50 TONE SETTINGS
The XL50 offers four different tone settings to provide an experience that
may be customized to fit a specific users need. The illustration above shows
how the four settings relate to each other and the amount of amplification
they give to the different frequencies of sound.
The following charts illustrate each tone setting separately. Read each
explanation and examine the charts to help decide what setting will be most
beneficial. In addition, make sure to listen to each setting while making a deci-
sion. The best way to choose between the settings is to listen to them all and
decide which one provides the best telephone conversation experience.
1
High
Amplification
Low
Amplification
Low Frequency High Frequency
The first tone setting is one that emphasizes the low frequency sounds. This
is for those who have a hard time hearing lower pitched sounds.

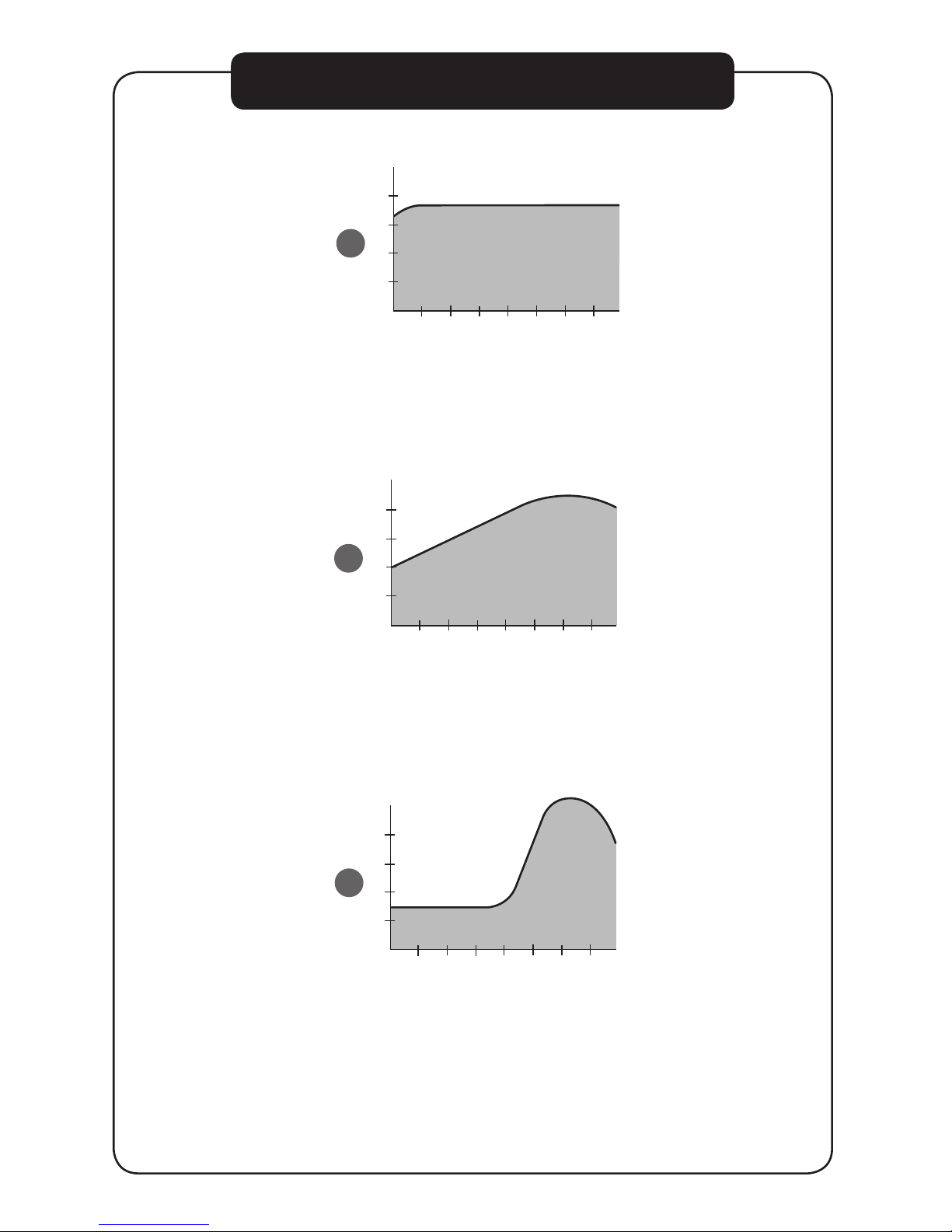

Low Frequency High Frequency
Low
Amplification
High
Amplification
1
2
3
4

13
Low Frequency High Frequency
Low
Amplification
High
Amplification
2
The second tone is a flat amplification of all sounds. This is for the user who
wants full volume amplification for every type of sound. This is suggested if
the user is wearing a digital hearing aid while using the phone.
The third tone setting is our set Clarity Power that begins to focus more
on the higher frequency sounds and add speech intelligibility. It is a medium
between tone setting two (2) and four (4).
Low Frequency High Frequency
Low
Amplification
High
Amplification
3
Low Frequency High Frequency
Low
Amplification
High
Amplification
4
OVERVIEW OF XL50 TONE SETTINGS
The fourth tone setting provides full emphasis on speech intelligibility using
Clarity’s Multi-Band Compression. Clarity MBC also enables the phone to
amplify the soft sounds to an audible level while controlling the louder sounds,
keeping them bearable. This is for the user who may be able to hear the words
being spoken, but does not understand or cannot distinguish what is being said.

14
GETTING STARTED
There are five initial steps involved in setting up
your XL50
1. Insert four AA alkaline batteries for back-up in case of
AC power outage. See below.
2. Decide if you want the phone to sit on a desk or hang
on the wall.
3. Connect the telephone components. Pages 15-16.
4. Program up to eleven (11) telephone numbers to call
with the press of a memory button. See Page 18.
5. Set up Notification Options. See Page 20.

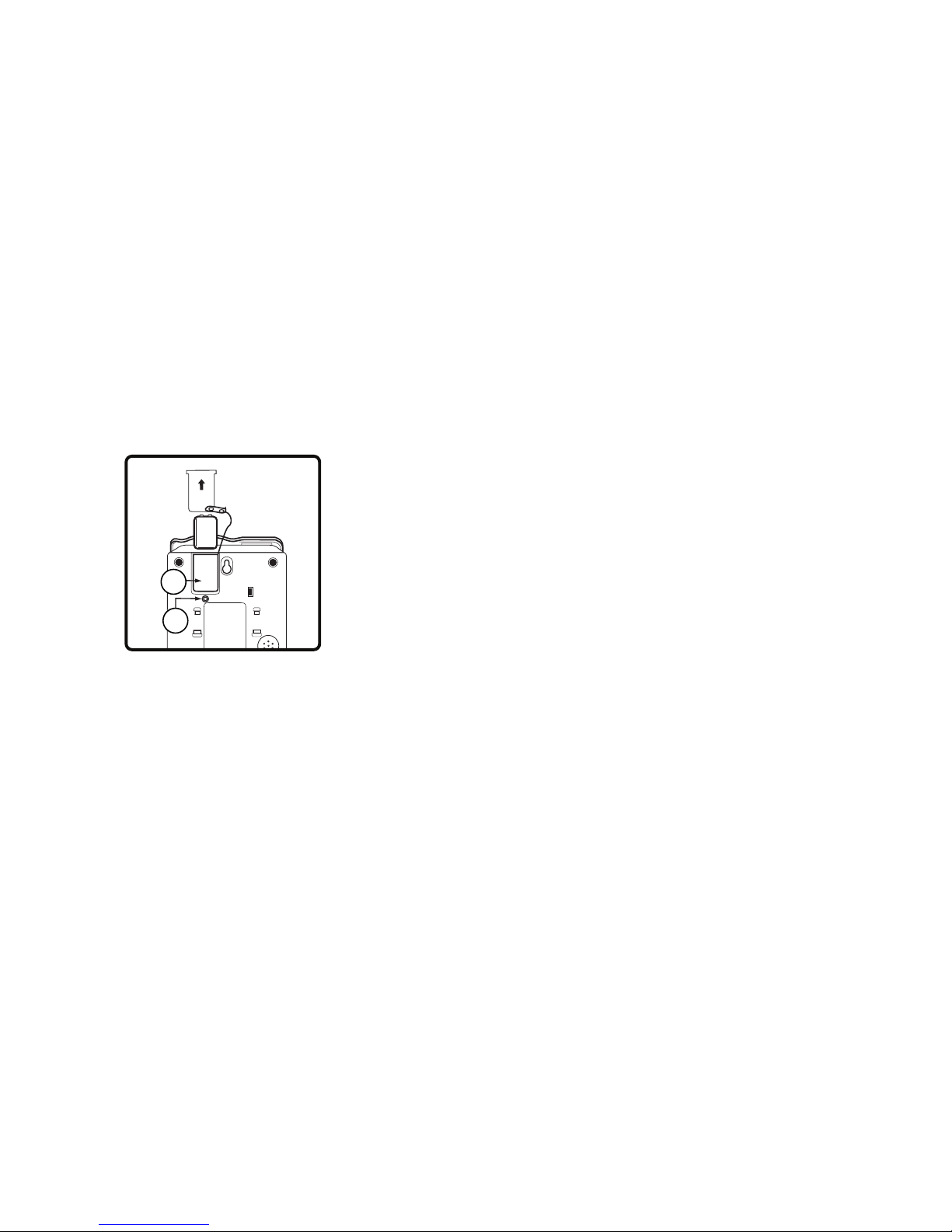

Installing the Backup Batteries
If there is a power outage, the XL50 will operate for up
to 48 hours with four AA alkaline backup batteries (not
included). If the phone is not in use, the batteries will stay
charge for several months. See Figure 1.
To install new batteries:
1. Slide open the battery compartment cover on the
bottom of the telephone. To open the battery
compartment, use a pen or similar fine point instru-
ment to press into small opening below the compart
ment door. This opening is pointed out with the #2
in Figure 1.
2. Install four fresh batteries. Be sure to observe battery
polarity as imprinted on the base of the compartment.
The battery indicator on the top panel will light up if
the batteries are running low.
The phone operates as a regular phone if there is no
power or battery. Certain functions of the phone do
require power however. If no power is being supplied to
the phone, it will have no indicator lights, the loud ringer
will be disabled, there will be no amplification, and the
lighted keypad will not be lit.
2
1
Figure 1

15
M
1
M
2
M
5
M
6
M
7
M
8
M
9
M
10
M
11
M
3
M
4
1
2
Connecting your Telephone
1. Carefully remove your telephone from its box. If there
is any visible damage, do not attempt to operate this
equipment. Return it to the place of purchase.
2. Check to be sure that you have all items that come
with your XL50 telephone.You should have a Hand
set, Base Unit,AC Adapter, Mounting Bracket, Han dset
Line Cord, and Telephone Line Cord.
Choosing a Location
• The XL50 requires a modular phone jack and a
standard 120Volt outlet for operation.
• The unit should be located in an area where it is easy
to see the visual display and lighted ringer.
• Choose a location that is out of the way of normal
activities.
• The unit can be used as a desk top phone or wall
mount phone.
CAUTION: Always connect the AC adapter to the phone
before you connect it to the AC power.When you finish,
disconnect the AC power before you disconnect it from
the telephone.

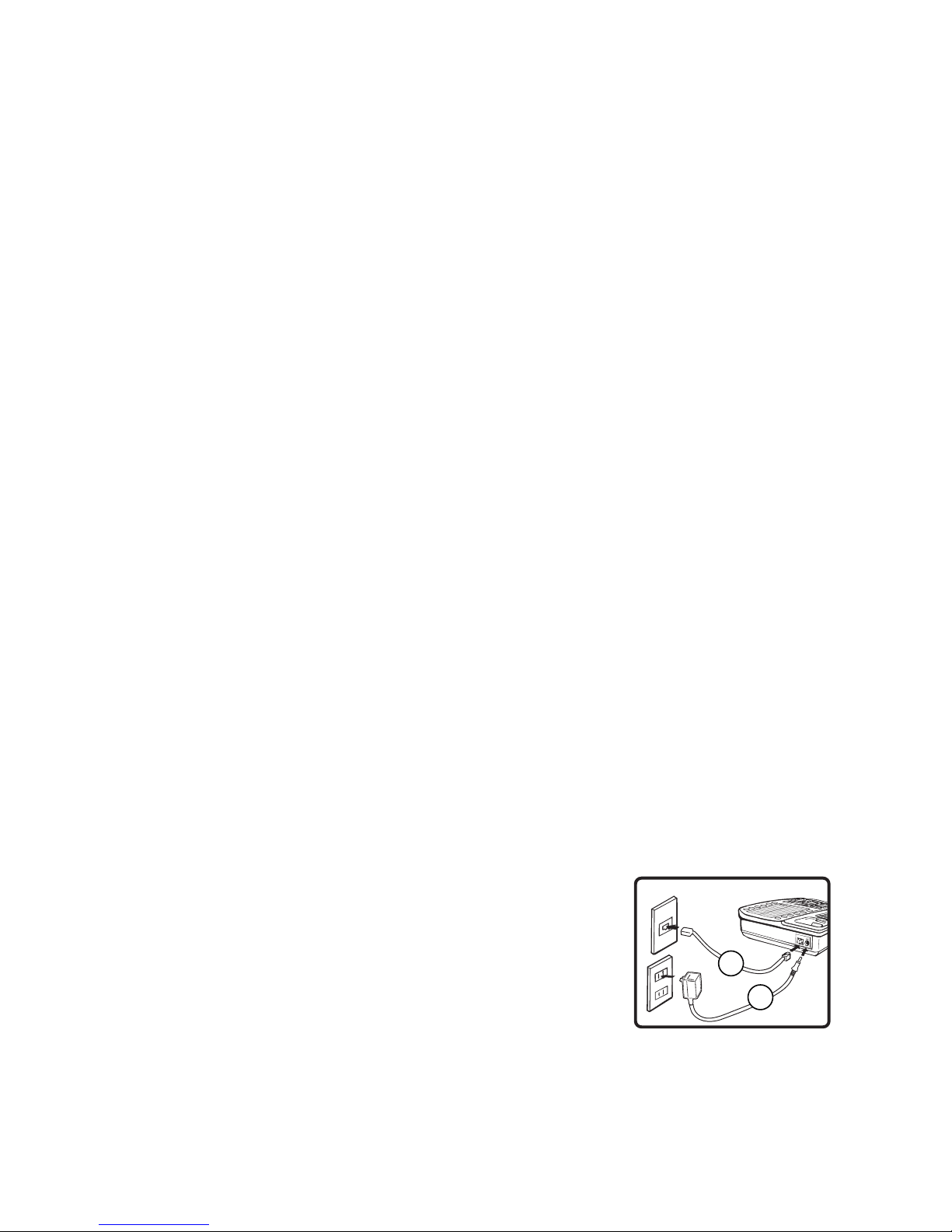

Desk Mounting Instructions
Follow these instructions to place the phone on a desk or
table top using the supplied bracket.
1. Plug one end of the long flat telephone line cord into
the jack marked LINE located on the back of the
telephone. Plug the other end into the telephone wall
jack. See Figure 2
2. Insert the plug of the AC adapter into the jack marked
DC 9V located on the back of the base unit.Then plug
AC adapter into wall outlet. See Figure 2.
GETTING STARTED
Figure 2

16
GETTING STARTED

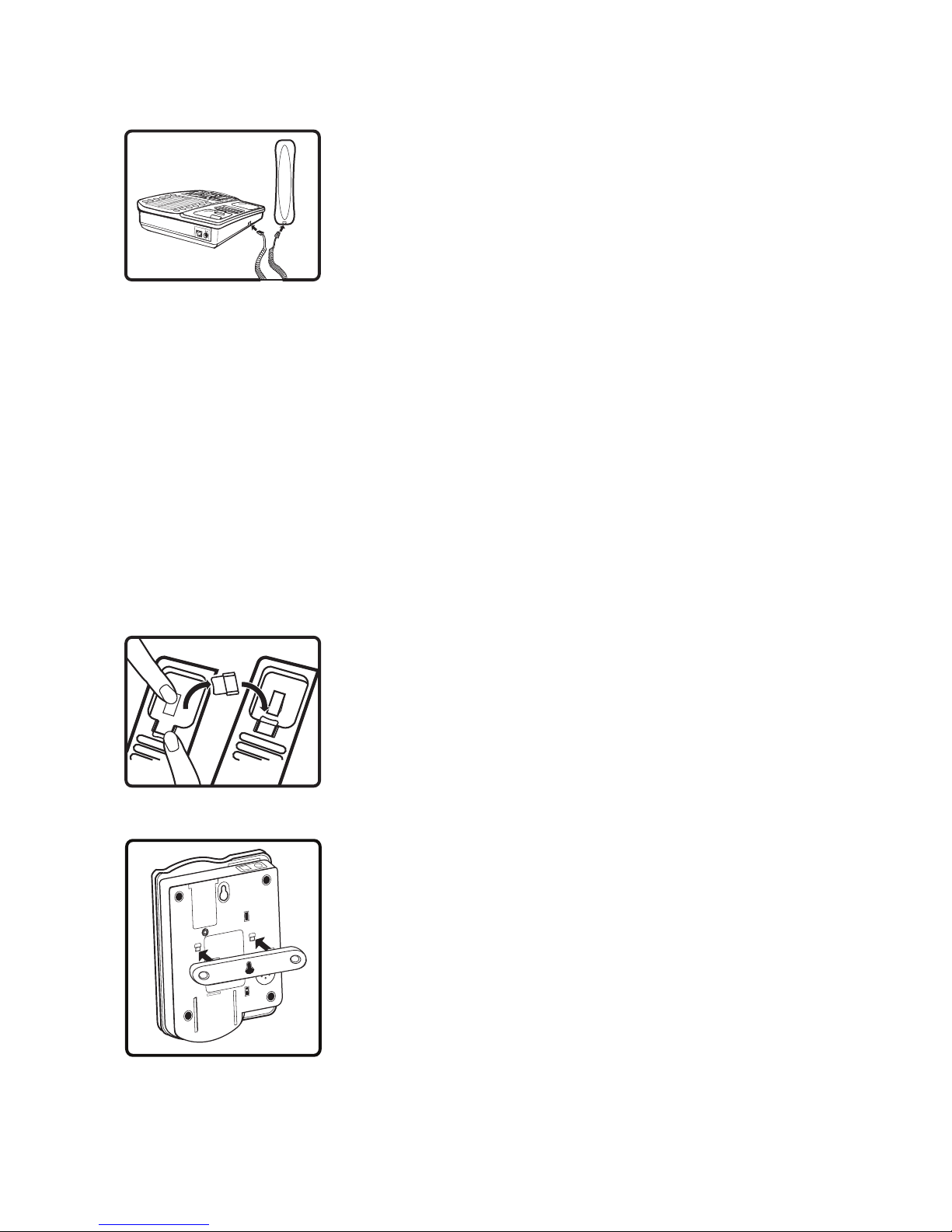

3. Plug one end of the modular coiled handset cord into
the hand set. Plug the other end into the jack located
on the left side of the telephone. Place the handset in
the cradle. See Figure 3.
4. Set the TONE/PULSE switch located on the back
of the base to correct dialing mode. Please check with
your local telephone company if uncertain of the type
of service.
5. Lift the handset and listen for a dial tone.The phone is
ready to use.
Warning: Use only the power adapter provided with
this telephone. Use of any other adapter may damage the
product and result in injury.
Wall Mounting Instructions
The phone unit may be mounted on a standard wall plate.
The mounting bracket will mount on the telephone with
the larger tabs towards the bottom of the phone.
1. Pull the handset hook out of the base and reverse its
position so that the hook points up and will hold the
handset when you hang up. See Figure 4.
2. Plug one end of the short flat telephone line cord into
the jack marked LINE located on the back of the
telephone.Then run the cord through the groove on
the back of the phone.
3. Insert the tabs of the mounting bracket into the slots
in the back of the phone. Push the mounting bracket in
and down firmly until it snaps into place. See Figure 5.
MANUAL
AUTO
Figure 5
Figure 4
M
1
M
2
M
5
M
6
M
7
M
8
M
9
M
10
M
11
M
3
M
4
Figure 3

17
GETTING STARTED
4. Plug the flat telephone line cord into the wall plate
jack, then align the mounting bracket’s keyhole slots
with the wall plate studs and slide the base of the
phone downward to secure it on the wall.
See Figure 6.
5. Plug one end of the coiled handset cord into the
bottom of the handset. Plug the other end of the
handset into the modular jack marked HANDSET
located on the left side of the phone. Place receiver in
the cradle. See Figure 7.
6. Set the TONE/PULSE switch located on the back
of the base to correct dialing mode. Please check with
your local telephone company if uncertain of the type
of service.
7. Insert the plug of the AC adapter into the jack marked
DC 9V located on the back of the base unit.Then plug
the AC adapter into a wall outlet. See Figure 8.
8. Locate the small hook on the handset cradle on the
base. Pull the hook out and turn around so the small
lip faces upward to support the handset.
9. Lift the handset and listen for a dial tone.The phone is
ready to use.
Placing a Call
1. Lift the handset and dial the number you wish to call.
2. Press the BOOST button and turn the Clarity Power
dial to adjust volume.The BOOST button will illumi-
nate to indicate amplification is on.
M
1
M
2
M
5
M
6
M
7
M
8
M
9
M
10
M
11
M
3
M
4
Figure 7
M
1
M
2
M
5
M
6
M
7
M
8
M
9
M
10
M
11
M
3
M
4
1
2
Figure 8
1. Plug one end of the long
flat telephone line cord
into the jack marked
LINE located on the
back of the telephone.
2. Insert the plug of the
AC adapter into the jack
marked DC 9V located
on the back of the
base unit.
MANUAL
AUTO
Figure 6

18
LAMP
AMERIPHONE®XL50
Figure 9
TELEPHONE OPERATIONS
Receiving a Call
When a call is received, the audible ringer will sound and
the visual ringer will flash to alert you of an incoming call.
To answer the call, lift the handset or use the headset (if a
headset is connected).
FEATURES

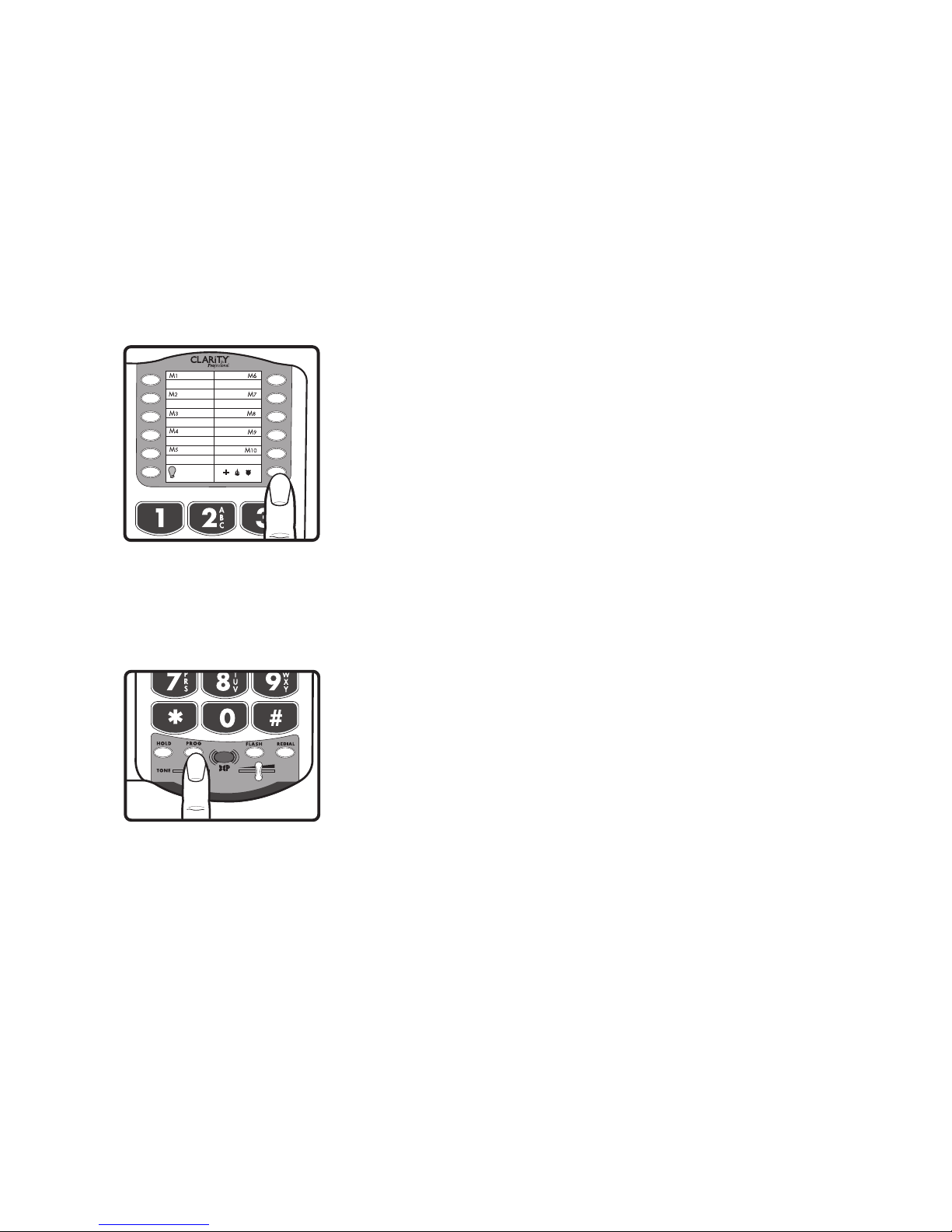

Memory Storage
Phone numbers can be stored into the phones memory
to enable one button dialing.The phone directory allows
space for eleven (11) different phone numbers. One space
is marked to be used to store an emergency number.
See Figure 9.
It is important to not store 911 into your phone.
This will prevent inadvertently calling an emergency
call center. Only store emergency numbers such as a
doctor, hospital, the local fire department or local
police station numbers.
Adding a Memory Location
1. Pick up the handset.
2. Press the PROG button. See Figure 10.
3. Enter the telephone number you wish to store.
4. Press the PROG button.
5. Press the desired memory location (M1- M10
and Emergency) to store the number to.
6. Place the handset back in the cradle.
Note: No audio notification will occur after the
number has been stored properly.
To change a Memory Location, reprogram using the
same procedure with the button to be changed.
Dialing a Memory Location
1. Pick up the handset.
2. Press the number on the dial pad where the
desired number has been stored.
3. The call will automatically dial.
Figure 10
BOOST
PROG
HOLD
BOOST
VOLUME
1 2 3 4

19
TELEPHONE OPERATIONS

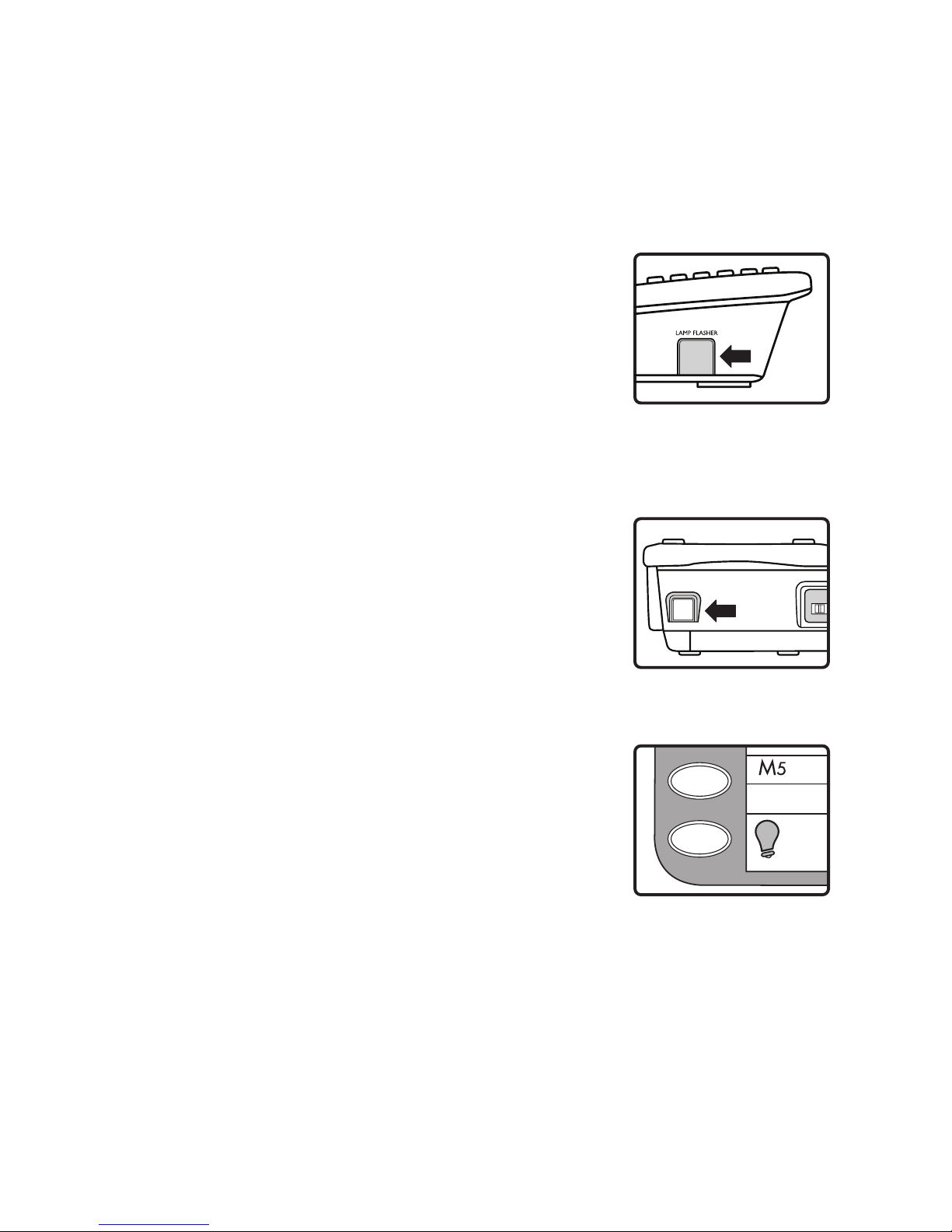

Lamp Flasher / Bed Shaker Notification
A Wireless Lamp Flasher and Bed Shaker can be con-
nected to the phone to allow for a variety of ways to
alert the user that the phone is ringing.The Wireless
Lamp Flasher will cause any connected light source to
flash when the phone rings.The Bed Shaker is an acces-
sory that will begin to vibrate when the phone rings.
This function is only available with the optional Lamp
Flasher or Bed Shaker Notification Accessories.
First connect the Lamp Transmitter to the telephone and
the Lamp Switch to a nearby lamp. See Figure11.
Connect the Bed Shaker to the proper port in the phone
for use. See Figure 12.
Lamp Control
This function is only available with the optional Lamp
Flasher Notification Accessory. This button can be used to
turn on or off the light source to which the Lamp Flasher
is connected. See Figure 13.
Figure 13
DIAL
BED SHAKER
P
Figure 12
LAMP
Figure 11

20
TELEPHONE OPERATIONS

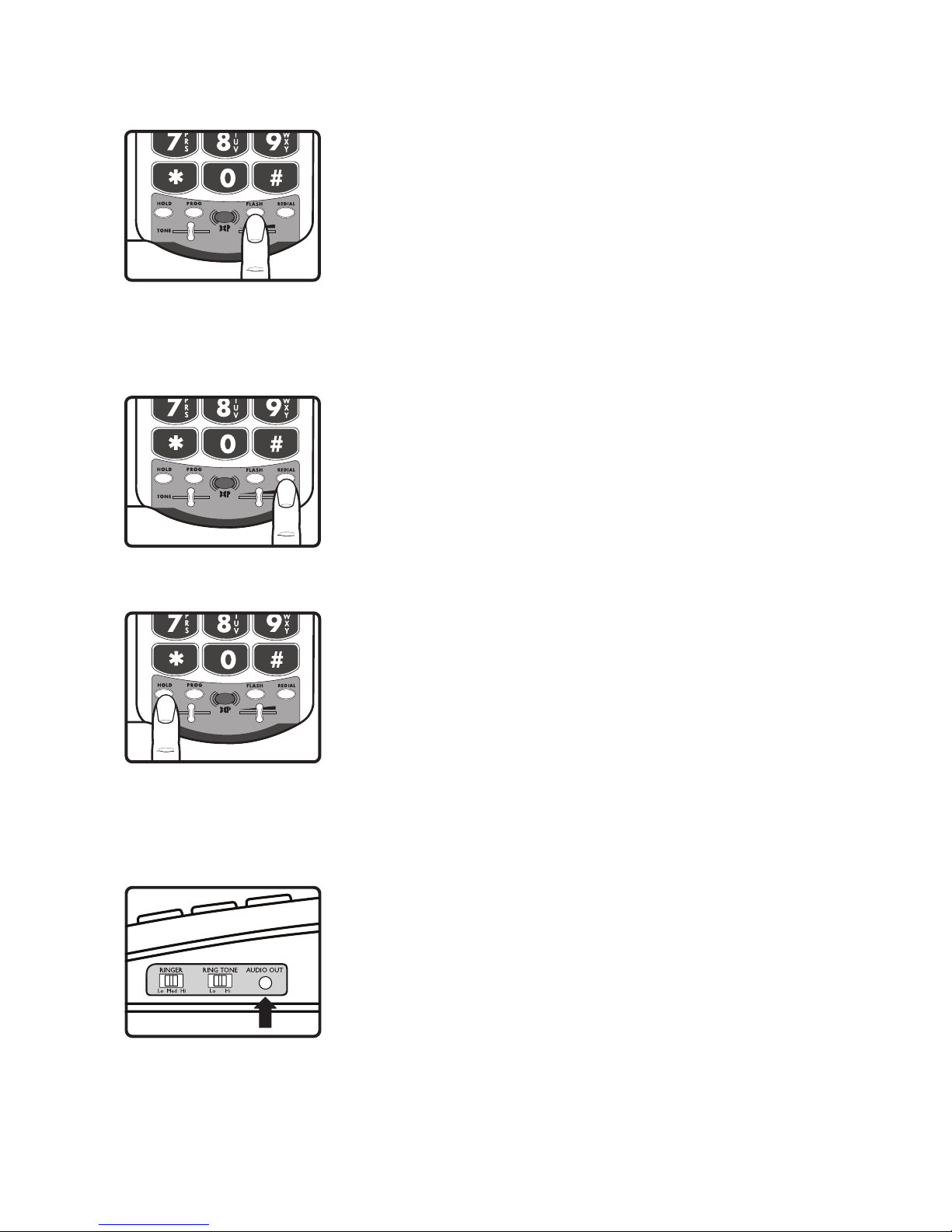

Flash
Flash is a feature that enables you to answer a call if you
have call waiting. Please contact your local telephone
company for information on subscribing to this feature.
Pressing the FLASH button while you are having a phone
conversation will pick up the second conversation and
place the first call on hold. Press the FLASH button again
to continue your conversation with the first caller.
See Figure 14.
Last Number Redial
Redial allows you to automatically redial the last tele-
phone number you called (up to 32 digits).To use this
feature, listen for dial tone and press the REDIAL button
once.Your call will be dialed.The last number dialed will
be stored in the XL50 for you until you dial another
phone number. See Figure 15.
Hold
To put the line on hold, press the HOLD button and
return the handset to its cradle.You will notice the HOLD
indicator light comes on.To take the phone call off HOLD,
press the HOLD button again. See Figure 16.
Note: If you pick up an extension phone on the same line
when the XL50 is on HOLD, the XL50 will release the
HOLD, and you can continue your conversation on the
extension phone.
Audio Output
The AUDIO OUTPUT socket allows you to connect the
XL50 to a hearing aid, neck loop, cochlear implant or
other assistive listening devices. See Figure 17.
It is important to remember that devices compatible
with this port are intended to be used for listening only.
The phone still requires speaking into the handset for
conversation.
To use this port, plug in a compatible cable and connect it
to your assistive listening device. Speak into the handset
when you use the Audio Output connection.
Figure 17
BOOST
VOLUME
1 2 3 4
Figure 16
Figure 15
BOOST
VOLUME
1 2 3 4
BOOST
VOLUME
1 2 3 4
Figure 14
