Clarke Ranger 7/240 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
LS0113
24L AIR COMPRESSOR
MODEL NO: RANGER 7/240
PART NO: 2242000

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE 24L Air Compressor.
Please read this manual fully before use and follow the instructions carefully. In
doing so you will ensure the safety of yourself and those around you, and you
can look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
PARTS AND SERVICING
For Parts & Servicing, please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: [phone]
PARTS & SERVICE FAX: [phone]
or e-mail as follows:
PARTS: [email protected]
SERVICE: [e-mail]

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY PRECAUTIONS
Before using your compressor it is in your own interest to read and pay attention
to the following safety rules.
1. Compressed air is dangerous. Do not point a jet of air at persons or animals, and do
not discharge compressed air against the skin.
2. DO NOT operate your compressor with the guard removed.
3. Repairs must only be carried out by a qualified engineer. If problems occur, contact
your Clarke dealer.
4. Before carrying out any maintenance, make sure that the pressure is released from
the air reservoir, and that the compressor is disconnected from the electrical supply.
5. DO NOT leave pressure in the receiver overnight, or when transporting.
6. DO NOT adjust, or tamper with the safety valves. The maximum pressure is factory
set, and clearly marked on the compressor.
7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all times.
Similarly, clean air will allow the compressor to work efficiently. Do not use in dusty or
otherwise dirty locations.
8. Some of the metal parts can become quite hot during operation. Do not to touch
these until the compressor has cooled down.
9. Always set the pressure regulator to the recommended setting for the tool.
10. When spraying flammable materials e.g. cellulose paint, ensure that there is
sufficient airflow and keep clear of any source of ignition.
11. Before spraying any material always consult paint manufacturers instructions for
safety and usage.
12. Protect yourself. Goggles will protect your eyes from flying particles. Face masks will
protect you against paint spray and fumes.
13. Do not apply strain to electrical cables and make sure that air hoses are not kinked
or wrapped around the compressor.
14. When disconnecting air hoses or other equipment from your compressor, make sure
that the air supply is turned off at the outlet and vent all pressurised air from within
the reservoir and other equipment attached to it.
15. Make sure that children and animals are kept well away from the compressor and
any equipment attached to it.
16. Make sure that all individuals using the compressor have had the necessary training
and have read and fully understand these operating instructions.
17. Make sure that any equipment or tool used in conjunction with your compressor, has
a safe working pressure exceeding that of the compressor.
18. Be careful when transporting the compressor to prevent tipping over
19. Permanently installed systems must be installed by a competent engineer.
20. These compressors produce noise levels in excess of 70dB(A). Persons working near
the compressor must be supplied with ear protection.

4
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

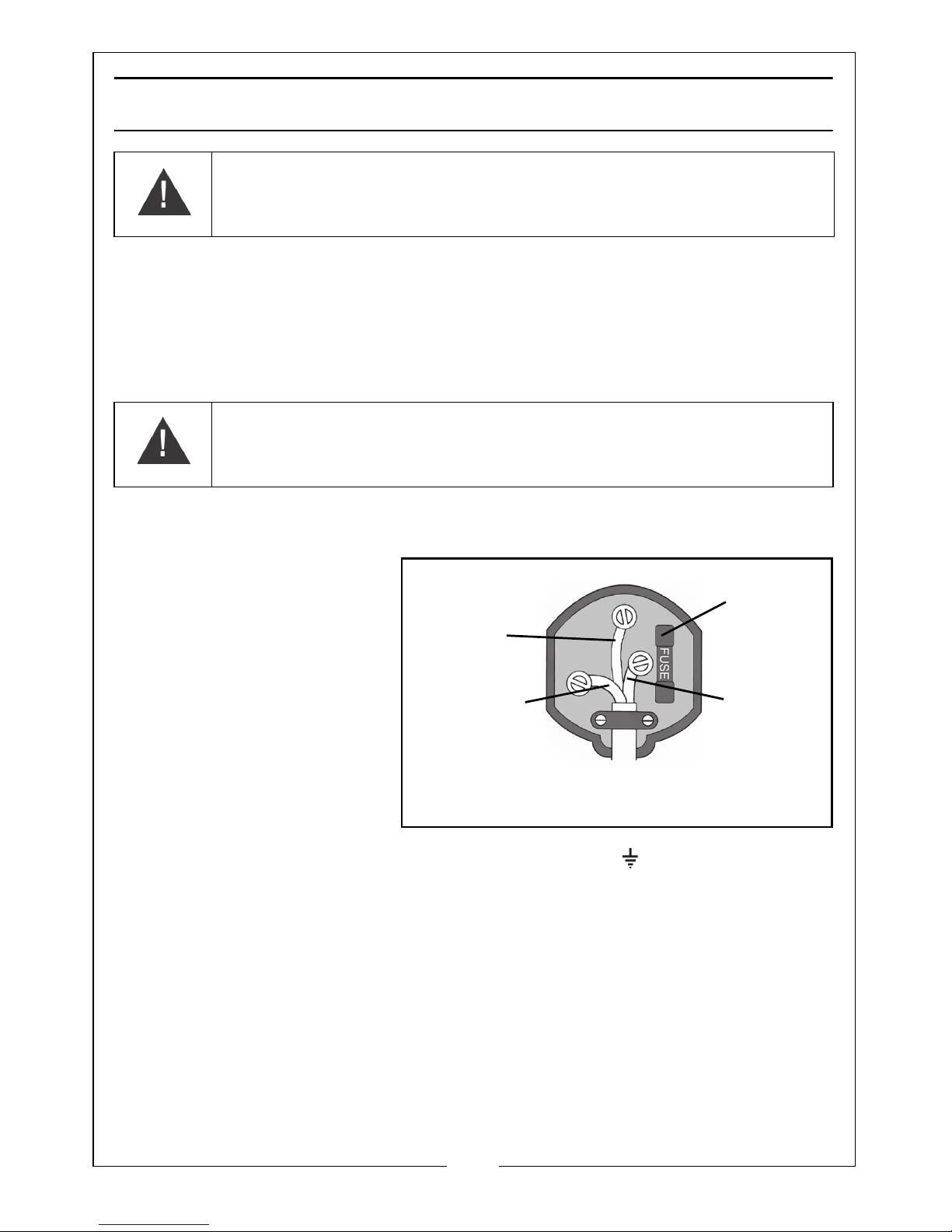

If the colours of the wires in the power cable do not agree with the markings
on the plug:
• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.
• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.
• The YELLOW AND
GREEN wire must be
connected to the terminal which is marked E or or coloured green.
We strongly recommend that this machine is connected to the mains supply
through a Residual Current Device (RCD)
If you are not sure, consult a qualified electrician. DO NOT try to do any
repairs.
WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yellow)

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ASSEMBLY
ATTACH THE WHEELS

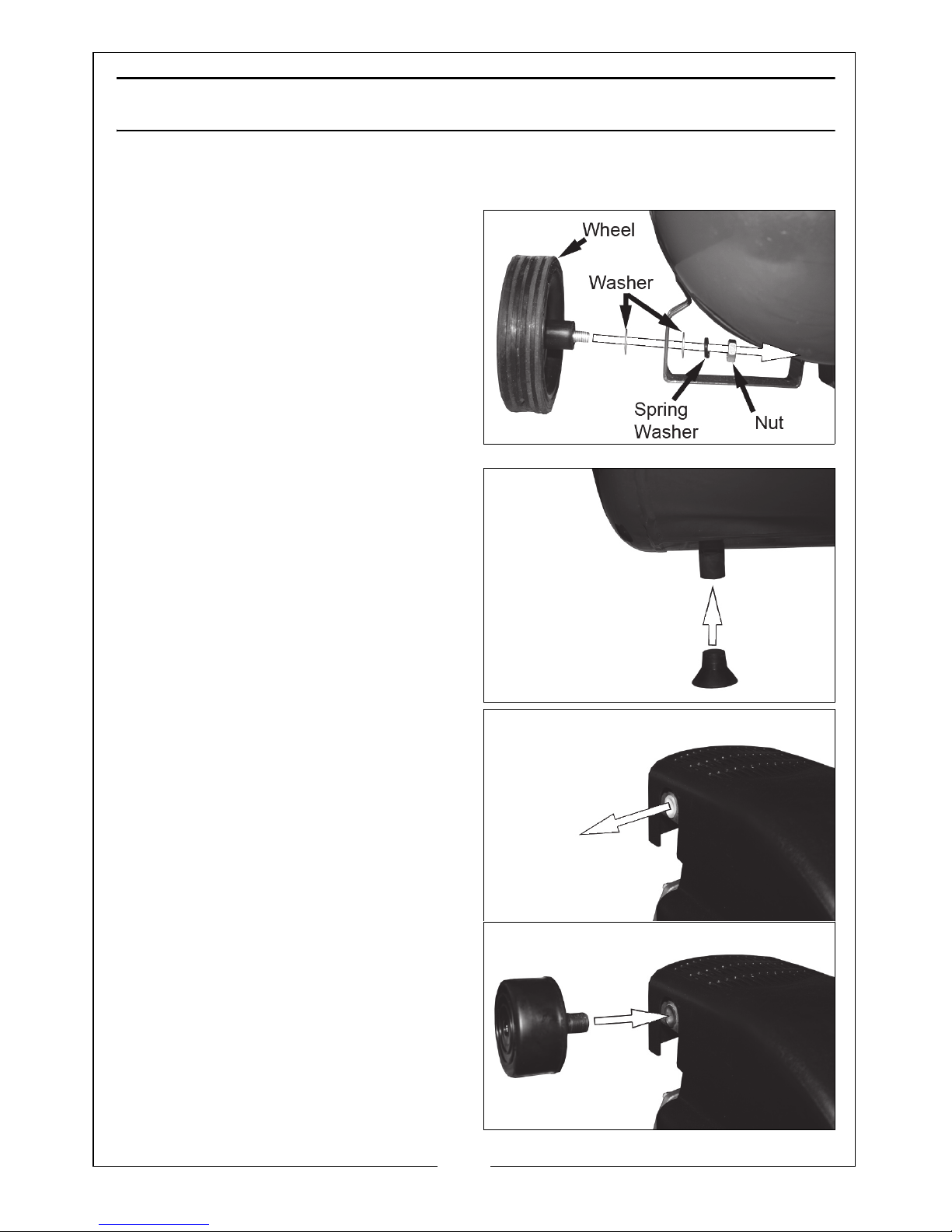

Use a suitable spanner to attach the
wheels to the compressor.
Use the washers and spring washer in
the positions shown.
ATTACH THE SUPPORT FOOT
Insert the support foot into the
position shown.

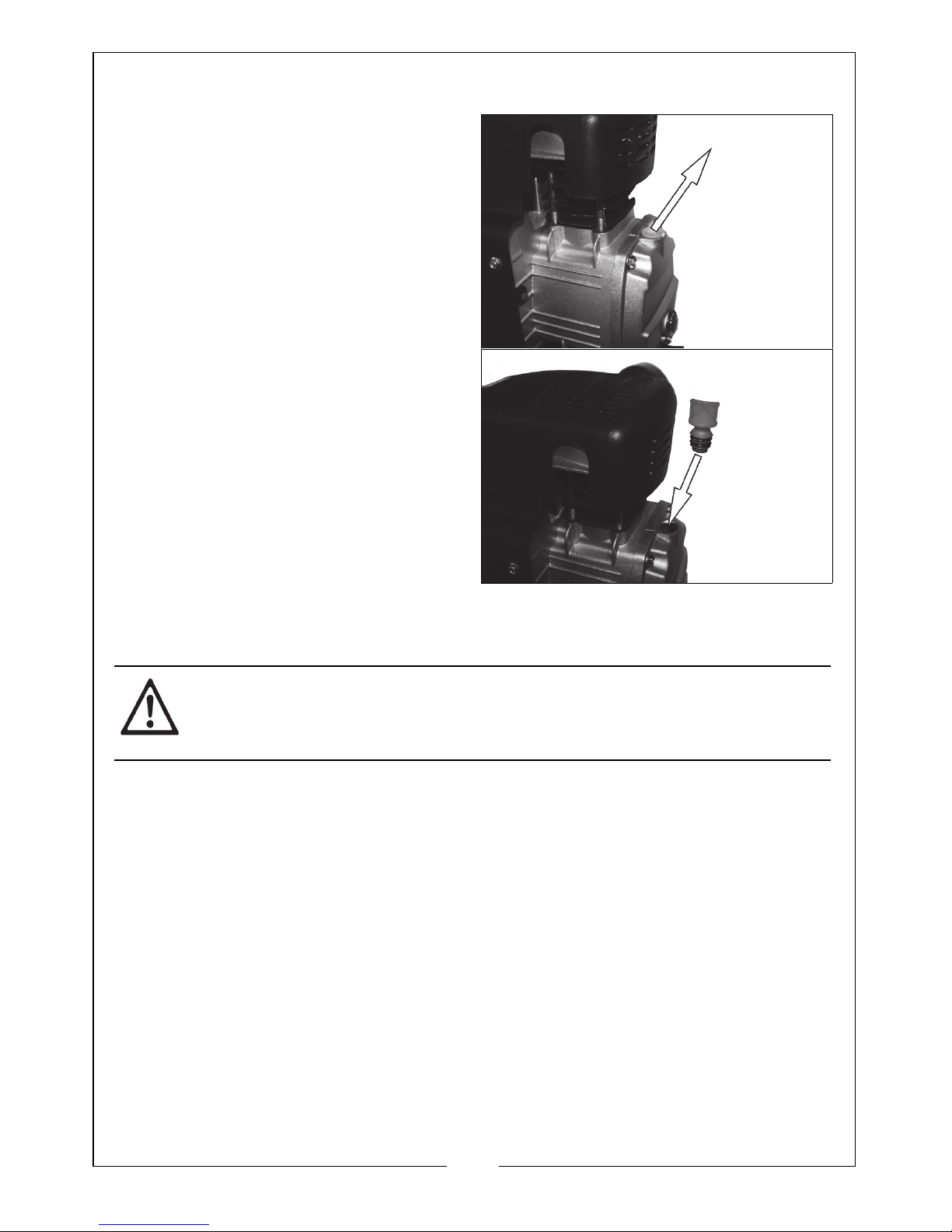

FIT THE AIR FILTER
1. Remove the travel plug.
2. Screw the air filter into position.
• The air filter must be hand tight
only.

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
FIT THE OIL FILLER CAP
1. Remove the travel plug.
2. Insert the oil filler cap.
MOVING THE AIR COMPRESSOR
• Stop the compressor and disconnect it from the power supply
before you move it.
• Always use the handle.
• To prevent damage, do not lift by (or put strain on) valves or hoses.
CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS
COMPRESSOR.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
BEFORE USE
Before connecting your compressor to the power supply, check the following:-
• Set the ON/OFF switch to the
OFF position (pushed down).
• Make sure that the compressor
is on level ground.
• Make sure that the supply
voltage matches the voltage
shown on the data label.
CHECK THE OIL LEVEL
1. Make sure that the oil level is half
way up the oil sight glass.
2. If not, remove the oil cap and
add oil to the reservoir.
• Only use SAE30 compressor oil,
available from your Clarke
Dealer Part No. 3050801

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OPERATION
If the compressor has not been used for more then 24 hours, open the drain
valve (on the bottom of the reservoir) and drain any condensate which has
collected. See page 11
ATTACHING AIR TOOLS
1. Attach the air hose to the ¼" BSP
outlet valve.
2. Attach the tool to the end of the
air hose.
3. Turn the outlet valve handle to the
on position.
NOTE: The outlet valve is shown
without the air hose fitted for
clarity.

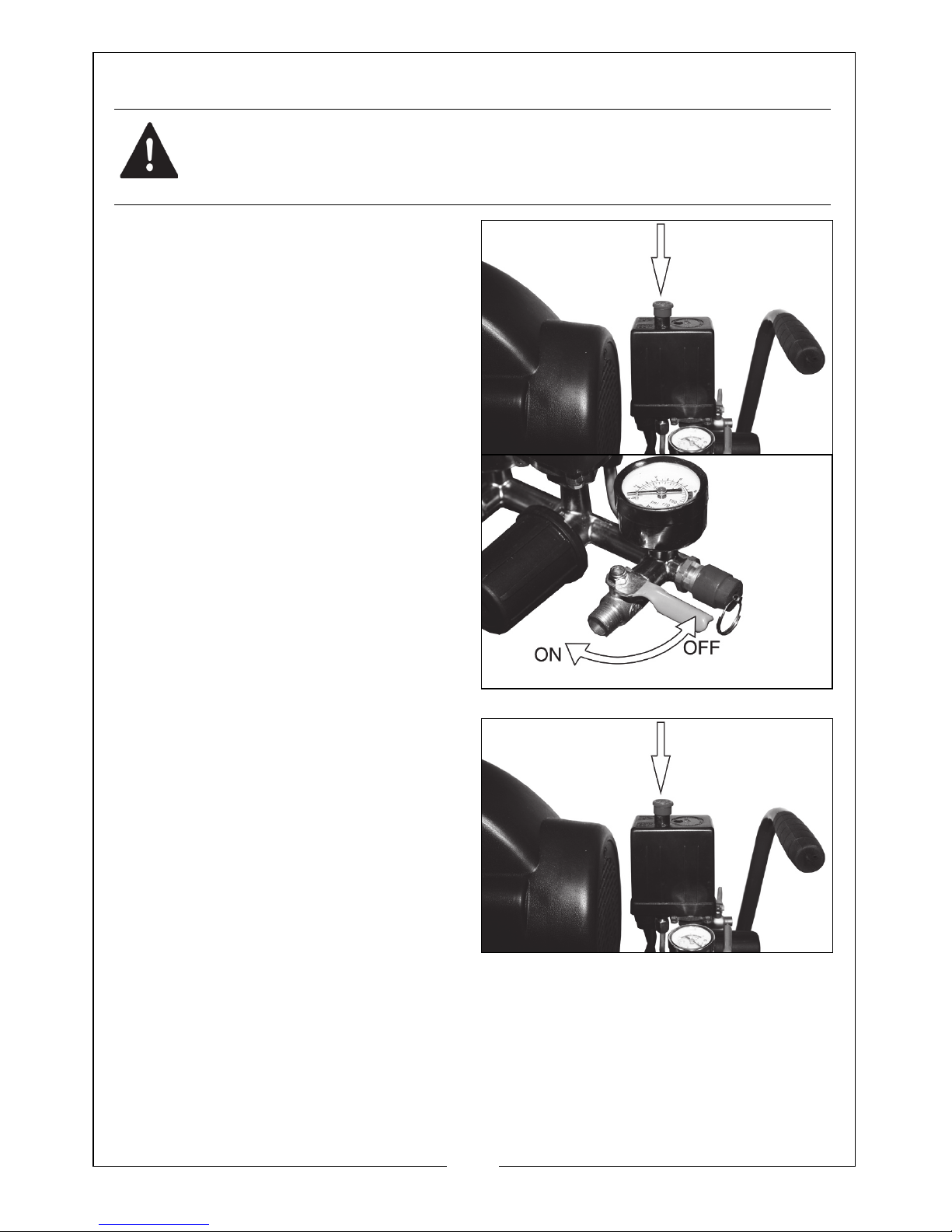

TURNING THE COMPRESSOR ON
1. Plug the compressor into the
power supply.
2. Lift the On/Off button.
• The compressor will operate
until the reservoir is fully
pressurised. It will then shut
down.
• The compressor will start up
again when the pressure in the
reservoir decreases.
WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU
READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT
THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE
SPECIFICATIONS.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CHECK THE SAFETY VALVE
To make sure that the safety valve works correctly:
1. Pull on the ring attached.
• Air will be released when you
pull on the ring and stop when
released.
2. If the valve does not operate in
this way, do not use the
compressor. The compressor must
be repaired by a qualified service
agent.
SET THE OUTPUT PRESSURE
When viewed from the front, the left hand outlet valve is adjustable. The right
hand outlet valve will only supply the full reservoir pressure and is not
adjustable.
1. Use the pressure regulator to set
the output pressure of the left
hand outlet valve.
• Turn clockwise to increase the
pressure.
• Turn counterclockwise to
decrease the pressure.
GAUGES
1. The reservoir pressure gauge
shows the current pressure in the
reservoir.
2. The outlet pressure gauge shows
the ‘user set’ outlet pressure. This
can be adjusted as shown above.
WARNING: DO NOT REMOVE OR TRY TO ADJUST THE SAFETY VALVE.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
REMOVING TOOLS FROM THE AIR HOSE
1. Push down on the On/Off button
to stop the compressor.
2. Turn the outlet valve handle to the
off position.
3. Operate the tool to depressurise
the air hose.
4. Disconnect the tool from the hose.
TURNING THE COMPRESSOR OFF
1. Follow steps 1-3 in “Removing Tools
From The Air Hose” above.
2. Disconnect the compressor from
the power supply.
3. Slowly open one of the outlet
valves to depressurise the reservoir.
• You will hear a hissing sound as
the reservoir depressurises.
4. Do not leave the compressor
unattended if the reservoir is pressurised.
WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU
REMOVE OR REPLACE A TOOL.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

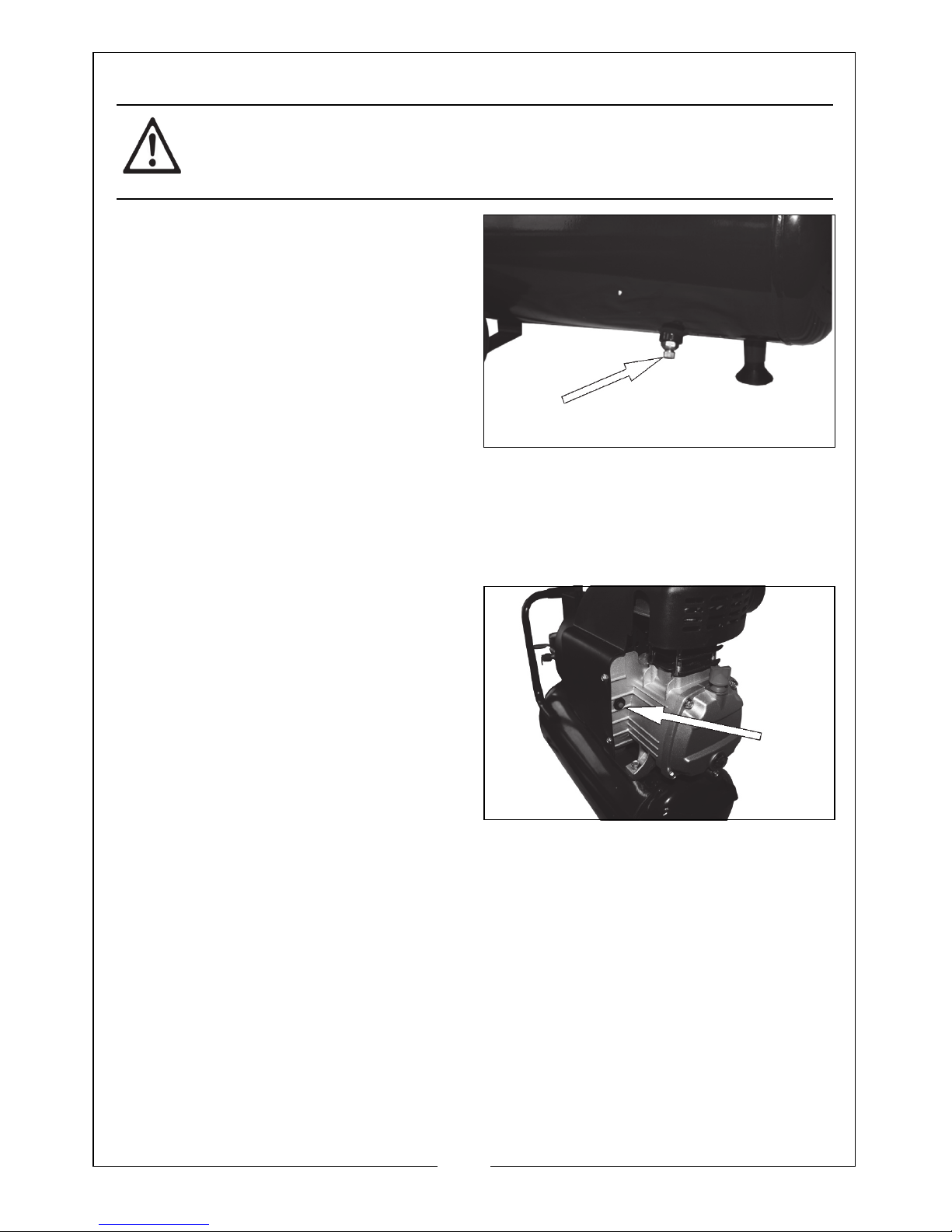

DRAINING THE RESERVOIR
1. Turn the compressor off and
disconnect from the power
supply.
2. Put a container below the drain
valve to collect the condensate.
3. Open the drain valve slowly.
• Condensation will drain from
the reservoir.
4. Close the drain valve when the
reservoir has fully drained.
RESET BUTTON
This compressor has a thermal
overload device.
If the motor gets too hot, the thermal
overload device cuts the power
which prevents damage to the motor.
If the thermal overload device
operates, let the motor cool down for
5 minutes and push the reset button.
If you start the compressor and the
overload cutout operates again, stop
the compressor and disconnect from the power supply and have your
compressor examined by a qualified service agent.
CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND
BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE.

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
MAINTENANCE
DRAIN THE RESERVOIR (DAILY)
After use, always open the drain valve to make sure that any condensate is
drained off.
CLEAN THE AIR FILTER (MONTHLY)
The air filter must be examined monthly, more often in dusty conditions,
1. Remove the filter cover from the
compressor.
2. Remove the filter cover from the
filter.
3. Remove the filter from the filter
cover.
4. Clean the sponge and the filter
cover using a soft brush.
• If necessary, the filter can be
carefully cleaned in warm
soapy water.
• Rinse and let the filter dry
completely before refitting.
5. Make sure that the filter and filter cover are replaced into position.
• If the filter is damaged, you must replace it.

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS)
If the reservoir pressure decreases for no apparent reason, it is possible that the
non-return valve is leaking. To check,
1. Make sure that the reservoir is not
under pressure and the
compressor is switched OFF and
disconnected from the power
supply.
2. Examine the non-return valve,
and replace the gasket and valve
if necessary.
SPECIFICATIONS
Max Pressure 8 Bar
Voltage 230 VAC (50/60Hz)
Air Displacement 7.5 CFM
Receiver Capacity 24 L
Fuse Rating 13 A
Dimensions (L x W x H) 545 x 310 x 590 mm
Guaranteed Sound Power Level 93 dB(A)
Weight 24 kg
Please note that the details and specifications contained herein, are correct at
the time of going to print. We reserve the right to change specifications at any
time without prior notice.

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
CAUTION: DO NOT TRY TO REPAIR OR ADJUST THIS COMPRESSOR IF YOU
ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER.
PROBLEM PROBABLE CAUSE REMEDY
The compressor
has stopped and
does not start.
Bad electrical connections. 1. Check electrical connections.
2. Clean and tighten if necessary.
Overload cutout switch has
tripped.
1. Switch off and wait approx 5
minutes.
2. Press the reset button and
switch on again.
Motor windings burnt out. 1. Contact your Clarke dealer for
a replacement motor.
The compressor
does not reach
the set pressure
and overheats
easily.
Compressor head gasket
blown or valve broken.
1. Return the machine to your
nearest service agent.
Compressor does
not start.
The reservoir has already fully
pressurised.
1. Open drain valve to expel air.
Compressor should start again
when pressure reduces.
Air leaking from
the non-return
valve when the
compressor is not
running.
Faulty non-return valve. 1. Drain receiver completely of
air.
2. Remove the valve end plug,
3. Carefully clean the valve seat
and the gasket
4. Reassemble.
Air pressure from
the regulator will
not adjust.
The diaphragm within the
regulator body is broken.
1. Replace regulator
The compressor is
very noisy and
makes a metallic
knocking sound.
Compressor damaged and
needs overhaul.
1. Return the machine to your
nearest service agent.

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
EXPLODED DIAGRAM

16
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST
No Description Part No
1Bolt M8x105 HTRAN724001
2Cylinder Head HTRAN724002
3Air Filter HTRAN724003
4Cylinder Seals HTRAN724004
5Valve Plate HTRAN724005
6Valve Plate Gasket HTRAN724006
7Valve Clack HTRAN724007
8Pin HTRAN724008
9Cylinder HTRAN724009
10 Cylinder Gasket HTRAN724010
11 Gas Ring HTRAN724011
12 Oil Ring HTRAN724012
13 Piston HTRAN724013
14 Piston Pin HTRAN724014
15 Circlip HTRAN724015
16 Breath Pipe HTRAN724016
17 O Circlip HTRAN724017
18 Bolt M5x16 HTRAN724018
19 Crank Case Cover HTRAN724019
20 Oil Leveler HTRAN724020
21 Bolt M6x10 HTRAN724021
22 O Circlip HTRAN724022
23 Rubber Gasket HTRAN724023
24 Conncting Rod HTRAN724024
25 Hex Bolt M8x22 (Left) HTRAN724025
26 Crank 20 HTRAN724026
27 Crank Case HTRAN724027
28 Sealing Ring HTRAN724028
29 Brearing 6204 HTRAN724029
30 Stator HTRAN724030
31 Rotor HTRAN724031
32 Brearing 6202 HTRAN724032
33 Wave Washer HTRAN724033
34 Motor Cover HTRAN724034
35 Bolt M5x105 HTRAN724035
36 Wind Leaf HTRAN724036
37 Circlip HTRAN724037
38 Connector HTRAN724038
39 Fan Cover HTRAN724039
40 Nut M8 HTRAN724040
41 Flap HTRAN724041
42 Capacitance HTRAN724042
43 Thermal Protector HTRAN724043
44 Bolt M5x12 HTRAN724044
45 Nut M8 HTRAN724045
46 Umilateralism HTRAN724046
47 Release Pipe ?6.5 HTRAN724047
48 Bolt M8x25 HTRAN724048
49 Discharge Pipe HTRAN724049
50 Nut M10 HTRAN724050
51 Spring HTRAN724051
52 Washer HTRAN724052
53 Wheel HTRAN724053
54 Wheel Shaft HTRAN724054
55 Drain Plug HTRAN724055
56 Washer Foot HTRAN724056
57 Tank HTRAN724057
58 Stem Rp1/2 HTRAN724058
59 Power Cord HTRAN724059
60 Nut Rp1/2 HTRAN724060
61 Quick Couplers HTRAN724061
62 Regulator Valve HTRAN724062
63 Safety Valve HTRAN724063
64 Pressure Gauge HTRAN724064
65 Pressure Switch HTRAN724065
No Description Part No

17
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

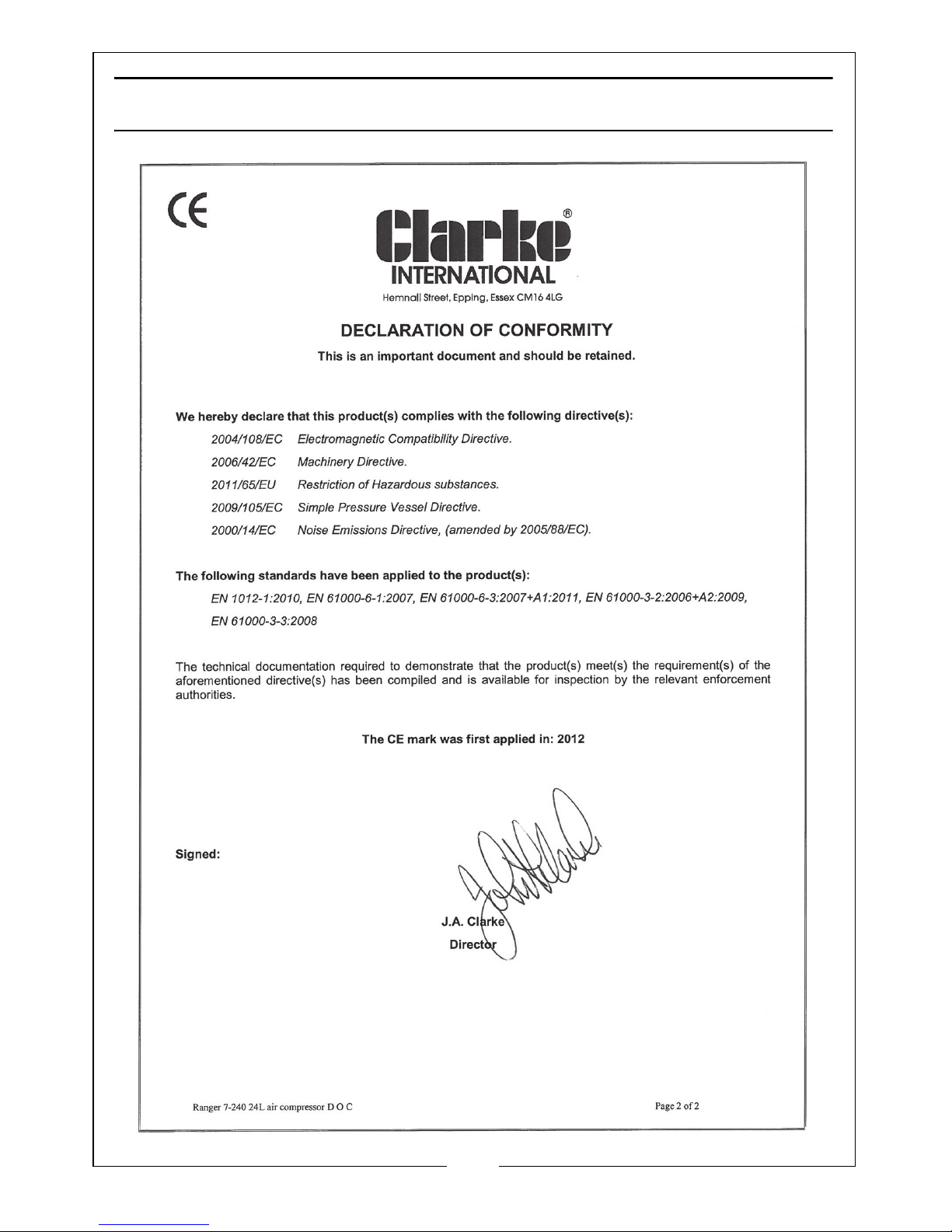

DECLARATION OF CONFORMITY

18
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY

19
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
POPULAR ACCESSORIES
