Clarke C2K-16 User manual

Form No. 70199A 1/02 CLARKE TECHNOLOGY Printed in the U.S.A.
READ THIS BOOK
CAUTION: Read the Operator's Manual before using the appliance.
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your ALTO
machinecouldresultininjurytoyouortootherpersonnel;damagetothemachineortootherproperty
could occur as well. You must have training in the operation of this machine before using it. If your
operator cannot read English, have this manual explained fully before attempting to operate this
machine.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: ALTO U. S. Inc., 2100 Highway 265, Springdale, Arkansas 72764.
C2K Series
230V 50Hz
Polisher
UK
Operator's
Manual
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -2 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V
CONTENTS OF THIS BOOK
OperatorSafetyInstructions...............................................................................................3
MachineIntroduction ..........................................................................................................4
Accessories.......................................................................................................................5
MachineSpecifications ......................................................................................................6
HowToPreparetheMachineforOperation.........................................................................7

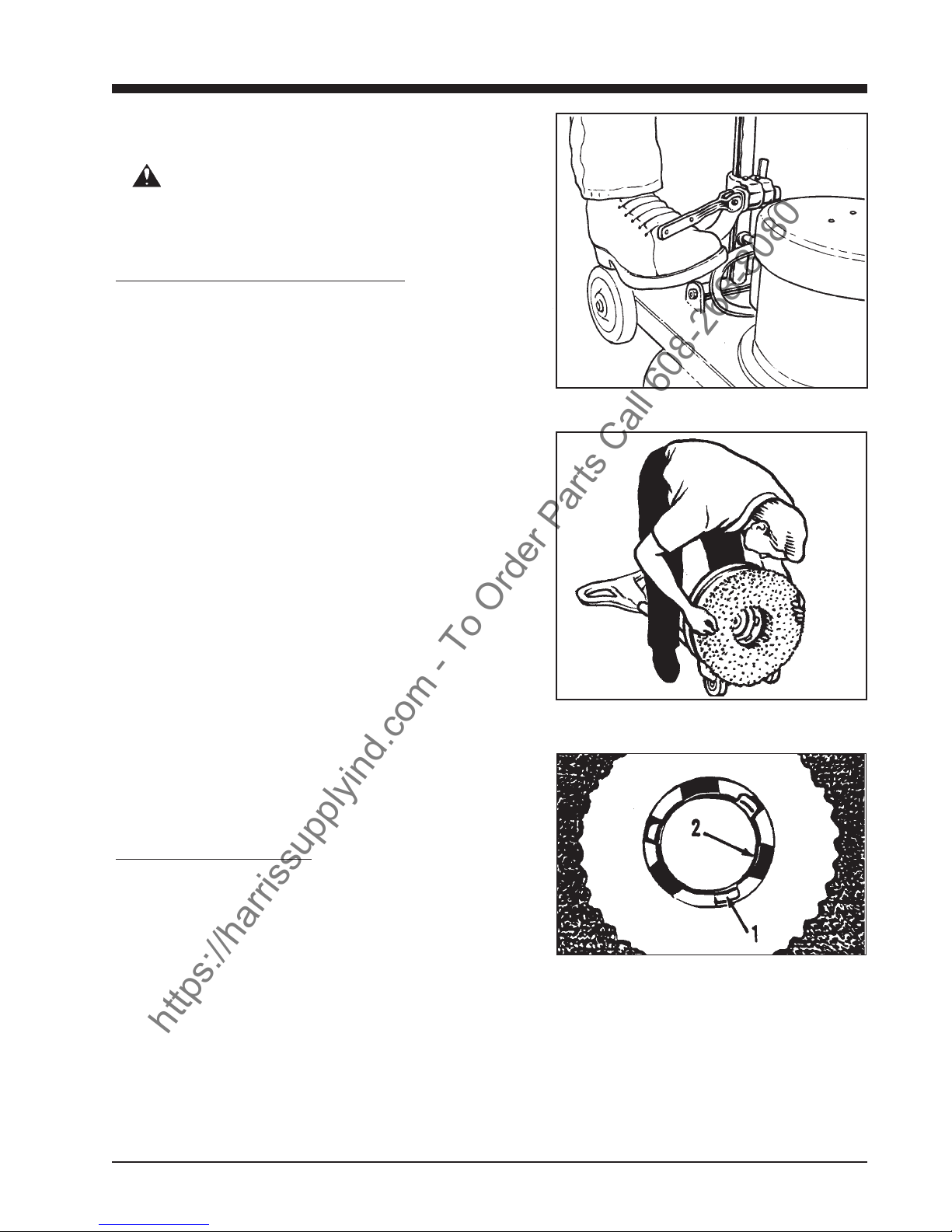

HowtoInstalltheBrushorPadDriver ..........................................................................7
How to Adjust the Handle.............................................................................................7

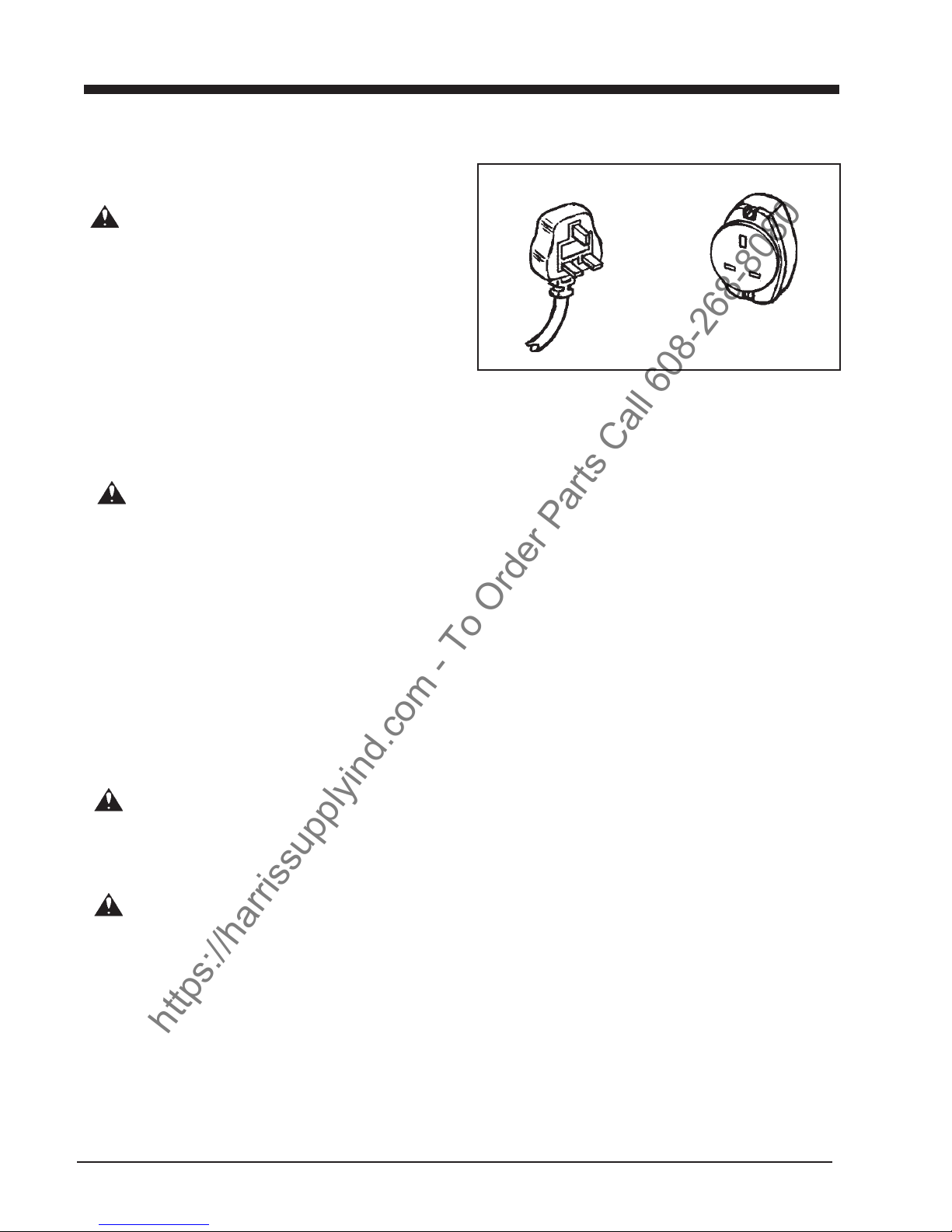

Instructions for Connection to Power Supply & Elect. Ground, 230 V .................................8
Howto OperatetheMachine ..............................................................................................9
HowToStart/StopTheMachine...................................................................................9
Howto ControltheMachine .........................................................................................9
Maintenance ......................................................................................................................9
Section II Parts and Service Manual
Maintenance ....................................................................................................................12

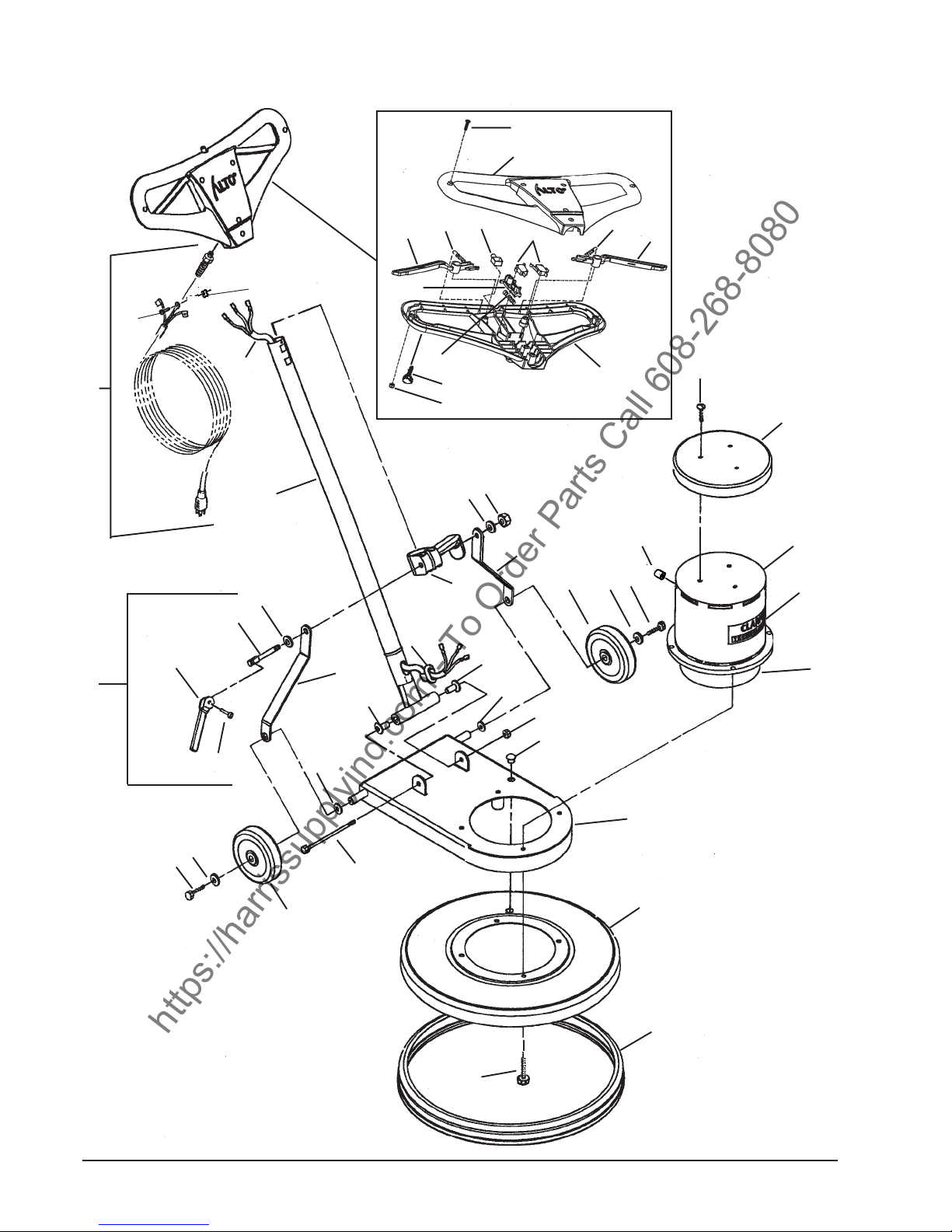

AssemblyDrawing ...........................................................................................................14
Assembly Parts List .................................................................................................15
AssemblyDrawing ...........................................................................................................16
Assembly Parts List ..................................................................................................17
Motor Assembly Drawing & Parts List..............................................................................18
Gearbox Assembly Drawing & Parts List .........................................................................19
Motor Assembly Drawing & Parts List..............................................................................20
Gearbox Assembly Drawing & Parts List .........................................................................21
Motor Assembly Drawing and Parts List...........................................................................22
Gearbox Assembly Drawing and Parts List ......................................................................23
WiringDiagrams ..............................................................................................................24
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V Page - 3 -
OPERATORSAFETYINSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
DANGERmeans: Severe bodily injury or death can occur to you or other personnel if the DANGER
statements found on this machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all DANGER statements found in this Owner's
Manual and on your machine.
WARNINGmeans: Injury can occur to you or to other personnel if the WARNING statements found on
your machine or in this Owner's Manual are ignored or are not adhered to. Read
and observe all WARNING statements found in this Owner's Manual and on your
machine.
CAUTIONmeans: Damage can occur to the machine or to other property if the CAUTION statements
found on your machine or in this Owner's Manual are ignored or are not adhered to.
Read and observe all CAUTION statements found in this Owner's Manual and on
your machine.
DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or maintenance
procedure to your machine could result in injury to you or to other personnel; damage to the
machine or to other property could occur as well. You must have training in the operation of this
machine before using it. If your operator(s) cannot read English, have this manual explained
fully before attempting to operate this machine.
DANGER: To reduce the risk of fire, use only commercially available floor cleaners and waxes intended for
machine application. Do not use with flammable liquids.
DANGER: Risk of explosion. Floor sanding can result in an explosive mixture of fine dust and air. To
reduce risk of explosion, use floor sanding machine only in well ventilated area.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or property
damage. Do not operate this machine until it is completely assembled. Inspect the machine
carefully before operation.
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not discon-
nected from the power source. Disconnect the power supply before attempting any maintenance
or service. Always remove the electrical plug from the electrical outlet before changing the brush,
pad or other attachment and before leaving the machine.
DANGER: Using a machine with a damaged power supply cord could result in an electrocution. Regularly
examine the power supply cord for damage, such as cracking or ageing. Do not use the ma-
chine if the power supply cord is damaged. Only replace the power supply cord with the type
specified in the instruction manual.
WARNING: Maintenance and repairs performed by unauthorized personnel could result in damage or injury.
Maintenance and repairs must be performed by authorized personnel only. Keep all fasteners
tight. Keep adjustments according to specifications.
WARNING: This appliance is for dry use only and is not to be used or stored outdoors in wet conditions.
WARNING: Always use a three-wire electrical system connected to the electrical ground. For maximum
protection against electric shock, use a circuit that is protected by a ground fault interrupter. Only
use the socket outlet on the appliance for purposes specified in the instruction manual.
WARNING: To prevent damage to the power supply cord, do not let the brush, pad, pad driver or wheels
touch the power supply cord when the machine is running. Always lift the cord over the machine.
Do not pull the power supply cord to move the machine.
WARNING: Operating a machine without observing all labels and instructional information could result in
injury or damage. Read all machine labels before attempting to operate. Make sure all of the
labels and instructional information are attached or fastened to the machine. Get replacement
labels and decals from your authorized distributor.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -4 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V
OPERATORSAFETYINSTRUCTIONS(cont.)
WARNING: Use of this machine as a step or furniture could result in injury or damage. Do not use this
machine as a step or furniture. Do not ride on this machine.
WARNING: To avoid injury keep hands, feet and loose clothing away from all moving parts of this
machine.
WARNING: Injury to operator or bystanders could occur if an abrupt change in floor surface texture is
encountered when using this machine. Abrupt change in floor surface texture can cause a
sudden pulling motion by this machine. This sudden pulling motion can result in loss of
control of the machine which could injure the operator or bystanders. Avoid motions that
could cause machine to cross from a smooth floor surface to a carpeted or rough texture
floor surface Avoid motions that could allow the machine to come in contact with low
obstacles, such as floor electrical outlets, door stops or entry molding, etc.
WARNING: Water solutions or cleaning materials used with this type of machine can leave wet areas
on the floor surface. These areas can cause a dangerous condition for the operator or
other persons. Always put CAUTION signs near the area being cleaned.
WARNING: Any alterations or modifications of this machine could result in damage to the machine or
injury to the operator or other bystanders. Alterations or modifications not authorized by
the manufacturer voids any and all warranties and liabilities.
CAUTION: The machine is heavy. Get assistance before attempting to transport or move it.
CAUTION: This appliance is not suitable for picking up hazardous dust.
TheCLARKETECHNOLOGYC2KSeries
The ALTO C2K Series are floor maintaining machines that can be used for polishing, spraying, buffing, stripping and
shampooing. The machines can be used on wood, vinyl, terrazzo or cement floors. With the shampoo brush, the
machines can be used to clean carpet and with the sanding disc they can be used to sand floors.
This appliance is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and
rental businesses.
MACHINEINTRODUCTION
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V Page - 5 -
6. Brushes with metal or wood backs and with
holes to let the solution flow through.
7. Solution tank.
8. Sandingdiscsforwoodfloors.
9. Spray Buff Accessory.
10. Grindingdiskforconcrete.
Model C2K - 2000 1600HS 1800HS 2000HS 1600DS 2000DS 1800HSV
CodeNumber 01228A 01229B 01230B 01231B 01232B 01233B 09234B
SolutionTankAssembly 50026A 50026A 50026A 50026A 50026A 50026A ---------
Spray Buff Attachment --------- 440570 440570 440570 440570 440570 ---------
Weight Kit 10086A ---------- ---------- ---------- 10086A 10086A ---------
Polyproplene Scrub Brush 51707A 51704A 51706A 51707A 51704A 51707A 51706A
High Speed Pad Driver --------- 53154A 53153A 17518A 53154A 17518A 53153A
Perma Grip Pad Driver 53156A 53159A 53157A 53156A 53159A 53156A 52157A
Super Grip Drive Pad 37011A 37007A 37009A 37011A 37007A 37011A 37009A
Standard Pad Driver 50866A 50864A 50865A 50866A 50864A 50866A 50865A
Sanding Disc Driver (Wood) ----------- ----------- ----------- ----------- ----------- ----------- ---------
AbrasiveCoatedTynex 51446A ----------- ----------- ----------- ----------- ----------- ---------
Steel Wire Brush (Concrete) 480924 ----------- ----------- ----------- ----------- ----------- ---------
Capture (Carpet) Scrub Brush 11406A ----------- ----------- ----------- ----------- ----------- ---------
Nylon Brush (Carpet) ----------- ----------- ----------- ---------- 51498A ----------- ---------
GrindingDisk Assembly ----------- ----------- ----------- ----------- ----------- ----------- ---------
DustSkirt 10089A 10087A 10088A 10089A 10087A 10089A 10088A
WARNING: Use only brushes and accessories supplied by the manufacturer. The
use of other brushes and accessories may impair safety. Large diameter brushes
provided specifically for dry buffing are not intended for general polishing.
ACCESSORIES
Thefollowingaccessoriesareavailable.
1. Polishingandwaxingbrushes.
2. Brushes with natural or synthetic bristles for
scrubbing.
3. Brushes with steel wire bristles for concrete.
4. Syntheticpadholders.
5. Syntheticpadsforpolishing,scrubbing,
strippingandspraybuffing.
Model C2K- 16 18 160 180 200 1600 1800
CodeNumber 01221A 01222A 01223A 01224A 01225A 01226A 01227A
SolutionTank Assembly 50026A 50026A 50026A 50026A 50026A 50026A 50026A
SprayBuffAttachment
Weight Kit ---------- ---------- ---------- ---------- ---------- 10086A 10086A
PolypropleneScrubBrush 51704A 51706A 51704A 51706A 51707A 51704A 51706A
HighSpeedPadDriver
PermaGripPadDriver 53159A 53157A 53159A 53157A 53156A 53159A 53157A
SuperGripDrivePad 37007A 37009A 37007A 37009A 37011A 37007A 37009A
StandardPadDriver 50864A 50865A 50864A 50865A 50866A 50864A 50865A
SandingDiscDriver(Wood) ----------- ----------- ----------- ----------- ----------- 450214 460215
AbrasiveCoatedTynex ----------- ----------- 51443A 51445A 51446A 51443A 51445A
SteelWireBrush(Concrete) 410963 410984 410963 410984 480924 410963 410984
Capture(Carpet)ScrubBrush ----------- ---------- ---------- ---------- ----------- ----------- 11405A
NylonBrush(Carpet) ----------- ----------- ----------- ----------- ----------- 51498A 51701A
Grinding Disk Assembly ----------- ---------- ---------- ---------- ----------- 450212 500212
Dust Skirt 10087A 10088A 10087A 10088A 10089A 10087A 10088A
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -6 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V
MachineSpecifications
Model C2K- 1600 1800 2000 1600DS 2000DS
CodeNumber 01226A 01227A 01228A 01232B 01233B
Voltage(V) 230 230 230 230 230
Frequency(Hz) 50 50 50 50 50
Current (A) 8888 8
Power(kW) 1.1 1.1 1.1 1.1 1.1
BrushDiameter(cm) 41 46 51 41 51
BlockDiameter (cm) 36 41 46 36 46
Brush Speed (rpm) 204 204 204 180/320 180/320
Cord Length (m) 15 15 15 15 15
Weight (kg) 42 42 42 43 43
Noise (dBA) <70 <70 <70 <70 <70
Vibration(m/s2) <2.5 <2.5 <2.5 <2.5 <2.5
Model C2K- 1600HS 1800HS 2000HS 1800HSV
CodeNumber 01229B 01230B 01231B 09234B
Voltage(V) 230 230 230 230
Frequency (Hz) 50 50 50 50
Current (A) 8889
Power (kW) 1.1 1.1 1.1 1.1
Brush Diameter (cm) 41 46 51 46
Block Diameter (cm) 36 41 36 41
Brush Speed (rpm) 407 407 407 407
Cord Length (m) 15 15 15 15
Weight (kg) 42 42 42 44
Noise (dBA) <70 <70 <70 <70
Vibration (m/s2) <2.5 <2.5 <2.5 <2.5
Model C2K- 16 18 160 180 200
CodeNumber 01221A 01222A 01223A 01224A 01225A
Voltage(V) 230 230 230 230 230
Frequency (Hz) 50 50 50 50 50
Current (A) 88888
Power (kW) 0.56 0.56 0.75 0.75 0.75
Brush Diameter (cm) 41 46 41 46 51
Block Diameter (cm) 36 41 41 46 51
Brush Speed (rpm) 204 204 204 204 204
Cord Length (m) 15 15 15 15 15
Weight (kg) 40 40 40 40 40
Noise (dBA) <70 <70 <70 <70 <70
Vibration (m/s2) <2.5 <2.5 <2.5 <2.5 <2.5
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V Page - 7 -
HOWTOPREPARE THEMACHINEFOR
OPERATION
WARNING: Always remove the electrical
plug from the electrical outlet before
installing or changing the pad or brush.
How To Install The Brush Or Pad Driver
Toinstallthebrushorpaddriver,followthis
procedure:
1. Put the handle in the vertical position.
2. Tolock the handle, pushthelocking lever
down.Seefigure1.
3. Tilt the machine backward until the handle is on
the floor. See figure 2.
4. Put one foot on each side of the machine. See
figure2.
5. Align the lugs (1) on the locking plate into the
pad driveradapteropenings(2). Seefigure3.
6. To lock the brush or pad into position, turn the
brushorpaddriverclockwise.
7. Turnthe brush or pad counterclockwiseto
unlockandremovethebrush.
8. Lift the machine to the vertical position.
NOTE: To prevent damage to the brush or pad
driver, remove the accessory while not in use.
Keep the brush in a cool, dry place.
How To Adjust The Handle
Toadjustthehandle,followthis procedure:
1. Thelockinglever is on thelower partof the
handle tube. Use your foot to lift the lever.
Seefigure1.
2. Lower the handletothebestoperatingposition.
NOTE: Forthe bestoperating position,keep your
back straight, bend only your arms.
3. Using your foot, push the lockingleverdown.
4. Hold the handle against your body for the best
control.
Figure 1
Figure 2
Figure 3
1.Thelugs.
2.Thedriveadpateropenings.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -8 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V
230 VOLT MACHINES Instruction for
connection to the power supply and the
electrical ground
.
CAUTION: This machine will operate
only on the AC frequency and electrical
voltage shown on the nameplate. Make sure
you have the correct frequency and voltage
before connecting the power cord to an
outlet.
This machine must be connected to the electrical
groundto protecttheoperator fromelectric
shock. The machine has a power cord with two
mainconductorsandoneearthingconductor.
Connect the plug to the type of receptacle shown
in figure 4. The green and yellow conductor in the
cord is the ground wire. Never connect this wire
toany terminal other than theground terminal.
WARNING: Always use this machine
with an AC three-conductor electrical
system connected to the electrical
ground. Replace any worn, cut, or
damaged cords. Replace any damaged
plugs, receptacles, or connector
bodies. Do not move the machine over
an electrical cord. Always lift the cord
over the machine.
EXTENSIONCORDS
Useonly anapprovedextensioncord withtwo
mainconductorsandoneearthingconductor.
The machine has a power cord with wire size 1.5
mm2.
WARNING: If you use an extension
cord, use an extension cord with minimum
wire size 1.5mm2. Do not use an extension
cord longer than 15 meters. Do not join two
extensioncords.
WARNING: Do not cut, remove, or
break the ground terminal. Do not try to fit a
three- terminal plug into a receptacle or
connector body that does not fit the plug.
If the receptacle or connector body does not
fit the plug, see your Authorized person to
make the connection.
Figure 4
UK Socket
(UK and Ireland)
UK Plug
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V Page - 9 -
Figure 5
HOW TO OPERATE THE MACHINE
How To Start/Stop The Machine
WARNING: Never start a polisher when
the handle is in the vertical
position.
ThefollowingstepappliestotheC2K-1600DSandC2K-
2000DSonly:Selecthighor lowspeedwiththeswitch
locatedonthemotorcover. Movingtheswitchleverup
selects high speed. Moving the switch lever down
selects low speed.
The following steps apply to all C2K series:
The switch to start and stop the machine is activated
bytheinterlockbutton(1)andthelevers(2)underthe
handle grips. See figure 5.
Tostartthemachine,followthisprocedure:
1. Lowerthehandle
2. Lock the handle in the best position for operation.
NOTE: Make sure you hold the handle with both
hands.
3. Pushtheinterlockbutton(1),andapplypressureto
the levers (2). See figure 5.
How To Control The Machine
NOTE: Make sure you hold the handle with both
hands.
Thesidetosidemovementofthemachineiscontrolled
byraisingthehandleandpressingdownonthehandle.
To move the machine to the left, press down on the
handleslightly. Tomovethemachinetotheright,raise
the handle slightly.
MAINTENANCE
WARNING: Maintenance must be done
by authorized personnel
only.
Maintenance Instructions
Return the machine to a Clarke Technology Authorized
Service Location every 12 months for maintenance
inspections.
1
22
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -10 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V
NOTES
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V Page - 11 -
C2K Series
230V
Section II
Parts and Service Manual
(70199A)
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -12 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V
MAINTENANCE
WARNING: Maintenance must be done by
authorized personnel only.
CAUTION: Keep all adjustments according
to specifications.
Maintenance Instructions
Return the machine to a Clarke Technology Authorized
Service Location every 12 months for maintenance
inspections.
Switches
WARNING: All electrical repairs must be
done by authorized personnel only. The
machine must be tested after electrical
repairs to make sure it is safe to operate.
Disconnect the electrical plug from the
electrical outlet before doing any
electrical repairs.
The start and stop switch has an interlock which pre-
ventsthe contacts frombeingclosed. Ifany partofthe
switchisnotoperating,replacethepart. Ifanypartofthe
electrical system of the machine is not operating or is
damaged,replace thepart. Makesureall connections
aretight. ReturnthemachinetotheClarkeTechnology
Service Branch or a Clarke Technology Authorized
ServiceCenterforelectricalrepairsortesting.
Maintenance Of The Motor
Induction type motors do not require motor brushes.
C2K-1600DSandC2K-2000DSrequiremotorbrushes.
If repairs to the gear unit or motor are needed, do not
disassemblethegearsandmotor. Returnthemachine
to the nearest Clarke Technology Service Branch or
ClarkeTechnologyAuthorizedServiceCenter.
Forsafeoperation,andlongerlifetoyourClarkeTech-
nologyproduct,use only Clarke Technologyparts.
NOTE: The grease (503802) for the gear box needs
to be changed every year. The C2K-1600, C2K-
1600DS C2K-1600HS, C2K-1800, C2K 1800HS, C2K-
2000, C2K-2000DS, C2K-2000HS require 8 oz. of
grease. All other C2K series require 9 oz. of grease.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKE TECHNOLOGY Operator's Manual - C2K Series 230V Page - 13 -
NOTES
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKETECHNOLOGY
C2K-16,C2K-18,C2K-160,C2K-180,C2K-200,
C2K-1600,C2K-1800,C2K-2000,C2K-160HS,C2K-180HS,C2K-200HS
Assembly Drawing 2/01
Page -14 - CLARKE TECHNOLOGY Operator's Manual - C2K Series
1
2
345643
9
7
8
10
1
31
29
30
24
32
33
34
36
27
25
24
123
28
22
25
26
19
26
37
18
17
16
15
14
20
22
21
38
13
41
43
44
10
1
24 23 1
11
42
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKETECHNOLOGY
C2K-16,C2K-18,C2K-160,C2K-180,C2K-200,
C2K-1600,C2K-1800,C2K-2000,C2K-1600HS,C2K-1800HS,C2K-2000HS
Assembly Drawing Parts List 2/01
CLARKE TECHNOLOGY Operator's Manual - C2K Series Page - 15 -
Ref. Part No. Description Qty.
1 85383A Screw, 10-32 x 3/412
2 50779A Handle, Front 1
3 50798A Lever, Switch 2
4 50820A Spring, Extension 2
5 50806A Button, Interlock 1
6 40109A Switch 2
7 50799A Interlock, Main 1
8 50821A Spring, Compression 1
9 50780A Handle, Rear 1
10 920722 Nut, 10-3 ESNA 7
11 962957 Screw 2
13 50871A Cord, Interconnect 1
14 461404 Cam, Locking (included w/42) 1
15 925592 Roll Pin, ¼ (included w/42) 1
16 441301 Bolt, Locking Cam (included w/42) 1
17 980349 Washer, Wear Cam 1
18 50791A Arm Link, RH 1
19 50781A Clamp, Handle 1
20 50792A Arm Link, LH 1
21 980645 Washer, Flat 3/81
22 920342 Nut, 3/8-16 ESNA 2
23 87035A Washer, Fender #10 SS 2
24 50793A Wheel,5" 2
25 87050A Washer,5/8Nylon 2
26 50794A Bushing, Nylon 2
27 80087A Screw, 3/8 -16 x 6 1
28 57120A Plug, Button 1
29 50993A Motor (16, 18) 1
44638A Motor (160, 180, 200) 1
50879A Motor (1600, 1800, 2000) 1
50880A Motor (1600HS, 1800HS, 2000HS) 1
30 50872A Gearbox (16, 18, 160, 180, 200) 1
50881A Gearbox(1600,1800,2000) 1
51344A Gearbox (1600HS, 1800HS, 2000HS, 1800HSV) 1
31 50822A Cover,Motor(16,18,160,180,200) 1
50823A Cover,Motor(1600,1800,2000,1600HS, 1
1800HS, 2000HS)
32 50790A Frame, Main 1
33 50785A Shield, Brush (16, 160, 1600) 1
50786A Shield, Brush (18, 180, 1800) 1
50787A Shield,Brush(200,2000) 1
51218A Shield(1800HSV) 1
34 50782A Bumper,(16,160,1600) 1
50783A Bumper, (18, 180, 1800) 1
50784A Bumper, (200, 2000) 1
36 80098A Screw, 5/16-18 x 21/84
37 50796A Bushing, Cord 1
38 50795A Tube, Handle 1
41 50870A Cord Assembly 1
42 441401 Cam Assembly (includes 14,15, 16) (1)
43 747553 Strain Relief 1
44 77378A Label 1
NI 82100A Locknut 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKETECHNOLOGY
C2K-1600DSandC2K-2000DS
Assembly Drawing 2/01
Page -16 - CLARKE TECHNOLOGY Operator's Manual - C2K Series
1
2
345
8
7
643
9
10
1013
38
14
16 17
18
15
26
37
19
21 22
26
25
20
24 23 1
30
29
31
34
123
24
25
27
22
28
32
33
36
41
42
43
44
46
47
48
49
12
53
54
52
50
10
1
1
11
56
10
55
56 30a
57
11 12
51
45
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKETECHNOLOGY
C2K-1600DSandC2K-2000DS
Assembly Parts List 2/01
CLARKE TECHNOLOGY Operator's Manual - C2K Series Page - 17 -
Ref. Part No. Description Qty.
1 85383A Screw, 10-32 x 3/412
2 50779A Handle, Front 1
3 50798A Lever, Switch 2
4 50820A Spring, Extension 2
5 50806A Button, Interlock 1
6 40109A Switch 2
7 50799A Interlock, Main 1
8 50821A Spring, Compression 1
9 50780A Handle, Rear 1
10 920722 Nut, 10-32 ESNA 10
11 40139A Blue Wire Assembly 1
12 40140A Brown Wire Assembly 1
13 50875A Cord, Interconnect 1
14 461404 Cam, Locking (included w/51) 1
15 925592 Roll Pin, ¼ (included w/51) 1
16 441301 Bolt, Locking Cam (included w/51) 1
17 980349 Washer, Wear Cam 1
18 50791A Arm Link, RH 1
19 50781A Clamp, Handle 1
20 50792A Arm Link, LH 1
21 980645 Washer, Flat 3/81
22 920248 Nut, 3/8-16 ESNA 2
23 87035A Washer, Fender #10 SS 2
24 50793A Wheel,5" 2
25 87050A Washer,5/8Nylon 2
26 50794A Bushing, Nylon 2
27 80087A Screw, 3/8 -16 x 6 1
28 57120A Plug, Button 1
29 50825A Bracket 1
30 51342A Motor/Gearbox(includes#30a) 1
30a 51343A Gearbox (included w/#30) (1)
31 50824A Cover,Motor 1
32 50790A Frame, Main 1
33 50785A Shield, Brush (1600) 1
50787A Shield, Brush (2000) 1
34 50782A Bumper, (1600) 1
50784A Bumper, (2000) 1
36 80098A Screw, 5/16-18 x 21/84
37 50796A Bushing, Cord 1
38 50795A Tube, Handle 1
41 85517A Screw 2
42 70151A Label 1
43 50877A Switch 1
44 51345A CircuitBreaker(Includes#45) 1
45 751321 Boot (included w/#44) (1)
46 34261A Light 1
47 80201A Clip 1
48 747553 StrainRelief 1
49 70218A Label,(High-Low) 1
50 77378A Label 1
51 441401 Cam Asm (includes 14,15,16) (1)
52 30605A Baffle 1
54 50870A Cord Asm. (w/ strain Relief) 1
55 47201A Filter 1
56 98458A Bushing 2
57 962957 Screw 2
NI 82100A Locknut 1
NI 51058A Baffle 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

CLARKETECHNOLOGY
C2K-16,C2K-18,C2K-160,C2K-180andC2K-200
230V - 50 Hz Motor Assembly Drawing & Parts List 2/01
Note: If your machine has motor #44638A refer to this
drawing for service part replacement.
Ref. Part No. Description Qty.
1 58030A Screw#10-32x.31 2
2 52018A Capacitor Case 1
3 52019A Start Capacitor 1
4 54330A Gasket,CapacitorCase 1
6 53976A Stator Frame Asm 1
7 50400A Rotor and Shaft Assembly 1
8 56461A CentrifugalSwitch Asm.(50Hz) 1
9 902550 Bearing 1
Ref. Part No. Description Qty.
10 58673A Washer 1
11 58032A Stationary Switch 1
12 54713A Stationary Switch Insulation 1
13 53523A Bracket Opp. Shaft End 1
14 58911A Terminal Board Asm. 1
15 58912A TerminalBoard 1
16 58034A Screw#18-32X.50 2
17 50691A Bolt,.250-28x 6.75 4
18 58031A Screw, #8-32 x .38 2
230V Motor
Electrical Schematic
12
3
4
6
7
8910 11 12
13 14 15 16
17
18
Page -18 - CLARKE TECHNOLOGY Operator's Manual - C2K Series
L2
L1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Ref. Part No. Description Qty.
2 80141A Screw, Socket Hd. Cap 6
3 56922A Plate, Retainer 1
4 902606 Bearing 3
5 58513A Spacer, Sleeve 1
6 53524A Endshield 1
7 962794 Screw 10-24" x 1" 6
8 54858A Cover, Housing 1
9 902736 Bearing 1
10 58314A Retainer 1
11 442473 Coupling 1
12 Gear, Pinion 1
14 902737 Bearing, Needle 4
15 52020A Cage 1
16 Gear, Idler 2
17 58312A Shaft 2
18 902573 Bearing 1
19 Housing,Drive 1
CLARKETECHNOLOGY
C2K-16,C2K-18,C2K-160,C2K-180andC2K-200
Gearbox Assembly Drawing & Parts List 1/02
Note: If your machine has gearbox #50872A refer to this
drawing for service part replacement.
CLARKE TECHNOLOGY Operator's Manual - C2K Series Page - 19 -
2
3
4
5
6
7
8
9
10
11
4
12
15
16
17
14
18
19
4
14
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Page -20 - CLARKE TECHNOLOGY Operator's Manual - C2K Series
CLARKETECHNOLOGY
C2K-1600,C2K-1800,C2K-2000,C2K-1600HS,C2K-1800HSandC2K-2000HS
Motor Assembly Drawing & Parts List 1/02
Note: If your machine has motor #50879A or #50880A refer
to this drawing for service part replacements.
123
4
5
Ref. Part No. Part No. Description Qty
1 50861A 50861A BallBearing 1
2 40153A 51054A Centrifugal and Switch 1
3 40154A 51055A Rotor 1
4 40155A 50862A Capacitor, Start 1
5 40156A 50863A Capacitor, Run 1
50880A 50879A
"HS"
machines
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
