INTRODUCTION
Thank you for purchasing this CLARKE Submersible Pump.
This pump is designed for pumping clean water only. it is not designed for
pumping slurry, sludge, mud or heavily polluted water, or any water containing
chemicals or other acidic contaminants including salt water.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SAFETY PRECAUTIONS
WORK AREA
1. Keep the work area clean and well lit. Floors should always be kept clear.
Cluttered or dark areas invite accidents.
2. Keep children and bystanders away while operating the pump.
Distractions can cause loss of control.
3. Remember, the operator or user is responsible for accidents or hazards
occurring to other people or their property.
PERSONAL SAFETY
1. Always stay alert, watch what you are doing and use common sense when
operating this pump. Do not install the pump while you are tired or under
the influence of medication, drugs or alcohol. A moment of inattention
can result in personal injury.
2. Do not over-reach. Keep your proper footing and balance at all times
when positioning the pump.
3. Never direct the water discharge towards electrical wiring or equipment.
4. Always store the pump out of reach of children and do not allow persons
unfamiliar with these instructions to operate it.
5. Never direct the discharge flow towards another person.
6. Always thoroughly familiarise yourself with this pump & its operation and
follow all instructions in this manual.
7. Always ensure that the pump is properly positioned where necessary to
prevent it from moving during operation, and that the immediate area
surrounding the pump is kept clear.
GENERAL USE AND CARE OF THE PUMP
1. An approved Residual Current Device (RCD) must be used when pumping
from ponds or swimming pools.
2. Always lift the pump using the handle and use a rope or chain attached if
necessary to lower it into the pit or excavation. Never lift or carry the pump
by the power cable or by the float switch cable.
3. Never use this pump if any part is damaged. Have it inspected and
repaired by your local Clarke dealer.
4. Always use an extension cable suitable for outdoor use when operating
outdoors. Using the correct cable reduces the risk of electric shock.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
5. Always maintain the pump with care and keep it clean.
6. Always use an approved cable extension suitable for the power rating of
the pump (see specifications). The conductor size should also be at least
the same size as that on the pump, or larger. When using a cable reel,
always unwind the cable completely.
7. Never use for pumping flammable liquids or corrosive chemicals. These
pumps are designed to pump water only.
8. Never abuse the electrical cable. Never use the cable for pulling or
unplugging the pump Damaged or tangled cables increase the risk of
electric shock.
9. Never run the pump dry. Always ensure the pump is immersed in water
before starting. Switch the pump OFF immediately the task is completed
10. Never pump water from a swimming pool when there is a person or animal
still in the pool.
11. Never install the pump on sand, silt or mud which is likely to shift or collapse.
12. Never modify this pump in any way. Use it only for the purpose for which it is
designed.
SERVICING & REPAIRS
1. Always have the pump serviced by your local CLARKE dealer, using only
identical replacement parts. This will ensure the safety of the pump is
maintained. The use of non standard parts could be hazardous.
2. Never attempt any repairs yourself. If you have a problem with the pump
contact your local CLARKE dealer.
3. Always disconnect the pump from the electrical supply before placing it
into, or removing from the water, and before any cleaning or
maintenance.
4. If the power cable becomes damaged, it must be replaced rather than
repaired.
Your CLARKE water pump has been designed to give long and trouble free
service. If, however, having followed the instructions in this booklet carefully,
you encounter problems, take the unit to your local CLARKE dealer.
Please keep these instructions in a safe place for future reference.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ELECTRICAL CONNECTIONS
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to

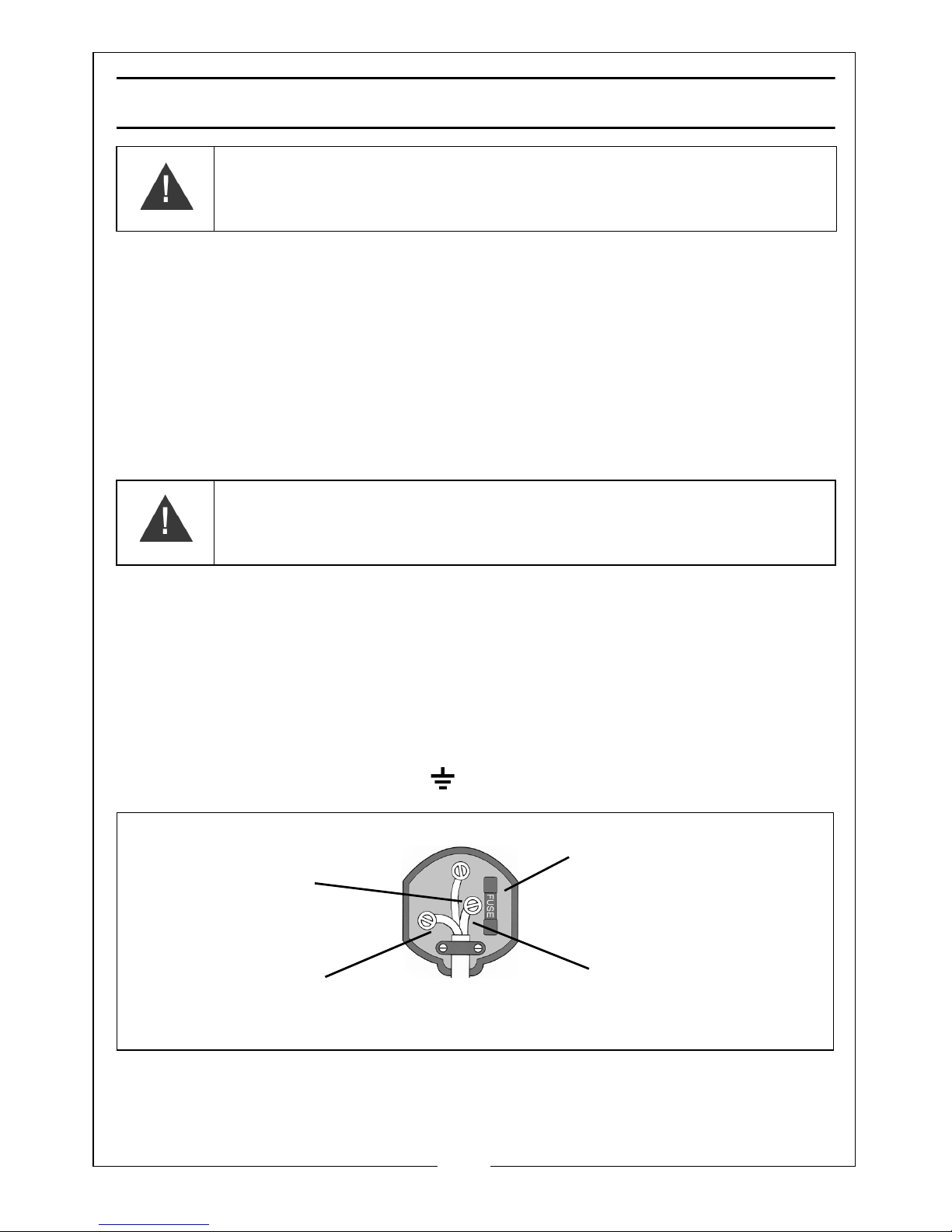

damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal which
is marked Lor coloured Red.
• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.
.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.
WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OVERVIEW
SUITABILITY
The CLARKE range of submersible pumps are suitable for discharging pools,
ponds, fountains, pits and any waste water drainage. They can handle foul
water containing suspended material as listed in the specification. The pumps
are not suitable for handling inflammable, corrosive, explosive or dangerous
liquids.
THE FLOAT SWITCH
The float switch enables the pump to stop and restart automatically as the
surrounding water level changes. As the water level rises, the switch will float
and start the pump. As the water level falls, so will the float switch, until it stops
the pump. Float switches are factory set to provide the correct ON-OFF
switching mode. This makes them suitable for permanent or semi-permanent
installations, eg. installations where it is necessary to maintain water at a
particular level without an operator in attendance.
THE THERMAL CUT-OUT
The pump is provided with a thermal overload cut-out, so that in the event
that the pump becomes overheated (due to becoming blocked etc) it will
shut off automatically. When the blockage has been cleared, the thermal
cutout will cool down and re-set and the pump can be re-started.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CONNECTION AND POSITIONING

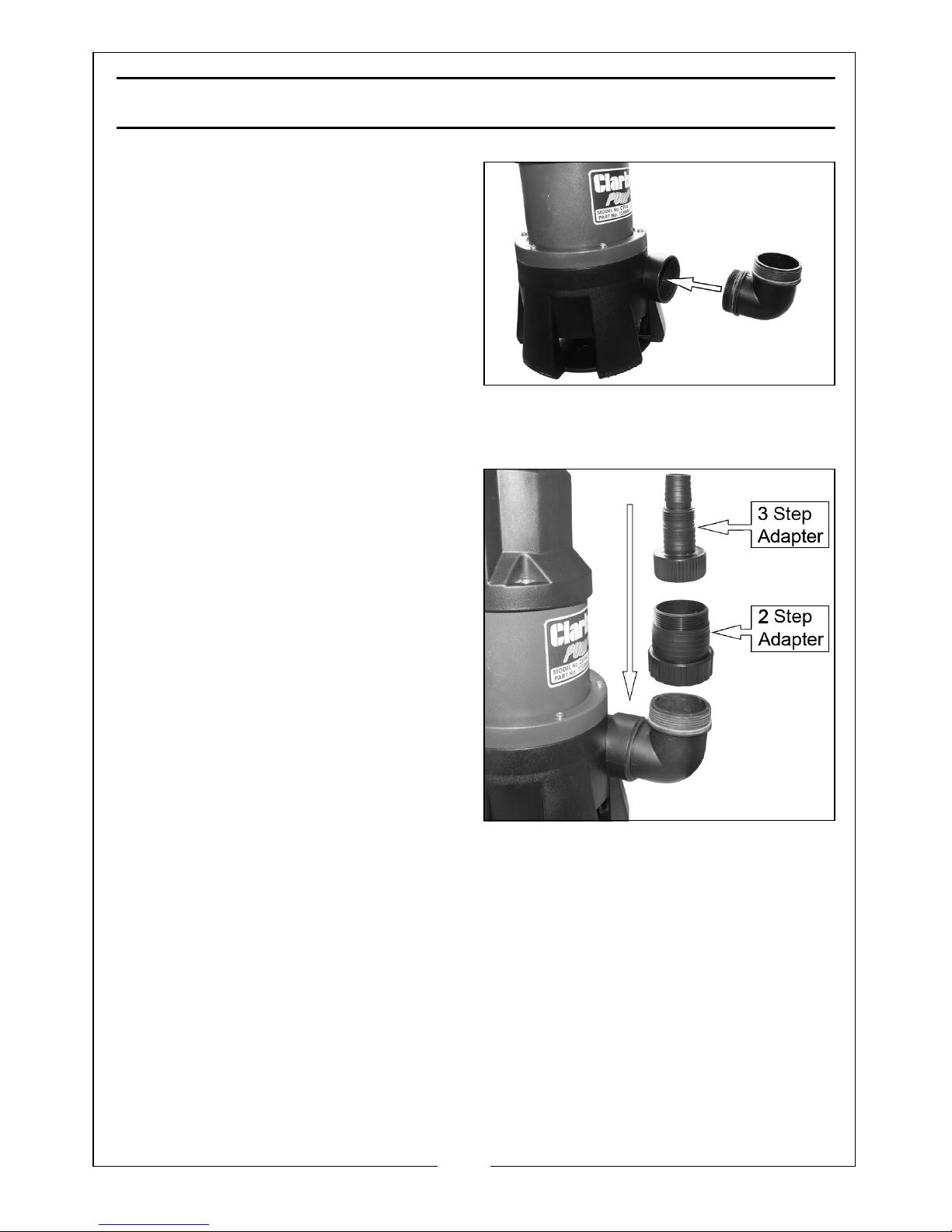

1. Screw the outlet elbow and
stepped adaptor supplied, onto
the outlet of the pump as shown.
2. Connect the outlet adaptor to
the largest diameter hose
available, as any restriction will
reduce capacity and put
unnecessary strain on the motor.
• The stepped adaptor fitting
allows for connection of 32 mm
(1¼”), 25 mm (1”), or 19 mm hoses which should be secured with a hose
clamp.
3. Ensure that the hose diameter is
as large as possible if a long run of
discharge hose is being used.
• Suitable hoses are available
from your local Clarke dealer.
POSITIONING THE PUMP
1. ALWAYS raise and lower the pump
using a rope attached to the
lifting handle.
2. Place the pump in a vertical
position resting on a firm, flat
surface in the area that you want
to drain. If there is sediment in the
operating area, the pump should
be placed vertically on house bricks, or similar but ensure they are not likely
to collapse. Never install the pump on sand, silt, mud or ground that is likely
to collapse.
3. Keep the pump clear of sediment by standing it on a platform or brick or
suspending from a rope attached to the handle if the pump is to be used
where there may be silt or mud etc (e.g. garden ponds).
4. Ensure the pump is positioned with adequate space so that the movement
of the float switch is not restricted - recommended minimum area of 50 x
50cm.
5. Allowance must also be made for the overall width of the pump including
the outlet elbow on one side.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
6. Ensure the float switch has
sufficient room to operate
correctly if used in a confined
space such as a shaft or sump.
• The pump should only be
placed in a sump which is large
enough not to restrict the
movement of the float switch.
• When the pump is being used
in a permanent or semi-
permanent installation, a non-
return valve should be fitted in
the delivery hose. Suitable
hoses and valves are available
from your Clarke dealer.
USING THE PUMP
1. Plug in the pump and switch on the power supply.
• Always use a high sensitivity residual current device (RCD) which has a
tripping current of less then 30mA.
• The pump will only run where there is sufficient water for the float switch
to rise and activate the pump.
2. If required, the range of operation of the float switch can be manually
adjusted by positioning the float switch cable within the retaining clip at
the top of the pump. The switch will operate through its full range if left
hanging free.
3. Run the pump continuously or remove from the water and store in a frost
free location if the water is likely to freeze.
4. Never run the pump dry. Ensure the pump switches off when water has
stopped flowing.
• The pump should be able to clear water down to a residual depth of
approx 5mm, provided the float switch has been raised to keep the
pump running. In this situation, air and residual water may be seen
escaping from the vent valve.
5. Disconnect from the power supply when the water has been pumped out.
Avoid running the pump continuously if the discharge hose has become
obstructed and water is not flowing.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
AUTOMATIC THERMAL OVERLOAD
These pumps are fitted with automatic thermal overload protection. If the
pump overheats due to an obstruction in the pump, or pumping warm water
for example, it will shut off automatically.
Switch the pump OFF at the mains supply. Check for blockages and allow the
motor to cool (at least 5 minutes) before attempting to restart, by which time
the cut-out will have reset.
CLEANING, MAINTENANCE & STORAGE
The pump should require no maintenance other than regular inspection and
cleaning.
1. Inspect the pump prior to use and do not use the pump if there is any
damage to the mains power cable or to the float switch or its connecting
cable.
2. Check pump regularly to ensure the inlet is clear of leaves or other debris. It
can be cleaned out either by back-flushing or by removing the base plate
(after undoing the retaining screws) and cleaning out by hand.
3. If the pump has been used for pumping swimming pool water or salty
water likely to leave chemical residues, it should be flushed through with
clean water before storage.
4. When the pump is not being used for extended periods, clean and dry it
thoroughly and store in indoors. if the pump is left in water, it should be run
at least once a week to prevent it from seizing up.
If the pump shows signs of wear or damage, contact your CLARKE dealer for
advice. Do not attempt to repair the pump yourself, as you may damage the
waterproof seals and invalidate your guarantee. Repairs should be carried out
by your local CLARKE dealer, or contact the CLARKE Service Department on
020 8988 7400.
ACCESSORIES
A wide range of accessories is available from your nearest CLARKE dealer,
including hoses and hose adaptors.
WARNING: MAKE SURE THAT THE PUMP IS DISCONNECTED FROM THE
POWER SUPPLY BEFORE CLEANING OR PERFORMING MAINTENANCE

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
TROUBLESHOOTING
PROBLEM SOLUTION
Pump hums
but does not
run
1. Impeller partially clogged. Raise pump and clean.
• If pump is clear, motor could be defective.
Pump runs but
does not
deliver water
or only delvers
a small
amount
1. Check or non-return valve is installed backwards. Arrow
on valve should point in direction of flow.
2. Discharge shut-off valve if used, may be closed. Check
that the outlet is not clogged or obstructed.
3. Impeller partially clogged. Raise pump and clean.
4. Air bubble in the pump, produced during immersion.
immerse the pump again, at an angle, and shake it whilst
lowering to remove any air trapped in the system.
5. Inlet at base of pump is blocked. Raise pump and clear
openings.
6. Vertical pumping distance too high. Reduce height or
change the pump discharge fitting.
7. Impeller may be damaged - Consult your CLARKE dealer.
Pump runs but
will not stop
1. Float switch may be prevented from moving to the fully
down position.
2. Faulty float switch. Consult your CLARKE dealer.
Pump will not
start
1. Make sure that the power is switched on.
2. Check fuse (consult an electrician if in doubt).
3. If an extension lead is fitted, check connections (consult
an electrician if in doubt).
4. Internal thermal cut-out has not re-set. Leave for 5-10
minutes and try again.
5. The impeller may be jammed. Disconnect from the mains
supply and remove any objects that may be obstructing
the impeller.
6. Float switch may be jammed against side wall, or
prevented from moving.
7. If the pump still fails to start, consult your CLARKE dealer
for advice.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFICATIONS
Fuse blows or
circuit breaker
trips when
pump starts
1. Motor may be defective.
2. Fuse size is wrong or circuit breaker may be too small
3. Pump clogged. Raise pump and clean impeller
Pump stops
running
1. Thermal overload has operated. Leave for 5-10 minutes
and try again.
2. Pump has run dry, or float switch has cut in.
3. A foreign object has jammed the impeller.
Feature PSV3A PSV4A PSSV2A PVP11A
Outlet Tread Dia 1½” BSP 1½” BSP 1½” BSP 1½” BSP
Outlet Size 38mm 38mm 38mm 34mm
Voltage 230 Vac 230 Vac 230 Vac 230 Vac
Motor Wattage at Max flow-
rate
400 W 750 W 900 W 1100 W
Fuse Rating 13 amp 13 amp 13 amp 13 amp
Cable Length 10 m 10 m 10 m 10 m
IP Rating IPX8 IPX8 IPX8 IPX8
Maximum Head Height 5 M 8 M 8 M 11 M
MaximumDepth 7m5m5m5m
Maximum Flow 133 l/min 216 l/min 208 l/min 258 l/min
Maximum Water Temperature 35oC35
oC35 oC35 oC
Maximum Particle Size 5 mm 5 mm 5 mm 5 mm
Weight 4.15 kg 5.15 kg 6.25 kg 6.95 kg
PROBLEM SOLUTION

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST PSV3A & PSV4A
Part number = NJP-PSV3A-01 etc.
No Description No Description
1 Power Cable 20 Motor Front Cover
2 Float Switch 21 Washer
3 3-point Self Tapping Screw 22 Cable Sheath
4 Top Housing 23 O-Ring
5 Cable Entry Sheath 24 Adjusting Shim Washer
6 Cable Entry Gland 25 Impeller
7Capacitor8uF 26Nut
8 Cable Gland 27 Main Pump Housing
9 Cable Holder 28 Steel Ball
10 Screw 29 Washer
11 Rear Motor Cover 30 Screw
12 Wave Washer 31 O-ring
13 Bearing 32 Pump Base
14 Motor Rotor 33 Screw
15 Grommet 34 Outlet Elbow
16 Stator 35 O-Ring
17 Frame Seal 36 Reducing Adaptor
18 Front Bush Assembly 37 Base Plate
19 O-ring Seal 38 Self-tapping Screw

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

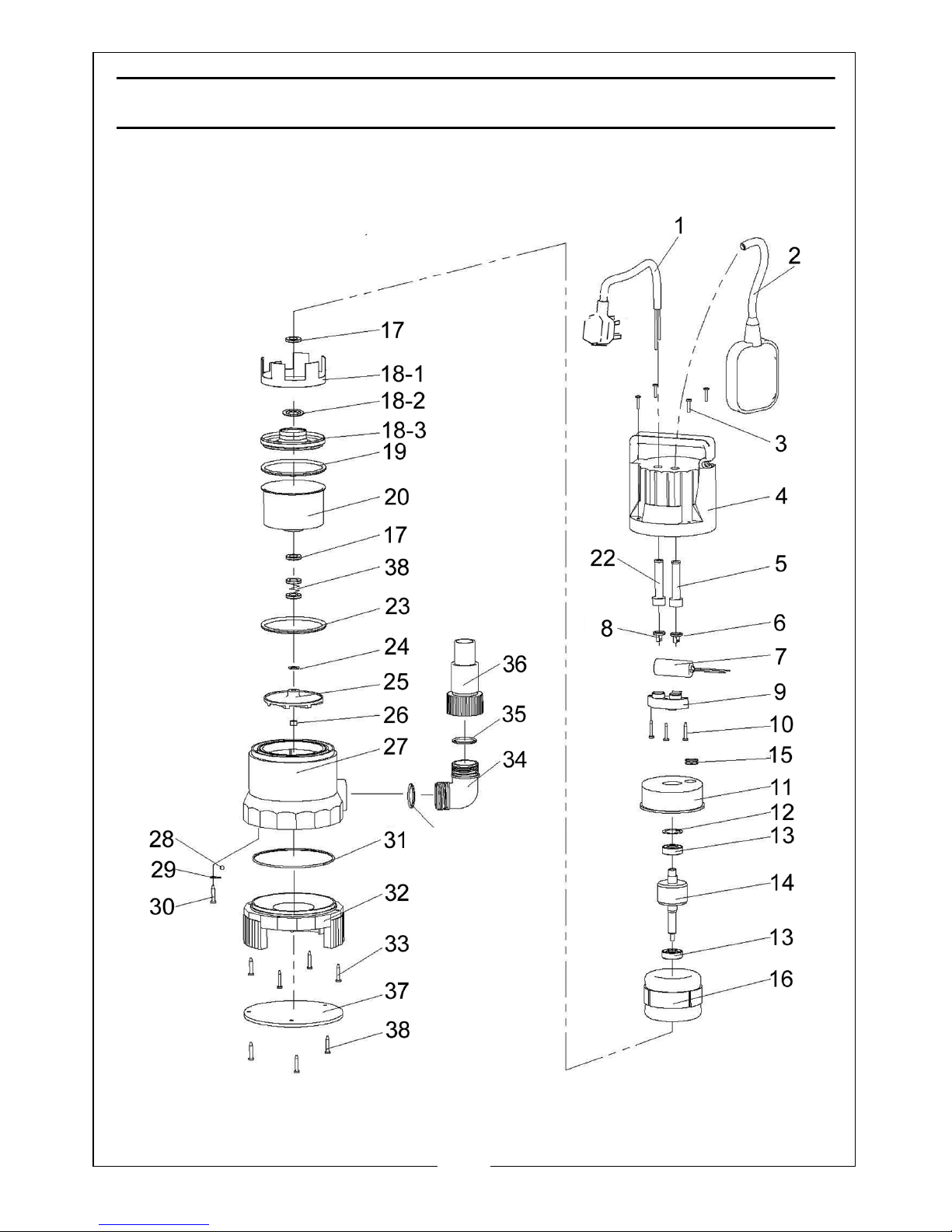

PARTS DIAGRAM-PSV3A & PSV4A

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST PSSV2A
Part number = NJP-PSSV2A-01 etc.
No Description No Description
1 Power Cable 25 O-Ring
2 Float Switch 26 Motor Front Cover
3 Dome headed Bolt 27 Shim Washer
4 Handle 28 Impeller
5Nut 29Nut
6 Bolt 30 O-ring
7 Main Pump Body 31 Compression Ring
8O-ring 32Bolt
9 Pump Rear Housing 33 Ground Bracket
10 Cable Entry Sheath 34 Locating Ring
11 Cable Sheath 35 Sealing Washer
12 Cable Gland 36 Base Cover Ring
13 Capacitor 8uF 37 Pump Base
14 Cable Block 38 Base Plate
15 Bolt 39 Self-tapping Screw
16 Rear Motor Cover 40 Outlet Elbow
17 Wave Washer 41 O-ring
18 Bearing 42 Reducing Adaptor
19 Motor Rotor 43 Mechanical Seal
20 Motor Stator 44 Protective Ring
21 Bush 45 Air Vent
22 Washer 46 Steel Ball
23 Frame Seal 47 O-Ring
24 Aluminium Bush 48 Air Vent Nut

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

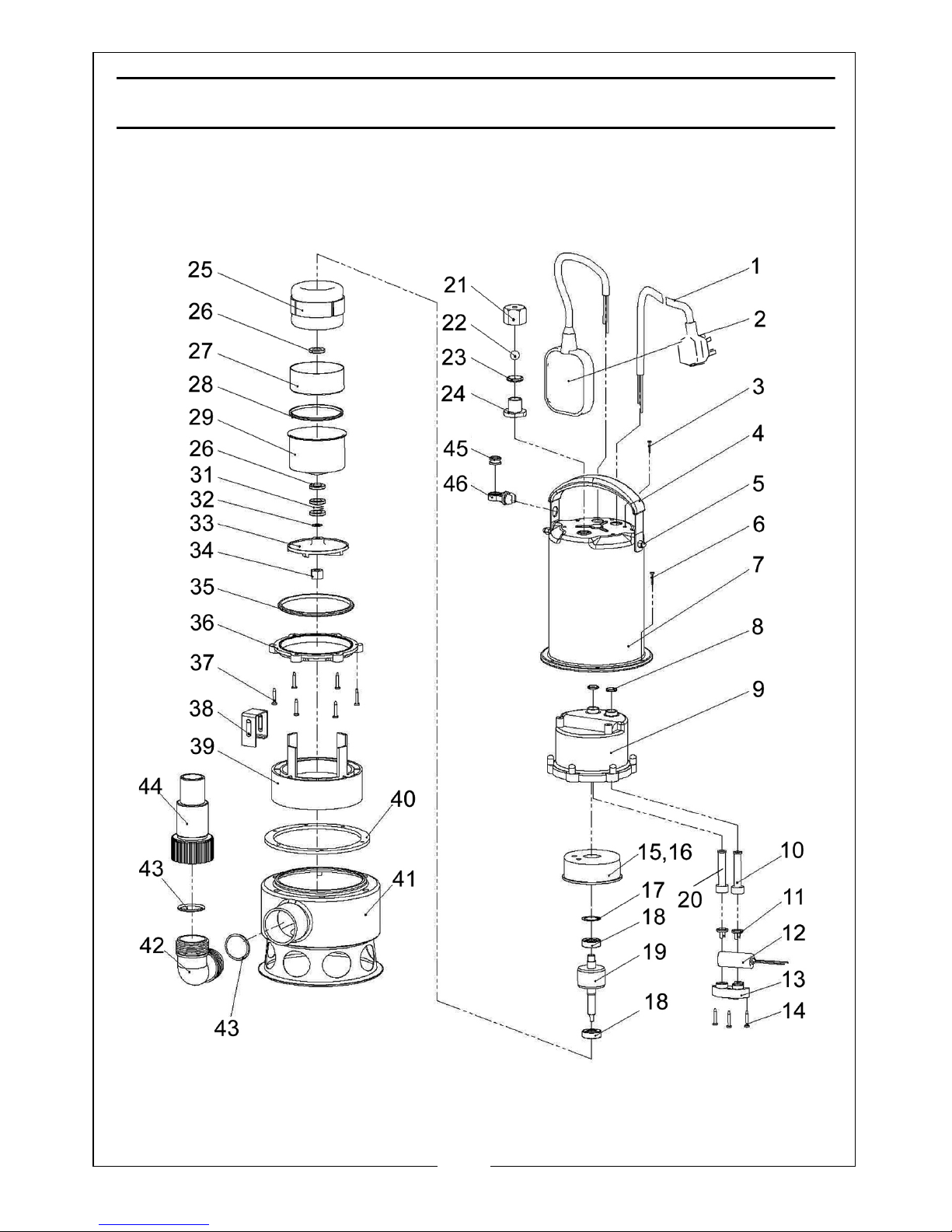

PARTS DIAGRAM-PSSV2A

16
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS LIST PVP11A
Part number = NJP-PVP11A-01 etc.
No Description No Description
1PowerCable 24AirVent
2 Float Switch 25 Motor Stator
3 3-point Self Tapping Screw 26 Frame Seal
4 Handle 27 Front Motor Bush
5Nut 28O-Ring
6 S/t Screw 29 Front Motor Cover
7 Main Pump Body 30 Mechanical Seal
8 O-Ring 31 Adjusting Shim Washer
9 Pump Rear Housing 32 Shim Washer
10 Cable Entry Sheath 33 Impeller
11 Cable Gland 34 Nut
12 Capacitor 8uF 35 O-Ring
13 Cable Block 36 Compression Ring
14 Screw 37 Screw
15 Rear Motor Cover 38 Grounding Bracket
16 Cable Gland 39 Securing Ring
17 Wave Washer 40 Sealing Washer
18 Bearing 41 Pump Base
19 Motor Rotor 42 Outlet Elbow
20 Cable Sheath 43 O-Ring
21 Air Vent Nut 44 Reducing Adaptor
22 Steel Ball 45 Cable Gland
23 O-Ring 46 Cable Clamp

17
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
PARTS DIAGRAM-PVP11A

18
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

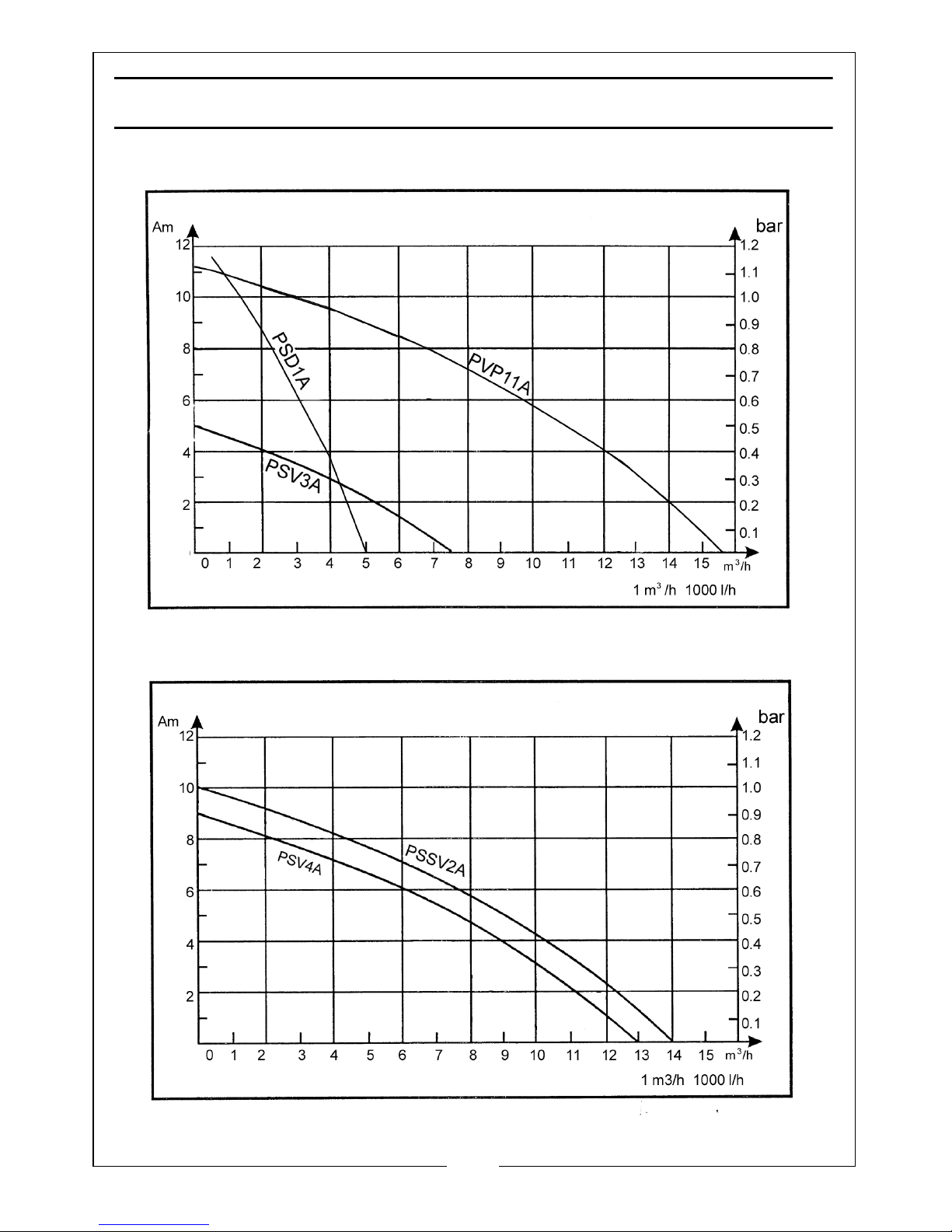

PUMP PERFORMANCE GRAPHS

19
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DECLARATION OF CONFORMITY
