English
2 Person Inflatable Kayak
Art.no 31-9744
Please read theentire instruction manual before use and then save it for future reference.
We reserve theright for any errors in text or images and any necessary changes made to technical data.
In theevent of technical problems or other queries, please contact our Customer Services
(see address details on theback).

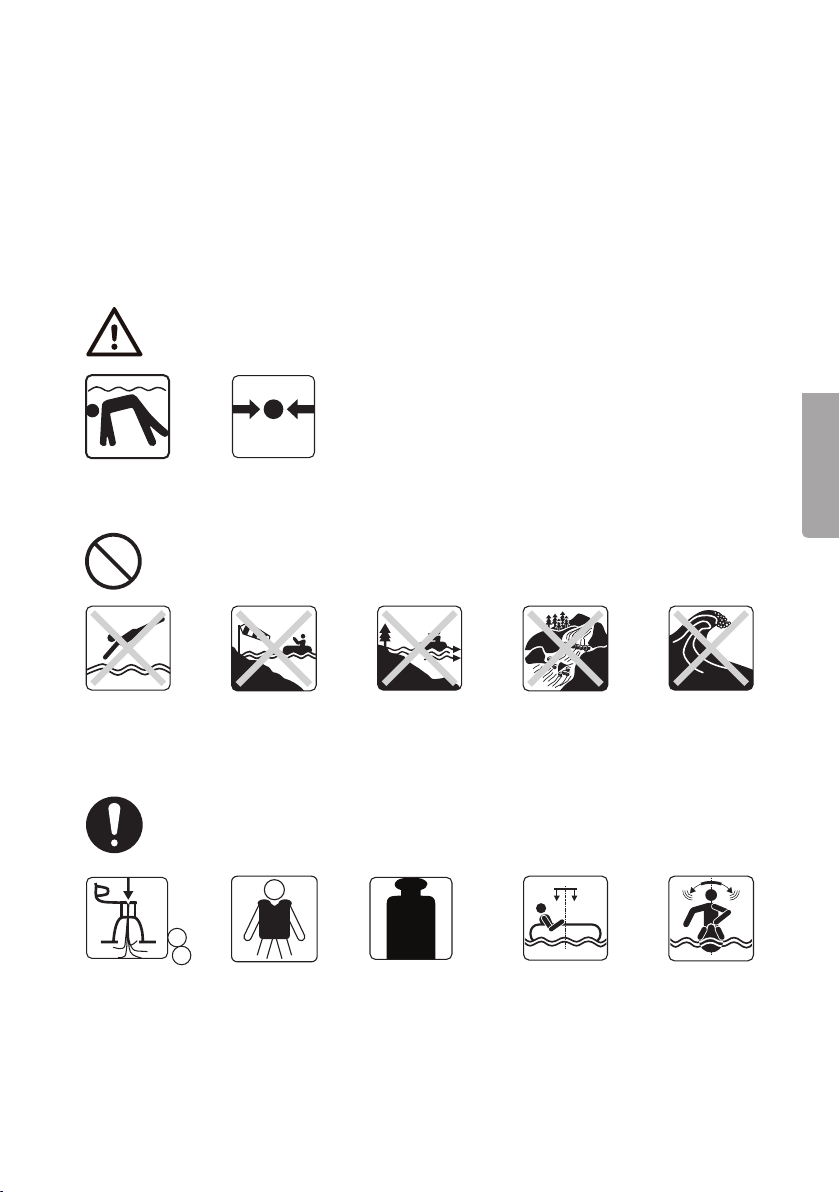

Safety
No protection
against drowning.
Max air pressure
0.05 bar.
Prohibition:
No diving. Do not use in
offshore wind.
Do not use
in offshore
current.
Do not use
in white
water.
Do not use
in breaking
waves.
Fully inflate all
chambers in
thecorrect order
1, 2, 3, etc.
Note:
Use alife jacket. Max load 160 kg. Provides floating
stability.
Theproduct
requires
balance.
Warning:
0.05 bar
max.
160 kg
100%
1
+

4
English
• Designate aperson to be responsible for safety.
• This is not alife saving device.
• Never leave theproduct in water when not in use.
• Never tow theproduct behind any kind of vehicle.
• Anadult must blow up theair chambers in numerical order. Too high apressure can cause
thechambers and/or thewelded seams to break.
• Each user is required to have alife jacket. It is particularly important that children and persons
who cannot swim wear alife jacket.
• Enter thekayak in themiddle. Be careful when you stand up and always sit for maximum stability.
• As thekayak can tip over under anunbalanced load, it is important to spread theweight of
thepassengers and any accessories evenly.
• Do not use theproduct if you suspect apuncture or leak.
• Never let children use theproduct without supervision. Make sure there is adult supervision if
children are present and if there are persons who cannot swim.
• Thetotal number of persons and total weight must not exceed thedetails specified on
therating plate of theproduct. Exceeding theload capacity constitutes a risk to safety.
• Regularly check all thesafety requirements. Never use theproduct on your own.
• Always follow thesafety instructions to avoid drowning and serious injuries.
Package contents
• 1×inflatable kayak
• 2×backrests
• 1×foot rest
• 2×paddles
- 6×tubes
- 4×blades
- 4×couplings
- 12×locking rings
• 1×cargo restraint net
• 4×painter lines (3 lengths)
• 1×foot pump
• 1×storage case

5
English
1
3
1
2
3
4
5
6
7
8
9
10
1
3
1
3
1
3
11
12
13
14
14
18
15
15
15
16
16
17
17
16
16
16
16

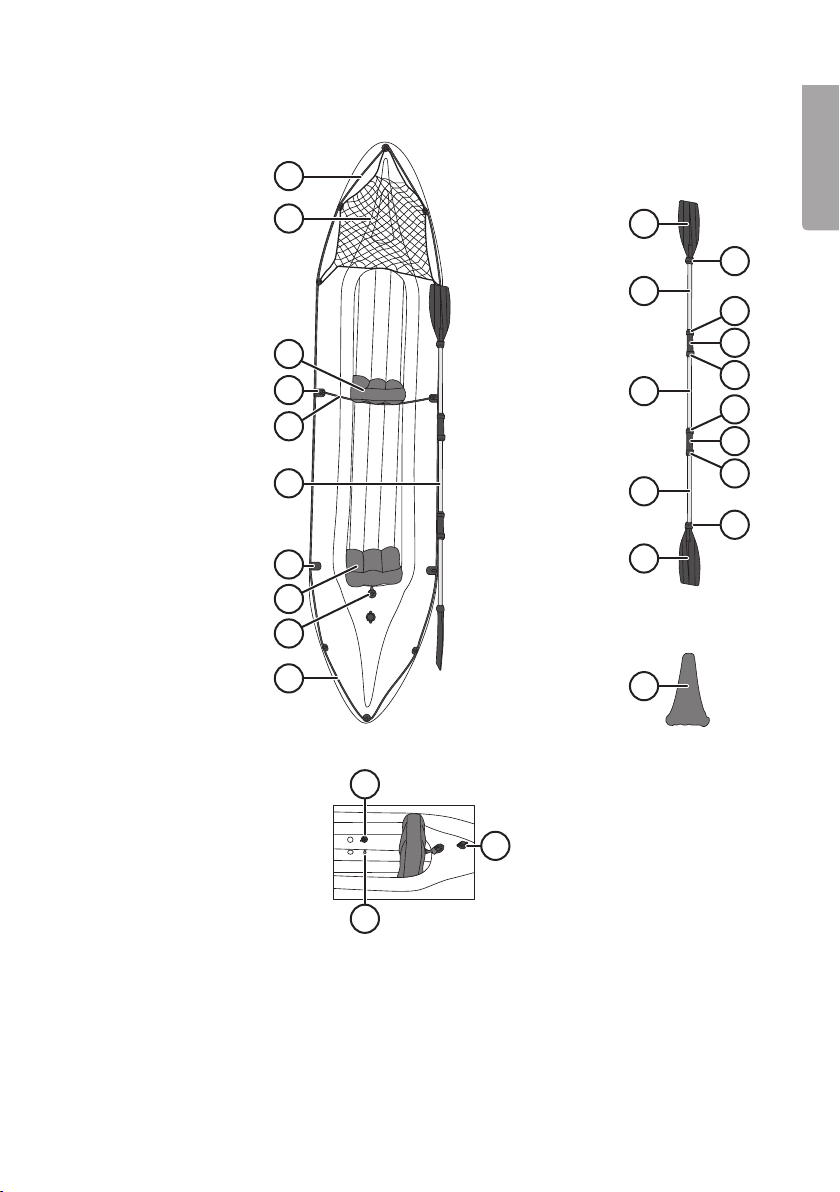

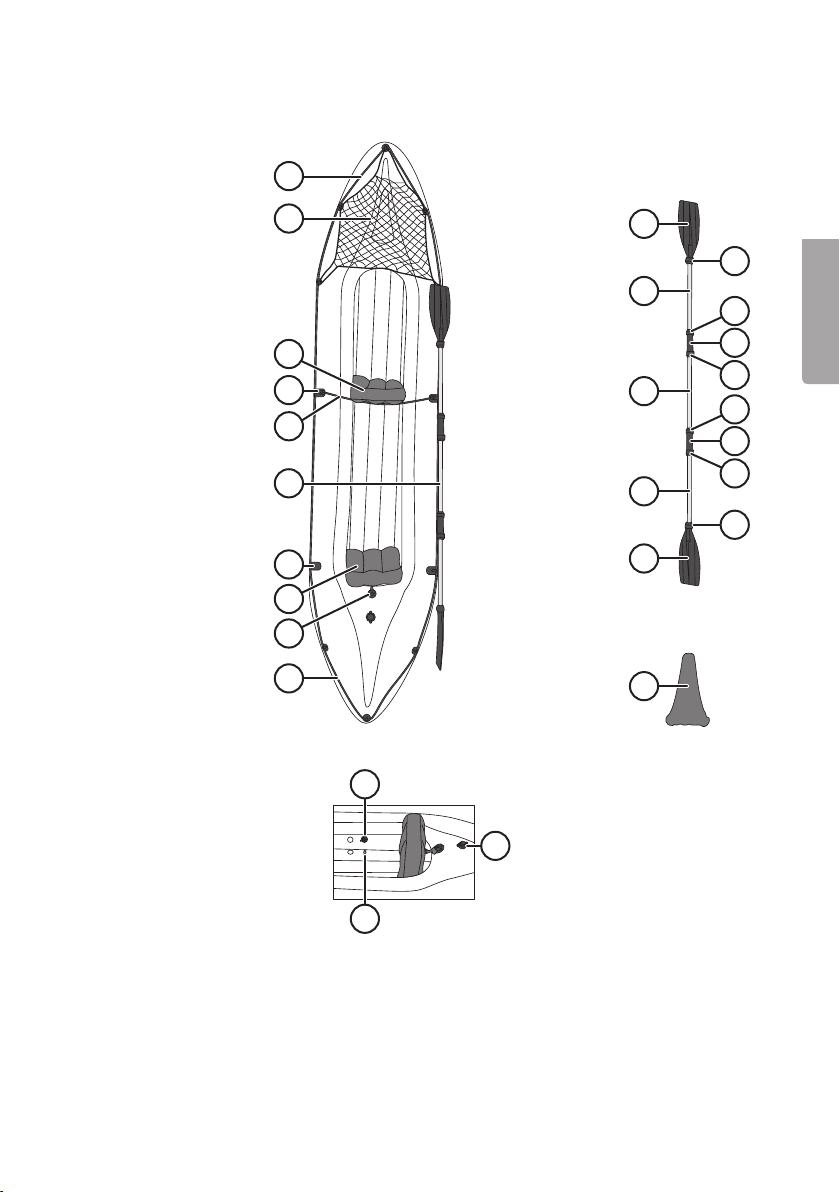

Product description
Inflatable Kayak
1. Rope
2. Cargo net
3. Back rest, front
4. Front paddle holder
and bracket for front
back rest
5. Support line for
front back rest
6. Paddle
7. Rear paddle holder
8. Back rest, rear
9. Fastening eye for
rear back rest
10. Rope
11. Valve for air chamber 1
12. Valve for air chamber 3
13. Valve for air chamber 2
14. Blade
15. Tube
16. Locking ring
17. Coupling
18. Footrest

6
English
3
1
Installation/Inflating
Preparations
• Make sure that theproduct is placed on alevel surface and that it is free from stones,
shards of glass and other sharp objects.
• Only use afoot pump or hand pump to inflate theproduct.
Note: Do not use compressed air; theproduct cannot withstand high pressures.
Inflatable Kayak

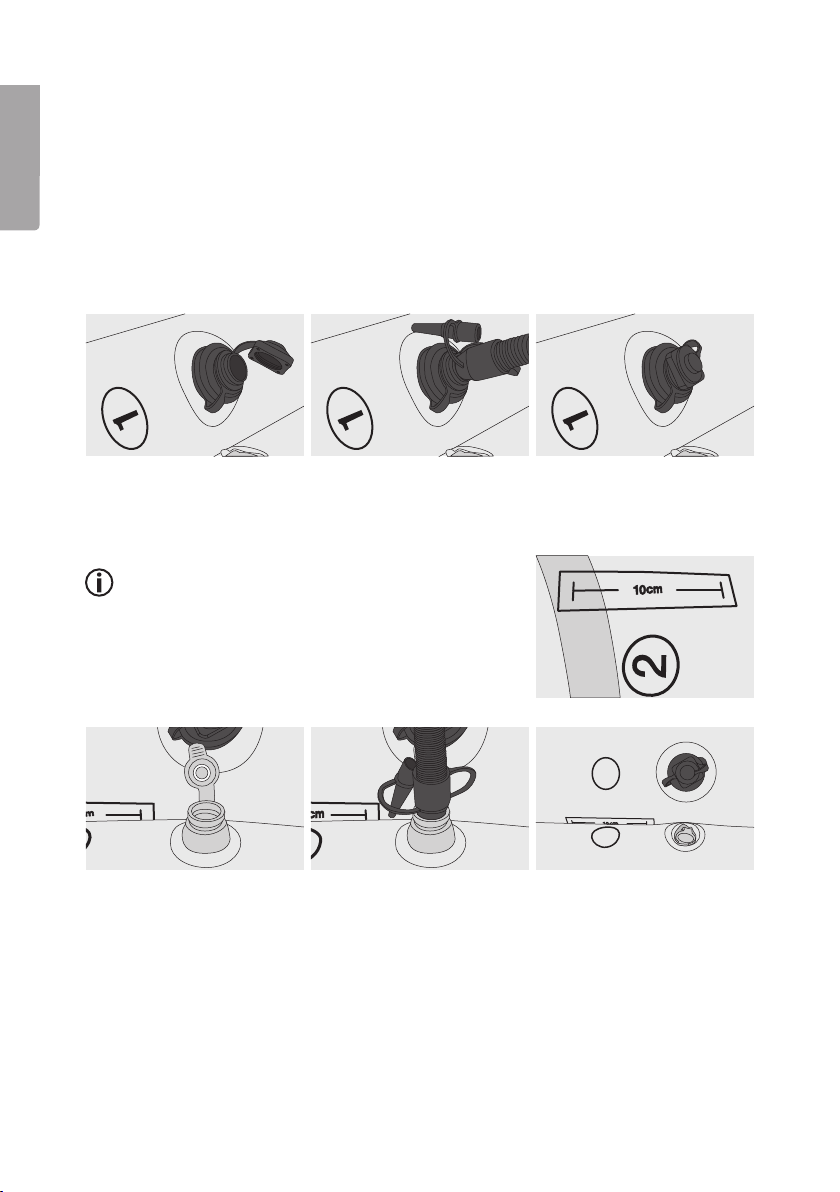

1. Roll out thekayak on aflat surface with theunderside downwards.
2. Remove thevalve cap (11)
on air chamber 1.
3. Insert thenozzle of thefoot
pump into thevalve and
pump up theair chamber.
4. Screw thecap back on.
5. Repeat steps 1−3 for
theother air chambers.
Note
Next to valves for air chambers 1 and 2 is amark to indicate
air pressure. When thedistance in theindication is 10 cm (tape
measure) thecorrect air pressure has been reached.
6. Lift thevalve (12) of air
chamber 3 and pull off
thecap.
7. Insert thelarger nozzle
of thefoot pump into
thevalve and pump up
theair chamber.
8. Press thecap firmly down
and push thevalve into
theair chamber.

7
English

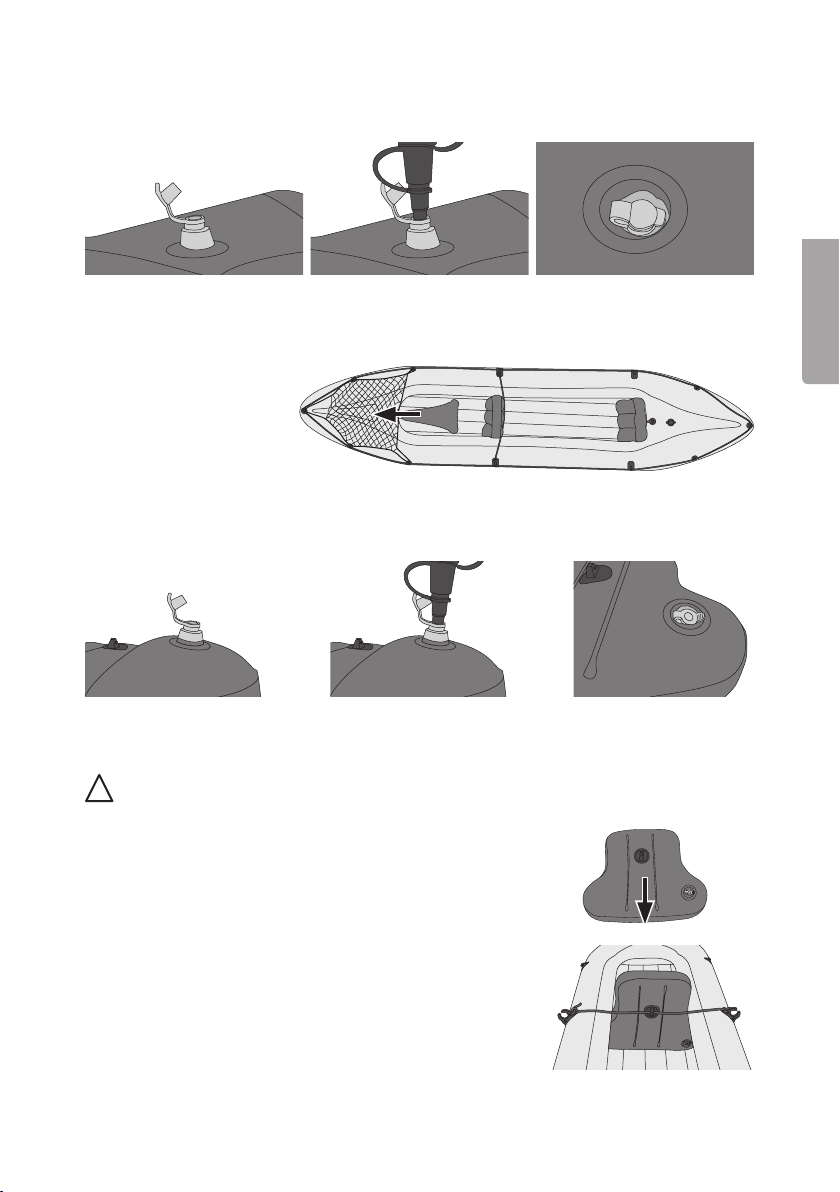

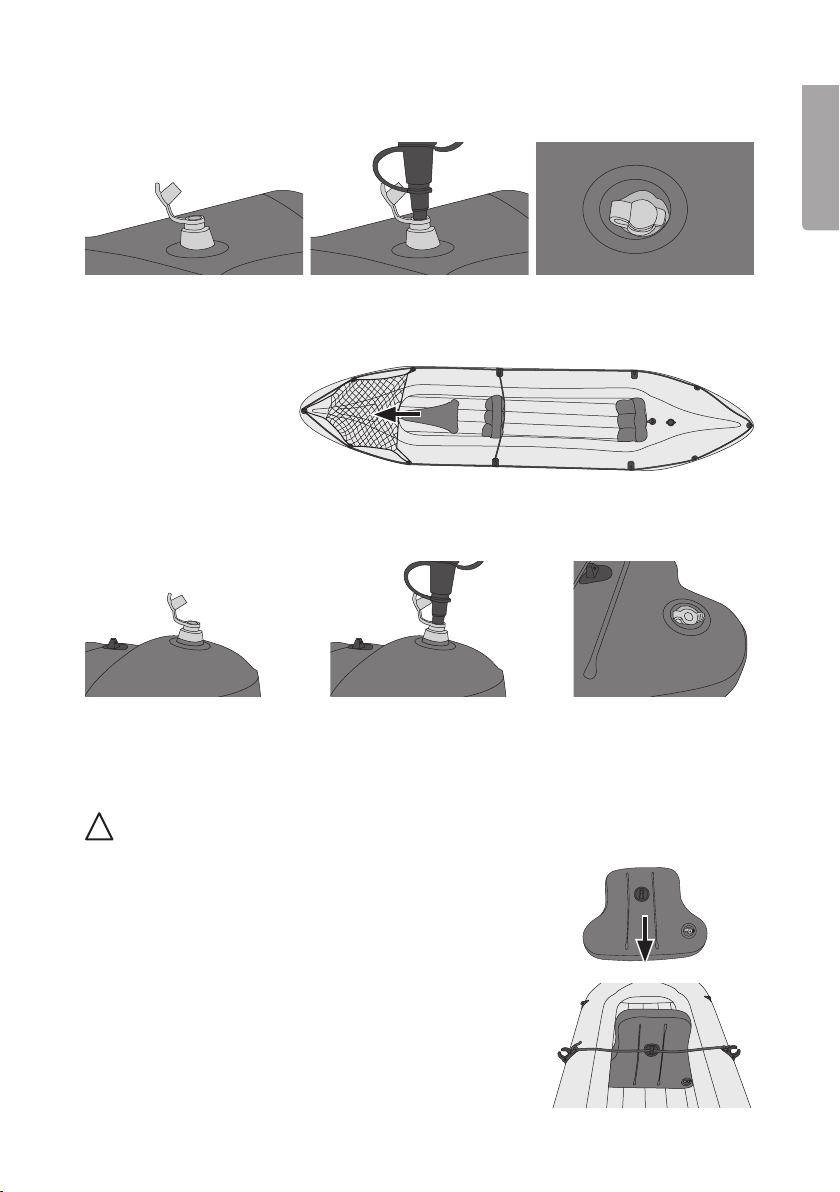

Footrest
1. Roll out thefootrest on aflat surface with thevalve facing upwards.
2. Lift thevalve on thefootrest
and pull off thecap.
3. Insert thesmaller nozzle of
thefoot pump into thevalve
and pump up theair chamber.
4. Pull out thenozzle, close
thecap and push thevalve
into theair chamber.
5. Place thefootrest into
thecockpit and push
it with thetip first into
thebow of thekayak.
Backrest×2
1. Roll out thebackrest (3 and 8) on aflat surface with thevalve facing upwards.
2. Lift thevalve on
thebackrest and pull off
thecap.
3. Insert thelarger nozzle
of thefoot pump into
thevalve and pump up
theair chamber.
4. Pull out thenozzle, close
thecap and push thevalve
into theair chamber.
Important
Make sure that all thevalves are properly closed after inflation.
5. Place thefront backrest (3) in thecockpit in line with
the2 paddle holders (4) on thesides of thekayak.
Note: Thewider part of thebackrest must be pointed
downwards and thebackrest must be positioned with
thefastening eye towards thestern of thekayak.
6. Pull thesecond shortest rope through thefastening eye
on therear of thebackrest and securely tie theends of
thecord in the2 paddle holders.

8
English
7. Position therear backrest (8) furthest back in thecockpit
and fasten it securely with theshortest rope between
thefastening eye (9) of thebackrest and thestern.
Note
Thewider part of thebackrest must be pointed downwards
and thebackrest must be positioned with thefastening eye
towards thestern of thekayak.
8. Pull one of thelonger ropes through thefastening eyes in thebow and securely tie theends
to therear eyes.
9. Attach thecargo net through theeyes in thebow.
10. Pull theremaining long rope through thefastening eyes in thestern and securely tie theends
to therear paddle holders.

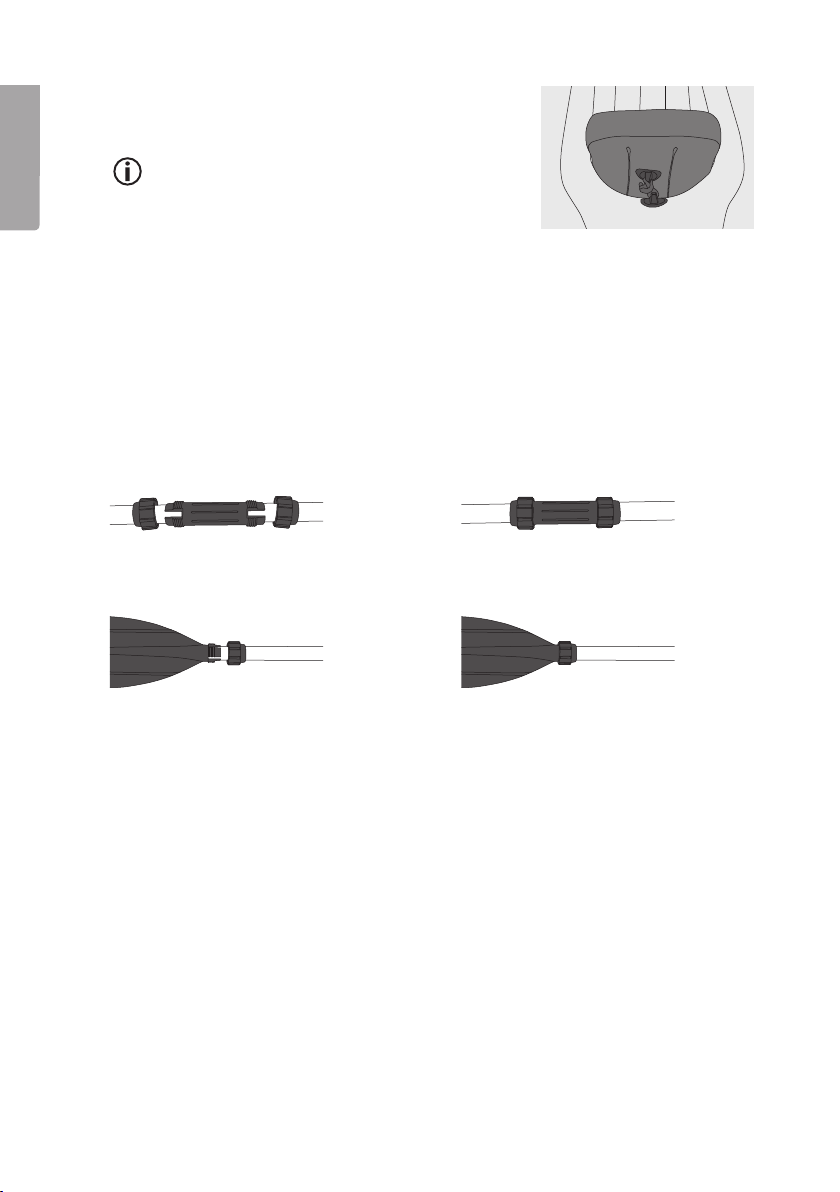

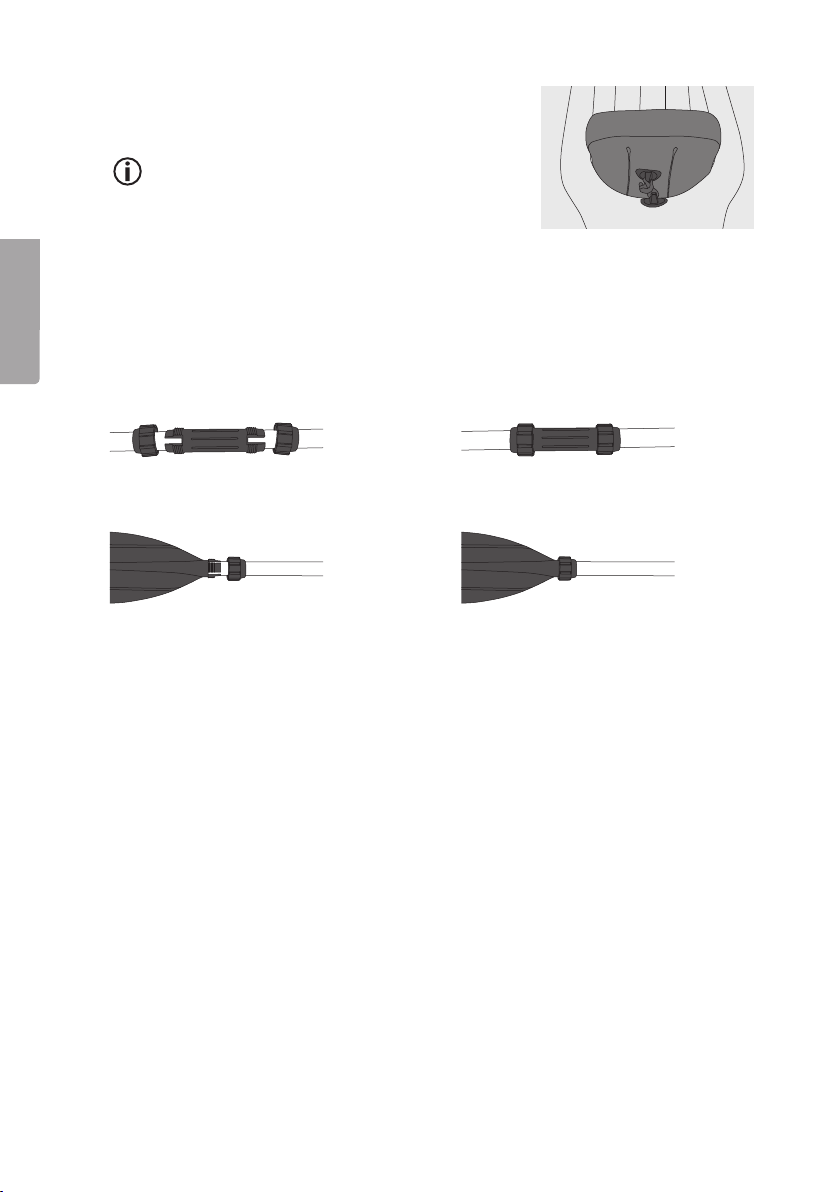

Paddle×2
1. Place thetubes (15), theblades (14), thecouplings (17) and thelocking rings (16) on aflat surface.
2. Push atube into both ends of acoupling.
Thetubes should be pushed in as far as
they can go.
3. Screw alocking ring at each end.
Tighten them to lock the tubes together.
4. Connect anadditional coupling and atube.
5. Place alocking ring onto one of
thetube ends.
6. Push theend of thetube into one of
theblades. Push it in as far as it can go.
7. Tighten thelocking ring to fasten
theblade.
8. Repeat steps 6−8 for theother end and
thepaddle is ready.
9. Repeat steps 2−8 to assemble
thesecond paddle.
To deflate
Air chambers 1 and 2
1. Remove thecap from thevalve.
Air chamber 3, backrest and footrest.
1. Remove thevalve cap.
2. Pinch the valve to open thenon-return valve.

9
English
Instructions for use
• Use thekayak in smaller streams/lakes with awind speed of max 6 m/s and awave height
of max 0.5 m.
• Wear apersonal floatation device.
• Take thefoot pump and repair kit with you on longer trips.
• Always remain seated in thekayak during atrip.
• Avoid travelling far away from land or on large, open unprotected areas.
• Do not paddle close to stones or other sharp objects. Take care that there are no stones or
sharp objects when getting in and out of thekayak.
• Watch out for bathers near beaches.
Care and maintenance
• Rinse theproduct with water and clean it if necessary with adamp cloth.
Use only mild cleaning agents, never solvents or corrosive chemicals.
• If theproduct is not to be used for along time:
- Empty all theair out of theproduct and make sure that it is clean and dry before putting
it away for storage in acool, dark place but no colder than +5°C.
- Make sure that no sharp objects or edges can damage theproduct.
- Store theaccompanying parts in theincluded bag.
Repairs
You can repair smaller holes with a repair kit, suitable for inflatable plastic products, which you can
buy in camping and hardware stores. Follow the instructions that come with the repair kit carefully.
Handy tip
Find thehole by spraying amild soap solution or spray paint on thesurface where you suspect aleak.
Troubleshooting
If it seems that air has leaked out from one day to another it does not mean that it is due to theleak.
• Make sure that all thevalves are properly tightened and closed.
• If warmer air was used to inflate theproduct than thecurrent temperature this can be
areason for thechange in pressure.
• If thevalves and thetemperature difference can be excluded, then you should look for leaks.
Spray amild soap solution over thesurfaces and look for bubbles.

10
English
Responsible disposal
Theproduct should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local council.
Specifications
Size 350×78×52 cm
Max load capacity 160 kg
Max number of users 2
Operating temperature −5 to 60 °C
Max air pressure 0.05 bar (0.725 psi)
