Clas Ohlson FWIP-333iU-BV User manual

EnglishSvenskaNorskSuomi
iPod speaker
iPodhögtalare
iPod-høyttaler
iPod-kaiutin
Art.no. Model
38-4549 FWIP-333iU-BV
38-4550 FWIP-333iU-WV Ver. 201112

2

3
English
iPod speaker
Art.no 38-4549 Model FWIP-333iU-BV
38-4550 FWIP-333iU-WV
Please read theentire instruction manual before use and save it for future reference. Wereserve theright for any
errors in text or images and for making any necessary technical changes to this document. Ifyou should have any
questions concerning technical problems please contact our Customer Services.
Safety
• Never expose thedevice to rain or moisture.
• Do not expose thedevice to direct sunlight or high temperatures.
• Do not disassemble or modify theproduct. Repairsmust be carried out by aqualified tradesman or workshop.
• If thedevice is not to be used for alonger period, pull out theplug from thewall socket.
• Never mix old and new batteries.
• If theremote is not to be used for alonger period, remove its batteries.
Product description
MP3/iPod/iPhone speaker.
2.1 tower speaker. Power:50 W. Fourseparate speakers with built-in subwoofer for clear and rich sound.
iPod/iPhone docking station. IntegratedFM radio, USB port and SD card slot, aux. input, etc. Compatiblewith
iPodnano/touch and iPhone. Non-original accessory.
Contents
• iPod speaker
• Aerial
• Remote controller
• Instruction manual
• Mains lead

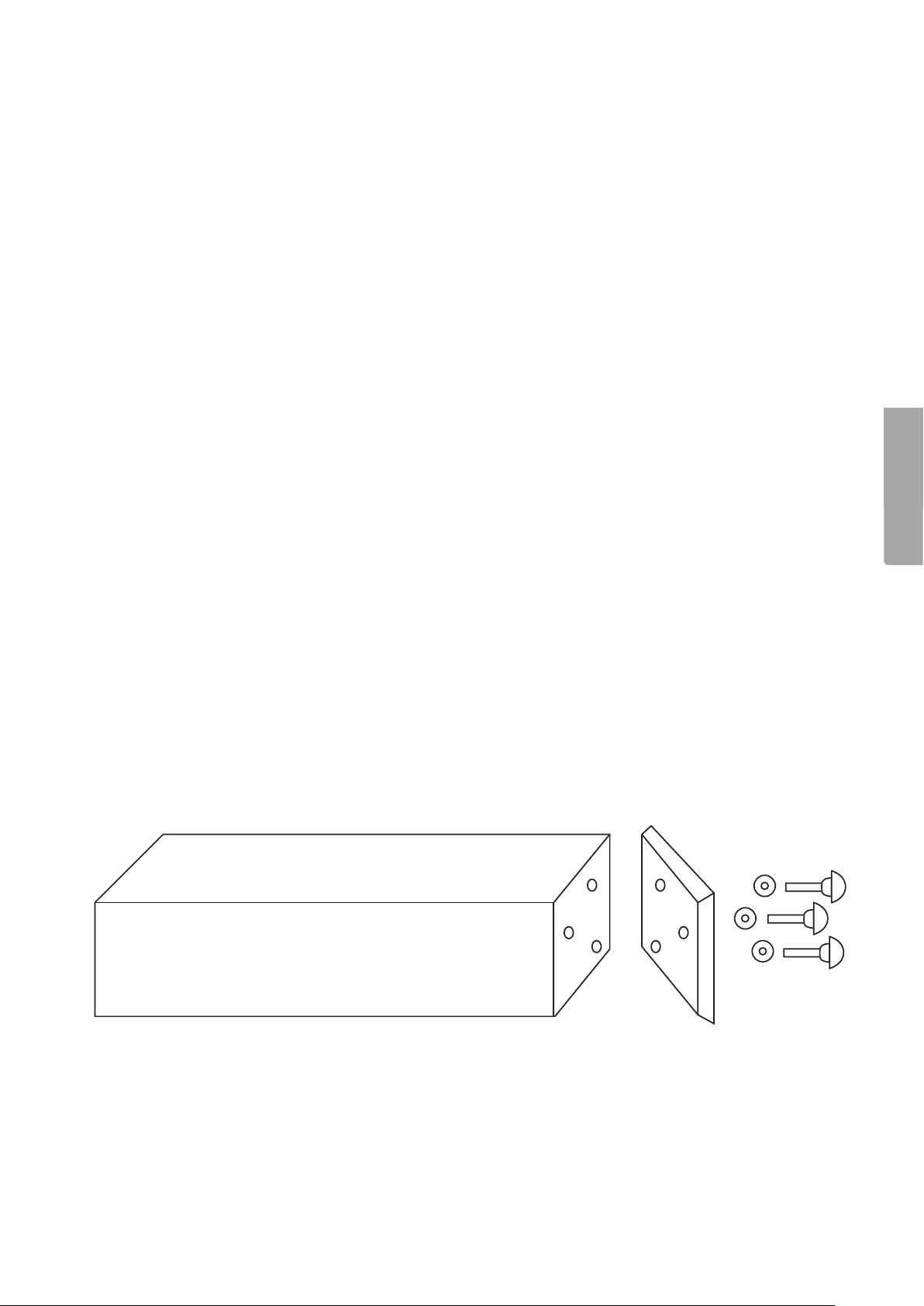

Assembly
1. Remove thespeaker and foot from thebox.
2. Remove thepack of 3 screws and washers.
3. Secure thefoot to thespeaker.
4. Place thespeaker upright.
5. Plug themains lead into awall socket.

4
English
1 2
3
4
5 6 7 8
9 10 11
12
13
14
16
15
17
18

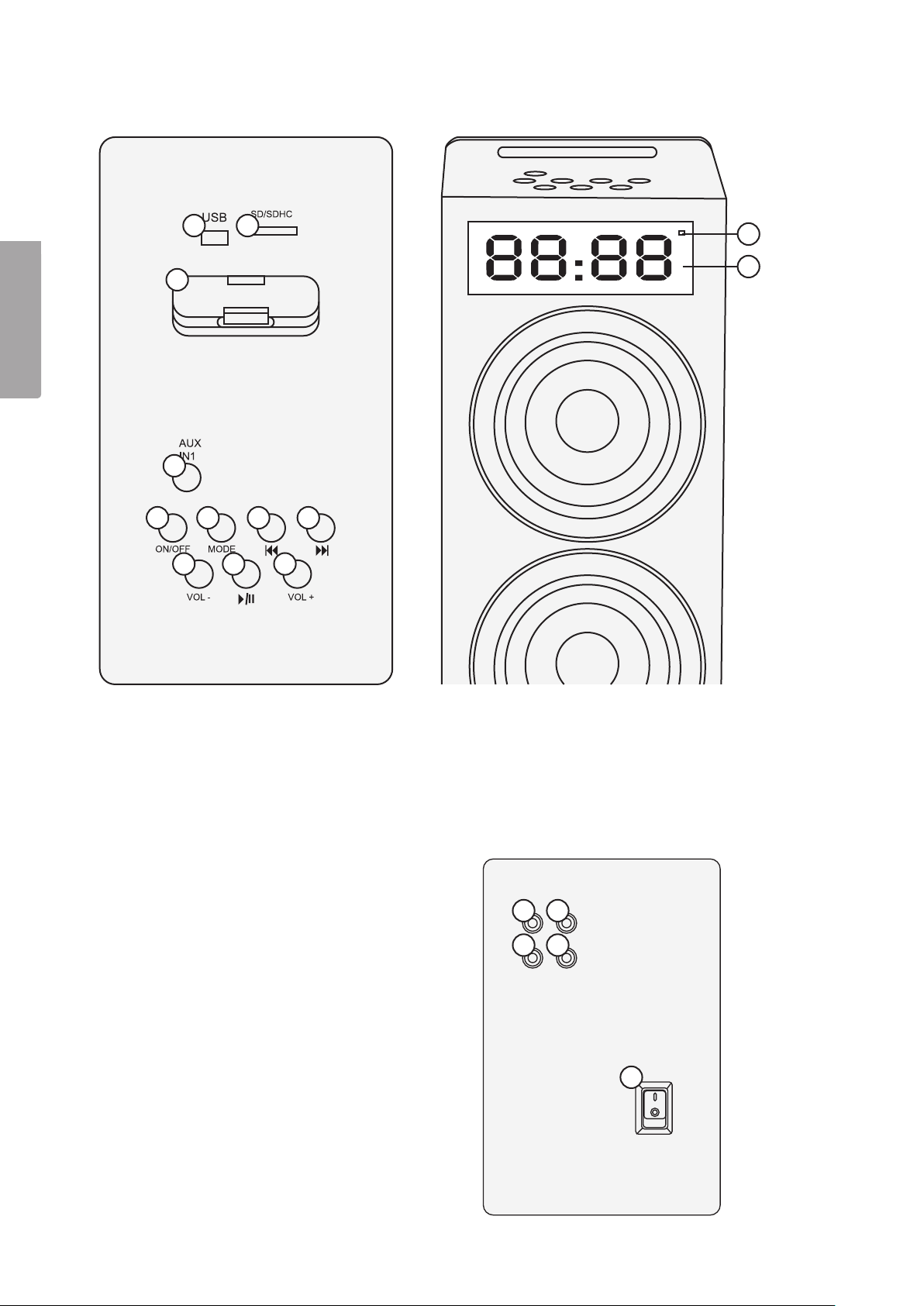

Buttons and functions
1. USB port
2. SD/SDHC slot
3. iPhone-/iPod socket
4. AUX IN 1
5. On/Off
6. MODE – selector
7. [  ] Backwards
8. [  ] Forwards
9. [ VOL- ] Decrease volume
10. [ / ] Play/Pause
11. [ VOL+ ] Increase volume
12. Remote IR sensor
13. Display
Back panel
14. Video output
15. FM aerial connection
16. AUX IN 2 (RCA)
17. AUX IN 2 (RCA)
18. Main power switch

5
English
19
22
27
30
33
36
20
23
28
25 26
31
34
37
21
24
29
32
35
38

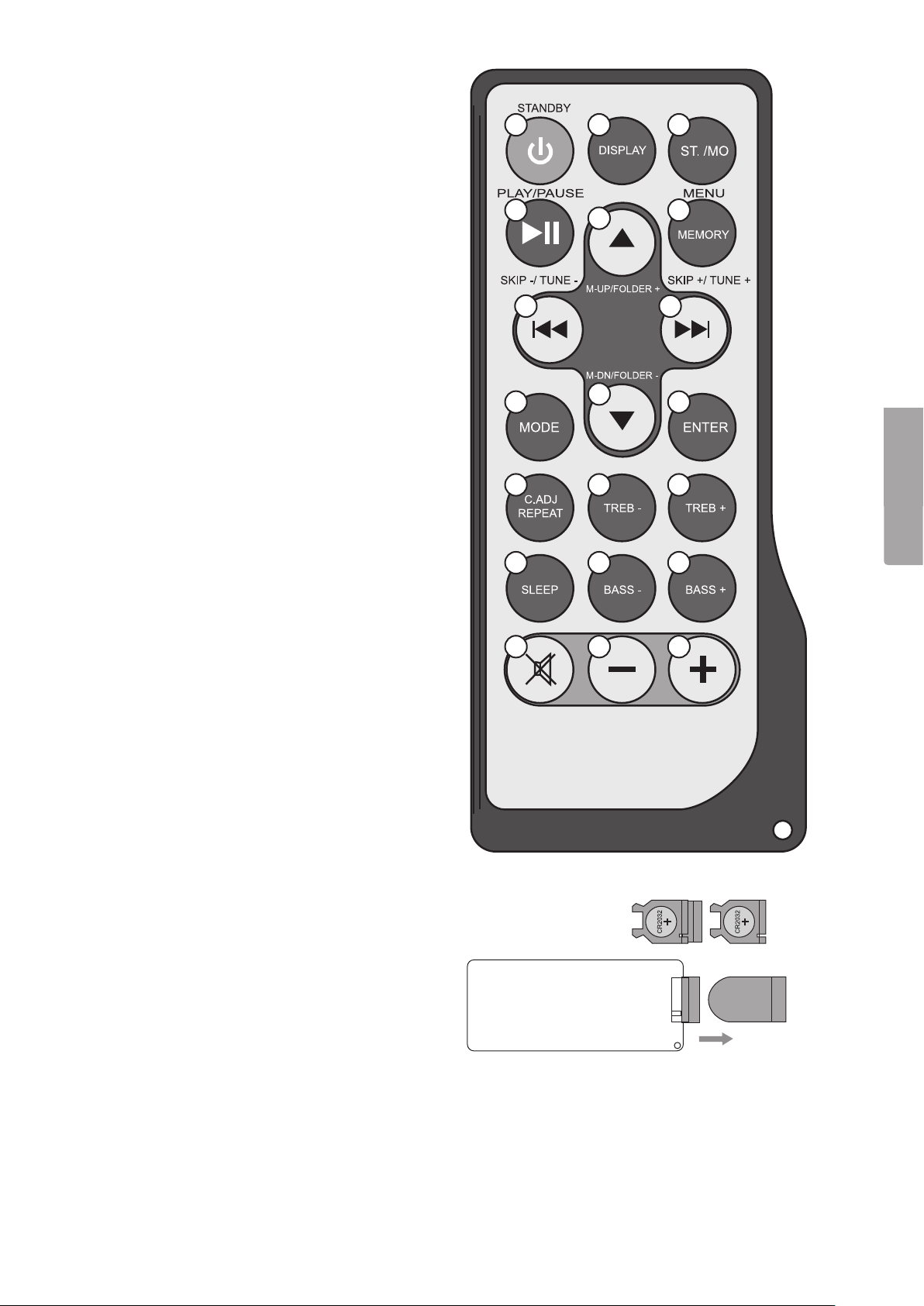

Remote controller
19. [ STANDBY ] Turns thedevice on and off.
20. [ DISPLAY ] Shows time and playback information.
21. [ ST./MO ] Stereo and mono settings.
22. [ PLAY/PAUSE ] Starts or pauses playback.
23. [ M-UP/FOLDER+ ] Pressing M-UP in radio
mode selects station presets or for menu
navigation when in iPod mode.
24. [ MEMORY/MENU ] Saves current FM channel
to memory or to return to theprevious menu on
your iPod/iPhone.
25. [ SKIP-/TUNE- ] Rewind (in iPod, USB/SD/
SDHC mode), pressing again resumes
playback. Goesto previous track. Setsthetime.
26. [ SKIP+/TUNE+ ] Fast-forward (in iPod, USB/
SD/SDHC mode), pressing again resumes
playback. Goesto next track. Setsthetime.
27. [ MODE ] Selector for iPod, MP3/USB, SD,
FM-radio and AUX.
28. [ M-DN/FOLDER- ] Pressing M-DN in radio
mode selects station presets or for menu
navigation when in iPod mode.
29. [ ENTER ] Selects between Stereo and Mono in
radio mode or confirms menu selections when
in IPod mode.
30. [ C.ADJ REPEAT ] Pressing in standby mode sets
thehours and minutes for thetime. Pressingin
iPod mode repeats thecurrent track.
31. [ TREB- ] Decreases treble.
32. [ TREB+ ] Increases treble.
33. [ SLEEP ] Automatic shut-off after set time.
34. [ BASS- ] Decreases bass.
35. [ BASS+ ] Increases bass.
36. [ MUTE ] Mutes audio output.
37. [ VOLUME- ] Decreases volume.
38. [ VOLUME+ ] Increases volume.
Inserting batteries
1. Press down on thebattery holder and slide it out.
2. Insert one CR2032 battery in thebattery holder
by following thepolarity markings.
3. Re-insert thebattery holder into
theremotecontrol.

6
English
Operation
Setting thetime
1. In order to set the time, the speaker must be in standby mode.
2. The clock will begin to flash.
3. Depress [ C.ADJ REPEAT ] on theremote for about 2 seconds and select either the12 or 24 hour time display.
4. Press [ C.ADJ REPEAT ] until thehour display starts to flash.
5. Press [ SKIP+/TUNE+ ] or [ SKIP-/TUNE- ] to adjust.
6. Press [ C.ADJ REPEAT ] to confirm. Theminutes display will now start to flash.
7. Repeat steps 5 and 6 to set theminutes.
Sleep function
Press [ SLEEP ] until thedisplay begins flashing “90”. Eachpress on the[ SLEEP ] button decreases thetimer
in 5minute increments.
Playback
1. Press [ STANDBY ] to start.
2. Press [ MODE ] on thespeaker or theremote to change to iPod mode.
3. Playback should now start from your iPod. Ifnot, press [ PLAY ].
4. Adjust thevolume by pressing [ VOL+ ] and [ VOL- ].
5. Turn off thedevice when not in use.

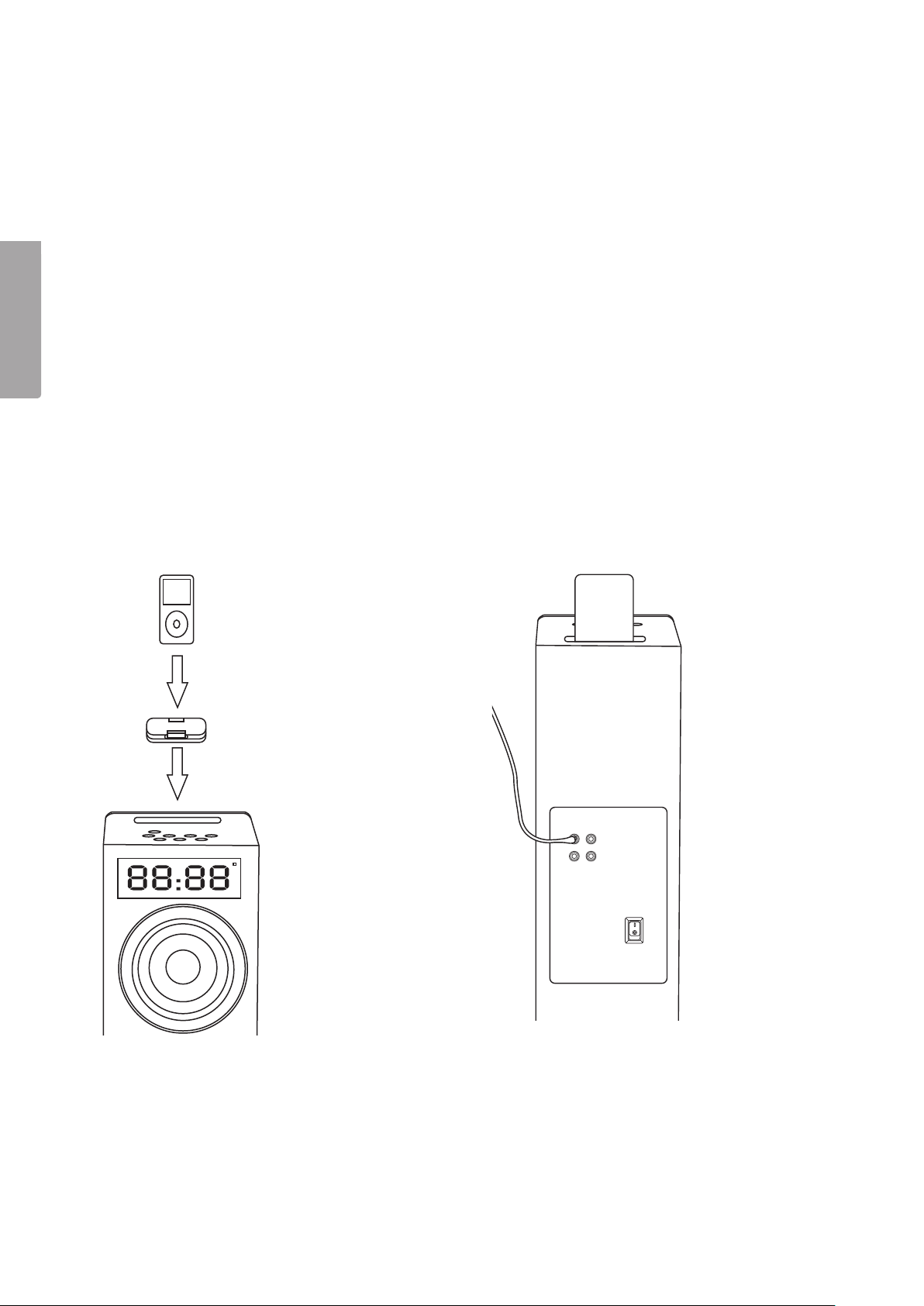

iPhone/iPod docking
1. Unlock and start your iPhone/iPod.
2. Place it in theuniversal holder and dock it
to thespeaker.
3. Your iPhone/iPod will automatically be
charged while it is docked.

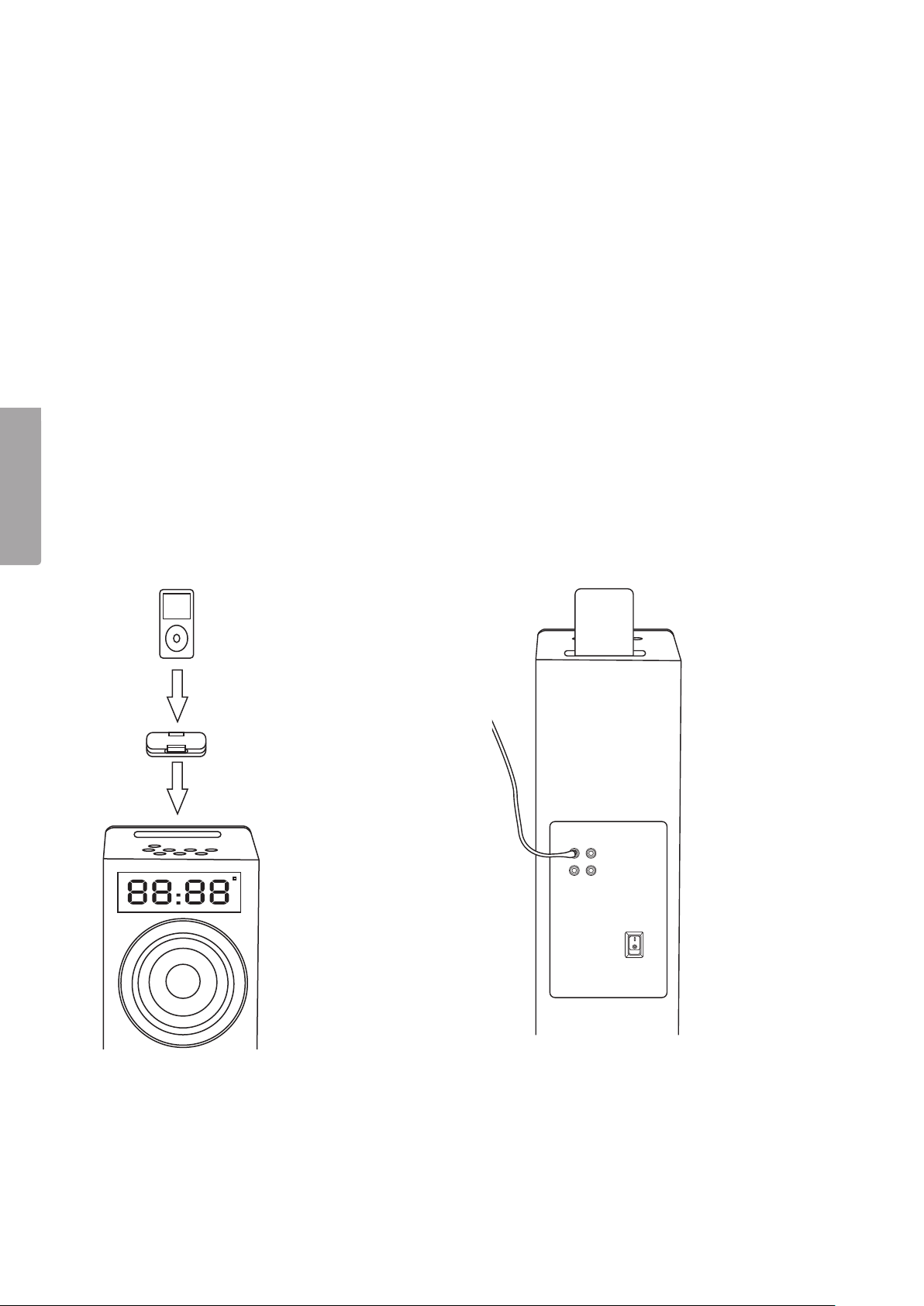

Video output, TV playback
1. Connect thespeaker to your TV’s composite video
outsocket.
2. On your iPod/iPhone, go to VIDEOS > VIDEO
SETTINGS or press [ MENU ] on theremote and set
“TVOUT” to ON.

7
English
Radio
FM radio operation
1. Press [ STANDBY ] to start thespeaker.
2. Connect theFM aerial.
3. Press [ MODE ] to select radio mode.
4. The radio will begin playing automatically.
5. Press [ TUNE+ ] or [ TUNE- ] to tune in achannel.
6. Press [ ST./MO ] on theremote to select between stereo or mono.
FM presets
1. Once you have astation that you would like to save, press [ MEMORY ] on theremote.
2. Use [ ▼ ] and [ ▲ ] to select apreset, like “P01” for example. Youare allowed up to 20 presets.
3. Press [ MEMORY ] to confirm.
4. To listen to any of your preset channels use [ ▼ ] and [ ▲ ] to select amongst them.
USB/SD/SDHC
USB playback
1. Insert aUSB stick into theUSB port. Note:Max memory capacity for theUSB cannot exceed 2 GB.
2. Press [ MODE ] to select USB mode.
3. Press [ PLAY/PAUSE ] to start playback.
SD/SDHC playback
1. Insert aSD or SDHC card into theslot.
2. Press [ MODE ] to select SD mode.
3. Press [ PLAY/PAUSE ] to start playback.
AUX-IN 1 (Line in)
1. Connect one end of a3.5 mm cable to “AUX IN 1” (4) and theother end to aMP3 player or other audio source.
2. Press [ STANDBY ] to start thespeaker.
3. Select Aux-in 1 mode by pressing [ AUX ] once on theremote.
4. Activate playback on theaudio source to begin playback.
AUX-IN 2 (RCA)
1. Connect one end of an aRCA cable to “AUX IN 2” (16, 17) andtheother end to aDVD player, stereo,
gameconsole, TV, etc.
2. Press [ STANDBY ] to start thespeaker.
3. Press [ AUX ] to select Aux-in 2 mode.
4. Activate playback on theaudio source to begin playback.
Treble and bass
Use [ BASS- ]/[ BASS+ ] and [ TREB- ]/[ TREB+ ] to adjust thebass and treble.

8
English
Reset
The speaker may be reset by unplugging it form themains and waiting afew minutes before re-plugging it.
Doingthis will mean that all your settings will be lost and must be reprogrammed.
Care and maintenance
Clean theproduct by wiping it with asoft, dry cloth. Donot use solvents or abrasive cleaning agents.
Disposal
Disposal of this product should be in accordance with local regulations.
Ifyou are unsure how to proceed, contact your local authority.
Specifications
Power supply 230–240 V AC/50 Hz
Power 50 W
Size 106 x 12 x 18 cm
