Classeq HYDRO 850 User manual

CLASSIC HOUSE, AIRFIELD INDUSTRIAL ESTATE, HIXON , STAFFORDSHIRE ST18
HYDRO 850 / 900
SEPTEMBER 2001 WO
SERVICE MANUAL & SPARE PARTS LIST

BLANK

HYDRO 850 / 900 PASS THROUGH HOOD MACHINE
CONTENTS
PAGE 1 CONTENTS
PAGE 2 CABINET DRAWING
PAGE 3 CABINET PARTS LIST
PAGE 4 WASH SYSTEM
PAGE 5 WASH SYSTEM PARTS
PAGE 6 RINSE SYSTEM
PAGE 7 RINSE SYSTEM PARTS
PAGE 8 WASH HEATER & CONTROLS
PAGE 9 W/HEATER & CONTROLS PARTS
PAGE 10 ELECTRICAL PARTS DRAWING
PAGE 11 ELECTRICAL PARTS
PAGE 12 COMPONENT WIRING
PAGE 13 WIRING DIAGRAM

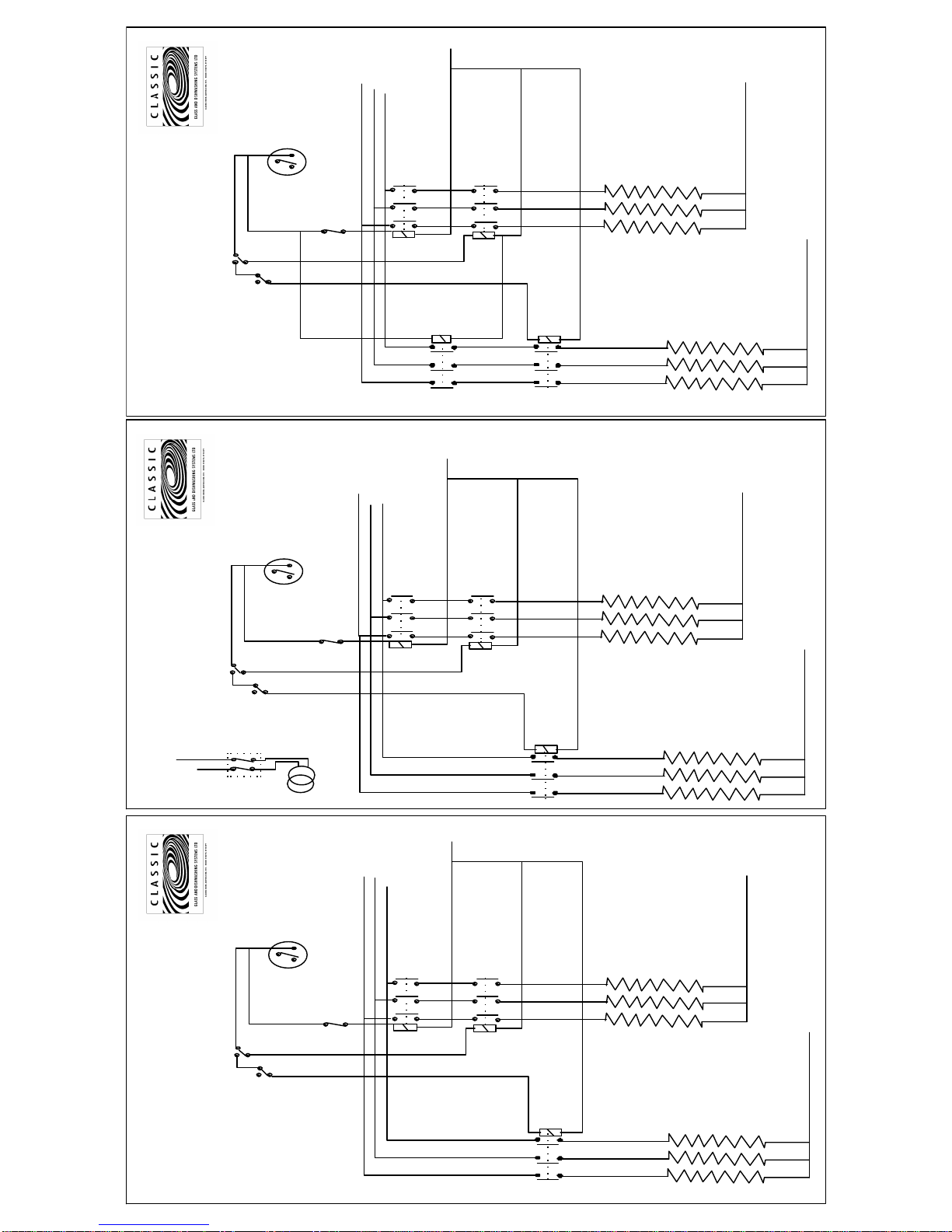

PAGE 14 HEATER CIRCUIT
PAGE 15 FITTING A DRAIN PUMP KIT
PAGE16 REPLACING OLD TYPE TIMER
PAGE 17 FITTING SOAP EQUIPMENT
PAGE 18 FITTING AIR BREAKTANK
PAGE 19 CHANGING 3PHASE TO SINGLE
PAGE 20 PRESSURE SWITCH CHANGE 4/99
PAGE 1
SEPTEMBER 2001 WO

39
30
2
3
15
26
25
23
16
15
17
24
22 18
20 21
6
33
19 41
10
12
9
14
39
27
13
11
10
9
28
29 38
37
36
34
35 32 39 5
4
49
50
1
7
8
44
910 44
42
45
43
43
40 48 46 47
CLASSIC GLASS & DISHWASHING SYSTEMS LTD

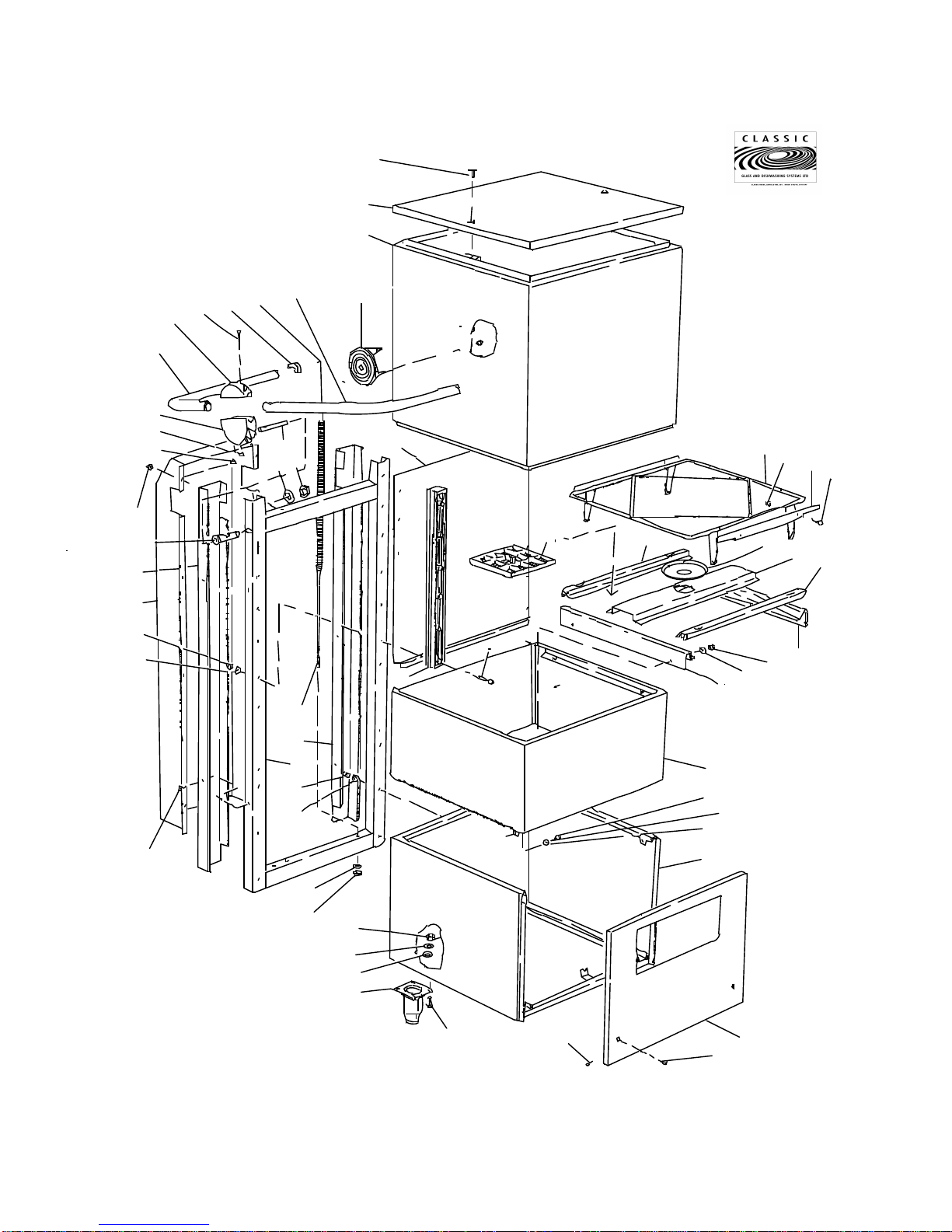

CABINET DRAWING
H850
PAGE 2
SEPT 2001 WO
51

CLASSIC GLASS & DISHWASHING SYSTEMS LTD
CABINET PARTS
H850
ITEM DESCRIPTION PART No
1WASH TANK HY101
2HOOD HY102
3UPPER COVER - MAGNET TYPE(PRE 98) HY103
3UPPER COVER - MICRO S/W TYPE JAN 98 HY103A
4BASE HY104
5BOTTOM PANEL HY105
6REAR PANEL HY106
7GUIDE FOR HOOD HY107
9WASHER 7.2.42
10 NUT 11.2.3
11 REAR FRAME HY111
12 RIGHT FRAME COVER HY112
13 LEFT FRAME COVER HY113
14 MIDDLE FRAME COVER HY114
15 HANDLE HY115
16 UPPER COVER FOR HANDLE HY116
17 LOWER COVER FOR HANDLE HY117
18 PIN FOR HANDLE HY118
19 BUSH HY119
20 BUSH WASHER HY120
21 NUT 7.3.13
22 SCREW 3mm (Allen key) HY122
23 SCREW 5mm (Allen key) HY123
24 NUT 11.2.3
25 CONNECTION FOR SPRING HY125
26 SPRING HY126
27 SPRING PILLAR HY127
28 WASHER HY136
29 NUT HY138
30 SIDE BLOCK HY130
32 SCREW 7.2.40
33 NUT 11.2.3
34 AJUSTABLE LEG HY134
35 SCREW HY135
36 WASHER HY136
37 TOOTHED WASHER HY137
38 NUT HY138
39 SCREW 7.2.40/1
40 RAMP FOR RACK HY140
41 PRIMARY FILTER 10.2.9
42 CENTRE SUPPORT PLATE HY142
43 FRONT/REAR SUPPORT HY143
44 SIDE SUPPORT HY144
45 BOTTOM FLANGE 11.1.10/6
46 SIDE GUIDE FOR BASKET HY146
47 SCREW HY147
48 NUT HY148
49 WASHER FOR CABINET W009
50 CABINET BOLT 7.2.36
51 STAR WASHER W014
ISSUE 6 September 2001 wo PAGE 3

337 24
1
58
6B
6B
6C
6C
16
15
17
20 21 22
19B
19A
18
720
21
22
15
16
17
13
14B
14C 14
12
12A
11
10
27
39 33
31
34
26
28
32
28
28
31
9
8
35
30
29
5
4
3
38
2

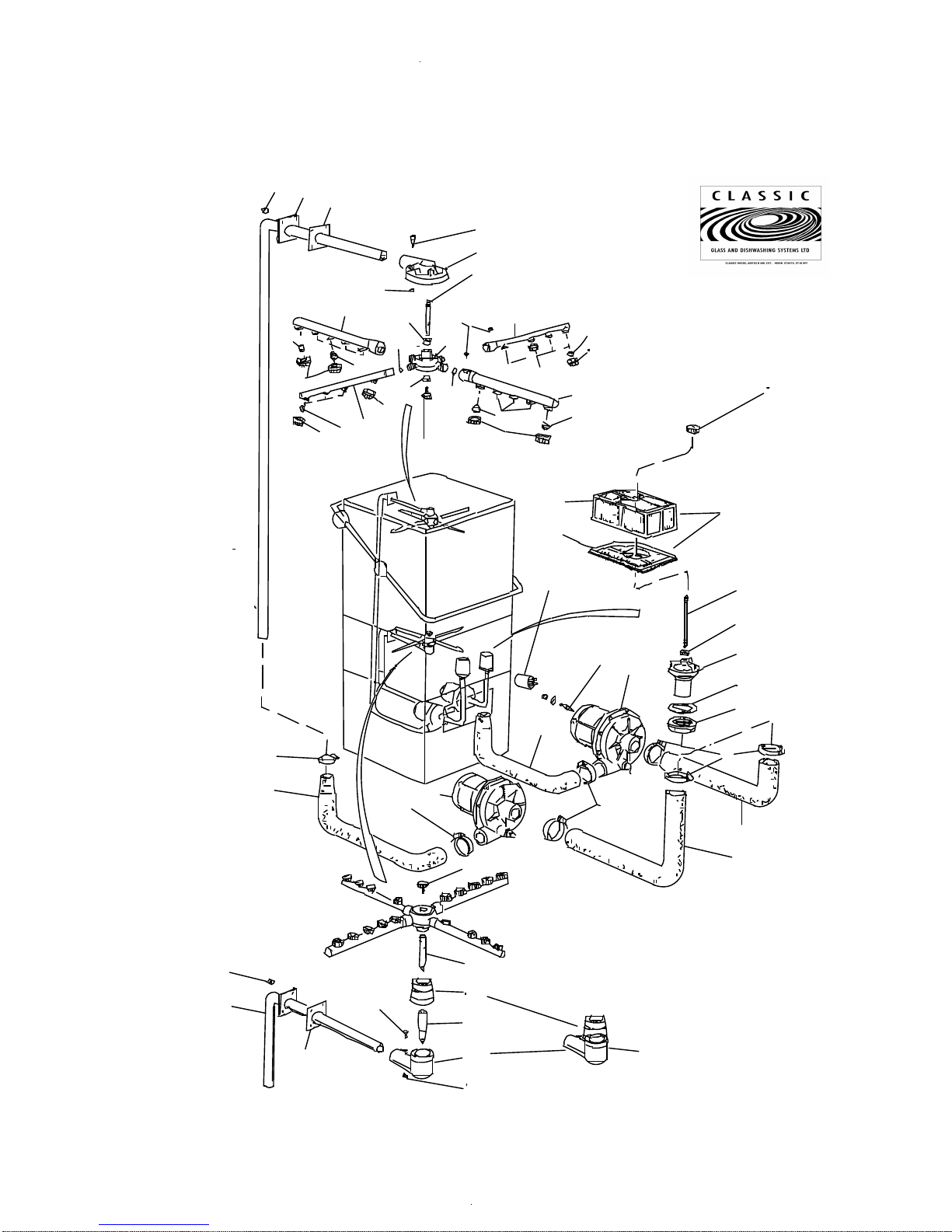

WASH SYSTEM
H850
PAGE 4
SEPT 2001 WO
28
7
40
6A
9
41
CLASSIC GLASSIC & DISHWASHING SYSTEMS LTD

CLASSIC GLASS & DISHWASHING SYSTEMS LTD
WASH SYSTEM
H850
1TOP BOSS COMPLETE WITH SPINDLE HY201
2CORK SEAL HY202
3NUT FOR PIPE HY124
4SCREW 11.1.3
5NUT 7.2.41
6A CENTRE BOSS WITH BUSHES 11.1.0/1
6B WASH ARM ONLY 14.1.6/5
6C RINSE ARM ONLY 14.1.6/6
7BUSH FOR CENTRE BOSS 11.1.9
8SPINDLE (UPPER) 11.1.7/3
9SPINDLE BOLT 11.1.8/2
10 SEAL 9.8.13
11 FILTER BOSS 9.8.4
12 FILTER SPIGOT HY212
12A NUT 11.2.3
13 FILTER NUT 7.8.1
14 PLASTIC FILTER COMPLETE 9.8.2/D
14B PLASTIC FILTER TOP PART ONLY 9.8.2/B
14C PLASTIC FILTER BOTTOM PART ONLY 9.8.2/C
15 WASH JET WIDE 'D' R/H 11.1.6/10W
16 WASH JET WIDE 'S' L/H 11.1.6/9W
17 WASH JET NUT 11.1.6/7
18 SCREW 7.4.17/1
19A O' RING - WASH ARM 11.1.6/15
19B O'O' RING - RINSE ARM 11.1.6/16
20 RINSE JET NUT 11.1.6/11
21 RINSE JET 11.1.6/12
22 BLANK FOR RINSE JET 11.1.6/14
26 INLET HOSE - BOTTOM WASH PUMP HY226
27 NUT 9.8.6
28 JUBILEE CLIP 7.4.12
29 BOTTOM BOSS 11.1.5
30 SPINDLE SPACER 11.1.7/7
31 OUTLET HOSE - WASH PUMP HY231
32 WASH PUMP WITH RINSE AID OUTLET 9.6.0/R
33 WASH PUMP WITH BLANKED OFF OUTLET 9.6.0/B
34 INLET HOSE - TOP WASH PUMP HY234
35 BOSS SPACER 13.1.10/4
37 STAINLESS PIPE FOR TOP BOSS HY237
38 STAINLESS PIPE FOR LOWER BOSS HY238
39 BOLT HY239
40 BOTTOM BOSS ASSEMBLY ITEMS 29 & 35 11.1.5/3
41 CAPACITOR 12.5mf 7.12.102
42 SELF TAPPING SCREW 7.4.17
WASH PUMP PARTS NOT SHOWN
SHAFT SEAL 7.6.3
GASKET FOR HOUSING 9.6.13B
IMPELLOR 9.6.2
HOUSING -FRONT BLANKED OFF 9.6.1B
HOUSING -FRONT WITH RINSE AID 9.6.1R
HOUSING - BACK PLATE 9.6.14B
ISSUE 6 September 2001 wo PAGE 5

19 20 21 22
16
17
16
18
16
17
24
30
25
26
27
40
1
2
3
4
5
33
36
37
16
17
32
17 16
35
34
16 29 31
9
10
11
6
7
12
15
16
17
14
10
11
47
46
38
39
44
NOTE: These Air Pressure Chambers &
Switches are NOT interchangeable
23
28
1A
FOR
DRAIN
PUMP
MODEL
ONLY
8
RINSE SYSTEMS
CLASSIC GLASS & DISHWASHING SYSTEMS LTD
SEPT 2001 WO
H850
PAGE 6
13
YOU MUST CHANGE LIKE FOR LIKE
INTERNAL
RINSEBOOSTERPUMPS
48
49
EXTERNAL

CLASSIC GLASS & DISHWASHING SYSTEMS LTD
RINSE SYSTEM
H850
1DRAIN PLUG - GRAIVTY DRAIN HY301
1A DRAIN PLUG - PUMP DRAIN HY301DP
2WASTE BOSS 9.10.2
3O' RING 7.8.13
4NUT 7.8.6
5DRAIN HOSE HY305
6RINSE ELEMENT 6KW (H850) HY306
6RINSE ELEMENT 9KW (H900) HY306A
7SEAL FOR RINSE ELEMENT HY307
8GUARD 7.9.15/1
9SCREW FOR GUARD 7.9.16/1
10 NUT 11.2.3
11 STAR WASHER 7.9.13/1
12 INSULATION FOR RINSE TANK HY312
13 THERMAL CUTOUT 7.12.4/D
14 RINSE TANK HY314
15 BRASS NUT FOR OLD R/A TUBE 7.9.2
16 CLIP 7.4.12/1
17 RINSE HOSE 8.8.15
18 Y' PIECE HY308
19 UPPER RINSE ELBOW CONNECTOR HY319
20 SEAL HY320
21 NUT HY121
22 UPPER RINSE PIPE HY322
23 PRESSURE SWITCH PROIR 4/99 7.12.9E
24 AIR TRAP ASSEMBLY PRIOR 4/99 7.11.1AA
25 AIR TRAP POST 5/99 7.11.1/H
26 O' RING 7.11.5H
27 NUT 7.11.4
28 TUBE RT3
29 INLET WATER SOLENOID VALVE 24Volt HY329
30 PRESSURE SWITCH POST 5/99 7.12.9H
31 SCREW 7.9.13/11
32 INLET HOSE 7.8.14
33 RINSE SUPPORT HY333
34 HARD NYLON TUBE (OLD SYSTEM) 7.9.10
34A SOFT TUBE - RINSE INJECTOR TO TANK RT3
35 REMOTE RINSE AID INJECTOR 7.7.0.1/1
36 O' RING 7.5.9
37 NUT 3/8" 7.3.13
38 SCREW 7.9.5
39 WASHER 7.2.42
40 SOAP ELBOW 7.2.21/H
44 SCREW 7.9.13/4
46 FIBRE WASHER 7.9.6
47 DRAIN BOLT 7.9.5
OPTIONAL EXTRAS
48 EXTERNAL RINSE BOOSTER PUMP DKRBP
49 INTERNAIL RINSE BOOSTER PUMP RBP5
24Volt CONTACTOR FOR RBP's HY522
ISSUE 6 September 2001 wo PAGE 7

1
2
3
4
5
6
41 40
19
20
18 39 22
25
2423b
23A 39 23B 27 28
30
31
35
36
37
38
34
33
32
21
45
13
12
11
7
8
9
10
16
14
17
15
1A
2A
1A
3A
4A
5A
6A
7A
20A
11A 10A 12A 13A 14A
9A
9A
8A
16A 19A
18A
15A 13 11 42 44
12
43
43
HOOD MICRO
SWITCH ASMBLEY
INTRODUCED JAN 1998
HOOD REED
SWITCH ASSEMBLY
PRIOR TO JAN 98
CLASSIC GLASS & DISHWASHING SYSTEMS LTD

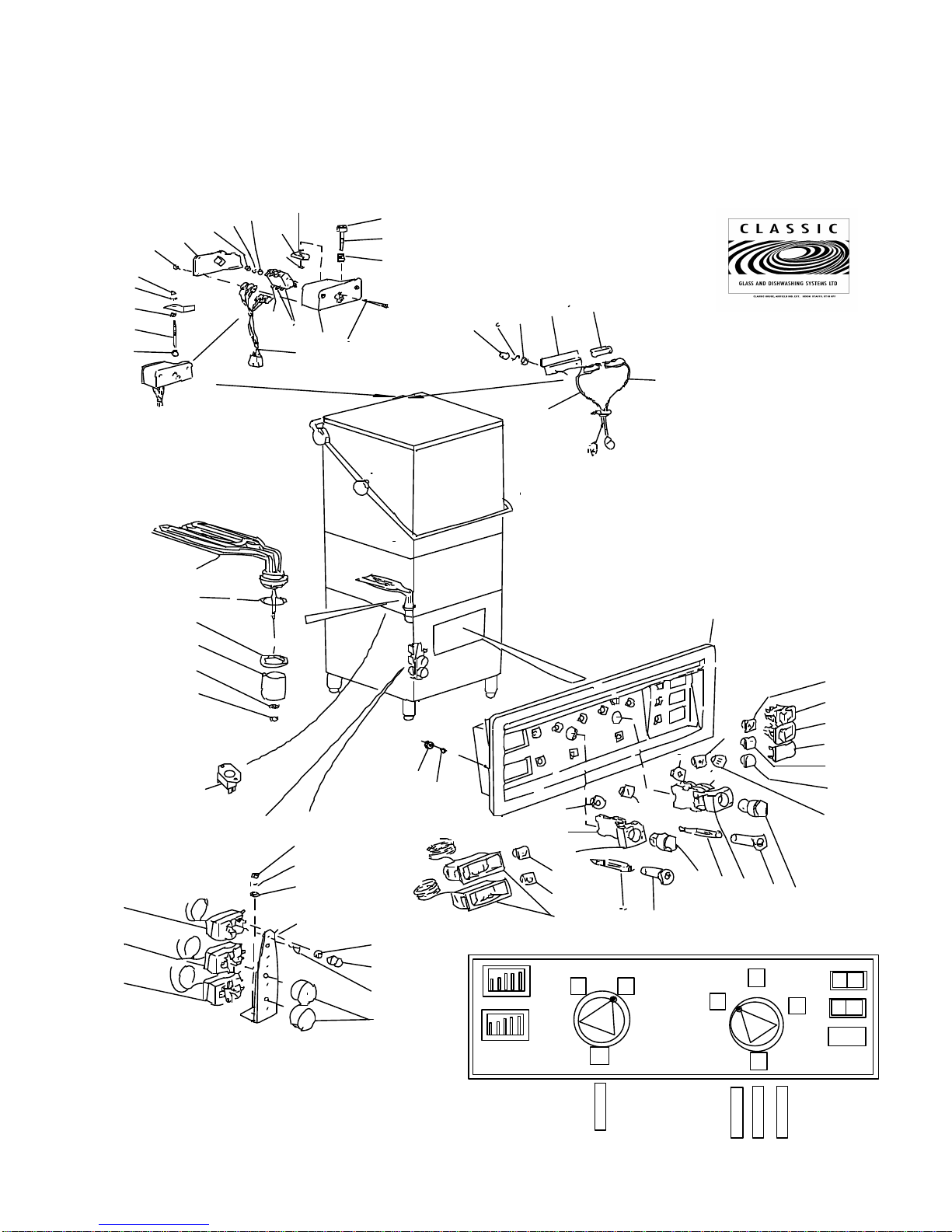

WASH HEATER & CONTROL SYSTEM
SEPT 2001 WO
26
24
29
26
22
30 32
NO NC NO
23A 28
18
18
NO
29 24 24
24
SELECTOR
SWITCHES
ON/OFF
SWITCH
H850
PAGE 8
27
38
37
36
23B 23B
CONTROLPANEL
SWITCHARRANGEMENTATREAROFCONTROLKNOBS
31
25

CLASSIC GLASS & DISHWASHING SYSTEMS LTD
WASH HEATER & CONTROL SYSTEM
H850
1WASH ELEMENT 4.5KW HY401 1A NUT 6mm HY901
2SEAL FOR ELEMENT HY402 2A TAB WASHER 6mm HY902
3NUT HY403 3A STUD WASHER HY903
4COVER HY404 4A PLASTIC COVER HY904
5WASHER HY405 5A PUSH BUTTON HY905
6NUT HY406 6A STUD S/STEEL HY906
7SAFETY STAT ( REMOTE ) HY407 7A SPRING S/STEEL HY907
SAFETY STAT ATTACHED TO RINSE TANK 7.12.4/D 8A ACTUATOR HY908
8THERMOSTAT - RINSE 7.12.1/2 9A CLIP HY909
9THERMOSTAT - WASH 7.12.1/2 10A BOX COVER HY910
10 BRACKET HY410 11A SCREW HY911
11 WASHER 7.2.42 12A NUT 3mm HY912
12 STAR WASHER W010 13A TAB WASHER 3mm HY913
13 NUT 11.2.3 14A WASHER 3mm HY914
14 SCREW 7.6.15 15A 2 POLE MICRO SWITCH HY915
15 RING NUT HY415 16A 3 POLE MICRO SWITCH HY916
16 KNOB HY416 18A SUB LOOM FOR MICRO SWITCH HY918
18 TEMP INDICATOR HY418 19A PLASTIC BOX HY919
19 INSERT BADGE - RINSE HY419 20A SCREW 3mm HY920
20 INSERT BADGE - WASH HY420 COMPLETE MICRO SWITCH ASSEMBLY HY901-ASS
21 CONTROL PANEL HY421
22 GREEN LENS HY422
23A ON/OFF KNOB HY423A
23B SWITCH BODY HY423B
24 INNER SWITCH 'NO' HY424 NOT SHOWN
25 O' SYMBOL INSERT HY425
OPTIONAL EXTRAS
26 I' SYMBOL INSERT HY426 TIMER FOR DRAIN PUMP 7.12.2/5
27 LAMP CLEARAMBER LENS HY427 38B SWITCH FOR DRAIN PUMP 7.12.4/2A
28 PROGRAM KNOB HY428 BOTH ARE 240Volts
29 INNER SWITCH 'NC' HY429
30 WASH 1 SYMBOL INSERT HY430
31 WASH 2 SYMBOL INSERT HY431
32 WASH 3 SYMBOL INSERT HY432
33 BLANK INSERT HY433
34 RINSE SYMBOL INSERT HY434
35 WASH SYMBOL INSERT HY435
36 GREEN CONT. WASH SWITCH HY436
37 AMBER RINSE SWITCH HY437
38 BLANKING PLATE HY438
39 LAMP 24 Volt CLEAR HY439
40 STAR WASHER HY440
41 NUT 11.1.20
42 BRACKET FOR REED SWITCH HY442
43 REED SWITCH HY443
44 MAGNET HY444
45 THERMAL CUTOUT - WASH TANK 7.12.2/D8
ISSUE 6 September 2001 WO
PAGE 9

16
7A
7
17 22
18
22 24 25
17
19
20
54
BA32
C
8
D
8
8
1
6
7
26 / 26A
9
15 711
10
20
21
23
H850
PAGE 10

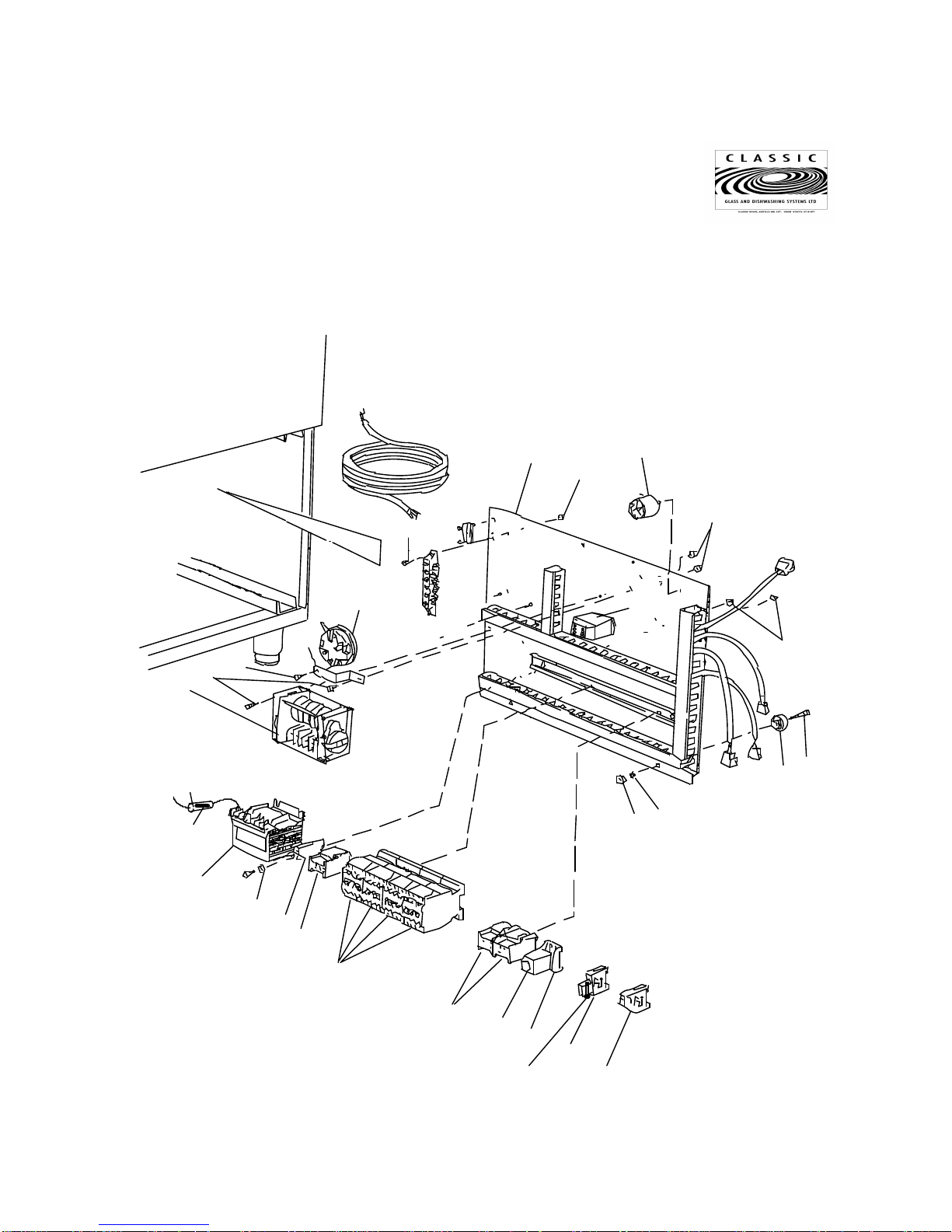

ELECTRICAL AND SUB LOOMS
CLASSIC GLASS & DISHWASHING SYSTEMS LTD
SEPT 2001 WOO
BLUE
CABLE
NOT
ON ALL
MODELS
22

CLASSIC GLASS & DISHWASHING SYSTEMS LTD
ELECTRICAL PANEL
H850
1SLIDE PANEL HY501
2SCREW HY502
3RUNNER HY503
4TAB WASHER HY504
5SCREW HY131
6TERMINAL BLOCK 7.12.7/A
7SCREW HY122
8NUT HY508
9AIR PRESSURE SWITCH - PRE 4/99 7.12.9/E
9AIR PRESSURE SWITCH POST 5/99 7.12.9H
10 SUPPORT HY510
11 SCREW HY331
12 SPACER HY512
13 NUT 11.2.3
14 STAR WASHER W010
15 TIMER HY515
16 TRANSFORMER HY516
17 STOP BLOCK HY517
18 CONTACTOR 24 Volt 20amp HY518
19 FUSE HOLDER FUSE-05
20 FUSE 6.3 amp FUSE-03
21 FUSE HOLDER INLINE FUSE-03H
22 CONTACTOR 24 Volt 16amp HY522
23 RF SUPPRESSOR 7.12.101/A
24 DELAY TIMER HY524
25 BASE FOR DELAY TIMER HY525
26 3 PHASE CABLE 7.12.10/4
26A SINGLE PHASE 30 AMP CABLE 7.12.10/3
SUB LOOMS
APUSH ON BLOCK - DOOR HY50A
BPUSH BLOCK - ELEMENT HY50B
CPUSH BLOCK - PUMPS HY50C
DPUSH BLOCK - CONTROL HY50D
NOT SHOWN
IF FITTED -Situated on side above rinse tank
3 MIN DRAINER TIMER 7.12.2/5
(OPTIONAL EXTRA)
ISSUE 6 September 2001 wo PAGE 11

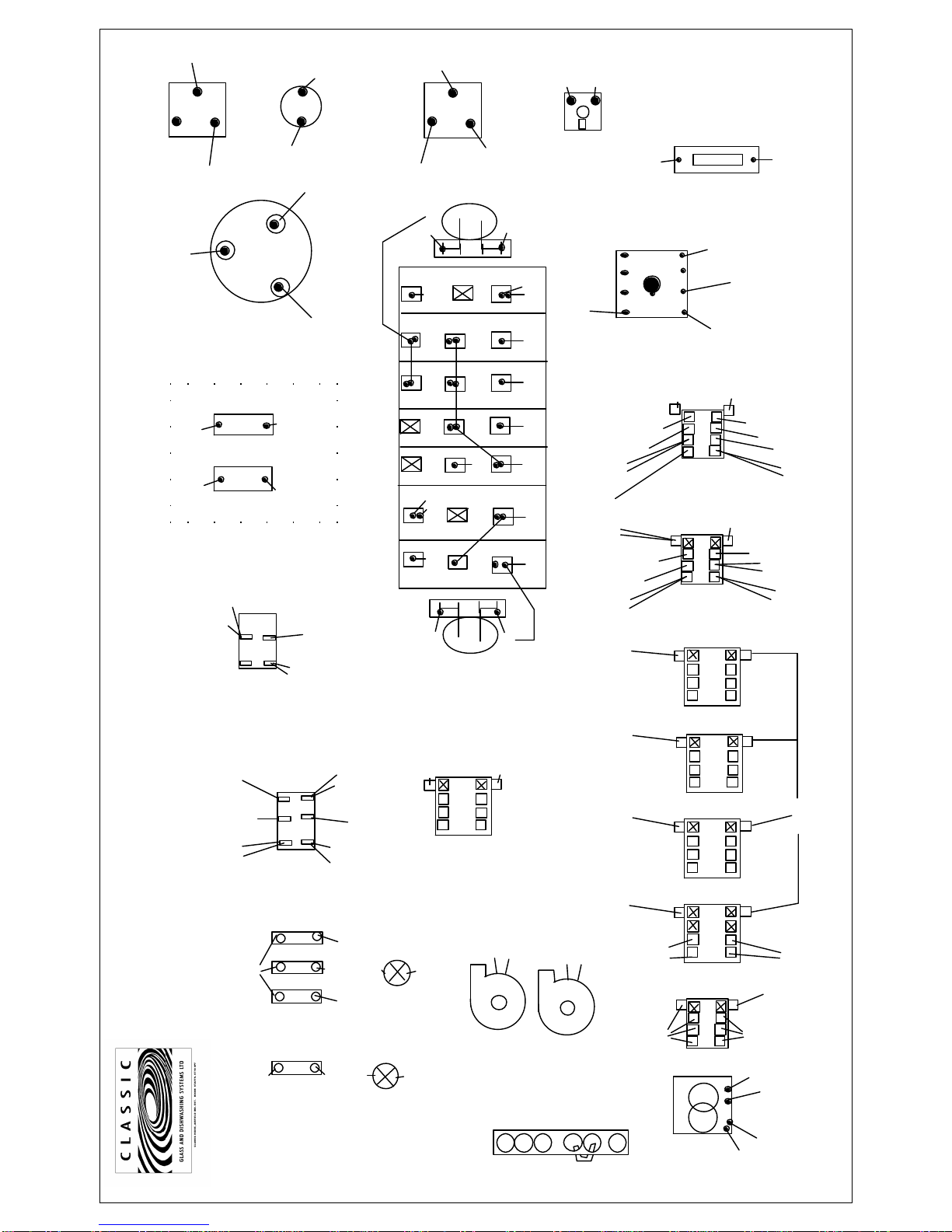

BLACK BLUE
PINK
BROWN
CYCLE SELECTOR
PURPLE
WHITE
BROWN GREY
WHITE BLUE BLACK
GREY
PINK
RED RED RED
BROWN
RED BLUE BLACK
PINK
BLUE
ORANGE
BLUE
PURPLE
PURPLE
WHITE
WHITE
BROWN
DARK BLUE WHITE
BROWN
MOTOR LEADS
MOTOR LEADS
BROWN
GREY
ON / OFF SWITCH
RED
BLACK
1234567
RED ORANGE
PURPLE
BLACK
TIMER
RED BLACK 24V
RED
RED
BLACK
BROWN
BROWN
ORANGE
WHITE
BLUE
WHITE
PURPLE
BLACK
PINK
BLUE
WHITE
WHITE
WHITE
ORANGE
BROWN
PURPLE BROWN
BLUE
DELAY TIMER WASH PUMP FUSE
TL3 TL5 TL8 TL4 TL2 TL6
WASH PUMP
TL1
RED
BLACK
GREY
BROWN
BLACK
GREY
BROWN
BLACK
GREY
BROWN
GREY
BLACK
BROWN
BLACK
GREY
BROWN
BLACK
GREY
BROWN
BLACK
GREY
BROWN
BLACK
GREY
PINK BLACK GREY
BLACK
BROWN
11
RED
12 13
ORANGE PURPLE
PRESSURE SWITCH
HOOD SWITCHES
12
RED WHITE
REED or MICRO SWITCHES
BLACK
MANUAL RINSE SWITCH
PURPLE
MANUAL WASH SWITCH
BLACK
BROWN
GREY
BLUE
BLUE
TERMINAL BLOCK
EARTH
WASH PUMPS TL9
BROWN BLUE
RED BLUE
PURPLE
GREY
GREY BLUE
240V
CLASSIC HYDRO 850/900 COMPONENT WIRING
JULY 2001 WO
GREY GREY
C
1
2
WASH STAT
PURPLE
PURPLE
WASH TANK OVERLOAD
PURPLE
PINK
RINSE TANK OVERLOAD
C
1
2
RINSE STAT
PURPLE
TRANSFORMER CONTROL
CONTACTOR DOOR FILL / RINSE
BROWN WHITE ORANGE
PURPLE
RINSE SAFETY RINSE
HEATER WASH
HEATER
ORANGE BLACK
WASH SAFETY
BLACK
BROWN
BROWN
GREY
PAGE 12

TIMER MOTOR
FAST TIMER MOTOR
2
14567
3
BROWN
WHITE
RED
RED
RED
RED RED RED
RED
RED
RED
HOOD SWITCH 1
HOOD SWITCH 2 RINSE
SWITCH
RED
NC
WHITE
WHITE
WHITE
BROWN
PURPLE
BLUE
DARK BLUE
PURPLE
BROWN
GREY
WHITE
BLACK
WHITE
PURPLE
PURPLE
WHITE
ON / OFF SWITCH
BLACK
BLACK
BLACK
PINK
BLUE
DARK BLUE
BLUE
PUPLE
BROWN
PUPLE
WHITE
ORANGE
PINK
GREY
PURPLE
BLUE
ORANGE
ORANGE
ORANGE
ORANGE
ORANGE
WHITE
WHITE
BROWN
BROWN
BROWN
BROWN
PINK
ORANGE
WHITE
WHITE
PURPLE
PURPLE
PURPLE
PURPLE
ORANGE
RED
BLUE
BLUE
BROWN
GREY
BROWN
BROWN
BLACK
GREY
RED
BLACK
BLACK
WHITE
WHITE
ORANGE
RED
BLACK
GREY
WASH PUMP CONTACTOR TL3
PURPLE
TO RINSE ELEMENT CONTACTOR
TO WASH ELEMENT
CONTACTOR ?
?
SEE SEPERATE DRAWINGS HEATERS - SAFETY OVER HEAT
N
DOOR CONTACTOR TL2
MANUAL WASH SWITCH
CONTROL CONTACTOR TL1
FILL / RINSE CONTACTOR TL6
L1
L2 L3
240VOLT 24 VOLT
PRESSURE SWITCH
12 13
11
WASH PUMP BOTTOM PUMP FOR TOP ARM
WASH PUMP TOP PUMP FOR BOTTOM ARM
DELAY
TIMER
PURPLE
WHITE
PURPLE
BROWN
BROWN
RED
RED
BLUE
BLUE
HYDRO 850 WIRING DIAGRAM
BLACK
GREY
1 SELF START 2 RINSE 3 MANUAL OVER RIDE 4 LONG CYCLE - 3Mins 5 SHORT CYCLE - 1Min
6 MEDIUM CYCLE - 2Mins 7 OFF POSITION
TIMER CAMS
JULY 2001 WO
BLUE
TRANSFORMER
BROWN
PINK
GREY
PAGE 13

PURPLE
PURPLE
RINSE CUTOUT
RINSE SAFETY CONTACTOR RINSE ELEMENT CONTACTOR
L1
L2 L3 N
N
PURPLE
BLACK
GREY
BLACK
RINSE STAT
BLACK
BLACK
PURPLE
PURPLE
RINSE CUTOUT
RINSE SAFETY CONTACTOR RINSE ELEMENT CONTACTOR
L1
L2 L3 N
N
PURPLE
BLACK
GREY
BLACK
RINSE STAT
BLACK
BLACK
PURPLE
PURPLE
RINSE CUTOUT
RINSE SAFETY CONTACTOR RINSE ELEMENT CONTACTOR
L1
L2 L3 N
N
PURPLE
GREY
BLACK
RINSE STAT
BLACK
WASH CUTOUT
BLACK
BLACK
RED
RED
24V OUT PUT
TRANSFORMER
PURPLE
PURPLE
PURPLE
BLACK
WASH SAFETY CONTACTOR WASH ELEMENT CONTACTOR
PRESSURE SWITCH
PRESSURE SWITCH
PRESSURE SWITCH
RINSE ELEMENTS
WASH ELEMENTS
WASH ELEMENTS
WASH ELEMENTS
RINSE ELEMENTS RINSE
ELEMENTS
PRE - 1998 1998 - 2000 2000 - TO DATE
HYDRO 850 HEATER CIRCUIT HYDRO 850 HEATER CIRCUIT HYDRO 850 HEATER CIRCUIT
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
WASH STAT
WASH STAT WASH
STAT
BLACK
JUNE 2001
PINK PINK
PINK
PAGE 14

A1 A2
ON/OFF
SWITCH
24 VOLT
CONTACTOR
INLET SOLENOID VALVE
24 VOLTS
3 MIN DRAIN TIMER
240VOLT
DRAIN
SWITCH
MOTOR
WHITE
LINE
BROWN
WHITE
ORANGE
3
2
4
DRAIN PUMP
5N
WO 30/7/2001
BLUE
WASH TANK
RINSE TANK
WASH PUMPS

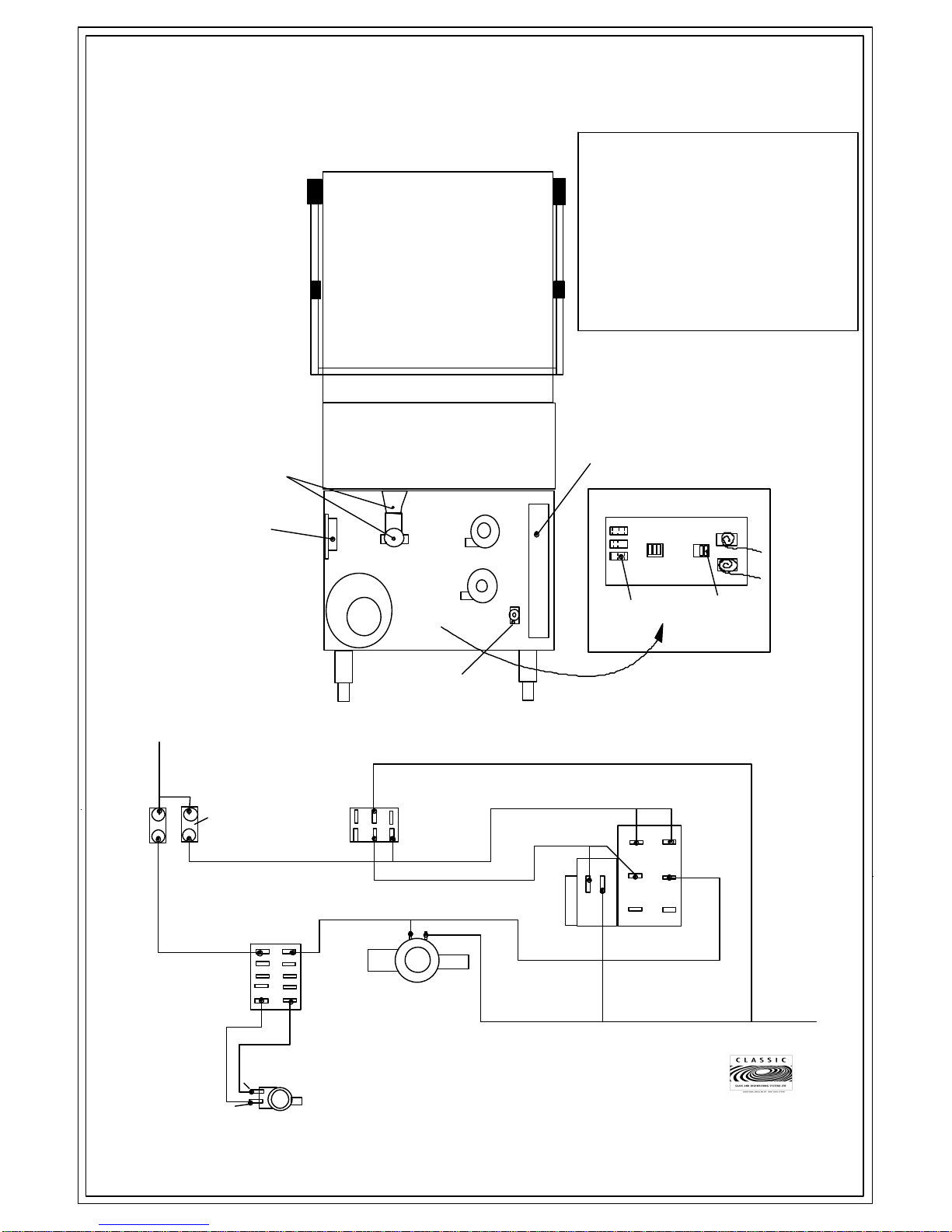

HYDRO 850 FITTING DRAIN PUMP & WIRING
CLASSIC H 850
REAR VIEW OF FRONT PANEL
NEW ROCKER
SWITCH
'ADD ON'
SWITCH
SELECTOR
SWITCH ON/OFF SWITCH
TIMER & BRACKET
ELECTRICS ON PULL OUT TRAY
FIX CONTACTOR TO PANEL
ITEM PART No
1 EXTRA 'ADD ON' SWITCH HY 429
2 240 VOLT SWITCH 7.12.4/2A
3 24 VOLT CONTACTOR CONT/24
4 3 MIN TIMER 7.12.2/5
5 DRAIN PUMP DP2
6 SUB LOOM - D/PUMP LM-850-DP
7 BRACKET FOR TIMER ?
8 SPECIAL DRAIN PLUG HY301DP
9 DRAIN HOSE DP-HOSE- long
10 INLET HOSE 9.10.3/2
11 HOSE CLIPS 7.4.12
Part No DP4 KIT
DRAIN PUMP & HOSES
INLET WATER
SOLENOID VALVE
BLUE
PIGGY
BACK
ONTO
TERMINALS
1
2
3
5
4
GREY
GREY
BLUE
RED
RED
WHITE
BROWN
BROWN
RED
BLUE
RED
BROWN
BLUE
BROWN
ADD ON
SWITCH
1
PAGE 15

FITTING DETERGENT PUMP AND PCB TO HOOD MACHINE
FIX TO BASE ONTO THE ONE STUD
FIT DETERGENT PUMP TO BRACKET
FIT PCB TO MACHINE USING
STICKY BACK PAD.
1: CONNECT 2 ORANGE CABLES TO DERGENT PUMP
2: BLUE CABLE TO NEUTRAL ON TERMINAL BLOCK
3: GREY CABLE TO LIVE SIDE OF WASH PUMP CONTACTOR
4: WHITE CABLE TO DEAD SIDE OF WASH PUMP CONTACTOR
TRANSFORMER CONTACTORS
GREY CABLES
BROWN CABLES
GREY
WHITE
BLUE
TO NEUTRAL ON TERMINAL
BLOCK
2 ORANGE CABLES TO DETERGENT PUMP
PARTS REQUIRED
7.6.6/7 Bracket
8LPP2 Detergent pump
CLM210 PCB Detergent
H850 Det Sub Loom
7.7.21/9 connectors x 4
PAGE 17

BLANK

LIVE CABLE
NEUTRAL CABLE
2 CONNECTORS JOIN THE 3 PHASES
ONE CONNECTORS JOIN ALL THE NEUTRAL CABLES
EARTH CABLE
NEUTRAL CABLE
ONE CONNECTORS JOIN ALL THE NEUTRAL CABLES
EARTH CABLE
LINE 1
LINE 2
LINE 3
THE H850 PASS THROUGH MACHINE
IS A 240VOLT MACHINE SO CHANGING
FROM 3 PHASE TO SINGLE PHASE ONLY
ALTERS THE HEATERS
THE WASH PUMPS ARE BOTH 240 VOLT
RATING 3 PHASE = 15 AMP PER PHASE
H850
H850
RATING SINGLE PHASE = 30 AMP
Note: H900 is a 9kw
Machine and is 3phase only
Note:
H900 can NOT be wired
as single phase machine
TWO 'C' CONNECTORS JOINING THE THREE PHASE TOGETHER
THESE ARE FOUND IN THE PLASTIC BAG INSIDE THE MACHIN ON DELIVERY
TERMINAL BLOCK
TERMINAL BLOCK
CLASSIC HYDRO 850 & 900
MAINS CABLE WIRING
WO JUNE 2001
WIRED AS SINGLE PHASE
H850 MACHINES ARE NORMALLY DELIVERED AS 3 PHASE
CHANGING FROM THREE PHASE TO SINGLE PHASE = FIT THE 2 'C' CONNECTOR TO THE 3 LIVE CONNECTIONS
FIT A 3 CORE 6MM CABLE
CHANGING FROM SINGLE PHASE TO THREE PHASE = REMOVE THE 2 'C' CONNECTORS
AND FIT 3 PHASE CABLE ( 5 CORE 2.5MM)
'C' CONNECTOR
PAGE 19
