Claypaky Mini-B User manual

1
INS RUC ION MANUAL
ENGLISH
INDEX
Page Contents
2 1. Safety information
3 2. Unpacking and preparation
3 3. Installation and start-up
3 3.1 nstalling the fixture
4 3.2 Connecting to manis supply
5 3.3 Connecting the control signal line: DMX / Art-Net
5 3.4 Switching on the fixture and basic SetUp
7 4. Maintenance
7 4.1 Maintenance and Caution
8 4.2 Battery removal
9 4.3 Opening the covers
10 5. Accessories
11 6. Specifications
12 7. Cause and solution of problems
Mini-B
CL3005
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.

2
Mini-B
EN
I
DE
ES
FR
RU
SAFE Y INFORMA ION
MPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
www.claypaky.com
Ref: [F S01M - Safety nformation Mini-B]
INFORMAZIONI DI SICUREZZA
MPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
www.claypaky.com
Rif: [F S01M - Safety nformation Mini-B]
INFORMA IONEN ZUR SICHERHEI
W CHT G: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
www.claypaky.com
Ref: [F S01M - Safety nformation Mini-B]
INFORMACIONES DE SEGURIDAD
MPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
www.claypaky.com
Ref: [F S01M - Safety nformation Mini-B]
CONSIGNES DE SÉCURI É
MPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
www.claypaky.com
Réf. : [F S01M - Safety nformation Mini-B]
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкци по технике безопасности
данного изделия, которая всегда доступна в электронном формате по следу щей ссылке:
www.claypaky.com
Наименование: [F S01M - Safety nformation Mini-B]
1. SAFE Y INFORMA ION

3
Mini-B

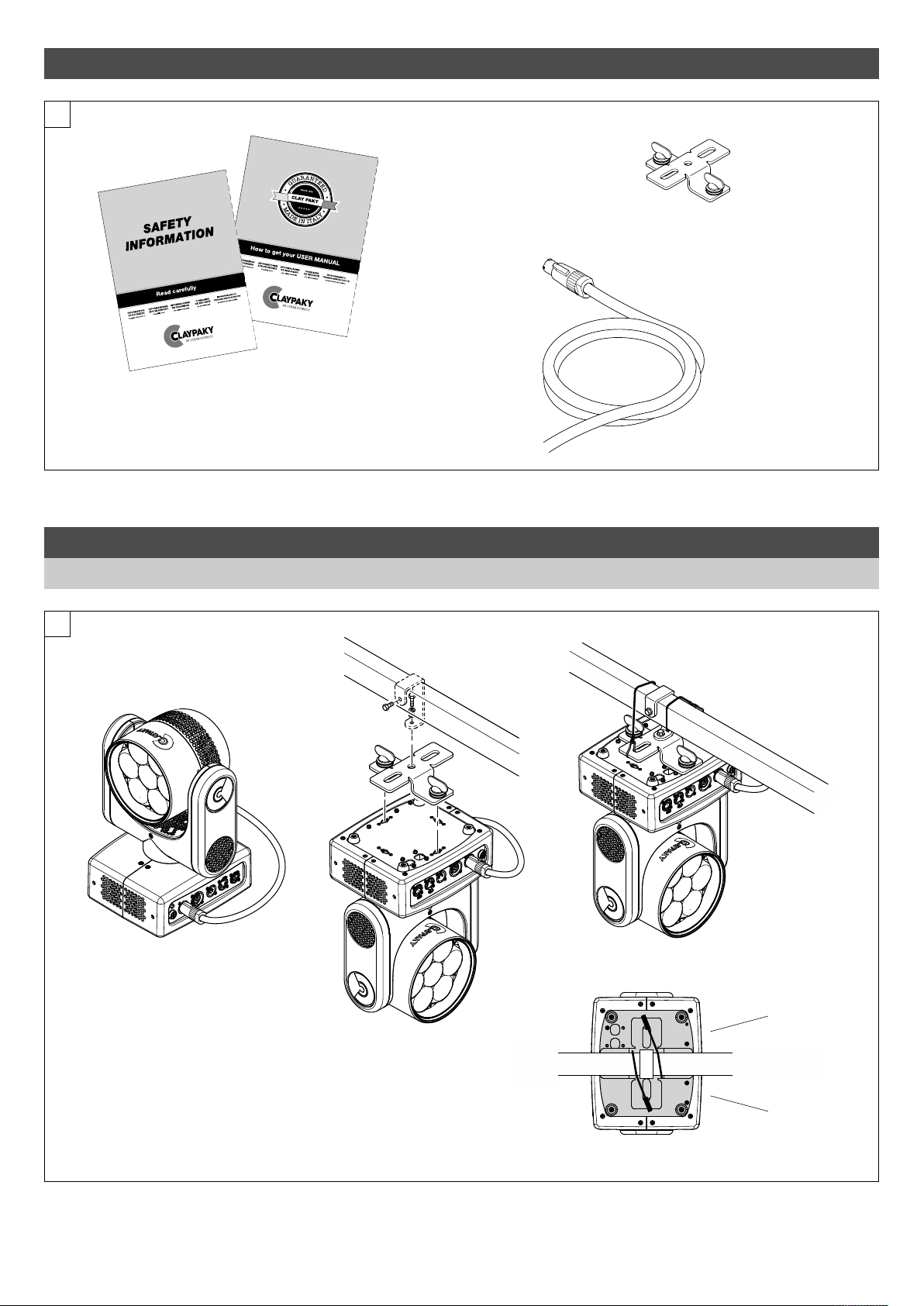

Packing contents - Fig. 1
1
2. UNPACKING AND PREPARA ION
2
Installing the projector - Fig. 2
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/001 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixin point at the centre of the base.
3. INS ALLA ION AND S AR -UP
3.1 Installing the fixture

4
Mini-B
Mains
5
Connecting to the mains supply - Fig. 5
1
2
3
2
1
1
2
3
2
1
4
Connecting and disconnecting power cable - Fig. 4
NB: connecting one
Mini-B to the mains,
it is possible to connect
up to a maximum
of 6 @200-240Vac -
2 @100-120Vac Mini-B in
parallel at the same time.
Fuse 5x20mm
6.3AT 250V
(030463)
Power in
(NAC3MPX,
Neutrik)
DMX in
(NC5MAV,
Neutrik)
Ethernet
(RIX8FA3VB,
Amphenol)
Power out
(NAC3MPX,
Neutrik)
DMX out
(NC5MAV,
Neutrik)
LCD Display Functional buttons
3
Control Panel - Fig. 3
3.2 Connecting to manis supply

5
Mini-B
Switching on the projector - Fig. 7
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware Dmx Address xxx System errors
Mini-B Version X.X.X .........................
Date - Hour .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
t should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
1
Dmx Address
War ning Message
7
Connecting to the control signal line (DMX) - Fig. 6
Use a cable conforming to specifications E A RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPOR AN : The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
Ethernet
6
Continue ➔
3.3 Connecting the control signal line: DMX / Art-Net
3.4 Switching on the fixture and basic SetUp
28
28
Reversal of the display - Fig. 8
To activate this function, press UP
B
and DOWN
C
keys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
8

6
Mini-B
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
R GHT
E
to momentarily activate the display and thus access the settings. Once the required operations have been
carried out, the display will switch off again after a wait time of 30 seconds.
USING HE MENU:
1) Press LEFT
D
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN
C
keys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• nformations ( nformations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN
C
keys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
ncreases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
R GHT

7
Mini-B
CAU ION:
• o avoid damage to the internal parts of the fixture when the fixture is not working, is recommended to turn the head down before turning the fixture
off, so that the front lenses of the fixture are invested as little as possible from the sun.
• Set Zoom channel to 255-bit before turning off the projector to facilitate the packaging of the projector.
• It is recommended not to use compressed air with more than 4 atmospheres for cleaning the internal parts of the fixture, led board area.
his is to avoid damaging electronic components.
•To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of
the working environment (air humidity, presence of dust, salinity, etc.).
t is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following
operations:
- General cleaning of internal parts.
- Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
- General visual check of the internal components, cabling, mechanical parts, etc.
- Electrical, photometric and functional checks; eventual repairs.
Cleaning the lenses
Only use neutral soap and water to clean the lenses, then dry it carefully with a soft, non-abrasive cloth. (WARN NG: the use of alcohol or any other
detergent could damage the lenses).
Light collimation system
This product contains internal light
collimation system. Avoid intense
light from any angle.
Continue ➔
9
WARNING:
no alcohol
WARNING:
no alcohol
4. MAIN ENANCE
4.1 Maintenance and Caution

8
Mini-B
2
5
1

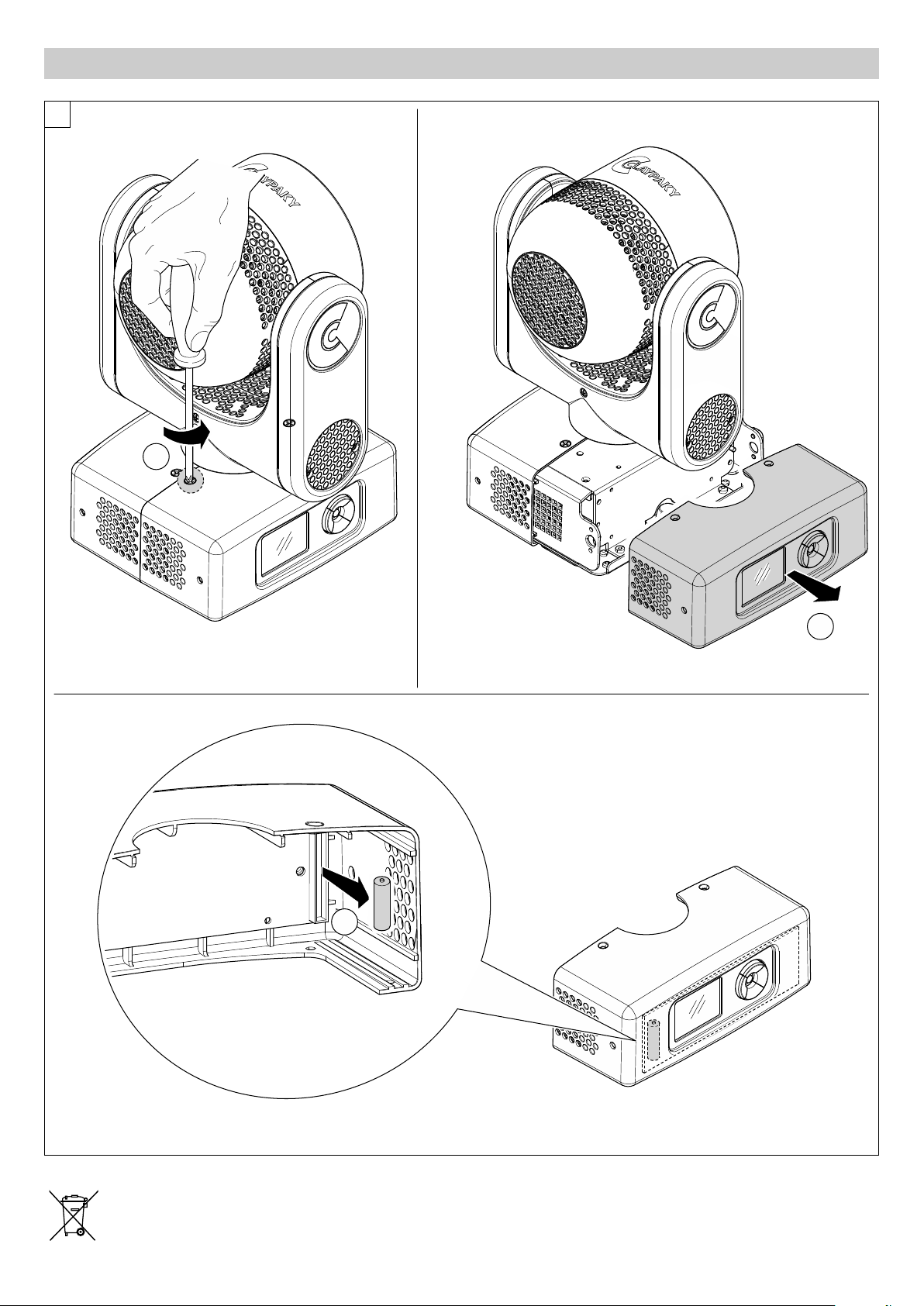

Battery removal - Fig. 10
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
10
4.2 Battery removal

9
Mini-B
3
1
2
4
11

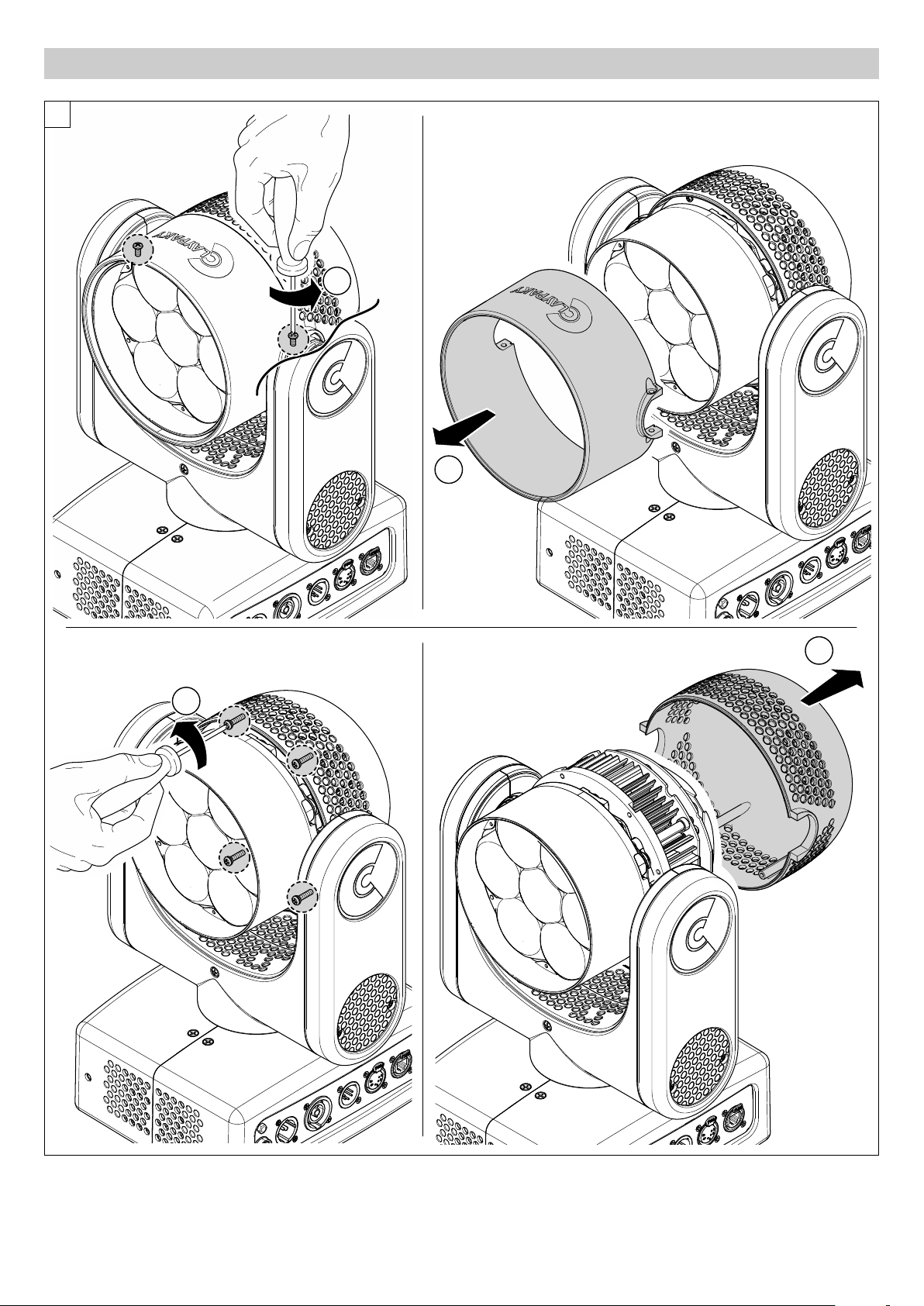

Opening the covers - Fig. 11
4.3 Opening the covers

10
Mini-B
5. ACCESSORIES
2
1
1
12
Optional Handles CA3001000100 - Fig. 12
1
2
13
Optional Egg Crate CA3002000100 - Fig. 13

11
Mini-B
351
(13.82")
220
(8.66")
186
(7.32")
346
(13.62")
169
(6.65")
Zoom IN
188
(7.40")
Zoom OUT
159
(6.26")
240
(9.45")
309
(12.16")
Mini-B
POWER SUPPLIES
AC power input Neutrik PowerCON True1 100-240V, 50/60 Hz.
INPU POWER
375 VA @230Vac - 50Hz.
PowerCon Output: max 6 fixture @200-240Vac / max 2 fixture @100-120Vac.
LIGH SOURCE
7x Osram 40W RGBW LEDs.
Life: 50000 hrs (L70 20000 hrs)
OP ICS
4°- 55° Electronic Zoom range.
ndependent control of the central LED
COLOR SYS EM
Preset macro colors.
2500K – 8000K color temperature control.
EFFEC S SEC ION
16 bit dimmer with 4 curves
Electronic strobe @ 25 f/sec
Preset Effect macros
CON ROL AND PROGRAMMING
16/20/28 control channels.
Control signal US TT DMX 512/Art-Net
Protocols RDM, WebServer and Art-Net.
Display Graphic LCD backlit b/w Display.
Display battery Long life self-charging buffer battery.
Pan/Tilt Resolution 16 bit.
Dimmer Resolution 16 bit.
DMX signal connection 5 pole XLR input and output.
Ethernet nput.
BODY
Aluminum and steel structure with plastic covers.
Two side handles for transportation (Optional).
Device locking PAN and T LT mechanisms for transportation and maintenance.
MOVING BODY
Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and T LT after accidental movement not controlled
by control unit.
Travel:
- PAN = 540°
- T LT = 260°
ELEC RONICS
Function reset from the lighting desk.
“AUTOTEST” function from menu.
Electronic monitoring with status error.
Cooling system monitoring.
DMX level monitoring on all channels.
nternal data transmission diagnostics.
Firmware Upgrade via Web Server.
Firmware upload from another fixture.
SAFE Y DEVICES
Minimum distance of illuminated objects 0.2 m (8”).
Minimum distance from flammable materials 0.2 meters (8”).
Max ambient temperature 40°C (104°F).
Max temperature of the external surface 90°C (194°F).
Protection Fuse.
Forced ventilation with axial fans.
Automatic power safety derating in case of overheat of the LED board.
WORKING POSI ION
Working in any position.
Hanging system: with one fast-lock omega clamp (1/4 turn) on the base.
CE MARKING
n conformity with the European Directives:
2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
2014/30/EU - Electromagnetic Compatibility (EMC).
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
2009/125/EC - EcoDesign requirements for Energy-related Products (ErP).
E L
This product is available, on demand, with cETLus Listed Mark.
WEIGH
6.5 Kg (14.3 lbs)
DIMENSIONS
224Mm x 186mm x 340mm (8.8” x 7.3” x 13.4”)
6. SPECIFICA IONS

THE PROJECTOR W LL NOT SW TCH ON
PROBLEMS
ELECTRON CS NON-OPERAT ONAL
DEFECT VE PROJECT ON
REDUCED LUM NOS TY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
LED exhausted or defective.
Signal transmission cable faulty or disconnected.
ncorrect addressing.
Fault in the electronic circuits.
Lenses broken
Dust or grease deposited.
Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
7. CAUSE AND SOLU ION OF PROBLEMS
Clay Paky S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) taly - Tel. [phone] - Fax [phone] - www.claypaky.com
ST01J-001 – EN - Rev. 0 01/2020
