CLEAN COMFORT AMHP-245 User manual

FILTRATION
FILTRATION
AIR CLEANERS
IO-AMHP-245 WWW.CLEANCOMFORT.COM 11/15
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. THIS GUIDE TO BE LEFT WITH EQUIPMENT OWNER.
WHOLE-HOUSE
TRUE HEPA AIR CLEANER
Installation & Operation Manual
MODEL AMHP-245
i

FILTRATION
FILTRATION
TABLE OF CONTENTS
2WWW.CLEANCOMFORT.COM IO-AMHP-245
INTRODUCTION ................................................. 3
What the Air Cleaner Does ............................................. 3
Features and Benets..................................................... 3
How It Works .................................................................. 3
INSTALLATION ................................................... 4
Locaon .......................................................................... 4
Installaon Steps ............................................................ 4
Operang Instrucons.................................................... 4
MAINTENANCE.................................................. 5
SPECIFICATIONS................................................. 6
LIMITED WARRANTY.......................................... 8
Proprietary Notice
This document and the informaon disclosed herein are
proprietary data of Daikin North America LLC. Neither
this document nor the informaon contained herein shall
be reproduced, used, or disclosed to others without the
wrien authorizaon of Daikin North America LLC except
to the extent required for installaon or maintenance of
recipient’s equipment.
Liability Notice
Daikin North America LLC does not accept any liability
for installaons of air cleaning equipment installed by
unqualied personnel or the use of parts/components/
equipment that are not authorized or approved by Daikin.
Copyright Notice
Copyright 2015, Daikin North America LLC
All rights reserved.
iWARNING!
Before beginning any installaon or modicaon,
be certain that the main line electrical disconnect
switch is in the OFF posion. Unexpected start-up
of system blower may cause serious injury. Tag
disconnect switch with suitable warning labels.
iCAUTION!
Installaon:
• Only a heang/air condioning installer or qualied
service person should install your air cleaner, unless
you are completely familiar with the necessary tools,
equipment and potenal hazards involved. If you plan
to install this air cleaner yourself, please be aware that
the improper use of any tool can be dangerous. The
manufacturer will not assume any responsibility for
failures due to incorrect installaon procedures.
• Homeowners can perform the basic maintenance
funcons of replacing lters.
• When working on the air cleaner, observe precauons
in this manual, labels aached to the furnace or air
handler, and other safety precauons that may apply.
Follow all safety codes. Wear safety glasses and work
gloves.
READ AND SAVE THESE INSTRUCTIONS
iWARNING!
This symbol indicates important instrucons. Failure to
heed them can result in serious injury or death.
iCAUTION!
This symbol indicates important instrucons.
Failure to heed them can result in injury or material
property damage.
Our connuing commitment to quality products may
mean a change in specicaons without noce.
© 2015 DAIKIN NORTH AMERICA LLC
Houston, Texas • USA
www.cleancomfort.com
1-800-267-8305 • Fax: [phone]

FILTRATION
FILTRATION
INTRODUCTION
IO-AMHP-245 WWW.CLEANCOMFORT.COM 3
What the Air Cleaner Does
This Clean Comfort™ brand AMHP HEPA air cleaner is
designed to be connected to the return air duct of your
central heang and cooling system. It draws in just a
poron of the total air ow, treang it and returning it
cleaned to the home’s ductwork.
Features and Benets
• Cered True HEPA (High-Eciency Parculate Air) lter is
up to 99.97% ecient at removing parcles down to
0.3 micron
• Acvated Carbon Prelter removes lint to prolong life of
HEPA Filter and helps remove unpleasant odors (such as
those from cooking, smoking or painng.
• Bypass installaon means these HEPA air cleaners do not
add stac pressure to the HVAC system
• Easy-to-change lters
• Powerful motor delivers 245 CFM of ltered air
• Plug-in power cord
• Versale installaon: free-standing, ceiling-mounted, or
wall-mounted
• Heavy-gauge steel cabinet provides rigid installaon and
durability
• Corrosion-resistant cabinet with powder-paint nish
• By removing parculates from the air, these air cleaners
also help protect and prolong the operang eciency of
the home’s heang and cooling equipment.
• Provides a more comfortable environment year-round.

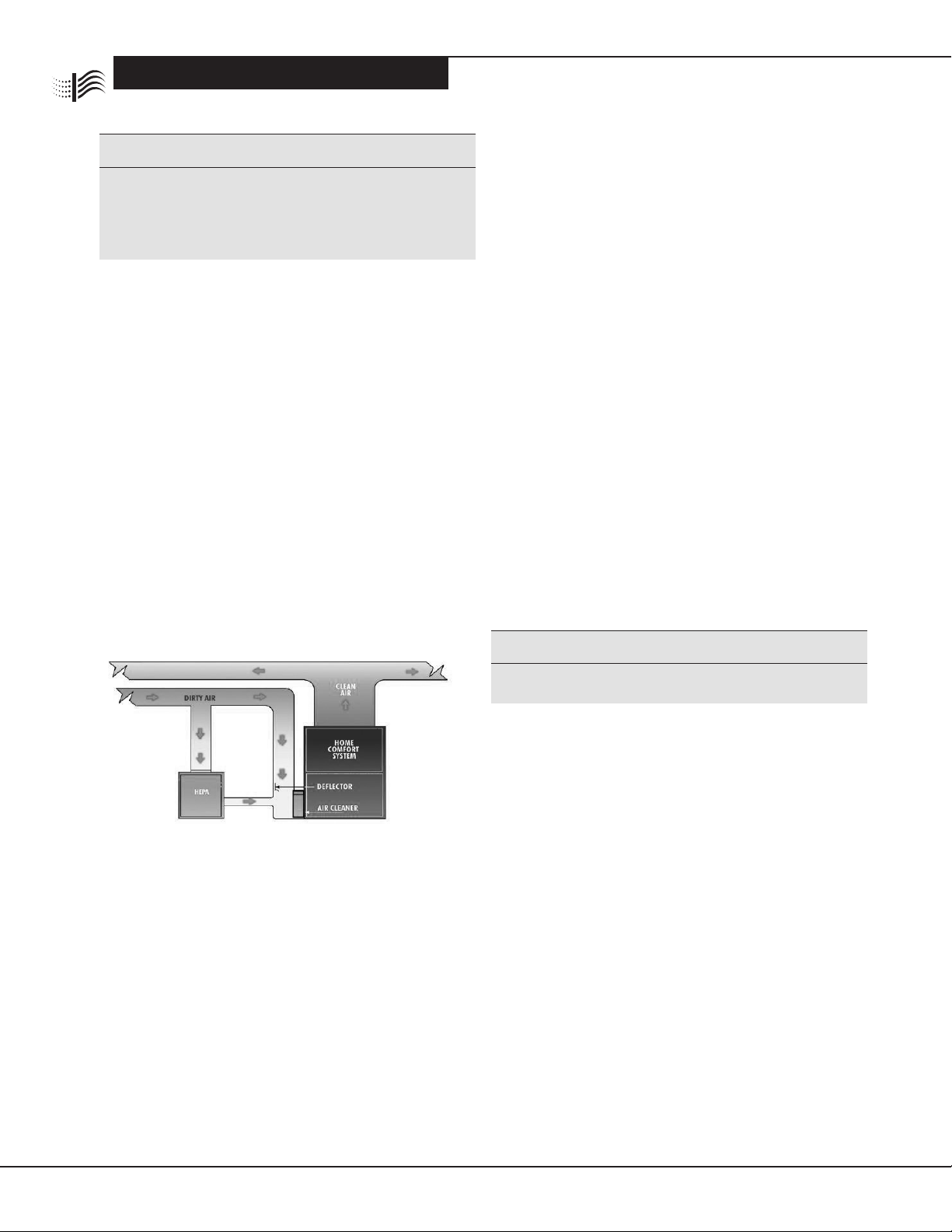

How It Works
Return air ducts of heang and cooling systems carry airborne
parcles back to the heang and cooling equipment of the
home. Here the parcles can be captured by the air cleaner’s
HEPA lter.
This AMHP-245 air cleaner uses a mul-stage air treatment
process:
1. Preltraon, using an odor absorbing acvated carbon
VOC lter
2. High eciency HEPA ltraon, removing a minimum of
99.97% of all airborne parcles 0.3 microns and larger
3. Posiltraon treatment of odors and Volale Organic
Compounds (VOCs), using an oponal Carbon VOC
Aer Filter (purchased separately)
These two or three stages of treatment help ensure the air
your family breathes is fresh, clean and comfortable.
Although the AMHP-245 only treats a poron of your
home’s air at a me, on average it can treat all the air in a
2,000 square foot home in just over an hour of operaon
when running connuously on full speed.
The very large collecon surface area of the HEPA lter
(65 ²) ensures a long service life and should be changed
every two-to-three years, based on condions in the home.

FILTRATION
FILTRATION
INSTALLATION
4WWW.CLEANCOMFORT.COM IO-AMHP-245
Location
The HEPA air cleaner should be located as close to the
return air duct as possible. This allows for shorter lengths of
ducng, which helps keep the stac pressure lower. The unit
can be adapted to mount on a wall or be suspended from
the ceiling. Care should be taken to keep the unit away from
an area where there is a possibility of moisture leaking on it.
Ensure there are 36 inches in front of and above the unit to
allow for removing and replacing the lters.
Installation Steps
1. Remove any packaging or plasc from lters before
installing. See Maintenance secon for instrucons
to remove the lters. Cut wire es from lter hold-
down bar.
2. When the unit is shipped, the inlet and outlet collars
are reverse- mounted to prevent damage in shipping.
The collars must be removed and reaached with the
collar ring facing out.
3. An inlet collar is provided on the unit to accommo-
date a length of 8-inch exible duct connected to
the cold air return. The 8-inch inlet must be aached
to the cold air return duct at a locaon ahead of the
clean air outlet from the air cleaner.
4. A duct adapter and a length of 8-inch exible duct are
required to connect the 8-inch inlet collar to the cold
air return duct. When running the exible duct, make
sure that there are no kinks or sharp bends that will
impede the airow to the air cleaner. Secure and seal
all connecons to prevent air leakage.
5. A duct adapter and a length of 6 inch exible duct are
required to connect the outlet collar to the cold air
return of the HVAC system. The outlet exible duct
should be aached to the return air duct, close to
the furnace. The ideal locaon is low on the return
air boot poinng towards the furnace. To prevent air
shear inside the duct, it is recommended that you
install a deector inside the boot, so the discharged
air is deected down into the boot. When running
the exible duct, make sure that there are no kinks
or sharp bends that will impede the airow from the
unit. Secure and seal the hose and connecons to
prevent air leakage.
6. It is important to maintain some distance between
the inlet and the outlet connecons to the return
air duct. Failure to do this may result in short cycling
between the inlet and the clean air discharge. It is
recommended you leave at least 6 feet between the
inlet and the outlet connecons for the air cleaner to
work eecvely. If the distance is smaller than 6 feet,
it is important to install an air deector in the duct.
7. If outside air is introduced into the return air duct,
either through an HRV / ERV (Heat or Energy Recovery
Venlator) or by a direct venlaon duct, it should enter
the return duct upstream of the inlet to the air cleaner.
Operating Instructions
The HEPA air cleaner is designed to run connuously
to provide clean, ltered air 24 hours a day. The fan
on the heang/cooling system should be set to
‘connuous’ operaon.
Note: If the system fan is set to `automac’ operaon,
it is recommended the HEPA air cleaner be operated
through an air proving switch or relay to turn the air
cleaner OFF, when the system fan is not running.
The unit plugs into a regular 120 VAC outlet and is
controlled by a switch located on the rear panel,
near the power cord.
Note: Do not allow the cord to be placed where it may be
walked on, or allow anything to roll over it. The top cover
must be secured for the air cleaner to operate. All lters
must be in place for the unit to operate properly.
iCAUTION!
This unit must be installed on the return air side of the
system only. Do not connect to supply side.
Do not install in a cooking area or connect directly to
any appliance.
iCAUTION!
Never use the unit without all of the lters in place.

FILTRATION
FILTRATION
MAINTENANCE
IO-AMHP-245 WWW.CLEANCOMFORT.COM 5
Maintenance
For ecient operaon, the lters must be changed on a
regular basis. Check the lters if you noce a reducon in
airow from the system.
1. To access the lters, turn the air cleaner OFF at the
switch and remove the front door.
2. Release the lter hold-down bar by pulling it forward
one side at a me.
3. Carefully remove lters to avoid spilling of collected
parculates. Dispose of lters in a plasc bag and
discard with regular household trash.
4. Remove plasc from new lters before installing.
Discard plasc safely. Take care not to damage
the lters.
5. Write the date on the replacement lter in the
space provided.
6. Place the Carbon VOC prelter around the HEPA lter
and secure with the Velcro provided.
7. Ensure the open end of the HEPA lter is toward
the motor.
8. Replace the lter hold-down bar by placing one side
under the bracket on the side of the cabinet. Once you
have one side started, force the bar under the bracket
on the other side of the cabinet. This insures the lter
has a good seal.
9. Use genuine replacement lters only. Contact your
HVAC service contractor for these parts.
iWARNING!
Make sure to turn the air cleaner OFF before performing
any maintenance or removing any components.
Replacement Parts
Note: When the lters are new, you may noce a new
smell from the system. This is normal and will dissipate
within a few hours.
Carbon VOC Prelter (Part #AMP-W3-0855):
Replace every three-to-six months, based on condions
in the home. If there are heavy odors in the home from
cooking, smoking, painng or other sources, the lter
may require changing more oen.
True HEPA Filter (Part #AMP-W3-0840):
Replace every two-to-three years, based on condions
in the home. The life of this lter depends on the
amount of parculates in the air and the frequency
with which the prelter has been changed. Renova-
ons in the home that create sawdust, drywall dust or
similar parculates will shorten the life expectancy of
the HEPA lter.
Note: NEVER aempt to extend the life of the HEPA
lter by vacuuming it.
Note: Handle the HEPA lter by the frame only.
The paper is fragile and a puncture or tear will
reduce eciency.
Carbon VOC After Filter (optional)
(Part #AMP-W3-0810):
This lter is posioned inside the HEPA lter, and
should be replaced every six-to-twelve months based
on condions in the home. If there are heavy odors
in the home from cooking, smoking, painng or other
sources, the lter may require changing more oen.

FILTRATION
FILTRATION
SPECIFICATIONS
6WWW.CLEANCOMFORT.COM IO-AMHP-245
AMHP-245
Dimensions (L x W x H) 18 x 18 x 19 [45.7 x 45.7 x 48.3 cm]
Inlet 8 in [20.3 cm]
Outlet 6 in [15.2 cm]
Unit Weight 38 lbs [17.4 kg]
Input Voltage 120 VAC, 60 Hz
Power Consumpon 70 W
Airow 245 CFM [417 m³/hr]
Power Cord 9.0  [2.7 m]
Filter Dimensions
Carbon Prelter 47 x 7½ x ¼ in [119 x 19.1 x 0.63 cm]
HEPA Filter 8 (H) x 14¼ (Dia) x 2⅜ in [20.3 x 36.2 x 6.0 cm]
Carbon VOC Filter (oponal) 26⅝ x 7½ x ½ in [67.6 x 19.1 x 1.3 cm]
Collecting Surface Area
Carbon Prelter 2.45 ² [0.23 m² ]
HEPA Filter 65 ² [6.04 m²]
Carbon VOC Filter (oponal) 1.39 ² [0.13 m²]
Whole Home Air Changes / Day
1500 ² home 30 air changes/day
2500 ² home 18 air changes/day
Operating Sound level 54 dB

FILTRATION
FILTRATION
IO-AMHP-245 WWW.CLEANCOMFORT.COM 7
NOTES:

CLEAN COMFORT™ HEPA AIR CLEANER
LIMITED FIVE YEAR WARRANTY
This Clean Comfort™ product is warranted by Daikin
North America LLC (“Daikin”) to the original owner to be
free from defects in material and workmanship, under
normal use and maintenance, within its listed capacity,
for a period of ve years from the date of purchase,
except however, for the Carbon VOC Prelter, HEPA
Filter and Carbon VOC Aer Filter, which will have to be
replaced from me to me depending upon the use. This
Clean Comfort™ product must not have been moved
from the site of original installaon. Daikin’s exclusive
obligaon, and the owner’s sole remedy, under this
warranty shall be for Daikin to supply, without charge
through a Daikin authorized service dealer, a replacement
for any covered part of the Air Cleaner which is found to
be defecve and is returned by the owner or a qualied
servicing Daikin dealer prepaid, together with the serial
number, date of installaon, and proof of purchase. If the
date of installaon is unknown, Daikin will guarantee the
unit for a period of sixty (60) months from the date of
manufacture listed on the product’s rang plate. Any part
replaced pursuant to this warranty is warranted only for
the unexpired poron of the warranty term applying to
the original part.
THIS WARRANTY DOES NOT COVER ANY LABOR OR
OTHER COSTS incurred for diagnosis, repairing,
removing, installing, shipping, servicing, or handling
of either defecve parts or replacement parts.
LIMITATIONS – THE EXPRESS WARRANTY CONTAINED
HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES.
IMPLIED WARRANTIES INCLUDING WARRANTIES OF
MERCHANTABILITY ARE LIMITED TO THE DURATION OF
THE WARRANTY DESCRIBED HEREIN. THE EXPRESS WAR-
RANTY MADE HEREIN MAY NOT BE ALTERED, ENLARGED,
OR CHANGED BY ANY DISTRIBUTOR, DEALER OR OTHER
PERSON WHATSOEVER.
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR THE
BREACH OF ANY WARRANTY, WHETHER EXPRESS OR
IMPLIED, FOR ANY OTHER CONTRACT BREACH, OR FOR
NEGLIGENCE OR OTHER TORT, INCLUDING BUT NOT
LIMITED TO LOSSES OF PROPERTY ARISING OUT OF THE
FAILURE OF THIS EQUIPMENT TO OPERATE FOR ANY
REASON WHATSOEVER, ARE EXCLUDED.
Some states and provinces do not allow limitaons on
how long an implied warranty lasts or the exclusions
of consequenal or incidental damages, so the above
limitaons and exclusions may not apply to you.
This warranty gives you specic legal rights and you
may also have other rights which vary from state to
state or province to province.
DAIKIN WILL NOT BE RESPONSIBLE FOR:
1. Normal maintenance including replacement of the
Carbon VOC Prelter, HEPA Filter and Carbon VOC
Aer Filter as outlined in the Installaon and Mainte-
nance Instrucons.
2. Damage or repairs needed as a consequence of
any misapplicaon, faulty installaon, abuse,
improper servicing, unauthorized alteraon, or
improper operaon.
3. Damage as a result of oods, winds, res, lightning,
accidents, corrosive atmosphere, or other condions
beyond the control of Daikin.
4. Parts not supplied or designated by Daikin.
5. Products installed outside the connental U.S.A.,
Alaska, Hawaii and Canada.
Model No.
Serial No.
Date Of Installation
Installed By
Owner’s Name & Address
ATTENTION INSTALLING CONTRACTOR: IF FAILURE
SHOULD OCCUR, DO NOT RETURN PRODUCT TO THE
DISTRIBUTOR.
CALL THE TOLL-FREE HOTLINE [phone].
Daikin North America LLC
351 North Rivermede Road
Concord, ON L4K 3N2
FOR TECHNICAL ASSISTANCE, CALL THE AIR CLEANER
HOTLINE TOLL FREE 1-800-267-8305
Our connuing commitment to quality products may mean a change in specicaons without noce.
© 2015 DAIKIN NORTH AMERICA LLC
Houston, Texas • USA
Email: [e-mail] • 1-800-267-8305 • Fax: [phone]
FILTRATION
FILTRATION
AIR CLEANERS
8WWW.CLEANCOMFORT.COM IO-AMHP-245
