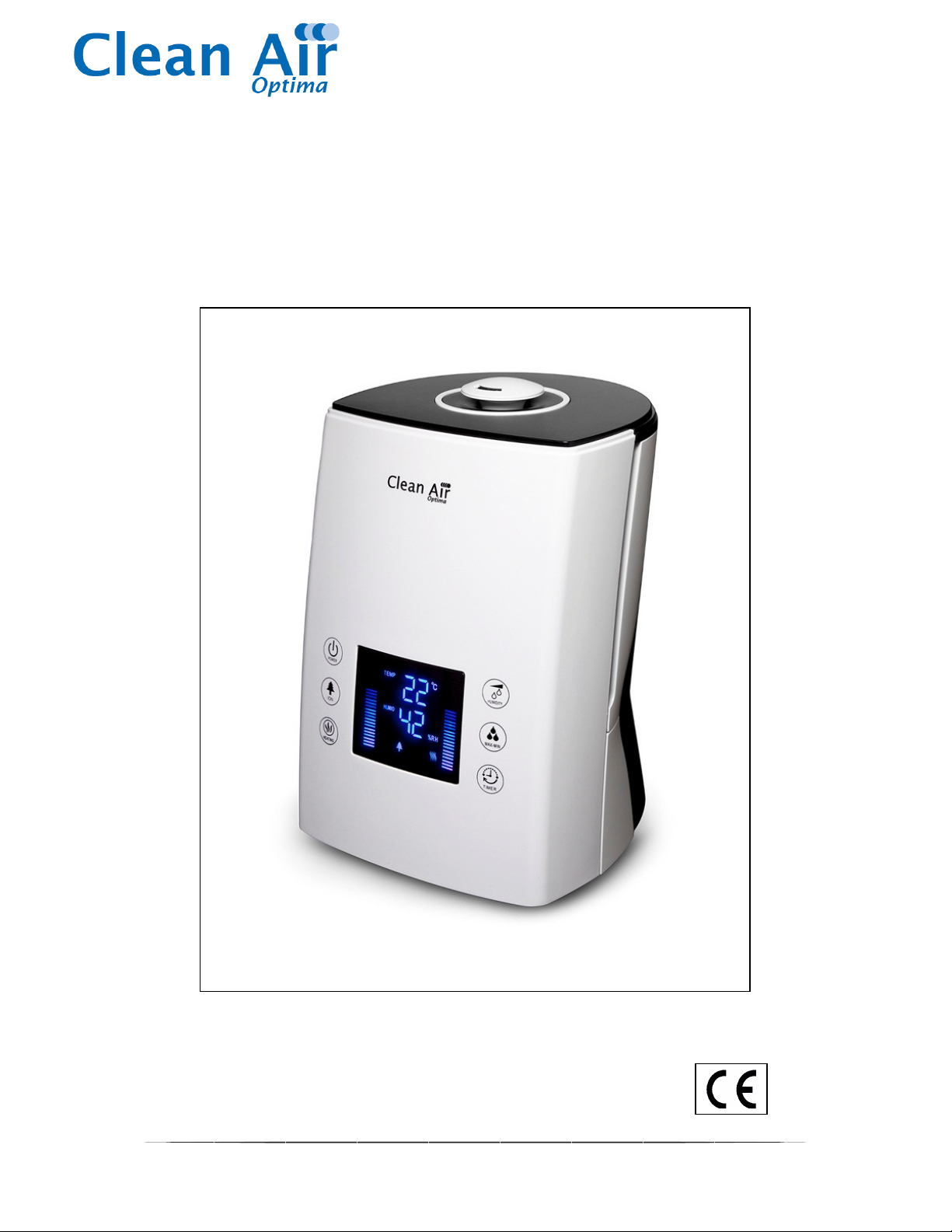

cleanAIR CA-606 User manual

1
Ultrasonic Humidifier
with Ionizer
CA-606
Instruction Manual

2
Thank you for purchasing the innovative Clean Air Optima CA-606 Digital War and Cool Mist
ultrasonic hu idifier with Ionizer.
We wish you any years of healthy indoor air with this efficient and effective product.
Ensure that all safety precautions are followed when using this electrical appliance for the proper
operation of the device. These instructions describe the safety precautions to be observed during
operation. They are designed to prevent injuries or da age to this device.
Safety Precautions
The inner ultrasonic transducer is highly sensitive. Do not touch it with bare fingers or
scrape it with etal tools, or it will reduce ist output. When cleaning this area please use
a s all cleaning brush, cotton swab or tooth brush. Do not use hot water as it ay da age
the isting parts.
Use proper voltage - AC 110~120V 60Hz in Canada/USA; AC 220~240V 50Hz in Europe.
Use of i proper voltage ay cause fire hazard or electric shock.
To prevent electric shock, do not dis antle, repair or odify this product. Maintenance and
cleaning should be followed exactly as instructed in this anual. In the event of a
alfunction, please contact an authorized Clean Air Optima aintenance center.
Do not use in areas where fla able or explosive aterials are stored.
Do not place this device in direct sunlight or near objects that generate high te perature
heat. The heat ay cause defor ation or warping of the outer casing.
Do not use the hu idifier in a roo that already has hu idity levels above 50% relative
hu idity. Excessive hu idity in the roo gives rise to condensation on cold surfaces such
as walls or windows.
Do not operate the unit without water in the basin.
Do not insert foreign objects into the device. Do not touch the transducer or the lower
water basin when the unit is operating. Do not scratch the transducer. Do not touch the
ist output when producing war ist.
Do not sub erge this device in water. Water or cleaning liquids ay only be used on parts
to be cleaned according to the cleaning and aintenance instructions.
Only use li e scale re over or vinegar to clean ineral deposits fro the basin or
transducer. Do not use any harsh detergents that ay da age the unit.
If you s ell an abnor al odour, please turn off and unplug the unit and call Clean Air
Optima technical support.
Clean and dry the device before storage (including the re oval of all water fro the inside
of the device). Store the achine in a cool and dry place outside the reach of children.
Do not use fabrics or other aterials to cover this device. Obstructed air inlets and outlets
will result in i proper operation of this unit and ay result in fire or other da age.
To prevent interference and da age to other electronic devices, this achine should be
placed at least 1 eter away fro a co puter, television, radio or other electronic
equip ent.
The ultrasonic hu idifier should be cleaned regularly for proper operation and long life. See
cleaning instructions.
The high frequency vibrations cannot be heard by hu ans or ani als, and are co pletely
safe.
For safety reasons and to prevent fire or electric shock, unplug the power cord fro the
electric outlet socket whenever you:
-Do not use the device for a long period of ti e.
-Re ove the tank, clean or service the achine or the per anent filter.
-Move or transport the device.
If the power cord is da aged, then it ust be replaced by an authorized service person to prevent
electric shock or fire.

3
The device can be controlled by six Buttons located on the front of the control panel next to the display.
The Clean Air Optima CA-606 is equipped with a very useful re ote control. The re ote control duplicates
the six button control panel just next to the hu idifier’s LCD display. You can activate the re ote control by
re oving the protective fil fro the battery area located at the botto edge of the unit just below our logo.
Major
components of CA
-
60
6
1. Output Jet
2. Top cover
3. Water Tank Handle
4. 5L (1.32 gal) Water Tank
5. Per anent Reusable White Dust & Anti-
Microbial Filter
6. Water Tank Lid and Seal / Water Tank
Opening for Filling
7. Water Level Sensor
8. Lower Body and Basin
9. Power Light
10. Transducer
11. Front Panel / Control Buttons
12. Digital Display
15. Power - Switches the humidifier on/off
16. Humidity - Sets desired humidity level from 45% to 90%
relative humidity
17. Max/Min - Sets mistin spray level to low, medium or hi h
18. Timer - Sets the timer to operate the humidifier from 1
to 12 hours
19. Heatin - Switches warm mist on/off
20. Ion - Switches ne ative ions on/off

4
The LCD display shows the nu eric values for te perature and relative hu idity and the length of
ti e re aining on the ti er. It also displays the icons used to indicate other hu idifier functions.
LCD Display
21. Mist volu e indicator (low, ediu and high) 25. War ist on/off icon
22. Power on/off icon 26. Displays the te perature ( argin of about 2-5 degrees
difference fro the roo te perature) /
23. Negative ions on/off indicator icon Ti er setting
24. E pty water tank indicator icon 27. Shows values for both the desired relative hu idity
and the actual relative hu idity
The Clean Air Optima CA-606 is equipped with a Permanent Reusable White Dust & Anti-
icrobial Filter. It consists of an inner cylinder, an outer cover and a nu ber of s all plastic and
cera ic balls. The plastic balls are e bedded with nano-silver, an anti- icrobial agent designed to
purify the water and destroy icrobes such as bacteria and ould. The cera ic balls function to
soften the water by adhering to inerals that cause white dust. They also serve to re ove any
unpleasant odour fro the water. The filter requires cleaning about once a onth or 1,000 hours of
use. See the aintenance section of ore infor ation.
OPERATING INSTRUCTIONS

5
Operating Instructions
Before getting started, please re ove the Clean Air Optima CA-606 fro its box and allow it to
beco e accusto ed to the roo te perature for at least 30 inutes especially if the achine is
cold fro the outside air. The CA-606 is designed to operate at te peratures between 5 -40 ºC
and relative hu idity of less than 80%.
To get started, grasp the water tank by the handle at the top and lift fro the base. Next, flip the
tank over and unscrew and re ove the water tank lid and filter.
Then place the water tank under the faucet for filling, grasping it fro the handle under the water
tank. Fill the tank with tap water (or other clean water source with water te perature under 40ºC),
re-insert the lid and filter. Flip the water tank once again until it is on the right side up. Ensure that
the basin is clean and then carefully place the water tank back on the lower body.
Wait a few seconds until the water tank lid starts to release water into the basin. You will hear a
bubbling sound as the air enters the water tank. Plug the power cord into the electrical outlet
(NEVER SWITCH ON THE HUMIDIFIER WITHOUT WATER IN THE BASIN). If the hu idifier is
switched off, the power icon should now be red and the values for te perature and hu idity will
now be displayed.

6
Press the Power Button to activate the hu idifier. The achine is now operating in anual ode.
It will release cool ist on a constant basis with the ist intensity level auto atically set to
ediu . The jet at the top of the achine can be rotated to blow ist in different directions. You
ay also lift the jet fro the water tank, adjust the positions and reinsert the back into the top
of the water tank. The output jets should not be set to spray directly onto people, electrical devices
or any obstructions. It is best to direct the jet into the open air.
The in/ ax Button changes the ist level (low, ediu , high). This change is displayed on the
LCD screen by the bars that grow in size.
Pressing the Humidity Button activates auto atic ode (when the LCD display starts to blink the
word “HUMID”). You can select the desired hu idity level by pressing this button repeatedly until
the required hu idity level is displayed (fro 45% to 90% in incre ents of 5%). Once you select
your desired hu idity level, si ply stop pressing the button and your hu idity level will be set.
Wait another 5 seconds and the nu eric value on the LCD display will switch to the current
hu idity level as easured by the built-in Hygrostat. When the hu idity level in the roo reaches
the set hu idity level, the achine will go into auto atic sleep state and stop producing ist.
When the roo ’s actual hu idity level drops below your set hu idity level about 1-5%, then the
achine will start producing ist again.
You can deactivate auto atic ode very easily by pressing the hu idity button until you reach
90% RH. Press the button one ore ti e and you will now be in anual ode. You will know that
you are in anual ode because the blinking “HUMID” icon disappears.
Pressing the Ion Button will activate the negative ion generator and start sending healthy
negative ions into the air. It will be represented by the tree icon displayed on the LCD screen.
The Heating Button activates the war ist feature and is shown on the LCD display with three
wavy vertical lines. The water is heated in the basin just prior to isting. Please do not place your
hand over the jet when the war ist function is activated. The war ist ay raise the
te perature of the roo and ay affect the values shown on the display.
The Timer Button sets the ti er. The ti er function deter ines how any hours the hu idifier
will operate. You can set the ti er si ply by pressing it once for each hour that you would like to
run the unit. Many people set the ti er for 8-9 hours (during their sleep) but it can be set fro 1
hour to 12 hours. As ti e passes, the ti e value decreases until it goes to 00:00 and the achine
shuts off.
If the hu idifier should run out of water, you will hear a beeping sound before the achine will
auto atically shut off. The LCD screen will display the Empty Water Tank icon.
The bright LCD display is designed to auto atically di after 30 seconds of pressing any of the
LCD panel buttons. The power light is also di ed because the water tank is tinted. The result is a
soft blue glow. The light levels are bright enough to indicate that the achine is operating, yet low
enough to ensure a restful sleep in near darkness.

7
Troubleshooting
The following is a troubling shooting guide to help you solve any issues that you ay have with the
operation of the Clean Air Optima CA-606.
TROUBLESHOOTING
Possible reasons
Trouble Possible reasons Solution
Power icon is off or does not Hu idifier not plugged into the Connect power cord to electrical
work. power outlet. outlet and press power button.
Power light is on but no ist. No water in water tank. Fill water tank with water.
The ist has a strange odour. A new achine. Re ove the water tank, unscrew
the lid and let it air out in a cool
area for 12 hours.
It either has dirty water or the water Clean the water tank and refill
has been stagnant too long. with clean water.
Power light is on, but the Too uch water in the water basin. Re ove the water tank. Take a
achine doesn’t work. s all cup and re ove so e of
the water fro the achine’s
water basin. Reinsert the water
tank and ake sure that it sits
properly.
The volu e of spray ist is too Too uch ineral scale in the water Clean transducer.
low. basin.
Water is too dirty or water was kept too Clean the water tank and refill
long in the tank. with clean water.
Abnor al noise Vibration in the water tank because Fill the water tank.
the water level is too low.
Machine is on an unstable surface. Move the unit to a stable flat
surface.
Spray ist is co ing out of the There are gaps between the housing Re ove the jet nozzle fro the
area around the jet. around jet nozzle and the top of the top of the water tank and clean
water tank. with a da p cloth. Reattach to
the water tank.
The following is not considered faulty operation:
If your water is very hard (containing abnor ally high levels of inerals) the hu idifier
ay produce white dust. This is not a alfunction. The solution would be to clean the
filter ore often or use softer water.
If you stand very close to the hu idifier, you will hear the gurgling sound of water. This
is nor al.
The achine operates very quietly but it is not co pletely silent. Noise levels less than
25 db is considered nor al.
WARNING!
If the above recommended solutions do not work, please contact Clean Air Optima technical
support at the telephone number for your region. Do not attempt to disassemble, repair
and reassemble the machine as it may void the warranty.
TROUBLESHOOTING

8
Cleaning and Maintenance
You can ensure any years of trouble free operation of your Clean Air Optima CA-606 hu idifier
by following a few si ple aintenance procedures. If your water is hard, containing high
concentrations of calciu and other inerals, then over a period of ti e white dust will start to
deposit on the various surfaces in the roo . A white, fil -like substance will also start to develop
in the water basin, on the transducer and on the inner surface of the water tank. This white fil
will i pede the proper function of the transducer and the operation of the achine.
We recommend the following
1. If your water is very hard, we reco end that you boil it first, allow it to cool co pletely
before use in the hu idifier. The boiling will reduce the ineral concentration in the water.
The other option is to use distilled water if your ineral level is still too high.
2. If you are using the achine on a daily basis, clean the transducer, water tank and basin
once a week.
3. When the water tank needs a refill, e pty the re aining water fro the tank and fill it with
fresh water.
4. Clean the whole achine and ake sure to keep all the parts co pletely dry when the
achine is not in use.
How to clean the transducer
1. Place 5-10 drops of vinegar on the surface of the transducer and wait for 2-5 inutes.
2. Using a s all brush, cotton swab or tooth brush, gently clean the ineral fil fro the
surface of the transducer.
3. Rinse the transducer with clean water.
4. Never use sharp or solid objects for cleaning the transducer
How to clean the water basin
1. Clean the water basin with a soft da p cloth. If there is excess fil on the surfaces, then
soak the cloth with vinegar and repeat the process.
2. If there is a fil in any of the depressions along the basin, drop a bit of vinegar into
depression and clean it out with a brush.
3. Rinse the basin with clean water.

9
How to clean the White Dust & Anti- icrobial Filter
1. Re ove the filter fro the water tank.
2. Put so e white vinegar into a glass. Soak the filter in the vinegar for about 10 inutes.
3. Re ove the filter fro the glass and shake it several ti es.
4. Clean and rinse the filter once again with fresh water.
If you don’t plan to use the hu idifier for a long ti e, re ove the filter fro the water tank and let
it dry thoroughly. Then wrap it in protective packaging and keep it next to the hu idifier in a cool,
dry and dark storage space.
How to change batteries in the remote control
1. Flip the re ote on its side.
2. Press the battery release on the botto edge of the re ote.
3. Grasp the battery socket and pull the battery out.
4. Replace battery with Lithiu battery CR2025.
Why hu idify the Air?
When the air is dry, especially in the winter onths, it can beco e unpleasant and even unhealthy,
leading to increased levels of static electricity, dry skin, cracked lips and even noise bleeds.
Opti al hu idity is between 45 to 55% relative hu idity. During the winter onths though,
relative hu idity in the average ho e can drop to below 20%. Low hu idity can lead to a variety
of conditions that cause ill health. Dust particles, bacteria, viruses, dust ite feces that are
nor ally trapped by the oist nasal e brane lining in the nose can ore easily get into the
lungs when the air is dryer and thus reduce the body’s natural defence echanis . These invaders
overload the i une syste and irritate the ucous e branes resulting in ore coughing and
susceptibility to disease. The Clean Air Optima CA-606 is an ideal ultrasonic hu idifier for
ho es, apart ents, offices and anywhere where is low hu idity. Ultrasonic water vapour is highly
beneficial to individuals. Their biggest advantage is high perfor ance co bined with low energy
consu ption.
Do not use additives
Water additives (e.g. essential oils, fragrances, water conditioners etc.) ust NOT be used! Even a s all
a ount can cause da age to the tank aterial. The aterial is not suitable for the use of such additives. One
drop is enough to da age the tank and render the appliance unusable. Appliances that are da aged by such
additives will not be covered by the anufacturer’s warranty.

10
The ajor benefits
• Air hu idification and air purification, refreshes and i proves indoor air quality
• 2-in1: Hu idification & Purification Syste !
• Per anent cera ic / nano-silver filter: no replace ent filters needed!
• Four functions: Hu idification ay be cool or war / with or without air purification
• Built-in digital hygrostat and adjustable output control give controlled hu idification
• Mini u hu idity setting 45%, Maxi u 90%
• Target hu idity can be regulated on the appliance
• Built-in Ionizer purifies the air additionally and provides fresh air
• 360° Rotatable jet for broader spray mist coverage
• Operable with infrared re ote control or buttons near the display
• With LCD display and ti er control for up to 12 hours of operation
• Vitually silent operation ensures a quiet and restful sleep
• The ultrasonic is hygienically flawless if cleaned regularly and the
cera ic/nano-silver cartridge is cleaned as indicated
• Per anent, easy to clean cera ic nano-silver filter for control
of white dust, ould and bacteria
• Safely and auto atically shuts off when it runs out of water
• Low water indicator notifies when to refill the tank
• Large capacity water tank (5L/1.32 US gallons) easy refills with nor al tap water
• Runs up to 7 nights or 60 ours without refilling (low setting)
• Save oney. No wicks or filters to replace!
• Low power consu ption
Applicable for small and larger rooms up to 699 ft² / 65m² / 60m³
Benefits of proper hu idification
• reduces disco fort, tiredness, sickness
• reduces susceptibility to colds
• reduces chapped lips, dry, red eyes and dry, itchy skin
• helps to feel and sleep better
• can help you recover sooner fro a cold
• reduces da age to wooden objects
• reduces the negative effect of dry air on usical instru ents
• reduces static electricity charge
• helps to keep your voice tuned
Benefits of ionisation
Ionised air strengthens our defence syste s and our vitality and ionisation purifies the air by
reducing the particles, icro-organis s, viruses & allergens!
Product specifications

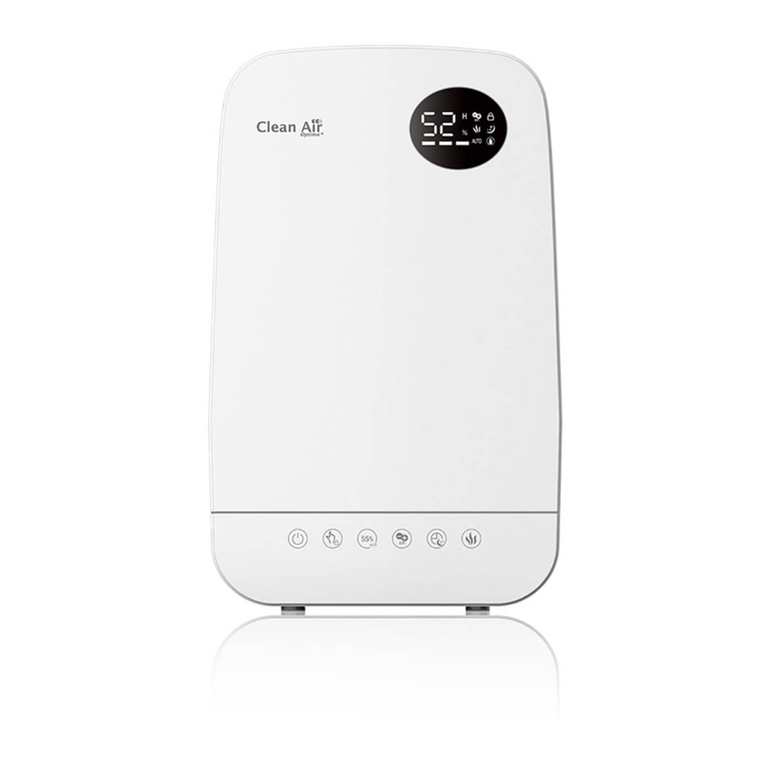

• Type: Clean Air Opti a CA-606
• Ultrasonic hu idifier for hot or cold ist capacity
• Mist Evaporation Rate: Low 120 l / hr - High 480 l / hr
• Negative Ion Output: 3.000.000/c ³ (49.161.000/inch³)
• Active oxygen <0.05 pp
• Water tank capacity 5L (1.32 US gallons)
• Very low noise level <25 dB
• Di ensions (LxWxH) 23 x 23 x 34 c
• Weight: 3,4kg dry
• Color: White - Water tank black
• Energy consu ption only 30 watts for cold - 130 watts for war ist
• Power supply 220 - 240V, 50/60 Hz

11
At the end of the product life cycle, you should not throw this machine into the normal household garbage but
bring the product to a collection point for the recycling of electrical and electronic equipment.
WARRANTY CERTIFICATE FOR THE Clean Air Optima
CA-606 ULTRASONIC HUMIDIFIER with Ionizer
Date of purchase: ………………………………………………………………………………………………..
Customers name: ………………………………………………………………………………………………..
Address: …………………………………………………………………………………………………………..
Telephone: ………………………………………………………………………………………………………..
Email: ……………………………………………………………………………………………………………...
Seller’s name: ……………………………………………………………………………………………………
Address: ………………………………………………………………………………………………………….
1. Please fill in co pletely this Warranty Certificate. Send it with the invoice and the unit, postage
pre-paid and using the original packing box, to your distributor. Make sure to include the
appropriate return postage for the package.
2. Please enclose a short description of the da age, fault or alfunction, and the circu stances
under which these proble s arose.
The Clean Air Optima CA-606 is subjected to strict testing procedures before leaving the factory.
If within two years fro the date of purchase the product does not perfor according to the
specifications, because of factory defects, the purchaser is entitled to free repairs or replace ent of
parts upon presentation of this warranty (provided that the alfunction or da age to the device
and/or parts occurred under nor al operating conditions). What is covered: All parts defective in
aterial and work anship. For how long: Two years fro purchase date. What we will do: Repair
or replace any defective parts. Exclusions: Regular replace ent parts such as filter cartridges.
Other Conditions
The provisions of this warranty are in lieu of any other written warranty whether express or
i plied, written or oral, including any warranty of erchantability or fitness for a particular
purpose. The anufacturer’s axi u liability shall not exceed the actual purchase price paid by
you for the product. In no event shall the anufacturer be liable for special, incidental,
consequential, or indirect da ages. This warranty does not cover a defect that has resulted fro
i proper or unreasonable use or aintenance, faulty asse bly, accident, natural catastrophes,
i proper packing, or unauthorized ta pering, alteration, or odification as deter ined solely by
us. This warranty is void if the label bearing the serial nu ber has been re oved or defaced.
Clean Air Service Center
David Ricardostraat 9-9
7559 SH Hengelo (ov)
T e Net erlands
Tel: + 31 (0) 74 - 2670145
Fax: + 31 (0) 74 - 2671789
E-mail: [e-mail]
Internet: www.cleanairoptima.com
