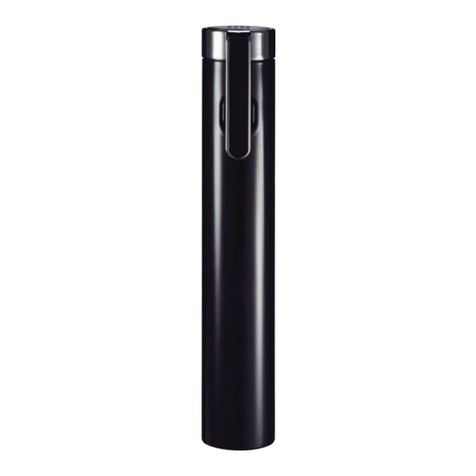

CLEARSCAN CWK-CS-1020 User manual

Portable UV-C Sanitizer

Proven UV-C LED Sanitization Power
99.99% E󽗋cacy rate on COVID-19
(UV-C lamp manufactured
with Clearwin technology)
Portability
Compact and lightweight for portability
Neat Design
Simple and modern design with
essential functions
Safety
Double Lock and timer function for safety
(Option: Motion Detection Sensor)
Semi-permanent Use
Up to 720 times use after 30 mins charging
(20 seconds per use)
Logo printing
1
Promotional Printing
technology applied (since 2015)
Clearwin Korea’s specialized UV-C sanitization

Light Spectrum
Visible rayUVX-ray
100 200 280 320 400 780 (㎚)
Infrared ray
The ultraviolet rays are divided into three types: UV-A, UV-B, and UV-C
UV-C is the only UV ray that can kill bacterias, germs and virus.
UV-C is used for various sanitization purposes such as household and industrial uses.
UV-C is an eco-friendly light that has
99.99% sanitization on microorganisms.
It destroys and alters the structure of
DNA and RNA in living cells.
Clearscan uses UV-C wavelength of 275nm, which has the best ratio for disinfection power
with current technology.
AfterBefore
Incoming
UV Photon
DNA & RNA structure destruction
2
UV-C SANITIZATION

Essencial for current quarantine
3 seconds
of Clearsan
PC peripheral Accessory Mobile device
Mask Bill
At school, O󽗋ce, Home and Outdoor
Personal items
Elevator button Mart Restaurant
Public Transportation Handle
Used at mall, restaurants and Public Transport
Public goods / Multiple facilities
3
APPLICATION

Clip
Charge indicator
UV-C LED
Operation indicator
Power
button
Charging port
Model
Total LED Output
Lamp Life Span
Battery Capacity
Wavelength
CWK-CS-1020
UVC 21.6㎽
10,000 Hr
3.7V 230㎃
UVC 275㎚
126㎜ / 26g
UVC 7.2㎽
DC5V/MAX 500㎃
MICRO USB 5PIN
-10~55℃
Length / Weight
LED output / EA
DC Input
Input Interface
Operating
Temperature
126mm
20mm 15mm
4
SPECIFICATION

Push the clip of Clearscan upward and pull out
the inner body untill it can no longer
be extended.
1
Press the On/O󽗈 button
for 1 second to turn on the device.
Single operation will last for 20 seconds
and will shut down itself imediately after.
2
Position the lamp 1~2cm away from
the desired object to sanitize.
Turn on the device to start sanitizing.
(Be wary of UV exposure.)
3
To turn the device o󽗈
at any moment of operation,
press the button again.
4
5
OPERATION
PRECAUTIONS
(1) Do not expose body parts directly to UV-C
(2) Do not look directly into the lamp light.
(3) Keep away from children.
