ClearView SD4250 User manual

SD ENCODER AND
MODULATOR YPbPr TO
DVB-T DIGITAL RF
SD4250
USER MANUAL
All-in-one encoder and modulator for dual SD source. Allows 4 sets of Audio/Video source to be extended
throughout a traditional coaxial by encoding the SD service to MPEG2 and distributing this service using the DVB-T
standard used in Europe, Australia and New Zealand.
Features
Support 4 component video inputs
Support MPEG2 video encoding
Support MPEG1 Layer 2 audio encoding
Support 480i/576i video format
DVB-T RF output
Support LCD / buttons operating, and Network Management System

PRODUCT INTRODUCTION
1. LAN port for remote upgrade or setup.
6. Grounding: to connect the earth cable
2. LCD Display
7. AC 110-240V: power input
3. Indicators
8. RF out: to distribute modulated signal
4. Control Buttons
9. RF in: to combine input RF signal
5. RF Signal test port
10. Component video input supporting PAL and NTSC
Technical Specifications
Encoding Section - Video
Encoding
MPEG2 MP@ML
Interface
YPbPr*4
Resolution
720×576_50i (PAL); 720×480_60i (NTSC)
Bit rate
4.000-12.000 Mbps
Encoding Section –Audio
Encoding
MPEG 1 Layer ll
Interface
Stereo *4
Bit Rate
128, 256, 384 kbps
Modulator Section
Standard
DVB-T COFDM
Bandwidth
6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/32, 1/16, 1/8, 1/4
Transmission mode
2K, 8K
MER
>38 dB
RF frequency
50~860MHz
RF output level
80~95dBuV

Technical Specifications
System
Management
Local control: LCD + control buttons/ Remote: LAN (RJ-45) port setting
Language
English
LCN Insertion
Yes
Upgrade
LAN (RJ-45) port setting
General
Power
AC110-240
Dimensions
440*280*44mm
Weight
< 2.5 kg
Operation temperature
0~45 ℃
SAFETY INSTRUCTION
Safety Technical Specifications
WARNING: Hot plug is not allowed since it may cause system failure.
To prevent fire or electrical shock,do not expose the device to rain or moisture.
The encoder modulator is powered with a voltage of 110 V to 240 V AC.
The power supply voltage must not exceed the recommended voltage, which otherwise may cause irreparable
damage to the device and the invalidation of the warranty.
Therefore:
•Do not replace power supply with a voltage greater than 110 V to 240 V AC
•Do not connect the device to the power if the power cord is damaged.
•Do not plug the device into mains supply until all cables have been connected correctly.
•Do not cut the cord.
Avoid placing the device next to central heating components and in areas of high humidity.
Do not cover the device with elements that obstruct the ventilation slots. If the encoder modulator has been kept in
cold conditions for a long time, keep it in a warm room minimum 2 hours before plugging into the mains. Mount the
device in vertical position with the connectors located on the top side. When replacement parts are required, be sure
the service technician has used replacement parts specified by the manufacturer or have the same characteristics as
the original part. Unauthorized substitutes may result in fire, electric shock or other hazards.
Safety check- Upon completion of any service or repairs to this device, ask the service technician to perform safety
checks to determine that the device is in proper condition.

Installations
RISK OF damage to the unit
Mechanically handling the unit may result in damage.
Do not connect the unit to the power supply before or during assembly.
Connect the unit as below instructed.
NO HOT PLUG!
1. Connect cables to audio/video source. The signal source can be from a surveillance monitor, DVD, set-top box,
CCTV and etc.
2. Optionally, connect the loop-through RF input coaxial cable.
3. Connect cable to RF output to STB/TV.
4. Power supply connection:
a) Connect the power plug to the unit mains connector;
b) Connect the power plug to the mains socket.
5. Connect the earth cable.

SD4250
CH-Num:33 RF:564.50
RF Output
1.1.
Set RF Output
1.2. Retrieve
Status
Video
2.1. Set Video
2.2. Tune Color
2.3. Retrieve
Status
Audio
3.1.
Sample Freq.
3.2.
Encoder 1
3.3.
Encoder 2
3.4.
Encoder 3
3.5.
Encoder 4
Stream
4.1.
Prog. Name
4.2. LCN
4.3. PID
4.4. NIT
4.5. PDS
4.6. TS ID
4.7. Retrieve
Status
System
5.1. Retri_
Inventory
5.2.
Power offset
5.3.
Save Config
5.4. System
Reset
5.5. IP Address
5.6.
Retrieve IP
Device Operations and Management
SD4250 is controlled and managed through the control buttons and LCD display.
LCD Display - It presents the selected menu and the parameter settings. The backlight in the display is on when
the power is applied.
LED - These lights indicate the working status
•PWR: It lights on when the power supply is connected.
•ENC1, ENC2, ENC3, ENC4: It lights on when the signal source input.
Left/Right/Up/Down buttons -Use these buttons to turn the screen pages, change the parameter settings in the
program mode.
OK buttons -Use this button to enter a submenu or save a new setting after adjustment; press it to start adjusting
the value of certain items.
EXIT buttons - Use this button to move to the previous page.
1.1Menu

1.1.1 Power Up Display
After power up, the LCD shows as below:
1.1.2 Quick Setup Display
You can setup some basic parameter to make device work. You just need to press the left key to enter quick setup
display. This display shows as below:
1.1.2.1 Country
Move the cursor to “Country” and enter into it. Then it shows as below (Press ‘up or down’ key to select, then press
the ‘enter’ key to confirm):
1.1.2.2 Frequency
Move the cursor to “Frequency” and enter into it. Then it shows as below (Press ‘up or down’ key to select, then press
the ‘enter’ key to confirm your channel):
1.1.2.3 RF Output Level
Move the cursor to “Frequency” and enter into it. Then it shows as below (Press enter key to confirm setup, press right
or left or up or down key to change the output level, then press the ‘enter’ key to confirm the output level):
1.1.3 Main Menu Display
Main menu display shows all setting that allows user to operate. Press Enter, then press Exit to enter main menu
display. The menu shows as below:
1.1.3.1 RF Output
Move the cursor to “RF Output” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select,
then press the ‘enter’ key to enter):
SD4250
CH-Num: 33 RF: 564.500
1. Country
1. Country
New Zealand
Australia
Europe
2. Frequency
CH-Num: 33 RF: 564.500
3. RF Output Level
90.0dBuV(80-95)
1. RF Output
1.1. Set RF Output
2. Frequency
3. RF Output Level
2. Video
3. Audio
4. Stream
5. System
1.2. Retrieve Status

1.1.3.1.1 Set RF Output
Move the cursor to “Set RF Output” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to
select, then press the ‘enter’ key to confirm):
1.1.3.1.2 Retrieve Status
Move the cursor to “Retrieve Status” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to
view, there just show the default value):
1.1.3.2 Video
Move the cursor to “Video” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
1.1.3.2.1 Set Video
Move the cursor to “Set Video” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to view,
there just show the default value):
2.1. Set Video
1.1.1. Country
New Zealand, Australia
Europe
1.1.5. Constellation
64-QAM, QPSK,
16-QAM
1.1.7. Guard Interval
1/32, 1/16, 1/8, 1/4
1.2. Retrieve Status
Country: Australia
Frequency: 564.5.00
Output Level: 90.0
FFT: 8K
Constellation: QAM64
FEC: 7/8
Guard Interval: 1/32
I/Q Swap: disable
2.1.1. Encoder 1
2.1.1.1. Multiplexing
Yes, No
2.1.2. Encoder 2
(Sub menu same as Encoder1)
2.1.3. Encoder 3
(Sub menu same as Encoder1)
2.1.4. Encoder 4
(Sub menu same as Encoder1)
2.1.1.3. Video Mode
AUTO, NTSC,
PAL
1.1.2. Frequency
CH-Num: 33 RF: 564.500
1.1.3. RF Output level
90.0dBuV(80-95)
1.1.4. FFT
2K, 8K
1.1.6. FEC
1/2, 2/3, 3/4, 5/6, 7/8
1.1.8. I/Q Swap
OFF, ON
2.2. Tune Color
2.3. Retrieve Status
2.1.1.2. Video Input
CVBS, YPrPb
2.1.1.4. Encode Bit Rate
6.000 Mbps (2-8)

1.1.3.2.2 Tune Color
Move the cursor to “Tune Color” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to view,
there just show the default value):
1.1.3.2.3Retrieve Status
Move the cursor to “Retrieve Status” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to
view, there just show the default value in each channel):
1.1.3.3 Audio
Move the cursor to “Audio” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
1.1.3.4 Stream
Move the cursor to “Stream” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select,
then press the ‘enter’ key to enter):
2.2.1. Encoder 1
2.2.1.1. Brightness
25 (0-50)
2.3. Retrieve Status
Port:1/AUTO/6.000 Port:3/AUTO/6.000
Port:2/AUTO/6.000 Port:4/AUTO/6.000
3.1. Sample Freq.
48KHz, 32KHz
44.1KHz
3.2.2. Output Bitrate
224Kbps, 256Kbps,
288Kbps, 20Kbps, 352Kbps,
384Kbps, 416Kbps,
448Kbps, 32Kbps, 48Kbps,
56Kbps, 64Kbps, 80Kbps,
96Kbps, 112Kbps, 128Kbps,
160Kbps, 192Kbps
3.2.3. Audio Mode
Stereo, Enhance Stereo
Dual-channel, Single-channel
3.3. Encoder 2
(Sub menu same as Encoder1)
3.4. Encoder 3
(Sub menu same as Encoder1)
3.5. Encoder 4
(Sub menu same as Encoder1)
4.1. Prog. Name
2.2.2. Encoder 2
(Sub menu same as Encoder1)
2.2.3. Encoder 3
(Sub menu same as Encoder1)
2.2.4. Encoder 4
(Sub menu same as Encoder1)
2.2.1.2. Contrast
48 (0-50)
2.2.1.3. Saturation
18 (0-50)
2.2.1.4. Hue
28 (0-50)
3.2. Encoder 1
3.2.1. Coding Type
Layer2,
Layer1
4.2. LCN
4.3. PID
4.4. NIT
4.5. PDS
4.7. Retrieve
Status
4.6. TS ID

1.1.3.4.1 Prog. Name
Move the cursor to “Prog. Name” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to
select, then press the ‘enter’ key to enter):
1.1.3.4.2 LCN
Move the cursor to “LCN” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
1.1.3.4.3 PID
Move the cursor to “PID” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
1.1.3.4.4 NIT
Move the cursor to “NIT” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
1.1.3.4.5 PDS
Move the cursor to “PDS” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
1.1.3.4.6 TS ID
Move the cursor to “TS ID” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select, then
press the ‘enter’ key to enter):
4.1. Prog. Name
4.1.1. Encoder 1
SD MOD1
4.1.4. Encoder 4
SD MOD4
4.3. PID
4.3.1. Encoder 1
4.3.1.1. PMT PID
1328 (32-8190)
4.3.2. Encoder 2
(Sub menu same as Encoder1)
4.3.3. Encoder 3
(Sub menu same as Encoder1)
4.3.4. Encoder 4
(Sub menu same as Encoder1)
4.4.1. ONID
08228 (1-65535)
4.5. PDS
0000000000003200
4.6. TS ID
00001 (0-16383)
4.2.1. Encoder 1
0200
(0-1023)
4.2.3. Encoder 3
0202
(0-1023)
4.4.3. Network Name
NETWORK
4.1.2. Encoder 2
SD MOD2
4.1.3. Encoder 3
SD MOD3
4.2.2. Encoder 2
0201
(0-1023)
4.2.4. Encoder 4
0203
(0-1023)
4.3.1.2. PCR PID
0769 (32-8190)
4.3.1.3. VIDEO PID
0769 (32-8190)
4.3.1.4. AUDIO PID
0770 (32-8190)
4.4.4. Network Version
01 (1-31)
4.4.2. Network ID
08228 (1-65535)

1.1.3.4.7 Retrieve Status
Move the cursor to “Retrieve Status” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to
select, then press the ‘enter’ key to enter):
1.1.3.5 System
Move the cursor to “System” and enter into it. Then its sub menu shows as below (Press ‘up or down’ key to select,
then press the ‘enter’ key to enter):
4.7. Retrieve Status
TS ID: 00001
ONID: 8228
Network ID: 8228
Network Name: NETWORK
Network Version: 01
PDS: 0000000000003200
Service Name: SD MOD1
LCN: 200
PMT: 1328
PCR: 769
Video: 769
Audio: 770
Service Name: SD MOD3
LCN: 202
PMT: 1330
PCR: 773
Video: 773
Audio: 774
5. System
5.1. Retrieve Inventory
SW: 2.29/ HW: 6.52
SW build: Dec 05, 2015
5.5. IP Address
5.5.1. Enable HDCP
5.5.2. IP Address
192.168.001.168
5.5.3. Subnet Mask
255.255.255.000
5.5.4. Gateway
192.168.001.003
5.5.5. NMS UDP Port
2009 (1000-9999)
5.5.6. MAC Address
5.6. Retrieve IP
IP Address
192.168.001.168
Subnet Mask
55.255.255.000
MAC Address
Service Name: SD MOD2
LCN: 201
PMT: 1329
PCR: 771
Video: 771
Audio: 772
Service Name: SD MOD4
LCN: 203
PMT: 1331
PCR: 775
Video: 775
Audio: 776
5.2. Power offset
5.3. Save Config
5.4. System Reset
5.4.1. Hard Reset
5.4.2. Reset to Default
Disable /Enable

NMS Operation Guide
Network Management System (NMS) can remotely set config and monitor the device. It can be used only after being
authorized.
Except setting config by front panel, you can also use NMS_EN4.8.EXE on a PC to set and monitor device. Most of all
head-end equipments (satellite receiver, encoder, multiplexer, scrambler, modulator, and adapter, etc.) can be set by
NMS which is with UDP protocol and supports windows operation system.
2.1 NMS Login
NMS Login Interface
Default user name and password are “admin”. You can change the user name and password by “Setting”->”User
Setting” and then login again. If it’s the first time to use it, without any device info, the menu shows as below:

Current NMS is without any device, user can add per his device.
Below chapters will introduce above functions separately.
“Open Device” & “Save Device”: open saved config and save current config. If the config and the NMS are in the
same file, they can automatically run when opening or closing the network management software.
2.2 Add Frequency
“Add Frequency”: all devices can be divided and managed by frequency. Click “Add Freq Node”, then a dialog for
adding frequency shows up. Input a frequency, like 385MHZ”, and then click “OK” to confirm:
I: Menu Bar
IX: Restore Config
II: Open Device
X: Reload Config
III: Save Device
XI: Import Config
IV: Add Freq Node
XII: Export Config
V: Add Device
XIII: Device List
VI: Edit Device
XIV: Device Connection Info
VII: Del Device
XV: Device Config Operation
VIII: Save Config
XVI: Alarm List

2.3 Add Device
Add frequency under the frequency. Choose frequency and then click “Add Device”, then below dialog shows up:
Choose device type “4in1 SD MPEG-2 Encoder with DVB-T”, set device name (you can name as you like), and set IP
address and Port of the device. You can check IP address by clicking down key on the panel or you can enter into
“Network Setting” in the menu to check it. Default IP address and Port for 4in1 SD MPEG2 Encoder with DVB-T are
192.168.001.168 and 2009.

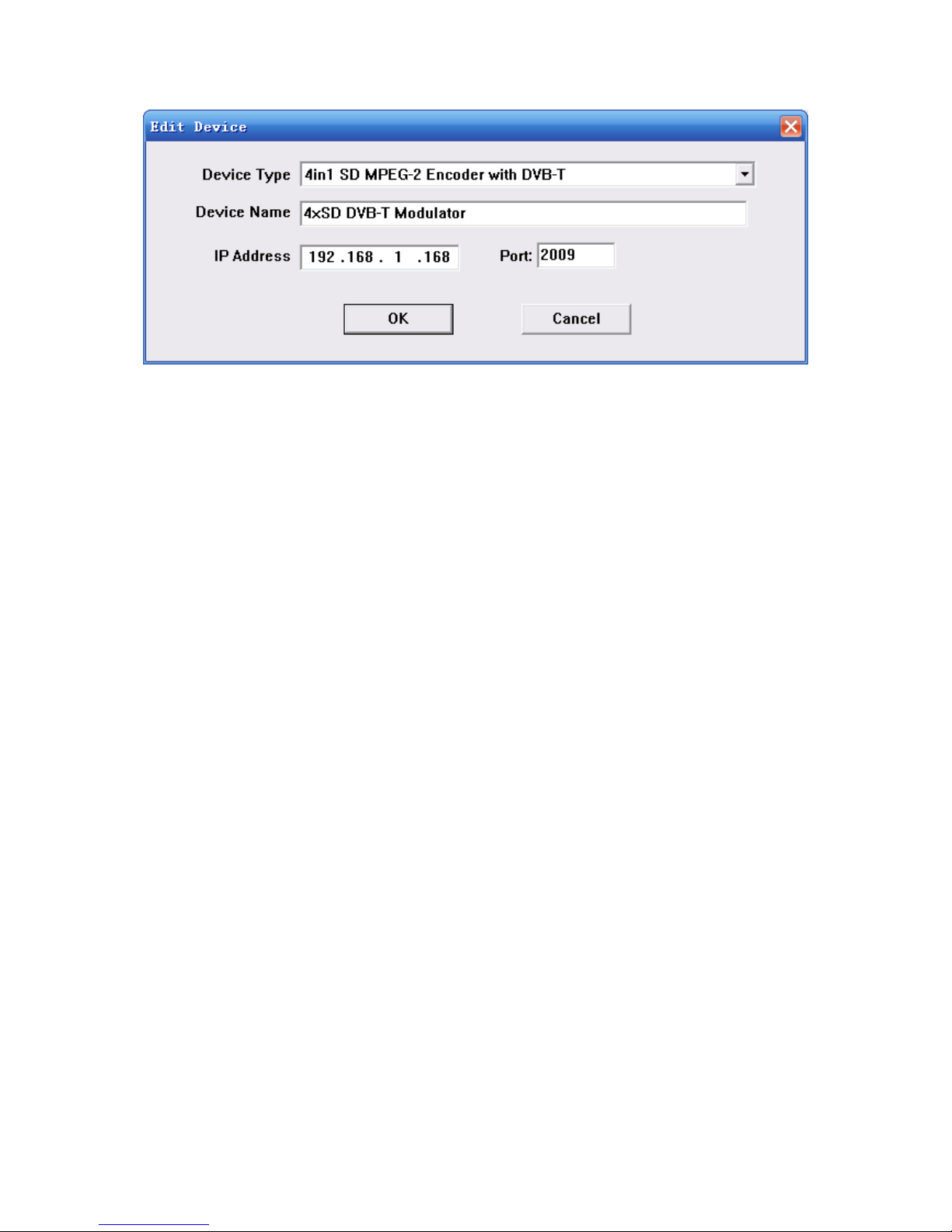

2.4 Edit Device
Click the device you need to edit and then you can edit any you like. If the device is not connected, then it shows as
below:
Then check by below steps:
Check if the connection info is correct:

1. If config is wrong, please choose the device and then click “Edit Device”, then below dialog shows up. Modify it and
then click “OK” to save.
2. Check if there is IP conflict. Turn off the device, and input “cmd.exe” at command column on your PC:
After entering into it:
Input “arp –d” to clear old “arp”information:
Input “PING”:
Here the ping is 192.168.1.168 (you can put your device IP address when you do it). Here we found 192.168.0.20
passed, which means there is already a device with 192.168.1.168. Then we can find the device out and modify the
IP address of the device or your device.

At the device list column, click device name to check it. Check the basic info (like firmware and software version) at
the device connection column and edit it at the right device operation area.
“Del Device”: delete the device you don’t need from the device list.
2.5 Check and Set Config
Note: user had better do the following operation before configuring the device:
Click button in NMS software, then click button to clear the old
parameter.

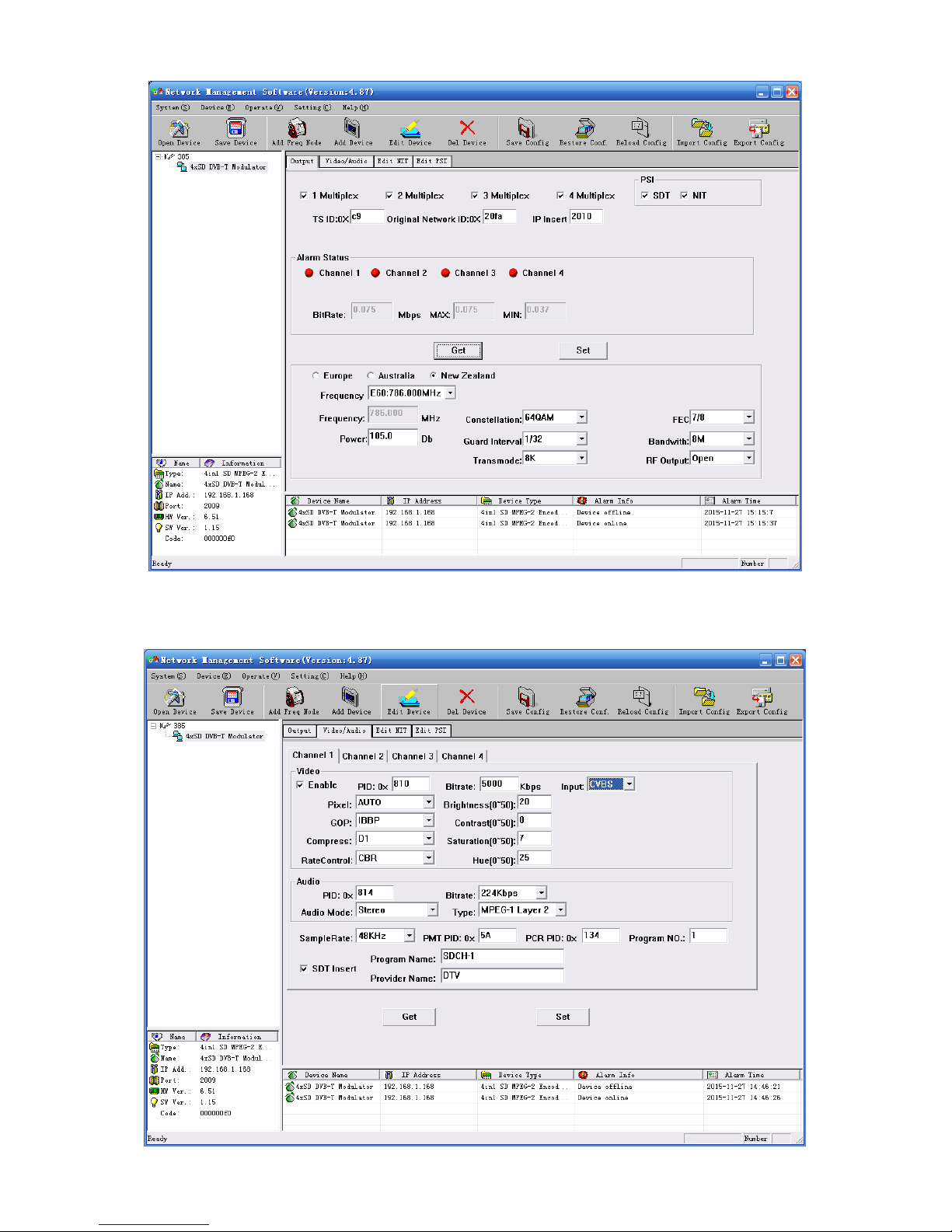

2.5.1 Output Setting
“Get”: Read current config from the device. “Set”: Confirm config and enable it.
2.5.2 Video/Audio Setting
“Get”: Read current config from the device. “Set”: Confirm config and enable it.

2.5.3 Edit NIT
2.5.4 Edit PSI

2.6 Public Function of NMS
Public function of NMS includes “Save Config”, “Restore Cong.”, “Reload Config”, “Import Config”, and “Export Config”.
Choose a device at device list.
“Save Config”: After committing or confirming set configuration, click this button to save all
configuration into “FLASH” (storage); you do this by front panel.
“Restore Cong.”:renew and start using the configuration. You can read the renewed configuration by clicking
“refresh” or “parse” on operation interface. Please click “Save Config” if it needs to be saved.
“Reload Config”:reload and use the configuration saved in FLASH. This function is usually used after “import config”,
and the new configuration is effective without restarting the device.

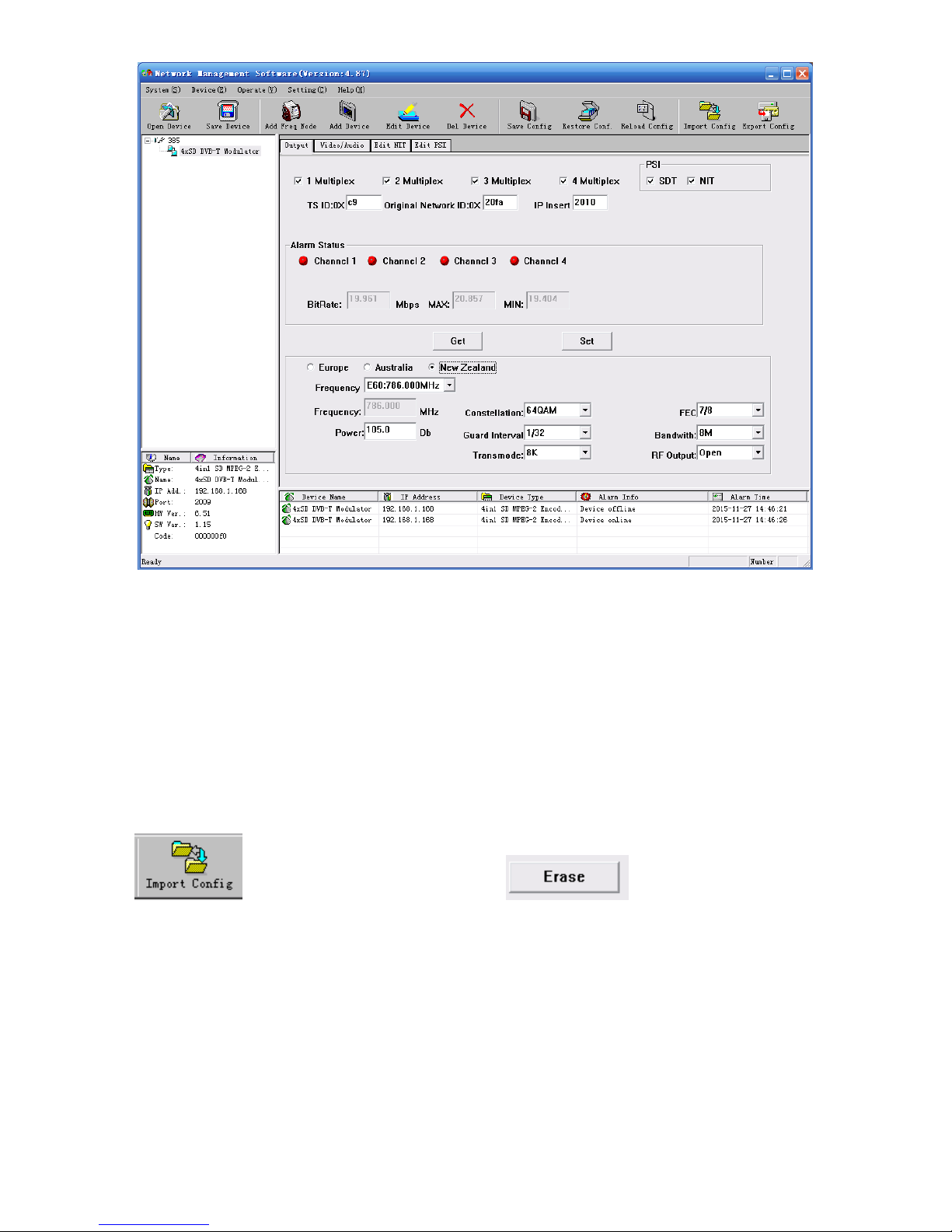

“Import Config”: import configuration of “export config” into FLASH; the imported config can be used after ‘reload
config’ or restart the device.
First please choose the config you want to import, and click “Erase”to clear current config and then import config
from FLASH. At this moment, the config cannot be used. You need restart the device or click “Reload Config”to start
new config.
“Export Config”: fetch the device’s configuration to local disk (computer). You can import this configuration when it
needs to renew the configuration or to use a back-up device in future.

TV STANSARDS
Channel
Channel
Frequency
MHz
Digital
central
Frequency
MHz
Channel
Channel
Frequency
MHz
Digital
central
Frequency
MHz
Channel
Channel
Frequency
MHz
Digital
central
Frequency
MHz
Standard B + G Europ
Band I
S23
318-326
322
BandV
E2
47-54
50.5
S24
326-334
330
E38
606-614
610
E3
54-61
57.5
S25
334-342
338
E39
614-662
618
E4
61-68
64.5
S26
342-350
346
E40
622-630
616
Band S
S27
350-358
654
E41
630-638
634
S1
104-111
107.5
S28
358-366
362
E42
638-646
642
S3
111-118
114.5
S29
366-374
370
E43
646-654
650
S3
118-125
121.5
S30
374-382
378
E44
654-662
658
S4
125-132
128.5
S31
382-390
386
E45
662-670
666
S5
132-139
135.5
S32
390-398
394
E46
670-678
674
S6
139-146
142.5
S33
398-406
402
E47
678-686
682
S7
146-153
149.5
S34
406-414
410
E48
686-694
690
S8
153-160
156.5
S35
414-422
418
E49
694-702
698
S9
160-167
163.5
S36
422-430
426
E50
702-710
706
S10
167-174
170.5
S37
430-438
434
E51
710-718
714
Band III
S38
438-446
442
E52
718-726
722
E5
174-181
177.5
S39
446-454
450
E53
726-734
730
E6
181-188
184.5
S40
454-462
458
E54
734-742
738
E7
188-195
191.5
S41
462-470
466
E55
742-750
746
E8
195-202
198.5
Band IV
E56
750-758
754
E9
202-209
205.5
E21
470-478
474
E57
758-766
762
E10
209-216
212.5
E22
478-486
482
E58
766-774
770
E11
216-223
219.5
E23
486-494
190
E59
774-782
778
E12
223-230
226.5
E24
494-502
498
E60
782-790
786
Band S
E25
502-510
506
LTE
S11
230-237
233.5
E26
510-518
514
E61
790-798
794
S12
237-244
240.5
E27
518-526
522
E62
798-806
802
S13
244-251
247.5
E28
526-534
530
E63
806-814
810
S14
251-258
254.5
E29
534-542
538
E64
814-822
818
S14
258-265
261.5
E30
542-550
546
E65
822-830
826
S16
265-272
268.5
E31
550-558
554
E66
830-838
834
S17
272-279
275.5
E32
558-566
562
E67
838-846
842
S18
279-286
282.5
E33
566-574
570
E68
846-854
850
S19
286-293
289.5
E34
574-582
578
E69
854-862
858
S20
293-300
296.5
E35
582-590
586
S21
302-310
306
E36
590-598
594
S22
310-318
314
E37
598-606
602

CHANNEL TABLE LIST –Australia
Channel
Center
Freq.
(MHz)
Channel
Center
Freq.
(MHz)
Channel
Center
Freq.
(MHz)
Channel
Center
Freq.
(MHz)
6
177.5
33
564.5
46
655.5
56
725.5
7
184.5
34
571.5
47
662.5
57
732.5
8
191.5
35
578.5
48
669.5
58
739.5
9
205.5
36
585.5
49
676.5
59
746.5
10
212.5
37
592.5
50
683.5
60
753.5
11
219.5
38
599.5
51
690.5
61
760.5
12
226.5
39
606.5
52
697.5
62
767.5
27
522.5
40
613.5
53
704.5
63
774.5
28
529.5
41
620.5
54
711.5
64
781.5
29
536.5
42
627.5
55
718.5
65
788.5
30
543.5
43
634.5
53
704.5
66
795.5
31
550.5
44
641.5
54
711.5
67
802.5
32
557.5
45
648.5
55
718.5
68
809.5
69
816.5
RECOMMENDED MPEG-2 CODE RATE
Modulation
Constellation
FEC
6MHz Bandwidth
7MHz Bandwidth
8MHz Bandwidth
Guard Interval
Guard Interval
Guard Interval
1/4
1/8
1/16
1/32
1/4
1/8
1/16
1/32
1/4
1/8
1/16
1/32
QPSK
1/2
The weak ability of error-correcting and anti-interference in this area.
6.03
2/3
6.03
5.80
6.45
6.83
7.03
6.64
7.37
7.81
8.04
3/4
6.22
6.58
6.78
6.53
7.25
7.68
7.91
7.46
8.29
8.78
9.05
5/6
6.22
6.91
7.31
7.54
7.25
8.06
8.53
8.79
8.29
9.22
9.76
10.05
7/8
6.53
7.25
7.68
7.91
7.62
8.46
8.96
9.23
8.71
9.68
10.25
10.56
QAM16
1/2
7.46
8.29
8.78
9.04
8.70
9.67
10.24
10.55
9.95
11.06
11.71
12.06
2/3
9.95
11.05
11.70
12.06
11.61
12.90
13.66
14.07
13.27
14.75
15.61
16.09
3/4
11.19
12.44
13.17
13.57
13.06
14.51
15.36
15.83
14.93
16.59
17.56
18.10
5/6
12.44
13.82
14.63
15.08
14.51
16.12
17.07
17.59
16.59
18.43
19.25
20.11
7/8
13.06
14.51
15.36
15.83
15.24
16.93
17.93
18.47
17.42
19.35
20.49
21.11
QAM64
1/2
11.19
12.44
13.17
13.57
13.06
14.51
15.36
15.83
14.93
16.59
17.56
18.10
2/3
14.92
16.58
17.56
18.09
17.41
19.35
20.49
21.11
19.91
22.12
23.42
24.13
3/4
16.79
18.66
19.76
20.35
19.59
21.77
23.05
23.75
22.39
24.88
26.35
27.14
5/6
18.66
20.73
21.95
22.62
21.77
24.19
25.61
26.39
24.88
27.65
29.27
30.16
7/8
19.59
21.77
23.05
23.75
22.86
25.40
26.89
27.71
26.13
29.03
30.74
31.67
