ADF Web HD67508-A1-232 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 1 of 28
User Manual
Revision 1 100
English
Modbus TCP Slave / Modbus Master – Converter
(Ethernet Switch Inside for enter/exit connection)
(Order Code: HD67508-A1-232, HD67508-A1-485,
HD67508-A1-422)
for Website information:
www adfweb com?Product=HD67508-A1
for Price information:
www adfweb com?Price=HD67508-A1-232
www adfweb com?Price=HD67508-A1-485
www adfweb com?Price=HD67508-A1-422
Benefits and Main Features:
35mm Rail DIN mount
Wide supply input range
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others products, see also the following links:
RS232 / RS485 / SB / Ethernet
www adfweb com?Product=HD67118 (RS232 / RS485 - Converter)
www adfweb com?Product=HD67119 (USB / RS485 - Converter)
www adfweb com?Product=HD67038 (RS485 / RS232 / Ethernet - Converter)
CAN / CANopen / Modbus / Modbus TCP
www adfweb com?Product=HD67001 (CANopen / Modbus Master - Converter)
www adfweb com?Product=HD67502 (CANopen / Modbus Slave - Converter)
www adfweb com?Product=HD67011 (CAN / Modbus Master - Converter)
www adfweb com?Product=HD67012 (CAN / Modbus Slave - Converter)
www adfweb com?Product=HD67514 (CAN / Modbus TCP Master – Converter)
www adfweb com?Product=HD67515 (CAN / Modbus TCP Slave – Converter)
Modbus RT Slave / Modbus TCP Master - Converter
www adfweb com?Product=HD67510
Do you have your customer protocol? Then go to:
www adfweb com?Product=HD67003
Do you need to choose a device? Do you want help?
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 2 of 28
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 8
CONFIGURATION 8
POWER SUPPLY 9
FUNCTION MODES 10
LEDS 11
ETHERNET 12
RS232 12
RS485 13
RS422 14
USE OF COMPOSITOR SW67508 15
NEW PROJECT / OPEN PROJECT 16
SOFTWARE OPTIONS 17
SET COMMUNICATION 18
OPERATION MODE 20
TRANSLATE TABLE 21
UPDATE VIA UDP 23
MECHANICAL DIMENSIONS 25
ORDER CODE 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SUPPORT 28
RETURN POLICY 28
PDATED DOC MENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision Date Author Chapter Description
1 012 07/02/2013 Nt All Added new chapters
1 013 29/01/2014 Fl All Revision
1 014 12/02/2014 Fl All Revision
1 100 13/12/2021 Ff All Revision
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 3 of 28
SEC RITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q ALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESID AL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 4 of 28
EXAMPLES OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 5 of 28
CONNECTION SCHEME:
Figure 1a: Connection scheme for HD6750 -A1-232

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 6 of 28

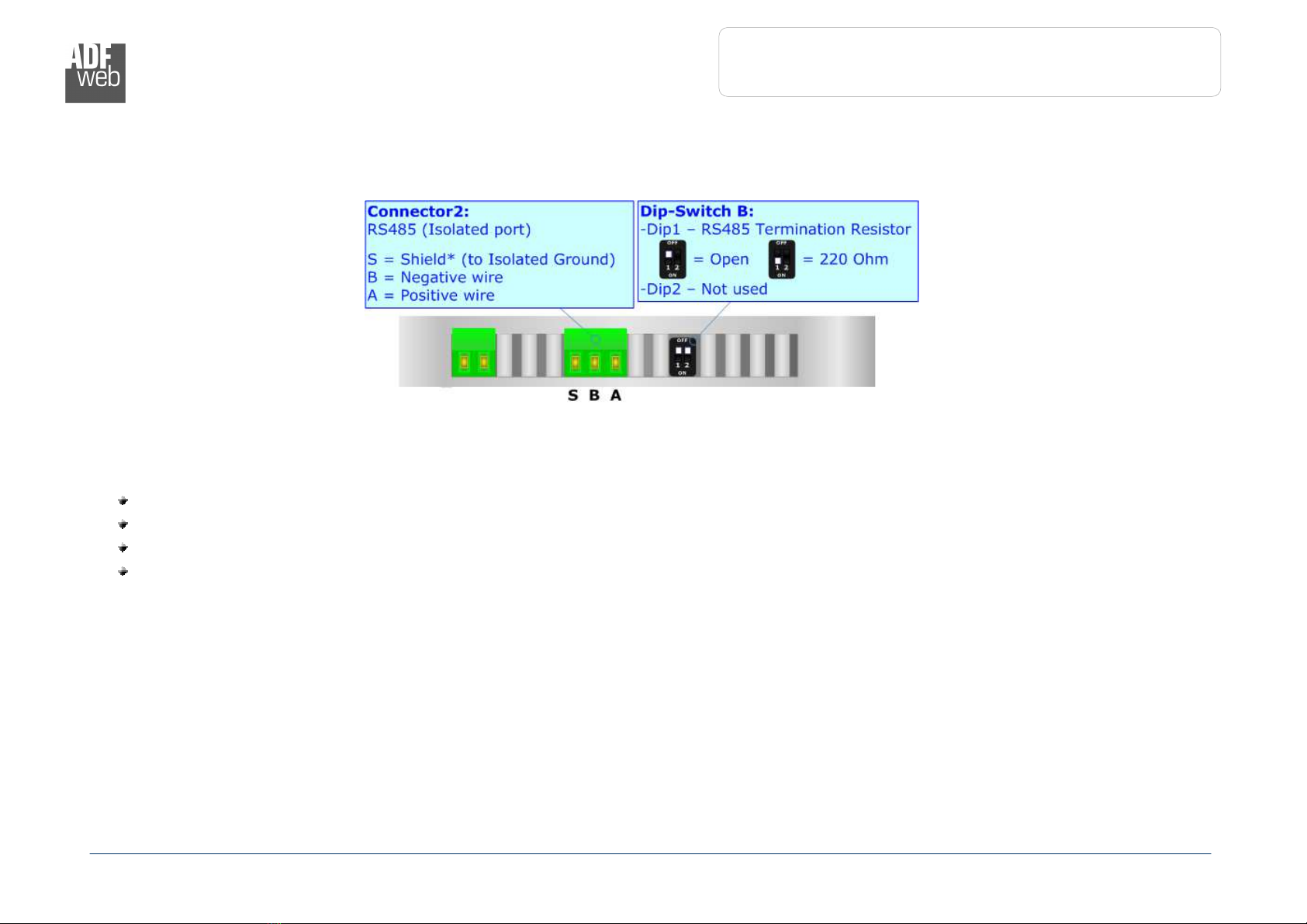

Figure 1b: Connection scheme for HD6750 -A1-4 5

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 7 of 28

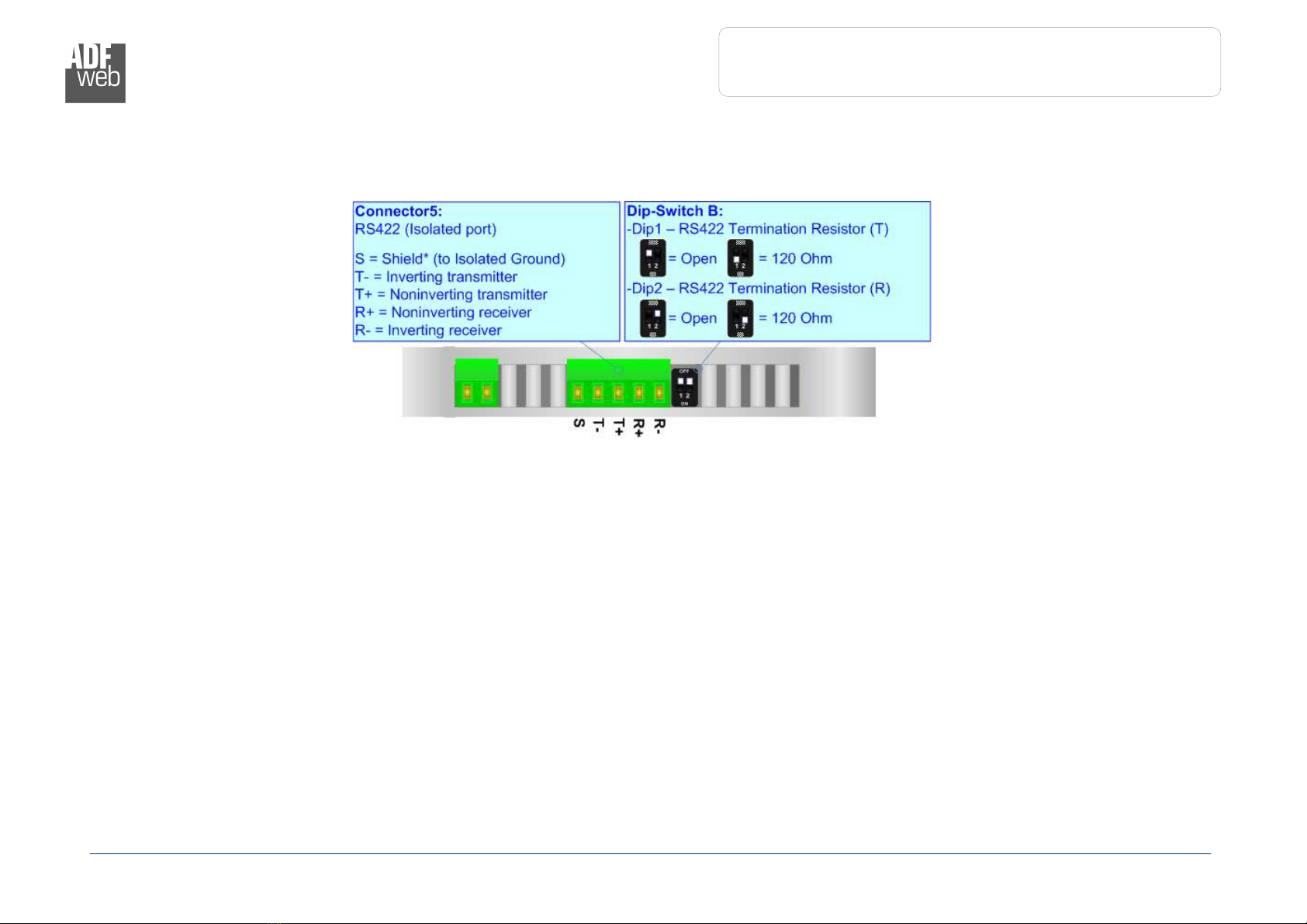

Figure 1c: Connection scheme for HD6750 -A1-422

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 8 of 28
CHARACTERISTICS:
The “Modbus TCP Slave / Modbus Master – Converter” allows the following characteristics:
Triple isolation between RS232/RS485/RS422 - Power Supply, RS232/RS485/RS422- Ethernet, Power Supply - Ethernet;
Internal Ethernet switch;
Ethernet 10Base-T / 100Base-T, autosensing for Modbus TCP ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC
Temperature range -40°C / +85°C [-40°F / +185°F];
This device is able to manage a maximum of ten simultaneous connections from Ethernet side
It can be used in two operative ways:
In the “Routing Mode” the command Modbus is forwarded on the serial line using the same requested addresses
In the “Natting Mode” the device addresses and data are altered through a translation table of the addresses
CONFIG RATION:
You need Compositor SW67508 software on your PC in order to perform the following:
Define the parameters of Modbus TCP line;
Define the parameters of Modbus Serial line;
Update the device

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 9 of 28
POWER S PPLY:
The devices can be powered at 8…24V AC and 12…35V DC The consumption depends to the code of the device For more details see the two
tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67508-A1-xxx 3 5
Warning
: Not reverse the polarity power
HD67508-A1-xxx

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 10 of 28
F NCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 11 of 28
LEDS:
The devices has got four LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Normal Mode Boot Mode
1: Modbus comm (green) Blinks when a Modbus response is received Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: Device state (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Ethernet1 Tx (green) Blinks quickly for a short time when sends
Ethernet frames
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Ethernet2 Tx (green) Blinks quickly for a short time when sends
Ethernet frames
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 12 of 28
ETHERNET:
The Modbus TCP connection must be made using Connector3 and/or Connector4 of HD67508-A1-xxx with at least a Category 5E cable The
maximum length of the cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to
100 Mbps To connect the device to a Hub/Switch the use of a straight cable is recommended To connect the device to a PC/PLC/other the
use of a cross cable is recommended
RS232:
The connection from a RS232 socket to a serial port (example one from a
personal computer) must be made with a NULL MODEM cable (a serial cable
where the pins 2 and 3 are crossed)
It is recommended that the RS232 cable not exceed 15 meters

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 13 of 28
RS485:
To terminate the RS485 line with a 220Ω resistor, it is necessary to put dip 1 ON, like in figure
The maximum length of the cable should be 1200m (4000 feet)
Here some codes of cables:
Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;
Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;
Tasker: p/n C521 - 1x 24AWG twisted pair conductor + foil shield + braid shield;
Tasker: p/n C522 - 2x 24AWG twisted pairs conductor + foil shield + braid shield

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 14 of 28
RS422:
For terminate the RS422 line with a 120Ω resistor it is necessary to put ON dip 1 for T line and/or put ON dip 2 for R line, like in figure
The maximum length of the cable should be 1200m (4000 feet)

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 15 of 28
SE OF COMPOSITOR SW67508:
To configure the Converter, use the available software that runs with Windows called SW67508 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10, 11; 32/64bit)
When launching the SW67508, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
Figure 2: Main window for SW6750

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 16 of 28
NEW CONFIG RATION / OPEN CONFIG RATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “Modbus TCP Slave / Modbus Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 17 of 28
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software pdate at Start of Program”, the
SW67508 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 18 of 28
SET COMM NICATION:
This section defines the fundamental communication parameters of two Buses, Modbus
and Modbus TCP.
By pressing the “Set Communication” button from the main window for SW67508 (Fig
2) the window “Set Communication” appears (Fig 3)
The section “Operation Mode” defines the operation of the Converter in “Routing Mode”
or “NAT Mode” (see the description at page 20)
The means of the fields for “Modbus TCP Slave” are:
In the field “IP Address” the IP address of Modbus TCP side of the converter is
defined;
In the field “Subnet Mask” the SubNet Mask of Modbus TCP side of the converter
is defined;
In the fields “GATEWAY” the default gateway of the net is defined This feature can
be enabled or disabled pressing the Check Box field This feature is used for going
out of the net;
In the field “Port” the port used for Modbus TCP communication is defined;
Checking “Enable DP Port” field it is possible to do a Broadcast request This
request must be made at Port 64223 ($FADF) with these six byte of data: $53,
$45, $41, $52, $43, $48 Each device in response sends a total of 10 Bytes These
bytes are four for the IP and the other for the MAC address (Example of response:
0xC0, 0xA8, 0x01, 0x2A, 0x11, 0x22, 0x33, 0x44, 0x55, 0x58 So the IP is:
192 168 1 42; and the MAC Address: 11-22-33-44-55-58 );
If the field “Enable Special Command” is checked, it is possible to send a no-
Modbus request through the Converter i e a TCP frame with the first two
characters 0x55 and 0xAA is sent in the Modbus RTU line as is If you don’t want to
send the first two bytes (0x55, 0xAA) in the RTU line it is possible to check the field
“Cancel the first two bytes”;
If the field “No TCP frame on RT Timeout” is checked, the Converter don’t
sends back the reply on TCP (error response) if the Slave RTU interrogated has not
replied
Figur
e
3
: “
Set Communication
” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 19 of 28
If the field “Fast Start p (only 100Mb/s)” is checked, the Converter take less time to go online This command can use only if the
Converter is used in a 100Mb/s network;
The means for the fields of “Modbus Master” are the same for all the Device Type:
In the field “Serial” the type of serial port is defined;
In the field “Baudrate” the data rate of Modbus RTU is defined;
In the field “Parity” the parity of Modbus RTU is defined;
In the field “Stop bits” the number of Stop-Bit of Modbus RTU is defined;
In the field “Data bits” the number of Data Bit of Modbus RTU is defined;
In the field “Timeout” the maximum time that the converter attends for the answer from the Modbus slave interrogated is defined;
In the field “Communication Idle Time (ms)” the delay between the Modbus response from a slave and the following request is
defined;
In the field “Time Between Bytes (ms)” a custom delay between the bytes of Modbus frames can be set;
If the field “Modbus Filter” is checked, the wrong responses received from Modbus side are discharged

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 20 of 28
OPERATION MODE:
R O TING :
A few characteristics of the Modbus RTU package have been modified in the standard of the Modbus TCP protocol Two bytes of the final CRC
were eliminated (no longer necessary for the information to reach its already corrected destination) The first byte of the slave identification
was changed, leaving the one that is called PDU A frame denominated as MBAP header with dimensions of 7 bytes was added to the head of
the PDU
It is composed by the following:
Word transaction identifier (recopied from the slave in the response phase);
Word protocol identifier (0=Modbus protocol);
Word length (number of successive bytes);
Byte unit identifier (used for the routing operation)
By using the last byte of the MBAP header, it is possible to carry out the routing from a requested Modbus TCP toward a serial line using the
address from the slave which is specified by the byte unit identifier
Example:
A requested Modbus TCP made in the device as the address 192 168 0 200 for the holding register address $2000, which is MBAP unit
identifier has the value of 2 It will be followed by the request on the serial for the device with the address 2 at the word $2000
After the request is made, the RTU will respond The master TCP will be given the same response which will be reconstructed according to
the specifications of the Modbus TCP
If the RTU slave responds with an exception, that exception code will be transmitted again to the TCP master If the RTU slave does not
respond in the estimated time defined by the Timeout parameter, an exception response will be given: error code $0B
N ATTING :
When using the operation mode, Natting, the requested data will be processed through a table of translations of the Modbus network
addresses
