CS230 145B SWEEPER
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: 01684 850777 Fax: 01684 850707

Congratulations for your choice!
FIORENTINI S.r.l. thanking you for the preference to our product, would like to remind you that
FIORENTINI S.r.l production covers manufacture and marketing of industrial cleaning machines
and is currently a leading company in this sector.
Our tradition and competence guarantee technical quality of your choice; actually all our products
are being built first quality materials through criteria that can give reliability, solidity and
functionality satisfying every kind of customers. FIORENTINI has recently obtained the quality
system certificate conforming to the requirements of UNI EN ISO 9001:2000.
We wish therefore inviting you to contact us, unhesitatingly, for every kind of request, as technical
or commercial; we’ll be pleased to be at your disposal for any information you may need.

INDEX
1. GENERAL INFORMATION
1.1 SYMBOLS
1.2 PREMISES
1.3 MANUAL CONSULTING
1.4 WARRANTY
1.4.1 WARRANTY OBJECT
1.4.2 WARRANTY LIFE
1.4.3 WARRANTY APPLICATION
1.4.4 RETURNED GOODS
1.4.5 EXCEPTION
1.5 CONFORMITY DECLARATION
2. MACHINE FEATURES AND TECHNICAL DATA
2.1 IDENTIFYING THE MACHINE
2.2 DESCRIPTION AND FEATURES OF THE MAIN PARTS
2.2.1 DESCRIPTION
2.2.2 MAIN PARTS OF THE MACHINE
2.3 TECHNICAL DATA
2.3.1 DASHBOARD
2.3.2 USE OF THE MACHINE
3. SAFETY
3.1 RIGHT USE OF THE MACHINE
3.2 WRONG USE OF THE MACHINE
3.3 SUGGESTED EQUIPMENTS
3.4 OPERATOR’S QUALIFY
3.5 PROTECTION AND WARNING DEVICES
3.6 OTHER DANGERS
3.7 SAFETY SIGNALS
4. STARTING THE MACHINE
4.1 TRANSPORT AND HANDLING
4.2 STORAGE
4.3 STARTING THE MACHINE
5. MAINTENANCE
5.1 PERIODICAL MAINTENANCE
5.2 ENGINE MAINTENANCE
5.3 ELECTRIC SYSTEM CHECK UP

GENERAL INFORMATION S34
Revisione 00 gennaio 2005 Pagina 4 di 47
1GENERAL INFORMATION
1.1 SYMBOLS
1.2 PREMISE
FIORENTINI S. r. l. is the only owner of this manual.
The reproduction of all or part of the manual or the transmission to third parties with
mechanic or electronic devices are vorbidden without a written manufacturer’s authorization.
This manual is supplied to the customers in one original copy when differently specified
during the order.
This manual is supplied to the customer with the machine and it must be kept with it even when the machine has
to be transferred.
Please, keep the manual in a safe place and for all the machine lifetime. Purchaser is responsible for showing
the manual to qualified people. Incase oflossaskfor a duplicatetoFIORENTINICo..
FIORENTINI S.r.l. is not responsible for any kind of damages caused by people or things due to the non-
observance of the instructions of this manual.
FIORENTINI reserves the right to add at any time and without notice all the technical and commercial changes
considered useful for the customer. Therefore data and information in this manual can be updated.
This symbol is used to get the operator’s attention on procedures or precautions to be followed in
order to avoid damages to users or to the support.
This symbol is used to get the operator’s attention on general information.

GENERAL INFORMATION S34
Revisione 00 gennaio 2005 Pagina 7 di 47
DICHIARAZIONE CE DI CONFORMITA’
ING. O. FIORENTINI s.r.l.
1.5.1.1.1.1.1 Loc. Rombola
50030 PIANCALDOLI (FI) ITALIA
SISTEMA QUALITA’ AZIENDALE
CERTIFICATO ISO9001
DICHIARIAMO SOTTO LA NOSTRA RESPONSABILITA’ CHE LA MACCHINA
Marca FIORENTINI
Tipo
N° serie
Anno di costruzione 2006
RISULTA IN CONFORMITA’
con quanto previsto dalle seguenti direttive e normative armonizzate comunitarie:
DIRETTIVA COMUNITARIA
DIRETTIVA MACCHINE
98/37/CEE
DIRETTIVA COMPATIBILITA’ ELETTROMAGNETICA
89/336/CEE
Ing. O. Fiorentini S.r.l.
Il titolare
Piancaldoli Ing. O. Fiorentini
Luogo e
data
Firma

TECHNICAL DATA S34
Revision 00 January 2005 Page 8/47
2MACHINES FEATURES AND TECHNICAL DATA
2.1 IDENTIFYING THE MACHINE
A silver label is sticked on the protection case of the steering column and clearly shows the data referring to
the “CE” marking.
P
P
I
I
C
C
T
T
U
U
R
R
E
E
N
N
°
°
1
1
The label has never to be removed. In case of damage it is necessary to ask for a
copy. The scrubber cannot be sold without the label.

TECHNICAL DATA S34
Revision 00 January 2005 Page 9/47
2.2 DESCRIPTION AND FEATURES OF THE MAIN PARTS
2.2.1 DESCRIPTION
The sweeper – S34 - has been designed to clean flat and hard surfaces by means of a sweeping system and
suction of the dust into a suitable tank.
The traction system is based on oleodynamic engines fed by a pump which is driven by an endothermic
petrol or GPL engine.
The oleodynamic pump also feeds the engine of the central brush, the engine of the side brushes, the
oleodynamic actuators for the lifting and sink of the waste tank. The vacuum and the filter shaker engines
are fed by a battery supplied with the machine.
The sweeper is equipped with a side rotating brush (the left side brush is optional) which has to bring dust
into the central part of the machine. The main brush brings dust into the waste tank thanks to a suction
system. The machine must be used on dry or damp surfaces and can be equipped with a water system
which has to pull dust down.
Thanks to the dashboard the operator can control all the machine functions and a series of LEDs shows to
the operator the battery status or the errors detected by the electronic card.
The operator can control all the main functions of the machine and in particular:
¾start both the central and the side brushes;
¾start the dust pull down device (optional);
¾lift up or sink down of the waste dust;
¾open or close the flap set up in the front side of the machine;
¾start the vacuum engine;
¾start the filter shaker.
2.2.2 MAIN PARTS OF THE MACHINE
¾Zinc-plated steel or stainless steel frame;
¾Lombardini diesel or GPL engine;
¾RH rotating brush;
¾LH rotating brush (optional);
¾vacuum system to pick dust up;
¾one drive wheel;
¾two idle wheels;
¾steering wheel assy;
¾operator’s seat;
Important: before switching the machine off the operator must
¾sink the waste tank down;
¾lift the brushes up to avoid damages to the brushes bristles and decrease
their effectiveness.

TECHNICAL DATA S34
Revision 00 January 2005 Page 10/47
¾dust pull down device (optional).
FIORENTINI Co., taking the new CE safety rules into consideration, manufactures the machine following the
CE directives about safety and health. The high quality material, the high technology and FIORENTINI
experience guarantee the performance and the reliability of this machine .
Each machine is tested during the manufacturing process and the final check is done before the machine is
shipped out.

TECHNICAL DATA S34
Revision 00 January 2005 Page 11/47
2.3 TECHNICAL DATA
FEATURES S34B S34D
LENGTH 1980 mm. 1980 mm.
WIDTH 1119 mm. 1119 mm.
HEIGHT 1470 mm. 1470 mm.
SWEEPING BRUSHES
1 central brush, 1 RH
brush (1 LH brush is
optional)
1 central brush, 1 RH
brush (1 LH brush is
optional)
TRACTION hydraulic Hydraulic
CENTRAL BRUSH DIMENSION L. 850 mm. D. 300 mm. L. 850 mm. D. 300 mm.
SIDE BRUSH DIMENSION D. 550 mm. D. 550 mm.
SWEEPING WIDTH WITH ONE SIDE BRUSH 1155 mm. 1155 mm.
SWEEPING WIDTH WITH TWO SIDE BRUSHES 1460 mm. 1460 mm.
PETROL TANK ***** 9 lt.
HYDRAULIC OIL TANK 22 lt. 22 lt.
FRONT WHEEL DIAMETER 375 mm. 375 mm.
REAR WHEEL DIAMETER 375 mm. 375 mm.
INTAKEN AIR VOLUME ? ?
WEIGHT WITHOUT OPERATOR 864 kg. with batteries 740 kg.
ENGINES
ENGINE ***** LOMBARDINI LDW 702
CYLINDERS ***** 2
DISPLACEMENT ***** 700 cc
POWER ***** 17 HP
HYDRAULIC ENGINE OF THE CENTRAL BRUSH OMM 32 OMM 32
HYDRAULIC ENGINE OF THE SIDE BRUSH OMP 160 OMP 160
TRACTION HYDRAULIC ENGINE OMS 200 OMS 200
VARIABLE DELIVERY PUMP COMER OVP 09 COMER OVP 09
FIXED DELIVERY PUMP GALTECH GALTECH
VACUUM ENGINES MOVIMOTOR 36V MOVIMOTOR 12V
FUNCTIONS
DRIVE MAN ON BOARD MAN ON BOARD
U-TURN LANE 3450 mm. 3450 mm.
BRUSHES LIFTING UP SYSTEM hydraulic hydraulic
SERVICE BRAKE mechanical mechanical
PARKING BRAKE mechanical mechanical
PERFORMANCES
FORWARD SPEED 6,6 km/h 7,6 km/h
REVERSE SPEED 6,6 km/h 7,6 km/h

TECHNICAL DATA S34
Revision 00 January 2005 Page 12/47
MAX. SLOPE ? ?
MAX. SLOPE FOR AN U-TURN ? ?
CLEANING 9636 m²/h 9636 m²/h
ECOLOGICAL FEATURES
NOISE AT OPERATOR’S EAR Lp∆72 dB(A)
LpiccoC 95 dB(c)
Lp∆81 dB(A)
LpiccoC 103 dB(c)
VIBRATIONS AT OPERATOR’S SEAT A = 1,6 m/s2 A = 1,86 m/s2
MEASUREMENT UNITS CONVERSION
Length 1 inch = 1” = 25,4 mm Power 1 kW = 1,36 CV = 1,34 BHP
Temperature T (K) = t (°C) + 273 / t (°F) = 1,8 t (°C) + 32 Pressure 1 bar =100 kPa = 14,5 psi
The technical data listed above may be changed by the manufacturer without
notice. In any case, FIORENTINI is available for any further information or
explanation.

TECHNICAL DATA S34
Revision 00 January 2005 Page 13/47
2.3.1 THE DASHBOARD
The dashboard is composed by a series of switches that activate or disactivate all the functions of the
machine. The function of every switch is shown by a pictogram. Picture nr. 2 shows the dashboard. The
function of every switch and pilot light is explained in the scheme below.
1 Key switch 8 Battery charger pilot light
2 Hour counter 9 Horn button
3 Petrol level pilot light 10 Lights switch
4 Engine temperature pilot light 11 Filter shaker switch
5 Air filter switch (clogged filter) 12 Suction engine switch
6 Oil pressare pilot light 13 Vacuum engine pilot light
7 Glow plugs pilot light
PICTUR
E
N
°
2
1
2
5
9
3
4
6
7
8
10 11 12
13

TECHNICAL DATA S34
Revision 00 January 2005 Page 14/47
2.3.2 USE OF THE MACHINE
Starting the machine.
Insert the key into the dashboard and turn it once clockwise. Wait until the glow plugs pilot light (picture nr. 2
position 7) switches off and turn again the key clockwise in order to start the engine.
Glow plugs
Battery charger
Oil pressure
Engine temperature pilot light
Before using the sweeper please check the hydraulic oil level in the tank of the
hydraulic system. The oil level must be kept between the two notches of the level
indicator inside the engine bonnet (see picture 3). If the oil level is not sufficient,
fill it up. Before this operation, switch the machine off and remove the key from
the dashboard.
PICTUR
E
N°
3
Oil tank cap

TECHNICAL DATA S34
Revision 00 January 2005 Page 15/47
Important: after having started the machine both the battery charger and the
motor oil pressure must switch off. Otherwise make reference to the engine user
manual.
Important: before starting the machine make sure that the accelerator lever is the
same position as shown in picture nr. 4. When the engine is running the lever
has to be moved towards the dashboard in order to increase the rpm.
Pictur
e
4

TECHNICAL DATA S34
Revision 00 January 2005 Page 16/47

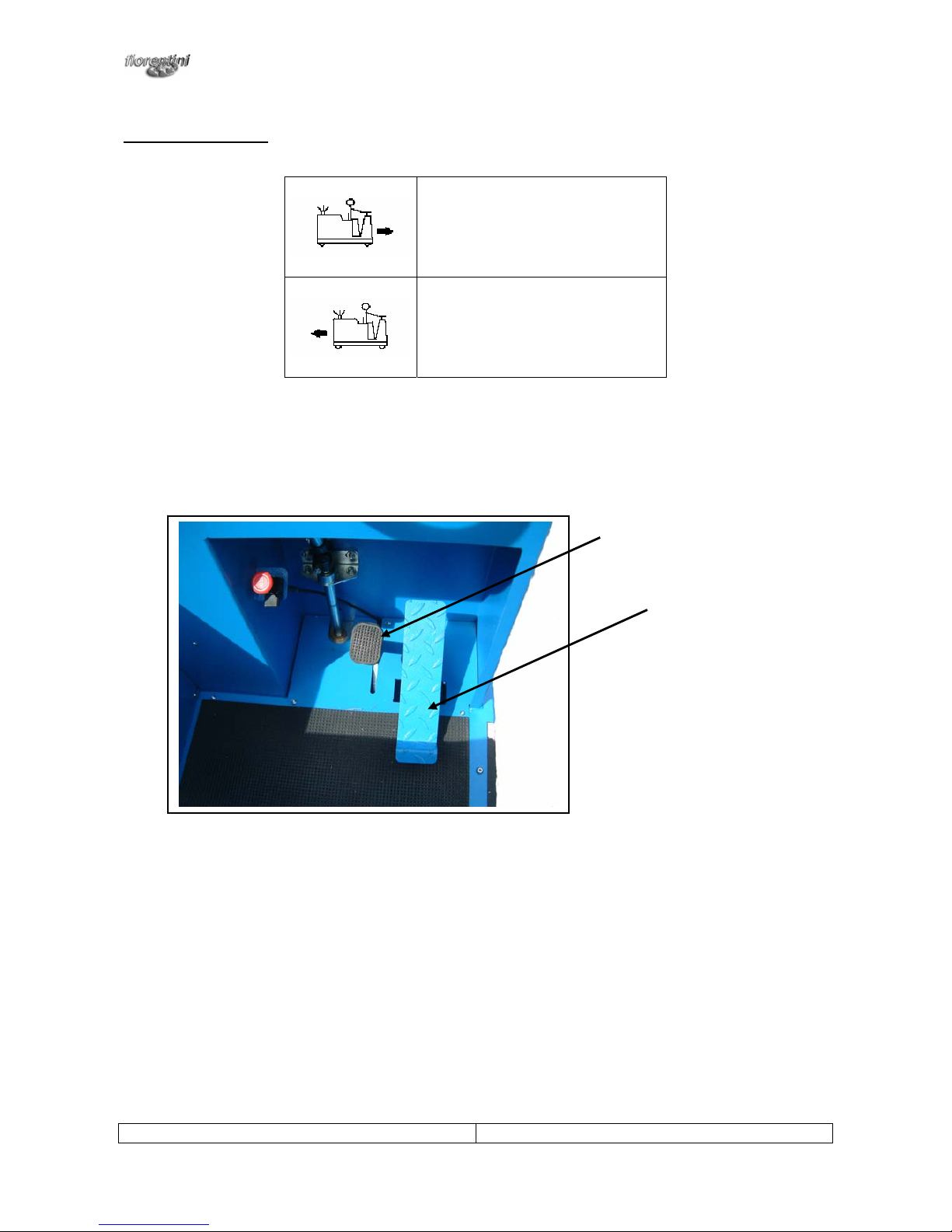

Moving the machine.
By means of the forward/reverse pedal the operator can move the machine. The operator has to put the foot
onto the pedal and press it with the heel to move forward or with the top of the foot to move the machine
backward.
Forward gear
Reverse gear
Forward/reverse
pedal
Pictur
e
5
Service brak
e

TECHNICAL DATA S34
Revision 00 January 2005 Page 17/47
Before moving the machine make sure that the engine rpm is right. Otherwise, the operator can regulate the engine rpm
by means of the lever which is on the left side next to the hydraulic controls (see picture 6).
Stopping the machine.
The sweeper is equipeed with one parking brake and one service brake. The last one (see picture 5) is controlled by a
pedal placed next to the forward/reverse pedal. The parking brake is controlled by a knob (see picture 7). The operator
has to pull this knob when the sweeper is not working. By means of the black little lever under the knob the operator can
release the brake.
Rpm leve
r
Pictur
e
6
Parking brake
knob
Pictur
e
7

TECHNICAL DATA S34
Revision 00 January 2005 Page 18/47
Driving seat regulation.
By means of the lever under the driving seat (see picture 8) the operator can regulate the horizontal position
of the seat itself.
Regulation leve
r
Pictur
e
8
Important: the brake must be checked and registered every three months.

TECHNICAL DATA S34
Revision 00 January 2005 Page 19/47
How to use the machine.
The operator can start the three functions of the machine by means of the three levers next to the driving seat. Make
reference to the scheme below for the explanation of the yellow sticker under the levers (see picture 9).
The operator has to pull the lever down in order to sink down and start the
rotation of the central and side brushes. Pulling the lever up the hydraulic
engines of the brushes stop and the brushes return in their original
position.
The operator has to pull the lever up in order to sink the waste tank down.
Pulling the lever down the tank returns in its original position.
The operator has to pull the lever up to open the flap and pick the dust up
into the waste tank. Pulling the lever down the flap closes.
Pictur
e
9

TECHNICAL DATA S34
Revision 00 January 2005 Page 20/47
The operator has to follow the rules below to sweep the surface:
¾start and sink the sweeping group down;
¾start the vacuum engine;
¾open the flap;
¾drive the sweeper at the same speed to clean all the surface.
The operator has to follow the rules below to empty the waste tank:
¾close the flap;
¾start the filter shaker to clean the vacuum filter;
¾lift the waste tank up;
¾open the flap, let the dust fall down from the waste tank and start the filter shaker again to clean the
vacuum filter ;
¾keep away from the waste tank and make sure that nobody is near the sweeper. Sink the waste
tank down.

TECHNICAL DATA S34
Revision 00 January 2005 Page 21/47
Main brush replacement
The operator has to follow the rules below to replace the main brush:
¾by means of the lever (see picture n. 10) open the little door on the right side of the sweeper;
¾unscrew the bolts (see detail 1 in picture 10) that hold the rubber catch sheet;
¾remove the sheet;
¾remove the dust cover rubber;
¾unloose the knob and open the door that holds the brush (picture 11);
¾remove the brush (picture 12);
¾set a new brush up and check its holders;
¾follow now the opposite operations.
Fi
g
ura 1
0
Deati
l
1
Dust cover rubbe
r

TECHNICAL DATA S34
Revision 00 January 2005 Page 22/47
Pictur
e
1
1
Kno
b
Brush suppor
t
Pictur
e
1
2
Brush holder detai
l
Table of contents
Other Clemas & Co Blower manuals

Clemas & Co
Clemas & Co GANSOW 125 User manual

Clemas & Co
Clemas & Co CS220 140B User manual

Clemas & Co
Clemas & Co 512 User manual

Clemas & Co
Clemas & Co S3 User manual

Clemas & Co
Clemas & Co S9 User manual

Clemas & Co
Clemas & Co 1010 User manual

Clemas & Co
Clemas & Co CS70 90B User manual

Clemas & Co
Clemas & Co S9 User manual

Clemas & Co
Clemas & Co 1450 User manual
