Clemas & Co CS220 140B User manual

CS220 140B SWEEPER
OPERATOR MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: [phone] Fax: [phone]
Email: [email protected] Web: www.clemas.co.uk

Congratulations for your choice!
FIORENTINI S.r.l. thanking you for the preference to our product, would like to remind you that
FIORENTINI S.r.l production covers manufacture and marketing of industrial cleaning machines
and is currently a leading company in this sector.
Our tradition and competence guarantee technical quality of your choice; actually all our
products are being built first quality materials through criteria that can give reliability, solidity and
functionality satisfying every kind of customers. FIORENTINI has recently obtained the quality
system certificate conforming to the requirements of UNI EN ISO 9001:2000.
We wish therefore inviting you to contact us, unhesitatingly, for every kind of request, as
technical or commercial; we’ll be pleased to be at your disposal for any information you may
need.

INDEX
1GENERAL INFORMATION ....................................................................................................................................................................................4
1.1 SYMBOLS..........................................................................................................................................................................................................4
1.2 PREMISES.........................................................................................................................................................................................................4
1.3 MANUAL CONSULTING...............................................................................................................................................................................5
1.4 WARRANTY ......................................................................................................................................................................................................5
1.4.1 WARRANTY OBJECT...............................................................................................................................................................................5
1.4.2 WARRANTY LIFE .....................................................................................................................................................................................5
1.4.3 WARRANTY APPLICATION ..................................................................................................................................................................6
1.4.4 RETURNED GOODS..................................................................................................................................................................................6
1.4.5 EXCEPTION................................................................................................................................................................................................6
1.5 CONFORMITY DECLARATION ..................................................................................................................................................................6
2CARATTERISTICHE DELLA MACCHINA E DATI TECNICI .............................................................................................................8
2.1 IDENTIFICAZIONE......................................................................................................................................................................................8
2.2 MACHINE FEATURES AND TECHNICAL DATA...................................................................................................................................9
2.2.1 DESCRIPTION...........................................................................................................................................................................................9
2.2.2 DESCRIPTION AND FEATURES OF THE MAIN PARTS..............................................................................................................9
2.3 MAIN PARTS OF THE MACHINE............................................................................................................................................................ 10
2.3.1 DASHBOARD............................................................................................................................................................................................ 12
2.3.2 USE OF THE MACHINE........................................................................................................................................................................ 13
3SAFETY............................................................................................................................................................................................................ 21
3.1 RIGHT USE OF THE MACHINE ............................................................................................................................................................... 21
3.2 WRONG USE OF THE MACHINE............................................................................................................................................................. 21
3.3 SUGGESTED EQUIPMENT ....................................................................................................................................................................... 22
3.4 OPERATOR’S QUALIFY ............................................................................................................................................................................. 22
3.5 PROTECTION AND WARNING DEVICES............................................................................................................................................ 23
3.6 OTHER DANGERS........................................................................................................................................................................................ 24
3.7 SAFETY SIGNALS....................................................................................................................................................................................... 25
4STARTING THE MACHINE...................................................................................................................................................................... 27
4.1 TRANSPORT AND HANDLING................................................................................................................................................................ 27
4.2 STORAGE ....................................................................................................................................................................................................... 29
4.3 UNPACK THE MACHINE............................................................................................................................................................................ 29
4.4 STARTING THE MACHINE...................................................................................................................................................................... 29
4.5 BATTERY INSTALLATION ...................................................................................................................................................................... 29
4.6 BATTERY CHARGER INSTALLATION .................................................................................................................................................. 29
4.7 USE THE MACHINE.................................................................................................................................................................................... 30
5MAINTENANCE ............................................................................................................................................................................................ 31
5.1 PERIODICAL MAINTENANCE.................................................................................................................................................................. 31
5.2 BATTERIES MAINTENANCE .................................................................................................................................................................. 32
5.2.1 DENSITY MEASUREMENT ................................................................................................................................................................ 32
5.2.2 FILL UP THE WATER ........................................................................................................................................................................... 32
5.2.3 LIMIT OF CHARGE ............................................................................................................................................................................... 32
5.2.4 BATTERIES OUT OF SERVICING ................................................................................................................................................... 32
5.2.5 TECHNICAL DATA OF BATTERY CHARGER ................................................................................................................................. 33
5.2.6 ELIMINATION OF BATTERIES....................................................................................................................................................... 33
5.3 ELECTRIC SYSTEM CHECK UP ................................................................................................................................................................ 33
5.4 MAINTENANCE’S REGISTER.................................................................................................................................................................. 34
6TECHNICAL SERVICE ................................................................................................................................................................................ 35
6.1 ADDRESSES FOR TECHNICAL SERVICE............................................................................................................................................. 35
6.2 CLAIM REPORT ............................................................................................................................................................................................ 36

GENERAL INFORMATION S32B
Revision 00 Maggio 2006 Page 4 di 37
1GENERAL INFORMATION
1.1 SYMBOLS
1.2 PREMISE
FIORENTINI S. r. l. is the only owner of this manual.
The reproduction of all or part of the manual or the transmission to third parties with
mechanic or electronic devices are forbidden without a written manufacturer’s authorization.
This manual is supplied to the customers in one original copy when differently specified
during the order.
This manual is supplied to the customer with the machine and it must be kept with it even when the machine has
to be transferred.
Please, keep the manual in a safe place and for all the machine lifetime. Purchaser is responsible for showing
the manual to qualified people. Incaseof loss ask foraduplicatetoFIORENTINICo..
FIORENTINI S.r.l. is not responsible for any kind of damages caused by people or things due to the non-
observance of the instructions of this manual.
FIORENTINI reserves the right to add at any time and without notice all the technical and commercial changes
considered useful for the customer. Therefore data and information in this manual can be updated.
This symbol is used to get the operator’s attention on procedures or precautions to be followed in
order to avoid damages to users or to the support.
This symbol is used to get the operator’s attention on general information.

GENERAL INFORMATION S32B
Revision 00 Maggio 2006 Page 7 di 37
DICHIARAZIONE CE DI CONFORMITA’
ING. O. FIORENTINI s.r.l.
Loc. Rombola
50030 PIANCALDOLI (FI) ITALIA
SISTEMA QUALITA’
AZIENDALE CERTIFICATO
ISO9001
DICHIARIAMO SOTTO LA NOSTRA RESPONSABILITA’ CHE LA MACCHINA
Marca FIORENTINI
Tipo
N° serie
Anno di costruzione 2005
RISULTA IN CONFORMITA’
con quanto previsto dalle seguenti direttive e normative armonizzate comunitarie:
DIRETTIVA COMUNITARIA
DIRETTIVA MACCHINE
98/37/CE
DIRETTIVA COMPATIBILITA’ ELETTROMAGNETICA
89/336/CE
DIRETTIVA SULLA RESTRIZIONE DI SOSTANZA PERICOLOSE
2002/95/CE
DIRETTIVA SULL’ESPOSIZIONE DEI LAVORATORI ALLE VIBRAZIONI
2002/44/CE
Ing. O. Fiorentini S.r.l.
Il titolare
Piancaldoli Ing. O. Fiorentini
Luogo e
data Firma

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 8 di 37
2MACHINES FEATURES AND TECHNICAL DATA
2.1 IDENTIFYING THE MACHINE
A silver label is sticked on the protection case of the steering column and clearly shows the data referring to
the “CE” marking.
Ing. O.Fiorentini S.r.l. MADE
50030 Piancaldoli (FI) IN
ITALY
Mod S32B S.N. 100
V 36 Hz -
Kg 890 A 80 kkW 5,3
2006
P
P
I
I
C
C
T
T
U
U
R
R
E
E
N
N
°
°
1
1
The label has never to be removed. In case of damage it is necessary to ask for a
copy. The scrubber cannot be sold without the label.

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 9 di 37
2.2 DESCRIPTION AND FEATURES OF THE MAIN PARTS
2.2.1 DESCRIPTION
The sweeper – S32 - has been designed to clean flat and hard surfaces by means of a sweeping system and
suction of the dust into a suitable tank.
The traction system is based on oleodynamic engines fed by a pump which is driven by an endothermic
petrol or GPL engine.
The oleodynamic pump also feeds the engine of the central brush, the engine of the side brushes, the
oleodynamic actuators for the lifting and sink of the waste tank. The vacuum and the filter shaker engines
are fed by a battery supplied with the machine.
The sweeper is equipped with a side rotating brush (the left side brush is optional) which has to bring dust
into the central part of the machine. The main brush brings dust into the waste tank thanks to a suction
system. The machine must be used on dry or damp surfaces and can be equipped with a water system
which has to pull dust down.
Thanks to the dashboard the operator can control all the machine functions and a series of LEDs shows to
the operator the battery status or the errors detected by the electronic card.
The operator can control all the main functions of the machine and in particular:
¾start both the central and the side brushes;
¾start the dust pull down device (optional);
¾lift up or sink down of the waste dust;
¾open or close the flap set up in the front side of the machine;
¾start the vacuum engine;
¾start the filter shaker.
2.2.2 MAIN PARTS OF THE MACHINE
¾Zinc-plated steel or stainless steel frame;
¾RH rotating brush;
¾LH rotating brush (optional);
¾vacuum system to pick dust up;
¾one drive wheel;
¾two idle wheels;
¾steering wheel assy;
¾operator’s seat;
¾dust pull down device (optional).
FIORENTINI Co., taking the new CE safety rules into consideration, manufactures the machine following the
CE directives about safety and health. The high quality material, the high technology and FIORENTINI
experience guarantee the performance and the reliability of this machine .
Each machine is tested during the manufacturing process and the final check is done before the machine is
shipped out.
Important: before switching the machine off the operator must
¾sink the waste tank down;
¾lift the brushes up to avoid damages to the brushes bristles and decrease
their effectiveness.

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 10 di 37
2.3 TECHNICAL DATA
FEATURES
LENGTH x WIDTH x HEIGHT 1815 x 1010 x 1400 mm
N° BRUSHES 1 CENTRAL + 1 o 2 SIDE
TRACTION HYDRAULIC
CENTRAL BRUSH DIMENSION Ø330 x 800mm
SIDE BRUSHES DIMENSION Ø500 mm
SWEEPING WIDTH 1050 mm
SWEEPING WIDTH WITH LEFT SIDE BRUSH 1300 mm
WHEEL DIAMETER 400 - 6 mm
FILTERING SURFACE 6 m²
WASTE TANK 180 litri
WEIGHT WITHOUT BATTERIES 535 Kg
ENGINE
BRUSHES HYDRAULIC ENGINE
TRACTION HYDRAULIC ENGINE
VARIABLE DELIVERY PUMP
FIXED DELIVERY PUMP
VACUUM MOTORS
FUNCTIONS
DRIVE MAN ON BOARD
U-TURN LANE
CENTRAL BRUSH LIFTING UP SYSTEM MANUAL
SIDE BRUSH LIFTING UP SYSTEM HYDRAULIC
SERVICE BRAKE MECHANICAL
PARKING BRAKE MECHANICAL WITH A LEVER
PERFORMANCES
FORWARD SPEED 0 – 6 Km/h
REVERSE SPEED 0 – 6 Km/h
MAX SLOPE 10%
MAX SLOPE FOR U-TURN 5% a 3 Km/h
WORKING CAPACITY UP TO m² /h 8450 m²/h
ECOLOGICAL FEATURES
NOISE AT OPERATOR’S EAR <80 DECIBEL
VIBRATIONS AT OPERATOR’S SEAT <2.5 m/s²

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 11 di 37
MEASUREMENT UNITS CONVERSION
Length 1 inch = 1” = 25,4 mm Power 1 kW = 1,36 CV = 1,34 BHP
Temperature T (K) = t (°C) + 273 / t (°F) = 1,8 t (°C) + 32 Pressure 1 bar =100 kPa = 14,5 psi
The technical data listed above may be changed by the manufacturer without
notice. In any case, FIORENTINI is available for any further information or
explanation.

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 12 di 37
2.3.1 THE DASHBOARD
The dashboard is composed by a series of switches that activate or deactivate all the functions of the
machine. The function of every switch is shown by a pictogram. Picture nr. 2 shows the dashboard. The
function of every switch and pilot light is explained in the scheme below.
1 Key switch
2 Hour counter
3 Horn button
4 Lights switch
5 Filter shaker switch
6 Suction engine switch
7 Vacuum engine pilot light
PICTURE N°
2
1
2
3
4
5
6 7

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 13 di 37

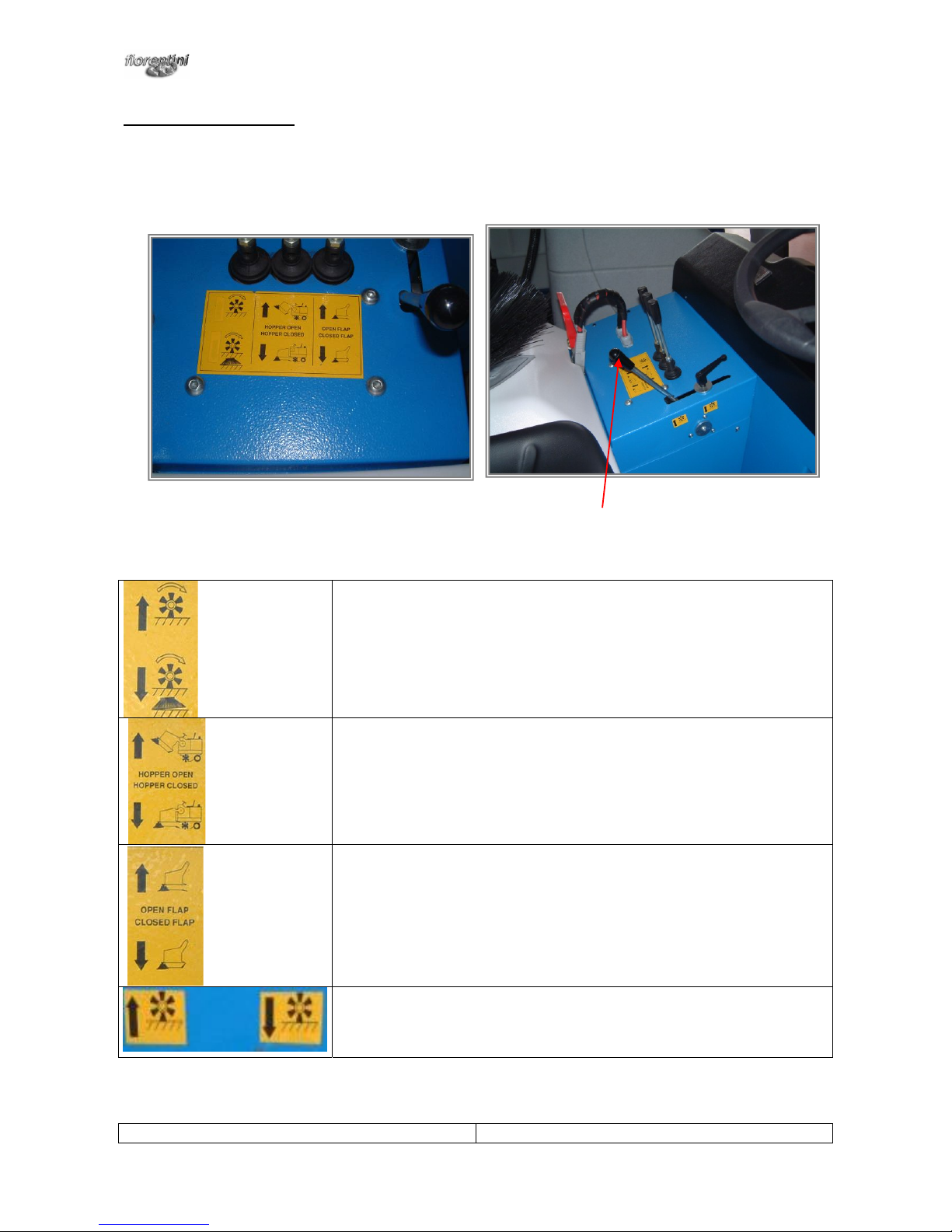

2.3.2 USE OF THE MACHINE
Starting the machine.
Insert the key into the dashboard and turn it once clockwise. Wait until the pilot light shows the battery level.
Before using the sweeper please check the hydraulic oil level in the tank of the
hydraulic system. The oil level must be kept between the two notches of the level
indicator inside the engine bonnet (see picture 3). If the oil level is not sufficient,
fill it up. Before this operation, switch the machine off and remove the key from
the dashboard.
PICTURE N°
3
Oil tank ca
p

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 14 di 37
Moving the machine.
By means of the forward/reverse pedal the operator can move the machine. The operator has to put the foot
onto the pedal and press it with the heel to move forward or with the top of the foot to move the machine
backward.
Stopping the machine.
The sweeper is equipeed with one parking brake and one service brake. The last one (see picture 5) is controlled by a
pedal placed next to the forward/reverse pedal. The parking brake is controlled by a knob (see picture 7). The operator
Forward speed
Reverse speed
4
Forward/reverse
p
eda
l
5
Service brak
e

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 15 di 37
has to pull this knob when the sweeper is not working. By means of the black little lever under the knob the operator can
release the brake.
Driving seat regulation.
By means of the lever under the driving seat (see picture 8) the operator can regulate the horizontal position
of the seat itself.
Regulation leve
r
8
Parking brake
knob
7
Important: the brake must be checked and registered every three months.

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 16 di 37
How to use the machine.
The operator can start the three functions of the machine by means of the three levers next to the driving seat. Make
reference to the scheme below for the explanation of the yellow sticker under the levers (see picture 9).
The operator has to pull the lever down in order to sink down
and start the rotation of the central and side brushes. Pulling
the lever up the hydraulic engines of the brushes stop and the
brushes return in their original position.
The operator has to pull the lever up in order to sink the waste
tank down. Pulling the lever down the tank returns in its original
position.
The operator has to pull the lever up to open the flap and pick
the dust up into the waste tank. Pulling the lever down the flap
closes.
Moving the lever towards the operator and hooking it, the main
brush lifts up. Moving the lever higher, the main brush goes
down.
9
Pressure lever main brus
h

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 17 di 37
The operator has to follow the rules below to sweep the surface:
¾start and sink the sweeping group down;
¾start the vacuum engine;
¾open the flap;
¾drive the sweeper at the same speed to clean all the surface.
The operator has to follow the rules below to empty the waste tank:
¾close the flap;
¾start the filter shaker to clean the vacuum filter;
¾lift the waste tank up;
¾open the flap, let the dust fall down from the waste tank and start the filter shaker again to clean the
vacuum filter ;
¾keep away from the waste tank and make sure that nobody is near the sweeper. Sink the waste
tank down.
Main brush replacement
The operator has to follow the rules below to replace the main brush:
¾by means of the lever (see picture n. 10) open the little door on the right side of the sweeper;
¾unscrew the bolts (see detail 1 in picture 10) that hold the rubber catch sheet;
¾remove the sheet;
¾remove the dust cover rubber;
¾unloose the knob and open the door that holds the brush (picture 11);
¾remove the brush (picture 12);
¾set a new brush up and check its holders;
¾follow now the opposite operations.
Picture 1
0
Detail
1
Dust cover rubbe
r

TECHNICAL DATA S32B
Revision 00 Maggio 2006 Page 18 di 37
Picture 1
1
Kno
b
Brush suppor
t
Picture 1
2
Brush holder detai
l

SAFETY S32B
Revision 00 Maggio 2006 Page 19 di 37
Side brush replacement
¾Unscrew the bolts (picture 13) and remove the brush;
¾replace the brush and tighten the bolts again.
How to replace the vacuum filter of the sweeping group and filter shaker engine
¾Important: remove the key from the dashboard of the sweeper;
¾open the bonnet of the machine by means of the button (picture 14);
¾lift the waste tank cover up;
¾unloose both screws that hold the filter (picture 15);
¾remove the filter shaker support;
¾disconnect the connectors of the shaker filter engine;
¾lift up and replace the damaged or clogged filter;
¾follow now the opposite operations.
Picture 1
3
Picture 1
4
Bonnet butto
n

SAFETY S32B
Revision 00 Maggio 2006 Page 20 di 37
Thanks to the vibrations of the filter shaker engine, the dust falls down from the filters into the waste
tank. If it is necessary, remove and replace the filter shaker engine.
How to clean the waste tank
The operator has to follow the instructions below to clean the waste tank:
¾lift the waste tank up and open the flap;
¾fasten the waste tank by means of the red safety lever (picture 16);
¾clean the waste tank;
¾place the red safety lever in its original position;
¾sink the waste tank down.
Picture 1
5
Fastening screw
s
Picture 1
6

SAFETY S32B
Revision 00 Maggio 2006 Page 21 di 37
3SAFETY
3.1 RIGHT USE OF THE MACHINE
3.2 WRONG USE OF THE MACHINE
The manufacturer is not responsible for damages due to a wrong use of the machine as stated in the
scheme below.
¾The machine cannot be driven by non-authorized personnel;
¾The machine cannot sweep sloping surfaces whose gradient is higher than 10%
or surfaces with holes;
¾During a U-turn on a 5% sloping surface the machine has to be driven at a speed
not higher than 3 km/h;
¾The machine cannot be used in places with dangerous substances and in
particular with explosive atmospheres or with a bad microclimate;
¾The machine cannot clean surfaces with inflammable products;
¾The machine cannot be used as a means of transport for people or other means
of transport;
¾The machine protection devices cannot be modified or tampered;
¾Batteries must be recharged in a fanned room;
¾The operator have always to respect safety rules;
¾The operator cannot use equipments or devices that can create problems to the
machine working;
¾The machine components cannot be modified without FIORENTINI’s
authorization;
¾The operator cannot use acids that can damage the machine;
¾The operator has always to respect the rules written in the user manual.
This sweeper is equipped with an internal combustion engine and has been
designed to clean open spaces. S32 can pick up dust from horizontal surfaces or
with a slope not higher than 10% at a speed not higher than 3km/h. During a U-
turn, the slope has not to be higher than 5%.
Please read carefully and do not cover the labels sticked on the machine.
FIORENTINI S.r.l. is not responsible for a wrong use of the machine.
Important. In case of fire use a dust extinguisher. Do not
use water.

SAFETY S32B
Revision 00 Maggio 2006 Page 22 di 37
3.3 SUGGESTED EQUIPMENTS
In order to use the machine in a proper way, we suggest to use FIORENTINI equipments and original spare
parts.
FIORENTINI S.r.l. Technical Dept. is always at your disposal to design components or parts for a particular
use of machine as requested by the customer.
3.4 OPERATOR’S QUALIFY
OPERATION OPERATOR’S QUALIFY
Driving/control of the machine Trained operator
Installation/ disinstallation Fiorentini technician
Mechanical parts maintenance Mechanic/trained technician
Electrical parts maintenance Electrician/ trained technician
Hydraulic system maintenance Mechanic/ trained technician
Cleaning of the machine Unskilled worker
Dismantling and demolition Unskilled worker
FIORENTINI S.r.l. suggest to train the operator before using the
machine. The operator must be trained about safety rules and
carefully read this manual.
FIORENTINI S.r.l. is not responsible for any possible damage to people and/or things
caused by the non-observance of the instructions dealt within this manual.
