Clement Clarke AirMed Travel-Air CN03A User manual

Portable
Compressor
Nebuliser
Instructions
Model no: CN03A
Please read these instructions
carefully before use
Engineered for Life
www.clement-clarke.com

Contents
1. Introduction ----------------------------------------------------- Page 2
2. Product Identication ------------------------------------------- Page 2
3. Safety and Regulatory Information -----------------------------Page 3
4. Operating Your Portable Compressor Nebuliser ------------- Page 4
5. Notes on Nebuliser Care ----------------------------------------Page 5
1. Replacing your consumables
2. Spares and Accessories
3. Optional Accessories
6. Replacement Parts & Optional Accessories ------------------- Page 5
7. Cleaning ---------------------------------------------------------- Page 6
8. Technical Specications ---------------------------------------- Page 7
9. Guarantee --------------------------------------------------------Page 8
10. Product Contents ---------------------------------------------- Page 8
11. Symbol Explanations ------------------------------------------ Page 9
12. EMC Declaration ----------------------------------------------- Page 9
1

1. Introduction
Thank you for purchasing the AirMed Travel-Air Portable Compressor
Nebuliser. It is a compact medical device designed to efciently deliver
physician prescribed medication to the bronchial lung passages. With the
correct care and use, it will provide you with many years of reliable treatment.
This product is developed for the successful treatment of asthma, allergies
and other respiratory disorders. It creates a stream of air that travels through
a clear tube to the nebuliser. When air enters the nebuliser, it will convert the
prescribed medication into aerosol mist for easy inhalation.
Your Portable Compressor Nebuliser should be used under the supervision of
a licensed physician and/or a respiratory therapist. We encourage you to
thoroughly read this handbook to learn about the features of this product.
Any use of this product other than its intended use should always be avoided.
2. Product Identication
Clear cover
Filter cover
Nebuliser cup
Power switch
Battery pack
2
AC Adapter Model: UE
24WCP 120m-120167 SPA
(Input 100-240V, 50/60Hz, 0.6A)

3
3. Safety and Regulatory Information
Note: Read all instructions carefully before use.
The following basic precautions are needed when using an electrical product:
Caution: Failure to read and observe all precautions could result in personal
injury or equipment damage.
Product cautions:
1. To avoid electrical shock: Keep the unit away from water
• Do not immerse the mains lead or the unit in liquid
• Do not use while bathing
• Do not reach for a unit that has fallen into water
– immediately unplug the unit.
2. Never operate the unit if:
• it has any damaged parts (including mains lead),
• it has been dropped or submersed in water.
3. The unit should not be used where ammable gas, oxygen or aerosol
spray products are being used.
4. Disconnect the unit from the electrical outlet before cleaning, lling and
after each use.
5. Do not use other attachments unless recommended by manufacturer.
Operating cautions:
1. Connect this product to an appropriate voltage outlet for your model.
2. Do not run this product unattended.
3. Never operate if this unit has a damaged lead or plug, if it has been
dropped into water.
4. If any abnormality occurs, discontinue use immediately until the unit has
been examined and repaired.
5. Always unplug the product immediately after use.
6. Never block the air openings of the main unit or place it where the air
openings may be obstructed.
Storage cautions:
1. Do not store the unit under direct sunlight, high temperature or humidity.
2. Keep the unit out of reach of small children.
3. Always keep the unit unplugged while not in use.
Cleaning cautions:
1. Do not immerse the unit in water. It may damage the unit.
2. Disconnect the unit from the electrical outlet before cleaning.
3. Clean all necessary parts after each use as instructed in this handbook.
No modication of this equipment is allowed

4. Operating Your Portable Compressor Nebuliser
Note: Prior to initial operation, the nebuliser should be thoroughly cleaned.
1. Place your Compressor Nebuliser on a at and stable surface. Be sure that
you can easily reach the controls when you are seated.
2. Open the clear cover and remove the inside nebuliser.
Important: Prior to initial operation, the nebuliser should be thoroughly
cleaned referring to ‘Cleaning’, section 7, page 6 in the handbook.
3. Gently twist the top part of the nebuliser counter-clockwise to disassemble
the nebuliser.
4. Fill the bottom section of the nebuliser with the
medication prescribed by your physician. Be
sure that the cone is put inside the bottom section.
5. Gently twist the top part clockwise to re-assemble
the nebuliser. Be sure the two sections t well.
6. Replace the nebuliser. Make sure it sits rmly on the tting joint.
Note: It’s also advisable that the nebuliser be connected to the compressor
unit with the air tube provided. To connect, insert connector-end of air tube
into unit’s tting joint, and insert the other open-end into nebuliser’s bottom.
7. Attach mouthpiece or mask per your choice to the top outlet of nebuliser.
8. Connect your Compressor Nebuliser to power source:
A. Using the AC adapter:
1) Insert the AC adapter plug into the unit’s receptacle.
2) Plug the AC adapter to a standard AC outlet.
3) The device should be positioned so that the AC adaptor and the
mains plug are easily accessible to disconnect the device.
B. Using battery pack:
Your Compressor Nebuliser can also operate with the rechargeable
battery pack when AC power is not available.
1) Put the unit on top of the battery pack and push down to connect.
2) To remove battery pack, press the release button under the
power switch.
9. Press power switch to begin your prescribed treatment.
Rechargable Battery:
Note:
1) The life of the battery is approximately 2 years. However, battery life will
vary depending on usage, storage and charging conditions.
Charging the battery pack:
To charge the battery, insert the AC adapter plug into receptacle of
battery pack. Then plug the AC adapter to a standard AC outlet.
Charging Time:
For the rst time use: 24 hours. Thereafter: 4-12 hours.
2) When the battery is being charged, the indicator light will be lit in red.
If the light changes from red to green, it indicates that the battery is
fully charged.
Please Note:
The device should be positioned so that the AC adaptor and the mains plug are
easily accessible to disconnect the device.

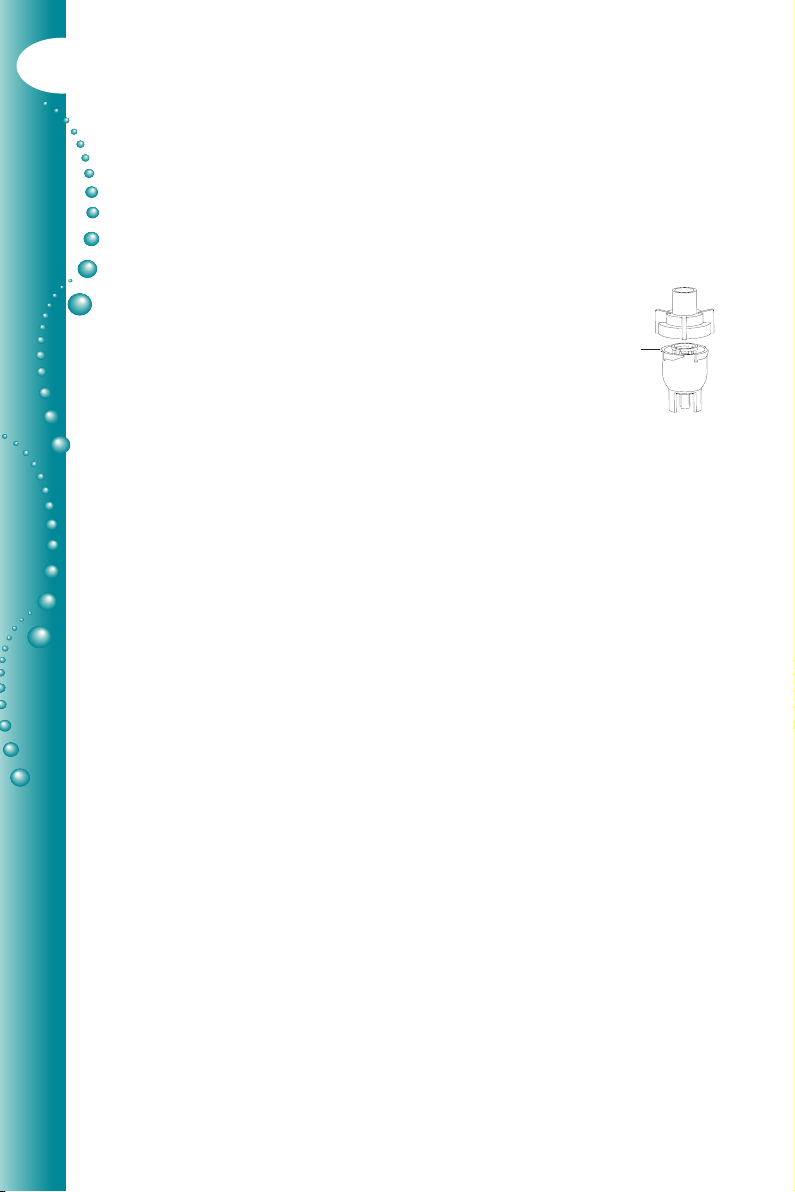

Place cone
inside and ll
with
medication
4

5. Notes on Nebuliser Care
1. Replacing your consumables
It is recommended that the following disposable items should be changed
as follows:
Nebuliser cup
Driveline
Face mask
Inlet lter
Mouthpiece
2. Spares and Accessories
The following are available from your supplier:
Inlet lter (Pack of 5)
Adult Year Pack:
Contents: 4 nebuliser cups, 4 drivelines, 4 adult face masks,
5 inlet lters.
Child Year Pack : As above but with a child’s face mask.
3. Optional Accessories:
Car Adaptor
Spare Rechargeable Battery
6. Replacement Parts & Optional Accessories
Replacement parts are available through your local retailer or they can be
ordered directly from Clement Clarke International Limited.
}
}
}
5
change every 3 - 4 months
change every 30 days or
when it turns grey
change every 6 - 12 months

6
7. Cleaning
It is recommended that the nebuliser, driveline (make sure the driveline is dry
before re-use), mouthpiece and/or mask be thoroughly cleaned with warm
water after each use and cleaned with a mild detergent after the last treatment
of the day. If your physician or respiratory therapist species a different cleaning
procedure, follow their instructions.
Caution:
Before cleaning, make sure the mains lead is disconnected from the mains
outlet and the unit.
Rinsing (after each treatment)
1. Disconnect the nebuliser cup, driveline, mouthpiece and/or mask.
2. Gently twist the nebuliser cup to open it.
3. Rinse the nebuliser cup, mouthpiece and/or mask with water.
4. Dry them with a clean soft towel or let them air dry.
5. Reassemble the nebuliser cup when completely dry and put the parts in a
dry, sealed container.
Cleaning your accessories:
This procedure does not sterilise the nebuliser cup. Therefore if the patient has
an infectious disease, the entire nebuliser kit should be discarded.
1. After use, disassemble and discard any residual drug.
2. Wash the nebuliser parts in warm water with a little detergent.
3. Rinse in clean warm water and allow to dry completely before re-assembly.
4. Run empty for a few moments before next use.
5. Store in a dry, clean place.
Cleaning the compressor:
1. Wipe daily with a damp cloth.
2. Do not use any powdered cleaners or soap pads, which may damage
the nish.
Filter change
1. Do not use cotton or any other materials. Do not wash or clean the lter.
Only use lters supplied by your distributor. Do not operate without a lter.
2. Change the lter every 30 days or when the lter turns grey.
3. Changing procedure:
a. Remove the lter cover
b. Replace the used lter with a new one.
c. Replace the lter cover.

8. Technical Specications
Power 12VDC from AC adapter or battery pack
Current Approx. 1.67A
MMAD 4 um
Sound Level Approx. 60 dBA
Medication bowl capacity 5ml (cc)
Average Nebulisation Rate 0.2ml/min
Compressor Pressure Range 30 to 36 Psi (210 to 250 kPa / 2.1 to 2.5 bar)
Operating Pressure Range 8 to 10 Psi (50 to 70 kPa / 0.5 to 0.7 bar)
Litre Flow Range 5.0 ~ 6.7 L/m
Operating Temperature Range 10°C to 40°C (50° to 104°F)
Operating Humidity Range 10 to 90% RH
Storage Temperature Range -25°C to 70°C (-13° to 158°F)
Storage Humidity Range 10 to 90% RH
Dimension (L x W x H) 106 mm x 66 mm x 128 mm (without battery pack)
106 mm x 66 mm x 166 mm (with battery pack)
Weight 395 g / 0.87 Lbs (without battery pack)
712 g / 1.57 Lbs (with battery pack)
Standard Accessories Nebuliser, Mouthpiece, Air Tube, Filters (5pcs)
Universal AC Adaptor, Rechargable Battery
Battery type NiMH
Battery capacity 1600 mAH
Battery using time Min. 45 minutes
AC Adaptor Model: UE 24WCP 120m-120167 SPA
(Input 100-240V, 50/60Hz, 0.6A)
Protection against electric shock:
- Class II Equipment
- Type BF applied parts: Mouthpiece, inhaler & mask.
Protection against harmful ingress of water:
- IPX0 (Ordinary)
Degree of safety in the presence of ammable anesthetics or oxygen:
- No AP/APG (Not suitable for use in the presence of ammable
anesthetics or oxygen)
Mode of operation: – continuous.
7

9. Guarantee
This guarantee is offered to you as an extra benet and does not affect your
statutory rights.
CCI products are carefully designed, manufactured and inspected.
CCI undertake to replace or repair any part found to be defective in material or
workmanship subject to the following terms and conditions:
The compressor and motor are guaranteed for 2 years from date of purchase,
on condition that:
•it is cleaned and maintained in accordance with the instructions.
•any repair is undertaken by CCI approved engineers/agents.
•only CCI approved parts are used to service this equipment.
Please note: This device does not require a service under its guaranteed life.
This guarantee does not apply to:
•The disposable nebuliser chamber, driveline, face mask, mouthpiece
and lters.
•Defects arising from misuse, negligence, improper maintentance,
accident, damage in shipment or unauthorised modication or service.
Compensation
Defective parts only will be replaced.
Terms and conditions apply
10. Product Contents
1 x Portable Compressor Nebuliser Unit
1 x Instructions
1 x Neb Cup
1 x Mouthpiece
1 x Adult Face Mask
1 x Child Face Mask
1 x Driveline
5 x Air Filter
1 x Connector
1 x Rubber Base
1 x Travel Bag
1 x Rechargable Battery
1 x Universal AC Adaptor
8

11. Symbol Explanations
Consult ‘Instructions for Use’
Caution
Manufacturer
Class II Equipment
Type BF applied parts
This product complies with the essential requirements of the
medical devices directive (93/42/EEC). Compliance has been
veried by UK notied body per 0120 (SGS United Kingdom Ltd).
Do not dispose of with household refuse
12. EMC Declaration
With the increased number of electronic devices such as PCs and mobiles,
medical devices in use may be susceptible to electromagnetic interference from
these devices. Which may result in incorrect operation of the medical device
and create a potentially unsafe situation. Medical devices should also not
interfere with other devices.
In order to regulate the requirements for EMC with the aim to prevent unsafe
product situations, the EN60601-1-2 standard has been implemented. This
standard denes the levels of immunity to electromagnetic interferences as well
as maximum levels of electromagnetic emissions for medical devices.
Medical devices manufactured by Clement Clarke International Ltd conform to
this EN60601-1-2 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• The use of accessories and cables other than those specied by
Clement Clarke Int. Ltd, with the exception of cables sold by Clement Clarke
International Ltd. as replacement parts for internal components, may result in
increased emission or decreased immunity of the device.
•The medical devices should not be used adjacent to or stacked with other
equipment. If adjacent or stacked use is unavoidable, the medical device
should be seen to operate normally as it should in this situation.
Further guidance regarding the EMC environment (in accordance with
EN60601-1-2) in which the device should be used is available at
www.clement-clarke.com/ medicalquality
9

Clement Clarke International Ltd
Edinburgh Way Harlow
Essex CM20 2TT UK
Tele: [phone]
Fax: [phone]
email: [email protected]
Part no: 3605915
Issue no: 3 10/12

Trimmed size: 297 x 210 (A4),
folded in half to 148.5 x 210mm (A5 booklet)
Colour: 2 colour process: Pantone: 321, (C=100, M=0, Y=31 K=23)
and Black.
Material: 115gsm silk paper, cover - 250gsm
Sample to be approved before initial production. Subsequent
orders do not need a sample unless there is a change to the drawing
