Cleveland Horizontal Tumble Chiller P-TC-120 User manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site: www.ClevelandRange.com
Email: [e-mail]
COOK CHILL SYSTEMS Cook/Chill S stems
SECT. XIV PAGE 37
0907

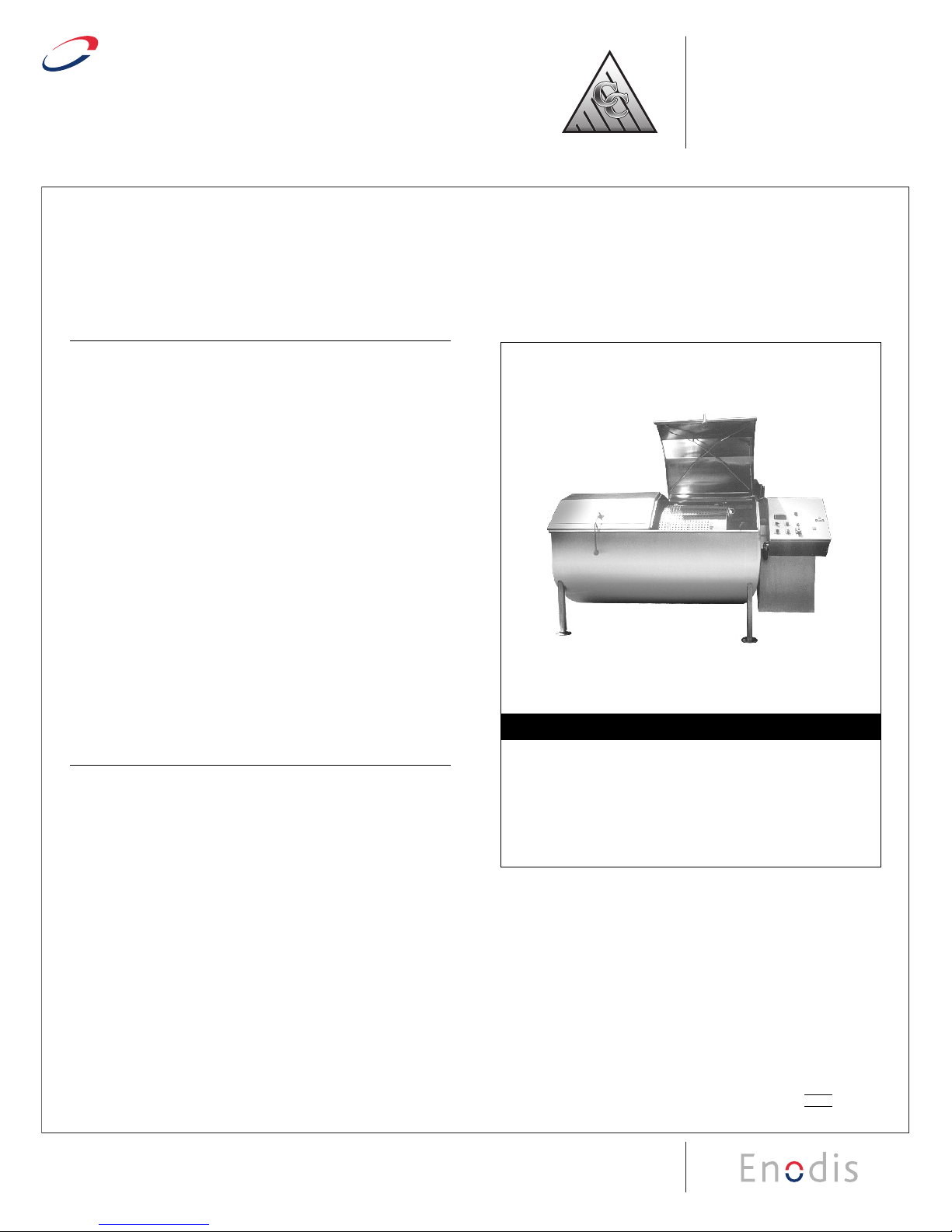

HORIZONTAL
TUMBLE CHILLER
MODEL:  P-TC-120
Cleveland Standard Features
ICapacity for 120 gallons of pumpable products
IHeavy duty all stainless steel construction
ILarge electric driven perforated product cylinder
IStart/stop controls for cylinder rotation
IDigital temperature display
IIndicator light for cooling cycle completion
IControls for cleaning cycle
IDual hinged covers totally enclose rotating cylinder
ISafety interlock switch stops cylinder rotation when cover is
slightly lifted
IAutomatic water level controls
IShell & Tube heat-exchanger for fast cooling of products
IIntegrated water conservation system to allow use of chilled
water throughout the production day
I1/2 HP water circulation pump for even water-bath
temperature
IAll electrical and plumbing enclosed in stainless steel
housing
IAccepted for use in U.S.D.A. Inspected Facilities
Options & Accessories
ËIce Builders
ËProduct Landing Tables
ËIce Water Control Panel
ËCondensing Units for Ice-Builders
ËFlow Meter for chilled water loop
ËChart Recorder
Shall be Clevelan Mo el P-TC-120, Horizontal Tumble
Chiller; 120 gallon capacity; all stainless steel construction;
perforate pro uct cylin er with start/stop controls,
automatic water level control; igital temperature isplay;
controls for cleaning cycle; shell an tube heat-exchanger;
1/2 HP built-in water circulation pump for even water-bath
temperature; Dual, hinge covers
Short Form Specifications

MINIMUM C EARANCE
FRONT 36"
SIDE 12"
REAR 12"
SECT. XIV PAGE 38
0907
Litho in USA
Cleveland Range reserves right of design improvement or modification, as warranted.
73 1/2"
96 1/2"
52 1/2"
FRONT VIEW
PLAN VIEW
57 3/4"
COVER SHOWN OPEN
83"
SIDE VIEW
53 3/4"
47 1/2"
39 1/2"
D
UTI ITY CONNECTIONS
CHI ED CHI ED HOT
WATER WATER CO D WATER E EC-
MODE IN ET RETURN WATER (C EANING) DRAIN TRICA
P-TC120 1 1/2" NPT 1 1/2" NPT 1" NPT 1" NPT 1 1/2" NPT 20 AMPS
50 GPM 30 GPM 30 GPM
D 1D 2
B
D 1D 2
B
D 1D 2
B
D 1D 2
B
D 1D 2
B
D 1D 2
B
208V/
3PH/60Hz
(NOT TO SCALE)
NOTE: The pressure drop is 12 to 15 PSI for the chilled water passing through the tumble chiller.
