Clevo M190S User manual

Preface
I
Preface
Notebook Computer
M190S/M192S
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
April 2003
Trademarks
Intel®and Pentium®are registered trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the Notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
V
Preface
Contents
Introduction ........................................ 1-1
Overview .................................................................................1-1
System Specifications .............................................................1-2
Structure .............................................................................1-2
Processor .............................................................................1-2
Memory ..............................................................................1-2
Core Logic ..........................................................................1-2
BIOS ...................................................................................1-2
LCD ....................................................................................1-2
Display ................................................................................1-3
Storage ................................................................................1-3
Security ...............................................................................1-3
Audio ..................................................................................1-4
Keyboard ............................................................................1-4
PC Card Sockets .................................................................1-4
Interface ..............................................................................1-4
Communication ..................................................................1-5
Power Management ............................................................1-5
Power ..................................................................................1-5
Indicator ..............................................................................1-5
Environmental Spec ............................................................1-5
Physical ...............................................................................1-6
Weight ................................................................................1-6
Optional ..............................................................................1-6
External Locator - Top Views .................................................1-7
External Locator - Front and Rear View .................................1-8
External Locator - Right View ................................................1-9
External Locator - Left View ................................................1-10
External Locator - Bottom View ...........................................1-11
Mainboard Overview - Top .................................................. 1-12
Key Parts .......................................................................... 1-12
Mainboard Overview - Bottom ............................................. 1-13
Key Parts .......................................................................... 1-13
Mainboard Overview - Top .................................................. 1-14
Cable Connectors ............................................................. 1-14
Mainboard Overview - Bottom ............................................. 1-15
Cable Connectors ............................................................. 1-15
Disassembly ......................................... 2-1
Overview ................................................................................. 2-1
Maintenance Tools ............................................................. 2-2
Connections ........................................................................ 2-2
Maintenance Precautions ................................................... 2-3
Disassembly Steps .................................................................. 2-4
Removing the Battery ............................................................. 2-6
Removing the Hard Disk Drive Assembly ............................. 2-7
Removing the System Memory in Socket Two ...................... 2-8
Removing the Keyboard ......................................................... 2-9
Removing the System Memory in Socket One ..................... 2-10
Removing the CPU ............................................................... 2-11
Removing the Modem .......................................................... 2-12
Removing the GSM/CDMA Modem .................................... 2-12
Removing the LCD Assembly .............................................. 2-13
Removing the Mainboard and CRT board ............................ 2-15
Removing the Inverter .......................................................... 2-16
Removing the LCD .............................................................. 2-17
Removing the PCMCIA Assembly ..................................... 2-18

Preface
VI
Preface
Part Lists ............................................ A-1
Part List Illustration Location ................................................A-2
Top (M190S) .......................................................................... A-3
Bottom (M190S) ....................................................................A-4
LCD (M190S) ........................................................................A-5
Combo Drive - CDRW-CD (M190S) ....................................A-6
Combo Drive - CDRW-DVD (M190S) .................................A-7
Combo Drive - FDD-CD (M190S) ........................................A-8
Combo Drive - FDD-CDRW (M190S) .................................A-9
Combo Drive - FDDT-DVDQ (M190S) ..............................A-10
Top (M192S) ........................................................................ A-11
Bottom (M192S) ..................................................................A-12
LCD (M192S) ......................................................................A-13
Combo Drive - CDRW-CD (M192S) ..................................A-14
Combo Drive - CDRW-DVD (M192S) ...............................A-15
Combo Drive - FDD-CD (M192S) ......................................A-16
Combo Drive - FDD-CDRW (M192S) ................................A-17
Combo Drive - FDDT-DVDQ (M192S) ..............................A-18
Schematic Diagrams............................B-1
System Block Diagram ........................................................... B-3
Socket 478 - 1 of 2 ................................................................. B-4
Socket 478 - 2 of 2 ................................................................. B-5
Clock Generator ..................................................................... B-6
650-1 (Host/AGP) - 1 of 4 ...................................................... B-7
650-2 (DDR Memory) - 2 of 4 ............................................... B-8
DDR Memory DIMM ............................................................ B-9
SSTL-2 Termination Resistors ............................................. B-10
650-3 (LVDS Interface) - 3 of 4 ........................................... B-11
Panel Interface / LED Indicator ........................................... B-12
650-4 (Powers) - 4 of 4 ........................................................ B-13
961A-1 (PCI / IDE / HyperZip) - 1 of 4 ...............................B-14
HDD / Combo CON .............................................................B-15
961A-2 (Misc Signals) - 2 of 4 .............................................B-16
961A-3 (USB) - 3 of 4 ..........................................................B-17
961A-4 (Power & RTC) - 4 of 4 ...........................................B-18
PCMCIA ENE1410 ..............................................................B-19
PCM PWR & Bluetooth Interface ........................................B-20
TI1394 TSB43AB21 .............................................................B-21
LPC Super I/O ......................................................................B-22
LAN RTL8100BL ................................................................B-23
LPC - H8 ...............................................................................B-24
Fan Control & SpeedStep .....................................................B-25
System Power Control Board ...............................................B-26
Audio Codec .........................................................................B-27
Audio Out / GPRS Connector ...............................................B-28
V_Core ..................................................................................B-29
+3V, +5V, +12V ...................................................................B-30
+2.5V, +1.25V ......................................................................B-31
+1.8V, 3VH8, VDD 1.8, VCCID .........................................B-32
Charger - PWM .....................................................................B-33
CRT Board ............................................................................B-34
Hot-Key ................................................................................B-35
Power & Lid Switch Board ...................................................B-36

Introduction
Overview 1 - 1
1.Introduction
1: Introduction
Overview
This manual covers the information you need to service or upgrade the M190S/M192S notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about driv-
ers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.
The M190S/M192S notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed description
of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the
“” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Structure
• PC 99 Compliant
Processor
• Mobile Intel Pentium 4 Processor-M (478-pin) uFC-PGA package
0.13 Micron Process Technology - 1.4/1.5/1.6/1.7/1.8/1.9/2.0 GHz
• Mobile Intel Celeron Processor (478-pin) uFC-PGA package
0.13 Micron Process Technology - 1.4/1.5/1.6/1.7/1.8 GHz
Memory
• Two 200-pin SODIMM sockets, supporting DDR200/266MHz DRAM
• Expandable memory up to 1024MB (128/256/512 MB SODIMM Modules supported)
Core Logic
• SIS650 chipset
BIOS
• One 256KB Flash ROM
•PhoenixBIOS
LCD
• 12.1" XGA TFT flat panel (1024 * 768)

Introduction
System Specifications 1 - 3
1.Introduction
Display
• Integrated 128-bit 2D/3D Graphics Accelerator
Advanced HW Acceleration for DVD Playback
Fully DirectX 8 Compliant Graphics Engine
• Shared memory up to 16/32/64MB DDR SDRAM
• Dual-view Display Monitor
Storage
•ExternalIDECombo Drive for the following combination options:
CD-ROM & FDD
DVD-ROM & FDD
CD-R/ CD-RW/ CD-ROM & FDD
CD-R/ CD-RW/ CD-ROM & CD-ROM
CD-R/ CD-RW/ CD-ROM & DVD-ROM
DVD/ CD-R/ CD-RW/ CD-ROM Combi & FDD
• Easy changeable 2.5" 9.5 mm (h) HDD
Supports Master mode IDE
Supports LBA mode
Supports PIO mode 4
ATA-33/66/100
Ultra DMA
Security
• Security (Kensington® Type) Lock Slot
• BIOS Password

Introduction
1 - 4 System Specifications
1.Introduction
Audio
• AC'97 2.1 Compliant Interface
• 3D stereo enhanced sound system
• Compatible with Sound-Blaster PRO
• S/PDIF digital output (51.CH)
• Built-in microphone
• 2 built-in speakers
Keyboard
• WinKEY multi-language keyboard
PC Card Sockets
• One type-II (PCI) PCMCIA 3.3V/5V socket
Interface
• Built-in Touchpad with scrolling function
• One PS2 port
• Two USB 2.0 ports
• One mini- IEEE 1394 port
• One external IDE connector for Combo Drive
• One infrared file transfer IrDA1.1, SIR/ FIR /ASKIR
• One external CRT monitor port
• One headphone-out jack
• One microphone-in jack
• One S/P DIF Output jack
• One GSM/CDMA headphone/speaker jack
• One RJ-11 jack for Plug & Play Fax/Modem
• One RJ-45 jack for 10M/ 100M Fast Ethernet
• DC-in jack
• Three built-in instant keys - email/internet/application

Introduction
System Specifications 1 - 5
1.Introduction
Communication
• 56K Plug & Play Fax/Modem V.90 & V.92 compliant
• 10M/100M Fast Ethernet (IEEE 802.3 and 802.3u Standard Compliant)
• Infrared file transfer IrDA1.1, FIR/SIR/ASKIR
• CDMA modem module (optional)
• GPRS modem module (optional)
Power Management
• Supports ACPI v1.0b
• Supports Hibernate mode
• Supports Standby mode
• Supports battery low sleep
• Supports resume from modem ring
Power
• Full Range AC adapter -65W, AC-in 100~240V, 50~60Hz,
• DC output 20V
• Main battery smart Li-ion 44.4W (removable)
• Ultra battery smart Li-ion 88.8W (removable)
Indicator
• LED indicators (GSM/GPRS/CDMA, Power/Sleep, Charger, FDD/ CD-ROM, HDD, Num Lock, Caps Lock, Scroll Lock)
Environmental Spec
• Temperature:
Operating: 5ºC ~ 35ºC
Non-Operating: -20ºC ~ 60ºC
• Relative Humidity:
Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%

Introduction
1 - 6 System Specifications
1.Introduction
Physical
• 274(w) x 230(d) x 31(h) mm
Weight
• 1.95kg
Optional
• Standard smart Li-ion battery pack, 44.4 Watt
• Ultra smart Li-ion battery pack, 88.8 Watt
• External IDE Combo Drive Options:
CD-ROM & FDD
DVD-ROM & FDD
CD-R/ CD-RW/ CD-ROM & FDD
CD-R/ CD-RW/ CD-ROM & CD-ROM
CD-R/ CD-RW/ CD-ROM & DVD-ROM
DVD/ CD-R/ CD-RW/ CD-ROM Combi & FDD
• Internal CDMA module
• Internal GPRS module

Introduction
External Locator - Top Views 1 - 7
1.Introduction
External Locator - Top Views
5
6
7
8
9
10
1
2
4
3
7
11
12
Figure 1 - 1
Top Views
1. LCD Panel
2. LED Status Indi-
cators
3. Close Cover
Switch
4. Power Button
5. Built-In
Microphone
6. Keyboard
7. Speakers
8. Hot-Key Buttons
9. TouchPad &
Buttons
10.LED Power &
Communication
Indicators
11. Phone Antenna
12.LCD Latch

Introduction
1 - 8 External Locator - Front and Rear View
1.Introduction
External Locator - Front and Rear View
Figure 1 - 2
Front View
1. Phone Antenna
2. Infrared
Transceiver
3. Communication
LED
4. Power LED
5. Battery LED
6. S/PDIF Port
7. Microphone-In Port
8. Headphone-Out
Port
9. LCD Latch
Figure 1 - 3
Rear View
1. Security Lock
43
1
2
876
5
9
1

Introduction
External Locator - Right View 1 - 9
1.Introduction
External Locator - Right View Figure 1 - 4
Right View
1. Hard Disk Bay
2. Dual USB Ports
3. Vent
4. Modem & LAN
Jacks
4
3
1
2
12 3 4

Introduction
1 - 10 External Locator - Left View
1.Introduction
External Locator - Left View
Figure 1 - 5
Left View
1. Antenna Raised
2. External Monitor
(CRT) Port
3. DC-In Jack
4. PS/2 Port
5. Telephone Headset
Jack
6. External IDE
Device Port
7. Mini IEEE 1394
Port
8. PC Card Slot
9. PC Card Eject
Button
10. External IDE
Combo Device
2
46 7 8 9
6
1
3 5
10

Bay Manager Driver
Please make you have
installed the Bay Man-
ager driver (See What
to Install on page 4-2
of the User’s Manual)
to enable you to con-
nect/disconnect the
drive while the compu-
ter is on. If the driver is
not installed the drive
must be connected be-
fore you start-up the
computer.

Introduction
External Locator - Bottom View 1 - 11
1.Introduction

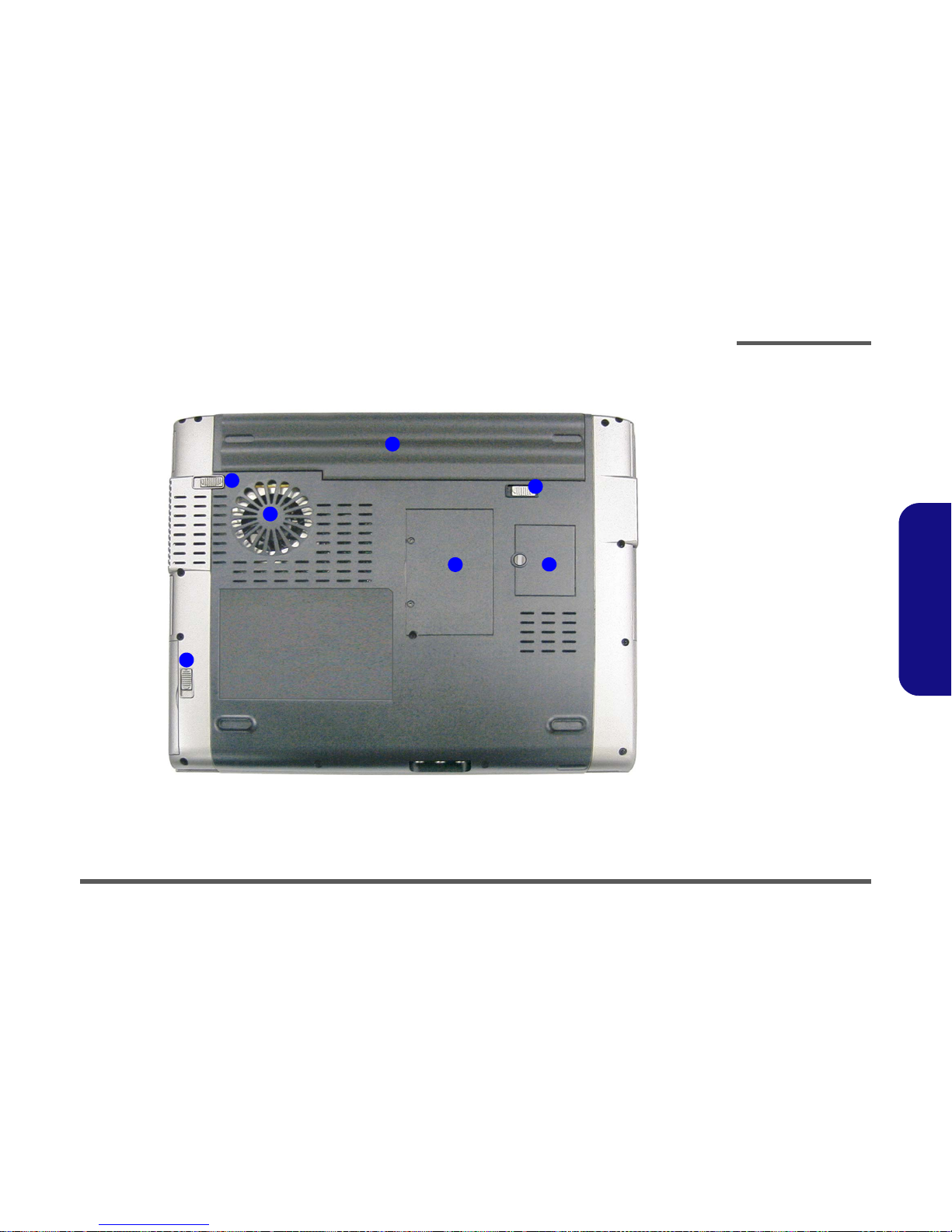

External Locator - Bottom View Figure 1 - 6
Bottom View
1. Battery
2. Battery Release
Latches
3. Hard Disk Release
Latch
4. Fan Outlet
5. RAM Cover
6. SIM Card Cover
1
2
3
4
5 6
2

Introduction
1 - 12 Mainboard Overview - Top
1.Introduction
Mainboard Overview - Top
Key Parts
Figure 1 - 7
Mainboard Top
Key Parts - 1
1. CPU Socket (no
CPU installed)
2. SiS650 Chipset
3. 1 * SO-DIMM
socket
4. Flash ROM BIOS
5. V_Core
6. PCMCIA
1
2
4
5
6
3

Introduction
Mainboard Overview - Bottom 1 - 13
1.Introduction
Mainboard Overview - Bottom

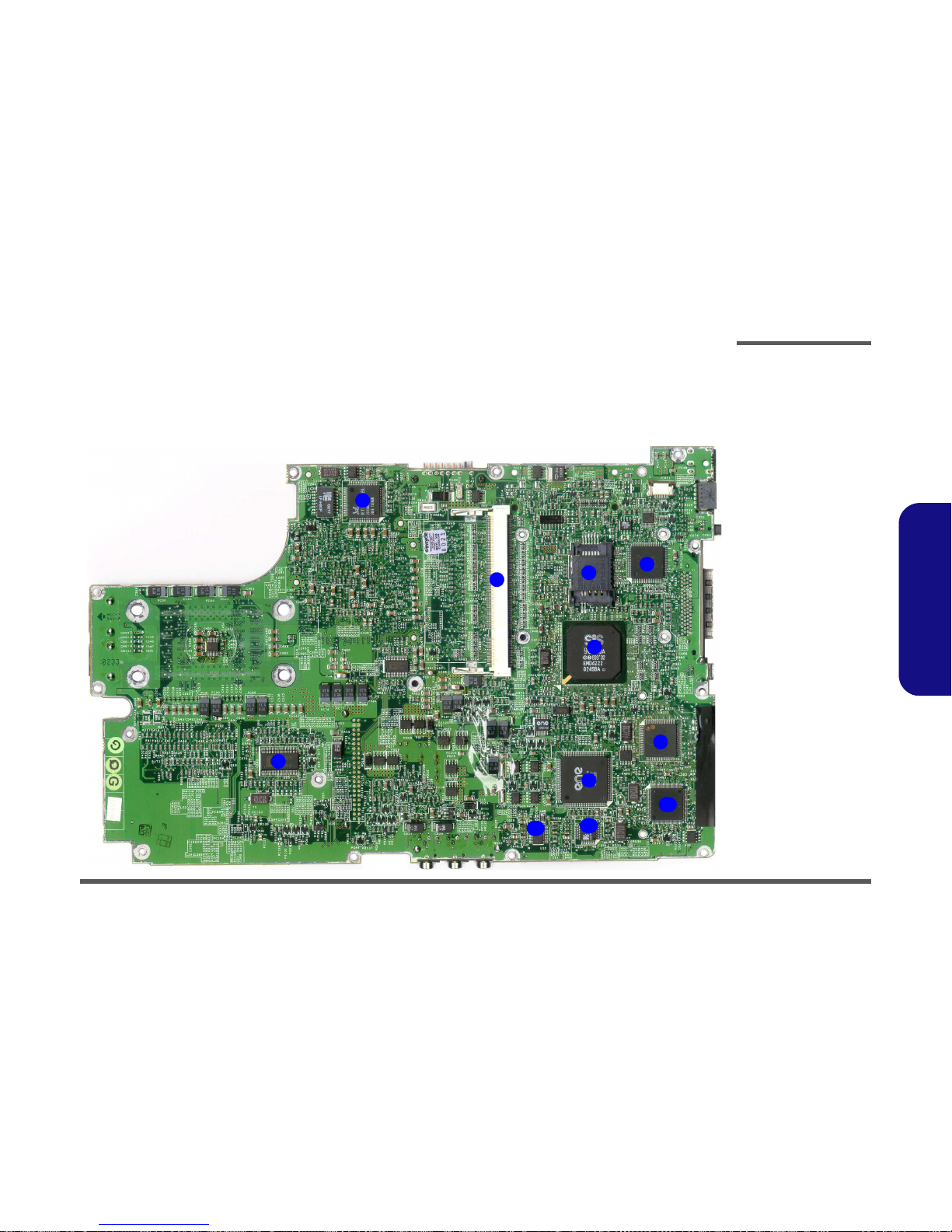

Key Parts
Figure 1 - 8
Mainboard Bottom
Key Parts
1. Realtek
RTL8100L Lan
Controller
2. 1 * SO-DIMM
socket
3. H8 Keyboard
Controller
4. SIM Card Slot
5. SiS962
6. LPC Super I/O
(NSPC87393)
7. Cardbus
(ENE1410)
8. Clock Generator
9. PCMCIA Power
10. Audio Codec
(ALC201A)
11. TI1394
TSB43AB22
1
2
3
4
5
6
7
8
910
11
