Preface
I
Preface
Notebook Computer
P180HM
Service Manual
All manuals and user guides at all-guides.com

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
September 2011
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.
All manuals and user guides at all-guides.com

Preface
III
Preface

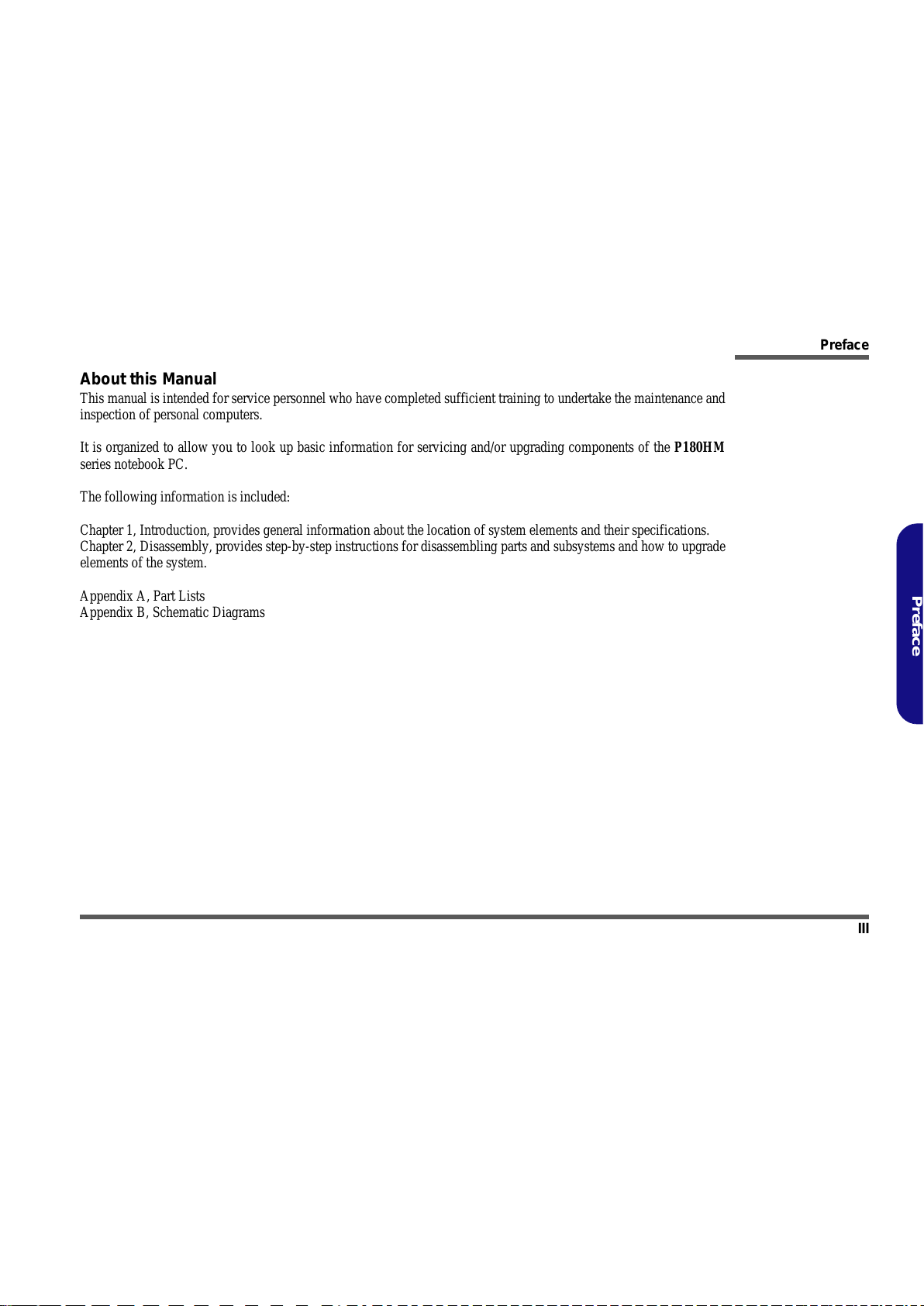

About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the P180HM
series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
All manuals and user guides at all-guides.com

Preface
IV
Preface

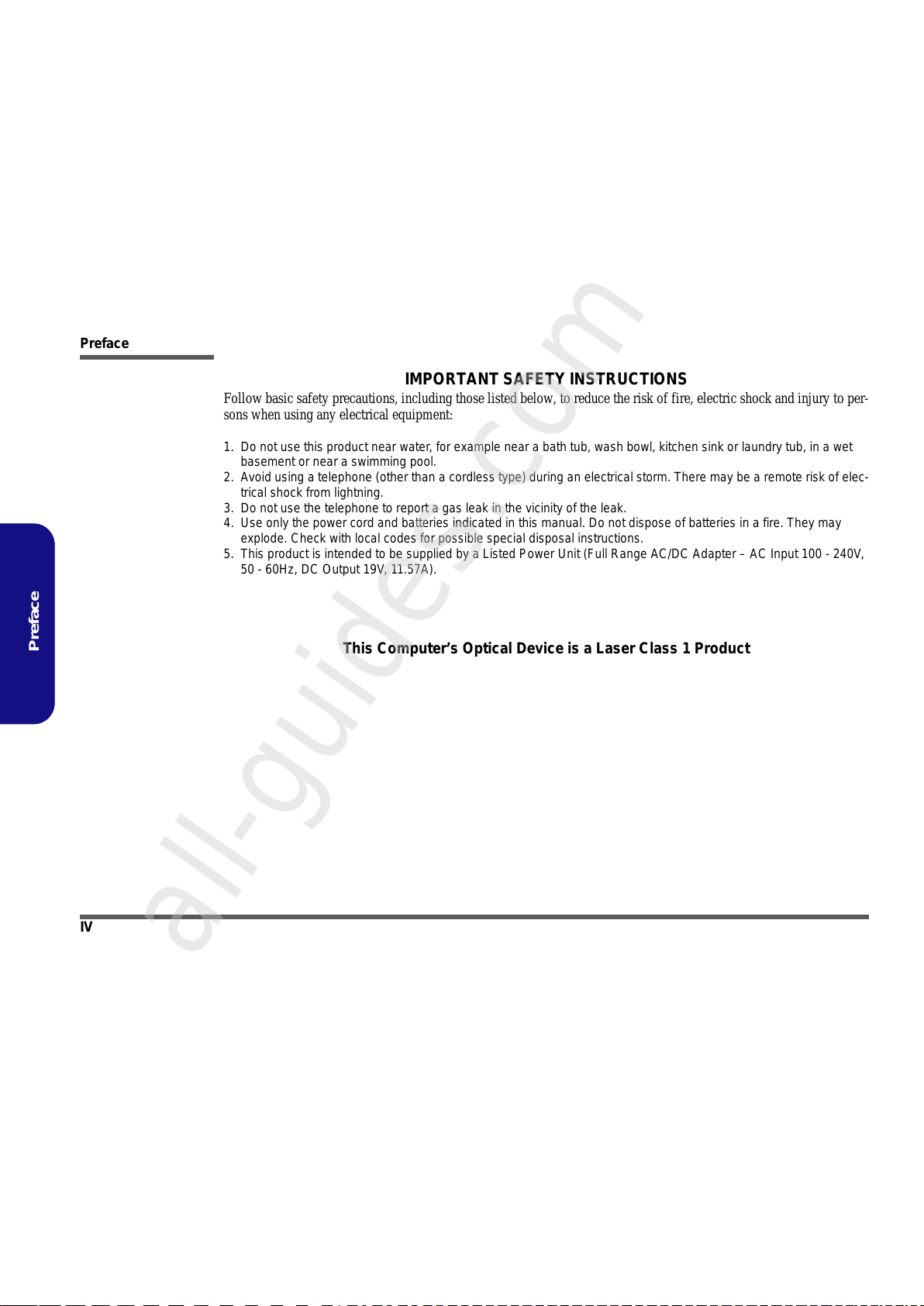

IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter – AC Input 100 - 240V,
50 - 60Hz, DC Output 19V, 11.57A).
This Computer’s Optical Device is a Laser Class 1 Product
All manuals and user guides at all-guides.com
all-guides.com

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.
All manuals and user guides at all-guides.com

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
All manuals and user guides at all-guides.com

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.
All manuals and user guides at all-guides.com

Preface
VIII
Preface

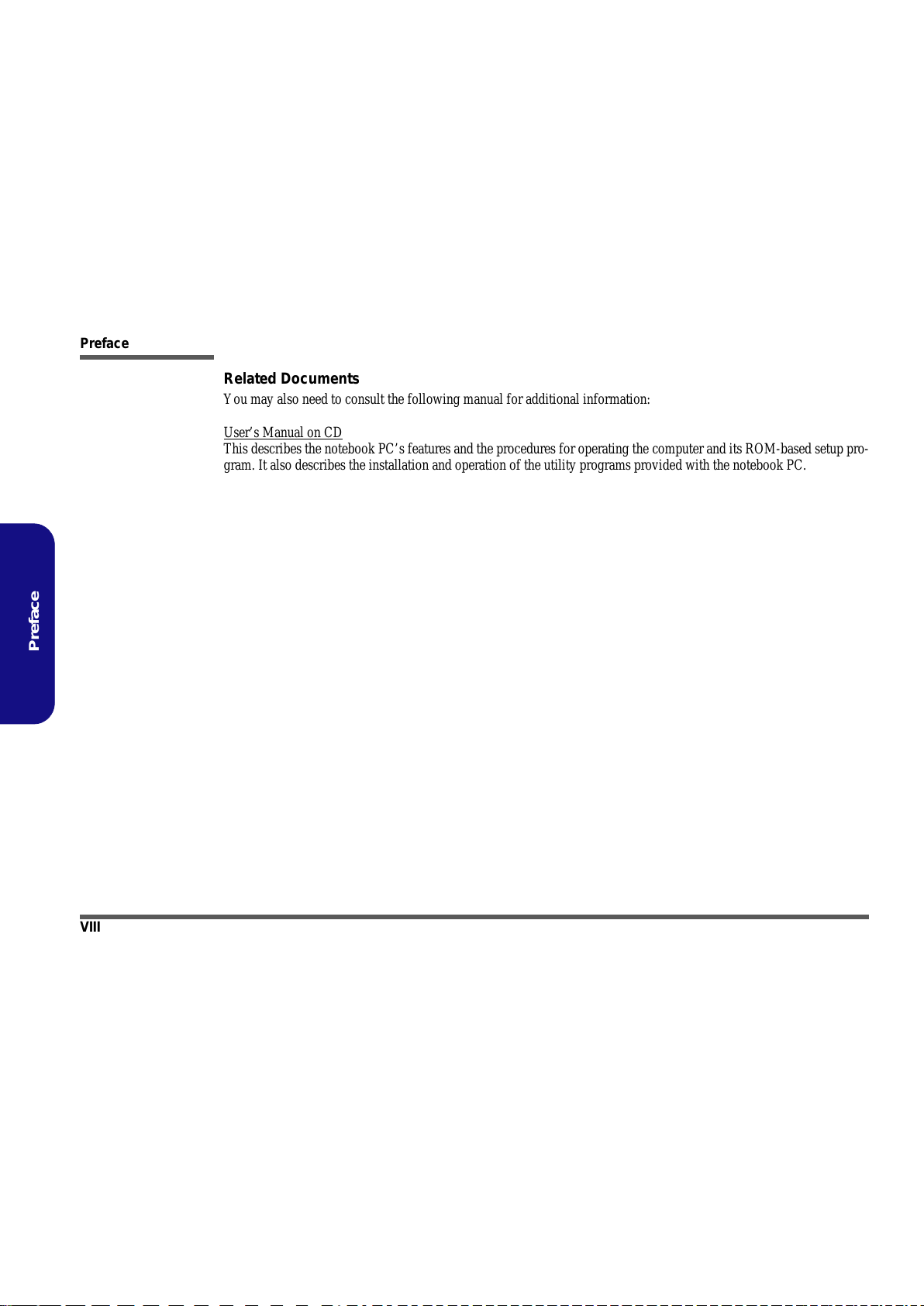

Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.
All manuals and user guides at all-guides.com

Preface
IX
Preface

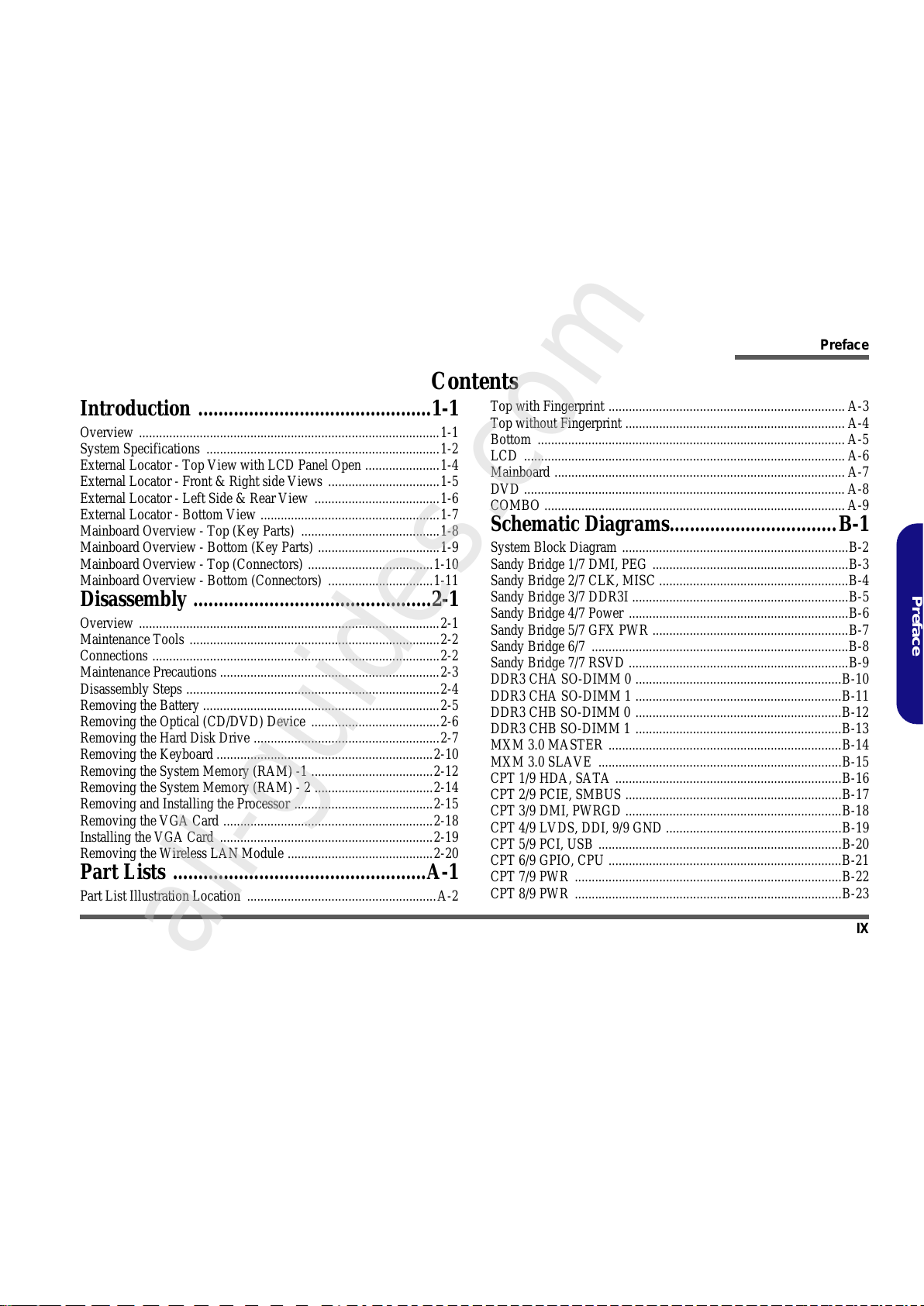

Contents
Introduction ..............................................1-1

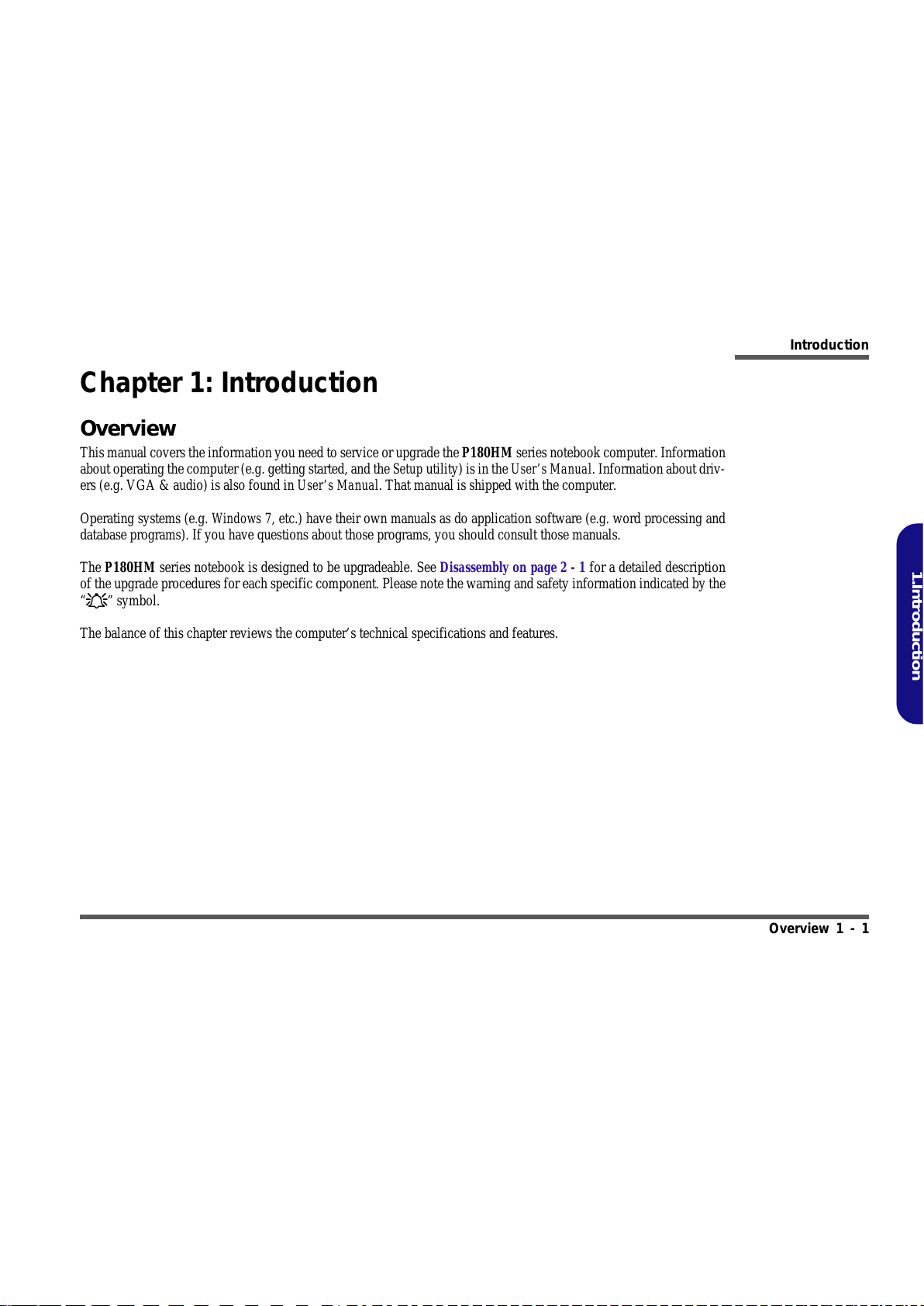

Overview .........................................................................................1-1
System Specifications .....................................................................1-2
External Locator - Top View with LCD Panel Open ......................1-4
External Locator - Front & Right side Views .................................1-5

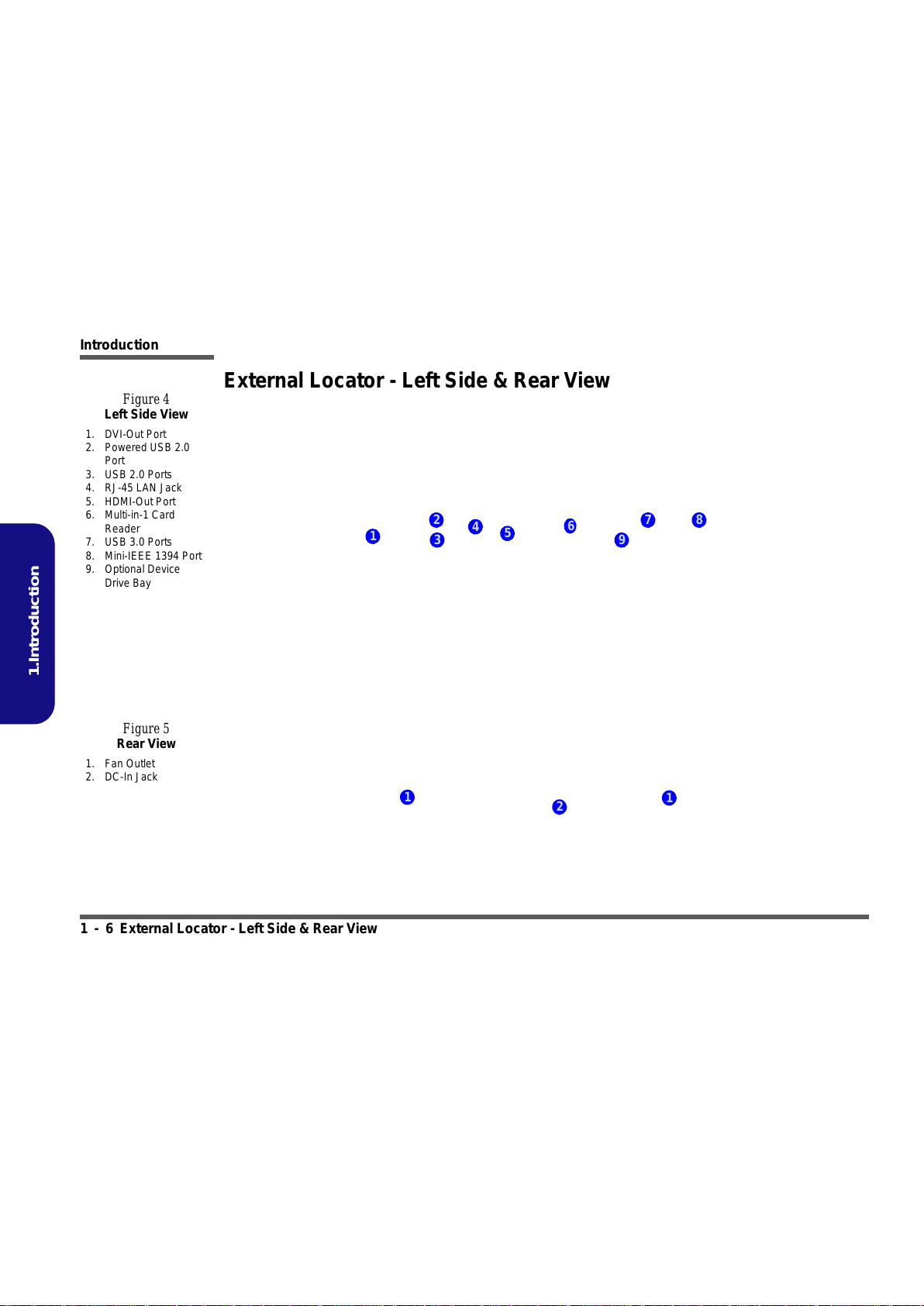

External Locator - Left Side & Rear View .....................................1-6

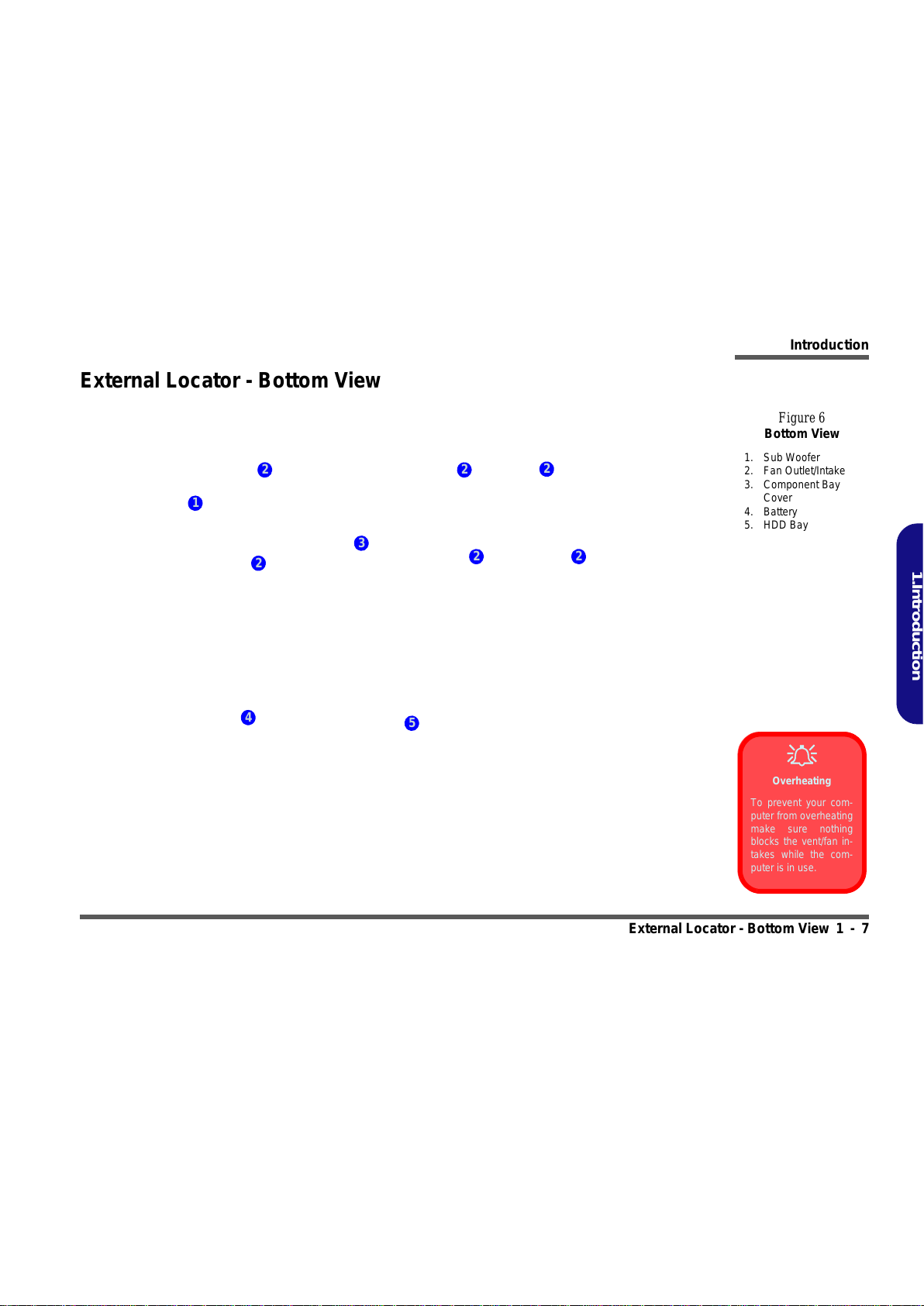

External Locator - Bottom View .....................................................1-7

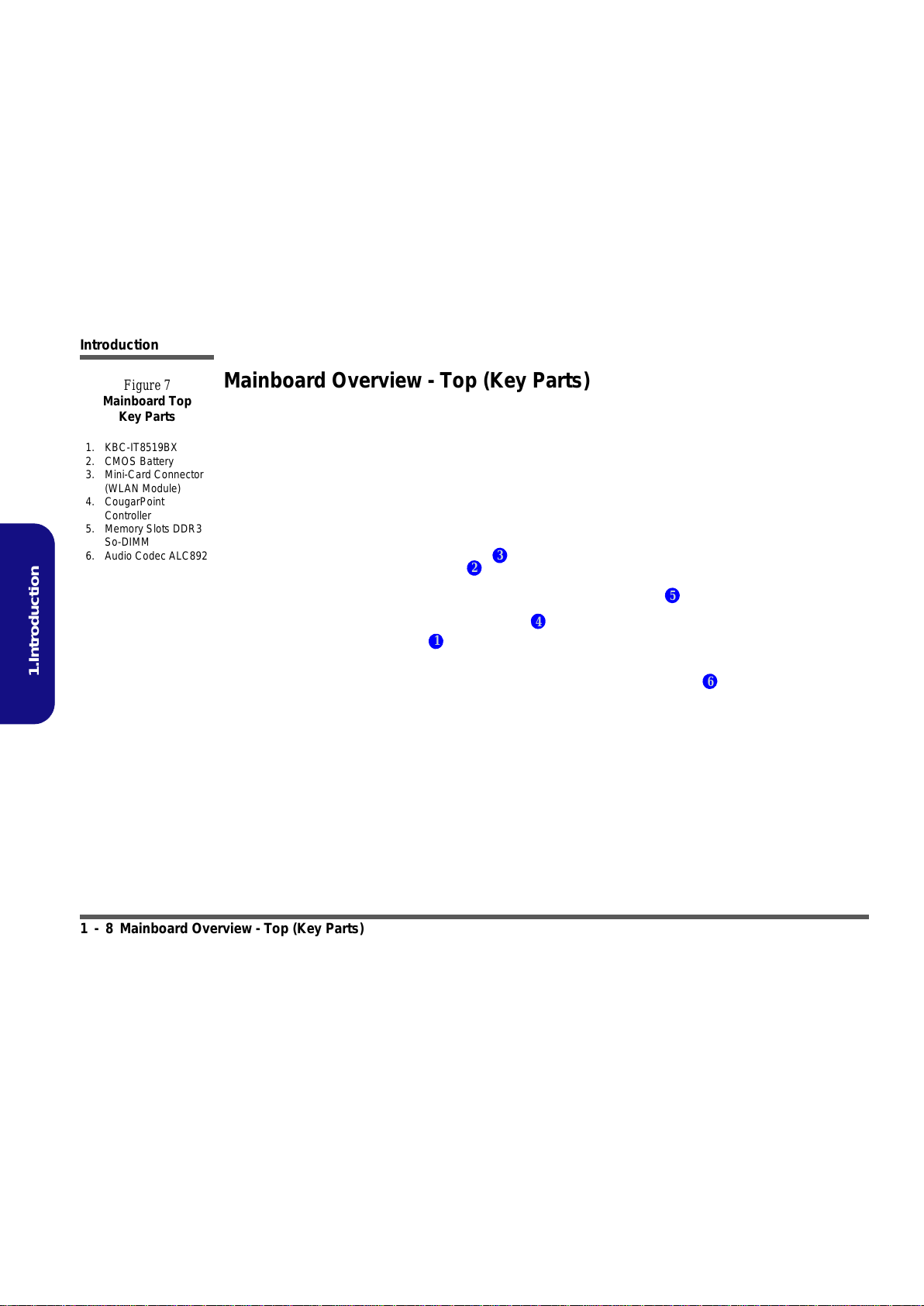

Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Optical (CD/DVD) Device ......................................2-6
Removing the Hard Disk Drive .......................................................2-7
Removing the Keyboard ................................................................2-10
Removing the System Memory (RAM) -1 ....................................2-12
Removing the System Memory (RAM) - 2 ...................................2-14
Removing and Installing the Processor .........................................2-15
Removing the VGA Card ..............................................................2-18
Installing the VGA Card ...............................................................2-19
Removing the Wireless LAN Module ...........................................2-20
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top with Fingerprint ...................................................................... A-3
Top without Fingerprint ................................................................. A-4
Bottom ........................................................................................... A-5
LCD ............................................................................................... A-6
Mainboard ...................................................................................... A-7
DVD ............................................................................................... A-8
COMBO ......................................................................................... A-9
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Sandy Bridge 1/7 DMI, PEG ..........................................................B-3
Sandy Bridge 2/7 CLK, MISC ........................................................B-4
Sandy Bridge 3/7 DDR3I ................................................................B-5
Sandy Bridge 4/7 Power .................................................................B-6
Sandy Bridge 5/7 GFX PWR ..........................................................B-7
Sandy Bridge 6/7 ............................................................................B-8
Sandy Bridge 7/7 RSVD .................................................................B-9
DDR3 CHA SO-DIMM 0 .............................................................B-10
DDR3 CHA SO-DIMM 1 .............................................................B-11
DDR3 CHB SO-DIMM 0 .............................................................B-12
DDR3 CHB SO-DIMM 1 .............................................................B-13
MXM 3.0 MASTER .....................................................................B-14
MXM 3.0 SLAVE ........................................................................B-15
CPT 1/9 HDA, SATA ...................................................................B-16
CPT 2/9 PCIE, SMBUS ................................................................B-17
CPT 3/9 DMI, PWRGD ................................................................B-18
CPT 4/9 LVDS, DDI, 9/9 GND ....................................................B-19
CPT 5/9 PCI, USB ........................................................................B-20
CPT 6/9 GPIO, CPU .....................................................................B-21
CPT 7/9 PWR ...............................................................................B-22
CPT 8/9 PWR ...............................................................................B-23
All manuals and user guides at all-guides.com
all-guides.com

Preface
X
Preface
SATA HDD CONN, Re- Driver ..................................................B-24
CPT, DVI .....................................................................................B-25
LED PANEL ................................................................................ B-26
FAN CONTROL .......................................................................... B-27
HDMI, RJ45 CONN .....................................................................B-28
ODD, CCD, USB 2.0, BT, TPM .................................................. B-29
CODEC, DMIC ............................................................................B-30
AUDIO AMP, SPK ......................................................................B-31
WLAN, TV, Charger USB ...........................................................B-32
LAN, Card Reader ........................................................................B-33
IEEE 1394 .................................................................................... B-34
USB 3.0 ........................................................................................B-35
KBC ITE IT8519-BX ...................................................................B-36
SMALL BOARD CONN-A .........................................................B-37
SMALL BOARD CONN-B ......................................................... B-38
POWER SYSTEM .......................................................................B-39
PWR VCORE-1 ...........................................................................B-40
PWR VCORE-2 ...........................................................................B-41
PWR 1.05VS/ 1.05VS CPU .........................................................B-42
PWR 0.85VS ................................................................................B-43
PWR 1.5V/ VTT MEM ................................................................ B-44
PWR 1.8VS/ 1.5VS/ 1.5VS CPU ................................................. B-45
PWR VDD3/ VDD5 .....................................................................B-46
PWR CHARGER, DC IN ............................................................B-47
SCREW HOLE ............................................................................B-48
EXPRESS CARD BOARD ..........................................................B-49
ISDB-T CARD/ TV CARD .........................................................B-50
AUDIO BOARD ..........................................................................B-51
POWER BUTTON BOARD ........................................................B-52
CLICK & FP BOARD .................................................................B-53
GAME KEY BOARD .................................................................. B-54
CIR BOARD ................................................................................ B-55
FINGER BOARD .........................................................................B-56
POWER ON SEQUENCE ............................................................B-57
All manuals and user guides at all-guides.com

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the P180HM series notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about driv-
ers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. Windows 7, etc.) have their own manuals as do application software (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.
The P180HM series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description
of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the
“” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.
All manuals and user guides at all-guides.com

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Processor
Intel® Core™ i7 Processor Extreme Edition
i7-2920XM (2.50GHz)
8MB L3 Cache, 32nm, DDR3-1600MHz, TDP
55W
Intel® Core™ i7 Processor
i7-2820QM (2.30GHz)
8MB L3 Cache, 32nm, DDR3-1600MHz, TDP
45W
i7-2720QM (2.20GHz) , i7-2630QM (2.0GHz)
6MB L3 Cache, 32nm, DDR3-1600MHz, TDP
45W
LCD
18.4" (46.74cm) FHD TFT LCD
Core Logic
Intel® HM67 Chipset
Memory
Three 204 Pin SO-DIMM Sockets Supporting
DDR3 1333/1600MHz Memory
Memory Expandable up to 12GB
Note: 1600 MHz Memory Modules are only
supported by Quad-Core CPUs to a maximum
of two SO-DIMMs
Storage
Up to Three (Factory Option) Changeable
2.5" (6cm) 9.5mm (h) SATA (Serial) Hard Disk
Drives supporting RAID level 0/1/5
Note 1st & 2nd HDDs are in SATA III Interface.
(Factory Option) One Changeable 12.7mm(h)
Optical Device Type Drive (Super Multi Drive/
Blu-Ray Combo Drive/Blu-Ray Writer Drive)
BIOS
AMI BIOS (32Mb SPI Flash-ROM)
Video Adapter
nVIDIA® GeForce GTX 560M PCIe Video
Card
1.5GB GDDR5 Video RAM on board
Microsoft DirectX® 11 Compatible
Supports nVIDIA® SLI Technology
Security
Security (Kensington® Type) Lock Slot
BIOS Password
(Factory Option) Fingerprint Reader Module
Keyboard
Full-size “WinKey” keyboard (with numeric
keypad)
Communication
Built-In Giga Base-TX Ethernet LAN
2.0M Pixel USB PC Camera Module
(Factory Option) Bluetooth 2.1 + EDR
(Enhanced Data Rate) Module
WLAN/ Bluetooth Half Mini-Card Modules:
(Factory Option) Intel® Centrino® Ultimate-N
6300 Wireless LAN (802.11a/g/n)
(Factory Option) Intel®Centrino®Advanced-N
6230 Wireless LAN (802.11a/g/n) + Bluetooth
3.0
(Factory Option) Intel® Centrino® Wireless-N
1030 Wireless LAN (802.11b/g/n) + Bluetooth
3.0
(Factory Option) Third-Party Wireless LAN
(802.11b/g/n) + Bluetooth 3.0
Pointing Device
Built-in TouchPad (scrolling key functionality
integrated)
Card Reader
Embedded Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
MS (Memory Stick) / MS Pro / MS Duo
Interface
Four USB 2.0 Ports
(Note: One USB 2.0 port can supply power
when the system is off but still powered by the
AC/DC adapter, or powered by the battery with
a capacity level above 20% - see page 11.)
Two USB 3.0 Ports
One eSATA Port (USB 2.0 Port Combined)
One HDMI-Out Port
One DVI-Out Port
One S/PDIF Out Jack
One Headphone/Speaker-Out Jack
One Microphone-In Jack
One Line-In Jack
One Mini-IEEE1394a Port
One RJ-45 LAN Jack
One DC-In Jack
Note: External 7.1CH Audio Output Supported
by Headphone, Microphone, Line-In and Sur-
round-Out Jacks
All manuals and user guides at all-guides.com

Introduction
System Specifications 1 - 3
1.Introduction
Slots
One ExpressCard/54(34) Slot
One Mini Card Slot for WLAN Module or
WLAN and Bluetooth Combo Module
Audio
High Definition Audio Compliant Interface
S/PDIF Digital Output
Five Speakers
One Sub Woofer
Built-In Microphone
THX TruStudio Pro
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 11.57A (220W)
Removable 8-cell Smart Lithium-Ion Battery
Pack, 89.21WH
Dimensions & Weight
439mm (w) * 299mm (d) * 44mm - 65mm (h)
Around 5.6kg with 89.21WH Battery and ODD
All manuals and user guides at all-guides.com

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. Optional Built-In PC
Camera
2. LCD
3. Speakers
4. LED Status Indicators
5. Touch Sensor Instant
Keys
6. 8 * Gaming Keys
7. Keyboard
8. TouchPad and
Buttons
9. Fingerprint Reader
Module (optional)
10. LED Power
Indicators
2
1
7
8
9
5
6
43 3
10
All manuals and user guides at all-guides.com
all-guides.com

Introduction
External Locator - Front & Right side Views 1 - 5
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. Speakers
2. LED Power
Indicators
Figure 3
Right Side Views
1. ExpressCard/54(34)
Slot
2. Headphone-In Jack
3. Microphone-In Jack
4. Line-In Jack
5. S/PDIF-Out Jack
6. Combined eSATA/
USB Port
7. USB 2.0 Port
8. Security Lock Slot
9. Power Button
2
1 1
3
2456
1 7 89
All manuals and user guides at all-guides.com

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. DVI-Out Port
2. Powered USB 2.0
Port
3. USB 2.0 Ports
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. Multi-in-1 Card
Reader
7. USB 3.0 Ports
8. Mini-IEEE 1394 Port
9. Optional Device
Drive Bay
12
3459
67 8
Figure 5
Rear View
1. Fan Outlet
2. DC-In Jack
121
All manuals and user guides at all-guides.com

Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Sub Woofer
2. Fan Outlet/Intake
3. Component Bay
Cover
4. Battery
5. HDD Bay

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
1
2
45
32 2
2 2 2
All manuals and user guides at all-guides.com

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)
1
23
4
5
6
Figure 7
Mainboard Top
Key Parts
1. KBC-IT8519BX
2. CMOS Battery
3. Mini-Card Connector
(WLAN Module)
4. CougarPoint
Controller
5. Memory Slots DDR3
So-DIMM
6. Audio Codec ALC892
All manuals and user guides at all-guides.com
