Clevo W740SU User manual

W740SU

Preface
I
Preface
Notebook Computer
W740SU
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
June 2013
Trademarks
Intel, and Intel Core are trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and /or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the W740SU se-
ries notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19V, 4.74A (90 Watts) minimum AC/DC Adapter.
CAUTION
This Computer’s Optical Device is a Laser Class 1 Product
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD/DVD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

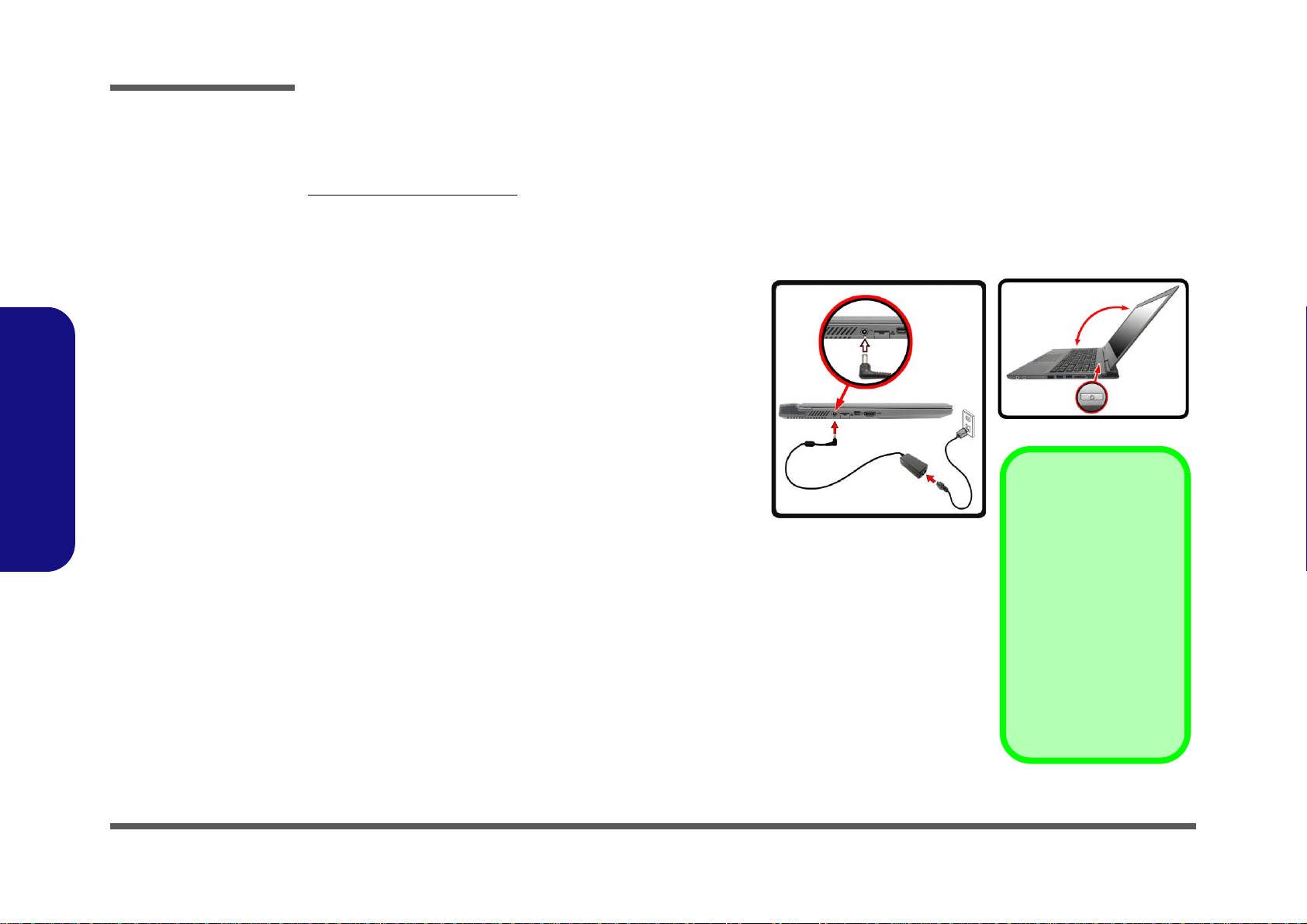

System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in position.
4. Securely attach any peripherals you want to use with the
computer (e.g. keyboard and mouse) to their ports.
5. Attach the AC/DC adapter to the DC-In jack on the left of the
computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC/DC adapter.
6. Use one hand to raise the
lid/LCD to a comfortable viewing
angle
(do not exceed 130 degrees) ; use the other hand (as
illustrated in Figure 1) to support the base of the computer
(Note: Never lift the computer by the lid/LCD).
7. Press the power button to turn the computer “on”.

Shutdown
Note that you should al-
ways shut your computer
down by choosing the
Shut Down command
from the Power item in
Settings in the Charms
Bar (use the Windows
Logo Key + C key com-
bination to access the
Charms Bar) in Win-
dows 8. This will help
prevent hard disk or sys-
tem problems.
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
130°

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
Specifications ..................................................................................1-2
External Locator - Top View with LCD Panel Open ......................1-4
External Locator - Front & Right Side Views .................................1-5
External Locator - Left Side & Rear View .....................................1-6
External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Removing the Keyboard ..................................................................2-8
Removing the System Memory (RAM) ........................................2-10
Removing the Wireless LAN Module ...........................................2-11
Removing the mSATA Module ....................................................2-12
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top-Bottom ....................................................................................A-3
HDD ...............................................................................................A-4
LCD ................................................................................................A-5
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
TPM ................................................................................................B-3
Processor 1/7-DMI, FDI, PEG ........................................................B-4
Processor 2/7- CLK, MISC .............................................................B-5
Processor 3/7- (DDR3) ...................................................................B-6
Processor 4/7- Display ....................................................................B-7
Processor 5/7- Power ......................................................................B-8
Processor 6/7- GND ........................................................................B-9
Processor 7/7- RSVD ....................................................................B-10
DDR3 SO-DIMM_0 .....................................................................B-11
DDR3 SO-DIMM_1 .....................................................................B-12
PANEL .........................................................................................B-13
HDMI ............................................................................................B-14
Mini Display Port .........................................................................B-15
PCH 1/10 - RTC, HDA, SATA ....................................................B-16
PCH 2/10 - LPC, SMBUS SPI, CL ..............................................B-17
PCH 3/10 - DMI, FDI, PWRGD ..................................................B-18
PCH 4/10 - CRT, Display, PCI .....................................................B-19
PCH 5/10 - PCIe, USB .................................................................B-20
PCH 6/10 - GPIO, Misc ................................................................B-21
PCH 7/10 - CLK ...........................................................................B-22
PCH 8/10 - POWER .....................................................................B-23
PCH 9/10 - Power .........................................................................B-24
PCH 10/10 - GND ........................................................................B-25
WLAN, mSATA ...........................................................................B-26
CCD, FAN, CLICK ......................................................................B-27
LAN, RJ-45 ...................................................................................B-28
VT1802S .......................................................................................B-29
KBC-ITE IT8587E .......................................................................B-30

Preface
X
Preface
5VS, 3.3VS, 5V, 3.3V, VCCDDQ ...............................................B-31
1.05V ............................................................................................B-32
VDD3, VDD5, 3.3VM .................................................................B-33
VDDQ, VDDQ_VTT, 1.5VS .......................................................B-34
VCORE ........................................................................................B-35
AC-IN, Charger ............................................................................B-36
POWER SWITCH BOARD .........................................................B-37
HDD Board ..................................................................................B-38
LED Board ...................................................................................B-39
Card Reader .................................................................................. B-40
USB ..............................................................................................B-41
USB, Audio Board .......................................................................B-42
Power Diagram .............................................................................B-43
Updating the FLASH ROM BIOS......... C-1
Download the BIOS .......................................................................C-1
Unzip the downloaded files to a bootable CD/DVD/ or
USB Flash drive .............................................................................C-1
Set the computer to boot from the external drive ...........................C-1
Use the flash tools to update the BIOS ..........................................C-2
Restart the computer (booting from the HDD) ..............................C-2

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the W740SU series notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri-
vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.
Operating systems (e.g. Window 8, etc.) have their own manuals as do application softwares (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.
The W740SU series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description of
the upgrade procedures for each specific component. Please take note of the warning and safety information indicated
by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 Specifications
1.Introduction
Specifications

Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
Intel® Core™ i7 Processor
i7-4750HQ (2.0GHz)
6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W
Core Logic
Intel®HM87 Chipset
BIOS
48Mb SPI Flash ROM
AMI BIOS
Memory
Two 204 Pin SO-DIMM Sockets Supporting DDR3L
1600MHz Memory
Memory Expandable up to 16GB
(The real memory operating frequency depends on the
FSB of the processor.)
LCD
14" (35.56cm) HD/ FHD LCD
Storage
(Factory Option) One Changeable 2.5" 9.5mm (h)/7.0mm
(h) SATA HDD
(Factory Option) One mSATA Solid State Drive (SSD)
Audio
High Definition Audio Compliant Interface
2 * Built-In Speakers
Built-In Microphone
Security
Security (Kensington® Type) Lock Slot
BIOS Password
Keyboard
“WinKey” keyboard (with embedded numeric keypad)
Pointing Device
Built-in Touchpad
Interface
Three USB 3.0 Ports (Including one AC/DC Powered USB
port)
One HDMI-Out Port
One Mini Display Port
One Headphone-Out Jack
One Microphone-In Jack
One RJ-45 LAN Jack
One DC-in Jack
Mini Card Slot
Slot 1 for WLAN Module or WLAN and Bluetooth Combo
Module
(Factory Option) Slot 2 for mSATA SSD
Video Adapter
Intel® HD Graphics 5200
Dynamic Frequency (Intel Dynamic Video Memory Tech-
nology for up to 1.7GB)
Microsoft DirectX®11 Compatible
Card Reader
Embedded Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC

Introduction
Specifications 1 - 3
1.Introduction
Communication
Built-In Gigabit Ethernet LAN
1.0M HD PC Camera Module
WLAN/ Bluetooth Half Mini-Card Modules:
(Factory Option) Intel® Centrino® Advanced-N 6235
Wireless LAN (802.11a/g/n) + Bluetooth 4.0
(Factory Option) Intel® Centrino® Advanced-N 6205
Wireless LAN (802.11a/g/n)
(Factory Option) Third-Party Wireless LAN (802.11b/g/n)
(Factory Option) Third-Party Wireless LAN (802.11b/g/n)
+ Bluetooth 4.0
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 4.74A (90W)
Polymer Smart Lithium-Ion Battery Pack, 53.28WH
Dimensions & Weight
340mm (w) * 253mm (d) * 20.8mm (h)
1.9kg (with Battery)

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction

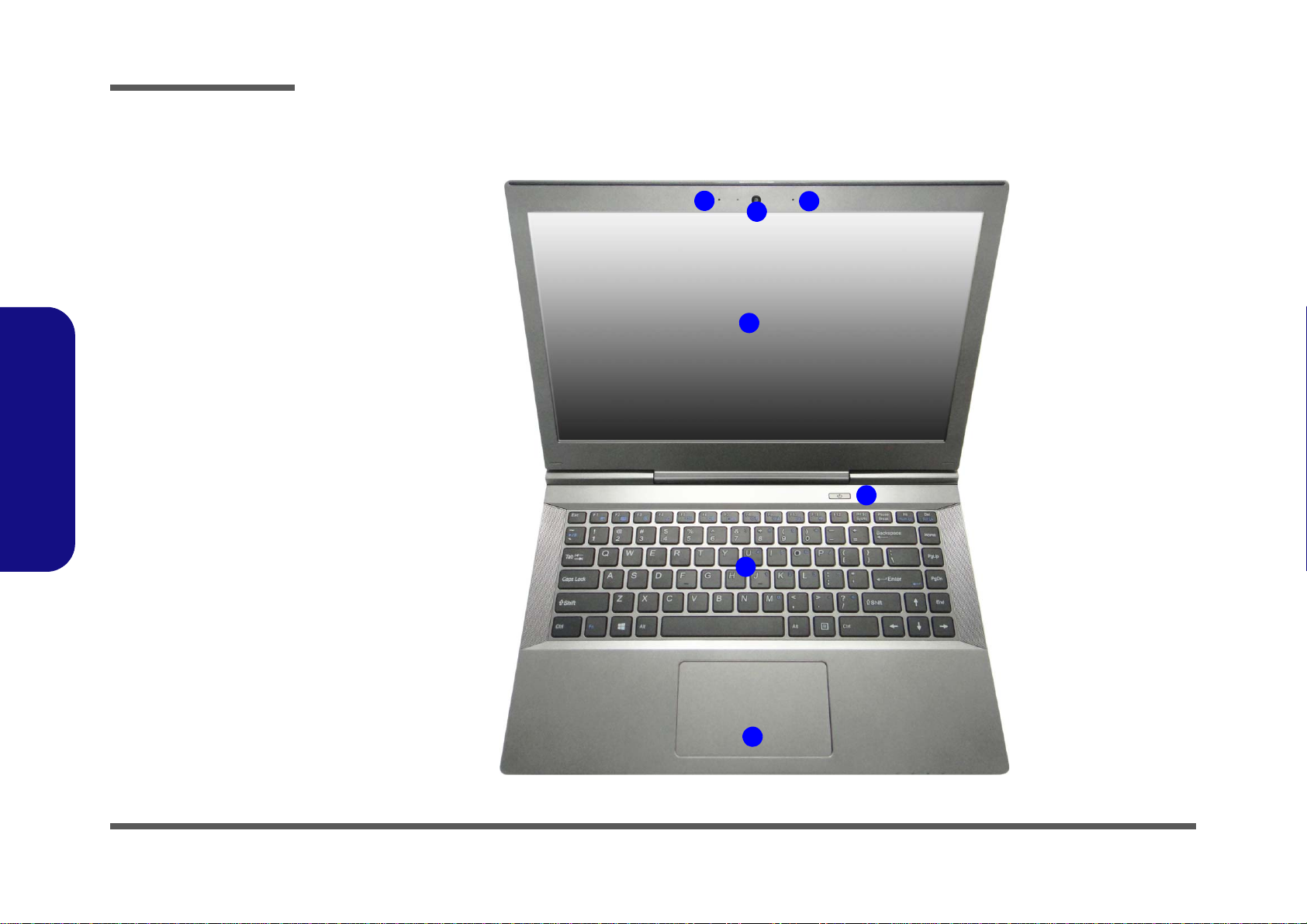

External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. Built-in PC
Camera
(Optional)
2. PC Camera LED
3. Built-In
Microphone
4. LCD
5. Power Button
6. Keyboard
7. Touchpad &
Buttons
5
3
4
6
1
2
7

Introduction
External Locator - Front & Right Side Views 1 - 5
1.Introduction
External Locator - Front & Right Side Views
Figure 2
Front View
1. LED Power
Indicator
Figure 3
Right Side View
1. Headphone-Out
Jack
2. Microphone-In
Jack
3. USB 3.0 Port
4. 1 * Powered (AC/
DC) USB 3.0
Port
5. Multi-in-1 Card
Reader
6. Vent/Fan Intake/
Outlet
FRONT VIEW
1
RIGHT SIDE VIEW
1 2 36
456
3

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction

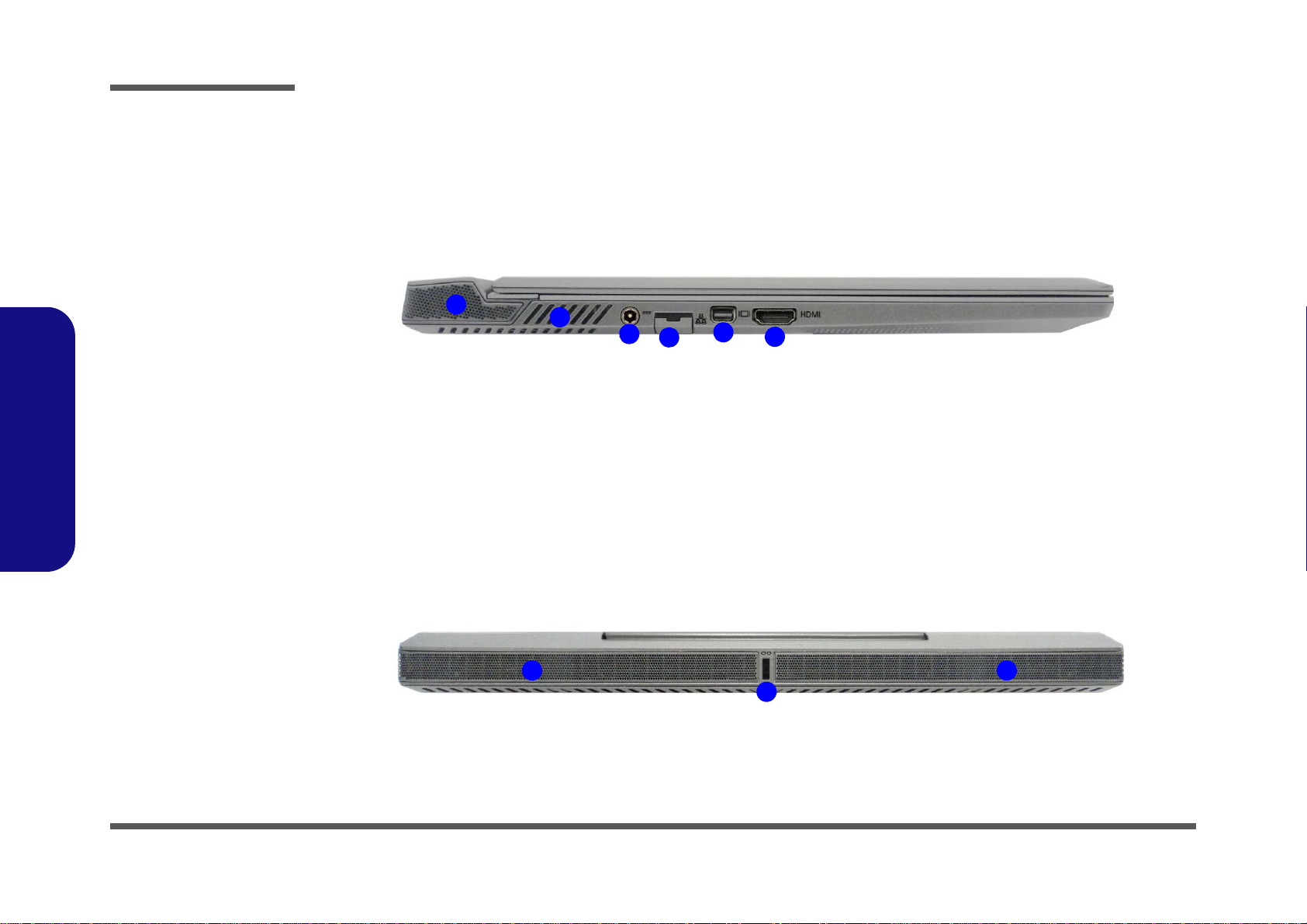

External Locator - Left Side & Rear View
/
Figure 4
Left Side View
1. Vent/Fan Intake/
Outlet
2. DC-In Jack
3. RJ-45 LAN Jack
4. Mini Display Port
5. HDMI-Out Port
LEFT SIDE VIEW
1
2345
1
Figure 5
Rear View
1. Security Lock Slot
2. Vent/Fan Intake/
Outlet
REAR VIEW
1
2 2

Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Vent/Fan Intake/
Outlet
2. Speakers

Overheating
To prevent your com-
puter from overhea-
ting, make sure no-
thing blocks any vent
while the computer is
in use.
2
1 1
2

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
1. Mini-Card
Connector (mSATA
Module)
2. Memory Slots
DDR3 SO-DIMM x 2
3. Mini-Card
Connector (WLAN
Module)
4. Intel CPU
5. Platform Controller
Hub
6. CMOS Battery
2
3
1
4
5
6
