Clevo P870KM User manual

P870KM(-G)

Preface
I
Preface
Notebook Computer
P870KM(-G)
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
January 2017
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the P870KM(-
G) series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit - Dual Full Range AC/DC Adapters – AC in 100 -
240V, 50 - 60Hz DC Output 19.5V, 11.8A (230 Watts) with Power Converter Box.

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Removal Warning
When removing any
cover(s) and screw(s)
for the purposes of de-
vice upgrade, remem-
ber to replace the
cover(s) and screw(s)
before restoring power
to the system.
Also note the following
when the cover is re-
moved:
• Hazardous mov-
ing parts.
• Keep away from
moving fan blades
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). You must
also remove your bat-
tery in order to prevent
accidentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on Disc
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in
position.
4. Securely attach any peripherals you want to use with
the computer (e.g. keyboard and mouse) to their
ports.
5. Attach the AC/DC adapter to the DC-In jack at the
rear of the computer, then plug the AC power cord
into an outlet, and connect the AC power cord to the
AC/DC adapter (make sure you use the adapter
when first setting up the computer, as to safe-
guard the computer during shipping the battery will
be locked to not power the system until first con-
nected to the AC/DC adapter).
6. Use one hand to raise the lid/LCD to a comfortable
viewing angle (do not to exceed 135 degrees);
use
the other hand (as illustrated in Figure 1) to support
the base of the computer (Note: Never lift the
computer by the lid/LCD).
7. Press the power button to turn the computer “on”.
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
133°
LED Indicators (will be illumi-
nated in green when the AC/
DC adapters are plugged-in
and connected to a working
power outlet)

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1

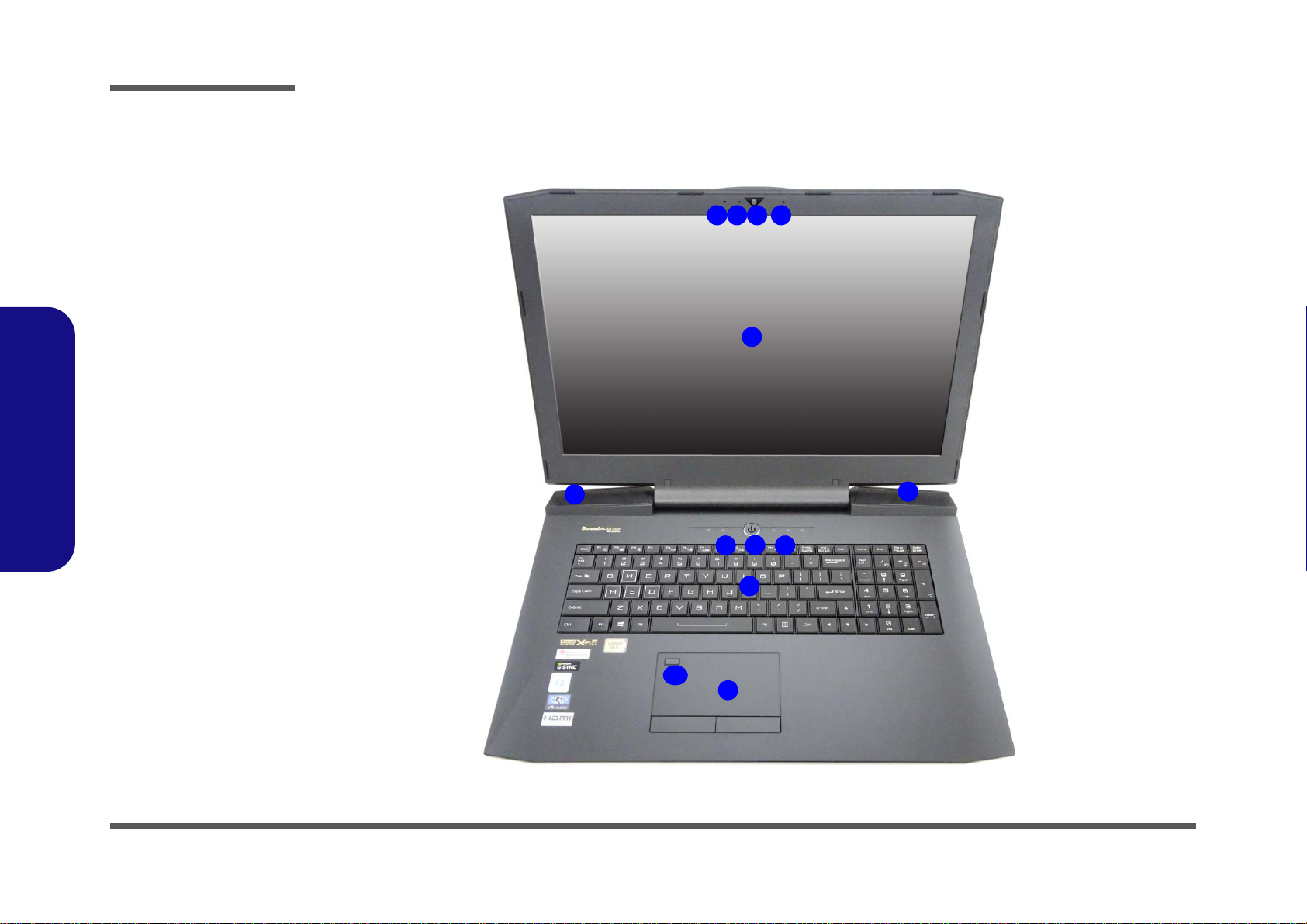

External Locator - Top View with LCD Panel Open ......................1-4

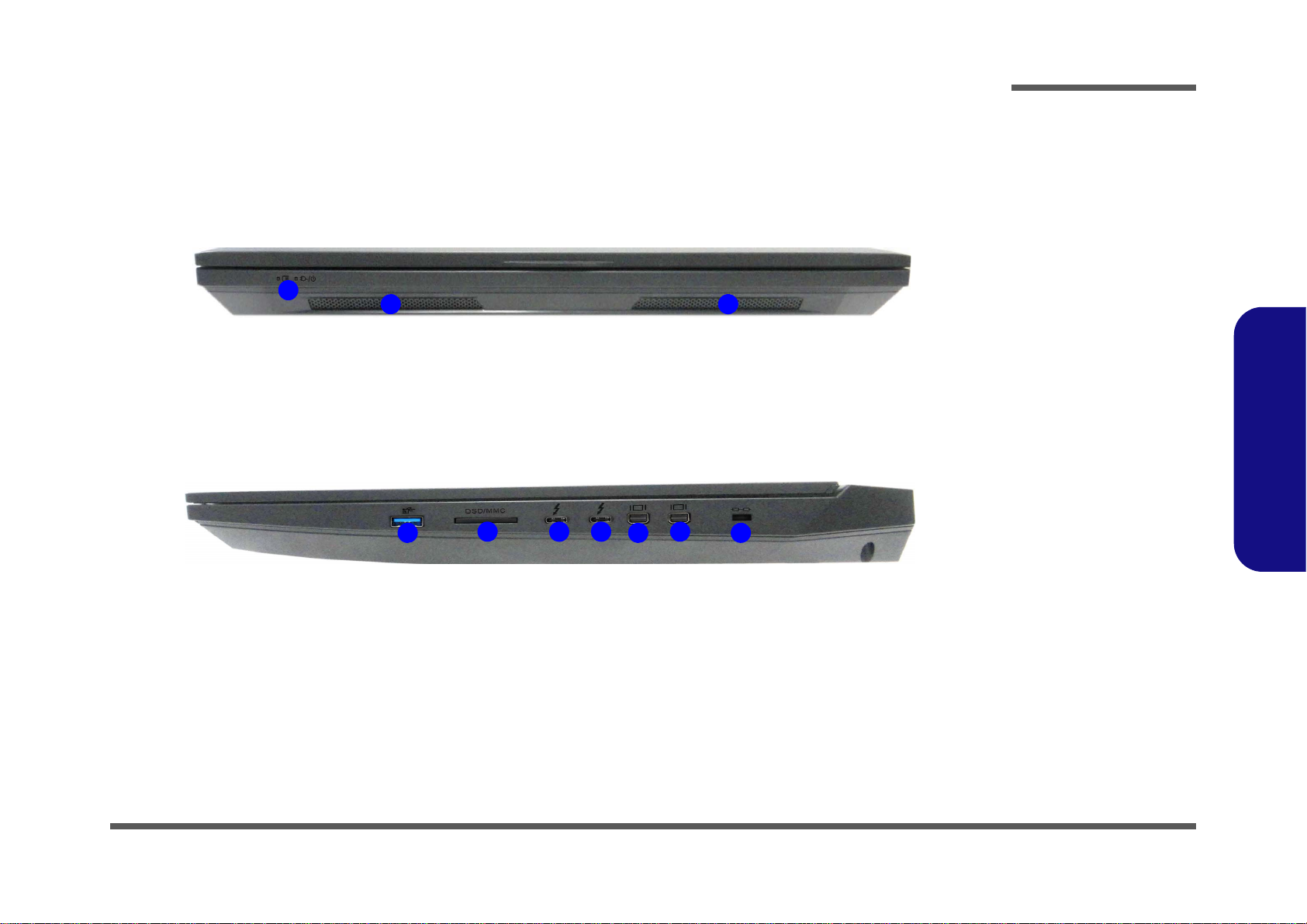

External Locator - Front & Right side Views .................................1-5
External Locator - Left Side & Rear View .....................................1-6
External Locator - Bottom View .....................................................1-7

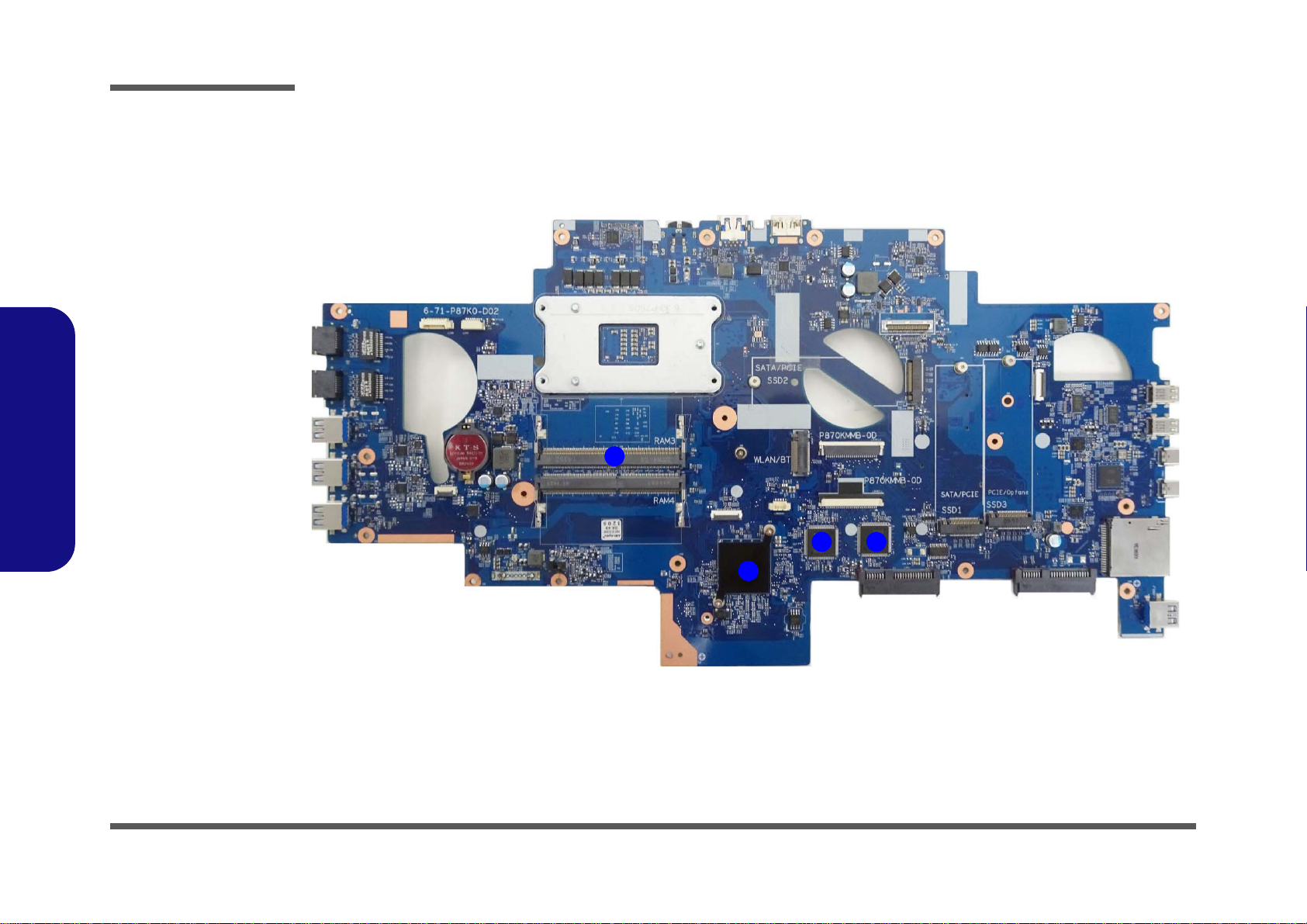

Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-7
Removing the Primary System Memory (RAM) .........................2-10
Removing the System Memory (RAM) from Under the
Keyboard .......................................................................................2-12
Removing and Installing the Video Card ......................................2-14
Removing and Installing the Processor .........................................2-17
Removing the Wireless LAN Module ...........................................2-20
Wireless LAN, Combo Module Cables .........................................2-21
Removing the WiGig Module .......................................................2-22
Removing the M.2 SSD Module ...................................................2-23
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top ................................................................................................. A-3
Bottom .......................................................................................... A-4
LCD ............................................................................................... A-5
MB (Dual VGA) ............................................................................ A-6
MB (N17E-G3) .............................................................................. A-7
VGA (N17E-G2) ............................................................................ A-8
VGA (N17E-G3) ............................................................................ A-9
HDD ............................................................................................. A-10
Schematic Diagrams.................................B-1
Block Diagram ................................................................................B-2
Processor 1/5 ...................................................................................B-3
Processor 2/5 ...................................................................................B-4
Processor 3/5 ...................................................................................B-5
Processor 4/5 ...................................................................................B-6
Processor 5/5 ...................................................................................B-7
DDR4 CHA SO-DIMM_0 ..............................................................B-8
DDR4 CHA SO-DIMM_1 ..............................................................B-9
DDR4 CHB SO-DIMM_0 ............................................................B-10
DDR4 CHB SO-DIMM_1 ............................................................B-11
MXM 3.0 Master ..........................................................................B-12
MXM 3.0 Slave ............................................................................B-13
Panel, Inverter ...............................................................................B-14
HDMI ............................................................................................B-15
SPT-H 1/7 .....................................................................................B-16
SPT-H 2/7 .....................................................................................B-17
SPT-H 3/7 .....................................................................................B-18
SPT-H 4/7 .....................................................................................B-19
SPT-H 5/7 .....................................................................................B-20
SPT-H 6/7 .....................................................................................B-21
SPT-H 7/7 .....................................................................................B-22

Preface
X
Preface
Main EC IT8587 ...........................................................................B-23
Second EC IT8587 .......................................................................B-24
TPM SLB9665TT ........................................................................B-25
CPU, VGA Fan Conn ...................................................................B-26
Backlight Keyboard ......................................................................B-27
CCD, USB Charging ....................................................................B-28
AR_TBT .......................................................................................B-29
AR_Power ....................................................................................B-30
TPS65982, Type C1 .....................................................................B-31
TPS65982, Type C2 .....................................................................B-32
PS8338B+mDP_1 ........................................................................B-33
PS8338B+mDP_2 ........................................................................B-34
M.2 WLAN+BT ...........................................................................B-35
M.2 M Key ...................................................................................B-36
RTS5250 .......................................................................................B-37
LAN_1 E2500 ..............................................................................B-38
LAN_2 E2500 ..............................................................................B-39
Click, Finger Conn .......................................................................B-40
HDD & Second HDD ...................................................................B-41
USB Port ......................................................................................B-42
5VS, 3.3VS, 1.0 V Series .............................................................B-43
2.5V, 5VS_2 .................................................................................B-44
Fan_Power 12V ............................................................................B-45
AMP10V, VCCSA .......................................................................B-46
DDR4 VDDQ & VTT, VCCPLL_OC .........................................B-47
Power Charger, DC IN .................................................................B-48
VCCIO, 1.0VA .............................................................................B-49
VCore ...........................................................................................B-50
VCore Output Stage .....................................................................B-51
VDD3, VDD5 ...............................................................................B-52
Charger LED Board .....................................................................B-53
Click Board ..................................................................................B-54
Finger Sensor Board .....................................................................B-55
Power Switch LED Board ............................................................B-56
Audio Codec .................................................................................B-57
Audio Board (Speaker) .................................................................B-58
Audio Board (Subwoofer) ............................................................B-59
ESS DAC ......................................................................................B-60
HP AMP ........................................................................................B-61
Audio Jack ....................................................................................B-62
Power Sequence ............................................................................B-63
Updating the FLASH ROM BIOS......... C-1

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the P870KM(-G) series notebook computer. Infor-
mation about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information
about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. Windows 10, etc.) have their own manuals as do application software (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.
The P870KM(-G) series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed descrip-
tion of the upgrade procedures for each specific component. Please note the warning and safety information indicated by
the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 Overview
1.Introduction
Specifications

Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU Speed & Computer in DC Mode
Note that when the computer is in DC mode
(powered by the battery only) the CPU may not
run at full speed. This isa design feature imple-
mented in order to protect the battery.
Processor Options
i7-7700K (4.20GHz)*
8MB Smart Cache, 14nm, DDR4-2400MHz, TDP 91W
i5-7600K (3.80GHz)*
6MB Smart Cache, 14nm, DDR4-2400MHz, TDP 91W
i5-7400 (3.00GHz)
6MB Smart Cache, 14nm, DDR4-2400MHz, TDP 65W
*Supports CPU overclocking technology depending on CPU
SKU
Video Adapter Options
NVIDIA® GeForce GTX 1070 PCIe Video Card
8GB GDDR5 Video RAM on board
Supports GPU Overclocking
Supports NVIDIA® SLI Technology
NVIDIA® GeForce GTX 1080 PCIe Video Card
8GB GDDR5X Video RAM
Supports GPU Overclocking
LCD Options
17.3" (43.94cm), 16:9, UHD (3840x2160)/*QHD
(2560x1440)/FHD (1920x1080)
*Note: QHD panels are available for systems with NVIDIA®
G-SYNC™Technology only
Core Logic
Intel® Z270 Chipset
BIOS
AMI BIOS (64Mb SPI Flash-ROM)
Pointing Device
Built-In Secure Pad (with Microsoft PTP Multi Gesture &
Scrolling Functionality)
Keyboard
Full Color Illuminated Full-size Winkey Keyboard (with
numeric keypad and anti-ghost keys)
Memory
Four 260 Pin SO-DIMM Sockets Supporting DDR4 2400MHz
Memory
(The real memory operating frequency depends on the FSB
of the processor.)
Memory Expandable from 8GB (minimum) up to 64GB
(maximum)
Supports XMP 2666/3000 MHz (XMP depends on processor
and works in dual channel)
Audio
High Definition Audio Compliant Interface
S/PDIF Digital Output
Two Speakers
Sound Blaster Audio
ESS™ SABRE HIFI DAC for High Resolution Headphone
Audio
Built-In Array Microphone
Sub-Woofer
Note: External 7.1CH Audio Output Supported by Micro-
phone-In, Line-In and Line-Out and 2-in-1 Audio Jack

SO-DIMM Memory Types
All SO-DIMM memory modules in-
stalled in the system should be iden-
tical (the same size and brand) in
order to prevent unexpected system
behavior.
Do not mix SO-DIMM memory mod-
ule sizes and brands otherwise un-
expected system problems may
occur.

Introduction
Overview 1 - 3
1.Introduction
Storage
Two changeable 2.5" (6cm) 7.0mm (h)/ 9.5mm (h) SATA
(Serial) Hard Disk Drives/Solid State Drives (SSD) support-
ing RAID level 0/1
(Factory Option) Two M.2 SATA 2280 SSDs supporting
RAID level 0/1
Or
(Factory Option) Three M.2 PCIe Gen3 x4 2280 SSDs sup-
porting RAID level 0/1
Security
Security (Kensington® Type) Lock Slot
BIOS Password
Fingerprint Reader Module
Trusted Platform Module 2.0
Intel PTT for Systems Without TPM Hardware
Interface
Five USB 3.0 (USB 3.1 Gen 1) Ports (Including one AC/DC
Powered USB port)
Two USB 3.1 Gen 2 Ports (Type C)
Two Mini DisplayPorts (1.3)
One HDMI-Out Port
One 2-In-1 Audio Jack (Headphone/ S/PDIF Optical Output
Combo Jack)
One Microphone-In Jack
One Line-Out Jack
One Line-In Jack
Two RJ-45 LAN Jacks
One DC-In Jack
M.2 Slots
Slot 1 for Combo WLAN and Bluetooth Module
Slot 2 for SATA or PCIe Gen3 x4 SSD
Slot 3 for SATA or PCIe Gen3 x4 SSD
Slot 4 for PCIe Gen3 x4 SSD
Communication
Built-In Qualcomm 10/100/1000Mb Base-TX Ethernet LAN
2.0M FHD PC Camera Module
WLAN/ Bluetooth M.2 Modules:
(Factory Option) Intel® Dual Band Wireless-AC 8265 Wire-
less LAN (802.11ac) + Bluetooth 4.1
(Factory Option) Intel® Dual band Wireless-AC 3168 Wire-
less LAN (802.11ac) + Bluetooth 4.0
(Factory Option) Qualcomm® Atheros Killer™ Wireless-AC
1535 Wireless LAN (802.11ac) + Bluetooth 4.1
(Factory Option) Wireless LAN (802.11ad) + Bluetooth 4.1
combo
Card Reader
Embedded Multi-In-1 Push-Push Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC (up to UHS-
II)
Features
Supports NVIDIA® G-SYNC™ Technology
(G-SYNC is only supported if you have a G-SYNC capable
display and a GTX series video adapter)
Virtual Reality Ready
Power
Embedded 8-cell Smart Lithium-Ion Battery Pack, 89WH
Dual Full Range AC/DC Adapters with the Power Converter
Box
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 11.8A (230W)
Environmental Spec
Temperature
Operating: 10°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Dimensions & Weight
428mm (w) * 308mm (d) * 47.2mm (h)
4.8kg (Barebone System with 1 Video Card and 89WH Bat-
tery)

Power Converter
You must use the power converter
supplied with the dual AC/DC adapt-
ers connected to power this comput-
er. Do not use a single AC/DC
adapter to power the system.

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. PC Camera
2. PC Camera LED
3. Built-In Array
Microphone
4. LCD
5. Speakers
6. Power Button
7. LED Indicators
8. Keyboard
9. TouchPad and
Buttons
10.Fingerprint
Reader
2 1
8
9
76
5
4
5
3
10
3
7

Introduction
External Locator - Front & Right side Views 1 - 5
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. LED Power
Indicators
2. Vents
Figure 3
Right Side Views
1. USB 3.0/3.1 Port
2. Multi-in-1 Card
Reader
3. USB 3.1 Ports
4. Mini Display Port 1
5. Mini Display Port 2
6. Security Lock Slot
1
Front
22
Right
12 3 456
3

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. RJ-45 LAN Jacks
2. USB 3.0 Ports
3. Powered USB 3.0/
3.1 Port
4. Line-In Jack
5. Microphone Jack
6. Line-Out Jack
7. Headphone & S/
PDIF-Out combo
Jack
34
112
Left
256 7
Figure 5
Rear View
1. Vent/Fan Intake
2. HDMI-Out Port
3. USB 3.0/3.1 Port
4. DC-In Jack
Rear
4
1231

Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Vents
2. Sub Woofer

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
2
1
1
1

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
1. Memory Slots
DDR4 SO-DIMM
2. Platform
Controller Hub
3. KBC ITE IT8587
1
2
3 3
