Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.

Removal Warning
When removing any
cover(s) and screw(s)
for the purposes of de-
vice upgrade, remem-
ber to replace the
cover(s) and screw(s)
before restoring power
to the system.
Also note the following
when the cover is re-
moved:
• Hazardous mov-
ing parts.
• Keep away from
moving fan blades
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). You must
also remove your bat-
tery in order to prevent
accidentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Introduction
1 - 2 Overview
1.Introduction
Specifications

Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
Intel® Core™ i7 Processor
i7-6700K (4.00GHz)*
8MB L3 Cache, 14nm, DDR4-2133MHz, TDP 91W
Intel® Core™ i5 Processor
i5-6600K (3.50GHz)*
6MB L3 Cache, 14nm, DDR4-2133MHz, TDP 91W
i5-6500 (3.20GHz)
6MB L3 Cache, 14nm, DDR4-2133MHz, TDP 65W
i5-6400 (2.70GHz)
6MB L3 Cache, 14nm, DDR4-2133MHz, TDP 65W
*Support Intel® XTU over-clocking technology
LCD Options
17.3" (43.94cm), 16:9, FHD (1920x1080)
Video Adapter Options
NVIDIA® GeForce GTX 980M PCIe Video Card
8GB GDDR5 Video RAM on board
NVIDIA® GeForce GTX 970M PCIe Video Card
6GB GDDR5 Video RAM
NVIDIA® GeForce GTX 965M PCIe Video Card
4GB GDDR5 Video RAM
Core Logic
Intel® Z170 Chipset
BIOS
AMI BIOS (64Mb SPI Flash-ROM)
Memory
Four 260 Pin SO-DIMM Sockets Supporting DDR4 2133MHz
Memory
(The real memory operating frequency depends on the FSB
of the processor.)
Memory Expandable from 4GB (minimum) up to 64GB
(maximum)
Pointing Device
Built-in Touchpad (scrolling key functionality integrated)
Keyboard
Full Color Illuminated Full-size Winkey Keyboard (with
numeric keypad and anti-ghost keys)
Audio
High Definition Audio Compliant Interface
S/PDIF Digital Output
Two Speakers
Sound Blaster Audio
ANSP™3D Sound Technology on Headphone Output
Built-In Array Microphone
Sub-Woofer
External 7.1CH Audio Output Supported by Headphone,
Microphone, Line-In and S/PDIF Out Jacks
Storage
Two changeable 2.5" (6cm) 7.0mm (h)/ 9.5mm (h) SATA
(Serial) Hard Disk Drives/Solid State Drives (SSD) support-
ing RAID level 0/1
(Factory Option) Two M.2 SATA 2280 SSDs supporting
RAID level 0/1
Or
(Factory Option) Two M.2 PCIe
Gen3 x4 2280 SSDs supporting RAID level 0/1
Security
Security (Kensington® Type) Lock Slot
BIOS Password
(Factory Option) Fingerprint Reader Module
Trusted Platform Module 2.0

Introduction
Overview 1 - 3
1.Introduction
Interface
One USB 3.1 Port/Thunderbolt Port
Three USB 3.0 Ports
One eSATA/Powered 3.0 USB Port
One HDMI-Out Port
Two DisplayPorts (1.2)
One S/PDIF Out Jack
One Headphone/Speaker-Out Jack
One Microphone-In Jack
One Line-In Jack
One RJ-45 LAN Jack
One DC-In Jack
M.2 Slots
Slot 1 for Combo WLAN and Bluetooth Module
Slot 2 for SATA or PCIe Gen3 x4 SSD
Slot 3 for SATA or PCIe Gen3 x4 SSD
Communication
Built-In Gigabit Ethernet LAN
2.0M FHD PC Camera Module
WLAN/ Bluetooth M.2 Modules:
(Factory Option) Intel® Wireless-N 7265 Wireless LAN
(802.11b/g/n) + Bluetooth 4.0
(Factory Option) Intel® Wireless-AC 3165 Wireless LAN
(802.11ac) + Bluetooth 4.0
(Factory Option) Intel® Wireless-AC 8260 Wireless LAN
(802.11ac) + Bluetooth 4.1
(Factory Option) Qualcomm® Atheros Killer™ Wireless-AC
1535 Wireless LAN (802.11ac) + Bluetooth 4.1
(Factory Option) Third-Party Wireless LAN 802.11b/g/n +
Bluetooth 4.0
Card Reader
Embedded Multi-In-1 Push-Push Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC (up to UHS-
II)
Environmental Spec
Temperature
Operating: 10°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Removable 8-cell Smart Lithium-Ion Battery Pack, 82WH
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 11.8A (230W)
(Factory Option) DC Output: 19.5V, 16.9A (330W)
Dimensions & Weight
418mm (w) * 282mm (d) * 16 - 38.9mm (h)
3.9kg (Barebone System with Video Card and 82WH Battery)

Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. PC Camera
2. PC Camera LED
3. Built-In
Microphone
4. LCD
5. Speakers
6. Power Button
7. LED Lock
Indicators
8. Keyboard
9. TouchPad and
Buttons
10. Fingerprint
Reader (Optional)
2 1
8
9
76
5
4
5
3
10
3
7

Introduction
External Locator - Front & Right side Views 1 - 5
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. Light Bar
2. LED Power
Indicators
Figure 3
Right Side Views
1. USB 3.0 Port
2. S/PDIF-Out Jack
3. Headphone Jack
4. Microphone Jack
5. Line-In Jack
6. Security Lock Slot
1
Front
2
Right
12 3 4 5 6

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. RJ-45 LAN Jack
2. USB 3.0 Ports
3. USB 3.1 Port
4. Multi-in-1 Card
Reader
5. Combined eSATA/
Powered USB 3.0
Port
45
123
Left
2
Figure 5
Rear View
1. Vent/Fan Intake
2. HDMI-Out Port
3. Display Ports
4. DC-In Jack
Rear
4
1231
3

Introduction
External Locator - Bottom View 1 - 7
1.Introduction

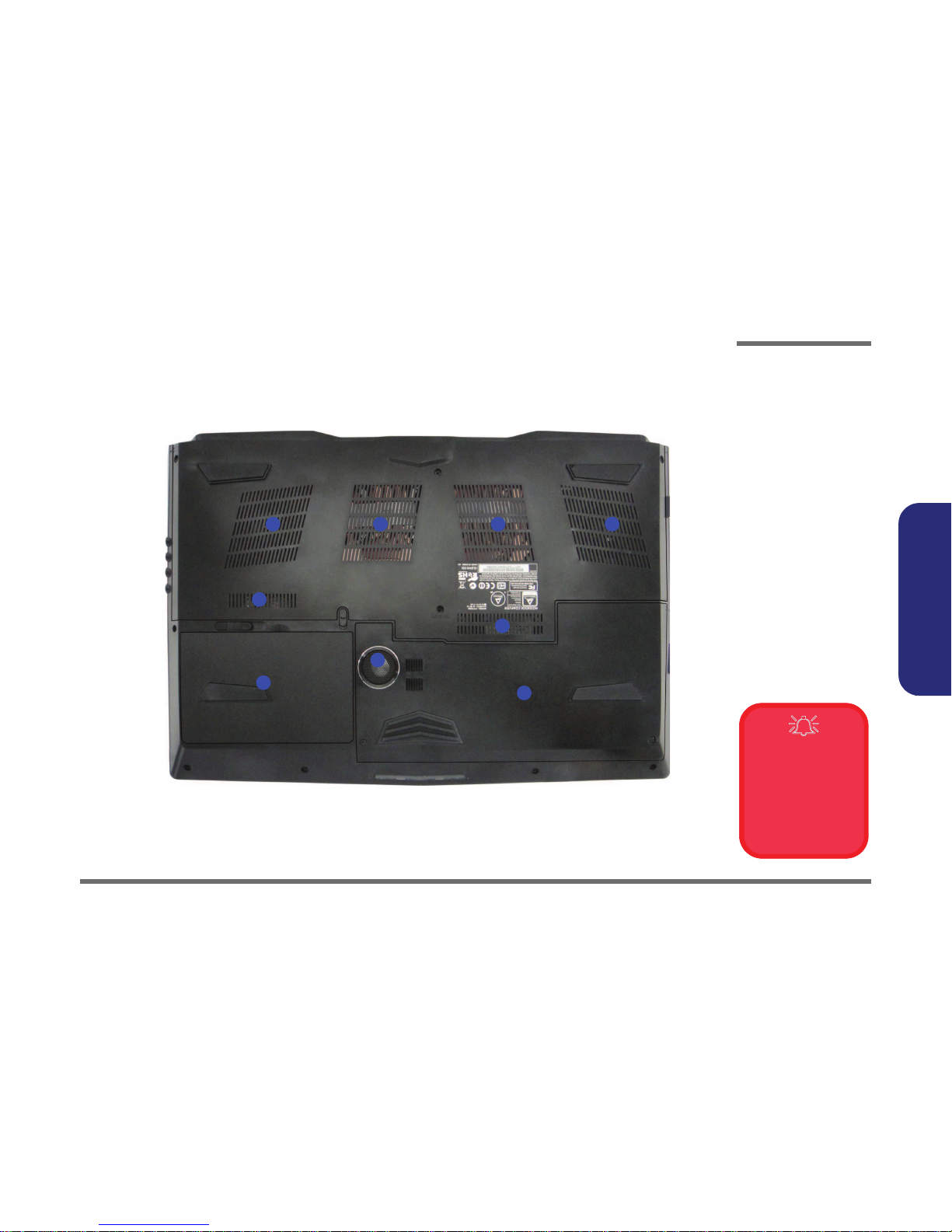

External Locator - Bottom View
Figure 6
Bottom View
1. Vent
2. Battery
3. Sub Woofer
4. HDD Bay

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
3
2
1
4
111
1
1

Disassembly
Removing the Battery 2 - 5
2.Disassembly
Removing the Battery
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow (Figure 1a).
3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a).
4. Lift the battery in the direction of the arrow .
5. Lift the battery out of the compartment (Figure 1c).

4. Battery
1
2
3
6
4
a.
b.
1
2
4
3
c.
Figure 1
Battery Removal
a. Slide the latch and hold in
place.
b. Lift the battery up toward
the direction of the arrow.
c. Lift the battery out.

Disassembly
2 - 6 Removing and Installing the Hard Disk Drive
2.Disassembly
Removing and Installing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 7mm/
9.5mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as out-
lined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Removal Process
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the hard disk bay cover and remove screws - (Figure 2a).
3. Remove the hard disk bay cover by sliding the cover at point (Figure 2b).
Figure 2
HDD Assembly
Removal
a. Locate the HDD bay
cover and remove the
screws.
b. Remove the hard disk
bay cover by sliding the
cover at point .
3

• 2 Screws
1
2
3

HDD System Warning
New HDD’s are blank. Before you begin make sure:
You have backed up any data you want to keep from your old HDD.
You have all the CD-ROMs and FDDs required to install your operating system and programs.
If you have access to the internet, download the latest application and hardware driver updates for
the operating system you plan to install. Copy these to a removable medium.
a.
3
12
b.
3

Disassembly
Removing and Installing the Hard Disk Drive 2 - 7
2.Disassembly
4. Lift the hard disk bay cover off the computer (Figure 3c)
5. Slightly lift and pull the HDD-1 assembly in the direction of the arrow to remove the hard disk assembly (Fig-
ure 3d).
6. Slightly lift and pull the HDD-2 assembly (if available) in the direction of the arrow to remove the hard disk
assembly (Figure 3e).
7. Remove screws - and the adhesive cover from the hard disk (Figure 3f).
8. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
4
5
6
6
7
6
8
9
12
13
14
c. d.
8
4
7
e.
13
5
HDD-2
HDD-1
6
4
9
14
f.
12 10
11

4. HDD Bay Cover
6. HDD-1 Assembly
8. HDD-2 Assembly
13. Adhesive Cover
14. HDD
• 4 Screws
Figure 3
HDD Assembly
Removal (cont’d.)
c. Remove the HDD bay
cover.
d. Lift and pull the HDD-1
assembly in the direction
of the arrow to remove
the hard disk assembly.
e. Lift and pull the HDD-2
assembly in the direction
of the arrow to remove
the hard disk assembly.
f. Remove the screws and
the adhesive cover.

Disassembly
2 - 8 Removing and Installing the Hard Disk Drive
2.Disassembly
Hard Disk Installation Process
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Insert the HDD-2 assembly (if available) in the direction of the arrow to install the it (Figure 3a).
3. After installing HDD-2 assembly, place the rubber foam insert as shown (Figure 3b).
4. Insert the HDD-1 assembly in the direction of the arrow to install it (Figure 3c).
5. Replace the hard disk bay cover and screws (see page 2 - 6).
Figure 4
HDD Assembly
Installation
a. Insert the HDD-2 assem-
bly in the direction of the
arrow to install the hard
disk assembly.
b. Place the rubber foam in-
sert as shown
c. Insert the HDD-1 assem-
bly in the direction of the
arrow to install the hard
disk assembly.

1. HDD-1 Assembly
4. HDD-2 Assembly
6
1
2
3
6
4
5
a. b. c.
1HDD-2 HDD-1
4
5
2
3

Disassembly
Removing and Installing the Hard Disk Drive 2 - 9
2.Disassembly
Hard Disk Size Note (Foam Rubber Insert)
Note that the hard disks pictured on the following pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard
disk drives will be installed.
Figure 5
Foam Rubber
Insert for 7mm(H)
HDDs
• If you are replacing a 9.5mm(H) HDD with a
7mm(H) HDD then insert the foam rubber
insert.
• If you are replacing a 7mm(H) HDD with a
9.5mm(H) HDD then remove the foam rub-
ber insert.
HDD-2 HDD-1

Disassembly
2 - 10 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD Module
Note that the SSD (if installed) is beside the HDD bay.
1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).
2. Remove the screw from the SSD (Figure 6a).
3. The M.2 SSD module will pop-up (Figure 6b).
4. Lift the M.2 SSD module up and off the computer (Figure 6c).
5. Reverse the process to install a new SSD (make sure that the hexagonal screw is in the correct location
depending upon the size of the module).

2. M.2 SSD Module
• 1 Screw
Figure 6
M.2 SSD Module
Removal
a. Remove the screws.
b. The module will pop up.
c. Lift the module out.
1
6
2
6
2
3
a. b.
2
1
2
c.
3
3

Disassembly
Removing the Primary System Memory (RAM) 2 - 11
2.Disassembly
Removing the Primary System Memory (RAM)
The computer has four memory sockets for 204 pin Small Outline Dual In-line (SO-DIMM) DDR 3L type memory modules.
The total memory size is automatically detected by the POST routine once you turn on your computer.
Note that four SO-DIMMs are only supported by Quad-Core CPUs;Dual-Core CPUs support two SO-DIMMs maxi-
mum.
Two primary memory sockets are located under component bay cover (the bottom case cover), and two secondary
memory sockets are located under the keyboard (not user upgradable).If you are installing only two RAM modules
then they should be installed in the primary memory sockets under the component bay cover.
Note that the RAM located under the keyboard is not user upgradable.
Memory Upgrade Process
1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).
2. Remove screws - .
3. Slide the bottom cover until the cover and case indicators are aligned (Figure 7a).
Figure 7
RAM Module
Removal
a. Remove the screws.
Slide the bottom
cover until the cover
and case indicators
are aligned.
1
4
5

• 4 Screws
a. 2
1
4
355
• Note that the size of screw is M2.5 x 8L.
4

Disassembly
2 - 12 Removing the Primary System Memory (RAM)
2.Disassembly
4. Lift the component bay cover off the computer case. The modules will be visible at point (Figure 8c).
5. Gently pull the two release latches ( & ) on the sides of the memory socket(s) in the direction indicated below
(Figure 8d).
6. The RAM module will pop-up, and you can remove it (Figure 8e).
7. Pull the latches to release the second module if necessary.
8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
9. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
11. Replace the bay cover and screws.
12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
6
6
7
Figure 8
RAM Module
Removal (cont’d.)
c. Lift the component bay
cover off the computer
case. The modules will
be visible at point .
d. Gently pull the two re-
lease latches on the
sides of the memory
socket(s) in the direc-
tion indicated below.
e. The RAM module will
pop-up, and you can
remove it.
7

6. Component Bay
Cover
10. RAM Module
• 4 Screws
8
9
10
d.
c.
7
8
e.
9

Contact Warning
Be careful not to touch the metal pins on the module’s connecting
edge. Even the cleanest hands have oils which can attract particles,
and degrade the module’s performance.
6
10
9
8

Disassembly
Removing the System Memory (RAM) from Under the Keyboard 2 - 13
2.Disassembly
Removing the System Memory (RAM) from Under the Keyboard
The computer has four memory sockets for 204 pin Small Outline Dual In-line (SO-DIMM) DDR 3L type memory modules.
The total memory size is automatically detected by the POST routine once you turn on your computer.
Two primary memory sockets are located under component bay cover (the bottom case cover), and two secondary
memory sockets are located under the keyboard.If you are installing only two RAM modules then they should be in-
stalled in the primary memory sockets under the component bay cover.
Memory Upgrade Process
1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).
2. Remove screws - and the component bay cover (Figure 9a).
3. Remove screws - from the bottom of the computer (Figure 9b).
4. Open it up with the LCD on a flat surface before pressing at point to release the keyboard module (use an eject
stick to do this with a diameter no bigger than 2.5mm) while releasing the keyboard in the direction of the
arrow as shown (Figure 9c).
Figure 9
Keyboard
Removal
a. Remove the screws
and component bay
cover.
b. Remove the screws.
c. Eject the keyboard
using a special eject
stick to push the
keyboard out while
releasing the key-
board as shown.
1
4
5
6
8
9
10
11

5. Top Cover Module
10. Eject Stick
• 7 Screws
9
a. c.
b.
2
1
4
3
6
7
11
5
10
8

Disassembly
2 - 14 Removing the System Memory (RAM) from Under the Keyboard
2.Disassembly
5. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cables - .
6. Disconnect the keyboard ribbon cables - from the locking collar socket by using a small flat-head screw-
driver to pry the locking collar pins away from the base (Figure 10d).
7. Remove the keyboard and the memory sockets & will be visible.
8. Gently pull the two release latches ( & ) on the sides of the memory socket(s) in the direction indicated below.
9. The RAM module will pop-up, and you can remove it.
10. Pull the latches to release the second module if necessary.
11. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
12. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
13. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
14. Replace the bay cover and screws.
15. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
12
13
15
13
15
16
17
Figure 10
RAM Module
Removal
d. Lift the keyboard up,
and disconnect the
keyboard ribbon cable
from the locking collar
socket.
e. Remove the keyboard
and the memory sock-
ets will be visible.
f. Pull the two release
latches on the sides of
the memory socket(s)
in the direction indicat-
ed.

12. Keyboard
22. RAM Modules
18
19
20
21
22
e.
d.
18
17
f.
13
16 17
22
22

Contact Warning
Be careful not to touch the metal pins on the module’s
connecting edge. Even the cleanest hands have oils
which can attract particles, and degrade the module’s
performance.
19
20 21
20 21
17
14
16 17
15
16
22
12
