Clihome IF-72FSB User manual

Electric Fireplace
Model No.:
□ IF-50FSB □ IF-60FSB □ IF-72FSB
CONSUMER SAFETY INFORMATION
Read this manual before installing and operating this appliance.
Failure to follow these instructions may result in electric shock, fire property,
or personal injury.
Do not store or use gasoline or other flammable liquids in the vicinity of this
appliance.
Service contact: [e-mail]
Telephone: [phone]

IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using this heater!
This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front
of the heater, and keep them away from the sides and rear.
Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner, Discard heater, or return to authorized
service facility for examination and /or repair.
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
WARNING
Connect to properly grounded outlets ONLY.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust openings, as
this may cause electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so
could cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become
blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug heaters directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool,become damp or come in contact with water.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
Blockage.Unplug the unit and clean with a vacuum ONLY.DO NOT rinse or get wet.

ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
NEVER use a wall mount bracket from another manufacturer.
This product is not intended to be a primary heat source. It is for supplemental heat only.
INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn this heater off before unplugging it from the outlet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
ALWAYS store this heater in a dry location.NEVER use the fireplace if it has become wet.
NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or face plate is HOT!
iv) If the outlet or face plate is HOT,discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
The power cord supplied with the heater
has a plug with two flat blades (live and
neutral) and one round pin (ground). If a 3-
slot receptacle is not available, an adapter
MUST be used. The adapter MUST be
properly grounded to the outlet box (see
figure at right).(Note:Adapter NOT
INCLUDED.)
SAVE THESE INSTRUCTIONS!
PREPARATION
This product includes a GLASS panel! Always use extreme caution when handing
glass. Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grounded for wall-hanging or recessing use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.

You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape measure;
electric drill; 1/4” wood drill bit, hammer.
PARTS & HARDWARE
A. Fireplace
B. Wood Screws
(11pcs)
C. Wall Anchors
(11pcs)
D. 4x8mm Screws
(2pcs)l
E. Wall Bracket
Fixed on back of firebox
F. Metal Bracket
H.Remote Control
I. Log Set
. J.Decorative
Crystals
Left free standing leg
Right free standing leg
Specification and Dimension

PRODUCT DIMENSIONS
Installation and Assembly
Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable
location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas.
NOTE: Follow all national and local electrical codes.
MINIMUM CLEARANCE TO COMBUSTIBLES
MINUMUM MANTEL CLEARANCES
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST
BE HEAT RESISTANT TO PREVENT DISCOLOURATION
Model Number
A
B
C
D
E
F
G
IF-50FSB
50"
127.0cm
17.7"
45.0cm
5.6"
14.2cm
48.7"
123.8cm
16.3"
41.5cm
12.2"
30.9cm
46.0"
116.8cm
IF-60FSB
60"
152.4cm
17.7"
45.0cm
5.6"
14.2cm
58.7"
149.2cm
16.3"
41.5cm
12.2"
30.9cm
56.0"
142.2cm
IF-70FSB
72"
182.9cm
17.7"
45.0cm
5.6"
14.2cm
70.7"
179.7cm
16.3"
41.5cm
12.2"
30.9cm
78.0"
172.7cm
Measurements are taken from the glass front.
Bottom 0" Top 11.8" (300mm) to mantel
Sides 0" Top 11.8" (300mm) to ceiling
Back 0"
WARNING

RECESSED TO WALL INSTALLATION (Tips:Wall bracket removing is NOT required. )
STEP 1 Select a dry wall to open a hole for fireplace box. Figure (A)
Size of hole as below chat-Framing Hole Size
STEP 2 Remove two screws on both sides of the fireplace at front corner. Figure (C)
Framing Hole Size
Model Number
W
H
D
IF-50FSB
48.7"(123.8cm)
16.3"(41.5cm)
5.98"(15.2cm)
IF-60FSB
58.7"(149.2cm)
16.3"(41.5cm)
5.98"(15.2cm)
IF-70FSB
70.7"(179.7cm)
16.3"(41.5cm)
5.98"(15.2cm)

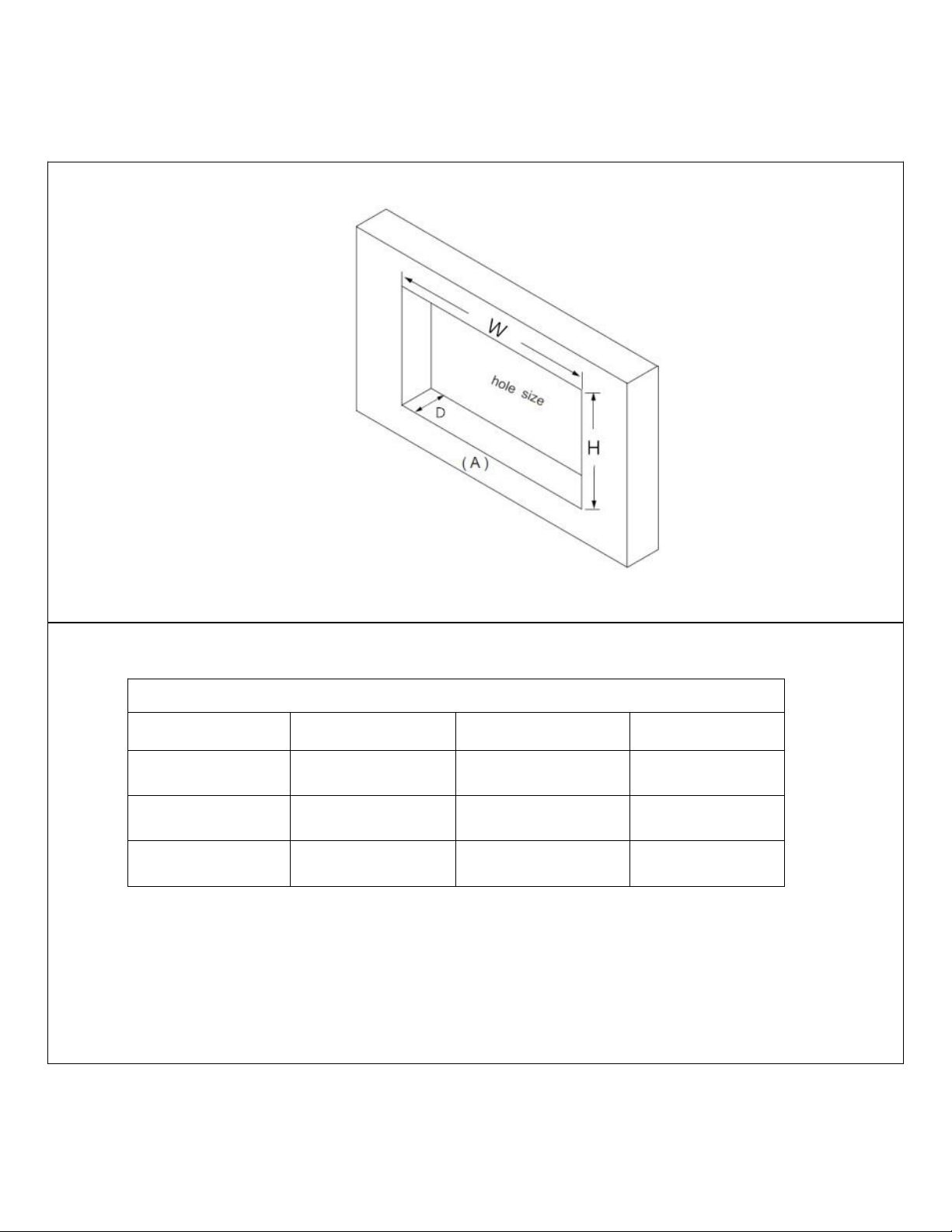

Figure (A) Hole cut size

Figure (C)
STEP 3 Take off the front tempered glass of the fireplace. Figure (D)
Figure (D)
TEP 4 Take foam out of the fireplace. Figure (E)

Figure (E)
STEP 6 Have two people to move the fireplace box to the wall hole or fireplace mantel. Figure(F)
If the appliance is fully recessed into the wall:
Figure (F)
Use the 4 screws(provided) to lock the appliance into wall with the existing two side flanges,
Figure(G)

Figure(G)

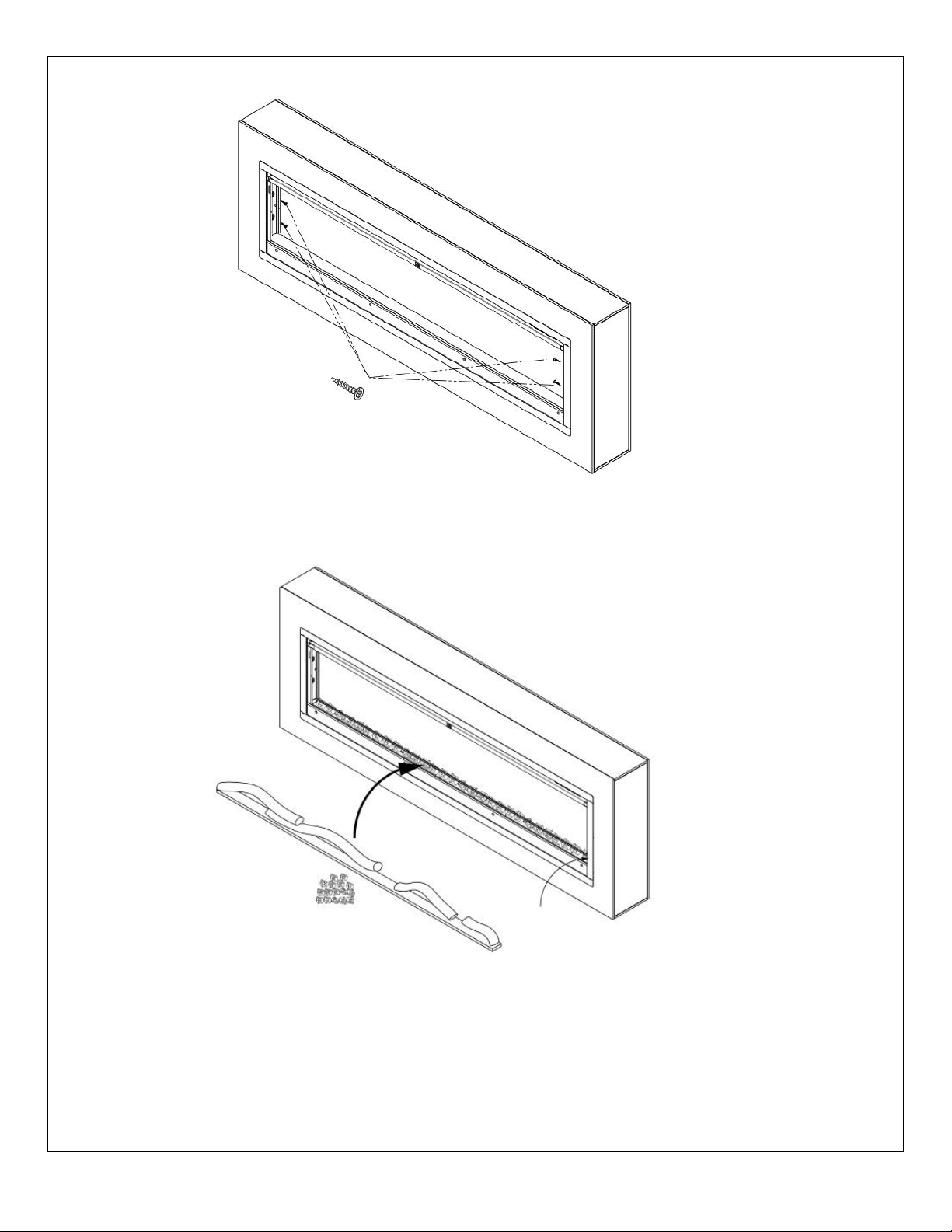

STEP 7 Put carbon log or crystal stone to bed. Figure (H)
Figure(H)
STEP 7 Place the front panel lock the appliance. Figure (I)

Figure(I)
WALL MOUNTED INSTALLATION
Due to many different materials used on different walls, it is highly recommended that you consult
your local builder before you install this appliance on the wall.
STEP 1 Select a location that is not prone to moisture and is located at least 36"(914mm) away from
combustible materials such as curtain drapes, furniture, bedding, paper, etc.
STEP 2 Have two people hold the appliance against the wall to determine the final location.

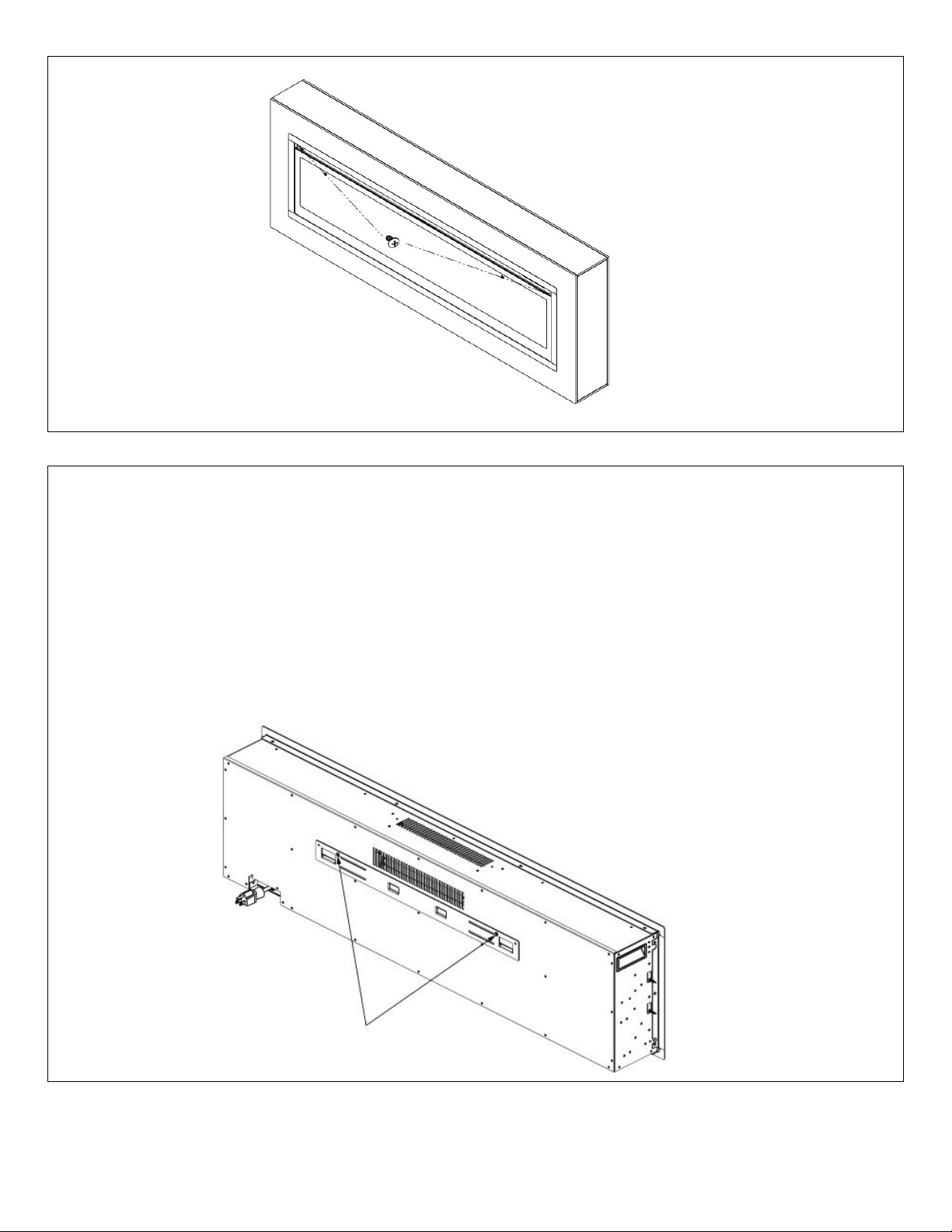

STEP 3 Place unit face down on a soft, non abrasive surface. Remove the bracket from the back of
the unit by removing the screws. Figure(a) Remove four pieces of silver screws on both sides.
Figure(b)
Figure(a)

Figure(b)
STEP 4 Take the glass panel out of the fireplace box. Place it in a soft and clean place. Figure (c)
STEP 5 Take foam(A) out of the fireplace. Figure(d)
Figure (c)

Figure (d)

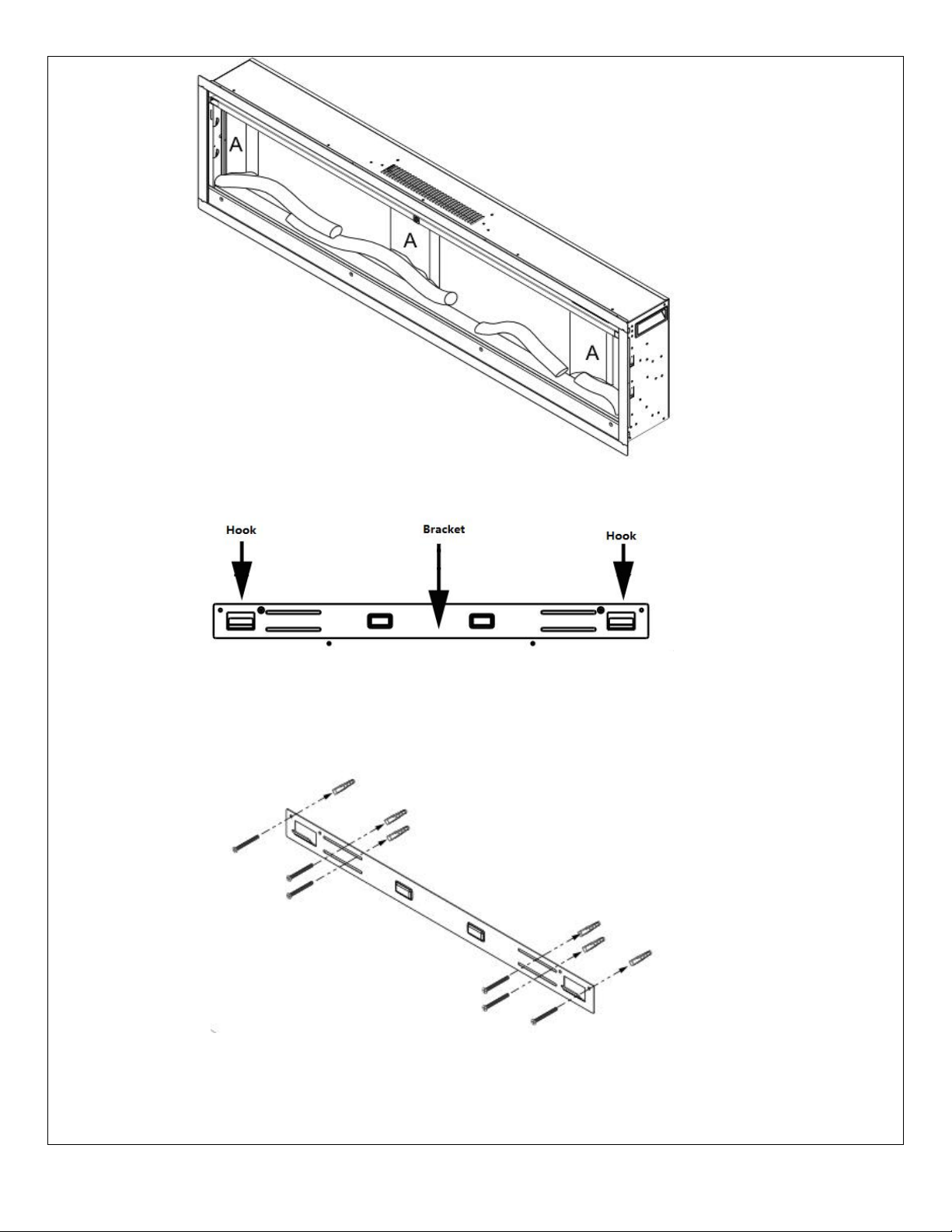

STEP 6 Mark out location, then mount the bracket(part e) onto the wall using the supplied screws.
This bracket MUST have the hooks facing upward and be level. Figure(e)
Figure(e)
NOTE: It is strongly recommended that the mounting bracket(part e) be screwed into the wall studs
where possible. If the wall studs cannot be used, ensure that the supplied plastic anchors are used to
affix the bracket to the wall and the bracket is adequately secured. Figure(f)
Figure(f)

Fasten the metal bracket (F) at the back of fireplace with 2pcs of 4x8mm screws, the other
end to the wall with 1pc of drywall anchors.

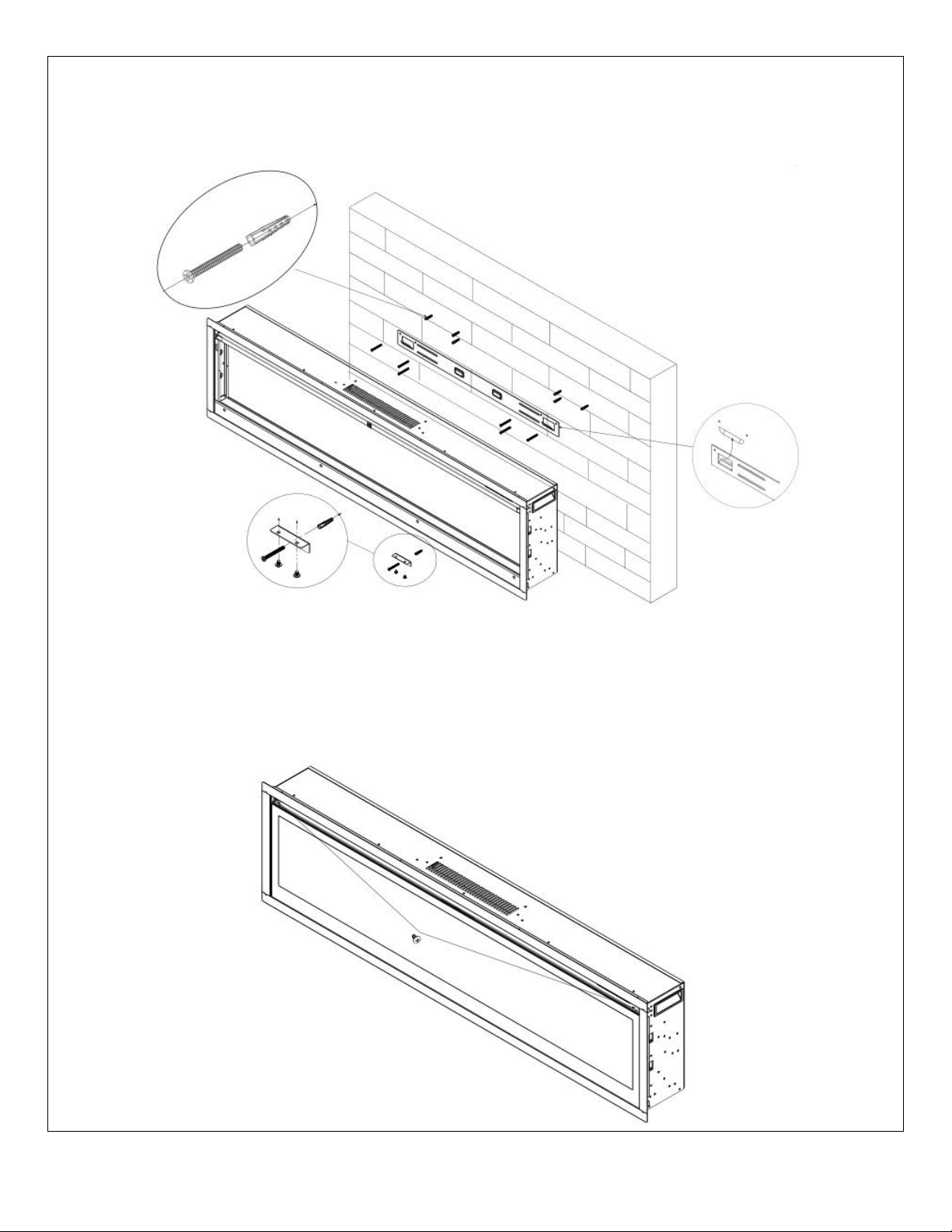

STEP 7 With the wall mounting bracket installed have two people lift the appliance up and insert the
two hooks on the bracket into the two slots on the back of the appliance.
STEP 8 Put carbon log or crystal stone to bed, place the front panel lock the appliance by 4x8mm
screws.

Free Standing Option
Lay the heater on the floor or a table

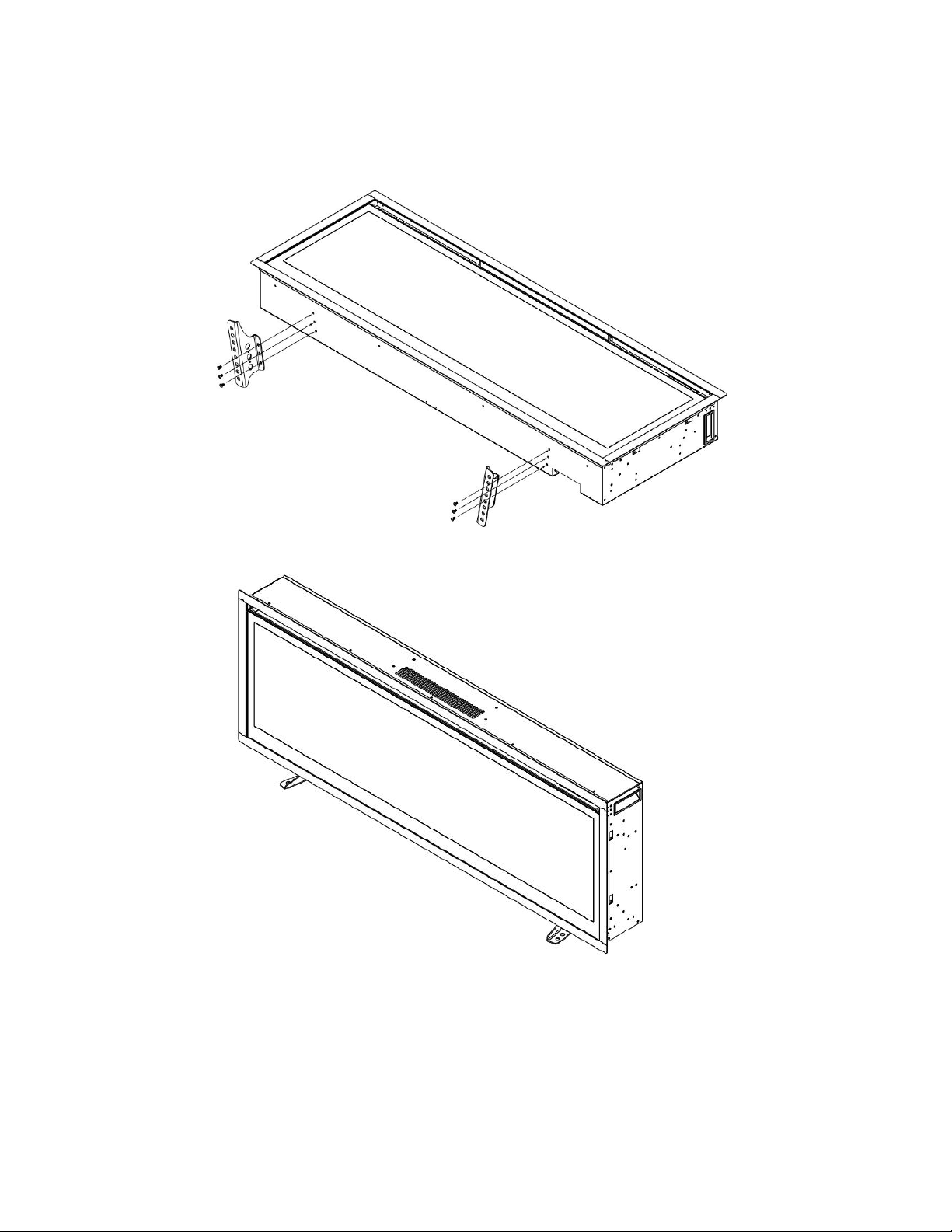

Install the base with 6pcs screws ( screws is on the bottom of the fireplace) as provided

LOG-SET/CRYSTAL EMBER INSTALLATION
(Note: Please make the installation according to the embers which you bought or selected.)
* Glass front must be removed and the appliance must be mounted in its final location before the log-
set/crystal embers are installed.
* If your fireplace come with log-set, remove the log-set from the package, put it to the fireplace
designed place. Figure 1
* If your fireplace come with CLEAN CRYSTAL MEDIA: crystal may have a fine oil residue that
needs to be cleaned prior to installation. Clean them with mild dish soap, drain, rinse thoroughly and
dry before placing into the tray.
* Then place the crystal embers carefully into the bottom tray on the front of the appliance as
illustrated. Apply an even layer from side to side. Figure 1

Read and understand this entire owner’s manual, including all safety information, before plugging in or
using this product. Failure do to so could result in electric shock, fire, serious injury, or death.
POWER
Make sure the ON/OFF switch, located on the control panel, is in the OFF position.Plug the
power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY
INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not
loose.NEVER exceed the maximum amperage for the circuit. DO NOT plug other appliances into the
same circuit.
METHODS OF OPERATION
This electric fireplace can be operated by the button, located on the TOP right side glass panel of the
fireplace, or by the battery-powered REMOTE CONTROL.
The operation and functions of the two methods are the same.
Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2 and 3, and
heed all warnings.
WARNING
Remote control Operation

Turn on switch button first
BUTTON
FUNCTION
ACTION&INDICATION
ON: Enables control panel functions and remote
control.Turn on flame effect.
OFF: Disables control panel functions and remote
control. Turn off flame effect.
1. Press once. Indicator light turns on. Power
turns on. All functions enabled.
2. Press again. Indicator light turns off. Power
turns on. All functions will off.
COLOR button: Makes the color flame effect
changing.
1. Press once. Flame color effect gets
changing.
2. Press again until desired setting is
reached.
FLAME button: Makes flame effect dimmer and
brighter.
NOTE: Flame effect stays on until power button is
turned off. Flame effect must be on for heater to turn
on.
1. Press once. Flame brightness effect gets
changing.
2. Press again. Until desired setting is
reached.
HEATER button:Turn heater on and off.
NOTE: To prevent overheating, the heater fan will
blow out cool air for 30 seconds after the heater turn
off.
1. Press once. Indicator lights up. 750W
heater turns on and blows warm air.
2. Press again. Indicator lights up. 1500W
heaters turns on and blows hot air.
3. Press again. Heaters turn off . The display
show “00”
The fan blows cool air for 30 seconds to allow
heater to cool down, then turns off.
TEMPERATURE button: Control temperature settings
to choose temperature as desired.
Setting range from 62F to 82F.
1. Press once. Indicator light turn on.
Temperature is set to 62F.
2. Press again until desired setting is
reached. LED display show setting.
TIMER button: Control timer settings to turn off
fireplace at selected time.
Settings range from 0 hours,1hours, to 8 hours.
3. Press once. Indicator light turn on.
Temperature is set to hours.
Press again until desired setting is reached.
LED display show setting.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes.
NOTICE 1
When the heater is first turned on, a slight odor may be odor may be present. This is normal
and should not occur again unless the heater is not used for a long period of time.
NOTICE 2
To improve operation, aim the remote control at the front of the fireplace. DO NOT press
the buttons too quickly.Give the unit time to respond to each command.
POWER
COLOR
FLAME
HEATER
TEMP.
TIMER

3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If
there are, use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional.
Remote Control Battery Information
With 2x AAA batteries.
NOTE: Remote control battery used depends on the remote control type which selected above.
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion.
Dispose of batteries at your local hazardous material processing center.
CARE AND MAINTENANCE
Cleaning
NEVER immerse in water or spray with water. Doing so could result in electric
shock, fire, or personal injury.
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
Use a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Clean the exterior of the fireplace with a slightly damp cloth or duster.
Maintenance
Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury.

Electrical and Moving Parts:
The fan motors are lubricated at the factory and will not require lubrication.
Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
Store heater in a clean dry place when not in use.
WARNING! No other servicing should be performed by the consumer. Do not attempt to
service the unit yourself.
Troubleshooting
WARNING
DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE.
ONLY A QUALIFIED SEVICE PERSON SHOULD SERVICE AND PEPAIR THIS ELECTRIC APPLAINCE.
PROBLEM
POSSIBLE CAUSE
SOLUTION
Fireplace turns off and
will not turn on.
1. Fireplace has overheated and
safety devise has caused thermal
switch to disconnect or home
circuit breaker has opened.
1. Reset switch by turning main
power off and waiting turning it back
on or breaker circuit breaker.
Flame is not moving.
1. Loose wiring.
2. Flame motor defective.
3. Flame rod out of place.
1. Inspect wiring for loose
connections.
2. Call a qualified service technician
to replace flame motor.
3. “Flame Rod” out of place due to
rough transit/handing of the product.
This issue can be corrected as
simple as removing the glass,
flipping the fireplace upside and
down, removing a set of screws that
are holding the bottom frame plate
and placing the flame rod back into
place.
Flame is not visible.
1. Wiring is loose.
1. Disconnect from power source and
inspect wiring for loose connections
and repair or replace if necessary.
2. Push the flame button to high.
Log set and /or is not
glowing.
1. Wiring is loose.
2. Ember is off mode.
1. Disconnect from power source and
inspect wiring for loose connections
and repair or replace if necessary.

Remote control does
not work.
1. Low batteries.
2. Not aiming control correctly.
3. Defective remote control and
/or sensor.
1. Replace batteries in remote
control.
2. Aim control at sensor located
directly behind glass screen in center
of unit just above logs.
3. Replace remote control and/or
sensor.
