Urbana Chase Comfort Manual

| 1
50-3813 Chase Comfort
INSTALL MANUAL
CERTIFIED TO: ANSI Z21.88 / CSA 2.33 VENTED GAS FIREPLACE HEATERS
WARNING: ONLY FOR USE ON URBANA SERIES FIREPLACES. If the information in
this manual is not followed exactly, a re or explosion may result causing property
damage, personal injury or loss of life. Installation and service must be performed
by a qualied installer, service agency or the gas supplier.
C#4001609

2 |
16.26
16.43
18.12
18.29
8.65
14.04
1.0
14.00
13.62
Specications
Dimensions:

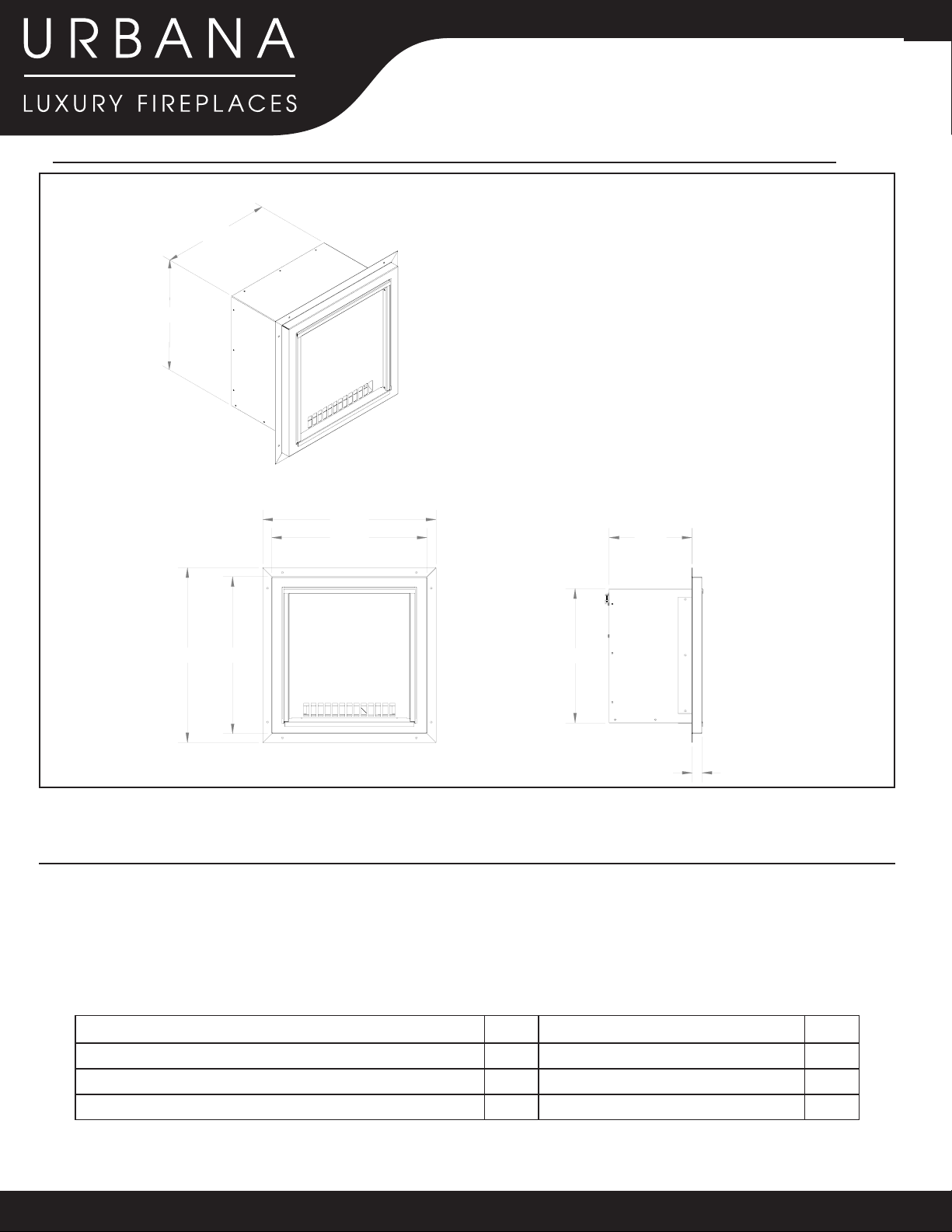

Figure 1: Power Vent Dimensions
Kit Contents:
The table below outlines the complete contents of the Urbana Chase Comfort Kit (50-3813). Refer to the parts
diagram section of this manual for reference and ensure that your kit is complete and undamaged.
Part Description Qty Part Description Qty
Blower Termination w/ Finishing Face 1 Heat Collector 1
Framing Thimble Assembly w/ Inner Wall Cover 1 Wire Nuts 2
#8 Screws 4
Table 1: Chase Comfort Kit Contents

| 3
Assembly
Prior to installation the Heat Collector must be
attached to the rear of the blower assembly, as shown
below, using the supplied #8 screws and a 1/4” nut
drive

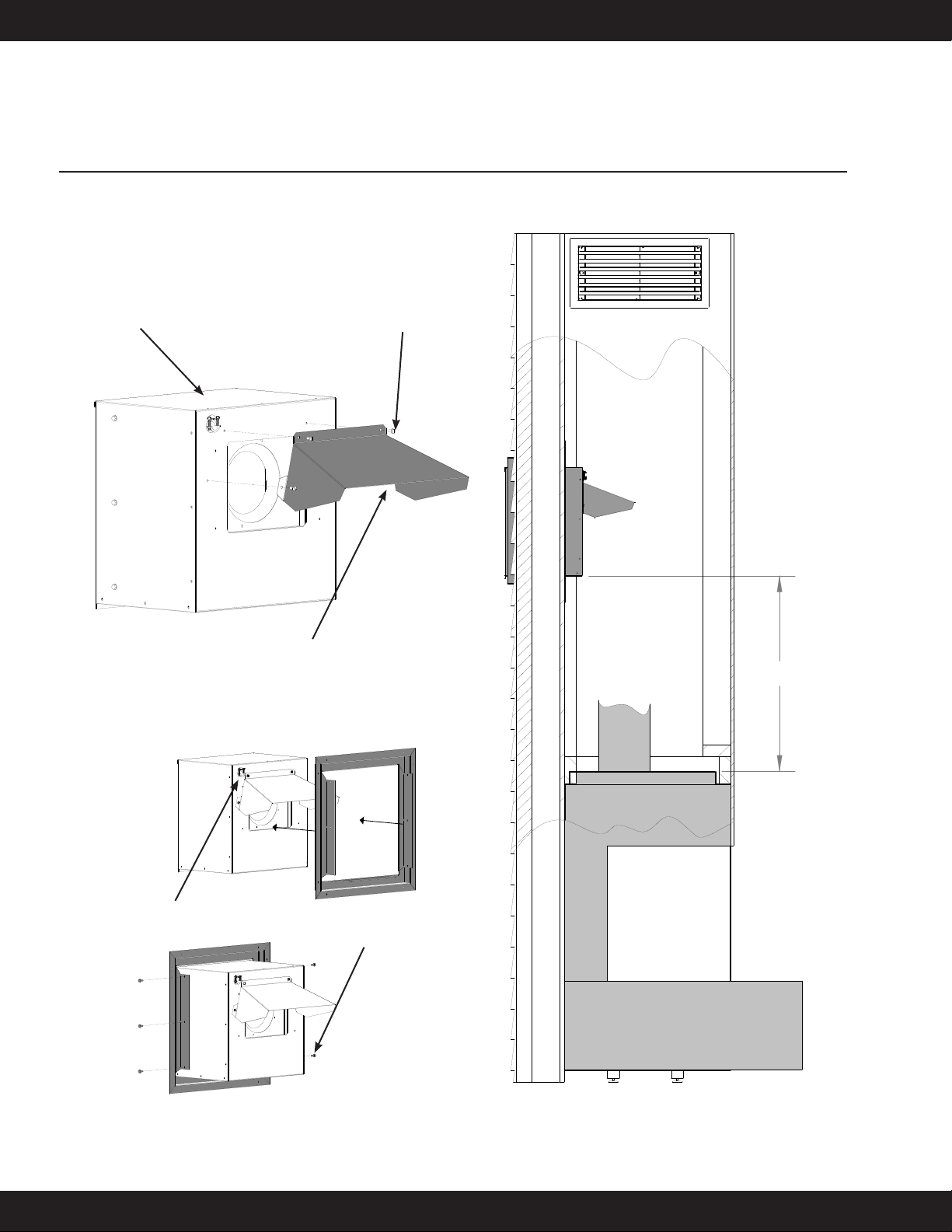

Figure 2: Heat Collector Assembly
#8 Screws (x4)
Blower Termination
Heat Collector
Assembly:
Figure 3: Finishing Face Installed
Self-tapping
screws
Strain
Relief
25
Chase Comfort kit
must be installed
a minumum of 25
in above the top
of the unit
Figure 4: Minimum Vent Clearance

4 |
Installation - Termination Restrictions & Clearances
J 12 in (30 cm) 9 in (23 cm) Clearance to non-mechanical air supply inlet to building, or
the combustion air inlet to any other appliance.
K 6 ft (1.83 m) 3 ft (91 cm) above if within 10
ft (3 m) horizontally
Clearance to mechanical air supply inlet.
L 7 ft (2.13 m)t 7 ft (2.13 m)*t Clearance above paved sidewalk or paved driveway located
on public property.
M0 in (0 cm)+Clearance under verandah, porch, deck, or balcony.
Letter Canadian Installation 1US Installation2Description
A 12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony.
B 12 in (30 cm) 9 in (23 cm) Clearance from window or door that may be opened.
C 12 in (30 cm)* Clearance from permanently closed window (to prevent
condensation).
D 0 in (0 cm) Vertical clearance to ventilated soft located above the
terminal, within a horizontal distance of 2 ft (60 cm) from
center line of terminal.
E 0 in (0 cm) Clearance to unventilated soft.
F 12 in (30 cm)* Clearance to outside corner.
G 2 in (5.08 cm) Clearance to inside corner.
H 3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly
3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly*
Clearance to each side of center line extended above me-
ter/regulator assembly.
I 3 ft (91 cm) 3 ft (91 cm)* Radial clearance around service regulator vent outlet.
Table 2: Termination Clearances
A
A
DE
LB
C
F
B
B
B
JMK
G
H
I
Openable
Fixed
Closed
Openable Fixed
Closed
Termination Cap Air Supply Inlet Gas MeterG
G
Restriction Zone
(Termination not allowed)
N
O

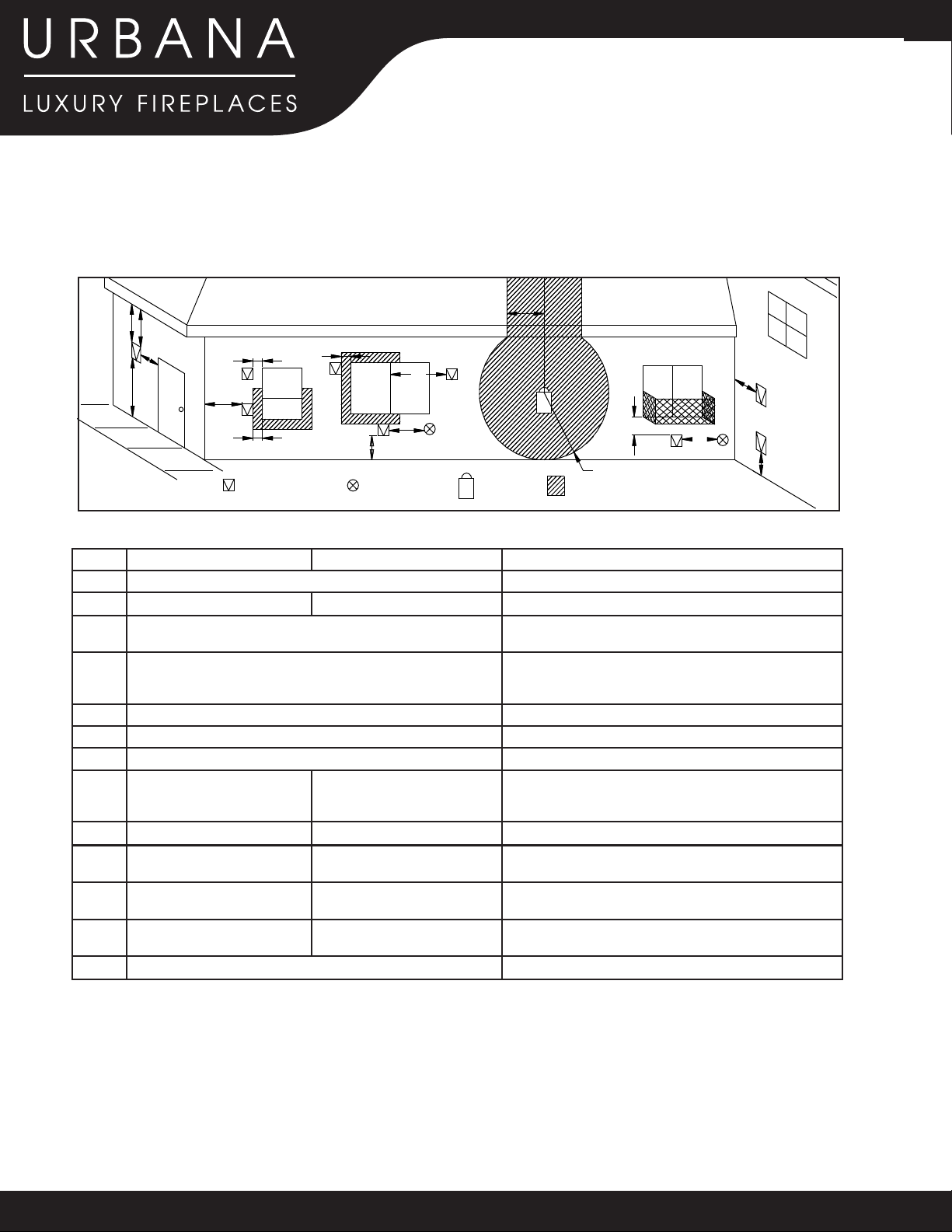

Figure 3: Termination Restrictions
1 In accordance with the current CSA B149, Natural Gas and Propane Installation Code.
2In accordance with the current ANSI Z223.1 NFPA 54, National Fuel Gas Code.
* These numbers are only estimates.
t A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings
and it serves both dwellings.
+ Permitted only if verandah, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
Clearances are in accordance with local installation codes and the requirements of the gas supplier.
To determine the location of the blower termination refer to Figure 3 & Table 2 Termination Minimum
Clearances below.
Note - The termination must be located within the same chase as the replace and can’t be attached
to ducting/venting or installed in a separate bulkhead.

| 5
Installation - Termination Framing
DATE: 11/28/2018
BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
Framing Box
STOVE:
UPDATED: ----/--/--
BY
--
REVISION:
0.0
19” Inside
Height
14 5/8” Inside
(16” Joist centre )
Figure 5A: Power Vent Framing
Dimensions
3. Fasten the exterior thimble, using standard wood
screws to the framed opening. Making note to install
the thimble with the thicker border at the bottom.
Refer to Figure 5B. Wall cladding can now be applied
on top of the thimble while leaving only the opening
for the blower termination installation.
20 15/16” (532 mm)
18 3/4” (476mm)
Figure 5B: Exterior Thimble Installation
Thicker Bottom Border
1. Determine the location of the termination as
directed on the previous page. NOTE: The Urbana
Comfort Kit allows for a minimum wall thickness of
8” (203mm) and amaximum wall thickness of 12”
(305mm). For walls thinner than 8” the framing
thimble will need to be properly blocked and secured,
and the blower assembly will either need to sit proud
of the exterior facing or sink further into the chase
2. Cut and frame an opening that is 19” (483mm) tall
by 14 5/8” (371mm) wide for the exterior thimble as
shown in Figure 5A.
4. Repeat step 2 for the interior timble using the same
dimensions.
5. Repeat step 3 by sliding the interior thimble,
identied with a “2” on the face, around the sleeve of
the exterior thimble. The interior thimble does NOT
have a notch at the top, again ensure the thicker
border is at the bottom.
NOTE: Ensure the two framed openings are the same
height from the ground as thimble alignment will be
greatly impacted.
6. Determine the depth that the blower termination
will sit within the wall. For wall thicknesses greater
than 9”, the termination will mount ush with the
nishing face. For walls thinner than 9”, the power
termination will be required to protrude from the
nishing face.

6 |
Installation - Termination
8. A 115VAC power cable (not supplied) will need to be
routed to the rear of the termination:
A) Feed the cable through the strain relief on the
back of the termination. Roughly 3-6” cable is
recommended to be feed into the termination.
B) Tighten the two (2) screws on the strain relief
to clamp down and secure the cable within the
termination.
9. Install the termination into the exterior thimble and
fasten in place using eight (8) standard wood screws.
See Figure 6 for reference.
NOTE: Be sure to pull any cable slack back through
the thimble so it does not bind.
10. Seal the perimeter of the termination between
the main body and the nishing face with silicone or
caulking. Refer to Figure 7 for exact locations.
Seal gaps with
Silicone
11. The exterior wall nishing material can now be
installed around the termination. The nishing material
can butt up against the perimeter of the nishing face
but the thickness cannot exceed 1” (25.4mm). Refer to
Figure 8.
Figure 7: Silicone locations
Finishing Material
max. thickness
1” (25.4mm)
Figure 8: Exterior Cladding
7. Upon completion of Step 6, mount the nishing face
to the termination using eight (8) self-tapping screws.
Three (3) screws for each side and two (2) screws for
the bottom tab. Seal the screw heads with silicone.
IMPORTANT: Ensure the nishing face is mounted
square to the front of the termination
Exterior
Wall
Cladding
Figure 6: Termination installation

| 7

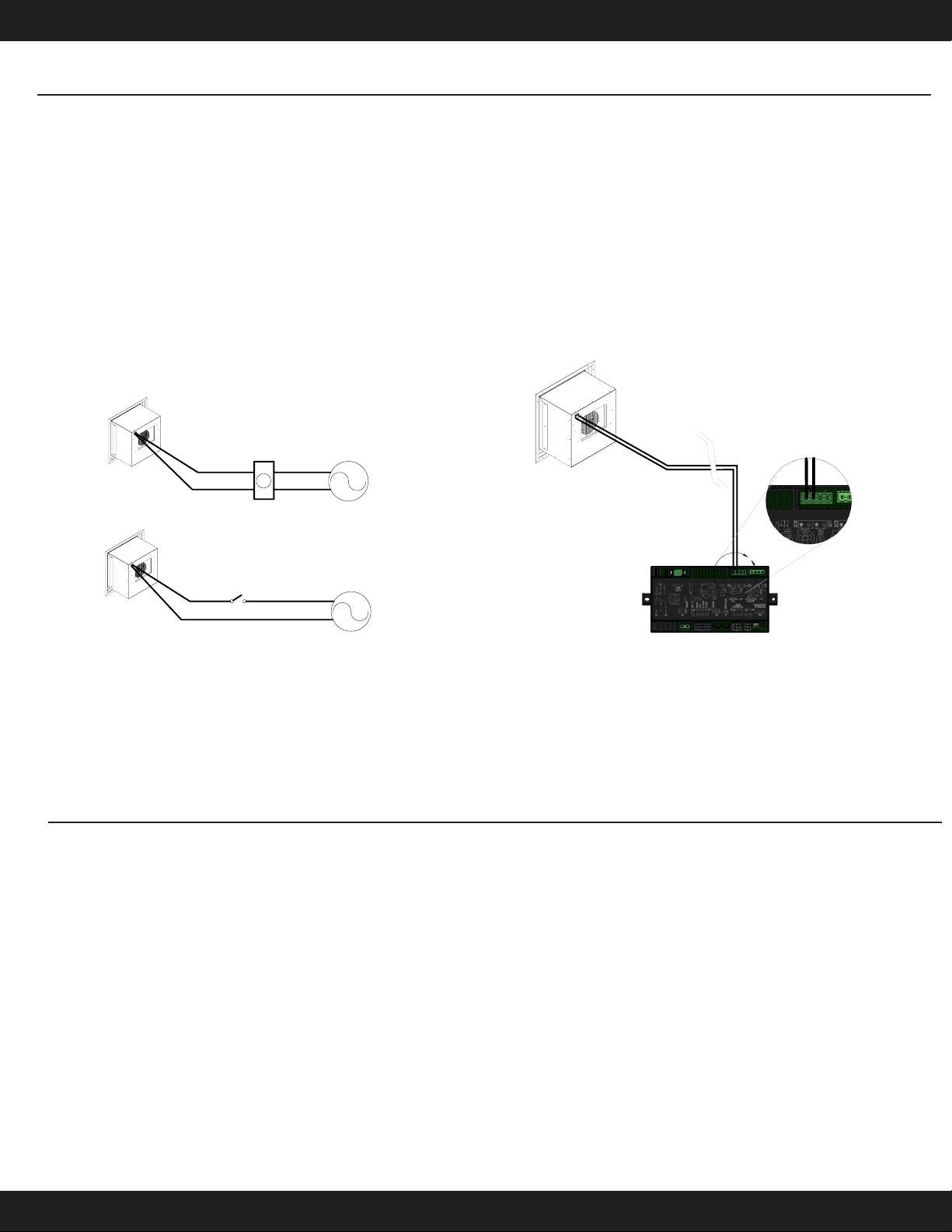

Figure 9: Wiring options
Access to Fan for replacement
terminAtion Wiring:
The replace must be electrically connected and grounded in accordance with local codes or, in the absence of local
codes, with the current CSA C22.1 Canadian Electrical Code Part 1, Safety Standards For Electrical Installations,
or The National Electrical Code ANSI / NFPA 70 in the US.
CAUTION: When servicing controls, label all wires prior to disconnection. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
If any of the original wire supplied with the appliance must be replaced, it must be replaced with 18 AWG wire
with a temperature rating of 105°C.
A
Rheostat
Wall Switch 120V AC
120V AC
NOTE: Polarity of the leads does not effect operation
Reinstall the front cover to complete the termination installation.
User Control - Wiring:
The Chase Comfort kit may be wired in two different ways depending on user preference (refer to Figure 9
above):
Wall Switch / Rheostat - The Chase Comfort kit may be wired directly to a wall switch for simple on/off
control, or to a rheostat for variable speed control. If using a rheostat, the voltage range must be set to NOT
drop below 80VAC.
Remote Control - The Chase Comfort kit may be wired to the replace via the unused comfort fan circuit
(X10) on the IFC. This will allow for on/off and 6 speed level control via the fan icon on the replace’s remote
control. Refer to the replace’s installation manual for further details on accessing the IFC.
Note - The fan icon will need to be activated on the remote in order to control the kit. See the section at the
end of the manual.

8 |
Wiring - Termination
1. Remove the termination’s front cover by removing the four (4) screws using a 1/4” nut driver. See Figures 10
& 11.
2. To wire the blower motor, use the supplied wire nuts to connect the two loose blower motor leads to the
incoming power that was routed through the rear strain relief.

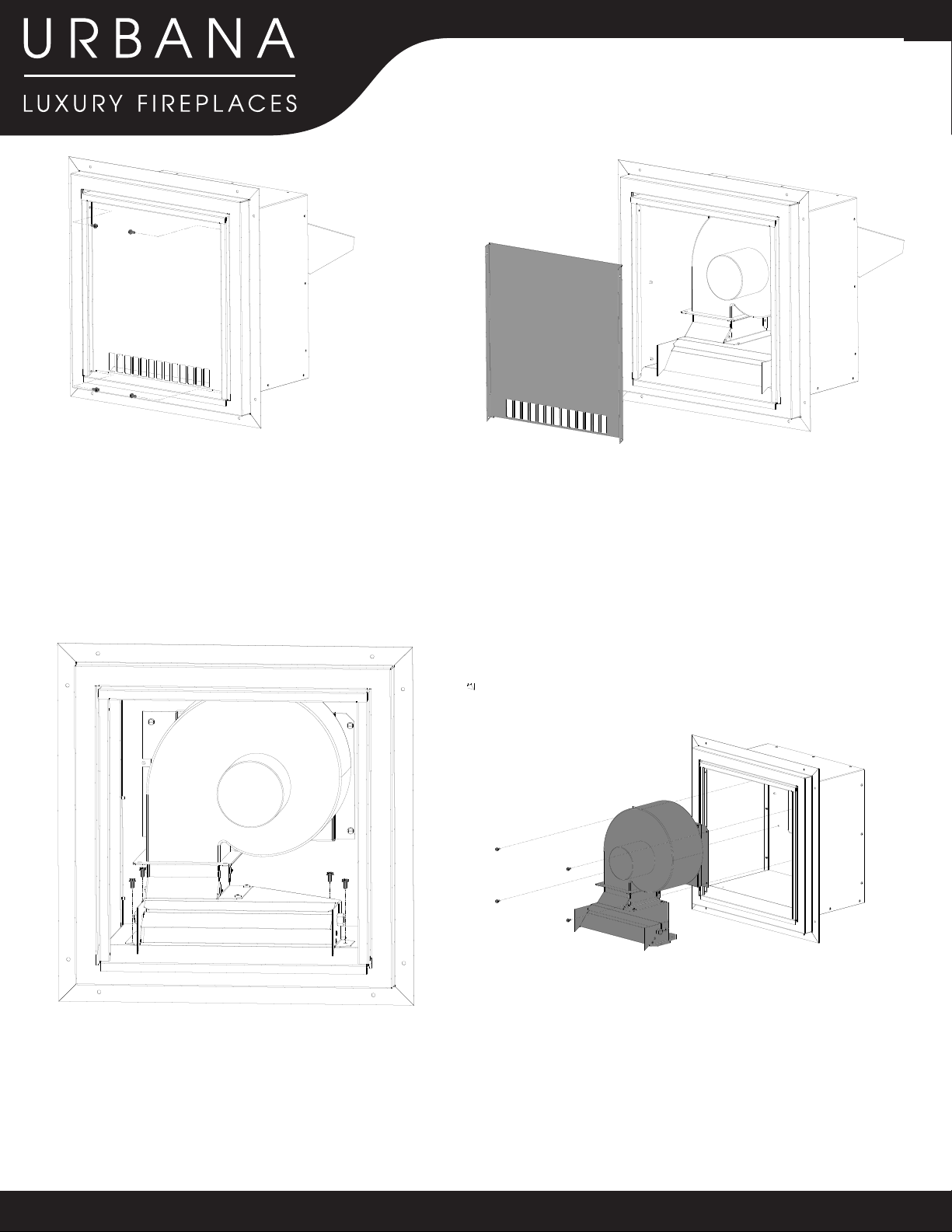

Figure 12: Vent Base Screw removal
Figure 10: Front cover screws Figure 11: Front Cover removal
Figure 13: Blower assembly removal

| 9
NOTE: The Urbana Comfort Kit is equipped with a sealing one way ow door. the unit will ow air out of the
chase when activated and will prevent outside air from owing in when deactivated. An external one way duct
ap is NOT required with this kit
DisChArge FlAp:

10 |
1. With no batteries inserted into the battery holder,
keep pressed Power On/Off and O buttons.
2. Insert batteries keeping pressed the two buttons.
The following screen is displayed. Each icon can be:
a. Set: the icon is set.
b. Clr: the icon is unset.
3. Keeping pressed the Power On/Off button, pressing
the O button each icon can be selected.
4. Keeping pressed the Power On/Off button and
pressing the O button, navigate to the fan blade. This
is in Clr state.
5. Keeping pressed the Power On/Off button, press
the Up button to set the icon.
6. Release the Power On/Off button. The functionality
is now enabled. The Fan Control is now ready to be
used.
remote iCon ACtivAtion:
Parts List

| 11
Parts List
12
3
4
5
Reference
Number Part Description Part Number
1 Finishing Face 50-3770
2 Front Cover 50-3980
3 Blower Motor 50-3978
4 Framing Thimble Assembly 50-3768
MANUFACTURED BY: SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.Urbanareplaces.com
Spring 2020
C-16010
