Evaporative Air Cooler
Foreword
Thank you for your trust and support for choosing our Evaporative Air Cooler!
Please read this manual carefully before using it.
The evaporative Air cooler comes with the Most Advanced evaporative cooling technology and
the Modern management. It will make your life easier and more comfortable.
Principle
When the wind blows on your sweaty body, you will feel cool. Its principle ins similar with that
circulating pump continuously suck water from the sump and distribute water equably to the
CELDEK cooling pads by the water equably to the CELDEK cooling pads effects with the outside
hot dry air and evaporate to drop the temperature by 5—12 degree. Thus you have the fresh,
cooler, clean air.
Attention
1) Must be installed in well-ventilated and dry place to ensure fresh air can be bringing in.
2) Mechanical may be combined with natural exhaust.
3) Ensure the supply voltage is within the rate+/-10V range, otherwise it will break the
cooler such as cannot start the cooler or start and stop frequently.
4) Do not add full of water to prevent spillover.
01

EVAPORATIVE CM-6000A
www.climateplus.ae
Inspection and preparation before assembling
1) Please open the side panel to check the parts and the technical parameters (the manual), if the
parts are incomplete or breakage, Leave it as it is and inform us or the distributor.
2) Check if the supply voltage is same as the rated one. Make the phase voltage is 2020+/ 10V
3) Make sure the water is clean.
Guide for installation and uninstall of truckles and horse

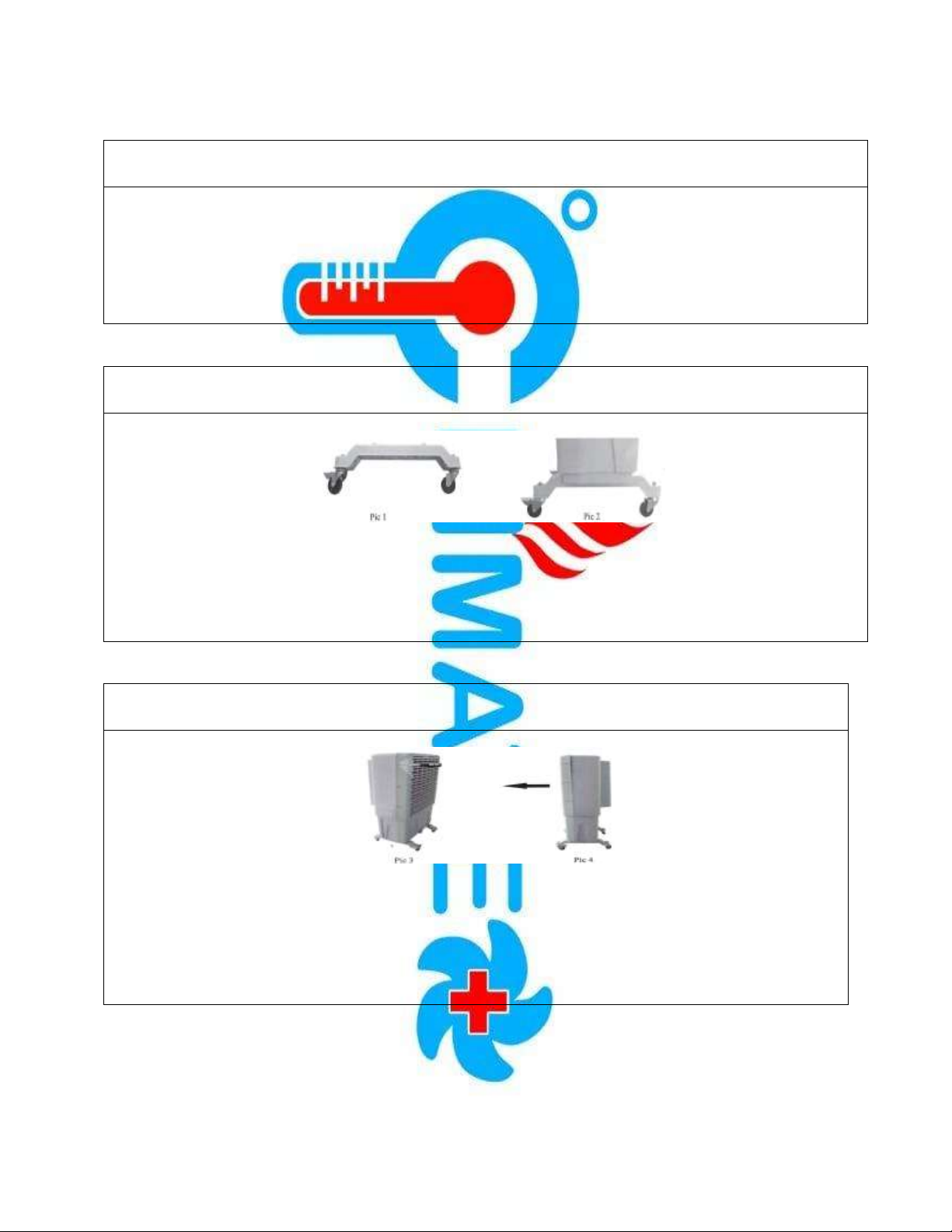

1) Take two sets of assembled frame as Pic1
2) Use ST5x25 bolts to stable the assembled frame to the bottom of the water tank. And lock the
bolt closely with Philipp’s screwdriver. Please pay attention to the hole at the tank while installing
as Pic 2.
Guide for installation and uninstall of side panel
1) Lose 8 bolts with screwdriver as pic. 3
2) Pull up 2 pieces of dust screens and the side panel, then pull out the side panel and take t
out, as Pic 4.
3) Please install as the contrary step as above.
02

EVAPORATIVE CM-6000A
www.climateplus.ae
Guide for water and drain
Add water

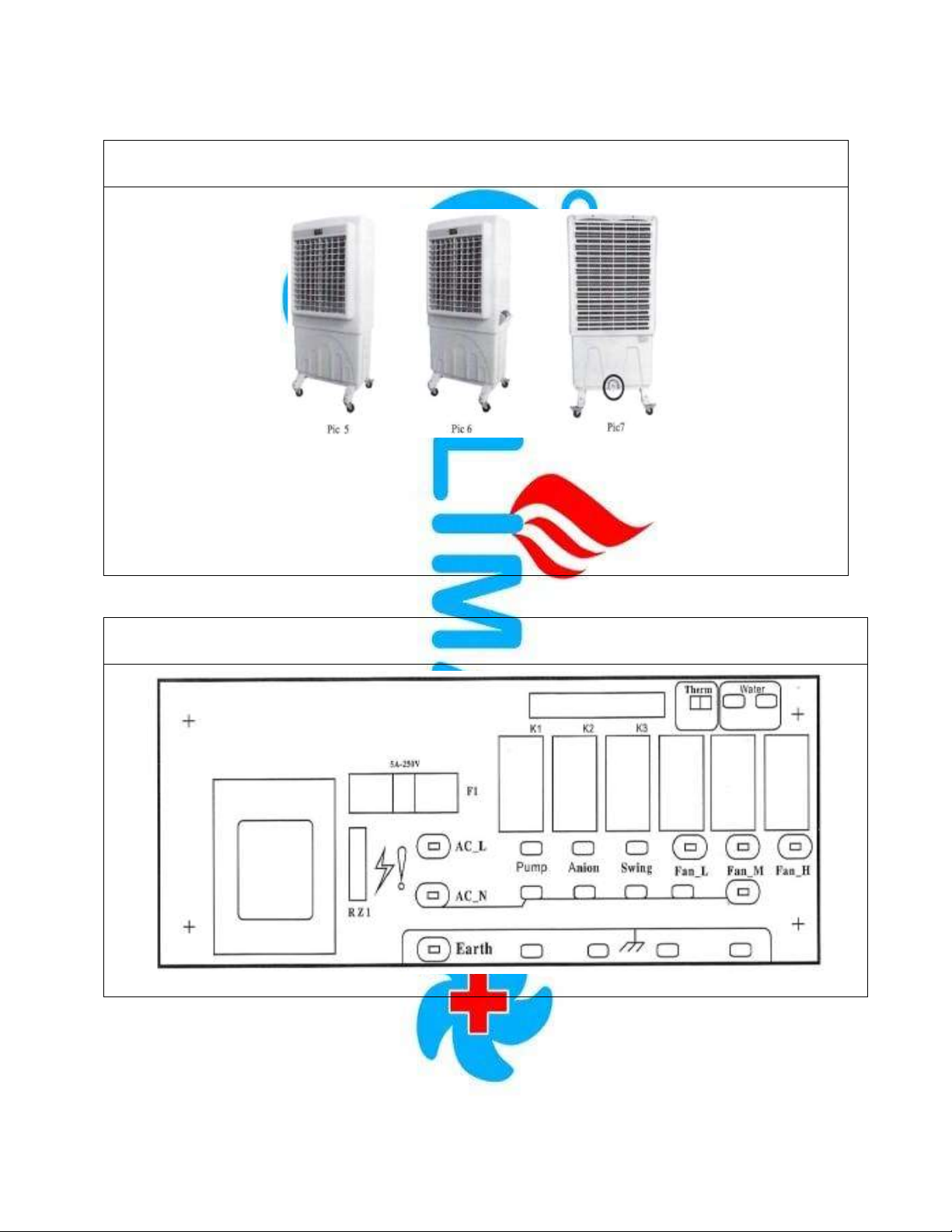

1. Pull out the affusion hole, as pic 5;
2. Add water from this hole, as pic 6.
Drain
Open the valve cover weather shins, also close it clockwise after drain, as pic 7
Circuit diagram
03

EVAPORATIVE CM-6000A
www.climateplus.ae
Guide for Operation

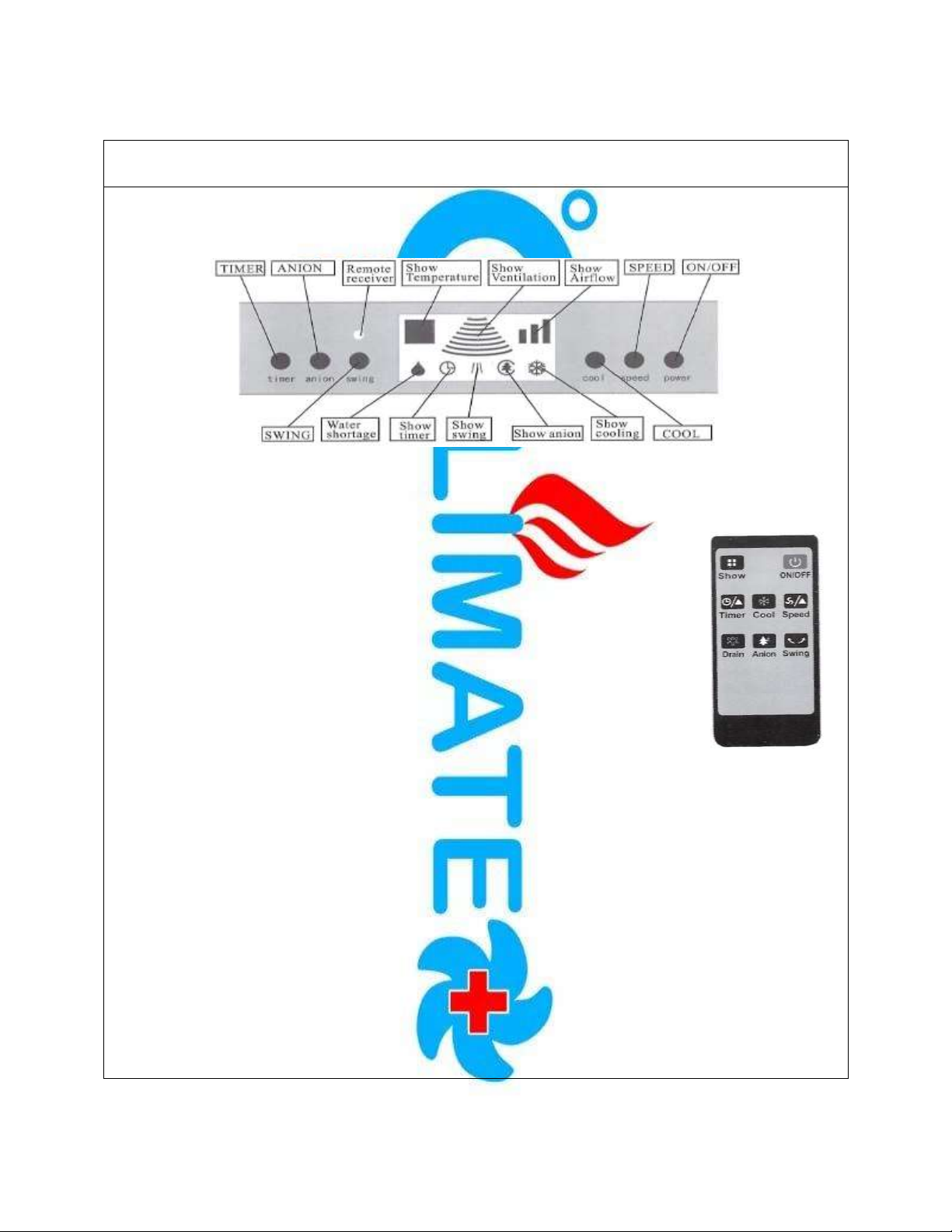

Introduction of the function of the button on the remote controller:
Introduction of the function of the button on the remote controller
1) ON/OFF: Start the cooler in stand-by state or stop
2) COOL: Switch to cool mode or ventilation mode
3) DRAIN: Start or stop draining water
4) Airflow+: Add the airflow for the conversion from low speed, mind
Speed and high speed, the rank is 1-2-3-1
5) Airflow-: Decrease the airflow for the conversion 1 speed-anion-1
speed
6) SWING: start or stop swing
7) TIMER: Start timing function
8) ANION: Switch on/off the function of anion or ozone( due to the
matched system)
9) Show: Show control board light picture or not.
Operating introduction
Please ensure the power lines are connected correctly before using!
1)ON/OFF:
Press this button under the state of stand-by, then it will start running. The mode and the
airflow will be the same as the last state when you power off it. The speed is at 2 speeds and
the cool function is ON when you power it at first time. The airflow will be showed at the range
of L,M,H from the left to right dynamically.
Press this button while the cooler is operation, it will stop and only the temperature will be
showed on it.
04

EVAPORATIVE CM-6000A
www.climateplus.ae
2) Airflow adjustable:
Press “airflow” button on the LCD controller or “airflow” and “airflow” on the remote controller to
increase or decrease it. It can be changed from L-M-H-L-M-H… and that will be showed on the
“airflow indicator”.
3) Mode
Press “COOL” button on the LCD controller, the mode will be changed by COOL VENTILATION COOL.
When the cooler is operating, switch to COOLmode, it will be forced to run for 30s in lowest speed
and then comeback to speed last, it will not affect the speed displays on the remote LED screen.
4)SWING
The “show swing” button will be lighted on when pressing the “swing” button on the LCD controller
or remote controller during operation; it controls the switch of swing function.
5)ANION
The “Show anion” button will be lighted on when pressing “anion” button on the LCD controller or
remote controller during operation, it controls the start and stop function of the anion.
6)TIMER
“Timer” set to start or stop the air cooler automatically after N hous later. It is set by the hour. It will
start the air cooler automatically when it is running during the time is arrived.
“H x” (“x” means the time you set) will be showed on the temperature indicator during the time is
setting, and the temperature will be showed again on it after the timer takes effective. The “TIMER”
will be flicking when pressing the button and you can change the time by pressing the “AIRFLOW’, 9
hours is, maximum.
The timer will be working automatically after 5 seconds when you finish setting and the “TIMER” will
be lasting lighted on.
How to cancel the time set
a. Set the time 00
b. Press the “ON/OFF” button when the “TIMER” flickering during setting
c. Press the “ON/OFF” button after the timer fakes effective
05

EVAPORATIVE CM-6000A
www.climateplus.ae
Trouble Shooting
No.
Problem
Reason
Solution
1
Air coolers does not
work
Power off or incorrect power
connection
Power on or check and
connect power correctly
Controller breakdown
Replace it
Fuse burnt
Replace it
2
No cooling
Electrical mainboard is broken
Replace it
The pump is broken
Replace it
No water or not enough water
Add it
The cool key on the controller is
broken
Replace the controller
Electrical mainboard is broken
Replace it
3
No Airflow
The key on the controller is
broken
Replace the controller
The motor is broken
Replace it
4
Unpleasant odor
Dirty water
Change it to clean water
Dirty cooling pad
Clean it
Note: the table is only for your reference, need more help please contact with us or the
distributor.
06
Clean and maintaining
Please Power OFF the cooler before cleaning.
1) Shell Cleaning: Please clean with mild cleaner and the soft cloth.
2) Wet pad cleaning: take out the pad and brush the dust on its surface with SOFT brusher.
3)Maintenance:
a. We advised to clean dust screen and wet pad once per two weeks to ensure cooling
affection.
b. We advise that draining water every day and cleaning to keep fresh air.
c. If it would be a long time no using the air cooler, please off and drain out water.

EVAPORATIVE CM-6000A
www.climateplus.ae
Technical Parameters
07
Model
Specification
GL 06
GL 07
GL 08
MAX Airflow (m3/h)
6000
7000
8000
Pressure (Pa)
100
120
140
Power (kW)
0.15
0.2
0.15
0.2
0.15
0.15
220
/50
240/
50
100-
110/60
220/
60
220/
50
240/
50
100-
110/60
220/60
Voltage/Hz (V/Hz)
220-240/50
Net Weight (kg)
35
35
35
Operating Weight (kg)
120
120
120
Fan Type
Axial
Axial
Axial
Speed type
Three speed
Three speed
Three speed
Noise (dBA)
<62
<63
<63
Dropper Dimension (mm)
520x520
520x520
520x520
Pads Dimension (mm)
(685+30)x645x100
(685+30)x645x100
(685=30)x640x100(1pc)
(545+30)x160x60(2pc)
Overall Dimensions(mm)
765x570x1380
765x570x1380
765x570x1380
Water Storage (L)
85
85
85

EVAPORATIVE CM-6000A
www.climateplus.ae
Guide for installation and uninstall of side panel
1) Please open the side panel to check the parts and the technical parameters, if the parts are
incomplete or breakage, Leave it as it is and inform us or the distributor.
2) Check if the supply voltage is same as the rated one. Make the phase voltage is 220+/-V.
3) Make sure the water used for cooler is clean.
Guide for installation and uninstall of side panel

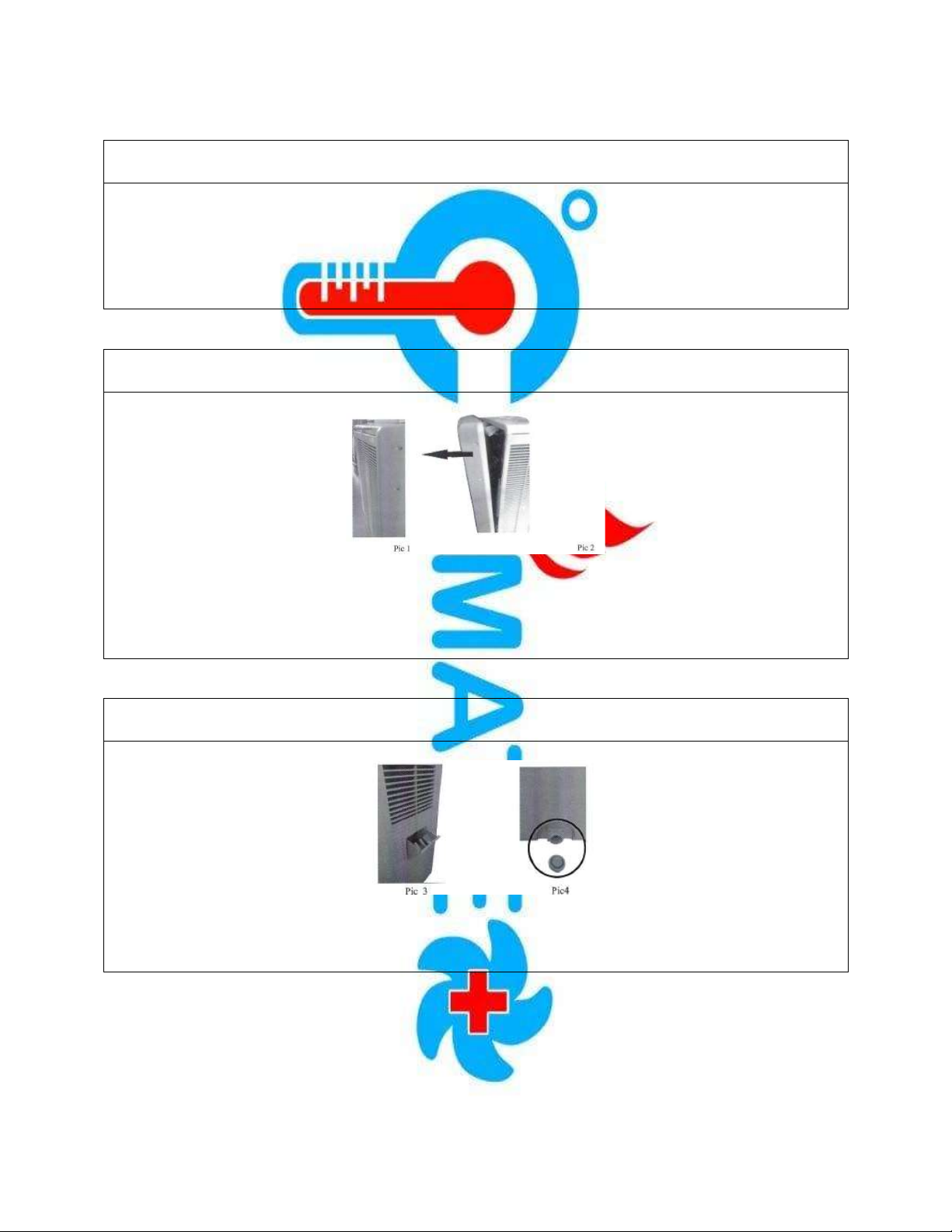

1) Pull up 2 pieces of dust screens
2) Lose 10 bolts with cross screwdriver, as Pic 1. Then pull out side panel and take it out, as Pic 2
3) Please install by contrary step as above.
Guide for add water and drain
Add water: 1. Pull out the effusion hole, as pic 3;
2. Add water
Drain: Open the valve cover for draining, also close it clockwise after drain, as pic 4.
08

EVAPORATIVE CM-6000A
www.climateplus.ae
Circuit diagram
1) GL03/GL04 circuit diagram
09

EVAPORATIVE CM-6000A
www.climateplus.ae
Guide for operation

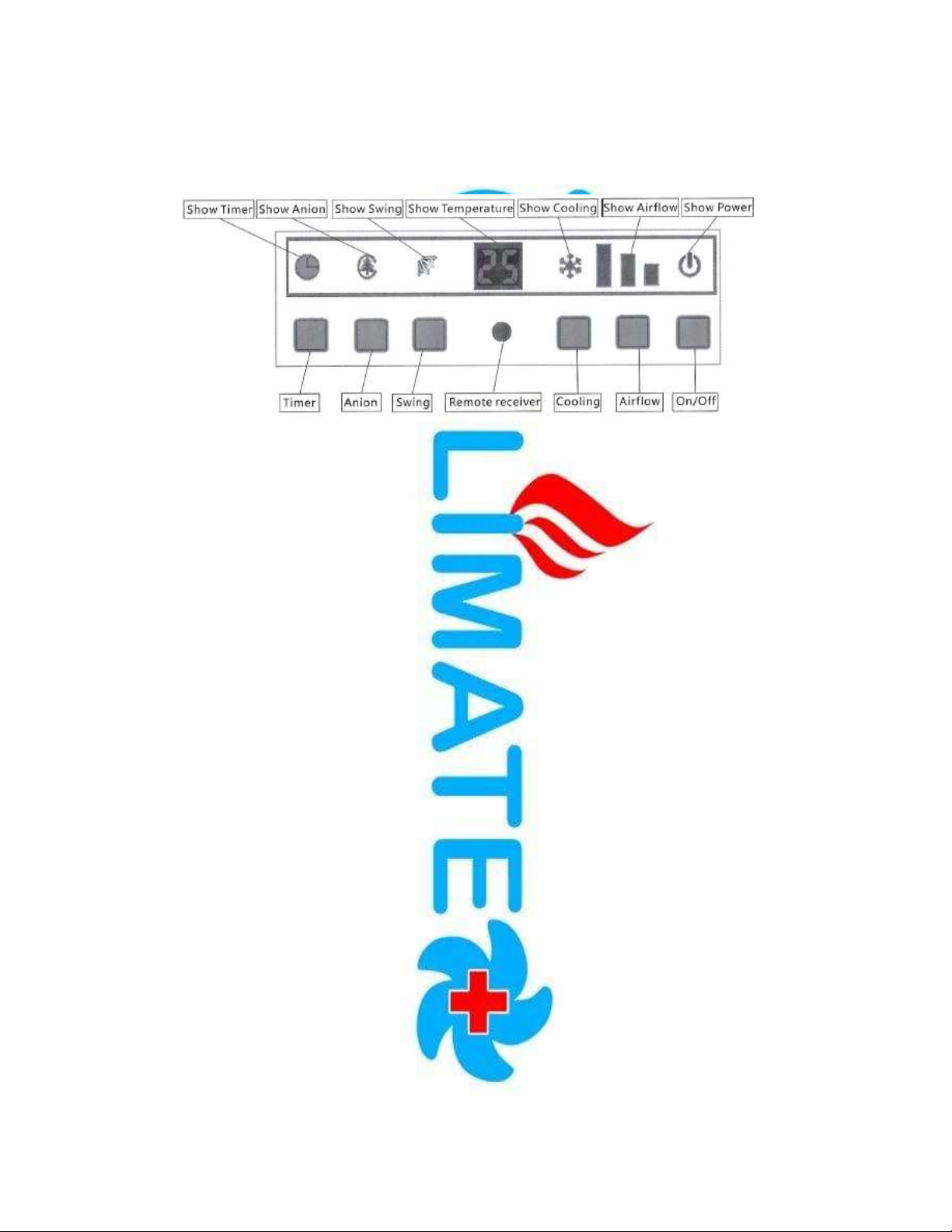

Introduction of the LCD controller
1. ON/OFF: Start the cooler in stand-by state or stop
2. COOL: Switch to cool mode or ventilation mode
3. DRAIN: Start or stop draining water
4. Airflow +: Add the airflow for the conversion from low speed
5. Airflow-: Decrease the airflow for the conversion 1 speed-anion-1 speed
6. SWING: Start or stop swing
7. TIMER: Start timing function
8. ANION: Switch on? off the function of anion or ozone (due to the matched system)
9. SHOW: Show control board light picture or not
Operating introduction
1) ON/OFF:
Press this button under state of stand-by, then it will start running. The mode and the
airflow will be the same as last state when you power off. The speed is at 2 speed and the
cool function is ON when the power it at first time. The airflow will be showed at the range
of L, M, H from left to right dynamically.
Press this button while the cooler is operating, it will stop and only temperature will be
showed on it.
2) Airflow adjustable:
Press “airflow” button on the LCD controller or “airflow-” on the remote controller to
increase or decrease it. It can be change from L-M-H-L-M-H and that will be showed on the
“airflow indicator”
10

EVAPORATIVE CM-6000A
www.climateplus.ae
3) Mode
Press “COOL” button on the LCD controller, the mode will be changed by COOL-
VENTILATION-COOL..
When the cooler is operating, switch to COOL mode, it will be forced to run 30s in lowest
speed and then come back to speed last, it will not affect the speed displays on the remote
LED screen.
4) SWING
The “Show swing” button will be ligjhted on when pressing the : swing” button on the LCD
controller or remote controller, it controls the switch of swing function
5) ANION
The “show anion” button will be lighted on when pressing “anion” button
on the LCD controller or remote controller during operation; it controls
the start and stop function of the anion.
6) TIMER
“Timer” set to start or stop the air cooler automatically when it is running
during the time is arrived.
“H x” (“x” means the time you set) will be showed on the temperature
indicator during the time is setting and the temperature will be showed
again on it after the timer takes effective. The “TIMER” will be flickering
when pressing the button and you can change the time by pressing the
“AIRFLOW’, 9 hours is the maximum.
The timer will be working automatically after 5 seconds when you
finished setting and the “TIMER” will be lasting lighted on
How to cancel the time set
a. Set the time 00
b. Press the “ON/OFF” button when the “TIMER” flickering during setting
c. Press the “ON/OFF” button after the timer effective.
11

EVAPORATIVE CM-6000A
www.climateplus.ae
Clean and maintaining
Please Power OFF the cooler before cleaning,
1) Shell Cleaning: please clean with mild cleaner and the soft cloth.
2) Wet pad cleaning: take out the pad and brush the dust on its surface with SOFT brusher.
3) Maintenance:
a. We advise to clean dust screen and wet pad once per two weeks to ensure cooling affection
b. We advise that draining wear every day and cleaning to keep fresh air.
c. If it would be a long no using the air cooler, please power off and drain out water.
Trouble shooting
No.
Problem
Reason
Solution
1
Air cooler does not work
Power off or incorrect power
connection
Power on or check and
connect power correctly
Controller breakdown
Replace it
Fuse Burnt
Replaced it
Electrical mainboard is broken
Replace it
2
No cooling
The pump is broken
Replace it
No water or not enough water
Add it
The cool key on the controller is broken
Replaced the controller
Electrical mainboard is broken
Replaced it
3
No airflow
The key on the controller is broken
Replace the controller
The motor is broken
Replace it
Dirty water
Change it to clean water
Dirty cooling pad
Clean it
12

EVAPORATIVE CM-6000A
www.climateplus.ae
Technical Parameters
Model
Specification
GL 03
GL 04
GL 075
MAX Airflow (m2/h)
3000
4000
7500
Pressure (Pa)
70
80
70
Power(kW)
0.07
0.09
0.16
Voltage/Hz(V/Hz)
220-240/50-60
110-120/60
220-240/50-60
110-120/60
220-240/50-60
110-120/60
Net Weight (kg)
18
21
25
Operating Weight (kg)
48
61
55
Fan Type
Axial
Axial
Axial
Speed type
Three speed
Three speed
Three speed
Noise (dBA)
<52
<52
<52
Discharge Dimension
(mm)
430x400
400x435
430x845
Pads Dimension (mm)
(525=30)x180x35(2ps)
(500+30)x360x75 (1Ps)
(630=30)x445x75(1Ps)
(630+30)x225x50(2PS)
(890=30)x180x35(2PS)
(870+30)x360x70(1Ps)
Overall Dimension (mm)
515x350x1170
610x415x1280
515x350x15550
Water Storage (L)
30
40
30
13
