Climate+ CM-24000 User manual

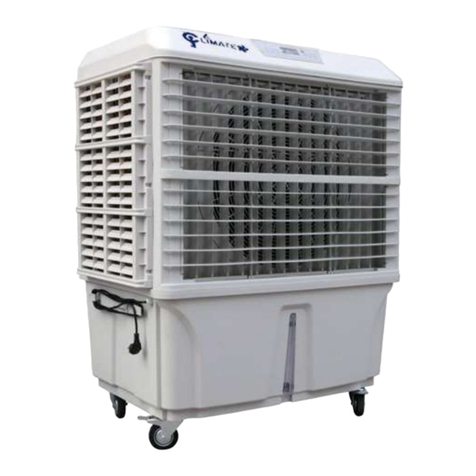

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
INTRODUCTION
Thank you for purchasing our product. We trust it will give you long and trouble free service.
The cooler is a high-tech product, showing simplicity and outstanding reliability, due to its
European design origin.
Its working principle is that water evaporation uses up the surrounding heat and causes the
temperature to cool down.
When water is continuously distributed onto the cooling pad surface, the air being drawn
through the pad causes the water to evaporate, making the air cool and fresh.
The circulating water moves down to the reservoir, where it is again pumped up through the
cooling pads. If the hose option is being used (supplied as standard), a float valve keeps the
reservoir full continuously. If filled manually, the big 60 Litre capacity reservoir ensures hours of
uninterrupted operation. There is a digital level indicator to quickly check the amount of water
remaining.
APPLICATIONS
This cooler is currently being used in many different industries and applications in many
countries.
Company offices, shops, hospitals, schools, workshops, workers dormitories, outdoor tea
house/coffee bars, restaurants, recreation facilities.
Manufacturing:
Textile, machinery, ceramic, refined chemical industries, metallurgy, hardware and leather
industries.
Industrial processing:
Electronics, clothes & shoe making, plastics, food industries, packaging.
Others:
Indoor sports courts, bakeries, playgrounds, laundries, kitchens, vegetable markets,
gymnasiums, underground parking lots, greenhouses, chicken and pig terms , gardens,
The list on...
-01-

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
TECHNICAL SPECIFICATION
PARAMETER/MODEL
Max Airflow (M3/H)
24000
Power supply/Frequency (V/HZ)
220/50
Power Consumption (W)
1100
Fan Style
Axial
Water Consumption (L/H)
10-15
Water Capacity (L)
126
Dimension (L*W*H) (mm)
1120x700x1650
Weight(kg)
69
Effective Cooling Area (M2)
150-200
TECHNICAL FEATURE
New evaporative cooling pad, energy levels fan speed (low, medium & high) saving and
environmentally friendly.
Low noise
Swing function
Time setting function
More convenient with remote controller
Swing function
Large capacity water tank for longer operating hours
Large wheels
Micro-computer program control, LCD panel.
IMPORTANT REMINDERS
Please read the manual carefully before operating the cooler.
A) Operating conditions:
1- Temperature: 18C to 45C; Water Temperature: < 45C.
2- Power supply must not exceed the required voltage (+/-) 5%
3- Air supply must be largely free of dust or extra cleaning is required.
B) Protect the power cable from vehicle or foot traffic. Connection to incorrect electric voltage, or
faulty installation, will cause danger of electric shock.
C) If the product malfunctions at startup, please disconnect from electric power immediately and
refer to dealer for service.
-02-

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
D) Other tips for cooler use:
1- Keep doors and windows open to allow fresh air to enter, and treated air to exit, when cooler is
operating.
2- Flashing red light on the control panel means water level in reservoir is low.
3- Rinse the reservoir with fresh water and clean prior to use after a period where the cooler has not
been in operation.
4- Take care when moving the cooler, especially when it is full of water. Pushing too hard will cause the
cooler to overbalance and tip over, which may cause injury and will damage the cooler.
5-To prevent buildup of algae and other biological organisms in the reservoir, regularly add
chlorine/bromine tablets manufacturer recommendation for evaporative cooler reservoirs.
KEY COMPONENTS
-03-

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
OPERATING INSTRUCTION
WARNING
1. All electrical repairs must only be carried out by a suitability qualified
electrician, after all power is disconnected.
2. This cooler is not intended for use by children or persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge.
3. Children should be supervised to ensure that they do not play with the appliance.
-05-
Keypad
Instruction
Comment
ON/OFF
This turns the cooler on or off.
COOL
This activates the cooling function. Note that there is a delay of one
minute before the fan starts while the cooling pads wet up.
BLAST
When COOL is pressed again, the water evaporation feature is turned
off, with only the fan operating.
SPEED
Pressing SPEED will select low, medium or high fan speed.
SWING
This activates/deactivates swing function.
TIMER
Delayed start
The timer setting can be used to start the cooler after a certain number
of hours delay. When only the green POWER light is on, press TIMER
until the number of hours delay (1-24) is shown.
TIMER
Automatic stop
When the cooler is already going, press timer to set the number of hours
(1-24) until the machine will automatically switch off.
WATER
SUPPLY
Use only clean, fresh water.
Pour water into the water inlet on the right hand side of the unit
(max 60L). Alternatively, attach a hose to the water inlet on the left side
for automatic filling. Note a pressure reducing valve is recommended for
high pressure water supplies.

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
REMOTE CONTROLLER
-06-

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
For best results and long term operation, regular maintenance
is essential.
Remove the filter pad by unscrewing the 4 screws on the rear of the cooler, then lift the pad and
pull out at the bottom to release. To replace the pad slide up into the slot under the top of the
cooler, push in at the bottom and allow to drop into the lower slot.
Clean the pad from the inner-side to out-side of pad (inner side is towards motor). Never use
any liquid detergent. Never use pressurized water, as it may cause damage to the pad.
3) Unscrew the drainage lid to let dirty water flow out, then clean the water tank thoroughly with
a soft cloth. Wash off dirt on the water sensor, water pump and the float valve. Rinse
thoroughly.
Use mild soft clean cloth when cleaning the cooler casing. Do not use any caustic chemical detergent
that may cause damage to the surface of the cooler.
To prevent buildup of algae and biological organisms in the reservoir, regularly add chlorine/bromine
tablets as per tablet manufacturer recommendation of evaporative cooler reservoirs.
TROUBLESHOOTING
Malfunction
Reason
Remedy/Solution
-Operating screen stays dark
-No power
-Main control board failure
-Fuse
-Panel failure
-Check unit is plugged in
-Change control board
-Change fuse
-Change panel
-Display is normal but without
air flow or the air speed is too
low
-The fan is jammed
-Cooling pad or dust filter is
blocked
-Fan is distorted
-Main control board failure
-Check to ensure there is nothing
preventing free rotation of the
fan
-Clean the cooling pad and dust
filter
-Change the fan
-Change the main control board
-Motor does not respond to
control panel
-Main control board failure
-Panel failure
-Change the main control board
-Change panel
-Water leaking from drain
valve
-Drain valve is loose
-Dirt in valve
-Tighten drain valve nut
-Clean drain valve
-Air diffuser / swing function
not working
-Synchronous motor is burnt out
-Crankshaft is broken
-Change synchronous motor
-Change crankshaft
-Water drops splash out the air
diffuser
-Water pipe has come lose
-Check the water pipe to top of
filter pad and reattached or
tighten as necessary.
-07-

EVAPORATIVE AIR COOLER CM-24000
www.climateplus.ae
KEY FEATURES
Effective and Economical
Energy-saving & Environmentally-friendly
Reliable operation.
Cools a large area.
Quite running.
Adjustable speed.
Automatic swing function –standard.
Full function remote controller.
Large water tank for extended time between fills.
No need for compressed air.
No installation, no duct work required.
Easy to use, easy to clean.
Body is corrosion-proof plastic.
Easy to maintain.
Fully portable.
Can be attached to standard garden hose.
Timer function for auto start or auto shop.
