INTRODUCTION
Thank you for purchasing our product. We trust it will give you long and trouble free service.
The cooler is a high-tech product, showing simplicity and outstanding reliability, due to its
European design origin.
Its working principle is that water evaporation uses up the surrounding heat and causes the
temperature to cool down.
When water is continuously distributed onto the cooling pad surface, the air being drawn
through the pad causes the water to evaporate, making the air cool and fresh.
The circulating water moves down to the reservoir, where it is again pumped up through the
cooling pads. If the hose option is being used (supplied as standard), a float valve keeps the
reservoir full continuously. If filled manually, the big 60 Litre capacity reservoir ensures hours of
uninterrupted operation. There is a digital level indicator to quickly check the amount of water
remaining.
APPLICATIONS
This cooler is currently being used in many different industries and applications in many
countries.
Company offices, shops, hospitals, schools, workshops, workers, dormitories, outdoor
teahouse/coffee bars, restaurants, recreation facilities.
Manufacturing:
Textile, machinery, ceramic, refined chemical industries, metallurgy, hardware and leather
industries.
Industrial Processing:
Electronics, clothes & shoe making, plastics, food industries, packaging.
Others:
Indoor sports courts, bakeries, playground, laundries, kitchens, vegetable markets,
gymnasiums, underground parking lots, greenhouses, chicken and pig farms, gardens the
list goes on.
-01-

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae
TECHNICAL SPECIFICATION
PARAMETER / MODEL
KT-1B-H3
Max Airflow (m3/H)
18000A
Power supply / Frequency (V/HZ)
220-240/50
Power Consumption (lL/H)
700
Fan Style
Axial
Water Consumption (L/H)
10-15
Water Capacity (L)
96
Dimension (L*W*H) (mm)
1120x700x1650
Weight (kg)
63
Effective Cooling Area (m2)
100-150
TECHNICAL FEATURE
New evaporative cooling pad, energy levels fan speed (low, medium & high)
saving and environmentally friendly.
Low noise
Swing function
Time setting function
More convenient with remote controller
More convenient with remote controller
Swing function
Large capacity water tank for longer operating hours
Large wheels
Micro-computer program control, LCD panel.
-02-

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae
IMPORTANT REMINDERS
Please read the manual carefully before operating the cooler.
A) Operating conditions:
1- Temperature: 18C to 45C; Water Temperature: < 45C.
2- Power supply must not exceed the required voltage (+/-) 5%
3- Air supply must be largely free of dust or extra cleaning is required.
B) Protect the power cable from vehicle or foot traffic. Connection to incorrect electric voltage,
or faulty installation, will cause danger of electric shock.
C) If the product malfunctions at startup, please disconnect from electric power immediately
and refer to dealer for service.
D) Other tips for cooler use:
1- Keep doors and windows open to allow fresh air to enter, and treated air to exit, when cooler
is operating.
2- Flashing red light on the control panel means water level in reservoir is low.
3- Rinse the reservoir with fresh water and clean prior to use after a period where the cooler
has not been in operation.
4- Take care when moving the cooler, especially when it is full of water. Pushing too hard will
cause the cooler to overbalance and tip over, which may cause injury and will damage the
cooler.
5-To prevent buildup of algae and other biological organisms in the reservoir, regularly add
chlorine/bromine tablets manufacturer recommendation for evaporative cooler reservoirs.
-03-

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae

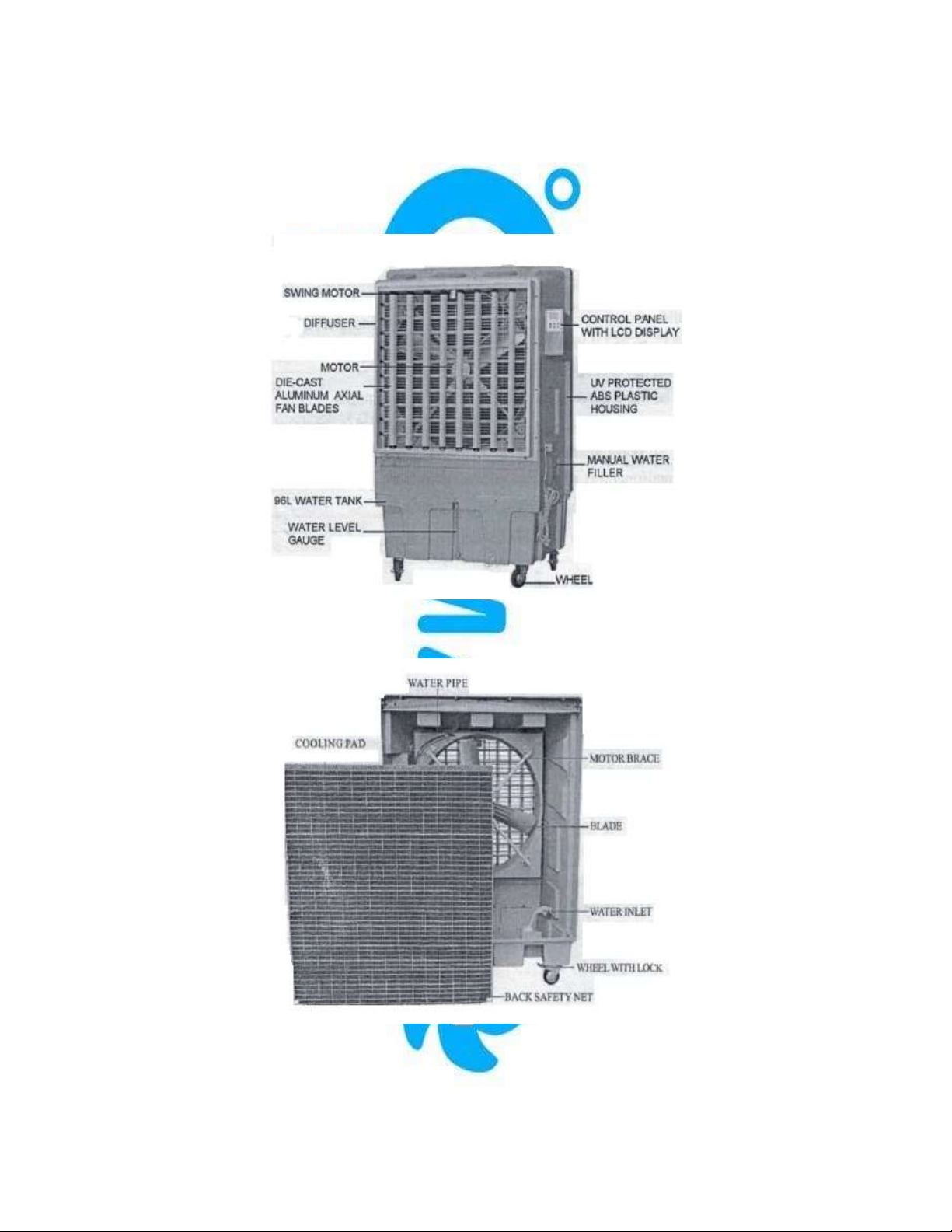

KEY COMPONENTS
-04-

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae
OPERATING INSTRUCTION
WARNING
All electrical repairs must only be carried out by a suitability qualified
electrician, after all power is disconnected.
This cooler is not intended for use by children or persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge.
Children should be supervised to ensure that they do not play with the appliance.
-05-
Keypad
Instruction
Comment
ON/OFF
This turns the cooler on or off.
COOL
This activates the cooling function. Note that there is a delay of one
minute before the fan starts while the cooling pads wet up.
BLAST
When COOL is pressed again, the water evaporation feature is turned
off, with only the fan operating.
SPEED
Pressing SPEED will select low, medium or high fan speed.
SWING
This activates/deactivates swing function.
TIMER
Delayed start
The timer setting can be used to start the cooler after a certain number
of hours delay. When only the green POWER light is on, press TIMER
until the number of hours delay (1-24) is shown.
TIMER
Automatic stop
When the cooler is already going, press timer to set the number of hours
(1-24) until the machine will automatically switch off.
WATER
SUPPLY
Use only clean, fresh water.
Pour water into the water inlet on the right hand side of the unit
(max 60L). Alternatively, attach a hose to the water inlet on the left side
for automatic filling. Note a pressure reducing valve is recommended for
high pressure water supplies.

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae

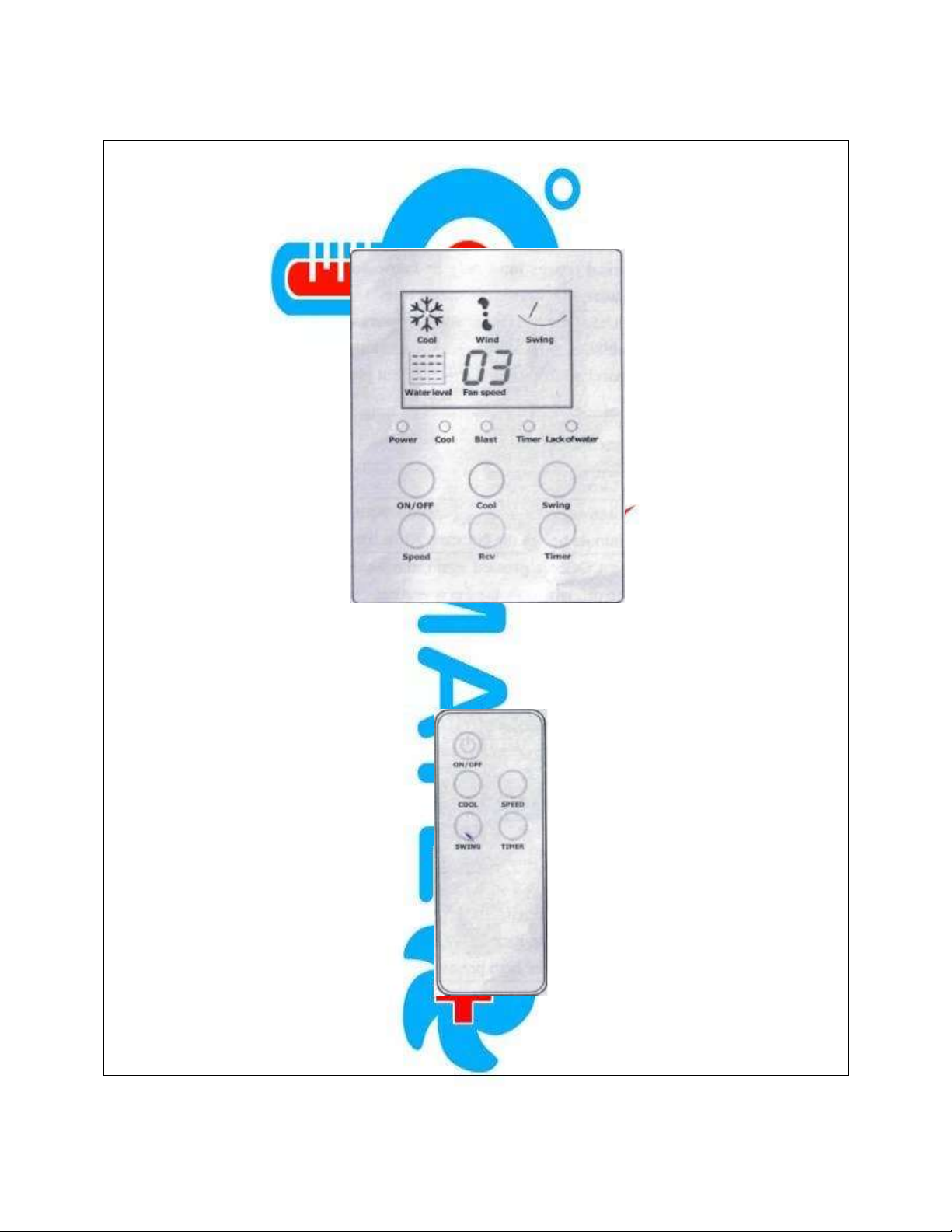

CONTROL PANNEL
REMOTE CONTROLLER
-06-

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae
MAINTENANCE
For best results and long term operation, regular maintenance is essential.
To ensure the cooler delivers fresh air regularly changes the water when dirty, and cleans
both the dust filter and the cooling pad.
1. Remove the filter pad by unscrewing the 4 screws on the rear of the cooler. Then lift
the pad and pull out the bottom; and allow dropping into the lower slot.
2. Clean the pad from the inner-side of pad (inner side is towards motor). Never use any
liquid detergent. Never use pressurized water, as it may cause damage to the pad.
3. Unscrew the drainage lid to let dirty water flow out, then clean the water tank
thoroughly with a soft cloth. Wash off dirt on the water sensor, water pump and the
float valve, Rinse thoroughly.
4. Use mild soap and soft clean cloth when cleaning the cooler casing. Do not use any
caustic chemical detergent that may cause damage to the surface of the cooler.
5. To prevent buildup of algae and other biological organisms in the reservoir, regularly
add chlorine/ bromine tablets as per tablets manufacturer recommendation for
evaporative cooler reservoirs.
-07-

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae
MAINTENANCE
For best results and long term operation, regular
maintenance is essential.
Remove the filter pad by unscrewing the 4 screws on the rear of the cooler, then lift the pad
and pull out at the bottom to release. To replace the pad slide up into the slot under the top of
the cooler, push in at the bottom and allow dropping into the lower slot.
Clean the pad from the inner-side to out-side of pad (inner side is towards motor). Never use
any liquid detergent. Never use pressurized water, as it may cause damage to the pad.
3) Unscrew the drainage lid to let dirty water flow out, then clean the water tank thoroughly
with a soft cloth. Wash off dirt on the water sensor, water pump and the float valve. Rinse
thoroughly.
Use mild soft clean cloth when cleaning the cooler casing. Do not use any caustic chemical
detergent that may cause damage to the surface of the cooler.
To prevent buildup of algae and biological organisms in the reservoir, regularly add
chlorine/bromine tablets as per tablet manufacturer recommendation of evaporative cooler
reservoirs.
-07

EVAPORATIVE AIR COOLER CM-18000
www.climateplus.ae
TROUBLESHOOTING
Malfunction
Reason
Remedy/Solution
-Operating screen stays dark
-No power
-Main control board failure
-Fuse
-Panel failure
-Check unit is plugged in
-Change control board
-Change fuse
-Change panel
-Display is normal but without
air flow or the air speed is too
low
-The fan is jammed
-Cooling pad or dust filter is
blocked
-Fan is distorted
-Main control board failure
-Check to ensure there is
nothing preventing free
rotation of the fan
-Clean the cooling pad and dust
filter
-Change the fan
-Change the main control board
-Motor does not respond to
control panel
-Main control board failure
-Panel failure
-Change the main control board
-Change panel
-Water leaking from drain
valve
-Drain valve is loose
-Dirt in valve
-Tighten drain valve nut
-Clean drain valve
-Air diffuser / swing function
not working
-Synchronous motor is burnt
out
-Crankshaft is broken
-Change synchronous motor
-Change crankshaft
-Water drops splash out the air
diffuser
-Water pipe has come lose
-Check the water pipe to top of
filter pad and reattached or
tighten as necessary.
