Clinton 6190 User manual

BARIATRIC
TREATMENT TABLES
MODEL 6190 & 6196
ASSEMBLY INSTRUCTIONS

Thank you for counting on Clinton to meet your medical
equipment needs by purchasing this quality equipment.
All Clinton equipment is designed and manufactured to
provide years of dependable service because we want you
as a customer now and in the future. Below are easy to follow
instructions on how to properly assemble your equipment.
Please contact us at 800-441-9131 if you experience any
difficulty with the assembly or have questions.
INTENDED USE
Clinton treatment table, model 6190 & 6096, is specifically
designed and engineered for the use by a single person
at a time, who is attended to and observed by trained
medical/physical therapy personnel. Never leave anyone
on the table unattended. Person’s weight and the
combination of force exerted on the table during treatment
is not to exceed a total of 600 lbs.
A. Legs
B. Frame
C. Top
D. Laminate Shelf
E. Center Leg Levelers
Tools Required
• Socket Wrench
• Wrench
• Phillips Screwdriver
Time Required
• 20–25 Minutes
Hardware
(16) Silver 4 " Hex Head Bolts
(32)
7/8
" Washers
(16)
5/16
" Locknuts
(4) Black 11/2" Truss Head Bolts
(4) Black 13/4" wood screws
(2) Center Leg Levelers
ASSEMBLY INSTRUCTIONS FOR BARIATRIC TREATMENT TABLE
MODEL 6190 & 6196
MAXIMUM WEIGHT CAPACITY 600 LBS
2
1

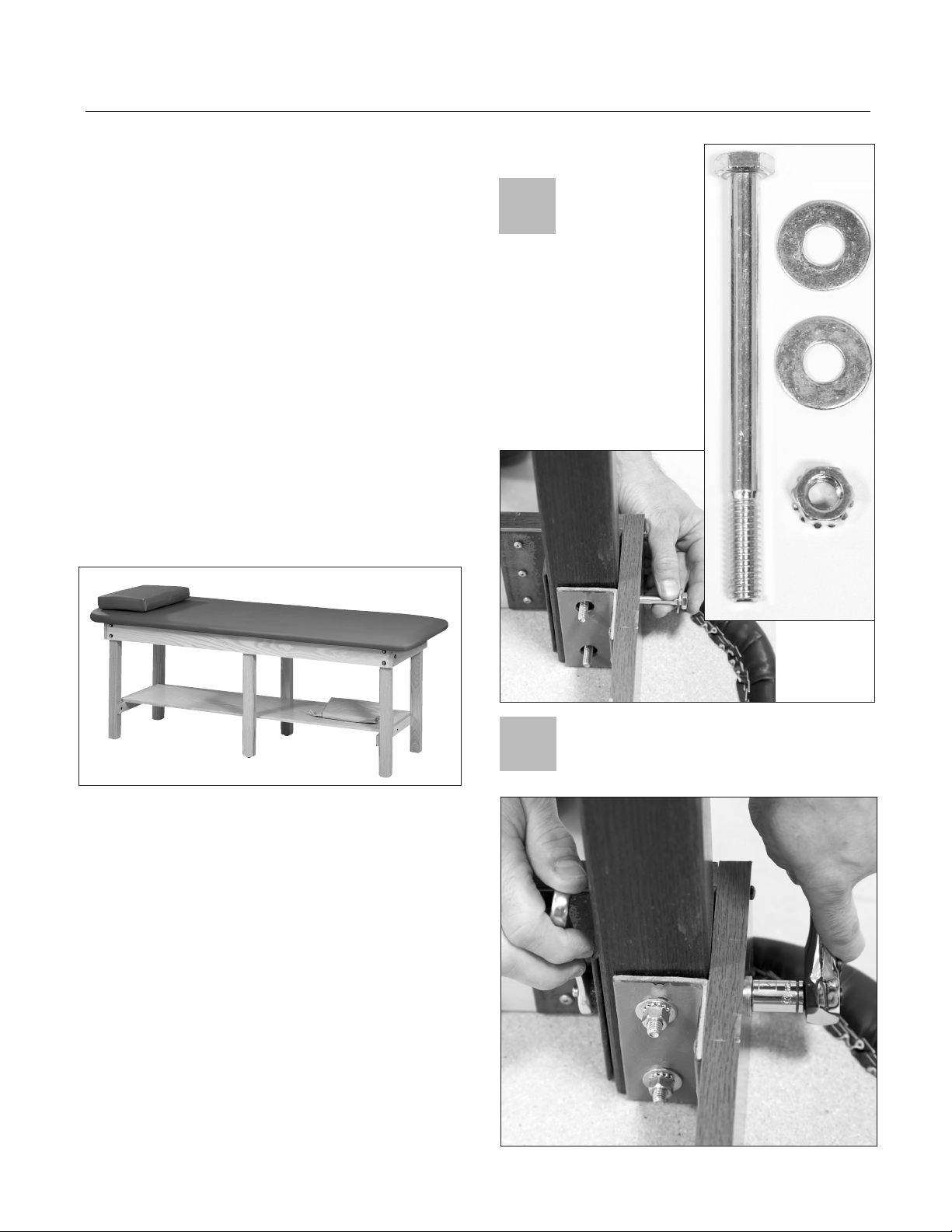

Fasten with a washer an 5/16" nut, using a
socket wrench and a 5/16" wrench.
Repeat steps 1 & 2 for all six legs.
Invert top and
insert wooden legs
into brackets on
the frame aligning holes in
legs with holes in brackets.
Make certain the bolt inserts
for attaching the leg braces
on the corner legs face toward
the inside of the table. Insert
4" hex head bolts with a
washer through frame, legs
and bracket.
A
A
A
E
E
D
C
B

4
5
3
Attach spanner by sliding it into the grooves
in the leg braces and fastening using the black
13/4" wood screws.
Screw in center leg levellers on the two center
legs. Invert and level making sure the center legs
rest on the floor.
Attach the leg braces to the inside of each
end of the table with the black 11/2" truss
head bolts.
7Clean with disinfectant according to Cleaning
Guidelines on the back page of these
instructions prior to use.
FOR SAFETY PURPOSES, TAKE TIME TO CHECK ALL SCREWS, BOLTS AND NUTS TO INSURE THAT
THEY ARE SECURELY TIGHTENED AND THAT THE TABLE HAS BEEN PROPERLY ASSEMBLED
ACCORDING TO THESE INSTRUCTIONS.
SHELF ASSEMBLY
With the table in an upright position, apply
adhesive backed Velcro®strips to top edge of
H-braces on both ends of the table. Place the full-length
shelf on the spanner with the Velcro®side over the Velcro®
on the braces.
6
Adhesive backed Velcro®strips

1140 East Edison St., York, PA 17403
800-441-9131 • 717-848-3519
Toll-Free Fax [phone]
Fax [phone]
www.clinton-ind.com
© Copyright 2014, Clinton Industries, Inc.
Clinton Industries warrants manufactured products to be free of defects in materials, workmanship or design
under normal use for five years on all products, from the date of purchase. This warranty does not include
damage resulting from accident, abuse or misuse, alteration, or negligence of the product and expressly
excludes normal wear of parts (including but not limited to vinyl). Contact Clinton for full warranty details.
Warranty
Clinton products are built to be durable. With proper care, your Clinton equipment will provide years of
superior looks and performance. Clean table with a soft cloth and any mild cleaning agent that may be
required for sanitation. NEVER use abrasive scrubbing agents that may scratch the surfaces. Before using any
cleaning agents, try them on a small inconspicuous area to insure that they will not harm the
any surface. Damage from cleaning is not covered under the warranty. Do not use alcohol based cleaning
agents.
Periodically check that all fasteners are secure and operating properly.
Care & Cleaning
Limited Warranty
