Clippasafe 118/2 User manual

This safety barrier conforms to EN 1930:2011 when fitted according to these instructions between two clean, structurally sound surfaces.
This safety barrier is designed for children up to 24 months.
This safety barrier is for domestic use only.
Manual closure system.
Suitable for fixing across door openings and at the top and bottom of stairways.
Make sure that you use the correct type of fixings depending on the surface available: Self-adhesive pads for appropriate surfaces or
wood screws for wooden surfaces, multiple usage dowels and screws for brick, concrete or cement surfaces, and metal screws for metal surfaces.
If the gate has been exposed to an accident, it must not be used again.
Do not allow older children to climb over this gate as this may pose a danger.
Only use original Clippasafe spare parts for this product.
Periodically check the security of the fixings and general condition of each part. Adjust as necessary referring to these instructions.
Please make sure that the barrier is properly closed after each use.
WARNING: Read these instructions before installation as incorrect installation can be dangerous.
WARNING: Incorrect fitting or positioning of this safety barrier can be dangerous.
WARNING: Do not use the safety barrier if any components are damaged or missing.
WARNING: The safety barrier must not be fitted across windows.
WARNING: Stop using the barrier if the child is capable of climbing over it.
Extendable, Dual Fix, Wooden Gate
IMPORTANT - READ AND FOLLOW THESE INSTRUCTIONS
CAREFULLY AND KEEP FOR FUTURE REFERENCE
WIDTH
HEIGHT
Adjustable from 68 to 102 cm
Top of gate to floor 72.5 cm
WARNING - INCORRECT FITTING OR POSITIONING
OF THIS SAFETY BARRIER CAN BE DANGEROUS
Fixing surfaces must be suitable for the purpose
and structurally sound.
Bottom of
stairs
Top of
stairs
LOCATION

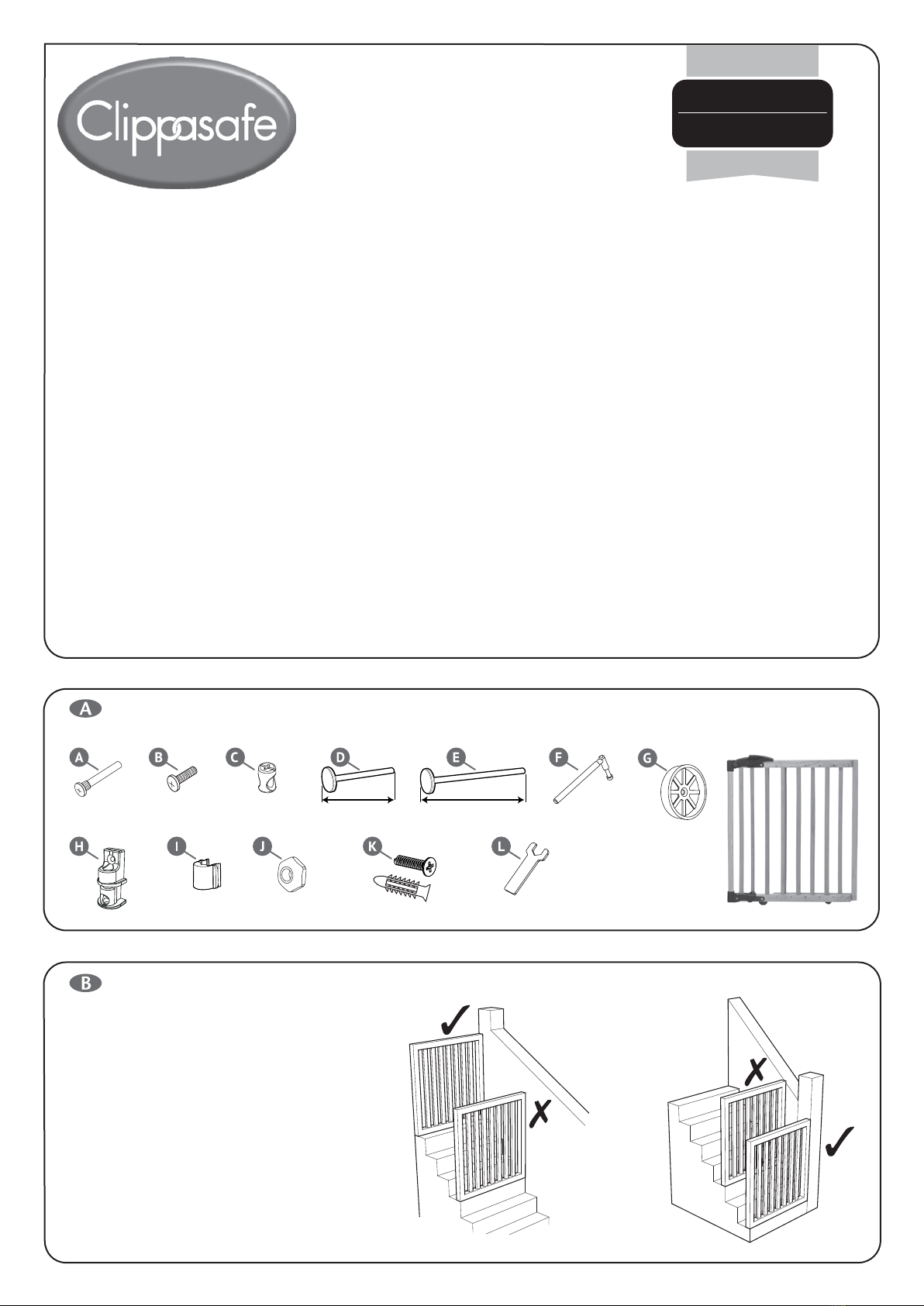

CONTENTS
GATE
SPANNER x1
HINGE BAR x2
HINGE COVER x2
HINGE x2
SCREWS x4 SCREWS x410cm SPINDLE x2
10cm
13cm SPINDLE x2
13cm
NUT x2
SINK NUT x2WALL CUP x4
SCREW & WALL PLUG x6

This gate is suitable for openings between 68cm (26¾in) and 102cm (40¼in) wide.
The surfaces to which the gate fits should be completely flat and a minimum of
5cm wide.
This product may require the purchase of appropriate fixing aids suitable for the
surface to which the wall cups are to be fitted.
WARNING - NEVER USE WITHOUT WALL CUPS.
No part of the gate requires lubrication.
Clean the gate using warm water and a mild detergent.
Never use solvents, chemicals, scouring powders or
sharp tools to clean this gate.
PRE-INSTALLATION ADVICE
CARE AND MAINTENANCE
SETTING THE GATE TO THE WIDTH OF THE GAP
LOW PRESSURE MOUNTING
WITH ADHESIVE MOUNTED
WALL CUPS ON BOTH SIDES
LOW PRESSURE MOUNTING
WITH SCREWED WALL CUPS
ON BOTH SIDES
RIGIDLY SUPPORTED WOODEN SURFACE (eg. DOOR FRAME / SKIRTING BOARD) PLASTIC SURFACE (eg. UPVC DOOR FRAME) UNSUPPORTED WOODEN SURFACE (eg. STAIR / NEWEL POST) PLASTERED SURFACE PLASTER BOARD STUD WALL - WOODEN SUPPORTING BATTEN RECOMMENDED WALLPAPERED SURFACE METAL SURFACE (eg. ALUMINIUM / STEEL DOOR FRAME) CERAMIC TILED SURFACE
LOW PRESSURE MOUNTING
WITH SCREW FIXED HINGES
AND WALL CUPS
SUITABLE SURFACES
THIS GATE OFFERS THE
FOLLOWING FIXING OPTIONS:
!
x4
ABCD E F
1 2 3 4 5 6
X
X = 68 74.5 cm
X = 74.5 81.5 cm
X = 81.5 88.5 cm
X = 88.5 95.5cm
X = 95.5 102cm
A
B
C
D
E
1
+
+
+
+
+
1
1
1
1
F
F
F
F
F
6
+
+
+
+
+
5
4
3
2

x2
x2
x2
x2
10cm 13cm
INSTALLATION - PRESSURE FIT BETWEEN WALL CUPS
x4
709mm
37mm
x4

max 53mm
min 22mm max 61mm
min 24mm
!
2
1
2.5mm

clack
!
Max.
!
Max.
!

x2
x2
x2
10cm
x2
39mm
711mm
37mm
709mm
x2
INSTALLATION - HINGE MOUNTED
x2x4

max 53mm
min 22mm max 61mm
min 24mm
!
2
1
2.5mm

clack
!
x2
Model No. 118/2
