Clipper 100 User manual
User Instructions for
Belt Cutter (100&150)
Handle
Housing
CAUTION: The cutter has a very sharp round blade. To avoid being cut, follow the
initial setup instructions and operating instructions carefully.
For your safety, read thoroughly the precautions and follow proper
operating procedures as detailed in these instructions.
Cutter Parts: Slide Arm
Cover
Cutter blade
Base
Arm Height
Adjusting Screw
Adjust arm height
according to the
thickness of the
belt to be cut.
CAUTION: Round cutter
blade moves in this track.
Avoid contact with this
area, even when carrying
the cutter.
Handle
Stopping Screw
Cutter
Screws
Table
Belt Cutting Procedures:
1. Afxbeltcuttertohorizontalwork
surface, if desired.
Cover
Fixcutteronhorizontal
work surface
Fig. 2
Fig. 1
Place belt on
cutter table
2. Place belt on cutter table and align in
proper location for cut (Fig 1).
3. Apply pressure to top of cover as
shown in Fig. 2.
4. Continue applying pressure to cover
and handle while pulling slide arm to
cut belt.
5. Push handle/slide arm back into the
fully closed position and then allow the
Housing to return to the ‘Up’ position.
Fig. 3
Fig. 4
Belt
Apply downward
pressure
Apply downward
pressure to handle
when cutting
Slide
Return
Release
Unscrew
Adjusting Blade:
Each blade has eight (8) cutting surfaces. When
thebladebecomesdull,rotatetonextnewcutting
surface as follows:
1. With the Slide Arm fully retracted into the
closed position, loosen the two screws
through the access holes.
2. Insert a small stick into hole of cutter and
turnthebladeuntilthenextcuttingposition
isexposed(Positionswillbemarked1to8
on cutter blade).
3. Tighten screws.
Fig. 8
Fig. 10
Fig. 9
Loosen stopping screws
Tighten stopping screws
Blade bearing
Bladexing
screws (2)
New cutter
Used cutter

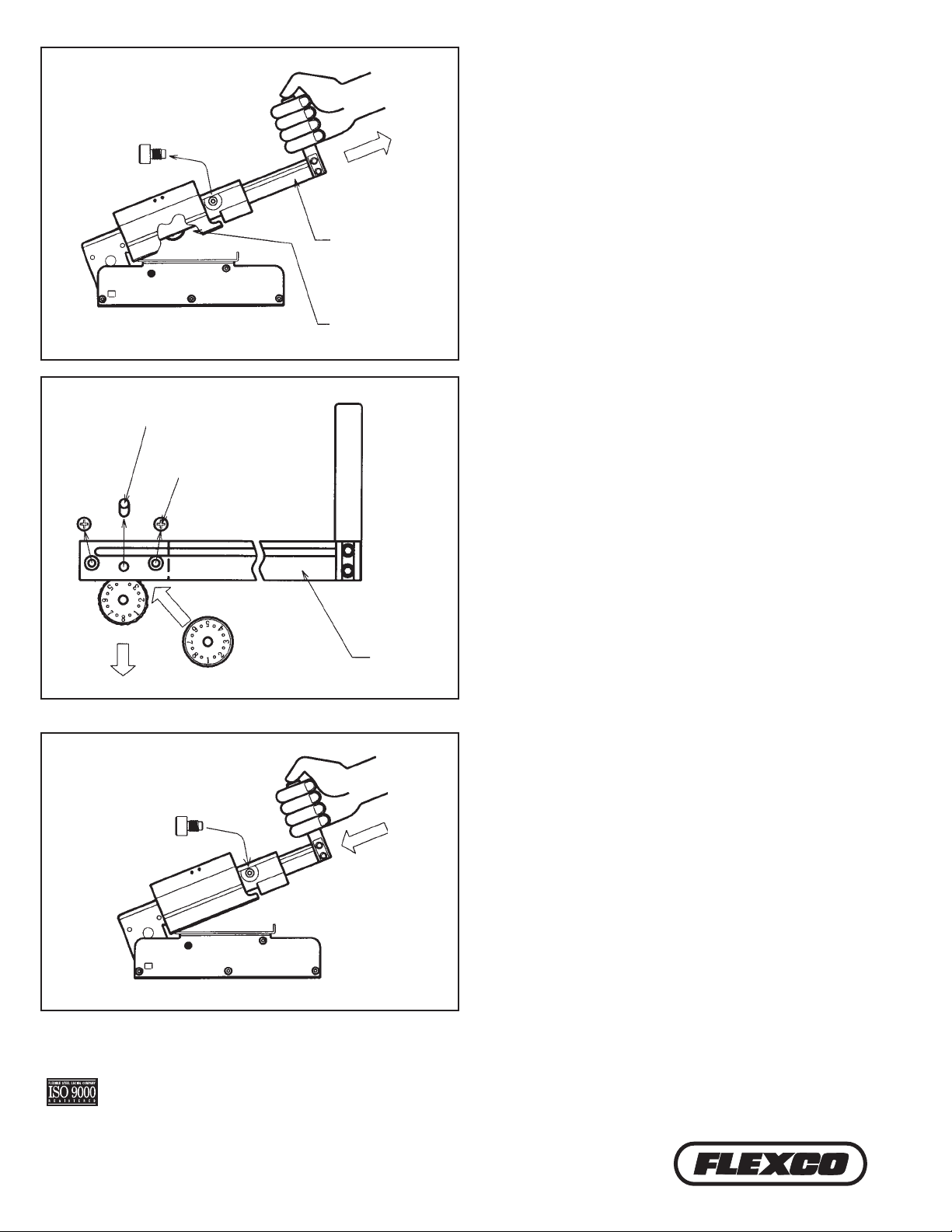

Replacing Worn Cutter Blade: When all 8
blade positions have been used, replace the
blade with a new one.
1. Loosen stopping screws and slowly/
carefully pull the Slide Arm out of the
Housing (Fig. 8). CAUTION: Sharp
bladewillbeexposed.
Slide Arm
Slide Arm
2. Remove the two screws and bearing that
secure the blade (Fig. 9).
3. Remove worn blade.
4. Insertnewbladeinslot,withtherst
cutting position (#1) facing down (Fig. 9).
5. Press bearing in center of blade and
retightenxingscrews.
6. Insert Slide Arm in Housing and
tighten stopping screws (Fig. 10).
1995 Oak Industrial Dr. NE • Grand Rapids, MI 49505 U.S.A.
Telephone: (616)-459-3196 • Fax: (616)-459-4976 • E-mail: info@flexco.com • Web: www.flexco.com
Australia: 61-2-9680-3322 • China: 86-21-33528388 • England: 44-1274-600-942
Germany: 49-7428-9406-0 • Mexico: 52 -55- 5674-5326 • South Africa: 27-11-608-4180
©2008 Flexible Steel Lacing Company. Clipper®is a registered trademark. 08/08. For Reorder: X1514
Caution -
Sharp blade!
