FEATURES:
UL
R
LISTED
COMMERCIAL
DISHWASHER
864T
UL
R
LISTED
COMMERCIAL
DISHWASHER
864T
USC
Soil purging system
keeps the wash water clean
assuring excellent results
while reducing chemical costs.
Upper and lower rotating
wash and rinse arms
blast water in all directions for
optimum cleaning and rinsing.
Large 14-1/2" height clearance
accommodates larger dishes
and half size sheet pans.
Top mounted controls
are easy to read and simple
to operate.
■Energy Star Qualified.
■The 2 minute cycle timer includes built-in
automatic 180°F final rinse safety system
(Safe-T-Temp).
■Patented automatic soil purging system. Filters
wash water and traps plate debris in an
external drawer. Drawer can be easily removed
for dumping contents.
■Upper and lower rotating wash and rinse arms
provide excellent cleaning and rinsing.
■All stainless steel construction, no plastic
parts to repair.
■Patented built-in booster heater. Economical,
single source heat lowers energy costs.
■Large 14-1/2" height clearance accommodates
larger dishes and half size sheet pans.
■Low water consumption. Uses only .86 gallons
of water per cycle.
■Includes water pressure regulator valve.
■Pumped drain.
■Safety Temp feature assures 180°F sanitizing
rinse every cycle.
High Temperature
Undercounter Dishwasher
180UC
CMA Dishmachines 12700 Knott Street, Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: [phone] • www.cmadishmachines.com
CMA reserves the right to modify specifications or discontinue models without prior notification.
Printed in the U.S.A. © 2009 CMA, Inc.

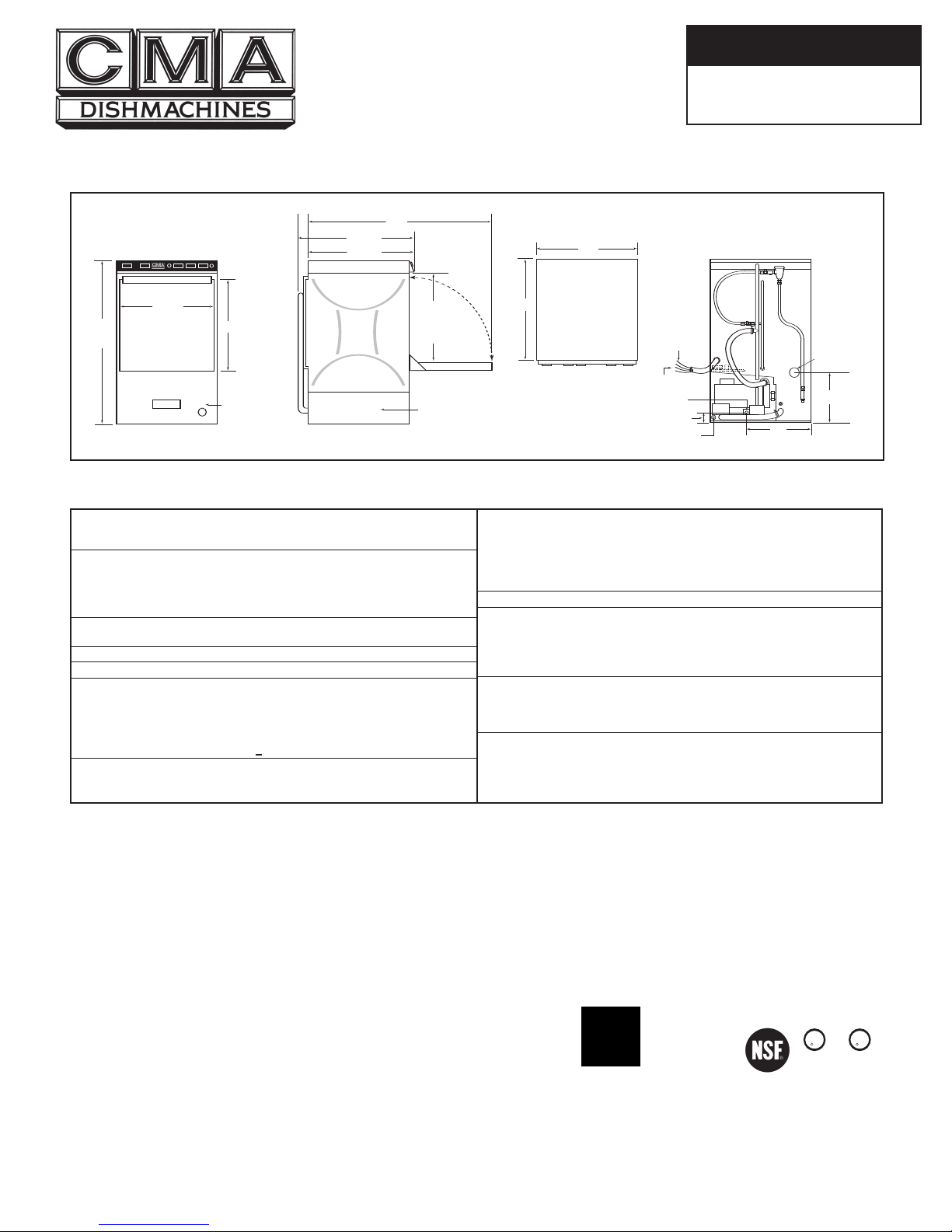

Summary Specifications: CMA-180UC
The CMA Energy Mizer model CMA-180UC undercounter dishwasher provides hot water (1800F) sanitizing through the use of a
built-in booster heater. 180°F final rinse safety system ensures proper temperatures in the final rinse by holding wash cycle in run
mode until 180°F rinse temperature is detected. The unit comes standard with upper and lower stainless steel wash and final rinse
arms, digital LED temperature gauges and easy to operate controls. The CMA-180UC incorporates an automatic soil purging sys-
tem uniquely designed (patent pending) into the wash tank that enables the wash water to remain clean, assuring excellent results
and less chemical use. The CMA-180UC is constructed entirely of stainless steel. Uses standard 20"X20" dishracks and accom-
modates oversized plates and utensils with a 15" door clearance.
LEFT VIEW
18
1
/ 4 "
18
1
/ 4 "
43"
REMOVEABLE
SIDE PANELS
FRONT VIEW
33
1
/ 4 "
DOOR OPENING
34
1
/ 4 "
20
3
/ 4 "
REMOVEABLE
FRONT PANEL
180 UC
MAXIMUM
LOADING
HEIGHT
14
1
/ 2 "
25"
27
1
/ 2 "
TOP VIEW
BACK VIEW
ELECTRICAL
SERVICE
50 AMPS
1/2" WATER INLET
25"
24"
1" NPT DRAIN
CONNECTION
DETERGENT
INSPECTION
POINT
GROUND
L-1, L-2, &N
{
17"
2
1
/ 2 "
9"
Options Available: CMA-180UC
■48" Undercounter Dishtable
■Built-in Rinse pump
■Detergent and Rinse Pump
■Stainless Steel Pedestal
■4 Inch legs Part # 1147.50 (4 needed)
UL
R
LISTED
COMMERCIAL
DISHWASHER
864T
UL
R
LISTED
COMMERCIAL
DISHWASHER
864T
USC
Specifications:
CMA-180UC USA (Metric)
WATER CONSUMPTION
PER RACK .86 GAL. (3.25 L)
PER HOUR 20.6 GAL. (77.8 L)
OPERATING CYCLE
WASH TIME–SEC 94 94
RINSE TIME–SEC 16 16
DWELL TIME-SEC 10 10
TOTAL CYCLE TIME 2 MIN. 2 MIN.
OPERATING CAPACITY
RACKS PER HOUR 30 30
WASH TANK CAPACITY 2.5 GAL. (9.46 L)
PUMP CAPACITY 38 GPM (144 LPM)
WATER REQUIREMENTS
REQUIRED MINIMUM TEMP.* 110°F (43°C)
RECOMMENDED TEMP.** 140°F (60°C)
WATER INLET 1/2"(1.27 CM)
DRAINCONNECTION 1" (2.54 CM)
RINSE PRESSURE SET 20 5PSI 1.41 KG/CM2
CYCLE TEMPERATURES
WASH-°F 150° F-160°F (65.5°C/71°C)
RINSE-°F 180° F-195° F (82°C/90°C)
FRAME DIMENSIONS
DEPTH 25" (63.5 CM)
WIDTH 24" (60.96 CM)
HEIGHT 33-1/4" (84.45 CM)
MAX CLEARANCE
FOR DISHES 14-1/2" (36.8 CM)
WASH PUMP MOTOR 1 HP 1 HP
ELECTRICAL RATING* 208 VOLTS 230 VOLTS
1 PH-60 Hz 1 PH-60 Hz
TOTAL AMPS 33.0 AMPS 35.0 AMPS
BOOSTER HEATER KW 5.3 KW 6.5 KW
*MUST CONNECT TO 50 AMP SUPPLY CIRCUIT.
USE #8 AWG (MIN) 900C STANDARD COPPER WIRE
THIS SYSTEM REQUIRES THREE POWER WIRES WHICH INCLUDES A CURRENT
CARRYING NEUTRAL. AN ADDITIONAL FOURTH WIRE MUST BE PROVIDED FOR
MACHINE GROUND.
SHIPPING WEIGHT
APPROXIMATE 234# (106 KG)
*For machine having “Safe-T-Temp”
**For faster heat recovery
CMA-180UC USA (Metric)
High Temperature
Undercounter Dishwasher
180UC
CMA Dishmachines 12700 Knott Street, Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: [phone] • www.cmadishmachines.com
CMA reserves the right to modify specifications or discontinue models without prior notification.
Printed in the U.S.A. ©2009 CMA, Inc.
WARNING: Plumbing connections must be made by a qualified service company who will comply with all available Federal, State, and Local Health,
Plumbing and Safety codes.
+
