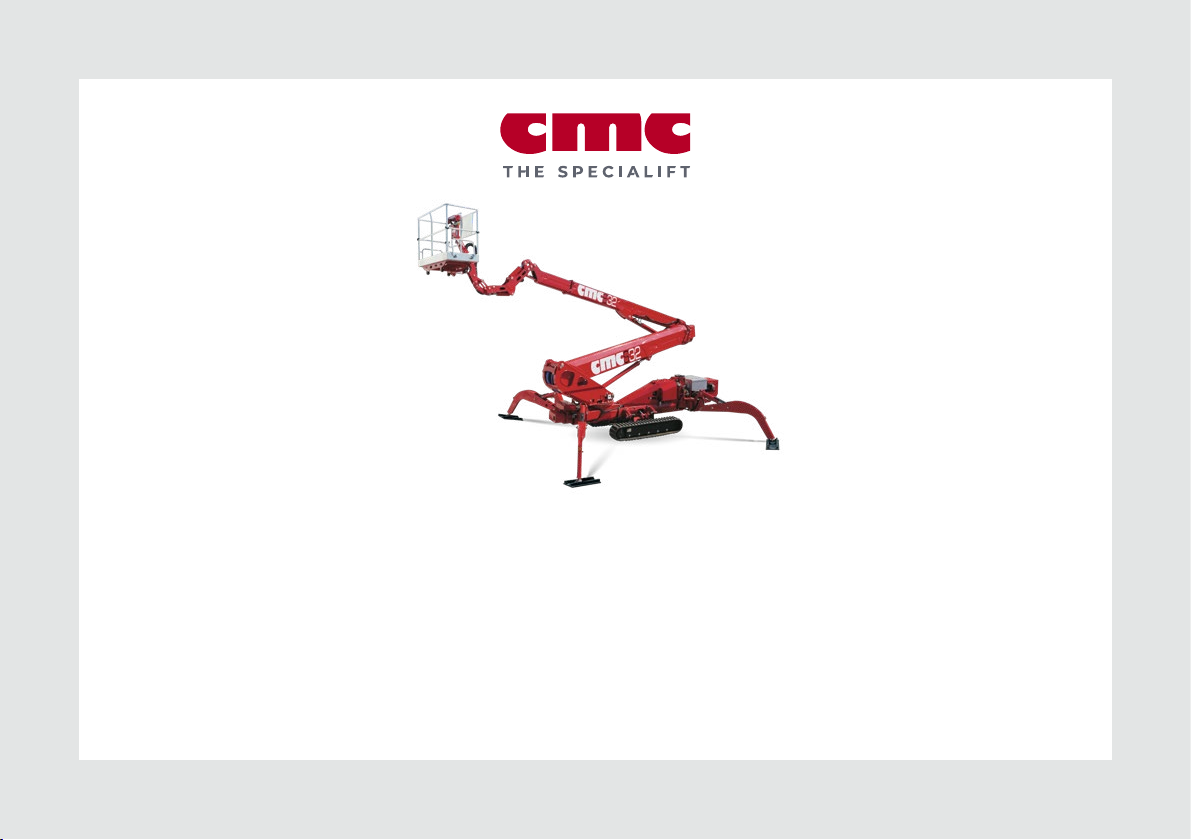

Mobile Elevating Work Platform(MEWP)
S32

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 1of 137
0 Introduction
hank you for the trust you have showed us
buying a C.M.C. mobile elevating work
platform (MEWP). We are sure you will be
pleased with your choice.
0.1 Content of the manual
This manual contains the technical specifications and
the detailed instructions for transport, use and
maintenance of the MEWP. While drawing up this
manual, we took into consideration all the operations
that are part of a normal and safe use and regular
maintenance of the machine. So, for a correct and
optimum use, you have to follow the described
instructions carefully.
This manual has been drawn up in order to:
❑provide with the instructions for the transport,
handling and storage of the machine;
❑show the MEWP functions, features, operating
characteristics, limitations;
❑include information regarding placing the unit
into service and allowable operating
characteristics range;
❑describe the control stations and their
commands;
❑describe the safety devices;
❑point out the potential risks and/or possible
dangerous situations;
❑provide with the necessary instructions for the
pre-start inspection and the ordinary
maintenance operations;
❑provide with the instructions for the filling of the
check register.
THE USE AND MAINTENANCE MANUAL IS
CONSIDERABLE AS A PART OF THE
MACHINE. In case of the MEWP sale, please
send this manual to the new owner.
T

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 2of 137
LEGEND OF SYMBOLS USED IN THIS MANUAL:
(CAUTION) = it warns the userabout the risk of
serious damages to people or to part of the equipment
or the machine if you do not obey the safety
regulations.
(WARNING) = it notifies the possibility of minor
injuries to people or little damages to the platform or
machine parts.
(FORBIDDEN) = prohibition signal
➔(OBLIGATION) = obligation signal
(CAUTION) = it warns the user about the risk of
environmental pollution.
* (OPTIONAL) = it indicates an optional outfit.
(IMPORTANT NOTE) = it shows information and
suggestions useful to work with the MEWP.
➔This manual is addressed to:
▪users: operators, ground assistants, guard
staff, safety manager, service manager;
▪manufacturers, dealers, owners, lessors
or lessee, brokers.
0.2 Disclaimer
C.M.C. declines all responsibility in case of partial or
total non-observance of the following statements:
➔All information showed in this manual are
mandatory. Before running the machine, the user
is obliged to carefully read and study all
instructions of this manual, with particular
reference to sections relative to specific work
activity to perform. For the impossibility of the
manufacturer to be able to check the state of the
machine and the operations carried out, it is the
user's responsibility to comply of the safety
procedures described in this manual.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 3of 137
➔Only properly trained and authorized personnel
shall be permitted to operate the MEWP. The
employer is obliged to make sure that the
operator has the aptitude requirements
necessary for the correct management of the
machine, that he has carefully read and
understood what is reported in this use and
maintenance manual, and that he has received
adequate training to work in standard and
emergency situations. However, this manual
cannot replace in any way a suitable experience
that the staff in charge must have gained
previously on similar machines or that they will be
able to get on this machine, under the guidance
of an already trained staff.
➔The user must work within the functional limits of
the machine and perform a constant and diligent
maintenance, using only original replacement
parts approved by C.M.C. Any alteration and/or
modification of the original design characteristics
of the machine without prior written approval of
the manufacturer are absolutely prohibited and
make the responsibility for such actions fall
directly on operators.
➔The operator shall carefully know the safety
standards foreseen by national and international
legislations and apply them during all operations
with the MEWP.
➔If an accident occurs (i.e. high height operator’s
suspension), it’s compulsory to replace safety
anchorage components and any damaged parts
of the machine and verify that platform’s structure
is suitable for use making it checked by C.M.C.’s
specialized technicians.
When buying a machine, a warranty certificate
is delivered with the warranty terms clearly
indicated.
The guarantee of proper testing and
functioning of the machine is strictly dependent
on the correct application of all the instructions
contained in this manual.
The non-compliance with the previous
statements automatically invalidates the
warranty.
0.3 Where and how to store the
manual
Original manufacturer's languages: Italian and English.
All other languages are copies of the original
instructions.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 4of 137
➔The manual must be stored on the machine in
a weather-resistant storage location, in an
easily accessible place, in order to be
available for consultation at any time.
➔This manual (or its copy) must always be kept
in the best possible condition (away from
sunlight).
➔During the work, a copy shall be hold by the
ground operator in a turret case and another
copy by the basket operator inside the proper
documents case.
➔In case of loss or deterioration, the
replacement documentation must be
requested to the manufacturer, specifying the
code and the review number of the manual.
0.4 Legislative references
The machine has been designed, built and tested
according to:
othe harmonized European standard EN280
which provides the presumption of conformity
to Essential Safety Requirements of the
Machinery Directive 2006/42/EC being
Voluntary Technical Standard type C;
othe American standard ANSI/SAIA A92.20.
The stability and overload tests of the machine were
carried out in compliance with what described in
EN280 and ANSI/SAIA A92 suite and they have been
successful.
In addition, the technical safety requirements of the
following international standards have been applied:
Directive
2006/42/CE
EN 280:2015
EN 13001-3-1
Directive
2014/35/UE
Directive
2000/14/CE
EN ISO
12100
ISO 13849-1-2
ISO 3864
EN 60068-2-
64
ISO 13850
ISO 4302
EN 60204-1
ISO 13854
ISO 4305
EN 60204-32
ANSI/SAIA
A92.20-2020
ANSI/SAIA
A92.24-2018
IEC 60529
ANSI/SAIA
A92.22-2020
ANSI Z359.1
EN 62061
CAN/CSA
B354.6 (2017)
CAN/CSA
B354.7 (2017)
ISO 13857
AS NZS
1418.10-
2011+A1-2017
ISO 12100:2010
ISO 20381

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 5of 137
0.5 Changes and integrations
The legislative references and data indicated in this
manual are those in force when the machine has been
manufactured and placed on the market.
As this manual includes both current and optional
components, you could find information not applicable
to your machine. All the photos and drawings included
in the following manual have been added to simplify the
reader's understanding. The machine in your
possession may differ in some parts from the photos
and drawings shown. In case of differences among the
basic contents of this manual and the machine, the
user is kindly asked to contact C.M.C. to receive
supplementary technical documents.
C.M.C. reserves the right to improve its products and
update their manuals (without prior notice) according to
technical and quality improvements, and to the change
of law provisions, without being anyway obliged to
intervene on the previously sold machines and on their
documents.
Modifications or additions to a MEWP shall be made
only with prior written authorization of the
manufacturer. In case the manufacturer no longer
exists, modifications to a MEWP shall be made under
the direction of an engineer with expertise in MEWPs
sector. The owner shall retain written permission and
pass it on to any subsequent owner, as applicable.
No part of this publication can be translated, modified
or reproduced (even partially) without the expressed
authorization of C.M.C. s.r.l.
Year 2021
C.M.C. s.r.l.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 6of 137
1 Description and
purpose
1.1 Machine definition
The machine is called S32 and it is a mobile
elevating work platform (MEWP):
•machine/device intended for moving persons,
tools and material to working positions, consisting
of at least a work platform with controls, an
extending structure and a chassis (ANSI/SAIA
92.20 par. 3);
•mobile machine intended to move persons to
working positions, where they are carrying out
work from the work platform, with the intention
that persons are getting on and off the MEWP
only at access positions at ground level or on the
chassis and which consists as a minimum of a
work platform with controls, an extending
structure and a chassis (EN 280 par. 3.1).
It is forbidden to use the MEWP with
methods and/or conditions other than those
specified and approved by the
manufacturer.
1.2 Machine purpose
The MEWP S32 is a machine which enables the
operators to reach the workplace when this is high
positioned.
The machine has been designed for an essentially
vertical use. It must be travelled only when it is totally
folded in the transport position.
➔The use of the machine is allowed only to
professional staff, properly trained and
specialized.
1.3 CE certification
C.M.C. s.r.l. states under its own responsibility that S32
was designed and produced in compliance with
national and European standards, and that the
machine is identical to the model submitted to control
and test for the “CE certification” by the Notified
Institute nr. 1878 - VERICERT s.r.l. - via L. Masotti, 5
- 48124 Fornace Zarattini (RA) - Italy.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 7of 137
A copy of the CE Certificate is attached to the manual.
1.4 TÜV certification
C.M.C. s.r.l. states under its own responsibility that S32
was designed and produced in compliance with US
standards ANSI/SAIA A92.20:2020 and that the
machine is identical to the model submitted to control
and test for the “TÜV certification” by TÜV SÜD
America Inc.
TÜV SUD America Inc. is an OSHA recognized NRTL
and a Standards Council of Canada accredited
certification body.
1.5 Classification
The mobile elevating work platform (MEWP) S32
belongs to group B: the vertical projection of the area
center of the MEWP in different platform configurations
specified by the manufacturer can be outside the
1
Loading cycle: a cycle starts from the access position,
continues performing the work and finishes returning to the
access position.
tipping lines (EN 280 par. 1.4 - ANSI/SAIA A92.20 par.
3).
As for the displacement, it belongs to type 1: travelling
is only allowed with the MEWP in its transport
configuration or in the stowed position (EN 280 par. 1.4
- ANSI/SAIA A92.20 par. 3).
1.6 Loading cycles
The machine is expected to last for 40.000 loading
cycles
1
(i.e. 10 years, for 40 weeks per year, for 20
hours per week, for 5 loading cycles per hour).
Within this term of time, the machine must undergo
at least 2 (two) deep checks (structural, mechanical,
electric, elements, etc.), in case of particularly heavy
uses (frequent use at the performance limit,
particularly unfavorable environmental conditions such
as steel plants, paper mills and so on) it is better to
increase checks. Anyway, it is a good rule to have
the state of the machine checked by the
manufacturer factory or by an authorized
workshop, at least every 1500 - 2000 hours of work
or once per year.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 8of 137
1.7 Identification plate
On the turret, there is a plate with (engraved) all the
MEWP identification data:
Picture 1: identification plate.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 9of 137
2 Specifications
2.1 Technical sheet
PERFORMANCE
Max. work height
32,00 m
104.99 ft
Min. work height
-3,20 m
10.50 ft
Max. work outreach
(with 120 kg)
16,00 m
52.49 ft
Max. work outreach
(with 220 kg)
14,20 m
46.59 ft
Max. load on the basket
220 kg
485 lb
Jib movement
140°
Turret rotation
+/-200° (tot. 400°)
Basket rotation
+/-90°
Max. slope to stabilize
16° / 29%
Max. slope approach angle
(front/rear) with tracks
widened
16°-18° / 29%-32%
Max. slope to travel
(longitudinally/transversally)
19°-8°/ 34%-14%
Travel speed
0,5 - 1,2
km/h
0.31 - 0.75
mph

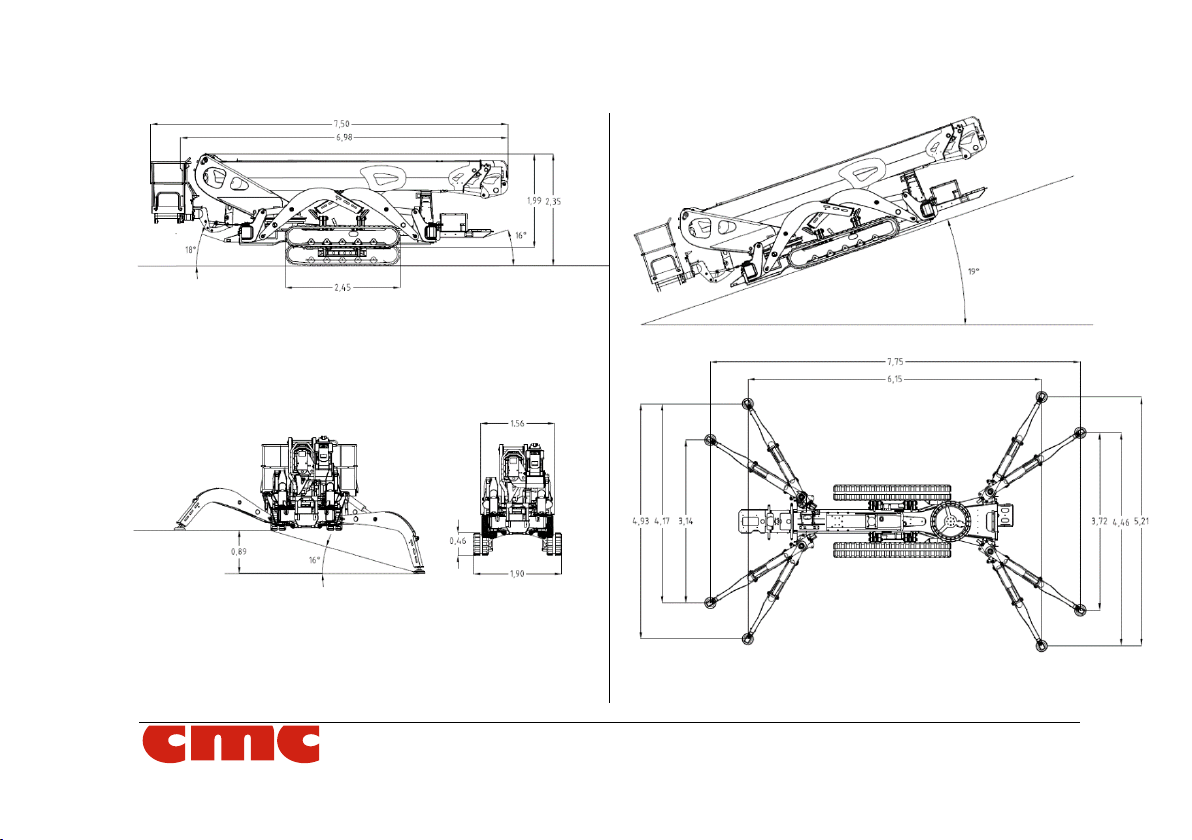

DIMENSIONS
Total length
7,50 m
24.61 ft
Length without basket
6,98 m
22.90 ft
Height in driving
position with tracks
narrowed
1,99 m
6.53 ft
Height in driving
position with tracks
widened
2,35 m
7.71 ft
Total width without
basket
1,90 m
6.23 ft
Total width with tracks
narrowed, boom
extended, and basket
coupled
1,56 m
5.12 ft
Total width (with one
track narrowed and one
raised)
1,73 m
5.68 ft
Clearance from the
ground in transport
configuration
0,42 m
1.38 ft
Max height that can be
climbed over to
stabilize
0,56 m
1.84 ft
Tracks (Lx W)
2,45 x 0,32 m
8.04 x 1.05 ft

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 10 of 137
Tracks widening
1,56/1,90 m
5.12/6.23 ft
Tracks lifting
0,05/0,46 m
0.16/1.51 ft
Max. longitudinal
stabilization
7,75 m
25.43 ft
Max. cross
stabilization (rear)
5,21 m
17.09 ft
Max. cross
stabilization (front)
4,93 m
16.17 ft
Medium cross
stabilization (rear)
4,46 m
14.63 ft
Medium cross
stabilization (front)
4,17 m
13.68 ft
Min. longitudinal
stabilization
6,15 m
20.18 ft
Min. cross
stabilization (rear)
3,72 m
12.20 ft
Min. cross
stabilization (front)
3,14 m
10.30 ft
Outrigger’s plate Ø
0,24 m
0.79 ft
AVAILABLE BASKETS
Big two-men aluminum
basket (standard)
1,7x0,7x1,1 m
5,58x2,30x3,61 ft
Two-men aluminum
basket (standard)
1,2x0,7x1,1 m
3,94x2,30x3,61 ft
One-man aluminum
basket (standard)
0,8x0,6x1,1 m
2,62x1,97x3,61 ft
Big two-men fiberglass
basket (*optional)
1,4x0,6x1,1 m
4,59x1,97x3,61 ft
Two-men fiberglass
basket (*optional)
1,2x0,6x1,1 m
3,94x1,97x3,61 ft
One-man fiberglass
basket (*optional)
0,8x0,6x1,1 m
2,62x1,97x3,61 ft
WEIGHT AND PRESSURES
Total weight
7240 kg
15960 lb
Max. pressure
on the foot
9,69 Kg/cm²
(95,1 N/cm²)
137.82 lb/in2
Max. pressure
on the tracks
0,95 Kg/cm²
(9,34 N/cm²)
13.51 lb/in2
Max. pressure
in travel
565 Kg/m²
(5,54 KN/m²)
115.72 lb/ft²
Max. pressure
in work (wide setup)
206 Kg/m²
(2,02 KN/m²)
42.19 lb/ft²

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 11 of 137
Max. pressure
in work (narrow setup)
224 Kg/m²
(2,20 KN/m²)
45.88 lb/ft²
Max. pressure
in work (one side
wide, one side narrow)
185 Kg/m²
(1,81 KN/m²)
37.89 lb/ft²
POWER
Standard
hydraulic feed
1) Kubota D902-E4B diesel, 16.1 kW
(21.6 HP), 3200 rpm
*Optional feeds
2) Electric engine
380/230/240-460 V
3) Motor G0901306, 9 kW, 48 V, with
lithium batteries 300 Ah
4) Hybrid motor (diesel + lithium
batteries)
Fuel tank capacity
30 l
Tightening torque
Bolts of the bearing
M16 cl 10.9
28 daNm
Max values (speed/force) allowed
according to USA/EU standards
Max. allowed lifting and lowering
speed of booms
0,4 m/s (1.31 ft/s)
Max. allowed extension and
withdrawal speed of booms
0,4 m/s (1.31 ft/s)
Max. allowed rotation speed
0,7 m/s (2.3 ft/s)
Max. allowed manual force in the
basket with 1 operator
400 N

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 12 of 137

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 13 of 137
2.2 Work diagram

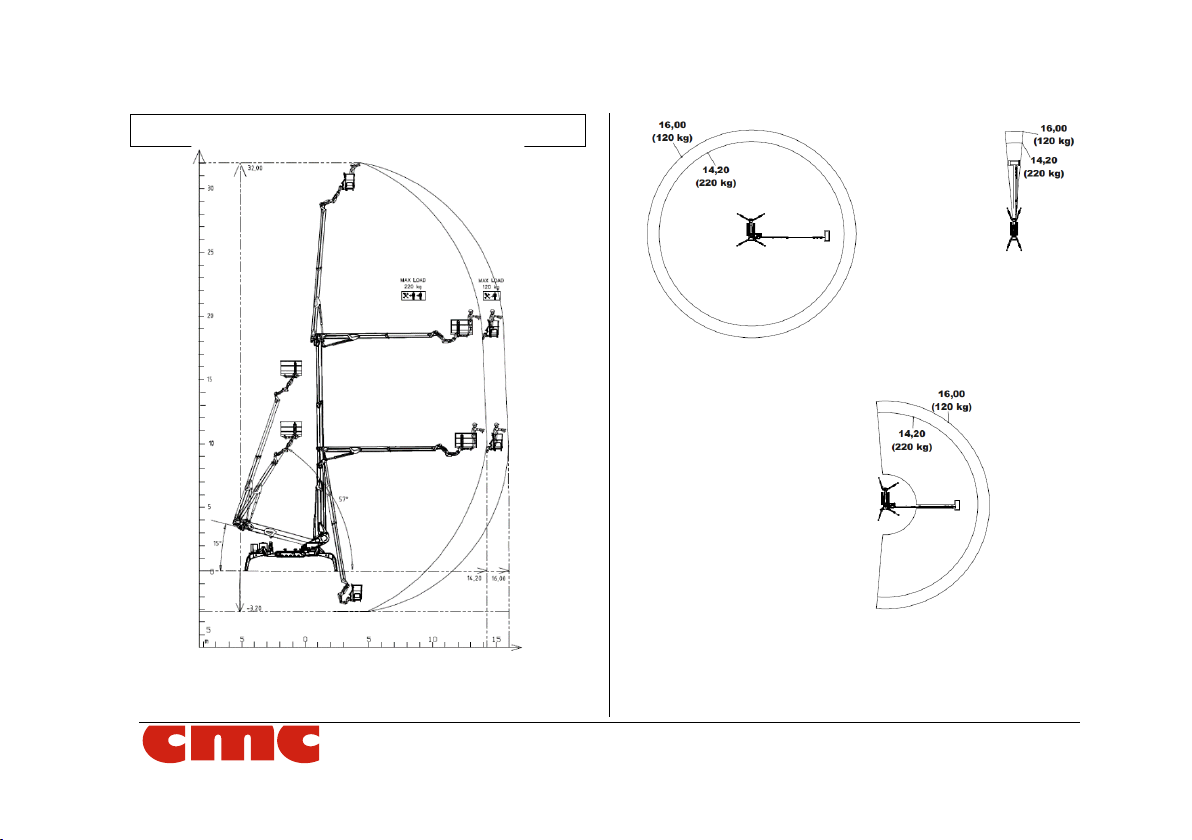

Picture 2a: work diagram
(valid only in the work area set by
the outriggers placement).
Picture 2b: work areas.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 14 of
137
2.3 Description of the main components
Picture 3: MEWP main components.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 15 of 137
2.3.1 Frame
The frame 1 (Picture 3) is a structure in quality steel, able
to equally divide the MEWP’s equipments weight. The
frame has 4 oil-pressure jack beams for stabilization [2
front stabilizer cylinders 2(Picture 3), 2 rear stabilizer
cylinders 3(Picture 3)]. The basis for the bearing 4
(Picture 3) is placed on the frame. It enables the
swinging of the equipment through the turn-table.
2.3.2 Turret
The turret 5(Picture 3), in quality steel, is secured to the
bushing (bearing). A hydraulic engine, with brake
normally closed, constrained to the turret, allows the
rotation of the overstructure.
2.3.3 First telescopic boom group
The first telescopic boom group 6(Picture 3) is
composed by three elements: a fixed boom and two
extendable booms.
The extension (or withdrawal) of the telescopic boom is
given by operating the “telescopic boom extension
cylinder”.
The movement of the boom (lifting and lowering) is given
by the lifting hydraulic cylinder. Such cylinder is secured
to the turret (cylinder side) and to the fixed boom (piston
side) and is supplied with safety valves.
2.3.4 Second telescopic boom group
The second telescopic boom group 8(Picture 3) is
hinged to the first telescopic boom by a rod 7(Picture 3).
The telescopic boom is composed by two elements: one
fixed boom hinged to the rod and one extendable boom.
The extension (or withdrawal) of the telescopic boom is
given by operating the “telescopic boom extension
cylinder”.
The lifting (or lowering) of the telescopic boom is given
by operating the “lifting cylinder of second telescopic
boom group”.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 16 of 137
2.3.5 Jib
At the end of the second telescopic boom is hinged a
boom named Jib 10 (Picture 3). The lifting or descent of
the Jib is done by operating the “Jib lifting cylinder”.
2.3.6 Basket
The aluminum tubulars basket 11 (Picture 3) has a
lateral opening to allow the entrance of the operators.
The lateral opening is automatically shuttered and built
to avoid accidental openings. The basket has a guardrail
1,1 m high from the basket floor, an intermediate
guardrail and a foot protecting band along all sides of the
platform. The floor is in antiskid and auto-draining
aluminum. The basket is connected to a support 9
(Picture 3) through which it is coupled with the jib.
Moreover the support 9 is characterized by anchorages
for safety belts.

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 17 of 137
3 Command stations
3.1 Machine switching on/off
station

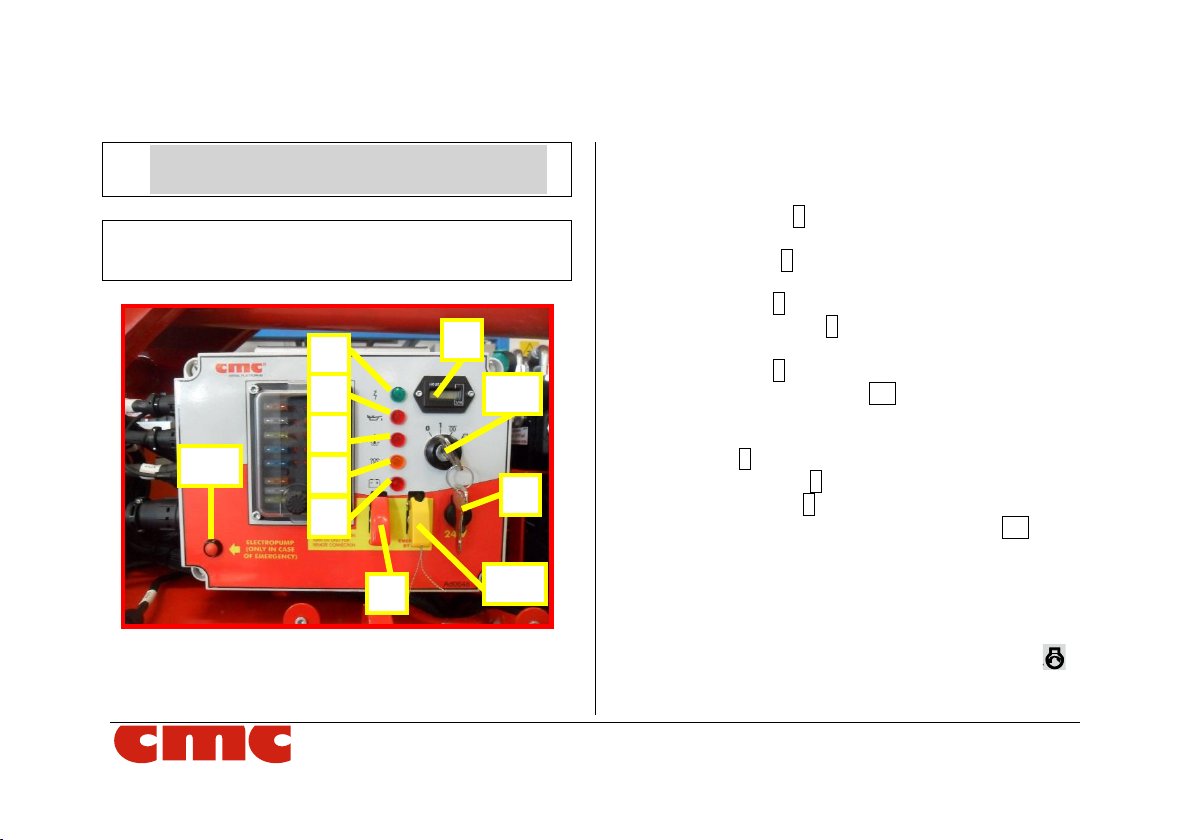

Picture 4: engine on/off station.
By engine switching on/off station (Picture 4), allocated
on the right side of the frame, there are:
•the IK ignition key: through it, it is possible to turn
on the electric system and start the endothermic
engine;
•the green light 5indicating system power supply: it
is on when the IK ignition key is in position 1;
•the red light 4which signals low pressure to the
engine oil;
•the red light 3which monitors coolant level;
•the orange light 2indicating the spark plugs
working;
•the red light 1which signals an alternator failure;
•the emergency bypass BP under the yellow cap
(see par.4.6.2);
•the activation lever of remote connection under the
red cap 6(see par.8.16.1);
•the hour counter 7;
•the 24 V socket 8;
•the red activation button of electropump* DS.
3.1.1 Ignition of the endothermic engine

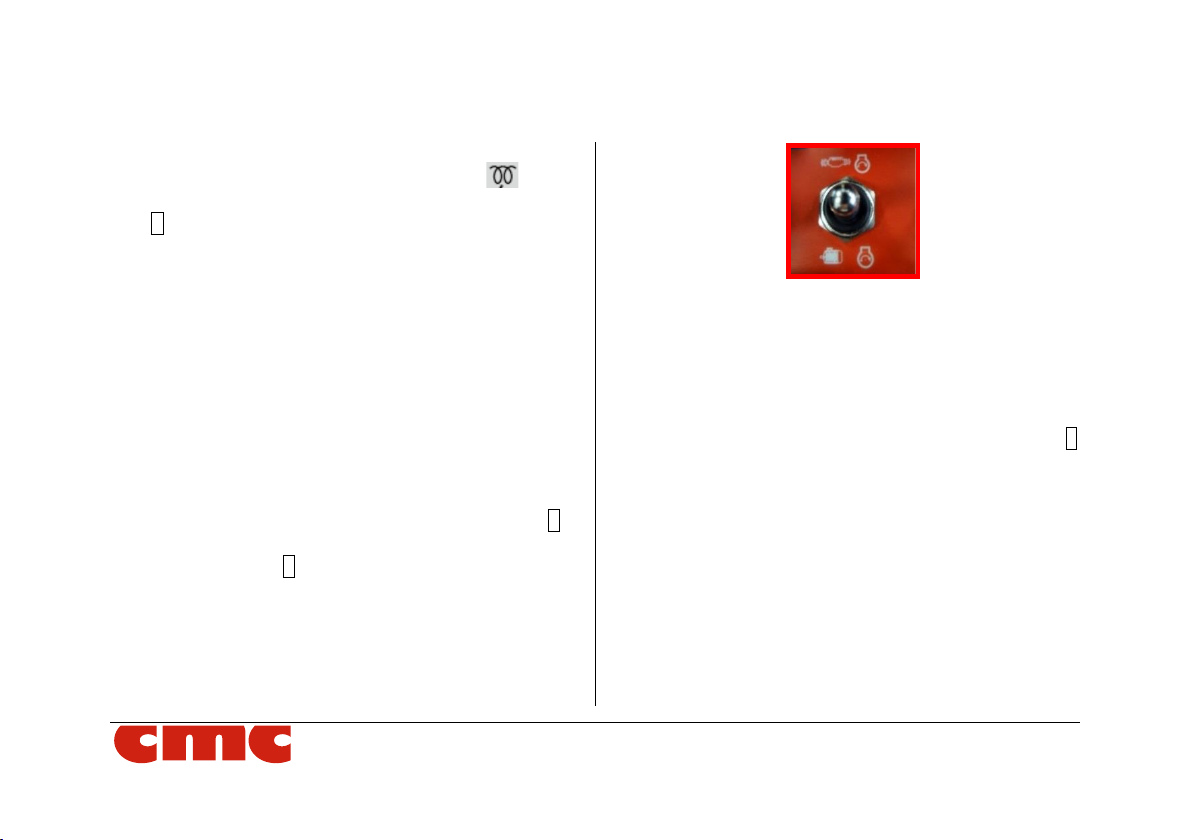

In order to start the endothermic engine, turn the IK
ignition key all the way to the right up to the symbol .
Before starting the engine, especially if the MEWP is
used in workplaces with low atmospheric temperatures,
IK
5
4
3
2
1
BP
6
8
7
DS

MAN.218 Rev.12 ENG - Use and maintenance manual S32 page 18 of 137
it is advisable to heat the spark plugs of the machine
engine while keeping the IK key on the symbol for a
few seconds: this will cause the corresponding orange
light 2(Picture 4) to turn on.
The ignition of the endothermic engine can also be
carried out with the radio control or the console in the
basket.
Using the radio control:
•turn the key to the right;
•connect the radio control (link procedure in par.
3.2.2),
•move the lever in the Picture 5 upwards, present on
the left side of the radio control under the joystick
J1 (Picture 14).
Otherwise, using the console (fixed) in the basket:
•turn the key to the right;
•press the endothermic engine start button 9
(Picture 11)
•the green light 5(Picture 10) will light up on the
console, to signal the correct power supply of the
machine.
Picture 5: power on/off lever on the radio control.
To switch off the endothermic engine, you can
alternatively:
•turn the ignition key all the way to the left;
•lift the lever in Picture 5, if the radio control has
been used;
•press the endothermic engine start/stop button 9
again (Picture 11), if you are at the control station
in the basket;
•press, in emergency situations, one of the
emergency buttons on the machine (par. 4.6.1).
3.1.2 Switching on/off the electric motor
(*optional)
If you choose to use the electric motor*:
•connect the 110/120/230/380 V socket (Picture 6)
on the machine to the nearest electrical source;
