Co-Matic JOINT-MAT AF100J User manual

- 1 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
Operation Manual
JOINT-MATE
Surface Preparation at Your Finger Tips
AF100J
for 6” (150mm) Jointer / Surface Planer
AF104J
for 8” (200mm) Jointer / Surface Planer
AF114J
for 12” (300mm) Jointer / Surface Planer
MFG No.
For your safety, read Operating Instruction before operating the tools.

- 2 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
(1)
Total (7) pieces
(2)
(3)
(4)
(5)
Hardware
(6)
Manual
(7)
TABLE of CONTENT
UNPACKING INSPECTION ---------------------------------------------------------------------
2
IMPORTANT SAFETY RULES -----------------------------------------------------------------
3
ADDITIONAL SAFETY RULES FOR POWERFEEDER ---------------------------------
3
PREPARATION BEFORE ASSEMBLY -------------------------------------------------------
4
LOCATE BASE MOUNTING and BORING POSITION ----------------------------------
4
ASSEMBLY ------------------------------------------------------------------------------------------
6
ADJUSTMENT and CONTROL ----------------------------------------------------------------
7
OPERATION -----------------------------------------------------------------------------------------
8
POWER CONNECTION and GROUNDING -------------------------------------------------
11
LUBRICATION and MAINTENANCE ---------------------------------------------------------
12
EXPLODED VIEWS & PARTS LISTS ---------------------------------------------------------
---
UNPACKING INSPECTION
1. Feeder Housing.
2. Arc Support.
3. Front Guard.
4. Infeed Guard.
5. Base.
6. Hardware Pack.
7. Operation Manual
and others.
※If any freight related damages were found including missing parts, please contact your
dealer immediately.

- 3 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
IMPORTANT SAFTY RULES
WARNING: Failure to follow these rules may result in serious personal injury.
Woodworking can be dangerous if safe and proper operation procedures are not followed. Using the tool
with respect and caution will considerably lessen the possibility of accident. ALWAYS FOLLOW RULES.
USE COMMON SENSE AND EXERCISE CAUTION in the workshop.
REMEMBER: your personal safety is your responsibility.
READ OPERATION MANUAL.
Keep and protect it near the machine for easy access in the event of future review.
IMPORTANT PERSONAL SAFETY NOTE:
Wear goggles – eyes protection.
Wear dusk masks – respiratory protection.
Wear earpieces – hearing protection.
Wear proper apparel – no loose clothing, gloves, neckties, and jewelry.
No drugs, alcohol, medication – Do not operate under such influence.
DON’T USE TOOL IN DANGEROUS ENVIRONMENT.
Keep work area well ventilated and lighted, avoids damp or wet location. Room temperatures + 5℃～+ 40℃,
Humidity 30～95%, Altitude ≦1000M, Voltage deviation ± 5%.
KEEP WORK TABLE AND AREA CLEAN.
Loose hand tools left on table or cluttered work area invite accidents.
KEEP UP THE MAINTENANCE. Follow operation manual for proper operation and maintenance.
DISCONNECT TOOL FROM POWER SOURCE.
Before any tooling change, repairing or regular maintenance.
FINAL INSPECTION AFTER EACH MAINTENANCE OR REPAIRING.
Make sure all parts are properly mounted, tightened, and aligned before next operation.
AVOID UNINTENTIONAL STARTING. Make sure the switch is in “OFF” position before power reconnection.
KEEP WORK SHOP TAMPERPROOF. Use padlocks, master switches or remove starter keys. Prevent
children or unauthorized personal from tampering. All visitors should be kept at a safe distance from work area.
NEVER LEAVE TOOL RUNNING UNATTENDED.
Turn power off. Don’t leave until it comes to a complete stop.
ADDITIONAL SAFTY RULES FOR POWERFEEDER
 Cutting tools MUST be rotating before feeding.
 DONOT overload the cutting tool by feeding too fast.
 ALWAYS KEEP hands away from rotating parts.
 PROVIDE support for long stock on out-feed end of table.
 STOP the feeder before stopping the cutting tool.
 DISCONNECT power before making repairs or adjustment.

- 4 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
PREPARATION BEFORE ASSEMBLY
1. Disconnect power and remove Safety Guard on Jointer.
2. Tools required for assembly –
(AF104J and AF114J) (AF100J)
 Hammer. Center Punch. Electric Drill.
 Drill Bit: φ10.3mm φ8.6mm
 Tap: M12-P1.75 M10-P1.5
 Hexagon Wrench: 4、5、6、10mm 4、5、8mm
 Open Wrench: 10、14mm 10mm
LOCATE MOUNTING and BORING POSITION
REMINDER: Base mounting position (or boring position) is very important, please read the following
instruction carefully!
1. Base must be mounted on Outfeed Apron behind the Fence - See (FIG.1 & FIG.2). 250mm or
300mm from leading edge of the Outfeed Table pending on the models.
2. Jointer tables are designed slightly different pending on the manufacturer - See (FIG.2).
a. IF table has a Step Apron, mount your base below the thickness of table.
b. IF table has a Straight Apron, mount your base level to table. (Must not be higher.)
3. Use Base as template, center punch, bore and tap.
NOTE: Avoid rib and support underneath the table. Position can be moved approx. ± 10mm.
4. Mount Feeder Base- See (FIG.2): (Screw(x3) provided in Hardware pack.)
a. For Base mounted on a Step Apron - adjust Leveling Screws, make sure tip of both screws are
14mm above table.
b. For Base mounted on a Straight Apron - adjust Leveling Screws below X.

- 5 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
FIG.1
300mm for AF104J / AF114J; Bore ψ10.3, Tap M12-P1.75.
250mm for AF100; Bore ψ8.5, Tap M10-P1.5.
Infeed
Outfeed
FIG.2
X
14mm
14mm
Fence
Outfeed Table
Base
Base
On a Step Apron –
Tip of Leveling Screws
14mm above table.
Outfeed Tabletop
Outfeed Tabletop
On a Straight Apron –
Tip of Leveling Screws
lower than X.

- 6 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
FIG.3
FIG.5
Feeder Housing
Against the Fence
FIG.4
Tabletop
Adjusting Shims
X=X1
XX1
90°
ASSEMBLY
1. Arc Support (Stand) Mounting:
a. Mount Arc Support (Stand) onto the Base. Assemble
Handle-Grip. - See (FIG.3).
b. 90° Adjustment between Arc Support and Tabletop
(important) - See (FIG.4).
Arc Support must be 90° to Tabletop. IF they are not 90°,
loosen mounting Screws on Base, insert Adjusting Shims
between Base and Apron.
2. Feeder Mounting: - See
(FIG.5).
a. Move Jointer Fence to the
rear. Place a piece of board
(size: as wide as your
Jointer Table) on Table and
rest Feeder Housing on the
board. Feeder and board
against the Fence.
b. Move the board and Arc
Support simultaneously,
adjust the height; make
sure Screw Holes (x3) on
Arc Support and Feeder
Housing are line-up at the
Mounting Joint.
c. Fasten Screws (x3) by
hand.
d. Raise Feeder Housing,
push it against the Fence
while tighten 3 Screws.
Tighten the Base-Handle.

- 7 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
FIG.7
(1)
(2)
(3)
(4)
e. Assemble Front Guard and Infeed Guard - See (FIG.6).
NOTE: Do not tighten Screws on Front Guard (4). Maintain an adequate spring pressure,
which would allow up and down movement of the Front Guard (4) without loosening
the Screws.
ADJUSTMENT and CONTROL - See (FIG.7).
1. Horizontal Movement: Loosen
Base-Handle (1).
2. Height Adjustment: Loosen
Fix-Handle (2); turn Elevating Handle
(3). Up- Clockwise; Down- Counter
Clockwise. One Revolution= 2.5mm
up or down.
3. Front Guard (4): Every time
feeder height is adjusted, Front
Guard must be adjusted accordingly.
4. Recommended Feeding Pressure
and Measuring Device: Neck (X) =
Thickness of Workpiece =
Recommended Feeding Pressure.

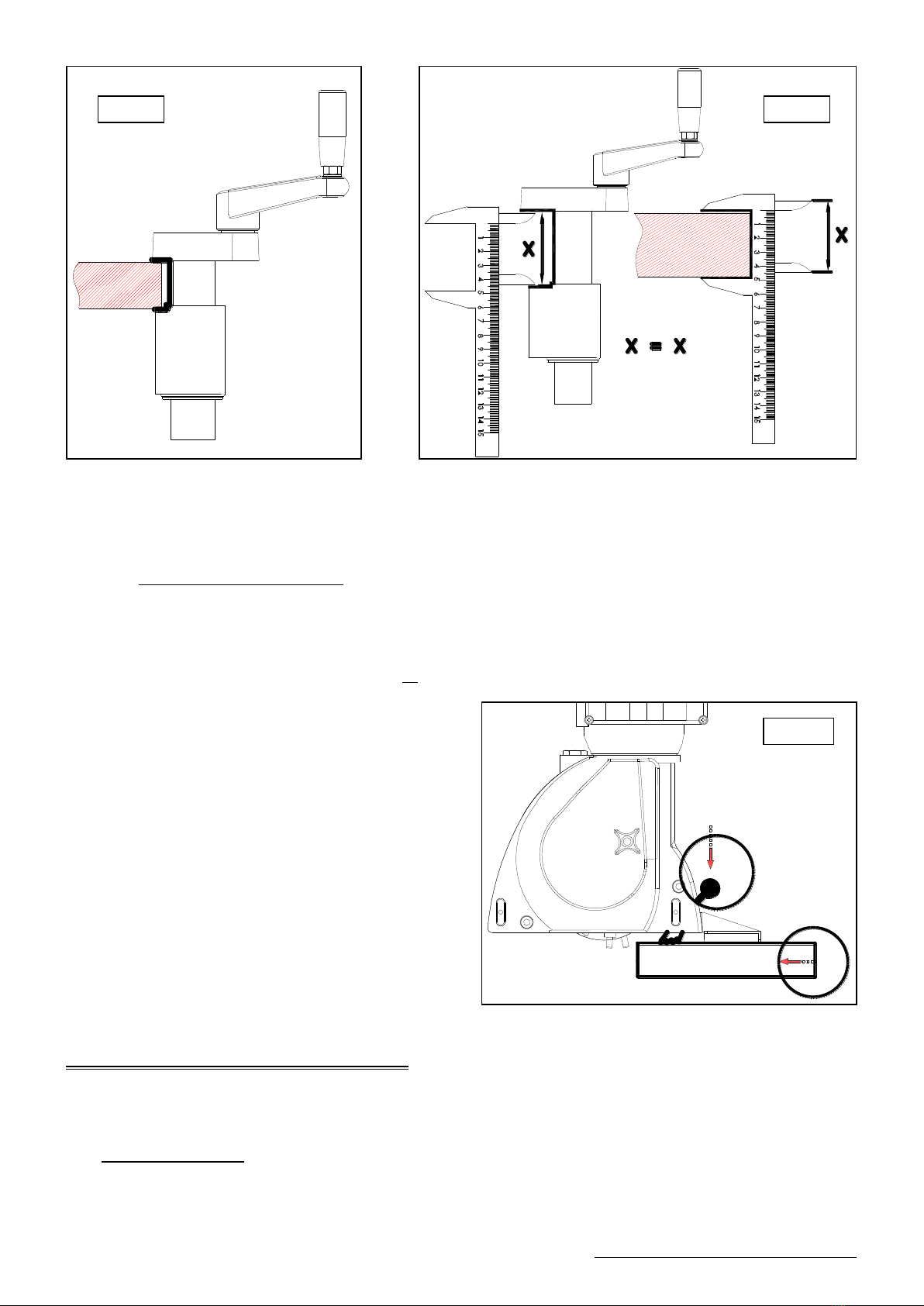

a. Lower Height Adjustment, lightly holding the workpiece at the Neck (X). Remove workpiece
and operate. See (FIG.8).
FIG.6
(4)

- 8 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
Large or Heavy
Workpiece
FIG.8
FIG.9
Workpiece
FIG.10
Knob
○
1
○
2
b. For large or heavy workpiece, measure the thickness and adjust Neck (X) equal to the
measured. See (FIG.9).
c. Measuring Against Bottom of Housing: Housing is adjusted up or down according to thickness
of workpieces, but the space between bottom of Housing (not the Roller) and top of workpiece
remain the same at all time. Another word, once you’ve familiarized with the appropriate
feeding pressures using a) or b) above, you can actually measure your workpiece against the
housing leading edge, visually or with measuring device.
5. Anti-Kickback and Kickback Relief: IF workpiece was stopped by Anti-Kickback - See (FIG.10);
a. Turn off the machines – Jointer first, then
Feeder.
b. Press down Kickback Relief Knob gently a
few times (do not force down) while
pushing the workpiece forward. If
Kickback Teeth are relieved, remove
workpiece.
c. If Kickback Teeth cannot be relieved, raise
the Feeder Housing and remove
workpiece.
OPERATION － KNOW-HOW
1. Switch & Speeds:
 AF100J - See (FIG.11): Variable-Speed model, with push & pull (on/off) Switch.
50HZ: 3 ~ 19 M/min (10.5 ~ 62 FPM); 60HZ: 4 ~ 22 M/min (12.5 ~ 75 FPM).

- 9 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
FIG.11
FIG.12
Feeding Speed
Switch
Gear
13M/Min
(43Ft/Min)
22M/Min
(73Ft/Min)
6.5M/Min
(21Ft/Min)
11M/Min
(36Ft/Min)
34
26
26
34
AF104J/AF114J
AF100J
5
125
180
25
X
X-3 X+3
FIG.13
○
a
○
b
○
e
○
c
○
d
 AF104J & AF114J - See (FIG.12): 4-Speed, with
Motor Switch & Gear Position.
50HZ: 5.5/9.5/11/19 M/min (18/31/36/62 FPM);
60HZ: 7/11/13/22.6 M/min (22/37/43/74 FPM).
2. Size (Workpiece) Limitation - See (FIG.13):
a. No thicker than 125mm (T).
b. No thinner than 5mm (T).
c. No shorter than 180mm (L).
d. No narrower than 25mm (W).
e. Thickness Variation Allowance: ±3mm (total
6mm), warpping (cupping) effects must be
included. (NOTE: Stud has 8mm suspension.)
3. Spacing between studs is 20mm. To avoid narrow
workpiece got
jammed up
between studs,
wokpiece must
be 25mm or
wider.
4. Infeed Guard:
“Π” shaped
Infeed Guard
avoids narrow
workpiece
being fed to
right or left end
of Feeder
beyond Studs
position. If
width of
workpiece is
wider than the
Infeed Guard, remove the guard.
5. Front Guard: Lower front guard as lower as possible, every time you adjust the feeder.
6. Operating Recommendation:
 Adjust height.
 Inspect workiece individually; eliminate thinner or thicker workpieces, (thickness variation
allowance ±3mm.)
 Feed. Make sure cup-side is down. Do not let go till workpiece has been grabbed by the Roller.
 Inspect workpiece. See if 2nd feed is needed.
 If relatively thinner or thicker is found, see question and answer.

- 10 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
OPERATION － QUESTION and ANSWER
1. Workpiece Slipping:
 A lot of slipping occurred on the same lot;
Answer: Not enough pressure. Lower the height.
 A few slipping only;
Answer: You have a few relatively thinner pieces. Leave the thinner pieces aside and do
them later.
 REMINDER: IF slipping occurs; PUSH FORWARD with your right hand continuously and
PULL OUT workpiece from outfeed-end with your left hand. Please use both
hands simultaneously.
2. Jammed-Up Board: Most likely scenario – badly twisted or cupped workiece; fed without
cupped side-down.
Answer: Try pushing the workpiece out of Feeder. (Studs have 8mm suspension; Elevating
Arm has 15mm suspension.) IF pressure is too big, stop the machines (Feeder first,
then Jointer) and raise the height.
3. Torn-Marks: Studs will leave light marking on workpieces; it can be removed easily thru
thickness planing or sanding.
4. DO NOT Over-Load:
 For extra heavy workpieces, help the Feeder by pushing the workpieces forward gently.
 For extreme heavy workpieces, resume hand operation.
5. Jammed-Stud(s):
 Check periodically.
 How to read a Jammed Stud(s)?
Answer: Use a piece of board wider than the Roller and planned a clean face. Feed the
board with clean face-up into Feeder again. Read the torn marks left on the board, a
Jammed-Stud(s) would not leave any torn mark(s).
 How to release a Jammed Stud if found?
Answer: Use a Flat Screw Driver leverage gently in between Jammed-Studs and right or left
adjacent Studs. (Do not force it!)
6. Angle Jointing: The feeder is designed for surface preparation only. If angle jointing is needed,
swivel your feeder away from table and resume hand operation.
7. Extra-Long Stock (over twice the length of Outfeed Table): Once extra-long workpiece left the
Roller, weight on the front end (unsupported portion) will force the rear end to tilt. If 1st piece isn’t
removed, the following piece may get jammed under the 1st one.
Answer: Add extension table on oufeed end or make sure front piece is removed before
feeding the following piece. See (FIG.14).

- 11 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
FIG.14
POWER CONNECTION and GROUNDING (FIG.15)
WARNING: Make sure electric currency matches the motor specification (see motor cover.)
WARNING: Make sure switch is on the “OFF” position.
1. C.E. REQUIRED COUNTRIES:
 Feeder is a supplemental tool, which works in conjunction with your jointer, … etc. It’s
recommended to be used with a machine that is wired in compliance with your national or local
electrical regulation.
 It must be connected to your machine through a specially designed current taps that ensures
your machine’s switch and emergency stop having controls of your feeder’s power source. In
addition, the current tap must provide an overload and under voltage protection systems.
 Rated Current:
 Electrical connection is reserved for certified electrician only.
2. OTHER COUNTRIES:
 A separate electrical outlet should be used for your feeder. The circuit should not be less than #
12. Wire properly installed and grounded in accordance with your local codes and ordinances,
protected with a 15 Amp time lag fuse or circuit breaker.
 If an extension cord is used, Less than 30M (100Ft), use #12 Wire;
Up to 46M (150Ft), use #10 Wire.
 Ensure all line connections make good contact. Low voltage running will damage the motor.
 Properly ground the motor to reduce the risk of electrical shock.
 The motor is equipped with a grounding conductor (green wire with or without yellow stripes.)
 If unsure, consult with a qualified electrician.
FIG.15
Pole 220V/60Hz/1Ph 220V/60Hz/3Ph 380V/50Hz/3Ph 400V/50Hz/3Ph
2P 1.55A 1.3A 0.9A 0.9A
4P 1A
1.3A 0.8A 0.8A

- 12 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
FIG.16
LUBRICATION and MAINTENANCE (FIG.16)
WARNING: Disconnect Feeder from power source.
1. GEAR BOX Change oil FIRST 200hours (30days.)
Change oil every 1000hours (6months.)
Recommended Gear Oil:
MOBIL Mobilgear 630;
Shell/Omala 150 BP;
Energol GR-XP 150, or equivalents.
Oil Level: 150CC or
3/4 of Wormgear Housing.
2. MAINTENANCE:
Remove working-waste (saw dust, shavings, etc) from Feeder by Air Gun after
each use.

- 13 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC

- 14 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
AF 114J JOINT-MATE, 12”(300mm) *. Specifications subject to change without prior notice.
67H
28F-5.(x2)
96H-2
27F-1
28F-2
28F-4
27F-3.
27F-2
33F-1
28F-3
28F-1
29F-3.
29F-2
34F-1
33F-2.
68B-1
29F-1
96H-3
61H-2.
61H-1
63H-4
34F-2.
96H-5
63H-5.
63H-2
B026004
96H-8.(x3)
98H-1
98H-4.(x2)
98H-3(x2)
98H-2(x4)
99H-3
99H-2
99H-8.
99H-7
99H-1
99H-6(x25)
99H-4(x2)
99H-5(x26)
96H-4
96H-1
21A-1
21A-2.
96H-6(x2) 96H-7(x2) 68B-2.
63H-1
100H-1
100H-5.(x12)
100H-3(x12)
100H-2(x12) 100H-4(x12)
101H-5.(x12) 101H-3(x12) 101H-2(x12) 101H-4(x12)
101H-1
101H(x13)
100H(x13)
97H
105H-1
105H-2(x2) 105H-3.(x2)
94H
63H-3
B026203
87A
83H-1
83H-2.
56B-2.(x3)
103H-5.
56B-1
103H-1
103H-4
103H-3
103H-2
102H-4(x2)
102H-5.(x2)
104H-3 101B
104H-2
104H-1
102H-1
102H-3(x3)
102H-2(x3)
104H-8.(x3) 104H-6(x3)
104H-5(x2) 104H-4
104H-7(x3)

- 15 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
Part # Code # Description Q'ty Part # Code # Description Q'ty Part # Code # Description Q'ty
100H 100H Studded Roller Assb. A 13
105H-3.
S900608 Cap Screw (M6-1.0Px8L) 2 67H 67H Motor Kit 1/4HP WS 1
100H-1 C020053 Roller Segment A 1 21A 21A Oil-Cap Kit (M16) 167M1 67M1 Motor w/ Switch 1/4HP.1 WS 1
100H-2 A400004 Roller Stud (JM) 12 21A-1 U010008 Oil Cap (16mm) 1 67M3 67M3 Motor w/ Switch 1/4HP.3 WS 1
100H-3 N930017 Spring (φ1.0x22x7.3) 12 21A-2 Q010012 "O" Ring (P12) 1 68B 68B Tube Kit (S) 1
100H-4 A500009 Bushing (10x12) 12 27F 27F Wormgear Shaft Assb. 168B-1 A500331 Tube (S) 1
100H-5. A500010 Busing 12 27F-1 G320035 Wormgear Shaft 1 68B-2 N510026 Snap Ring (26) 1
101B G320148 Elevating Screw (T19-P4x250L) 1 27F-2 N015925 Flat Washer (3/8"x25x10t) 1 83H 83H Handle Kit 1
101H 101H Studded Roller Assb. B 13 27F-3 N11010R Nut (M10-1.5P) 1 83H-1 U010098A Handle w/ Bushing 1
101H-1 C020054 Roller Segment B 1 28F 28F Gearbox Cover Kit 183H-2. N810636 Lock Pin (6x36L) 1
101H-2 A400004 Roller Stud (JM) 12 28F-1 C020324 Gearbox Cover 1 87A U010011 Handle-Grip (M10-P1.5x70L) 1
101H-3 N930017 Spring (φ1.0x22x7.3) 12 28F-2 A500302 Bushing (29Dx23Dx(15+3)) 1 94H C020053 Roller Segment A 1
101H-4 A500009 Bushing (10x12) 12 28F-3 Q021701 Oil Seal (17x32x7t) 1 96H 96H Housing Assb. 104J/114J 1
101H-5. A500010 Busing 12 28F-4 U210006 Oil Seal 1 96H-1 C010073 Housing 104J/114J 1
102H 102H Base Kit 128F-5 S900512 Cap Screw (M5-0.8Px12L) 2 96H-2 A500306 Bushing (φ29xφ23x(7+3)) 1
102H-1 A200023 Base (104/114J.M) 1 29F 29F Gear Shaft Kit 196H-3 N810420 Lock Pin (4x20L) 1
102H-2 N030012 Spring Washer (M12) 3 29F-1 G320036 Gear Shaft 1 96H-4 S100510 Set Screw (M5-0.8Px10L) 1
102H-3 S901230 Cap Screw (M12-1.75Px30L) 3 29F-2 N015925 Flat Washer (3/8"x25x10t) 1 96H-5 N520042 "C" Clip (42) 1
102H-4 S900665 Cap Screw (M6-1.0Px65L) 2 29F-3 N11010R Nut (M10-1.5P) 1 96H-6 N030006 Spring Washer M6 2
102H-5. N11006R Nut (M6-1.0P) 2 33F 33F Gear Kit (16T/40T) 196H-7 S600620 Hex Screw (M6-1.0Px20L) 2
103H 103H Arc Support Kit 133F-1 A500349 Gear (16T) 1 96H-8. S900855 Cap Screw (M8-1.25Px55L) 3
103H-1 A200026 Arc Support (114J) 1 33F-2 A500350 Gear (40T) 1 97H C010074 Roller Cover 114J 1
103H-2 S601250 Hex Screw (M12-1.75Px50L) 1 34F 34F Gear Kit (26T/34T) 198H 98H Front Guard Kit, JM 1
103H-3 N011225 Flat Washer (M12x25D) 1 34F-1 A500323 Gear (26T) 1 98H-1 G110089 Front Guard 1
103H-4 T060013 Pull Handle (M12x100L) 1 34F-2 A500348 Gear (34T) 1 98H-2 N010516 Flat Washer (M5x16D) 4
103H-5. T060010 Pull Handle (M12L) 1 56B 56B Column Cap Kit (M) 198H-3 N930011 Comp. Spring (φ7x6) 2
104H 104H Elevating Column Kit 156B-1 C020305A Column Cap 1 98H-4. S900516 Cap Screw (M5-0.8Px16L) 2
104H-1 A200015 Inner Tube (M) 1 56B-2 G000005 Set Screw (M8-1.25Px12L) 3 99H 99H Anti-Kickback Assb. 1
104H-2 N930018 Comp. Spring (φ27x90L) 161H 61H Housing Cover Kit (104/114) 199H-1 G320141 Screw (336L) 1
104H-3 A200016 Elevating Column (M) 1 61H-1 C010041 Housing Cover (104/114) 1 99H-2 N11012H Nut (M12-1.75P) 1
104H-4 K421035 Key (10x8x35L) 1 61H-2 U010051 Knob (M6-1.0Px30L) 1 99H-3 N030012 Spring Washer (M12) 1
104H-5 S200412 Cap Screw (M4-0.7Px12L) 2 63H 63H Roller Axle Kit (114) 199H-4 N530010 "E" Clip (E10) 2
104H-6 N015816 Flat Washer (5/16"x16) 3 63H-1 G320080 Roller Axle 1 99H-5 G110090 Anti-Kickback Finger 26
104H-7 N030008 Spring Washer (8.3x1.8t) 3 63H-2 N510020 Snap Ring (20) 1 99H-6 U010117 Spacer 25
104H-8. S900826 Cap Screw (M8-1.25Px25L) 3 63H-3 G080006 Hex Spacer 1 99H-7 N950012 Spring 1
105H 105H Infeed Guard Kit, 114J 163H-4 N015925 Flat Washer (3/8"x25x10t) 1 99H-8. U010118 Handle 1
105H-1 G110088 Infeed Guard, 114J 1 63H-5. N11010R Nut (M10-1.5P) 1 B026004-ZZ B026004-ZZ Bearing(#6004) 1
105H-2 N030006 Spring Washer M6 2 B026203-ZZ B026203-ZZ Bearing(#6203ZZ-TPX) 1

- 16 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
AF 104J JOINT-MATE, 8”(200mm) *. Specifications subject to change without prior notice.
67H
96H-2
27F-1
28F-2
28F-4
28F-1
28F-3
33F-1
27F-2
27F-3.
28F-5.(x2)
29F-1
68B-1
33F-2.
34F-1
29F-2
96H-3
29F-3.
116H-2
B026004
96H-8.(x3)
96H-5
34F-2.
116H-5
116H-6.
61H-1
61H-2.
98H-3(x2)
98H-4.(x2)
98H-2(x4)
98H-1
96H-1
96H-4
96H-6(x2) 96H-7(x2)
68B-2.
116H
118H-7
118H-8. 118H-4(x2)
118H-3
118H-2
118H-1
118H-6(x16)
118H-5(x17)
100H-1
100H-5.(x12) 100H-3(x12) 100H-2(x12)
100H-4(x12)
100H(x8)
101H(x8)
101H-1
101H-5.(x12) 101H-3(x12) 101H-2(x12)
101H-4(x12)
115H
117H-1
117H-2(x2)
117H-3.(x2)
94H
116H-3
116H-4
B026203
21A-1 21A-2.
87A
83H-1
56B-2.(x3)
103H-5.
83H-2.
56B-1
103H-1
103H-4
103H-3 103H-2
102H-4(x4) 102H-5.(x4)
101B
104H-3
104H-2 104H-1
102H-1
104H-5(x2) 104H-4 104H-8.(x3)
104H-6(x3)
102H-2(x3)
102H-3(x3)
104H-7(x3)

- 17 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
Part # Code # Description Q'ty Part # Code # Description Q'ty Part # Code # Description Q'ty
100H 100H Studded Roller Assb. A 8116H-2 N510020 Snap Ring (20) 1 33F-2 A500350 Gear (40T) 1
100H-1 C020053 Roller Segment A 1 116H-3 N072501 Disc Collar (φ25xφ50x3t) 134F 34F Gear Kit (26T/34T) 1
100H-2 A400004 Roller Stud (JM) 12 116H-4 G080006 Hex Spacer 1 34F-1 A500323 Gear (26T) 1
100H-3 N930017 Spring (φ1.0x22x7.3) 12 116H-5 N015925 Flat Washer (3/8"x25x10t) 1 34F-2 A500348 Gear (34T) 1
100H-4 A500009 Bushing (10x12) 12 116H-6. N11010R Nut (M10-1.5P) 1 56B 56B Column Cap Kit (M) 1
100H-5. A500010 Busing 12 117H 117H Infeed Guard Kit, 104J 156B-1 C020305A Column Cap 1
101B G320148 Elevating Screw (T19-P4x250L) 1 117H-1 G110095 Infeed Guard, 104J 1 56B-2 G000005 Set Screw (M8-1.25Px12L) 3
101H 101H Studded Roller Assb. B 8117H-2 N030006 Spring Washer M6 2 61H 61H Housing Cover Kit (104/114) 1
101H-1 C020054 Roller Segment B 1 117H-3. S900608 Cap Screw (M6-1.0Px8L) 2 61H-1 C010041 Housing Cover (104/114) 1
101H-2 A400004 Roller Stud (JM) 12 118H 118H Anti-Kickback Assb. 161H-2 U010051 Knob (M6-1.0Px30L) 1
101H-3 N930017 Spring (φ1.0x22x7.3) 12 118H-1 G320149 Screw (250L) 1 67H 67H Motor Kit 1/4HP WS 1
101H-4 A500009 Bushing (10x12) 12 118H-2 N11012H Nut (M12-1.75P) 1 67M1 67M1 Motor w/ Switch 1/4HP.1 WS 1
101H-5. A500010 Busing 12 118H-3 N030012 Spring Washer (M12) 1 67M3 67M3 Motor w/ Switch 1/4HP.3 WS 1
102H 102H Base Kit 1118H-4 N530010 "E" Clip (E10) 2 68B 68B Tube Kit (S) 1
102H-1 A200023 Base (104/114J.M) 1 118H-5 G110090 Anti-Kickback Finger 17 68B-1 A500331 Tube (S) 1
102H-2 N030012 Spring Washer (M12) 3 118H-6 U010117 Spacer 16 68B-2 N510026 Snap Ring (26) 1
102H-3 S901230 Cap Screw (M12-1.75Px30L) 3 118H-7 N950014 Spring 1 83H 83H Handle Kit 1
102H-4 S900665 Cap Screw (M6-1.0Px65L) 2 118H-8. U010118 Handle 1 83H-1 U010098A Handle w/ Bushing 1
102H-5. N11006R Nut (M6-1.0P) 2 21A 21A Oil-Cap Kit (M16) 183H-2. N810636 Lock Pin (6x36L) 1
103H 103H Arc Support Kit 121A-1 U010008 Oil Cap (16mm) 1 87A U010011 Handle-Grip (M10-P1.5x70L) 1
103H-1 A200026 Arc Support (104J) 1 21A-2 Q010012 "O" Ring (P12) 1 94H C020053 Roller Segment A 1
103H-2 S601250 Hex Screw (M10-1.5Px50L) 1 27F 27F Wormgear Shaft Assb. 196H 96H Housing Assb. 104J/114J 1
103H-3 N011225 Flat Washer (M10x19) 1 27F-1 G320035 Wormgear Shaft 1 96H-1 C010073 Housing 104J/114J 1
103H-4 T060013 Pull Handle (M10) 1 27F-2 N015925 Flat Washer (3/8"x25x10t) 1 96H-2 A500306 Bushing (φ29xφ23x(7+3)) 1
103H-5. T060010 Pull Handle (M12x25L) 1 27F-3 N11010R Nut (M10-1.5P) 1 96H-3 N810420 Lock Pin (4x20L) 1
104H 104H Elevating Column Kit 128F 28F Gearbox Cover Kit 196H-4 S100510 Set Screw (M5-0.8Px10L) 1
104H-1 A200015 Inner Tube (M) 1 28F-1 C020324 Gearbox Cover 1 96H-5 N520042 "C" Clip (42) 1
104H-2 N930018 Comp. Spring (φ27x90L) 1 28F-2 A500302 Bushing (29Dx23Dx(15+3)) 1 96H-6 N030006 Spring Washer M6 2
104H-3 A200016 Elevating Column (M) 1 28F-3 Q021701 Oil Seal (17x32x7t) 1 96H-7 S600620 Hex Screw (M6-1.0Px20L) 2
104H-4 K421035 Key (10x8x35L) 1 28F-4 U210006 Oil Seal 1 96H-8. S900855 Cap Screw (M8-1.25Px55L) 3
104H-5 S200412 Cap Screw (M4-0.7Px12L) 2 28F-5 S900512 Cap Screw (M5-0.8Px12L) 2 98H 98H Front Guard Kit, JM 1
104H-6 N015816 Flat Washer (5/16"x16) 3 29F 29F Gear Shaft Kit 198H-1 G110089 Front Guard 1
104H-7 N030008 Cap Screw (M8-1.25Px25L) 3 29F-1 G320036 Gear Shaft 1 98H-2 N010516 Flat Washer (M5x16D) 4
104H-8. S900826 Roller Cover 104J 3 29F-2 N015925 Flat Washer (3/8"x25x10t) 1 98H-3 N930011 Comp. Spring (φ7x6) 2
115H C010075 Roller Cover 104J 129F-3 N11010R Nut (M10-1.5P) 1 98H-4. S900516 Cap Screw (M5-0.8Px16L) 2
116H 116H Roller Axle Kit 133F 33F Gear Kit (16T/40T) 1B026004-ZZ B026004-ZZ Bearing(#6004) 1
116H-1 G320084 Roller Axle 1 33F-1 A500349 Gear (16T) 1 B026203-ZZ B026203-ZZ Bearing(#6203ZZ-TPX) 1

- 18 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
AF 100J JOINT-MATE, 6” (150mm) *. Specifications subject to change without prior notice.
106H-2
43H-3.
07D-1
43H-2
07D-2.(x2)
43H-1
12G-1
B026002
54H
11D-1
55H
11D-2. 106H-3.(x2)
B026004
108H-2
108H-1
106H-1
B026004
108H-2
12G-2.
108H-3
108H-4
41H-1
41H-2.(x4)
100H-5.(x12)
100H-3(x12)
100H-2(x12) 100H-4(x12)
100H-1
100H(x7)
101H(x6)
101H-1
101H-5.(x12)
101H-3(x12)
101H-2(x12)
101H-4(x12)
98H-4.(x2)
98H-2(x4)
98H-3(x2)
98H-1
95H
108H-5.
107H-3(x2) 107H-4.(x2)
107H-2
B026002 111H-6.
111H-5
111H-1
111H-4
109H-1
109H-3.(x2)
109H-2(x2)
111H-2(x11)
111H-3(x10)
114H-6.
87A
120H-1
120H-2.
102B-1
102B-2.(x3)
113H-5.
113H-1
113H-4
113H-3
113H-2
112H-4(x2) 112H-5.(x2)
112H-3(x3)
112H-2(x3)
112H-1
94B
114H-5(x2) 114H-4 114H-1
114H-3
114H-2
107H-1

- 19 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
Part # Code # Description Q'ty Part # Code # Description Q'ty Part # Code # Description Q'ty
07D 07D Bevel Gear Cap Kit 1108H-2 N001002 Spacer (20.2x34x3t) 2 114H-2 N930019 Comp. Spring (φ20x90L) 1
07D-1 U010063 Bevel Gear Cap 1 108H-3 N011225 Flat Washer (M12x25D) 1 114H-3 A200020 Elevating Column (S) 1
07D-2 S400410 PH. Screw (M4-0.7Px10L) 2 108H-4 N11012H Nut (M12-1.75P) 1 114H-4 K421035 Key (10x8x35L) 1
100H 100H Studded Roller Assb. A 7108H-5. N510022 Snap Ring (22) 1 114H-5 S200412 Cap Screw (M4-0.7Px12L) 2
100H-1 C020053 Roller Segment A 1 109H 109H Infeed Guard Kit, 100J 1114H-6. S901096 Cap Screw (M10-1.5Px250L) 1
100H-2 A400004 Roller Stud (JM) 12 109H-1 G110091 Infeed Guard, 100J 1 120H 120H Handle Assb. 1
100H-3 N930017 Spring (φ1.0x22x7.3) 12 109H-2 N030006 Spring Washer M6 2 120H-1 U010106 Handle (S) 1
100H-4 A500009 Bushing (10x12) 12 109H-3. S900608 Cap Screw (M6-1.0Px8L) 2 120H-2. N810430 Lock Pin (4x30L) 1
100H-5. A500010 Busing 12 111H 111H Anti-Kickback Assb. 112G 12G GEAR SET (21T/44T, HD) 1
101H 101H Studded Roller Assb. B 6111H-1 G000023 Screw 1 12G-1 A500344 Gear (21T) 1
101H-1 C020054 Roller Segment B 1 111H-2 G110093 Anti-Kickback Finger 11 12G-2 A500345 Gear (44T) 1
101H-2 A400004 Roller Stud (JM) 12 111H-3 U010117 Spacer 10 41H 41H Housing Cover Kit 100J 1
101H-3 N930017 Spring (φ1.0x22x7.3) 12 111H-4 N530010 "E" Clip (E10) 1 41H-1 C020002 Housing Cover 100J 1
101H-4 A500009 Bushing (10x12) 12 111H-5 N950013 Spring 1 41H-2 S060616 Cap Screw (M6-1.0Px16L) 4
101H-5. A500010 Busing 12 111H-6. U010118 Handle 1 43H 43H Worm Gear Kit 1
102B 102B Column Cap Kit 1112H 112H Base Kit 143H-1 G320076 Worm Gear Axle 1
102B-1 C020056A Column Cap w/ Bushing 1 112H-1 A200022 Base (100J.S) 1 43H-2 K420515 Key (5x5x15L) 1
102B-2. G000005 Set Screw (M8-1.25Px12L) 3 112H-2 S901030 Cap Screw (M10-1.5Px30L) 3 43H-3 A500339 Bevel Gear 1
106H 106H Housing Assb. 100J 1112H-3 N030010 Spring Washer (M10) 3 54H #L65001 DC Motor Kit 1/8HP# 1
106H-1 C020057 Housing 100J 1 112H-4 S900665 Cap Screw (M6-1.0Px65L) 2 87A U010011 Handle-Grip (M10-P1.5x70L) 1
106H-2 A500335 Bushing (14x(20+30)(12+3)) 1 112H-5. N11006R Nut (M6-1.0P) 2 94B G320092 Elevating Screw (M18-P2.5x200) 1
106H-3. S060616 Cap Screw (M6-1.0Px16L) 2 113H 113H Arc Support Assb. 195H C020054 Roller Segment B 1
107H 107H Roller Cover Assb. 100J 1113H-1 A200027 Arc Support (100J.S) 1 98H 98H Front Guard Kit, JM 1
107H-1 C020058 Roller Cover 100J 1 113H-2 S600850 Hex Screw (M8-1.25Px50L) 1 98H-1 G110089 Front Guard 1
107H-2 S505165 PH. Screw (M5-0.8Px165L) 1 113H-3 N015816 Flat Washer (5/16"x16) 1 98H-2 N010516 Flat Washer (M5x16D) 4
107H-3 N030008 Spring Washer (8.3x1.8t) 2 113H-4 T060011 Pull Handle (M8) 1 98H-3 N930011 Comp. Spring (φ7x6) 2
107H-4. S600820 Hex Screw (M8-1.25Px20L) 2 113H-5. T060010 Pull Handle (M12x25L) 1 98H-4. S900516 Cap Screw (M5-0.8Px16L) 2
108H 108H Roller Axle Kit 1114H 114H Elevating Column Kit 1
B026002-ZZ
B026002-ZZ
Bearing(#6002) 2
108H-1 G320147 Roller Axle 1 114H-1 A200019 Inner Tube (S) 1
B026004-ZZ
B026004-ZZ
Bearing(#6004) 2

- 20 -
AF114J JM9710Eng_1
COPYRIGHT © OCT, 2008 CO-MATIC
EU Declaration of Conformity
We,
CO-MATIC MACHINERY CO., LTD.
No. 473-16, San Feng Road, Houli, Taichung
TAIWAN 42156
Hereby declare that the machine named below corresponds to the relevant safety and health
requirements of the EC guidelines specified below in its design and construction and in the version,
which we introduced to the market.
This declaration becomes invalid if changes are made to the machine without our consent.
Description of the machines:
Powerfeeder
Machine type:
CO-MATIC / AF/AP/MX/TF/EZ/M
Relevant EC guidelines:
EC Machinery Council Directive 98/37/EC; EMC 89/336/EEC; .
EC Low Voltage Directive 72/23/EEC, as last amended by EEC Directive 93/68/EEC.
Date: 02.05.2000
Signature:
Oscar Lin, Managing Director
2 YEARS LIMITED WARRANTY
 Manufacturer warrants its product free from any manufacturing defects, excluding rollers or belts
which wear under normal usage.
 Manufacturer is not liable for freight damages, nor damages caused by improper use of machine
and failure in keeping up with the recommended maintenance.
 Manufacturing number must be presented for any warranty service.
CO-MATIC MACHINERY CO., LTD. www.co-matic.com
