Co/tech Ppcr-skst User manual

USER GUIDE

READ THIS MANUAL CAREFULLY AND KEEP IT

AT HAND AT ALL TIMES

PPCR-SKST

SNOW PLOW

MU-PPCR-SKST-2023

Table of contents

Introduction ·································································································3

Safety information······················································································ 4-9

Description····························································································10-11

Installation ································································································ 12

Running-in ································································································ 13

Principle of use ························································································· 14

Maintenance ·························································································15-17

Troubleshooting ························································································· 18

Warranty··································································································· 19

Parts ······································································································· 20

PPCR-SKST : Quick aach detail (ALL MODEL) ················································································ 21

PPCR34712-HD-JA-SKST: Parts detail ······················································22-26

PPCR34712-HD-JA-SKST: Structure detail ······················································ 27

INTRODUCTION

Back to table of contents

TO THE PURCHASER

All products are designed to give safe, dependable service if they are operated and maintained

according to instructions. Read and understand this manual before operation, and keep it in

your files for further reference.

This manual has been prepared to assist the owner and operators in the safe operation and suita-

ble maintenance of the equipment. The information is applicable to products at the time of manu-

facture and does not include modifications made afterwards.

Read and understand this operator's manual before attempting to put equipment into service. Fa-

miliarize yourself with the operating instructions AND ALL THE SAFETY RECOMMENDATIONS

contained in this manual and those labeled on the equipment and on the machine. Follow the safe-

ty recommendations and make sure that those with whom you work follow them.

TO THE DEALER

Give this manual to the owner upon delivery of the equipment.

TO THE PURCHASER AND THE DEALER

Illustrations

The illustrations may not necessarily reproduce the full detail and the exact shape of the parts or

depict the actual models, but are for reference only.

Direction Reference

All references to right and left, forward or rearward are from the operator seat.

To assist your dealer in handling your needs, please record hereafter the model number and serial

number of your equipment and machine. It is also advisable to supply them to your insurance

company. It will be helpful in the event that equipment or machine is lost or stolen

Product Category

MODEL:_______________________________________________________________________

SERIAL NUMBER:______________________________________________________________

DATE OF PURCHASE:___________________________________________________________

DEALER NAME:________________________________________________________________

DEALER TELEPHONE NUMBER:__________________________________________________

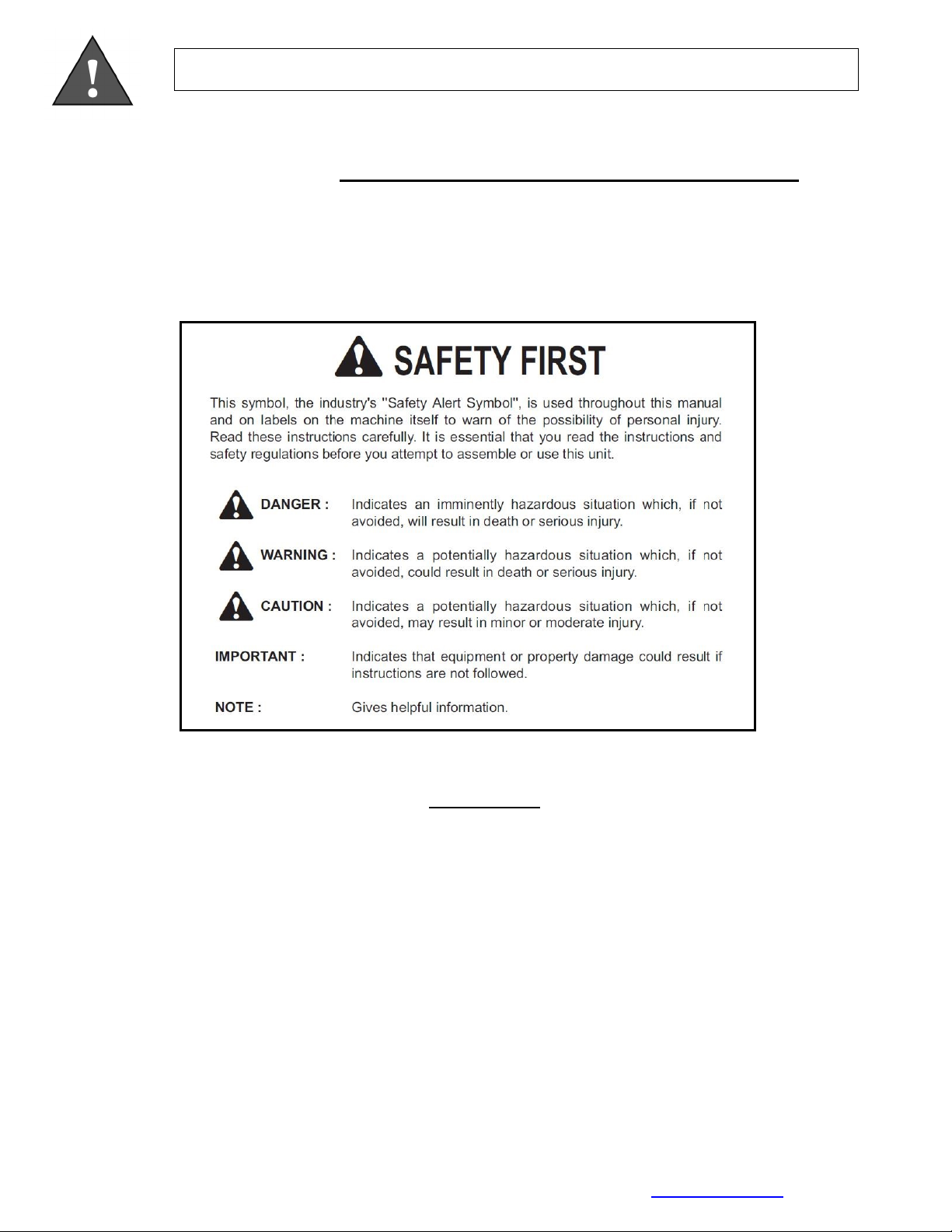

GENERAL SAFETY INFORMATION

Back to table of contents

All products are designed to give safe, dependable service if they are operated and main-

tained according to instructions. Read and understand this manual before operation. It is

the owner's responsibility to be certain anyone operating this product reads this manual, and

all other applicable manuals, to become familiar with this equipment and all safety precau-

tions. Failure to do so could result in serious personal injury or equipment damage. If you

have any questions, consult your dealer.

Legal Disclaimer

Cotech Corporation notes that specifications and technical information are subject to change without notice and Cotech does not

represent or warrant that the information in this publication is completely accurate or current; however, Cotech used reasonable

efforts to set forth and include accurate and up to date information in this publication. Cotech disclaims all representations and

warranties, whether express or implied, including, but not limited to, warranties of merchantability and fitness for a particular

purpose and Cotech shall not be liable for any damages, whether compensatory, direct, indirect, incidental, special, or

consequential, arising out of or in connection with the use of this publication, or the information therein.

The Product(s) described in this Publication are designed and manufactured only for the country in which they are initially

wholesaled by Cotech. Cotech does not provide parts, warranty or service for any Product which is re-sold or retailed in any

country other than the country for which the Product(s) were designed or manufactured.

GENERAL SAFETY INFORMATION

Back to table of contents

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are generally attracted to

machines and the work being done. Never assume children

will remain where you last saw them

1. Keep children out of the operating area and under

the watchful eye of another responsible adult.

2. Be alert and turn machine off if children enter the

work area.

3. Before and when backing, look behind for small chil-

dren.

4. Never carry children while operating the machine.

They may fall off and be seriously injured or interfere

with the safe operation of the machine.

5. Never allow children to play on the machine or at-

tachment even when the machine is turned off.

6. Never allow children to operate the machine even

under adult supervision.

7. Use extra care when approaching blind corners,

shrubs, trees, or other obstructions that might hide

children from sight.

Before Operation

1. Read and understand both the machine AND imple-

ment operator's manual before using the snowblow-

er. Know how to operate all controls and how to stop

the unit and disengage the controls quickly. Lack of

knowledge can lead to accidents.

2. Park the machine/implement on level ground, set the

parking brake, lower the implement to the ground,

place all control levers in neutral, shut off the engine

and remove the ignition key and allow the rotating

parts to stop BEFORE making any implement adjust-

ments, repairs or inspections.

3. Keep clear of all rotating parts. Do not put hands or

feet under, or into snowblower and subframe with

engine running.

4. For your safety, do not work under any hydraulically

supported machine elements, they may creep down,

suddenly drop or be accidentally lowered. Do not use

loader, quick hitch, or an implement as a jack for ser-

vicing.

Children

5. Do not operate the machine/implement that is

defective or has missing parts. Make sure that all

recommended maintenance procedures are

completed before operating the unit.

6. Keep the machine/implement clean. Snow, dirt

or ice build-up can lead to malfunction or person-

al injury from thawing and refreezing in garage.

Inspect and clean every rotating parts.

7. Do not modify or alter this implement or any of

its components, or any implement function with-

out first consulting your dealer. The manufactur-

er will not claim responsibility for fitment of unap-

proved parts and/or accessories and any dam-

ages as a result of their use.

8. Verify that all machine/implement safety protec-

tive devices are in place. Shields, guards and

covers must be correctly installed at all times.

When necessary to remove these for servicing,

cleaning, or repair work, they must be reinstalled

immediately.

9. Always make sure all implement components

are properly installed and securely fastened.

10. Check that all machine/implement drivelines are

in good working order.

11. Check for moving parts excessive wear regular-

ly. ALWAYS USE GENUINE PARTS WHEN RE-

PLACEMENT PARTS ARE REQUIRED.

12. Prior to operation, clear work area and mark all

curbs, pipes, etc. that cannot be moved.

13. Inspect the machine/implement after striking any

foreign object to assure that all machine/

implement parts are safe and secure and not

damaged.

14. Handle fuel with care, as it is highly flammable.

Use approved fuel container.

15. Never add fuel to a running engine or a hot en-

gine.

16. Fill fuel tank outdoors with extreme care. Never

fill fuel tank indoors. Replace fuel cap securely

and wipe up spilled fuel. Always refuel using a

properly grounded system.

GENERAL SAFETY INFORMATION

Back to table of contents

17. Check all machine controls regularly and adjust

where necessary. Make sure that the brakes are

evenly adjusted. Periodically check all nuts and

bolts for tightness, especially wheel hub and rim

nuts.

18. Make sure the machine is counterweighted and has

tire chains for better traction and stability as recom-

mended by your dealer. Weights provide the neces-

sary balance to improve stability, traction and steer-

ing. Use only those recommended by your dealer.

19. Prolonged exposure to loud noise can cause impair-

ment or loss of hearing. Wear a suitable hearing

protective device such as earmuffs or earplugs to

protect against objectionable or uncomfortable nois-

es.

During Operation

1. Never allow anyone to operate the machine and

implement until they have read the manuals com-

pletely and are thoroughly familiar with their basic

operation. Lack of operating knowledge can lead to

accidents.

2. Do not allow anyone to ride on the machine/

implement at any time. The only one allowed is the

operator that MUST sit in the driver seat.

3. Never allow anyone near the work area. The debris

that can be thrown could cause serious personal

injuries.

4. Never stand alongside of the implement while the

engine is running.

5. Never operate the implement without safety protec-

tive devices in place. All machine/implement

shields, guards and covers must be correctly in-

stalled at all times.

6. Keep clear of all rotating parts. Do not put hands or

feet under, or into the implement with engine run-

ning.

7. If the implement starts to vibrate abnormally,

disengage the PTO, stop the engine immedi-

ately and check for cause. Excessive vibration

is generally a sign of trouble.

8. Park the machine/implement on level ground,

place the transmission in neutral, set the park-

ing brake, disengage the driving system, lower

the equipment to the ground, place all levers

including auxiliary control levers in neutral, shut

off the engine and remove the ignition key BE-

FORE LEAVING THE MACHINE.

9. Always drive the machine at speeds compatible

with safety, especially when operating over

rough ground, crossing ditches, slippery sur-

face or when turning.

10. Operate only with good visibility and during

daylight hours, or when the area is well lit with

bright artificial light.

11. Do not run the engine indoors except when

starting engine and transporting attachment in

or out of building. Carbon monoxide gas is col-

orless, odorless and deadly.

12. Exercise extreme caution when operating on or

crossing a gravel drive, walks, or roads. Stay

alert for hidden hazards or traffic.

13. Use extra caution when backing up.

14. Operate up and down (not across) intermediate

slopes. Avoid sudden starts and stops.

15. Drive machine backwards up steeper slopes

with the implement off. Then operate as you

travel down the slope.

16. Never park the machine on a steep slope. Do

not attempt to operate on steep slopes. If oper-

ating on slopes is necessary, exercise extreme

caution when changing direction.

17. Disengage power to implement when

transporting or when not in use..

GENERAL SAFETY INFORMATION

Back to table of contents

MAINTENANCE

ALWAYS USE GENUINE PARTS WHEN REPLACE-

MENT PARTS ARE REQUIRED

1. Keep the machine and blade properly maintained.

2. Park the machine/blade on level ground, set the

parking brake, lower the blade to the ground,

place all control levers in neutral, shut off the en-

gine and remove the ignition key and allow the

rotating parts to stop BEFORE making any blade

adjustments

3. To avoid injury, do not service the blade when the

tractor engine is running.

4. Keep the machine/blade clean. Snow, dirt or ice

build-up can lead to malfunction or personal inju-

ry.

5. Always wear eye protection when cleaning or ser-

vicing the blade or frame

6. DO NOT service the machine while the engine is

running or hot, or if the unit is in motion. Always

lower blade to the ground. If necessary to service

blade in raised position, securely support with

stands or suitable blocking before working under-

neath. Do not rely on support devices already on

the machine for your safety. They can settle sud-

denly or be accidentally lowered or an oil leak can

occur.

7. The manufacturer will not assume responsibility

for fitment of unapproved parts and/or accessories

and any damages as a result of their use.

8. Make sure all shields and guards are securely in

place following all service, cleaning, or repair work

9. Do not modify this blade or any of its components

or operating functions. If you have questions con-

cerning modifications, contact your dealer.

10.Do not operate a unit that is defective or has miss-

ing parts. Make sure that all recommended mainte-

nance procedures are completed before operating

the unit.

11. Check all controls regularly and adjust

where necessary. Make sure that the

brakes are evenly adjusted.

12. Periodically check all nuts and bolts for

tightness, especially wheel hub and rim

nuts.

13. Stop engine and relieve pressure before

connecting or disconnecting hydraulic lines.

Tighten all connections before starting en-

gine or pressurizing lines.

WARNING: To avoid serious personal injury:

Escaping hydraulic/diesel fluid under pressure

can penetrate the skin causing serious injury.

• Do not use your hands to

check for leaks. Use a

piece of cardboard or pa-

per to search for leaks

• Stop engine and relieve pressure before con-

necting or disconnecting lines.

• Tighten all connections before starting engine

or pressurizing lines.

• If any fluid is injected into the skin, obtain

medical attention immediately or gangrene

may result.

(1) Hydraulic hose

(2) cardboard

(3) Magnifying glass

GENERAL SAFETY INFORMATION

Back to table of contents

GENERAL SAFETY INFORMATION

Back to table of contents

(1) Safety stand

(2) Secure point for safety stand

Back to table of contents

PPCR snow plows consist of two hydraulic extensions connected to a central blade. At the ends of each

of the extensions is a rotating side. The hydraulic extensions make it possible to choose the width of ac-

tion according to need. The rotating sides operated by a hydraulic cylinder allow the snow to be pushed

or pulled.

Using these snow plows with lighter or heavier equipment will affect safety, proper

operation and warranty.

DESCRIPTION

The ability to quickly switch from pushing snow to pulling, increases productivity and versatility of

the plow

• The rotating sides are very simple to use. No need for special training.

• The benefit of the sides rotating, is that you engage the full use of their capacity allowing you to move

a higher volume of snow.

• The front extensions of the PPCR are reinforced to remain absolutely rigid when open, resulting in

a seamless cleared pass

• The angled design is exclusive to Cotech. Its purpose is to minimizes the risk of frost buildup allowing for

continuous unhindered operation.

hydraulic extensions

central blade

rotating sides

Back to table of contents

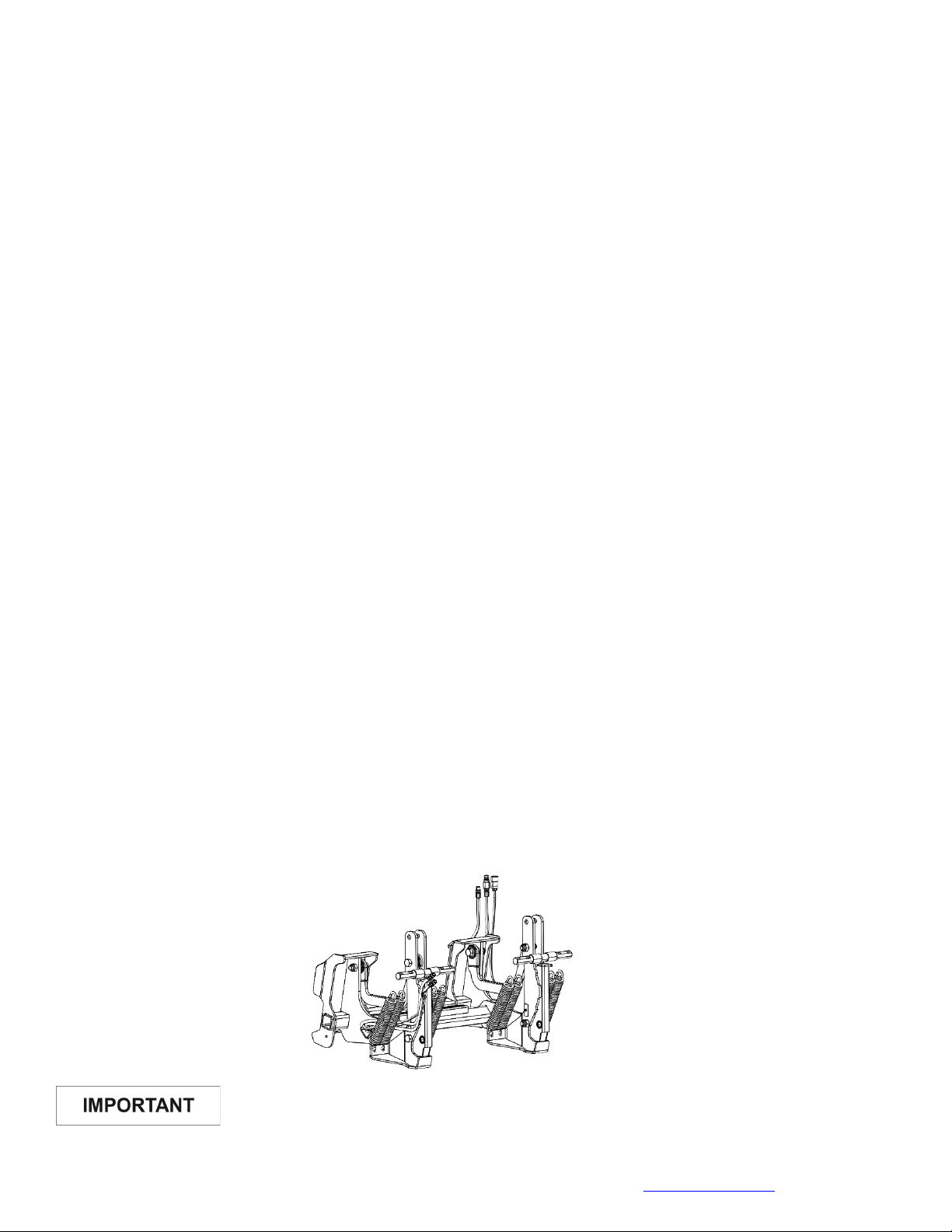

This snowplow is designed to be mounted on a skidsteer compact wheel or track loader.

The revolutionary PPCR-SKST skid steer attachment includes a mechanical float, a lateral

float system and a trip system, all in a single mechanism

• It absorbs the acceleration and deceleration of the skid steer while keeping constant

downward pressure

• It maintains constant pressure on the plow during the hopping motion of the skid

steer

• Optimizes the traction of the skid steer;

• Makes the skid steer easier to use and maneuver

• Makes the skid steer more comfortable for the operator and improves visibility

• Improves the quality of scraping

DESCRIPTION

trip system

mechanical float

skidsteer quick attach

Electrical and hydraulic connector

Back to table of contents

The snow plow hydraulic system is pre-charged with oil meeting ISO 32 standard.

To avoid contamination of the oil in your equipment, check and confirm that the

types of oil used are compatible before plug in the snow plow.

Check the oil level in the skid steer hydraulic system. Refer to your equipment's operation manual for in-

structions. Maintain the hydraulic oil level recommended by the manufacturer. Before checking the hy-

draulic oil level, make sure the hydraulic cylinders are full of oil. To do this, fully open and close the cylin-

ders of the implements connected to the tractor 3-4 times.

BEFORE FIRST USE

Model HP min-max Weight min-max (lbs) Quick attach

PPCR30610-SKST 45-65 4 000 to 5 000 Skidsteer

PPCR30712-SKST 45-65 4 000 to 7 000 Skidsteer

PPCR34712HD-SKST 65-115 7 000 to 12 000 Skidsteer

PPCR34813HD-SKST 95-115 8 000 to 14 000 Skidsteer

PPCR type snow plows must be installed on the correct skid steer loader. Refer to the table below:

MODEL vs MACHINE

INSTALLATION

Back to table of contents

RUNNING-IN

Safe and effective use of this snow plow requires operators to read and understand the

operation and safety procedures outlined in this manual.

PPCR series plows are designed to push and/or pull snow in a straight line. They allow you to maximize your

snow removal operations by allowing you to adjust the width of the plow according to the space available to cir-

culate. This function allows you to stretch the scraper in order to make fewer passes and thus save time. Depen-

ding on the amount of snow on the ground and the length of the terrain to be covered, you can adjust the width

of the plow to maximize its efficiency.

The SKST attachment system with these snow plows are equipped with a two-point mechanical floating position.

It is important to use this system when pushing the snow, it allows you to maintain perfect control over the opera-

tion of the equipment.

PRINCIPLE OF USE

Although there is no break-in specific to PPCR –SKST, there are mechanical checks that must be made to en-

sure the long term integrity of the unit. When using the machine for the first time, follow this procedure:

A. Before using:

1. Read the operator's manual.

2. Grease all the points indicated in the “maintenance” section.

3. Make sure all bolts and screws are in place and tight.

4. Visually check for hydraulic leaks.

B. After 2 hours of service and thereafter after 10 hours, 40 hours and 100 hours:

1. Check all hardware.

2. Make sure all bolts and screws are in place and tight.

3. Check all hydraulic connections and tighten them if necessary.

4. Follow the instructions in the maintenance section of the operator's manual.

To ensure proper operation in cold weather (-5°c and less), before operating, open and close the

scraper several times to warm the oil in the system.

IN COLD WEATHER

Back to table of contents

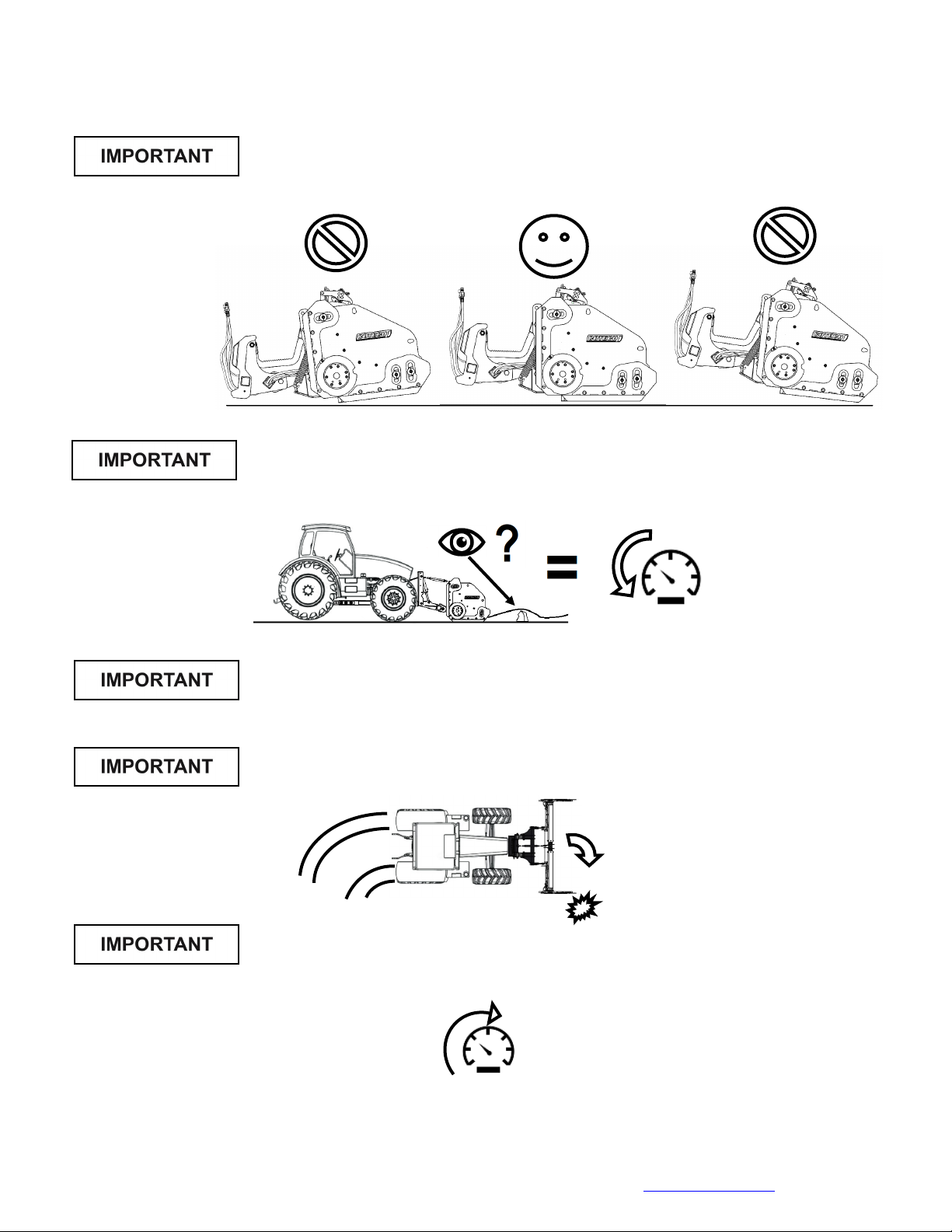

Operate the snow plow and equipment combination at a moderate operating speed. The safe oper-

ating speed is determined by the condition and size of the space to be cleared as well as the power

and size of the equipment. However, it must not exceed 25 km\h (15 mph)

To avoid damage to the snow plow, do not open or close the blade when it contains

snow or the trigger mechanism is engaged.

Remember that when driving or when plowing the snow plow is more susceptible to

damage when the extensions are open. When plowing an unfamiliar space, you

must take extra precautions such as traveling more slowly.

It is not recommended to make sharp turns during snow removal operations. In the

event of a collision with an obstacle, you risk damaging the rotating sides.

OPERATING SPEED

Never put pressure on the plow when one end is resting on a pavement or on an

elevated surface because you will damage the blades, the extendable sides as

well as the rotating sides of the plow.

Make sure that the blades of the PPCR plow are perpendicular to the ground. To exert

ground pressure with the plow, adjust the blade height with the loader control lever.

PRINCIPLE OF USE

Back to table of contents

• Read operator's manual and understand all safety items before operating or servicing machine.

• Place the machine on the ground, stop the engine, place all controls in neutral, set the parking brake

and remove the key from the ignition before servicing, adjusting or repairing.

• Clear the area of all bystanders and/or children when carrying out maintenance, repairs or adjustments.

• Use caution when working near or supporting a high pressure hydraulic system. Wear protective gloves

and goggles when looking for leaks. Use a piece of wood or cardboard, but not your hand, high pres-

sure oil can penetrate your skin. If this happens, you risk serious injury.

• Always relieve hydraulic pressure before disconnecting or working on the hydraulic system.

• Before applying pressure to the system, make sure all components are tight and lines, hoses and fit-

tings are not damaged.

SAFETY DURING MAINTENANCE

MAINTENANCE

Back to table of contents

• Make sure all screws and bolts are tight. Check according to the following number of hours of use: 2,

10, 40, then every 200 hours of use.

• Refer to "Parts" section for grade and bolt length of replacement parts.

• Do not substitute lock nuts with a combination of nuts and lock washers.

For repairs, call a qualified technician at your dealership.

Replace worn or damaged parts with genuine Cotech parts.

Keep all the parts clean and do not forget to grease them using the grease nipples

provided for this purpose.

• Remove all forms of snow, salt, calcium, sand, stone, etc. Washing snow removal equipment is the best

way to improve the life of paint and hydraulic, electrical and mechanical components.

BEFORE EACH USE

Before using, check:

• That all greasing points are lubricated

COMPONENT CHECK

AFTER EACH USE

• That the extension tubes are clean and lubricated

• That all components are firmly fixed.

• That the knives and hooves are in good condition.

• That the level of the hydraulic oil tank of the equipment is adequate.

• That all hydraulic connections are tight and tighten them if necessary

Back to table of contents

STORAGE

At the end of the season, wash and inspect all major parts of the snow plow. Repair or replace worn or dam-

aged components.

• Inspect all parts to see if anything is wrong. Repair or replace worn or damaged components.

• Lubricate all grease points to remove any moisture that may cause rust.

• Inspect all hydraulic hoses, fittings, lines and couplers. Tighten all fittings. Replace any cut, nicked or

damaged hoses. Touch up scratches with paint to prevent rust.

• Grease exposed hydraulic cylinder rods to prevent rust.

• Select a dry, level, and debris-free location for storage.

Back to table of contents

ISSUE SOLUTION

Rotating sides do not rotate.

Check the electrical operation of the hydraulic selector.

Check the hydraulic connections

It is possible that a mechanical failure prevents the ro-

tation. Check that the hydraulic cylinder is intact and

that it is still well fixed to the panel. Check that a me-

chanical part is not deformed and that it prevents free

rotation.

Only one rotating side rotates

Check the hydraulic connections

The two extensions do not close completely, but they

close as much as the other

Check that there is no ice accumulation in the slide

system. Melt as needed.

One of the two extensions does not close completely

It is possible that one of the seals of one of the cylinder

pistons is defective. Check that the two cylinders close

completely if the oil outlet is kept active for a few sec-

onds.

There is possibly an accumulation of ice in the slide

system. Melt as needed.

Inspect and if necessary replace the piston seals of the

two cylinders.

TROUBLESHOOTING

Back to table of contents

Recurring problems

If a defect or a series of defects in materials cannot be corrected or corrected by Cotech during the warranty period, the period of Warranty will continue for the specic

defect until the defect is resolved. This defect must have been previously reviewed by Cotech

Availability of parts

We are committed to offering Cotech dealers replacement parts for a period of at least 10 years after a model is discontinued. We do however encourage keeping certain

spare parts on hand to expedite repairs or general maintenance.

The payment of compensation for warranty work

1. Only the submission of the warranty claim form allows for compensation of parts or labor.

2. Work performed by the dealer is reimbursed based on the hourly rate of the dealer, up to a maximum of $ 100 / hour.

3. The time allocated for each repair will be determined by Cotech and will be indicated on the Warranty Purchase Order. This time includes among other factors, but

not exclusively, diagnosis, assembly and disassembly, cleaning, adjustments as well as the necessary workshop equipment used.

4. Cotech dealers can manufacture their own hydraulic hoses. The Cotech guarantee will then be limited to the cost of the Cotech item. In addition, Cotech does not offer

warranty on hydraulic hoses manufactured by the dealer.

Limited Warranty Terms

1. Cotech equipment will be repaired during the warranty period, free of charge, if the equipment malfunctions due to a defect caused by a design error, manufacturing, assembly

or defective parts.

2. Cotech’s limited warranty to the end user is limited to the repair or replacement of the defective parts only.

3. Cotech reserves the right to inspect any equipment or part that is the subject to a warranty claim.

4. Repair or replacement of warranty parts must be performed by an authorized Cotech Dealer. Cotech will not pay the cost of transportation for replacement parts covered under

warranty.

5. Cotech will not cover the transportation costs for any replaced parts or repairs made at the Cotech factory.

Exemptions from the Limited Warranty

The guarantee does not cover:

1. Used equipment, unless they have not yet reached the expiry date of the initial warranty period.

2. Equipment that, in Cotech’s judgment, was used for the wrong application, sold for the wrong sized equipment, abused or installed improperly.

3. Equipment that has been accidentally damaged or has not been properly maintained as recommended or in accordance with good practice.

4. Connecting parts not provided by Cotech which, in the sole judgment of Cotech, would affect the performance, durability, safety or stability of equipment.

5. Equipment that may have been modied or repaired without authorization outside the Cotech distributor network.

6. Towing fees, service calls, uid losses, etc.

7. Wear parts such as the cutting edge, skid shoes, bearings, hydraulic hoses, etc. Unless they have a manufacturing defect or have been poorly assembled by Cotech.

8. Liability for any damage (incidental or indirect) or injury, including but not limited to, loss of prots, lost time, equipment depreciation, replacement equipment rental fees or any

other damages, business or personal.

9. Damage caused by a natural disaster, such as a re, ood, earthquake, etc.

The Warranty Claim Process goes as follows

1. The Cotech dealer is responsible for making the claim on behalf of the end user and has 60 days to begin the claims process

2. Claims must be made using the warranty claim form available on the Cotech website. The form is only accessible to authorized dealers.

3. When the Cotech After-Sales Service receives the claim form, it will notify the dealer of the evaluation with 24hrs. If and when the claim is authorized, the dealer will receive a

warranty order form. In the case of a refusal, the dealer will receive a brief email explaining the circumstances and reasoning behind the decision.

4. Cotech allows minor repairs to be made by the dealer before the evaluation is completed. Minor repairs are dened by, but not limited to, the replacement of a hydraulic cylin-

ders, hydraulic hoses, etc. Major repairs must be approved by Cotech if a warranty claim is going to be made. Major repairs are dened by, but are not limited to, replacement,

repair or the modication to the structure or frame of the attachment.

5. If required, defective parts may need to be returned to the Cotech factory. If this is the case, the shipping costs will be incurred by Cotech. The dealer is committed to keeping the

parts and packing the parts for shipping at no additional cost.

All parts fabricated by Cotech 1 year from the time the item is sold by an authorized dealer to the end user

1 year on all items stocked and not sold at the authorized dealership. This warranty ends

at the time of the sale to the end user or 12 months after the billing date from Cotech,

whichever comes st.

Replacement parts 90 days on all replacement parts. This period is limited by the initial warranty date of the

equipment, whichever comes rst.

Item Length of Guarantee

The Limited Warranty Period

The guarantee corresponds to the following table:

COTECH LIMITED WARRANTY
