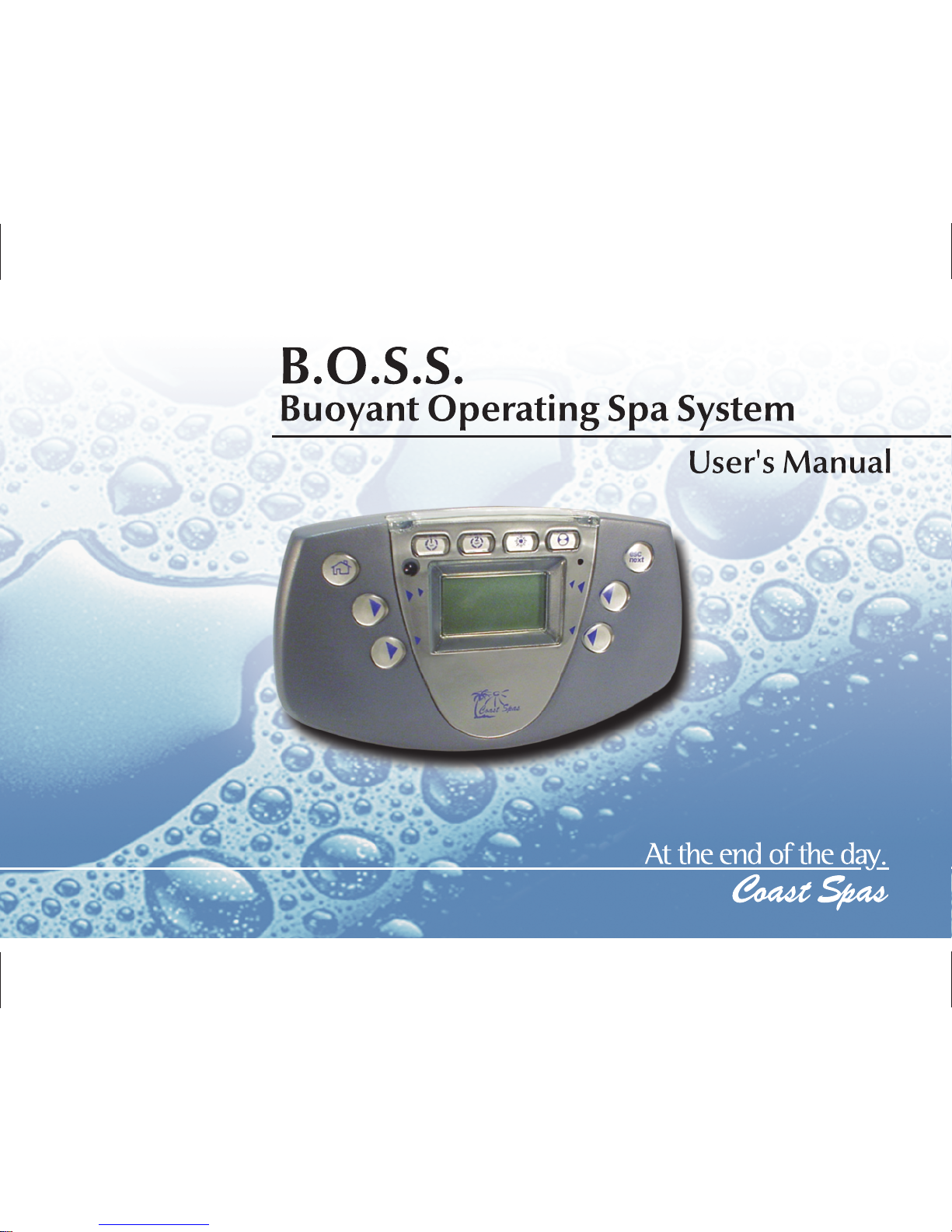

Coast Spas Buoyant Operating Spa System User manual

1
Coast Spas
GENERAL
• Introduction 5
• Remote keys 6
DEVICE SELECTION
• Main Modes 9
• Spa Mode 9
• TV Mode 9
• Compact Disc/Radio 9
• DVD/Video Mode 9
STATUS MONITOR WINDOW
• Reception Bar 11
• Status LED 11
SPA MODE
• Starting Pump 1 13
• Starting Pump 2 14
• Turning Light On 15
• Quiet Mode 16
SPA SETUP MENU
• Setting Time 17
TABLE OF CONTENTS

2
Buoyant Operating Spa System (B.O.S.S) User's Manual
3
Coast Spas
• Set Point 18
• Temperature Units 18
• Filter Cycle 19
• Economy Cycle 21
• Lock/Unlock 23
RADIO/CD MODE
• On/Source 25
• Volume +/- 25
• AM/FM 25
• Seek/Skip 25
DVD/VIDEO MODE
• Power On 27
• Play/Stop 27, 29
• Pause 27, 29
• Volume +/- 27
• Menu 28
• Language 28
• Subtitles 28
• Navigation Icon 28
• Skip Previous/Next 29
• Zoom 29
• Rewind 29
TABLE OF CONTENTS (CON’T.)

2
Buoyant Operating Spa System (B.O.S.S) User's Manual
3
Coast Spas
• Forward 29
TV MODE
• Power On 31
• Channels Up/Down 31
• Volume 31
• TV Input Options 32
REMOTE SETUP MODE
• Language 33
• Display setup 35
• Backlight 36
• Auto-Off mode 37
• Sleep mode 38
• Recharging batteries 39
HIERARCHY 41
TABLE OF CONTENTS (CON’T.)

4
Buoyant Operating Spa System (B.O.S.S) User's Manual
5
Coast Spas
IMPORTANT NOTE TO USER :
FCC and Industry Canada Regulations to use
Gecko in.K702 (B.O.S.S. handheld remote)
and in.terface.601(B.O.S.S. base unit)
RF communication devices.
This device complies with Part 15 of the FCC Rules and Industry Canada RSS210,
issue 5 for 915 MHz. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Please note that changes or modications not expressly approved by Gecko
Electronics could void the user’s authority to operate the equipment.

4
Buoyant Operating Spa System (B.O.S.S) User's Manual
5
Coast Spas
The B.O.S.S. handheld remote can control the
following devices:
• Spa
• Audio equipment (CD, Tuner)
• Video equipment (TV, VCR and DVD)
The B.O.S.S. handheld remote features the
following:
• Multifunction device keys
• Spa status monitoring from inside your home
• Data transmission up to 15 feet (must align remote in
front of spa receiver)
• Data reception up to 150 feet (distance may vary de-
pending on obstacles such as walls, etc. Should this
happen, try a different and more favorable location)
• Ergonomic design
• Floatable
• Totally sealed
• 3 “AAA” Ni-MH rechargeable batteries in watertight
compartment (remote control retains values even
after having replaced the batteries)
• Speed keys for quick and easy access to main spa
functions.
Congratulations! You own the industry’s best remote
control. Your control is waterproof and designed to
provide hours and hours of trouble-free usage.
For best results, please remove the control from the
water when the spa is not in use. Prolonged exposure to
the hot water in your spa may create humidity built-up
inside your control. This will not affect the operation of
the remote but it may alter its appearance.
Please read the instructions provided in this manual carefully
to ensure optimal use of your B.O.S.S. remote control.
GENERAL

6
Buoyant Operating Spa System (B.O.S.S) User's Manual
7
Coast Spas
Esc/Next key
The Esc/Next key
allows surng through
the various windows
and options of any
given menu. Also it
allows you to exit any
programming window
without saving any
changes and go back to
the previous screen.
GENERAL
Remote keys
Pump 2 key
Lower right
Multifunction key
Pump 1 key
Lower left
Multifunction key
Multifunction keys
Each of these four keys helps you to select and/or execute the indicated function (pointed by the arrows) displayed on
the screen in any given window. In this way, the task performed by a given multifunction key will vary depending on
the menu or window.
Home key
The Home key
allows surng through
the different menus
and submenus
from all features and
modes available with
this remote. Also it
allows you to exit any
programming window
without saving any
changes and go back
to the main Device
Selection screen.
Light key Quiet/Economy key
(see Economy section)
Upper right
Multifunction key
Upper left
Multifunction key
Mode
Selectable
option
Selectable
option
Selectable
option
Selectable
option

6
Buoyant Operating Spa System (B.O.S.S) User's Manual
7
Coast Spas
GENERAL
B.O.S.S. base unit
The B.O.S.S. base unit has been conveniently designed
to act as receiver-transmitter device as well as a battery
charging unit for the B.O.S.S. handheld remote control.
The B.O.S.S. base unit features the following:
• Built-in IR receiver and RF transmitter.
• Automatic recharge of the Ni-MH batteries used by
the handheld remote.
• Waterproof.

9
Coast Spas

9
Coast Spas
DEVICE SELECTION
Spa Mode
This menu allows the control
of the pumps and light as well
as the activation of diverse
programming modes. Various
icons become animated to let
you know present spa status.
TV Mode
This menu allows you to acti-
vate and control TV functions.
Compact Disc/Radio
This menu allows you to acti-
vate and control Radio/CD
functions.
DVD/Video Mode
This menu allows you to
activate and control DVD/
Video functions.
Main Modes
These four main menus allow access and control of the main devices controlled by this remote (to view the Device
Selection window, simply press the Home key).
Status LED

11
Coast Spas

11
Coast Spas
The spa monitor window is a graphical interface that
allows visualization at a distance of actual water tempera-
ture, the time of day and to easily monitor the state of
the pumps and light. When you activate any pump or the
light, its respective icon (displayed on the lower part of the
screen) becomes animated. Furthermore, information
messages may scroll on the Monitor Window to indicate a
spa function or condition such as:
• Heating
• Filtering
• Filtering suspended
• Economy
• Freeze condition-Pumps activated
• Low battery
• Problem detected-Call for service
• Call for maintenace
Reception Bar
Because it's possible to monitor spa status at a distance, the
icon lets you know the quality of the signal reception
(the waves on the icon become animated on data recep-
tion). Thus 3 full bars indicate optimal reception while
missing bars indicate a lost of signal. Please note that in
order to control any device you must align the remote in
front of the spa receptor.
STATUS WINDOW
Status LED
The Status LED monitors spa system and warns when
service is required. This red light (see page 9) informs
users if the remote's batteries are low (in which case the
low battery icon will also appear) or if a problem has been
detected and the spa should be checked before entering
its water. The status LED indicates conditions such as:
• Communication lost (out of range signal)
• Battery low
• Power outage
• Spa problem detected-Call for Service

13
Coast Spas

13
Coast Spas
SPA MODE
This menu allows control of the pumps and spa light,
as well as the activation of the Quiet mode. As a great
feedback feature every time a pump or the light is on,
its icon becomes animated on the Spa monitor window
to visualize present status of each of these outputs.
Furthermore if you like to stop all motor activity at once
you may do so by activating the Quiet mode (see Quiet
mode section).
Starting Pump 1
• Press Home key to display the Device Selection
window.
• Select Spa to view Spa menu.
• Select Pump 1 to turn Pump 1 on.
• Select Pump 1 repeatedly to control Pump 1.
The pump icon becomes animated in the monitor win-
dow when Pump 1 is running.
A built-in timer turns Pump 1 off after a certain period
of time unless manually deactivated rst. For more in-
formation please refer to the QRC provided by your
dealer.
Pump 1 icon

14
Buoyant Operating Spa System (B.O.S.S) User's Manual
15
Coast Spas
SPA MODE
Starting Pump 2
• Press Home key to display the Device Selection
window.
• Select Spa to view Spa menu.
• Select Pump 2 to turn Pump 2 on.
• Select Pump 2 repeatedly to control Pump 2.
As a feedback feature, the pump icon becomes animated
when Pump 2 is running.
A built-in timer turns Pump 2 off after a certain period of
time unless manually deactivated rst. Pump 2 icon

14
Buoyant Operating Spa System (B.O.S.S) User's Manual
15
Coast Spas
SPA MODE
Turning Spa Light On
To control the spa's variable intensity light or ber lighting
with your remote control:
• Press Home key to display the Device Selection window.
• Select Spa to view Spa menu.
• Select Light to turn light on.
• Select Light repeatedly to control light intensity.
As a feedback feature, the light icon becomes animated
when light is on. A built-in timer turns light off after a
certain period of time, unless manually deactivated rst.
If the spa is equipped with a ber box or led
lighting
• Pressing Light key once turns light box on.
• Pressing a second time freezes light in one color.
• Pressing a third time turns light box off.
Light icon

16
Buoyant Operating Spa System (B.O.S.S) User's Manual
17
Coast Spas
SPA MODE
Quiet Mode
When this feature is activated it allows you to stop both
pumps at the same time by a simple click of a button!
(light, audio and TV features will remain active).
• Press Home key for the Device Selection window
to show.
• Select Spa to view Spa menu.
• Select Quiet to activate this mode.
The Quiet mode icon ashes when this mode is on.
Should you press any (pump) keys when Quiet mode is
on, a message will be displayed.
• To return to Normal mode, repeat same procedure
described above. Please note that the system auto-
matically returns to Normal mode after a certain
period of time, unless the Quiet mode has been
reactivated.
Quiet icon

16
Buoyant Operating Spa System (B.O.S.S) User's Manual
17
Coast Spas
This mode features user-friendly submenus that allow time
setting, regulation of water temperature, temperature
display unit setting, Filter cycle programming, as well as
Economy mode setting and visualization of spa status.
Setting Time
To set the time in your spa with your remote control:
• Press Home key for the Device Selection window to show.
• Select Spa to access the spa menu.
• Press Esc/Next key to view spa parameters.
• Select Clock icon to view time options.
• Use Hours to select option.
• Use +/- to set the hour.
• Use Minutes to select option.
• Use +/- to set the minutes.
• Select Accept to conrm choice.
• Answer Yes to the question "Are you sure?" to apply
changes or simply press Cancel to go back to Spa menu
without saving any changes.
SPA SETUP MENU

18
Buoyant Operating Spa System (B.O.S.S) User's Manual
19
Coast Spas
SPA SETUP MENU
Setting Set point & Temperature Units
To regulate water temperature with your remote:
• Press Home key for the Device Selection window to show.
• Select Spa to access the spa menu.
• Press Esc/Next to view spa parameters.
• Select Temp icon to access Temperature options.
• Select ˚C ˚F to toggle between ˚C (Celsius) and
˚F (Fahreheit) and vice versa.
• Use +/- to increase or decrease water temperature by
1-degree increments.
• Select Accept to conrm choice.
• Answer Yes to the question "Are you sure?" to apply
changes or simply press Cancel to go back to Spa menu
without saving any changes.

18
Buoyant Operating Spa System (B.O.S.S) User's Manual
19
Coast Spas
SPA SETUP MENU
Filter Cycle
You can program two lter cycles per day (cycle 1 and
cycle 2). A lter cycle consists in the activation of all
pumps for one minute, then Pump 1 runs at low speed
for the preprogrammed number of hours. To set the
lter cycles, you must enter two parameters: the start
time and the duration.
• Press Home key for the Device Selection window to show.
• Select Spa to access the spa menu.
• Press Esc/Next key twice to view Spa modes.
• Use Filter to select desired lter cycle to program
(cycle1 or cycle 2).
• Use Cycle to select select the desired parameter to
modify: Start time or Duration, the setting proce-
dure is the same.
