TubLicious™
6315-202 Street, Langley, British Columbia, V2Y 1N1
www.tublicious.com
OWNERS GUIDE
to Years of Enjoyment in your TubLicious™ Hot Tub

Contents
Important Safety Instructions……………………………………………………… Page 3
Read and Follow All Instructions Page 3
Hyperthermia Page 4
Cautions and Warning Signs Page 5
Setup and Delivery Guidelines…………………………………………………….. Page 6
Location of your new Hot Tub Page 6
Electrical Requirements Page 6
Start-up Instructions……………………………………………………………………. Page 7
Filling your Hot Tub Page 7
Control Panel Page 7
Initial Start up of Pump Page 7
Filter Maintenance………………………………………………………………………. Page 8
Draining and Winterizing your Hot Tub…………………………………………. Page 8
MP3 Player Option………………………………………………………………………. Page 10
Water Quality Maintenance…………………………………………………………. Page 10
Product Care………………………………………………………………………………... Page 12
Cover Care Page 13

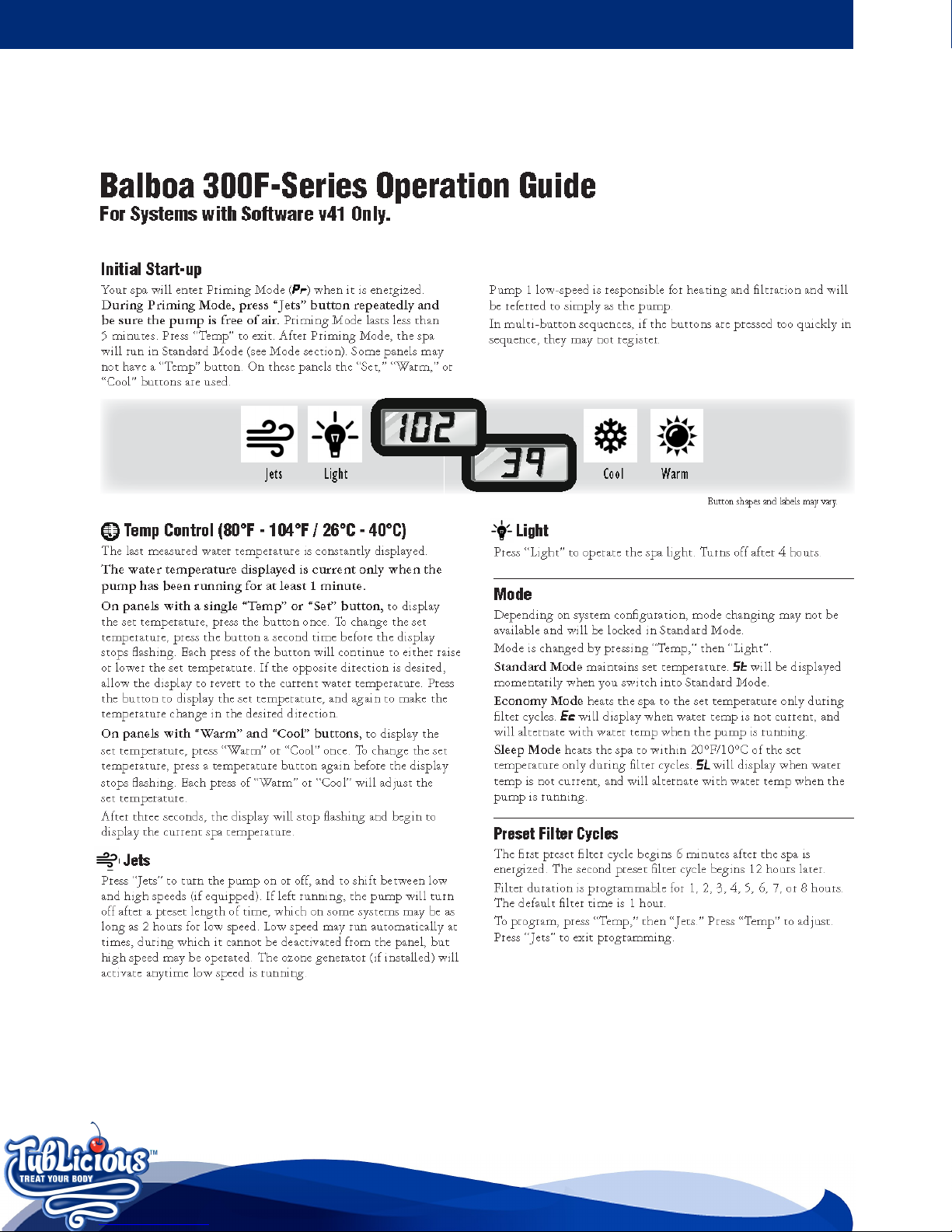

Hot Tub Control Panel………………………………………………………………….. Page 14
Control Panel—Diagnostic Messages Page 15
Glossary of Terms…………………………………………………………………………. Page 16
Troubleshooting Guide…………………………………………………………………. Page 17

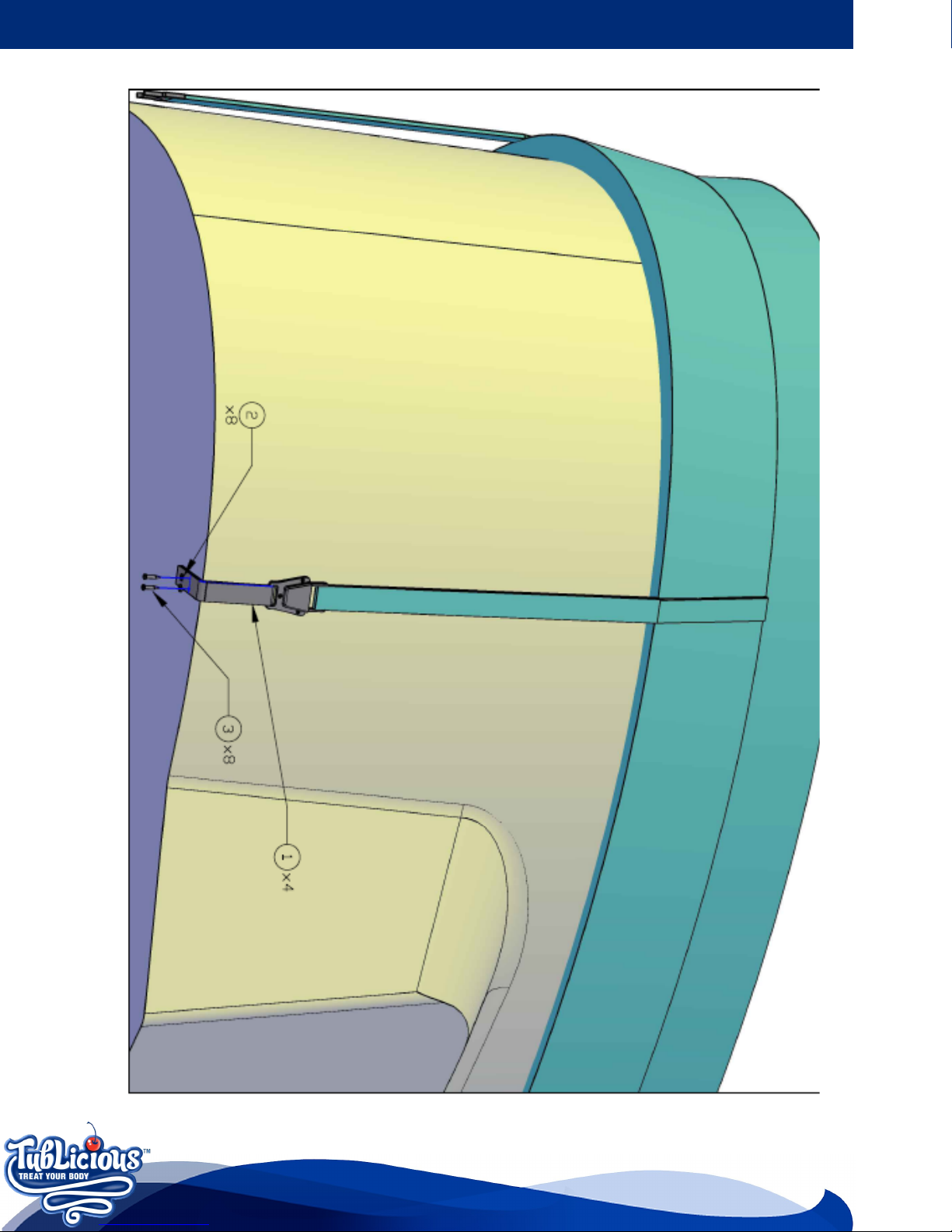

Cover Tie Down Strap Installation…………………………………………………. Page 19
TubLicious™ Limited Warranty………………………………………………………. Page 21
TubLicious™ Layout……………………………………………………………………….. Page 23
TubLicious™ Equipment Area………………………………………………………… Page 24
TubLicious™ Standard Features……………………………………………………… Page 25
TubLicious™ Filter Replacement…………………………………………………….. Page 26
2

Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
1 DANGER: Risk of Injury. The suction fitting in this hot tub is sized to match the specific
water flow created by the pump. Should the need arise to replace the suction fitting or the
pump, be sure that the flow rates are compatible. Never operate the hot tub if the suction
fitting is broken or missing. Never replace a suction fitting with one rated less than the flow
rate marked on the original suction fitting. (Refer to Page 25)
2 ELECTRICAL SUPPLY (if connecting to 240VAC): The electrical supply for this product must
include a suitable rated switch or circuit breaker to open all ungrounded supply conductors to
comply with section 422-20 of the National Electrical Code, ANSI / NFPA 70. The disconnect
must be readily accessible and visible to the hot tub occupant but installed at least 5 feet (1.5
m) from the hot tub water.
3 WARNING: To Reduce Risk of Injury:
a) The water in a hot tub should never exceed 104° F (40°C). Water temperatures
between 100° F (38° C) and 104° F (40° C) are considered safe for a healthy adult.
Lower water temperatures are recommended for young children and when hot tub
use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage
during the early months of pregnancy, pregnant or possible pregnant women should
limit hot tub water temperatures to 100° F (38° C). If pregnant, please consult your
physician before using a hot tub.
c) Before entering the hot tub, the user should measure the water temperature with
an accurate thermometer since the tolerance of water temperature-regulating devices
may vary as much as +/-5° F (2° C)
d) Persons suffering from obesity or a medical history of heart disease, low or high
blood pressure, circulatory system problems or diabetes should consult a physician
before using a hot tub.
SAFETY INFORMATION
When using this electrical equipment , basic safety precautions should always be followed,
including the following:
WARNING: Children should not use hot tubs without adult supervision
WARNING: Do not use hot tubs unless all suction guards are installed to prevent body and
hair entrapment.
WARNING: People with infectious diseases should not use a hot tub.
WARNING: To avoid injury, exercise care when entering or exiting the hot tub.
WARNING: Do not use drugs or alcohol before or during the use of a hot tub to avoid
unconsciousness and possible drowning.
WARNING: Pregnant or possible pregnant women should consult a physician before using a
hot tub.
WARNING: Water temperature in excess of 100° F (38° C) may be injurious to your health.
3

Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CONTINUED
WARNING: Before entering the hot tub, measure the water temperature with an accurate
thermometer.
WARNING: Do not use a hot tub immediately following strenuous exercise.
WARNING: Prolonged immersion in a hot tub may be injurious to your health.
WARNING: Do not permit electric appliances (such as lights, telephone, radio, television etc.)
within 5 feet (1.5 m) of this hot tub unless such appliances are built-in by the manufacturer.
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in
hot tubs.
WARNING: People using medication and / or having an adverse medical history should consult
a physician before using a hot tub.
CAUTION: Maintain water chemistry in accordance with the manufacturer's instructions.
READ, FOLLOW AND SAVE THESE INSTRUCTIONS (if connecting to 240VAC)
a) A green colored terminal or a terminal marked G, Gr, Ground, Grounding or the
symbol * is located inside the supply terminal box or compartment. To reduce the risk
of electric shock, this terminal must be connected to the grounding means provided in
the electric supply service panel with a continuous copper wire equivalent in size to the
circuit conductors that supply this equipment.
b) At least two lugs marked ‘Bonding Lugs’ are provided on the external surface or on
the inside of the supply terminal box / compartment. To reduce the risk of electrical
shock, connect the local common bonding grid in the area of the hot tub to these
terminals with an insulated or bare copper conductor not smaller that No. 6 AWG.
c) All field installed metal components such as rails, ladders, drains or other similar
hardware within 5 feet (1.5 m) of the hot tub shall be bonded to the equipment
grounding buss with copper conductors not smaller than No. 6 AWG.
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A description of the causes,
symptoms, and effects of hyperthermia are as follows:
Hyperthermia occurs when the internal temperature of the body reaches a level several
degrees above the normal body temperature of 98.6° F (37° C). The symptoms of
hyperthermia may include drowsiness, lethargy and an increase in the internal temperature of
the body.
The effects of hyperthermia include:
a) Unawareness of impending hazard;
b) Failure to perceive heat;
c) Failure to recognize the need to exit hot tub:
d) Physical inability to exit hot tub
d) Fetal damage in pregnant women; and
e) Unconsciousness and danger of drowning
4

Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CONTINUED
CAUTIONS
1. Observe a reasonable time limit when using the hot tub. Long exposures at higher
temperatures can cause high body temperature. Symptoms may include dizziness, nausea,
fainting, drowsiness, and reduced awareness. These effects could result in possible
drowning.
2. Always test the hot tub water temperature before entering the hot tub. Enter and exit the
hot tub slowly. Wet surfaces can be very slippery.
3. Proper chemical maintenance of hot tub water is necessary to maintain safe water and
prevent possible damage to hot tub components.
4. For exercise, the water should not exceed 90° F (32° C).
5. Use the straps and clip tie downs to secure the cover when not in use. This will help
discourage unsupervised children from entering the hot tub and keep the hot tub cover
secure in high-wind conditions. There is no representation that the cover, clip tie-downs,
or actual locks will prevent access to the hot tub.
WARNING SIGNS
Your TubLicious Hot Tub has been labeled with an important Warning Label. This label should
be permanently placed in a location that is visible to the TubLicious user.
WARNING
WARNING
DURING PREGNANCY, SOAKING IN HOT WATER MAY CAUSE DAMAGE TO
THE FETUS. LIMIT USE TO 10 MINUTES AT A TIME.
PREVENT DROWNING
SPA HEAT SPEEDS UP EFFECTS OF
ALCOHOL, DRUGS, OR MEDICINE AND CAN
CAUSE UNCONSCIOUSNESS.
IMMIDIATELY LEAVE SPA IF
UNCOMFORTABLE OR SLEEPY.
PREVENT CHILD DROWNING
WATER ATTRACTS CHILDREN. ALWAYS
ATTACH A SPA COVER AFTER EACH USE.
PREVENT DROWNING
1. SUPERVISE CHILDREN AT ALL TIMES
2. ATTACH SPA COVER AFTER EACH USE.
3. SPA HEAT CAN CAUSE HYPERTHERMIA
AND UNCONSCIOUSNESS
4. SPA HEAT IN CONJUCTION WITH
ALCOHOL, DRUGS, OR MEDICATION CAN
CAUSE UNCONSCIOUSNESS.
PREVENT ELECTROCUTION
1. NEVER PLACE ANY ELECTRIC APPLICANCE
WITHIN 5 FEET OF SPA
NOTE: THIS MARKING IS TO BE REMOVED BY THE OWNER ONLY
5

Getting ready for delivery and setup of your new TubLicious Hot Tub
Before you begin to enjoy your TubLicious Hot Tub please read the following instructions
thoroughly. Your TubLicious Hot Tub is light weight and portable making it easy to enjoy
almost anywhere you want! Your deck, boat dock, beside your RV or even in your home.
Just make sure that it is above ground on a level surface and that the equipment
compartment is easily accessible.
While most hot tubs require a level concrete pad to sit on your TubLicious Hot Tub does not.
If you are considering placing your hot tub on a raised deck or indoors we recommend you
consult with a licensed contractor to confirm the area will hold a TubLicious Hot Tub that is
filled with water.
LOCATION OF YOUR NEW HOT TUB: Some points to consider
How close is the hot tub from the exit or entrance to your house? (Consider the cold
weather)
Is the path to the hot tub clean of debris, sand, grass and clippings? (So as not to track
into hot tub)
Is there protection from wind, inclement weather?
Can neighbors or passersby see the hot tub?
If your hot tub is to be placed near where sprinklers may hit the skirt, shell or
equipment, please adjust or cap them to prevent prolonged water exposure.
ELECTRICAL REQUIREMENTS: TUBLICIOUS USES A 120 VOLT ELECTRIC SPA PACK
IMPORTANT: About the GFCI Circuit Interrupter - The GFCI (Ground Fault Circuit Interrupter)
is an electrical safety switch that automatically shuts off power to the hot tub in case of an
electrical malfunction. The GFCI should be OFF before TubLicious is filled. Manually turn off
power to the hot tub any time by using the GFCI. Push the switch to the OFF position. After
turning off the GFCI check to see that the topside control panel window is blank to confirm the
power is off. When you want to turn the power back on reset the GFCI by returning the switch
to the ON position. Do not use your TubLicious Hot Tub until you understand the operation of
the GFCI.
The GFCI is in the 120V cord. The cord comes out from the rear right side of the spa. The out-
let that you connect the TubLicious to must be rated at 120 volts and 15 amperes. (Refer to
Page 23)
NOTE: You may convert your TubLicious to 220V. If converted you must install a 40 amp GFCI
breaker. This must be done by a Licensed Electrician. Minimum wire size is #8. All
connections must conform to local electrical codes. Power connections, and control jumper
settings are contained in the wiring diagram inside the control box cover.
Set Up & Delivery Guidelines
NOTE: If you install your TubLicious Hot Tub indoors make sure that the surrounding area is
waterproof or water resistant. During normal usage water may be splashed out of the hot
tub. CSMI is not responsible for any water or humidity damage to any indoor location for
any reason.
6

Start Up Instructions
FILLING YOUR TUBLICIOUS HOT TUB
Your new hot tub has left the factory cleaned and polished. You may have to clean out
any dirt that has accumulated during shipping. Use warm water and a sponge or cloth.
Be sure that all fittings are connected, secure and hand tightened in the equipment
area (Refer to picture on Page 24). Your TubLicious hot tub is shipped with fittings
disconnected to ensure no damage or freezing occurs during the hot tub’s route from
our factory to your home.
Fill your TubLicious hot tub with your garden hose. Place the hose inside the skimmer/
filter canister and secure the hose in place. Filling through the filter helps to allow most
of the trapped air in the pumps and heater to be eliminated. (Refer to Page 23)
Note: TubLicious recommends that you do not fill your hot tub with hot water.
Excessively hot water (over 107°F) may cause damage to components in the spa pack
as well as all plastic and acrylic components.
Also: Do not fill your hot tub with water from a water softener. If your water is
extremely hard your TubLicious dealer can help you to remedy this problem.
Continue filling the hot tub to half (3/4) way up the skimmer opening. Remove the
hose and close the filter canister. (See Filter Maintenance Section)
CONTROL PANEL
Please read the CONTROL PANELS Card (See pages 14-15) pertaining to the hot tub topside
control and control box supplied with your unit. This must be done before starting up your hot
tub to prevent any damage to the unit.
INITIAL START-UP OF PUMP
Turn power off at the breaker.
Ensure all union fittings are tightened (Refer to Page 24)
Turn power on at GFCI, mounted in cord. Turn on pump. If circulation is not visible,
turn off pump #1, open bleeder valve on top of pump and allow air to escape until wa-
ter comes out steadily. Re-tighten bleeder valve (finger tight only). Note: Bleeder valve
only needs to be loosened and not completely removed (Refer to Page 24). If there is
still no circulation, gently loosen the pump union until only water is present and no air.
Allow pump to circulate for 2-3 minutes before activating heater.
WARNING: RUNNING THE PUMPS WITH NO WATER CIRCULATING IN HOT TUB, COULD
DAMAGE THE PUMPS AND PUMP SEALS
7

Filter Maintenance
Filtration starts as soon as flow is steady through the filter. As the filter cartridge removes the
dirt from the hot tub water, the accumulated dirt causes flow resistance.
CLEANING AND REPLACING FILTER CARTRIDGE
Your hot tub has been designed for quick and easy maintenance. The filter cartridge should be
rinsed by hose once a week and cleaned with a cartridge cleaner once a month. A second filter
cartridge is recommended and will speed up the process. This can be purchased from your
TubLicious dealer.
FRONT ACCESS SKIMMER / FILTER
Turn power OFF at the GFCI mounted
in the cord.
Pull open skimmer weir door.
Reach in and remove skimmer basket.
Pull straight up and out to remove
basket. Clean out debris and reinstall.
Remove diverter plate.
Remove filter cartridge.
Clean with a garden hose and high-
pressure nozzle. Periodically you may need to soak your filter in a cartridge filter
cleaner to remove excess minerals and or oils. You can purchase this cleaner from your
TubLicious dealer.
Rinse filter thoroughly before installing.
Reverse this procedure to re-install the filter cartridges.
Put pump #1 on low speed. This will help pull the cartridges into place.
DRAINING YOUR TUBLICIOUS HOT TUB
After a period of 3-4 months, detergent residues from bathing suits and soap film will build up
in your hot tub water. Once this happens, your hot tub water will appear cloudy and should
probably be replaced.
Turn power OFF at the GFCI breaker mounted in the cord.
Locate the spa drain on the rear left side of the spa and attach garden hose Refer to
Page 23).
Remove the safety cap and attach garden hose. Pull outward on the garden hose. This
will open the drain valve fully.
Drain water to a convenient area. (Hot Tub water may harm grass or plants if sanitizer
levels are high).
Your TubLicious will drain except for a small portion left in the foot well. This can be
removed with a sponge and a pail.
Draining and Winterizing your Hot Tub
8

Draining and Winterizing your Hot Tub
DRAINING YOUR TUBLICIOUS HOT TUB CONT.
Once empty, clean as required. (Refer to Page 12 for cleaning recommendations)
. To finish remove garden hose and close spa drain and attach safety cap.
REFILLING YOUR TUBLICIOUS HOT TUB
Please follow the instructions on page 7, filling your hot tub.
Follow start up instructions on Page 7.
WINTERIZING
If it is necessary to leave your hot tub unattended for long periods of time during cold weather
conditions, you should drain your hot tub to avoid accidental freezing caused by power
outages. Your TubLicious dealer can perform the following winterizing procedures if you are
not completely comfortable with them.
Refer to DRAINING YOUR TUBLICIOUS HOT TUB section on Page 8.
After draining, your TubLicious hot tub may still have water remaining in the
equipment and plumbing fittings. Disconnect the hand tightened union fittings going to
and from the pump (Refer to Page 24). Be careful not to lose the o-rings between the
unions and pump housing.
Leave drain valve in the open position and safety cap off.
To completely drain the plumbing lines, a wet/dry shop vac can be used to draw out
any remaining water. Place the vac hose over the jet fittings in the hot tub as well as
the plumbing lines in the equipment area.
Remove the filter cartridge and store in a warm dry area.
Clean the spa shell and place hot tub cover on hot tub. Be sure to lock the cover in
place in case of high winds or rain.
EMERGENCY SITUATIONS: To eliminate freezing in the event of equipment failure, use a 100-
watt light bulb or small heater via extension cord and place it in the equipment area, keeping
it away from plumbing lines. This will help for a short period of time until proper service can
be rendered.
SPRINGTIME START UP
If you winterized your TubLicious Hot Tub we recommend you contact your authorized
TubLicious Service Provider to restart your unit.
9

MP3 Player Option
MP3 Player
Your TubLicious Hot Tub may be equipped with an optional MP3 Player option for your
enjoyment.
Locate adapter jack inside the MP3 docking station
Plug MP3 Player line into adapter jack (wire found in Start-up chemical bucket)
Use MP3 Player as per normal to choose songs and set volume levels
Place MP3 Player in docking station and close door
Maintaining the quality of the water within the specified limits will serve to enhance your
enjoyment and prolong the life of the hot tub’s equipment. It is a fairly simple task, but it
requires regular attention because the water chemistry involved is a balance of several
factors. There is no simple formula and there is no avoiding it. A careless attitude in regard to
water maintenance will result in poor and potentially harmful conditions for soaking and even
damage to your hot tub investment. For specific guidance on maintaining water quality,
consult your Authorized TubLicious Dealer who can recommend appropriate chemical
products for sanitizing and maintaining your hot tub.
CAUTION: Never store hot tub chemicals inside the hot tub’s equipment area.
pH Control:
pH is a measure of relative acidity or alkalinity of water and is measured on a scale of 0 to 14.
The midpoint of 7 is said to be neutral, above which is alkaline and below which is acidic. In
hot tub water, IT IS VERY IMPORTANT TO MAINTAIN A SLIGHTLY pH CONDITION OF 7.2 to 7.8.
After filling the spa with water, check chemical levels using test strips provided with the start-
up chemical bucket. There are 2 packages, each 100 grams (pH PLUS and pH MINUS). If the pH
is below 7.2 you will need to add 5 grams of pH PLUS into the hot tub water when the pump is
running. If the pH is above 7.8 add 5 grams of pH MINUS into the hot tub water when the
pump is running. Do not use the hot tub for 20-30 minutes, let the chemicals dissolve into the
water. Check chemicals again and add more if required.
NOTE: 1 teaspoon = 10 grams
Problems become proportionately severe the further outside of this range the water gets. A
low pH will be corrosive to metals in the hot tub equipment. A high pH will cause
minerals to deposit on the interior surface (scaling). In addition, the ability of the sanitization
agents to keep the hot tub clean is severely affected as the pH moves beyond the ideal range.
That is why almost all hot tub water test kits contain a measure for pH as well as sanitizer.
READ THE LABEL ON THE CHEMICAL PACKAGES BEFORE USING
Water Quality Maintenance
10

Sanitizing:
To destroy bacteria and organic compounds in the hot tub water, a sanitizer must be used
regularly, either chlorine or bromine. Bromine residual of 3 to 5 ppm is generally considered
desirable. A two-part bromine system or granular chlorine (Dichlor) can also be acceptable
sanitizers. Chlorine residual should be 1 to 3 ppm. After filling the spa with water, check
chemical levels using test strips provided with the start-up chemical bucket. There is a 100
gram chlorine package in the start-up chemical bucket. If chlorine is below the recommended
range add 5 grams of CHLOR into the hot tub water when the pump is running. Do not use the
hot tub for 20-30 minutes, let the chemicals dissolve into the water. Check chemicals again
and add more if required.
NOTE: 1 teaspoon = 10 grams
READ THE LABEL ON THE CHEMICAL PACKAGES BEFORE USING
Alkalinity:
Alkalinity booster (ALK UP) is used to raise the total alkalinity in the spa water. The total alka-
linity reading is a very important part of water balance. Total alkalinity should be maintained
between 100 to 120 ppm. After filling the spa with water, check chemical levels using test
strips provided with the start-up chemical bucket. There is a 100 gram Alkalinity UP package in
the start-up chemical bucket. If Alkalinity is below the recommended range add 9 grams of
ALK UP into the hot tub water when the pump is running. Do not use the hot tub for 20-30
minutes, let the chemicals dissolve into the water. Check chemicals again and add more if
required.
NOTE: 1 tablespoon = 18 grams
READ THE LABEL ON THE CHEMICAL PACKAGES BEFORE USING
Calcium Hardness:
Calcium Hardness is used to raise the Calcium Hardness in the spa water. Low calcium can lead
to corrosion. Calcium Hardness should be maintained between 150 to 250 ppm. After filling
the spa with water, check chemical levels using test strips provided with the start-up chemical
bucket. There is a 100 gram CALCIUM HARDNESS UP package in the start-up chemical bucket.
If Calcium Hardness is below the recommended range add 45 grams of CAL UP into the hot tub
water when the pump is running. Do not use the hot tub for 20-30 minutes, let the chemicals
dissolve into the water. Check chemicals again and add more if required.
NOTE: 1 tablespoon = 18 grams
READ THE LABEL ON THE CHEMICAL PACKAGES BEFORE USING
Water Quality Maintenance 11

Stain and Scale:
Stain and Scale is used to prevent and eliminate scale in the spa water. Stain and Scale should
be added initially when the spa is filled as well as weekly for preventative maintenance. For
initial application add 30ml of STAIN AND SCALE into the spa water directly. Stain and Scale
should be added while the spa is being filled. Turn the pump on to circulate the water for at
least 1 hour before adding any other chemical to ensure that it has had time to react in the
water. Weekly maintenance 15ml of STAIN AND SCALE into the spa water. Do not use the hot
tub for 20-30 minutes, let the chemicals dissolve into the water.
READ THE LABEL ON THE CHEMICAL PACKAGES BEFORE USING
IMPORTANT: Do not use Hydrogen Peroxide based sanitizers in your hot tub. When using
Trichlor chlorine or Bromine tablets you must use a floating dispenser. These chemicals can
have an extremely corrosive effect on certain materials in the hot tub. Damage caused by the
use of these chemicals, or improper use of any chemicals is not covered under the hot tub’s
warranty.
Other Additives:
Many other additives are available for your hot tub. Some are necessary to compensate for
out-of balance water, some aid in cosmetic water treatment and others simply alter the feel or
smell of the water. Your Authorized TubLicious Dealer can advise you on the use of these
additives.
Your Authorized TubLicious Dealer carries a wide variety of care and maintenance products.
For more information please contact your TubLicious Dealer.
HOT TUB INTERIOR
Your TubLicious hot tub has a fiberglass reinforced acrylic shell. Generally dirt and stains will
not adhere to the surface. To properly clean the surface, we recommend wiping it with a soft
damp cloth (or sponge) using household soap or liquid detergent and rinsing thoroughly with
fresh water. Stubborn dirt or stains may be removed by using Spic & Span adequately
dissolved in water.
DO NOT use any cleaning products containing abrasives or solvents, since these could damage
the surface. Harsh chemicals should never be used on acrylic surfaces. Damage to the shell
due to the use of harsh chemicals is not covered under warranty.
Water Quality Maintenance 12
Product Care Guide

STAINLESS STEEL CONTROLS AND COMPONENTS ABOVE THE WATER LINE
To preserve the stainless steel finish of the controls and components above the water line, we
recommend they be wiped with a dry soft cloth after each use of your hot tub.
TUBLICIOUS COVER CARE
A well cared for hot tub cover can provide many years of protection for your hot tub. Be sure
to clean and condition your cover at least once a month—more often if needed. Cover strap
installation instructions should come with the manufacturer’s warranty package. These are
also referenced on page 19-20.
Your cover needs to be cleaned and conditioned because vinyl can dry and become brittle,
spoiling your spa’s appearance. Dry, brittle vinyl can also tear at the seams and stress points.
Quality materials, internal sewn reinforcements and careful workmanship can only go so far
against the ravages of Mother Nature. Luckily, proper care is easy.
VERY IMPORTANT: We recommend a vinyl conditioner. Your TubLicious Dealer carries a wide
variety of care and maintenance products. Choose a pleasant day each month to remove your
cover from the hot tub and lie it on a flat surface accessible by garden hose. Douse the cover
with a healthy amount of water from the hose or a bucket to rinse away loose dirt or debris.
Using a soft bristle brush and a mild solution of dishwashing liquid (about one teaspoon of de-
tergent to two gallons of water), and with a gentle circular motion, scrub the cover to clean.
Be careful not to let any areas of the cover dry before they’re thoroughly rinsed. Now apply
the vinyl conditioner as directed on the container. Massage the conditioner into the cover in a
gentle but firm manner. Before replacing the cover on your hot tub, wipe and rinse any dirt
from the bottom of the cover. When you are ready, put the cover on the hot tub.
NOTE: To remove tree sap, use lighter fluid (not charcoal lighter, but the fluid used in cigarette
lighters) Use Sparingly, them immediately apply conditioner to that area.
Product Care Guide 13

INITIAL START UP
Control Panel—TubLicious™ 14

DIAGNOSTIC MESSAGES
Control Panel—TubLicious™ 15

AIR CONTROL: Mounted on the lip of the hot tub, it induces warm air from the equipment en-
closure into the jet stream through venturi action. (Picture on Page 25)
CONTROL BOX: Basically the “heart” of the hot tub. Power is distributed to any / all functions
of the hot tub: pumps, LED lighting, heater elements, etc. (Picture on Page 24)
CONTROL PANEL: Mounted on the top of the hot tub and controls the functions of the hot
tub. (Picture on Page 25)
SPA DRAIN VALVE: Used in draining the hot tub. Located in the rear left hand corner of the
hot tub . (Picture on Page 23)
FILTER: The filter cleans the hot tub by passing water though a filter cartridge where debris
and impurities are removed. A front access skimmer means the cartridge is accessed through
the door of skimmer. (Picture on Page 23)
HEATER: The thermostatically controlled heater raises the temperature of the hot tub to the
desired setting. (Picture on Page 24)
JETS: The purpose of the jets is both to provide a massaging movement of the water and also
to move the water through the filter. Each jet has an air and water fitting. (Picture on Page 25)
UNDERWATER LIGHT: Special lenses can be used to achieve the desired mood lighting in the
hot tub. (Picture on Page 25)
SKIMMER: This is the rectangular outlet at the water level. The skimmer removes surface
debris to the filter. The water level in the hot tub should be kept at the center of the skimmer
for optimum operation. (Picture on Page 23)
SUCTION FITTING: During operation of the equipment, the suction works in conjunction with
the skimmer to draw water from the bottom of the hot tub through the filter, keeping the hot
tub sparkling clean. (Picture on Page 25)
Glossary of Terms 16

NO HEAT OR HEAT TOO LOW
HOT TUB LIGHT WON’T COME ON
PUMP WILL NOT PRIME
JETS WON’T COME ON
LOW WATER FLOW
TROUBLESHOOTING GUIDE
Probable Cause Recommended Action
Breaker OFF Turn breaker OFF then ON twice. On the cord and main breaker for
the house if necessary.
Inadequate water flow due to dirty filter. Clean filter cartridge.
Pump not primed. Refer to the section of this guide on pump priming. O-ring may be
missing or damaged on air bleeds.
Improper line voltage. Have a Licensed Electrician check the line voltage.
Probable Cause Recommended Action
Light bulb burnt out Replace bulb (non warranty)
Dirty Connection Check to see if there is anything covering the connection on the
housing that holds the light bulb
Probable Cause Recommended Action
Pump on but no water flow Loosen top bleeder valve on pump until water comes out steadily.
No water in pump Make sure water level in hot tub is midway up the skimmer wall
fitting . Open the top pump bleed valve on face of pump until
water flows out.
Air lock Bleed off air at bleeder valve.
Blocked lines Check skimmer, suction for blockage.
Pump surges (jets lose power then come
back, then lose power again)
Check water level. Check filter air relief valve to ensure o-ring is in
place and is tightly closed. Check union on front of pump to ensure
tightness. Check bleeder valve on front of pump to ensure tight-
ness.
Probable Cause Recommended Action
Jets turned off Turn jet face to open jets
Pump not primed Refer to the section in this guide on pump priming.
Probable Cause Recommended Action
Dirty filter Remove filter cartridge and clean.
Low voltage or incorrect voltage Have a Licensed Electrician check the line voltage
17

SPA IS LEAKING
PUMP MOTOR DOESN’T RUN
PUMP MOTOR RUNS HOT
NOTE: These motors will feel hot to the touch. This is normal. The internal overload
protector will turn the motor off if there is an overload or high temperature problem.
MP3 PLAYER DOESN’T PLAY
TROUBLESHOOTING GUIDE
Probable Cause Recommended Action
Loose connection Hand tighten all quick disconnects and fittings, check gaskets and
o-rings.
Probable Cause Recommended Action
No power to the motor Check power switches and circuit breakers. Check motor plug into
control panel.
Blown fuse Replace pump fuse.
Thermal overload has tripped Wait until motor cools off.
Pump jammed from foreign matter in
Impeller
Call dealer for recommended action.
Motor overheats during hot days while
filtering
Reprogram your controls to cycle during the coolest parts of the
day or shorter cycles.
Probable Cause Recommended Action
Pump ran dry Call Dealer for recommended action.
Motor vent is blocked. Clear debris or obstruction to the motor vent.
Restricted suction lines Clear lines of debris.
Probable Cause Recommended Action
No power from the MP3 Player Recharge MP3 player battery.
Cable from MP3 to Adapter jack not con-
nected properly
Ensure ends are pushed all the way inside receptacle.
Speakers are under water The speaker’s performance will be affected to the degree they are
under water.
18

TubLicious™ Cover Tie Down Strap Installation 19

TubLicious™ Cover Tie Down Strap Installation 20
