Cobra Automotive 4600 User manual

4600
USER MANUAL

2USER MANUAL 4600
Summary
1. INTRODUCTION................................................................................................................................................... 4
2. ARMING AND DISARMING THE SYSTEM WITH THE ORIGINAL VEHICLE REMOTE CONTROL OR WITH
THE COBRA REMOTE CONTROL.......................................................................................................................... 4
3. ACTIVE FUNCTIONS (functions description) ........................................................................................................5
4. FUNCTIONS PROGRAMMABLE BYACOBRA INSTALLER (functions description)............................................7
5. EMERGENCY OVERRIDE ..................................................................................................................................10

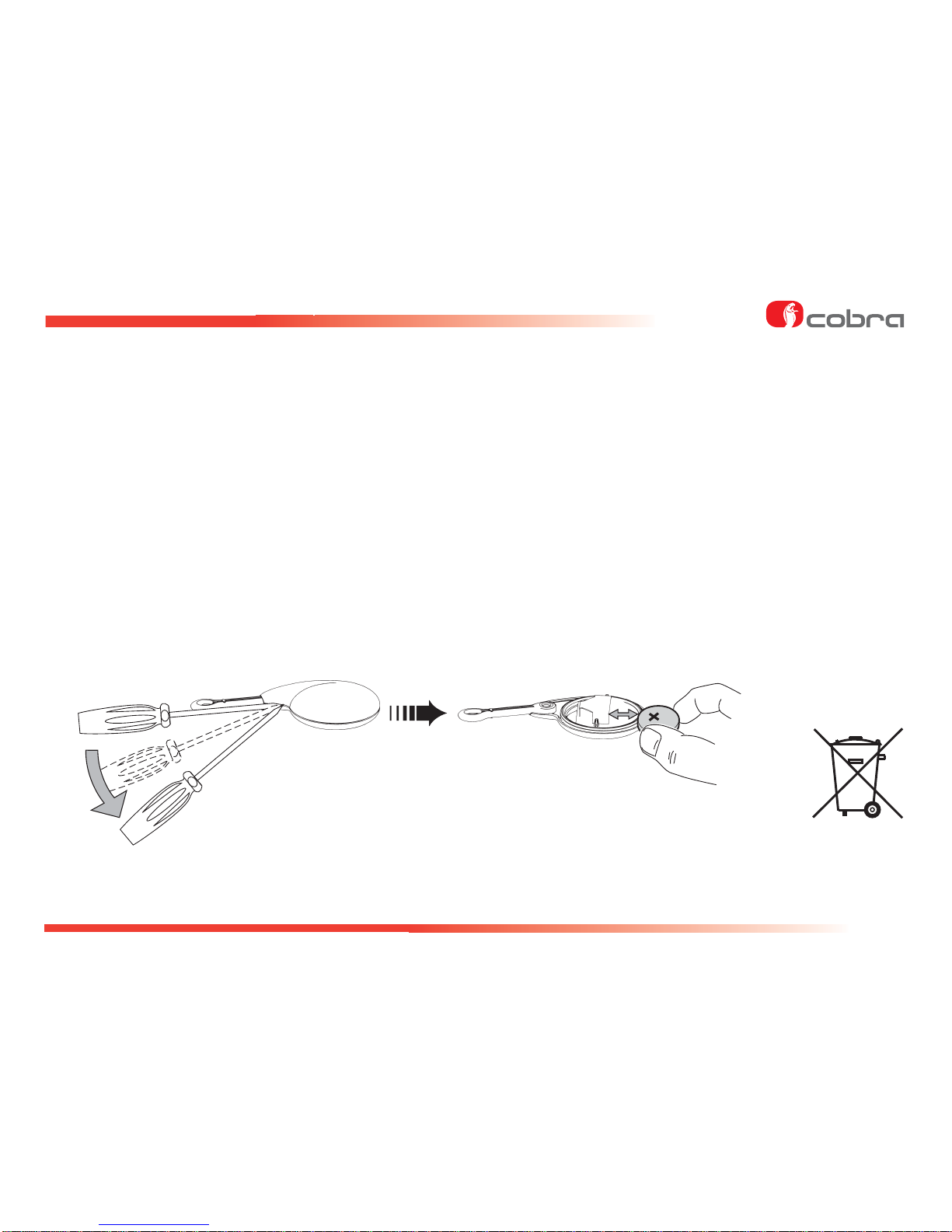

6. REMOTE CONTROL BATTERY REPLACEMENT...............................................................................................11

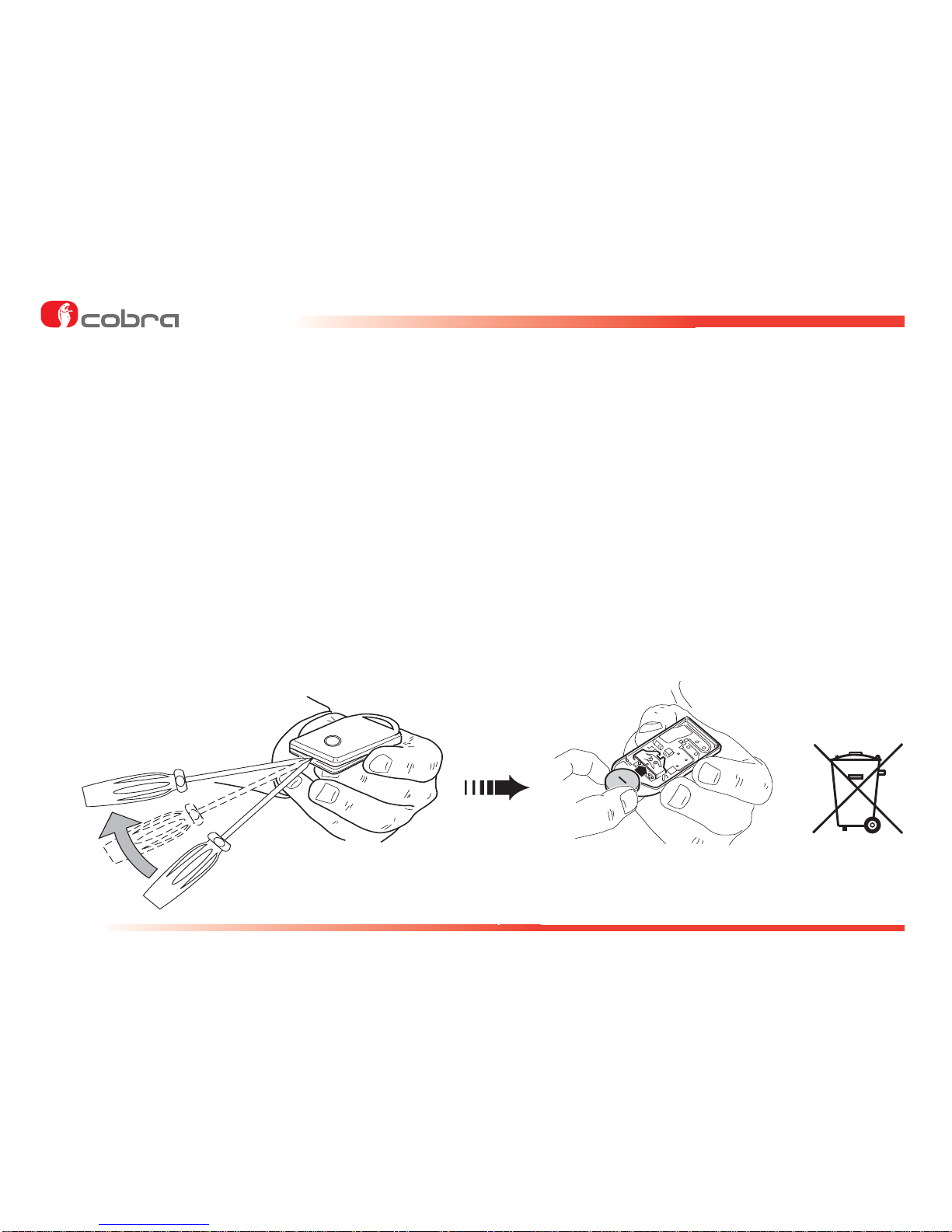

7. DRIVER CARD BATTERY REPLACEMENT .......................................................................................................12
8. TROUBLESHOOTING GUIDE ............................................................................................................................13
9. WARRANTY TERMS............................................................................................................................................14
10. CONFORMITY DECLARATIONS.......................................................................................................................14

3
4600 USER MANUAL
Dear Customer,
The product you’ve choosen is in line with the quality and functional standards required by the main Car Manufacturers and it complies
with the safety and security European directives. The technology used for the remote controls and the Driver cards guarantees an high
level of security toward attempts to reproduce the digital code. We would like to remind you that the security degree of this system can
be increased by adding the following modules:
LEVEL MONITOR
This sensor detect the vehicle being jacked up to for towing it away or for stealing the wheels.
HYPERFREQUENCY VOLUMETRIC SENSOR
It is a volumetric sensor for interior protection required for convertible vehicles as it is not sensitive to air movements.
CRANK INHIBITION
To add another crank inhibition to the system.
WINDOW CLOSING
Fitting this module the electric windows will raise automatically when the system is armed.
TRACKING DEVICE
Allow to track your vehicle and to send alerts to a Secure Operating Center.
In this manuals we’ve listed all the standard system functionalities and those you can ask to active to an authorized Cobra
fitting centre. Please read carefully this manual to get the full benefit from the product.

4USER MANUAL 4600
B
A
B
A
1. - INTRODUCTION.
This system is equipped with a built-in CAN interface
(Controller Area Network) that allows it to detect CAN
data from the electric vehicle platform. The system can be
armed/disarmedwiththevehicleoriginal remote controlor
with the Cobra remote control (if supplied).
2.-ARMING AND DISARMING WITH THE VEHICLE
ORIGINAL REMOTE CONTROL OR WITH THE
COBRA REMOTE CONTROL.
Toarm thesystem pressthedoor lockingpushbutton ofthe
vehicle original remote control or, if the system is provided
with it, the “A” pushbutton of the Cobra remote control.
The arming status is confirmed by:
• vehicle doors locking (with the Cobra remote only if the
CDL connections have been made);
• Audible signals (if activated);
• Flashes of the direction lights (only when the vehicle
original remote control is used);
• LED of the emergency panel illuminated.
The protection features of the system become active after
a 25 s arming period has elapsed (when the LED of the
emergency panel starts blinking).

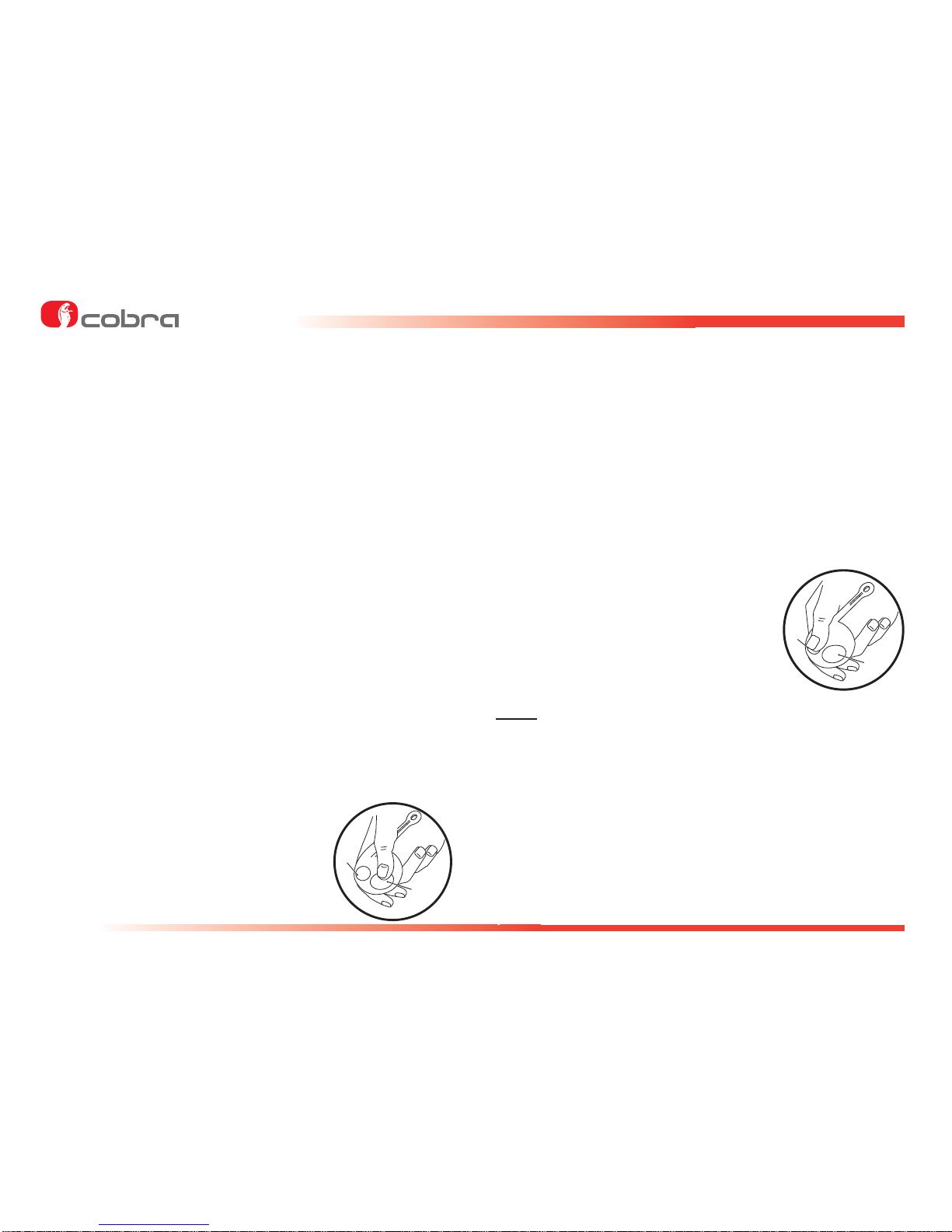

Button A > to arm the alarm and to
lock doors.
Todisarm the systempress thedoor unlocking pushbutton
of the vehicle original remote control or, if the system is
provided with it, the “B” pushbutton of the Cobra remote
control.
The disarming status is confirmed by:
• Vehicle doors unlocking (with the Cobra remote only if
the CDL connections have been
made);
• Audible signals (if activated);
• Flashes of the direction lights (only when the vehicle
original remote control is used);
• LED of the emergency panel OFF.
Button B > to disarm the alarm and to
unlock doors.
Note: if also the Driver Card is provided it will be also
possible to arm and disarm the system by pressing
its pushbutton.
Thesystemisdelivered withasetof standardfunctionalities
(active functions). The installer is able to activate some
more functionalities (programmable functions) with an
impact on the security and comfort the system will offer.
The following are the lists of the two groups.

5
4600 USER MANUAL
3. - ACTIVE FUNCTIONS.
3.1 - Interior protection with ultrasonic volumetric
sensor.
The system protects the vehicle interior with a volumetric
ultrasonic sensor. Any attempt to get into the vehicle will
be detected and the alarm will trigger.
3.2 - Perimetric protection with door open warning
diagnostic.
Thealarmwilltrigger byopeninganydoor,bootandbonnet.
Should you have left any door opened while arming, the
system will signal it by 3 flashes of the direction lights and
3audible signals(5 audible signalsif thearming/disarming
audible signals function has been activated).
3.3 - Cable cutting protection (only for systems with
back-up battery siren).
The alarm will trigger if the system is not power supplied
(cutting of cables - battery disconnection) signaling the
sabotage.
3.4 - Engine starting inhibition.
As soon as the system is armed the engine starting is not
be possible anymore.
3.5 -Arming the system with the volumetric ultrasonic
protection disabled.
This function allows to arm the system leaving temporarily
disconnected the interior volumetric protection. The
protectionmust be disabledany time youleave somebody
or an animal in the vehicle. Also if you want to leave any
windowopened pleasedisablethe protectionto avoidfalse
alarms. All other protections remain active.
To disable the volumetric protection proceed as follow:
switch the engine off being sure that the ignition switch
has been turned to the OFF position. Within 5 s press the
emergency panel pushbutton and keep it pressed until it
willflash onceto confirmthatthe volumetricprotection only
has been disabled. By keeping the pushbutton pressed
the system will confirm with two flashes that the additional
sensor input only has been disabled, with three flashes
for both of them disabled. The selected protection will
remain disabled until the system will be disarmed. It will
be automatically restored at the next arming.
Note: onsome vehicles thesystem automatically disables
the volumetric protection if any windows is left
opened.
Ask your installer if this functionality is provided by the
system fitted on your vehicle.

6USER MANUAL 4600
3.6 - Emergency panel LED.
The LED main scope is to show the system arming and
disarming conditions. When the system is armed the LED
gets ON and remains illuminated until the 25 s arming
periodhas elapsed.Afterthat it startsblinking. Itgoes OFF
as soon as the system is disarmed.
3.7 - Alarms memory .
If the system has gone off (alarm ON) during the arming
timeit willwarn youwith 3flashesof thedirection lightsand
3audible signals(5 audible signalsif thearming/disarming
audible signals function has been activated). It also stores
in its memory the reason of the occurred alarm and shows
it on the emergency panel LED. Count the number of
flashes and check the corresponding alarm reason on the
table. By turning the key ON the memory will be deleted.
3.8 - Emergency disarming.
If the vehicle original remote control get lost or if it doesn’t
work, open the door with the mechanical key and turn the
ignitionkey ON.If the systemdoesn’t disarmautomatically
follow the emergency procedure described in chapter 5.
3.9 - Direction lights alarm flashes.
When the system goes off (alarm ON) the siren sounds
and the direction lights flash for 28 s.
LED NUMBER OF FLASHES ALARM ROOT CAUSE
1 flash Door opening detection.
2 flashes Ultrasonic volumetric detection.
3 flashes Bonnet opening detection.
4 flashes Ignition key ON detection.
5 flashes Boot opening detection.
6 flashes Door opening detection.
7 ÷ 14 flashes “Technical alarm” detection. Contact your installer.

7
4600 USER MANUAL
4. - PROGRAMMABLE FUNCTIONS.
4.1 - Activation and volume adjustment of the
audible arming and disarming signaling.
This function allows to activate a short audible signal to
confirm the system’s arming and disarming.
4.2 - Passive arming.
The system will automatically arm after 30 s the ignition
key has been switched off and the driver side door has
been opened and closed, so 30 s after the driver has left
the vehicle.
4.3 - Auto re-arming.
The system will automatically re-arm if, after 115 s, it has
beendisarmed andno onedoor hasbeen opened(nobody
gets on the vehicle).
4.4 - Auto re-arming with doors locking.
As for auto re-arming, but doors will lock (if the CDL
connections have been made).
4.5 - Passive engine starting inhibition.
The starting inhibition becomes active after 115 s the
vehicle has been switched OFF. The starting inhibition is
immediately deactivated if the Driver Card is detected or
whena correct emergencyPIN Codehas been digiton the
emergency panel. This functionality is totally independent
from the other ones.
4.6 - Confort window closing with Cobra remote
control.
This is a native function of the vehicle, so at first check if it
is available. By keeping pressed the Cobra remote control
pushbutton“A” youcan closethe windowsfrom adistance.
If not you can ask your installer to fit an additional window
closing module.
Warning: for safety reasons we recommend to close the
windows remaining close to the vehicle.
4.7 - Anti hi-jacking.
This function prevents the vehicle for being stealing while
driving. It has been studied to also guarantee the driver
safety. If the driver is not recognized by the system he will
be considered as not authorized to drive the vehicle. The
systemwill generate analarm sequence andit will prevent
the vehicle to start again after it has been switched OFF.

8USER MANUAL 4600
During the normal usage of the vehicle the driver is
recognized by the system in two ways:
- automatic: by the Driver Card matched to the system
(if provided);
- manual: by entering with the emergency panel
pushbutton the first two digits of the PIN Code.
The driver recognition must happen any time the ignition
key is turned to the ON position or when, with the ignition
key already ON, the driver side door is opened and then
closed to get off the vehicle. If the driver is not recognized
within60s theemergencypanel LEDstarts flashingquickly
signaling the missed driver recognition for the next 30 s.
Whenthis timeelapses thesystem starts generatingalarm
sequencesalsoif the engineisrunning, sothissituationcan
take place while the vehicle is driven. The engine starting
inhibition will become activate as soon as the ignition key
isturned tothe OFF position;additional attemptto startthe
vehicle will not be possible. To interrupt the anti hi-jacking
functionalitypress oncethe DriverCard pushbuttonor digit
the complete emergency PIN Code on the emergency
panel pushbutton.
Nota: the product is delivered with this function disabled
as its usage invalids the product European
homologation.It can beused onlyfor non-european
countrieswherethe functionalityisnot inconflictwith
the local regulations.
4.8 - Garage mode.
This function allows to temporarily disable all protection
automatic functionalities of the system .It can be used,
as an example, when you need to leave the vehicle at a
workshopformaintenance toavoidthe automaticactivation
ofany functionality. When the garagefunction is active the
driver is allowed to turn the ignition key on for 10 times
(engine running). After 10 times the system restore all
automatic functionalities.
Activation
- Open driver side door.
- Turn the ignition key ON.
- Enter the complete emergency PIN Code (4 digits)
on the emergency panel pushbutton.
- A flash of the direction lights confirms the activation.
Deactivation
- Lock then unlock the vehicle with the remote control.
- A flash of the direction lights and an audible signal
confirm the deactivation.

9
4600 USER MANUAL
4.9 - Personalization Pin Code.
The Personal Identification Code is a four digits code which is already stored in the system. The sticker with the PIN code
must be applied by the installer on the PIN code card you should have got from your installer.
Keep the PIN code card always with you. The code is required to emergency override the system the remote control
doesn’t work or if you’ve lost it. The PIN code is also used for other scopes (driver recognition code for the anti hi-jack
functionality and as activation code for the garage mode). Upon your request and submitting the card to your installer, he
will personalize you the PIN code.
www.cobra-at.com
P ACE HERE THE PIN
CODE ABE
PERSONA IDENTIFICATION
CODE
4C4415A2A
S/N 0003 050524
PIN
CODE 1122

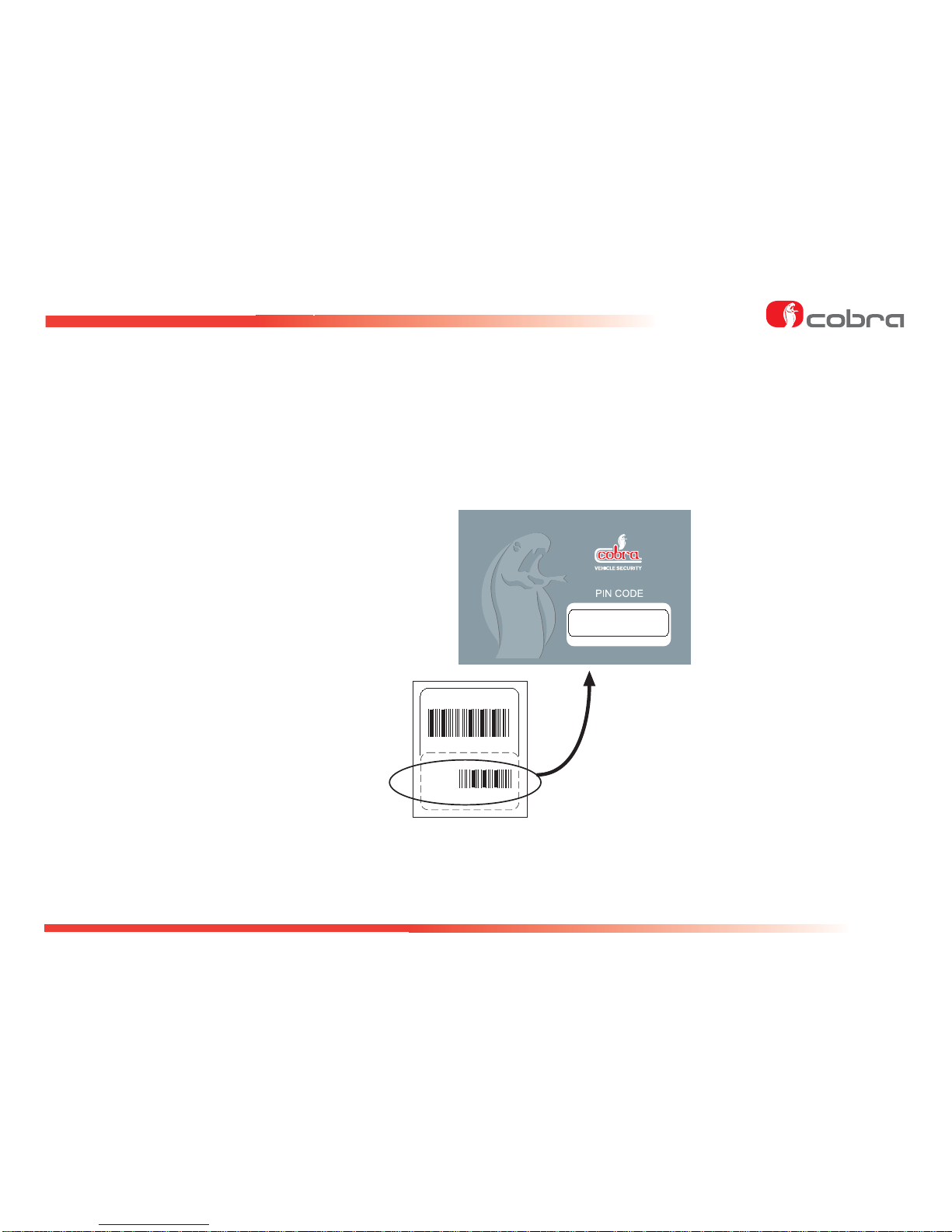

We advise you to stick the PIN CODE, which may be found on the rear of the control unit, adhesive label on to the PIN
CODE CARD.

10 USER MANUAL 4600
SIREN
ON
A ARM
SYSTEM
DISARMED
PIN CODE
OK
Press for a number of
times equal to the figure
in the PIN ode
Enter next
PIN CODE
figure
Short
flash Long
flash
pause

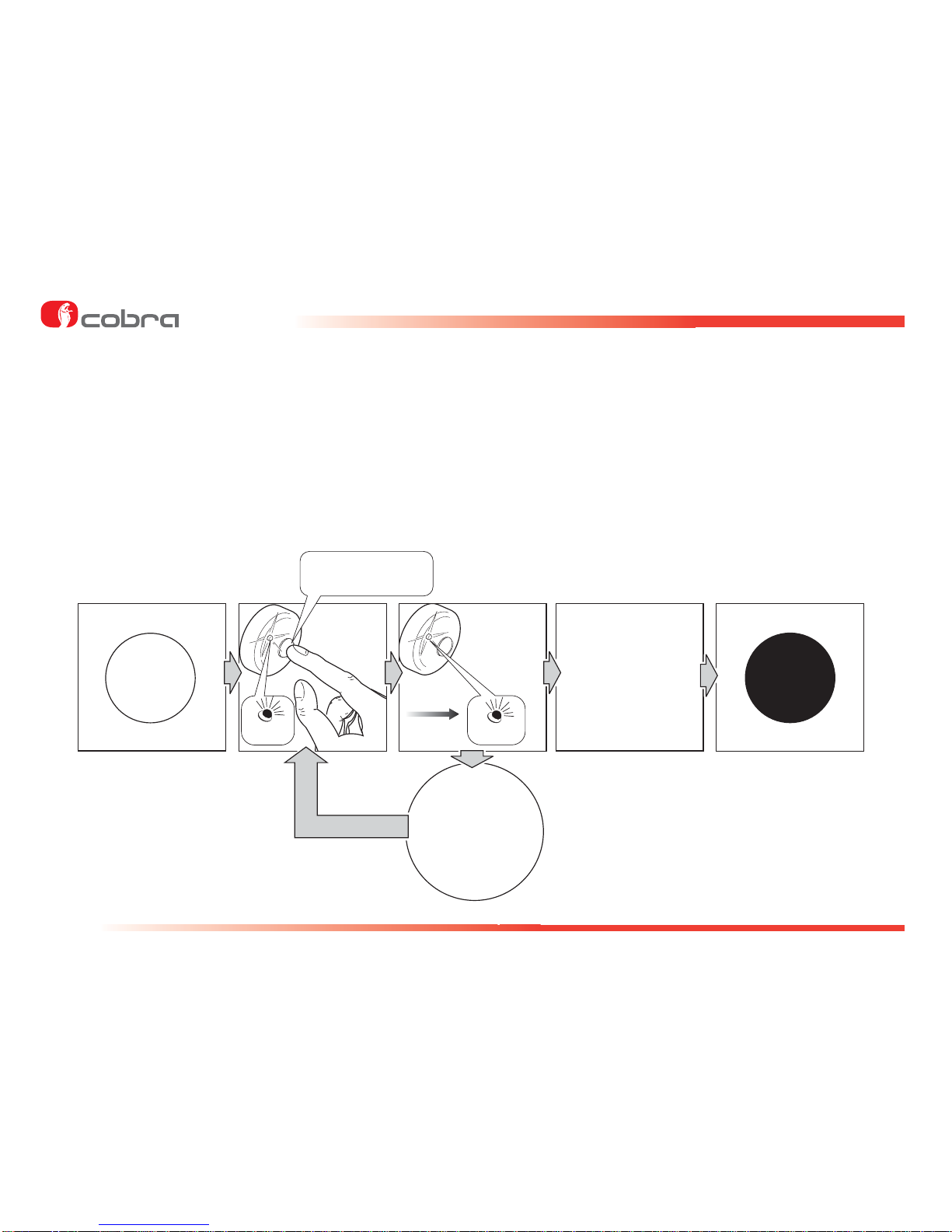

5. - EMERGENCY OVERRIDE WITH PIN CODE.
To disarm the system without the remote control proceed as follow:
Press the emergency panel pushbutton for a number of times corresponding to the first digit of the PIN Code. Each
pushbutton pressure is confirmed by a quick flash of the LED. Make a longer pause to let the system understand that
you’ve finished to enter the first digit, a longer flashing of the LED will confirm it. Do the same for the remaining digits, as
soon as all four digits will be entered the system will disarm.

11
4600 USER MANUAL
6. - COBRA REMOTE CONTROL BATTERY REPLACEMENT.
The Cobra remote control battery is a CR2032-3V lithium battery.
Its replacement is necessary as soon as, by pressing one of the two pushbuttons, the LED flashes irregularly or just for
a short time.
To replace the battery perform the following steps:
• open the remote control shell, being careful to lever it up in the point indicated in the drawing.
• Remove the battery as shown (dispose the empty battery in the appropriate container disposal).
• Wait approximately 10 seconds, then insert the new battery, taking care to make sure your fingers touch it only on the
sides. Make sure the polarity is correct, as shown in the drawing.
• close the shell and press the remote control pushbutton “A” to check if the system is properly working.

12 USER MANUAL 4600
7. - DRIVER CARD BATTERY REPLACEMENT.
The Driver Card battery is a CR2032-3V lithium battery.
When the Driver Card battery is low the emergency panel LED flashes for 10 times. If the system doesn’t disarm when
the Driver Card is inside the vehicle try to disarm it by pressing the Driver Card pushbutton, otherwise replace the battery.
• To change the battery, open the Driver Card shell, being careful to lever it up at the point the area indicated in the
drawing.
• Remove the battery by extracting it in the manner shown.
• Wait approximately 10 s.
• Insert the new battery, taking care to make sure your fingers touch it only on the sides. Make sure its polarity is
correct, as indicated in the diagram.
• Close the shell and press the Driver Card button checking that the system responds correctly. Perform the test
near the vehicle.
• Dispose of the empty battery in an appropriate disposal - bin.
• In the event of loss of both the Driver Cards an emergency disarming may still be performed. Reference should
be made to the disarming / emergency procedure described in chapter 5.

13
4600 USER MANUAL
8. - TROUBLESHOOTING GUIDE.
THE REMOTE CONTROL DOESN’T ARM/DISARM THE SYSTEM.
Root cause Countermeasure
a.If the system is armed, perform the emergency override procedure (see chapter 5).
The battery is empty. b.Replace the battery. For Cobra remote controls see chapter 6, for the original remote
control follow the instructions of the vehicle “Use and maintenance” manual.
c.If you cannot solve the problem contact your installer.
THE SYSTEM HAS GENERATED A FALSE ALARM – CHECK ON THE EMERGENCY PANEL LED
(ALARM MEMORY FUNCTION) WHICH IS THE ALARM ROOT CAUSE.
Rot cause Countermeasure
a. Check if the windows and the roof have been closed.
b.Check if inside the car there is any moving objects or any object that can move
because of slow air movements.
c. If you cannot solve the problem contact your installer.
a. Check if all doors/boot and bonnet have been closed.
b.If you cannot solve the problem contact your installer.
Alarm generated by
the volumetric US
sensor.
Alarm generated by door/
boot/bonnet opening.

14 USER MANUAL 4600
9. - WARRANTY CONDITIONS.
This product is guaranteed for 24 months from the date of
purchase,validated byreceipt or invoice.Thewarranty will
be null and void if the product shows signs of tampering,
incorrect installation, damage caused by falling or
transport, negligence and anything else not imputable to
manufacturing defects.
In the event of improper installation of the system, the
manufacturer shall not be liable to compensate for
damages:
- of any kind and direct or indirect;
- to things or to persons.
Tobenefitfrom warrantycoverage, contactyour authorized
dealer with adequate documentation showing the date of
purchase.
10. - DECLARATION OF CONFORMITY

15

Cobra Automotive Technologies
via Astico 41 - 21100 VARESE - ITA Y
www.cobra-at.com
The manufacturer shall not be liable for any faults or malfunctions in the anti-theft device and/or in the electrical system of the vehicle due to
incorrect installation and/or to failure to comply with the indicated technical specifications. The system must only be considered as a deterrent
agaist theft attempts.
06DE3327A - 06/ 11 2.32
