Coca-Cola Freestyle 7000 User manual

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |1
7OOO User Guide

Coca-Cola Freestyle® 7OOO is the newest addition to a family of dispensers
utilizing micro-dosing technology. This technology stores all beverage
components separately until the moment the drink is poured, ensuring a fresh,
great tasting beverage every time.
This guide provides general tips and
proper maintenance procedures for your
Coca-Cola Freestyle® 7000 dispenser.
© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |1
external components ••••••••••••••••••••••2
internal components •••••••••••••••••••••••3
pouring a drink ••••••••••••••••••••••••••4
(standard and ADA interface)
access the crew dashboard •••••••••••••••••••5
using the freestyle operating system •••••••••••••6
handling ingredient cartridges • • • • • • • • • • • • • • • • •7
when to replace an ingredient cartridge •••••••••••8
replacing an ingredient cartridge •••••••••••••••9
HFCS (sweetener) dashboard reset •••••••••••••10
replacing sweetener •••••••••••••••••••••• 11
HFCS (sweetener) 65 and NNS
Freestyle Boost ••••••••••••••••••••••••• 12
cleaning nozzle and check/refill ice ••••••••••••• 13
small parts & cleaning tips •••••••••••••••••• 14
daily, weekly, and monthly tasks••••••••••••••• 15
prohibit dispense •••••••••••••••••••••••• 16
calorie display feature ••••••••••••••••••••• 17
equipment
operations
product replacement
maintenance
contents
For crew training videos, visit
iLearnCoca-ColaFreestyle.com

2|© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
external components
Ice bin lid*
Cartridge access door
Key (access door)
Touch screen
Nozzle
Beverage dispense lever
Ice chute
Ice dispense lever
ADA interface
Cup rest and drain pan
The cartridge area is accessible
by unlocking the key lock
(pictured in the diagram).
• For several reasons, including food
safety, it’s important to keep this
area locked at all times and the key
kept with a manager or in a secured
location (such as a locked oce).
• Additional keys can be ordered
through the Coca-Cola Small Parts
Program at no-cost.
• Should you misplace your key
or experience trouble with
accessing the cartridge area, call
Coca-Cola Phone-Fix®for support at
1-800-241-COKE (2653).
* Not applicable with top mounted ice maker.
equipment

The dispenser is
equipped with two
stand-by modes:
1. Power Saver Mode
If the dispenser is inactive for
20-minutes the touchscreen
will go dark. Simply tap the
touchscreen anywhere to
wake it up.
2. Locked Mode
Lock the dispenser by
pressing the lock icon in the
top right corner of the crew
dashboard. This mode locks
the touch screen and prohibits
dispensing during non-
operating hours. Choose to
lock manually or set an
automated time window.
Power Switch
The power (on/o) switch is
located on the right-hand side
underneath a square plastic
flap. CAUTION! DO NOT
POWER OFF unless instructed
to do so by a Coca-Cola
technician.
© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |3
internal and under the counter components
Ingredient cartridge
Cartridge tray
Brand identification strip
Stand-by switch &
power switch
HFCS 65
CO2tank
Power Switch
Stand-by Switch
Cartridge Tray
equipment

4|© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
pouring a drink
Step one
Place your cup under the ice chute and press
lever to dispense ice.
Step two
Find your favorite beverage using the touch
screen. Note the touch screen will time out after
10 seconds and return to the home screen.
Using the ADA interface
The ADA interface allows people with
reach challenges (such as those in
wheelchairs) to use the Coca-Cola
Freestyle® dispenser without
having
to reach the touch screen.
Visit ilearncoca-colafreestyle.com
for a script to assist helping visually
impaired guests.
Press to activate the ADA Interface
Press arrow to browse to the right
and press arrow to browse left
Press to pour beverage selected
NOTE: The ADA screen will revert back to the
standard home screen after one minute of
inactivity, or press “ADA Exit Button” in the
upper right corner.
ice dispense lever
pour lever
Select a brand to see all available flavor
options.
Pick your favorite flavor and then use the pour
lever to dispense your beverage.
Balance
what you eat, drink & do.
Small 10 fl oz 120 cal
Medium 12 fl oz 150 cal
Large 20 fl oz 240 cal
Natural flavors.
cherry orange cherry
vanilla
lime vanilla
raspberry
lemon
O
R
I
G
I
N
A
L
T
A
S
T
E
operations

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |5
operations
Crew Dashboard
There are two ways to access the crew dashboard:
Secret Handshake
Opening the cartridge access door.
access the crew dashboard
Secret handshake
On the all brands consumer screen, place a finger
on the lower left of the screen between the water
icon and the red all brands button. Hold for five
seconds to launch the crew dashboard.

6|© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
operations
Bold alerts provide clear direction when
maintenance is required.
Improve cartridge changeout management
and reduce product waste, by reading each
ingredient cartridge’s color-coded fuel
gauge displaying the remaining product
percentage and enjoy by date.
Keep in mind, the percentage remaining and
time before changing the ingredient
cartridge may vary significantly. For
example, a flavor cartridge with 6% may
have several days remaining, while a heavily
used ingredient cartridge, like Coca-Cola,
may last only a few hours with 6%.
A time remaining feature provides an
accurate reading when each cartridge will
likely run out. This new feature is calculated
using the dispensers consumption activity
and daypart data to deliver a dynamic and
precise reading throughout the day.
using the freestyle operating system

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |7
SmartPAK™ (paperboard) cartridges replace your BIB
packaging, except for HFCS (sweetener) BIB. HFCS will
be the only ingredient located outside of the Coca-Cola
Freestyle® dispenser.
• Always remove and replace ONE CARTRIDGE at a time to avoid inserting it into
the incorrect slot.
• Black plastic cartridge trays should be “hand washed” only using detergent
cleanser and Kay-5 sanitizer or an approved equivalent and NEVER PLACED
IN A DISHWASHER. Placing trays in a dishwasher may warp the trays over
time.
• Staging of ingredient cartridges and plastic trays for your most popular
brands and flavors will make the cartridge change-out process more
ecient and avoid delays during peak periods.
• Never stack cartridges more than six (6) high.
• Always rotate ingredient cartridges after each delivery.
• Always use your oldest ingredient cartridges on hand first,
i.e. “FIRST-IN ~ FIRST-OUT”.
• Avoid placing cartridges near any heat source, standing water,
or cleaning solutions.
Proper handling of the ingredient cartridges and plastic
trays is extremely important to ensure proper operation
of the Coca-Cola Freestyle® 7000 dispenser.
handling ingredient cartridges
product replacement

8|© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
when to replace cartridges and how to prime
The example above shows the Hi-C ingredient
cartridge is empty, as a result the flavor icon is
grayed out and will say “Not Available” when
selected.
Access the crew dashboard
to view the color-coded fuel
gauge displaying the
remaining product percentage.
Keep in mind, the percentage
remaining and time before changing the ingredient
cartridge may vary significantly. For example,
a flavor cartridge with 6% may have several
days remaining while a heavily used ingredient
cartridge, like Coca-Cola, may last only a few
hours with 6%.
NOTE: Time remaining is an estimate based on the
dispensers consumption activity and daypart data.
Replacing ingredient cartridges
starts with knowing when a
cartridge is empty or unavailable.
1 hour
Fanta
remaining
2%
Enjoy by 04/05/19
Cartridge prime procedure.
Priming an ingredient cartridge simply removes
any trapped air in the line and ensures guests
receive a consistent, quality beverage. After
replacing an empty cartridge, follow the on-
screen messages outlined below:
Confirm the cartridge was inserted into
the correct slot and prime by pressing the
orange box on the crew dashboard or press
“Prime All” to prime multiple cartridges.
REMINDER: The prime process lasts
approximately 5-10 seconds depending on
cartridge size, i.e., single or double. The process
should NEVER be interrupted.
When priming is complete, press exit at the
upper right of the screen. Follow subsequent
prompt on the screen to return to the main
screen.
NOTE: Only press the “Prime All” button ONCE!
Pressing it more than once will needlessly repeat
the prime process.
Navigate to Consumer Interface
Are you sure you want to navigate to the consumer interface now?
ContinueCancel
product replacement

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |9
replacing an ingredient cartridge

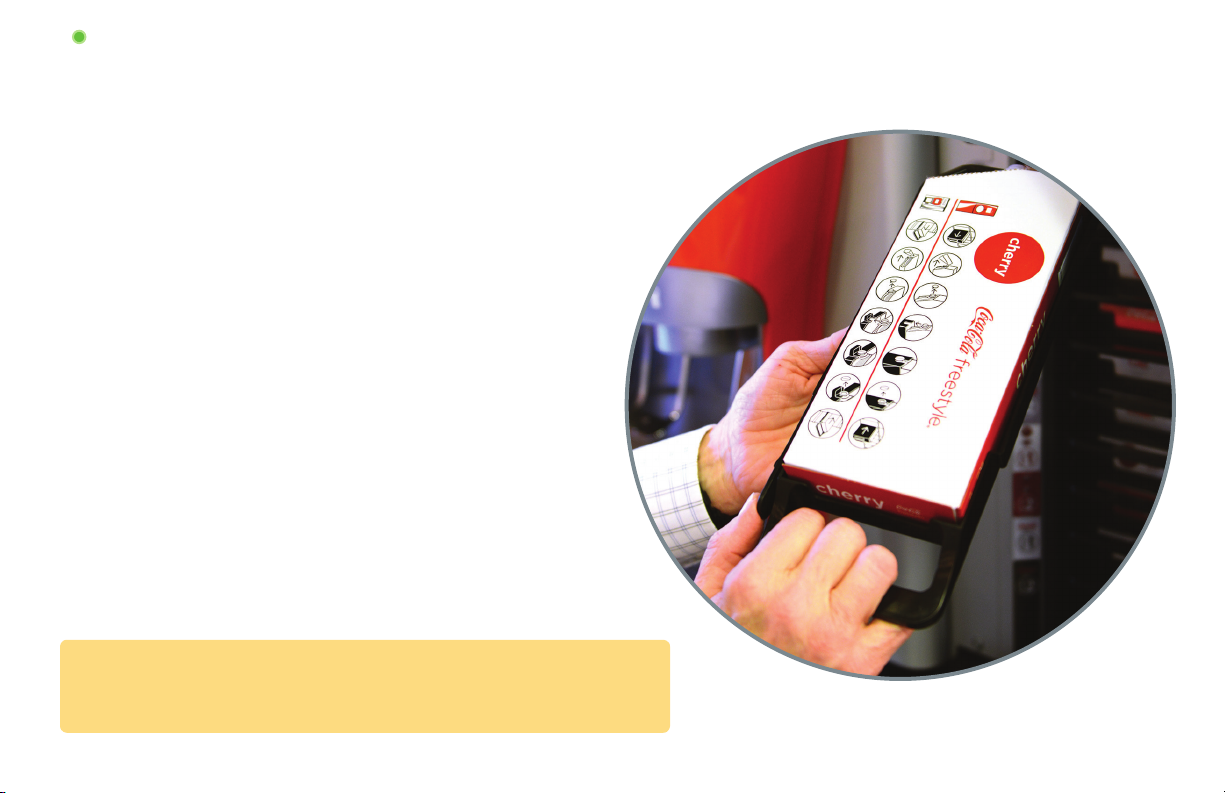

Until you become familiar with the cartridge
replacement process, always pay close attention to
the instruction (icons) provided on the side of each
ingredient cartridge.
Always remember to shake each cartridge vigorously for
10 seconds prior to placing it into the plastic cartridge tray and
Coca-Cola Freestyle dispenser.*
Press black lever on the left of the cartridge tray (highlighted yellow
in the diagram to the right) to remove from the cartridge shelf.
REMINDER: When empty, separate cartridge from plastic tray and
recycle the outer paperboard box.
Clean tray with Kay-5 sanitizer or detergent cleanser and
wipe probe that inserts into cartridge with Kay-5 until cloth comes
away clean.
Open cartridge using perforated cartridge opening flap.
Remove (outer) white dust-cap prior to placing cartridge
into plastic tray.
Always place cartridge into plastic tray and ensure plastic fitment
from cartridge pouch aligns with tray.
Ensure the ingredient cartridge is aligned with the slot found
on the plastic tray.
Remove safety seal prior to inserting into the dispenser.*
Press black lever on left of cartridge tray to reinsert back
into the dispenser.
Follow on-screen instructions to complete the cartridge prime
process (instructions on page 9).
remove corner
flap
wipe probe
press lever on tray
to release
shake cartridge for
10 seconds
remove inner
safety seal
align cartridge
with the tray
place box in
plastic tray
remover outer
(white) dust cap
re-insert
plastic tray
follow on screen
instructions
* Be sure to leave the
safety seal on the
cartridge during the
10-second cartridge shake process
and REMOVE the safety seal prior
to inserting the cartridge into the
dispenser.
product replacement

10 |© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
HFCS (sweetener) dashboard reset
When the HFCS BIB is empty, you will need to
replace it and RESET the HFCS module following
these steps:
Ensure HFCS is empty, check the crew dashboard to see if the HFCS
indicator has turned red and says “HFCS Sold out.”
Replace the HFCS (instructions on page 11).
Once the new HFCS box is installed, touch the red HFCS
box to reset and the prime function will automatically follow.
The HFCS BIB indicator changes to a green dot when successfully reset.
NOTE: When the HFCS BIB is empty, all full calorie beverage icons on
the home screen will GRAY OUT.
product replacement
The crew dashboard indicates the
HFCS BIB is empty and needs to be
replaced with a red square.
24 hours
Coca-Cola
remaining
90%
Enjoy by 02/05/19
24 hours
Fanta
remaining
90%
Enjoy by 02/05/19
3 days
Cherry
remaining
43%
Enjoy by
02/05/19
2 days
Grape
remaining
40%
Enjoy by
02/05/19
1 hour
Raspberry
remaining
3%
Enjoy by
02/05/19
18 days
Orange
remaining
88%
Enjoy by
02/05/19
24 days
Strawberry
remaining
98%
Enjoy by
02/05/19
1 hour
Vanilla
remaining
15%
Enjoy by
02/05/19
11 days
Lemon
remaining
100%
Enjoy by
02/05/19
4 days
Lime
remaining
88%
Enjoy by
02/05/19
10 days
Dasani
Sparkling
remaining
84%
Enjoy by
02/05/19
2 days
Dasani
remaining
62%
Enjoy by
02/05/19
3 hours
Peach
remaining
2%
Enjoy by
02/05/19
2 hours
Lime
Ginger
remaining
2%
Enjoy by
02/05/19
3 days
Coca-Cola Zero
remaining
60%
Enjoy by 02/08/19
21 days
Fanta Zero
remaining
76%
Enjoy by 02/08/19
16 hours
Sprite
remaining
19%
Enjoy by 02/05/19
24 hours
Diet Coke
remaining
90%
Enjoy by 02/05/19
32 days
Powerade
remaining
95%
Enjoy by 02/05/19
3 hours
Diet Coke Caeine Free
remaining
5%
Enjoy by 02/05/19
2 days
Powerade Zero
remaining
56%
Enjoy by 02/05/19
17 hours
Pibb Xtra
remaining
56%
Enjoy by 02/05/19
41 days
Barq’s
remaining
20%
Enjoy by 02/05/19
15 hours
Diet Pibb Xtra
remaining
20%
Enjoy by 02/05/19
HFCS
HFCS Sold out.
NNS
Soda Water
Water
Dashboard Notifications About
Login Door Lock Help Exit
Prime All
24 hours
Coca-Cola
remaining
90%
Enjoy by 02/05/19
24 hours
Fanta
remaining
90%
Enjoy by 02/05/19
3 days
Cherry
remaining
43%
Enjoy by
02/05/19
2 days
Grape
remaining
40%
Enjoy by
02/05/19
1 hour
Raspberry
remaining
3%
Enjoy by
02/05/19
18 days
Orange
remaining
88%
Enjoy by
02/05/19
24 days
Strawberry
remaining
98%
Enjoy by
02/05/19
1 hour
Vanilla
remaining
15%
Enjoy by
02/05/19
11 days
Lemon
remaining
100%
Enjoy by
02/05/19
4 days
Lime
remaining
88%
Enjoy by
02/05/19
10 days
Dasani
Sparkling
remaining
84%
Enjoy by
02/05/19
2 days
Dasani
remaining
62%
Enjoy by
02/05/19
3 hours
Peach
remaining
2%
Enjoy by
02/05/19
2 hours
Lime
Ginger
remaining
2%
Enjoy by
02/05/19
3 days
Coca-Cola Zero
remaining
60%
Enjoy by 02/08/19
21 days
Fanta Zero
remaining
76%
Enjoy by 02/08/19
16 hours
Sprite
remaining
19%
Enjoy by 02/05/19
24 hours
Diet Coke
remaining
90%
Enjoy by 02/05/19
32 days
Powerade
remaining
95%
Enjoy by 02/05/19
3 hours
Diet Coke Caeine Free
remaining
5%
Enjoy by 02/05/19
2 days
Powerade Zero
remaining
56%
Enjoy by 02/05/19
17 hours
Pibb Xtra
remaining
56%
Enjoy by 02/05/19
41 days
Barq ’s
remaining
20%
Enjoy by 02/05/19
15 hours
Diet Pibb Xtra
remaining
20%
Enjoy by 02/05/19
HFCS
HFCS Sold out.
NNS
Soda Water
Water
Dashboard Notifications About
Login Door Lock Help Exit
Prime All

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |11
Coca-Cola Freestyle®7000
uses two sweetener sources
HFCS (High Fructose Corn Sweetener)
Used for all full-calorie beverages
• HFCS (sweetener) is delivered by your
local distributor in a 5-Gallon BIB.
• Replacement of the HFCS BIB is identical
to changing your BIB syrup boxes. HFCS
BIB will be located either underneath the
Coca-Cola Freestyle® 7000 dispenser or
in the back room.
• Always monitor your HFCS usage and
NEVER let it become completely empty.
NNS (Non-Nutritive Sweetener)
Used for all low/no-calorie beverages
• NNS will arrive in a SmartPAK™ cartridge
and is replaced just like other ingredient
cartridges (instructions on page 7).
• NNS will always be in the number
one (1) or top slot in the cartridge
shelf (see the brand identification strip
on page 3).
replacing sweetener (HFCS & NNS)
PROCEDURE TO REPLACE HFCS BIB
Double check to see how
much product is left by
lifting the box.
Use a cloth to catch any
spills, and turn connector
counterclockwise
to loosen.
Remove connector and
replace with new HFCS
sweetener BIB.
Scrub using the blunt end of
the nozzle & injector ring
brush (#149326) and soak in
approved sanitizer solution
(Kay-5). Wait two minutes and
repeat with clean sanitizer.
Open the box and pull out
the fitment.
CAUTION: DO NOT USE A
SHARP OBJECT TO OPEN
Attach the connector
to the fitment and turn
clockwise to tighten.
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
ENJOYBY:
MM/DD/YYYY
1234567890
product replacement

12 |© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
Freestyle Boost (optional equipment)
product replacement
How to replace a Coca-Cola Freestyle® Boost BIB
When a Boost BIB package is sold-out, it will appear in a similar manner as
sold-out cartridges.
Replace the Boost BIB package, manually.
Once the BIB is replaced, tap on the ingredient location to reset.
Once successfully reset, the Boost BIB indicator will change to a green dot.
A red square on the crew dashboard indicates
Boost BIB is empty and needs to be replaced.
Successful reset
and healthy
status icon.
BIB pump
CCFS Boost TRAY
Add additional brands to your 7000 dispenser
with Coca-Cola Freestyle Boost
Brands currently available:
• Barq’s Olde Style Root Beer
• Minute Maid Lemonade w/ Real Sugar
• Blue Sky Lemonade
• vitaminwater XXX
• vitaminwater XXX Zero
NOTE: Brands which are available in cartridges
(KO, DKO, Sprite, DP, etc.) are not eligible to be used on Boost.
Equipment

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |13
How to check/fill ice
Maintaining the proper ice level is critical
to ensuring your guest receives a quality
beverage. If using a top-mount ice maker,
follow established procedures for checking ice
level. If you fill the ice manually, check to
ensure ice is at least 1/3 full at all times. Fill the
ice bin by following the steps illustrated below:
Fill a clean bucket with ice.
Safely lift and remove ice bin lid.
Dump the ice in the ice bin and fill until full.
(approximately 2" from the top – do not overfill)
Replace ice bin lid.
NOTE: Store bought or “bagged ice” SHOULD NEVER BE USED as it may
seriously damage the Coca-Cola Freestyle® 7000 dispenser ice bin.
How to properly clean the Coca-Cola
Freestyle® nozzle and injector ring
Locate the nozzle. Using a clean cloth to protect
your fingers, twist nozzle counter-clockwise, and
then pull down to remove.
Scrub the nozzle at a 45° angle with detergent
cleanser using an approved nozzle brush (Coke part
#149326).
Rinse nozzle in warm, clean, drinkable water.
Place nozzle in approved sanitizer solution (Kay-5).
Shake nozzle tip when submerging to remove any
air bubbles and soak the nozzle for no more than
5 minutes. CAUTION: DO NOT SOAK NOZZLES
OVERNIGHT!
Scrub underneath the injector ring (area where
the nozzle connects) using the nozzle & injector
ring brush at a 45° angle and a clean cloth. For the
nozzle upper ring, scrub using the pointed end of
the nozzle & injector ring brush. Focus at the small
holes where ingredient comes out. Use the blunt
end of the brush for the nozzle tip. Allow to sit for 2
minutes. Then repeat with clean sanitizing solution.
Allow the nozzle and injector ring area to “AIR
DRY”, then use a clean cloth to reinstall nozzle and
lock into place turning clockwise.
NOTE: Take extra care to ensure the nozzle is inserted
completely and locked into place.
/ full
/ full
full
cleaning nozzle and check/rell ice
Ice bin should NEVER be less
than one-third full
maintenance

14 |© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
small parts and cleaning tips
maintenance
Customers may order up to $25 worth of the
following small parts per location.
Call The Coca-Cola service number 1-800-241-COKE (2653) and request
a small parts order.
NOTE: Shipping request other than standard ground transportation may be
charged to your outlet.
Coca-Cola recommends
Kay-5®Sanitizer, or a
comparable food-grade
chlorine sanitizer.
If using Kay-5 brand, add 1 oz.
packets of Kay-5 to 2.5 gallons
of clean, warm water in a clean,
5-gallon bucket.
CAUTION: When using a chlorinated
detergent other than Kay-5, follow
the instructions to produce a 100
ppm chlorine sanitizer solution.
REMINDER: Kay-5 Sanitizer, cleaning
brush and replacement nozzle can
be ordered by calling
1-800-241-COKE (2653).
DO NOT use bleach,
or any unapproved
chemicals!
DO NOT soak any
parts overnight!
DO NOT use scouring
pads, steel wool or
any abrasive
material. It will
scratch the surface
and result in rusting/
pitting!
DO NOT use paper
towels. They may
break apart and clog
the drain!
DO NOT pour
hot liquids into
the drain!
(greater than 125˚F
– 51.6˚C)
CAUTION:
WHAT NOT TO DO...
nozzle tip
#144770
cartridge door key
#141343
Kay-5 Sanitizer
#24041
nozzle & injector ring
brush
#149326
SmartPAK®
Cartridge Tray
#141103
wire handled nozzle
brush
#16586
microfiber cloth
#127723
ice chute brush
#143257

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |15
Daily tasks
Clean and sanitize nozzle and nozzle ring
(See How to Remove/Clean/Replace Nozzle on page 13).
Clean ice chute with clean cloth or clean
brush and approved sanitizer solution.
Clean and sanitize Ice and Beverage Levers.
Pour warm sanitizer solution SLOWLY
down the drain.
Check the cup rest periodically throughout
the day and clean as needed.
Using a clean soft cloth and approved sanitizing
solution, wipe down all exterior surfaces, including:
» Touch screen
» Splash plate
» Exterior of drain pan (if applicable)
» ADA interface and front/side panels
REMINDER: Always clean the Touch Screen
periodically throughout the day.
Wash and rinse the cup rest and drain pan in an
approved sanitizing solution using a clean cloth.
Then allow to air dry.
daily, weekly, and monthly tasks
Weekly tasks
Clean ingredient cartridge trays with an
approved sanitizer solution.
Remove and clean manual ice fill lid with warm
water and approved sanitizer solution.
Clean exterior surfaces of top mount ice maker
(if applicable).
Monthly Tasks
Turn o ice maker.
Remove ALL ice by using the ice dispense lever.
Pour warm water slowly into the bin
(not over the ice chute) to melt the remaining
ice on the cold plate.
Spray surfaces of ice bin. Remove agitator bar,
paddlewheel and divider.
Using a cloth, clean areas within reach
inside the bin.
Spray approved sanitizing solution on
all internal surfaces again, allow draining
and air dry.
Return to normal operation.
maintenance

16 |© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
maintenance
prohibit dispense
Managers can lock the Coca-Cola Freestyle dispenser to prevent drinks
from being poured without having to manually power o the unit.
There are two ways the dispenser
can be locked:
• Manual Setting
Select ‘Until I Unlock’ to lock the dispenser
until the manager passcode is entered
• Time Setting
Tap the button next to ‘Lock Until’ and set a
time for the dispenser to unlock
automatically.
Access the crew dashboard
(instructions on page 5), tap
‘Lock’ icon in top right corner to
launch the configuration screen.
Once the dispenser is locked, you may unlock the
user interface by using the manager passcode (2653).
24 hours
Coca-Cola
remaining
90%
Enjoy by 02/05/19
24 hours
Fanta
remaining
90%
Enjoy by 02/05/19
3 days
Cherry
remaining
43%
Enjoy by
02/05/19
2 days
Grape
remaining
40%
Enjoy by
02/05/19
1 hour
Raspberry
remaining
3%
Enjoy by
02/05/19
18 days
Orange
remaining
88%
Enjoy by
02/05/19
24 days
Strawberry
remaining
98%
Enjoy by
02/05/19
1 hour
Vanilla
remaining
15%
Enjoy by
02/05/19
11 days
Lemon
remaining
100%
Enjoy by
02/05/19
4 days
Lime
remaining
88%
Enjoy by
02/05/19
10 days
Dasani
Sparkling
remaining
84%
Enjoy by
02/05/19
2 days
Dasani
remaining
62%
Enjoy by
02/05/19
3 hours
Peach
remaining
2%
Enjoy by
02/05/19
2 hours
Lime
Ginger
remaining
2%
Enjoy by
02/05/19
3 days
Coca-Cola Zero
remaining
60%
Enjoy by 02/08/19
21 days
Fanta Zero
remaining
76%
Enjoy by 02/08/19
16 hours
Sprite
remaining
19%
Enjoy by 02/05/19
24 hours
Diet Coke
remaining
90%
Enjoy by 02/05/19
32 days
Powerade
remaining
95%
Enjoy by 02/05/19
3 hours
Diet Coke Caeine Free
remaining
5%
Enjoy by 02/05/19
2 days
Powerade Zero
remaining
56%
Enjoy by 02/05/19
17 hours
Pibb Xtra
remaining
56%
Enjoy by 02/05/19
41 days
Barq’s
remaining
20%
Enjoy by 02/05/19
15 hours
Diet Pibb Xtra
remaining
20%
Enjoy by 02/05/19
HFCS
NNS
Soda Water
Water
Dashboard Notifications About
Login Door Lock Help Exit
Prime All

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510 |17
activate calorie counter display feature
maintenance
Follow these steps for an easy way to help comply with the FDA menu-labeling
regulations for chain establishments with 20 or more outlets:
Select the settings and then choose
Service Mode in the secondary navigation.
Access the crew dashboard. Then tap login,
in the header, and type the manager
passcode 2653.
NOTE: View of calorie display
feature when activated.
Slide caloric display toggle to enabled to activate.
Slide toggle icons to create a portion size. Green/
right is enabled; Gray/left is disabled.
NOTE: The initial setting for the caloric display feature
will be disabled
CREATE A CUSTOM
NAME AND SIZE
Tap on the drink name or portion size
to adjust (e.g. S/M/L/XL) then click
exit to return to the consumer interface
Balance
what you eat, drink & do.
Small 10 fl oz 120 cal
Medium 12 fl oz 150 cal
Large 20 fl oz 240 cal
Natural flavors.
cherry orange cherry
vanilla
lime vanilla
raspberry
lemon
O
R
I
G
I
N
A
L
T
A
S
T
E
Balance
what you eat, drink & do.
Small 10 fl oz 120 cal
Medium 12 fl oz 150 cal
Large 20 fl oz 240 cal
Natural flavors.
cherry orange cherry
vanilla
lime vanilla
raspberry
lemon
O
R
I
G
I
N
A
L
T
A
S
T
E

© 2019 The Coca-Cola Company | Coca-Cola Freestyle® 7000 User Guide | Confidential information of The Coca-Cola Company | v1.190510
