7” Colour eBook Reader & Media Player
7” COLOUR eBOOK READER
& MEDIA PLAYER
Model Number: BK7021
INSTRUCTION MANUAL
WARRANTY DETAILS
This product is warranted against defects for a period of One year If the
product is faulty, Winplus will repair or replace the product (at its discretion)
at no cost to you provided the product has been used in accordance with
instructions provided. You are responsible for any expenses associated with
making a claim under this warranty (incl. postage).The benefits under our
Warranty are in addition to other rights and remedies under consumer law
in relation to these goods.Our goods come with guarantees that cannot
be excluded under the Australian Consumer Law.You are entitled to a
replacement or refund for a major failure and forcompensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure.
Winplus Australasia Pty Ltd
PO Box 537
Bayswater Business Centre Vic 3153

1 2
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Contents
Warranty Details i
Welcome 1
General Safety Instructions 1
7” Colour eBook Reader & Media Player Product Features 3
Parts List 4
Technical Specifications 4
Instructions
1 - Getting Started 5
2 - Inserting a Memory Card 5
3 - Tips & Shortcuts 6
4 - Option Menu 7
5 - Importing & Transferring Content 7
6 - Transferring DRM eBooks to Reader 9
7 - Reading eBooks
8 - Viewing Pictures 16
9 - File Explorer 17
10 - Settings 18
Troubleshooting 19
Support 21
3-16
10-16
Congratulations on choosing to buy a COCOON™ product. By doing so
you now have the assurance and peace of mind that comes with purchasing
a product made by one of the leading manufacturers. All products brought
to you by COCOON™ are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 Year Warranty.
Welcome
General Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for
future reference, along with the warranty card, purchase receipt and carton.
The safety precautions enclosed herein reduce the risk of fire, electric shock
and injury when correctly adhered to. Follow all instructions and take
notice of all warnings to reduce the risk of fire or electric shock.
- Do not expose this product to water, rain, moisture or dust. Electronic
products of this kind should never be subjected to moisture or extreme
temperatures.
- Do not remove the cover or the back of this product. There are no user-
serviceable parts inside this product.
- Do not repair the unit yourself. Only have it serviced by qualified
personnel.
- Supervise young children to ensure they do not play with the product.
- Do not expose the product to dripping or splashing liquids.
- Do not place the product near other items that may damage it, such as
naked flame sources ( lit candles) or objects containing water.
- Avoid banging objects against or dropping the eBook Reader
- Do not place or use near magnets
- Avoid using in dusty or extremely humid conditions
- Do not expose to direct sunlight for long periods of time

4
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Display
7 inch TFT-LCD Display
800x480 pixels
Storage memory
Built in memory: 4GB
Supports MicroSD card up to 32GB (FAT & NTFS format)
Media File Format supported
eBook Supported: EPUB, PDF, TXT, FB2, PDB, RTF, CHM, DJVU, HTML, MOBI
Audio Supported: MP3, WMA, FLAC, AAC, WAV, OGG
Video Supported: MPEG1, MPEG2, MPEG4-XVID, DIVX, H.263, H.264, RM/RMVB, MKV, MOV,
VOB, FLV, MP4
Photo Supported: JPG, BMP, GIF, PNG
Connectivity
Data transfer: USB 2.0 High Speed
Audio: 3.5mm audio jack
Power: USB jack
Miscellaneous
Built in stereo speaker
Clock / Date
Real time battery indication
G-Sensor
Battery life
Ebook: 6~8 hrs
Music: up to 25 hrs (backlight off)
Ebook + Music: up to 6 hrs
Video: up to 5 hrs
Charging
Power: DC 5.0V
Duration: 6 hours (approx)
Minimum system requirement (USB Mass Storage)
Windows 98, 2K, XP, Vista, Win 7, Mac OS 10x, Linux
Physical properties
Dimension: 175 x 126.7 x 11.8 mm
Weight: 284 g
- 1 x 7” Colour eBook Reader &Media Player
- 1 x Protective Case
- 1 x USB Cable
- 1 x Earphones
- 1 x Instruction Manual
- 1 x Setup Guide
- 1 x Warranty Card
- 2 x Warranty Stickers

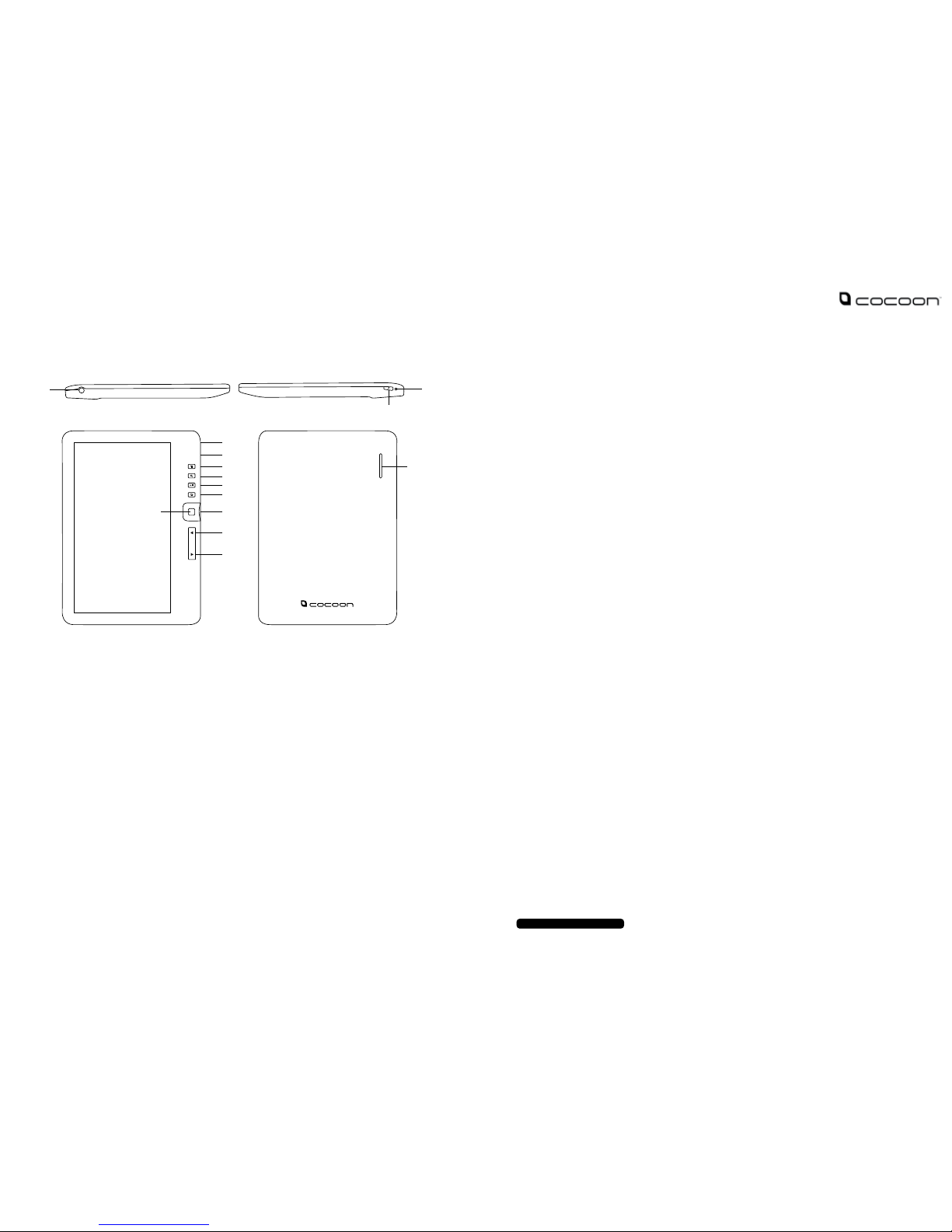

Parts List
Technical Specifications
1. Earphone jack
2. Mini USB jack – for data transfer
3. MicroSD slot – supports MicroSD up
to 32GB (FAT32 + NTFS formats)
4. Menu button – press to display
Option Menu
5. Zoom button – press to adjust font
size or to zoom in/out
6. Play/Pause button – to enter into
music menu
7. Return button – press once to return
to previous menu, press and hold to
return to Home Menu
8. Directional buttons – to move cursor
9. OK/Enter button – accepts current
selection
10. Previous page button – press to turn
to previous page
11. Next page button – press to turn to
next page
12. Power button – press and hold for 3
second to turn on/off
13. Charging indicator – red while
charging, blue when fully charged
14. Speaker
3
7” Colour eBook Reader & Media Player
1
2
3
4
5
6
7
8
14
13
12
9
10
11
Top Bottom
BackFront

5After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
1. GETTING STARTED
Power the eBook Reader On and Off
- Press and hold the power button for 3 seconds to turn on. This is located on the bottom
of the unit
- It may take a few moments for the eBook Reader to turn on and load the content
- If the eBook Reader does not turn on then charging may be required
- To turn the eBook Reader off, press and hold the power button for 3 seconds
Charging the eBook Reader
Note:You will need to charge your eBook Reader for at least 6 hours before first use
- Connect the eBook Reader to a spare port on your PC using the included USB cable to
begin charging. (Note: your PC must be turned on)
- While charging, the eBook Reader will enter standby mode if it is idle for 60 seconds
You can press the power button to wake up the reader
- The battery status is displayed at the bottom left corner of the screen. The remaining
battery time is shown next to the battery icon
2. INSERTING A MEMORY CARD
The eBook Reader supports MicroSD cards in both FAT32 and NTFS format
Note: NTFS format is needed to copy files larger than 4GB to the MicroSD card
To insert a MicroSD card:
- Check that the MicroSD card is in the correct position with the copper contacts facing
upwards as shown.You may damage the MicroSD and the eBook Reader if the card is
not inserted correctly
- Push the MicroSD card into the card slot until it clicks
- To remove the MicroSD card, push the card in slightly
until it clicks and pops out
6
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
3. TIPS & SHORTCUTS
- When a MicroSD card is inserted it may take a few seconds for the eBook Reader to
update the content
- Avoid inserting or ejecting a MicroSD card when the eBook Reader is in use. This may
freeze the system or cause it to reset
- When the MicroSD card is in NTFS format; you cannot directly copy files from the
eBook Reader internal memory to the MicroSD card

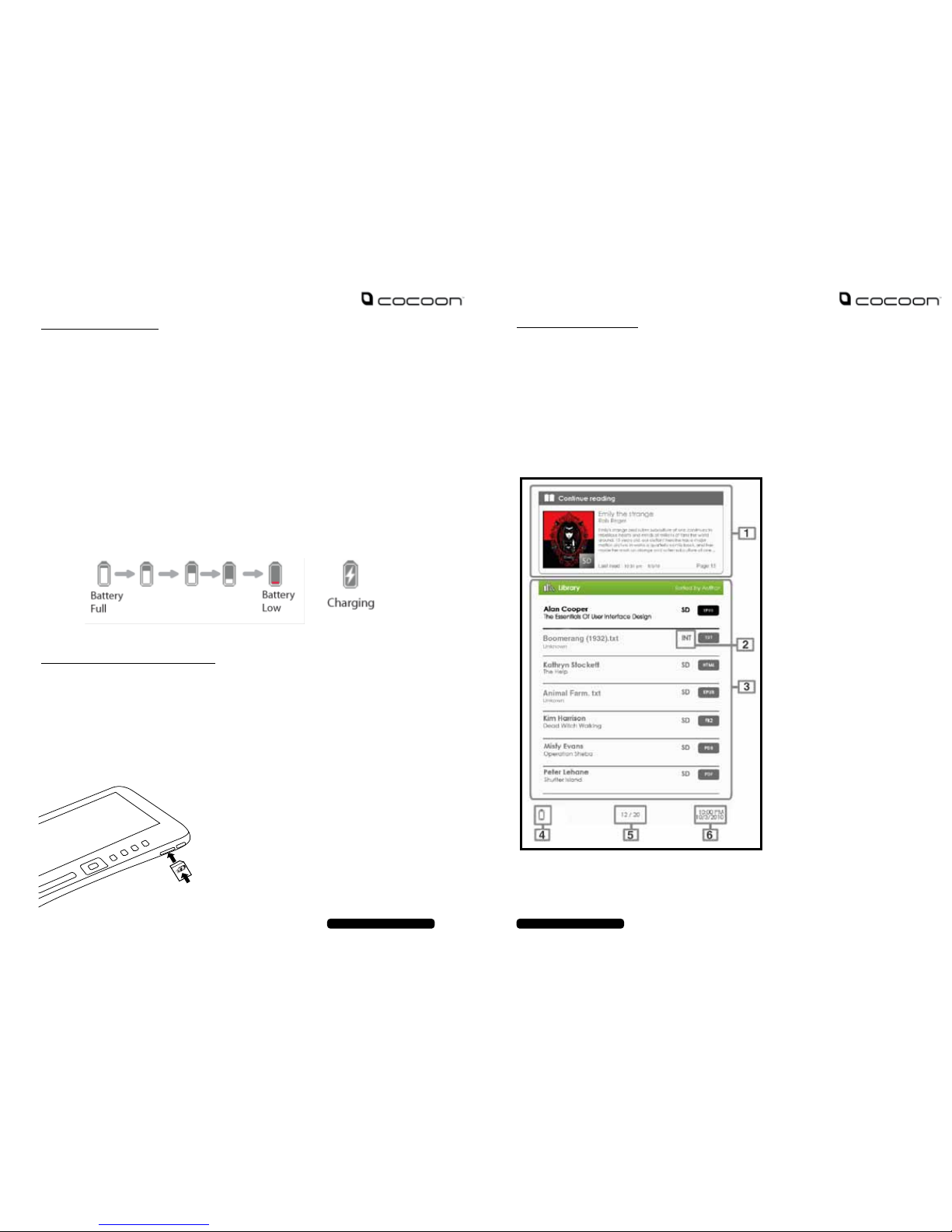

Home Menu
Screen Display
1. Continue Reading
Displays the last read book. Press
OK to continue reading from where
you left off
2. File Directory
Indicates the location where the
file is stored. SD – SD card, INT –
internal memory
3. Library
Displays the list of books available.
Move the cursor to desired book
and press the OK button to open it
4. Battery Indicator
Displays how much battery is left
5. Page Number
Displays current page number and
total available pages in the eBook
library
6. Time & Date
Display current time and date. This
can be set in the settings menu see
page 18 for details

7 8
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
4. OPTION MENU
- To access extra features and functions that are available, press the Menu button
to display the Option Menu
- You can use the directional buttons to move the cursor to your selection. The currently
selected item will be highlighted in darker text. Press the OK button to confirm
your choice
- To exit the Option Menu, move the cursor to the option and press OK to confirm
- You can also exit the Option Menu by pressing the Menu button
To sort books by different categories: Title, Author, Category, Date, Format
Jump to a specific page
Read from previously added bookmarks
Adjust brightness of the display screen
Enter into Video Player
Enter into Music Player
Enter into Photo Viewer
Enter into File Explorer for advanced file management options
Enter into System settings
Open your favourite book list
5. IMPORTING & TRANSFERRING CONTENT
Transferring Files
1. To transfer files to and from your eBook Reader; connect the eBook Reader to your PC
via the included USB cable
2. Once connected, the eBook Reader will enter USB mode. It will display “USB
Connected” when successfully installed
3. You can access the files on the eBook Reader by going to My Computer and double
clicking on BK7021 in your removal device list
4. You can now copy and paste eBook, music, video and picture files
Importing DRM Content
The 7” COCOON™ eBook Reader & Media Player supports Adobe DRM content. You will need to
have Adobe Digital Editions (ADE) installed on your PC to use these files
Installing ADE
The 7” COCOON™ eBook Reader & Media Player comes preloaded with the installation files
required for ADE to be installed on your PC
1. Connect the eBook Reader to PC via the supplied USB cable and open the eBook
Reader as a removable disk. Go to My Computer and double click on the eBook
removal device
2. Make sure your computer is connected to internet
3. For Windows users double click on the ADE_2.0_Installer.exe file to open the installer
Note: For Mac users or for the latest Windows version of ADE, you can download the installer
from http://www.adobe.com/au/products/digital-editions/download.html
For first time users, you will need to get a free Adobe ID from the Adobe website
Click on the get an Adobe ID online link as illustrated:
Authorising your PC and eBook Reader
- Upon registration, return to the ADE window. Enter the username and password to
activate your Adobe account
- After activation, connect the eBook Reader to your PC via the included cable.
Click on the Device Options icon and select “Authorize Device” to allow your
eBook Reader to work with ADE.
- After authorization, you will be able to find the eBook Reader recognized in ADE as
below. Contents inside the eBook Reader will be displayed on the right hand window
More >
More >

9 10
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
- You can now start downloading or buying eBooks from online eBook stores supporting
Adobe DRM. Websites that support Adobe DRM include GooglePlay and Kobo Books

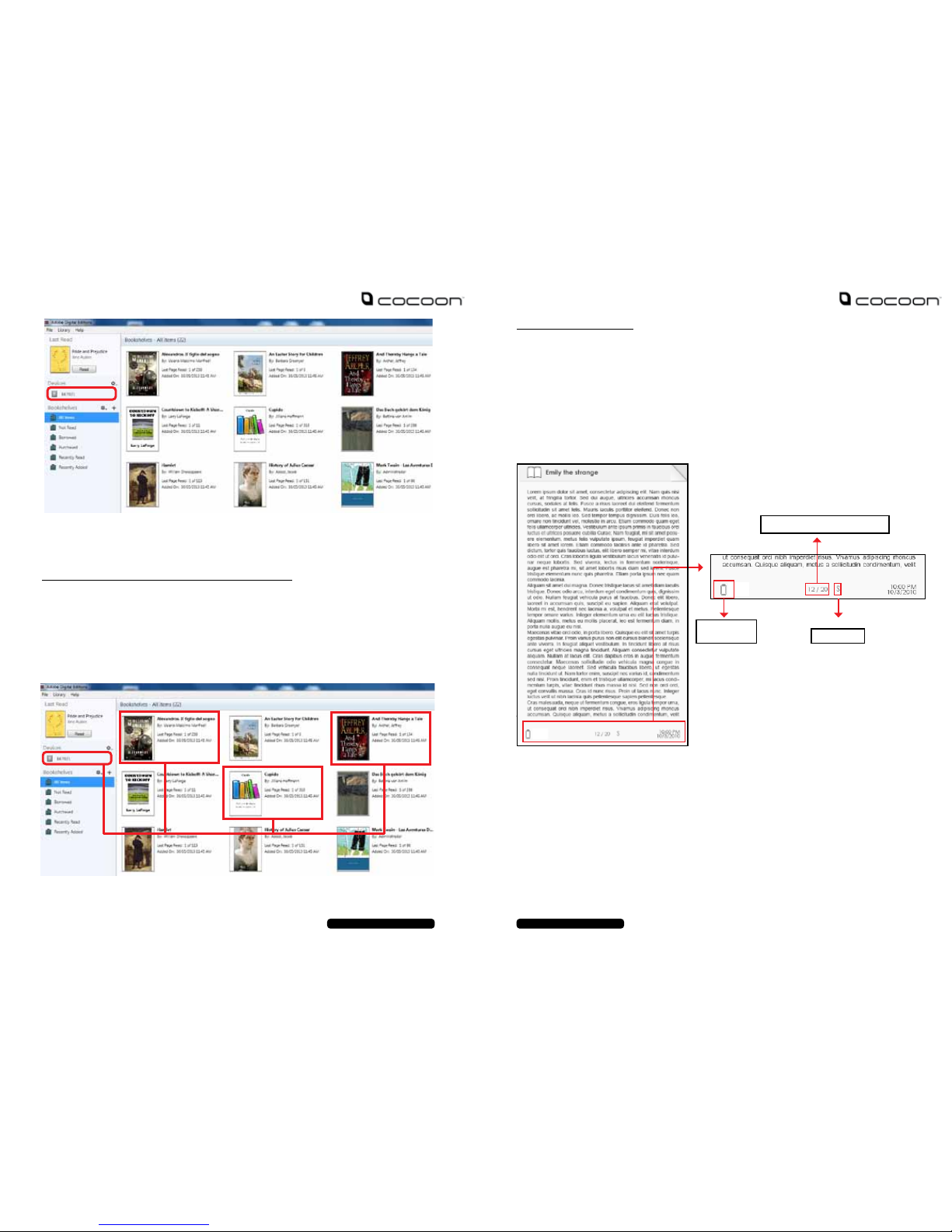

6. TRANSFERRING DRM EBOOKS TO READER
- From the ADE main screen, click on All Items in the left hand menu
- Items in the My Digital Editions folder will be listed in the main window
- Select the eBook(s) you would like to transfer. You can select multiple files by holding
the Shift key and Left Clicking on the files you want
- Drag and drop the selected eBook(s) into the eBook Reader’s drive located on the last
row of the left side column as illustrated
Note: Each Adobe ID only supports 6 devices. An eBook Reader with a MicroSD card
inserted will count as 2 devices
7. READING EBOOKS
Opening eBooks
- Books transferred to the eBook Reader will listed on the Home Menu
- The eBook Reader supports eBooks in the following formats:
EPUB, PDF, TXT, FB2, PDB, RTF, CHM, DJVU, HTML, MOBI
- You can use the directional buttons to move the cursor to select which eBook to
read. Your selection will be highlighted, you can press the OK button to open the file
Book Interface
Turning Pages
When reading an eBook you can use either the Left/Right arrow buttons or the direction buttons to
turn the pages
Remaining
Battry Life Font Size
Current Page / Total Pages

11 12
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Adjusting Font Size
You can adjust the font size while reading an eBook by pressing the zoom button to enter
the font size menu
- There are 5 font sizes available: Small, Medium, Large, X-Large and XX-Large
- Move your cursor using the directional button to the desired font size then press
OK to confirm
- It may take a few seconds for the fonts to be resized
Zooming In/Out
You will need to use the zoom function to enlarge images on the eBook. This includes all ePub
and PDF files
- Press the zoom button to enter the font size menu
- Move your cursor using the directional button to ‘Enlarge’ then press OK to confirm
- The zoom menu will appear and you can select your desired zoom level. Press OK to
confirm
Note: Page turning is disabled in zoom mode. You can press the Return button
to exit zoom mode and return to the original size
Option Menu
While reading an eBook you can press the menu button to enter the Option Menu
1. Add Bookmark
2. Bookmark
3. Go to Page
4. Music Player
5. Autoflip
6. Book Information
7. Rotate Screen
8. Display Settings
9. Add to Favourites
Creating and Loading Bookmarks
To easily access the last page you were reading, you can create a bookmark to save your place
- Enter the option menu by pressing the Menu button, move the cursor to Add
Bookmark and press OK to confirm
- To delete a bookmark you have created, press the Menu button, then move the
cursor to Bookmarks, highlight the Bookmark you wish to delete, press the Menu icon
again, select delete and press OK to confirm
- From the Bookmarks menu, move your cursor to Delete Bookmark, press OK to confirm
Go To Page
You can jump to pages using the Go To Page function
- Enter the option menu by pressing the Menu button, move the cursor to Go
to Page and press OK to confirm
- You can then use the directional buttons to move the cursor left and right to move
between numbers and the Up/Down buttons to change the page number
- Move to the cursor to Apply then press OK to confirm
More >
More >
More >
More >
More >
More >
More >
More >
1
2
3
4
5
6
7
8
9

13 After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
14
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Auto Flip
You can set the eBook Reader to automatically turn pages after a defined period of time
- Enter the option menu by pressing the Menu button, move the cursor to Auto
Flip and press OK to confirm
- You can choose to have the pages automatically turn at 10s, 20s, 30s, 40, 50s and
1min intervals
Book Information
You can check the information of the current book from the Book Information option. This will
show: Title, Author, Publisher, File Type, Date added, File size, Publisher and Expiration
- Enter the option menu by pressing the Menu button, move the cursor to Book
Information and press OK to confirm
The information provided will depend on the source of the eBook, some of the information may not
be available
Auto-Rotate
The COCOON™ 7” Colour eBook Reader & Media Player comes with a built in G-Sensor that will
rotate your books when the eBook Reader is turned to 90º. This will rotate the images or eBooks
to landscape orientation for easier viewing

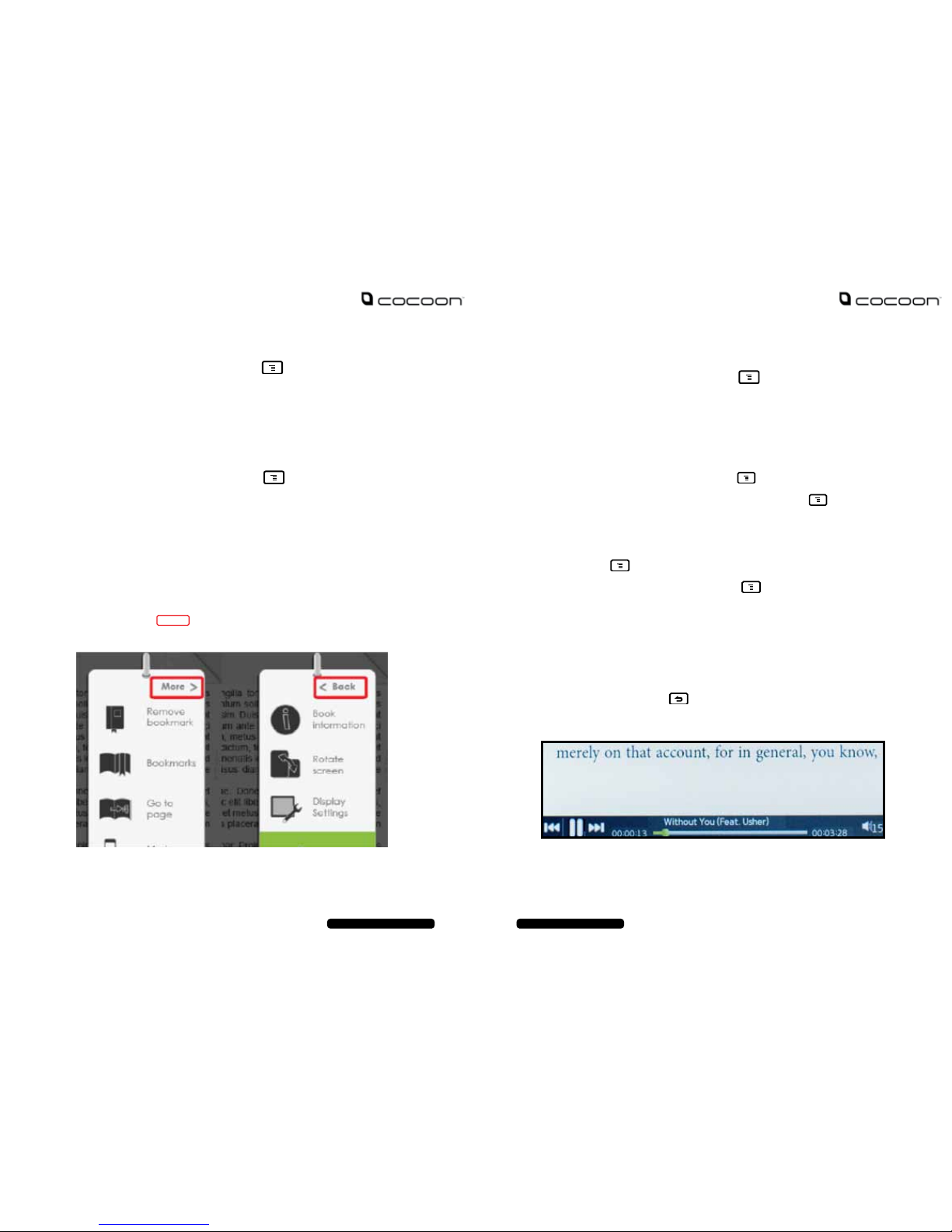

Note: In landscape view, the Option Menu is divided into 2 pages. To access options in the second
page, move the cursor to the at the top right corner of the Option Menu and then press
OK button to see the rest of the options
Display Settings
Change the font colour, background colour and brightness during reading from the Display Settings
menu
- Enter the option menu by pressing the Menu button, move the cursor to
Display Settings and press OK to confirm
Note: Change of font colour and background colour are only applicable to txt and ePub files
Favourites
Add books to your favourite list for quick access
- Enter the option menu by pressing the Menu button, move the cursor to Add
to Favorite and press OK to add the current book to the favourite list.
- Access the favourite list from the Home Menu. Press the Menu button and
select Favourite
To remove book from Favourites:
- From the Home Menu, open the Favourite List. Move the cursor to the desired book title
Press Menu button and select Delete from the dropdown list pressing OK to
confirm your selection
- While reading a book, press the Menu button and select Remove from Favorite
from the Option Menu
Background Music
Play music in the background while you read books
- To control music playback while you are reading a book, press the Play/Pause button to
bring up the mini music player
- You can navigate the music controls with the directional buttons
- Pressing the Return button will resume normal book reading functions
Music Status Bar
More >
More >
More >
More >
More >
More >
More >
More >
More >

15 16
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Playing Audio Files
You can access the Music Player to play music files stored on the eBook Reader or MicroSD card
From the Home Menu, press the Menu Button to display the Option Menu
Move the cursor to Music and press OK to confirm
To play or pause the music Press OK
To play the next song Press direction button right, press and hold to fast forward
To play previous song Press direction button left, press and holdto fast rewind
To Increase volume Press direction button up
To decrease volume Press direction button down
You can adjust additional options by pressing the Menu Button to display the Option Menu
Playing Video Files
You can access the Video Player to play music files stored on the eBook Reader or MicroSD card
- From the Home Menu, press the Menu Button to display the Option Menu
- Move the cursor to Video and press OK to confirm
- In the video library, move the cursor to the video file you wish to play and press OK to
begin the video
Controlling video playback
Enter / Exit Full Screen Press Zoom button
Increase/Decrease Volume Press Directional button Left/Right
Previous Video / Fast Rewind Press direction button down
Next Video / Fast Forward Press direction button up
Play / Pause a video Press Play/Pause button
Adjust additional options by pressing the Menu Button to display the Option Menu
To Display Subtitle during Video Playback
The eBook Reader supports subtitle of sub, ssa, srt and lrc format
Note: The file name of the subtitle must be identical to that of the video file.The subtitle will
be loaded automatically during video playback
8. VIEWING PICTURES
You can access the Picture Viewer to view image files stored on the eBook Reader or MicroSD card.
- From the Home Menu, press the Menu Button to display the Option Menu.
- Move the cursor to Photo and press OK to confirm
- In the image library, move the cursor to the image file and press the OK button to view
the image in full screen
- Use the directional buttons to navigate through the files and folders from full screen mode
EQ settings – move the
cursor to EQ Settings, press
the directional button left or
right to select desired EQ
setting
Play Mode - move the cursor
to Play Mode] press the
directional button left or right
to select desired Play Mode
To view all stored audio
files
To sort audio files by genre
To sort audio files by album
To sort audio files by artist
Play Mode - move the cursor to
Play Mode press the directional
button left or right to select
desired Play Mode
Fit to Screen – move the
cursor to Fit to Screen and
press OK to enter full screen
mode
Brightness – move the cursor
to Brightness and press OK to
adjust video brightness settings
More >
More >
More >
More >
More >

17 18
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
Zooming In/Out
- There are 3 zoom levels available in the image viewer. To zoom in, while in full screen
mode, press the Zoom to change the zoom level
- Return to original size by pressing the Return button
Slideshow
- To begin slideshow playback of image files, while in full screen mode, press the Menu
button and select Slideshow, press OK to begin
- To stop the slideshow, press the Menu button again
- Adjust the time interval between slides by pressing the Menu button and selecting
Slide Time
Thumbnail View
- To view image thumbnails, while in full screen mode, press the Menu button and
select Thumbnail, press OK to Confirm
- Exit thumbnail view by pressing Menu button to return to full
screen mode
Image Tips and Shortcuts
It is recommended that you organise your pictures into specific folder to make navigating the files
easier
9. FILE EXPLORER
- From the Home Menu, press the Menu Button to display the Option Menu. Move
the cursor to Explorer and press OK to enter Explorer Mode.You will now see the File
List of your eBook Reader internal memory
- Use the directional Left/Right buttons to select either the Internal or MicroSD memory,
press OK to confirm your selection
- Pressing the Return button will exit the directory you are currently in and return
the cursor to Memory Selection
Copy / Paste files
- Copy files/folders from SD card to internal memory and vice versa
- From the file list, move the cursor the file you wish to copy. Press the Menu
button and select Copy. Press OK to confirm
- From Explorer, go to the desired location to store the copied file. Press the Menu
button and select Paste to start copying the file into the new directory/folder. Press OK
to confirm
Note: It may take longer time to paste files/folder with larger file size
Deleting File
From explorer, move the cursor to desired file to delete. Press the Menu button and select
Delete to start deleting file. Press OK to confirm
Note: It may take longer to delete files with large file sizes or quantities
10. SETTINGS
Adjust system settings from the Settings menu. This can be accessed from the Home Menu,
moving the cursor to Settings and pressing OK
Time & Date
To set the time and date
- Press Directional Left/Right buttons to move the cursor
- Press Directional Up/Down buttons to input value
Note: Correct Time Zone setting is required to calculate the correct duration for book
borrowing/returning if applicable
Device Standby
- To enable /disable auto standby mode
- Press the Power button to manually set the reader to standby mode
- Press the Power button once to wake up the reader from standby mode
Format Memory
Format the internal memory and MicroSD card of the eBook Reader using this function
Warning: Performing this function will remove all data from the device. This data will be
lost. Please backup your data before performing this function
About Product
Displays product information of the Reader
Power Management
Displays real time battery status of the Reader
Restore Factory Defaults
Reset the eBook Reader settings to default. All DRM content and activations will be deleted. You
are required to authorize the reader again through ADE after the system restored
Language
To set system language of the reader
Screen Rotation
To set screen rotation mode to auto or manual mode
User’s Manual
This manual is also available on the device for easy access
More >
More >
More >
More >
More >
More >
More >
More >
More >
More >
More >
More >

19 20
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
The Reader is not responding or can’t
be turned on
- Reset the reader by pressing and holding
the power button for 6 seconds. The reader
will be forced shutdown if it is on and you
are required to turn the reader on again
- Battery has been fully depleted. Please
charge the reader before use
Battery Life seems short
- The battery was not used for a prolonged
period. Please recharge the battery of the
reader again
- The battery is not fully charged. Please
charge the reader for at least 4 hours
A Book cannot be read
- Copyright protected books cannot be read
on any device other than authorised
devices.
- If you have borrowed the book from a
library or online vendor. Check if the book
loan period has expired
- Check if the book format is supported by
the reader. The eBook Reader supports the
following formats: EPUB, PDF, TXT, FB2,
PDB, RTF, CHM, DJVU, HTML, MOBI
The reader cannot be operated during
USB connection
- The reader cannot be operated while it is
connected to a PC.
- Eject the reader from computer to resume
operation
- To use the reader while charging, click on
the Safely Remove Hardware icon located
on the right lower corner to disconnect data
connection with computer
- After the reader is safely removed,
computer will only charge the reader and
you can now resume normal operation
TROUBLESHOOTING
If the reader does not function as expected, please try the following steps:
NOTES:

21 22
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
After Sales Support
Telephone: [phone]
Internet: www.winplus.com.au
7” Colour eBook Reader & Media Player
SUPPORT
For additional support including helpful guides and videos, visit the Cocoon
support website at www.winplus.com.au/cocoon.html
Telephone: [phone]
Email: [email protected]
Website: www.winplus.com.au
