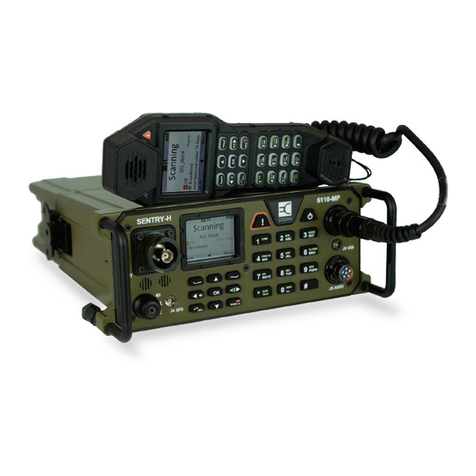

Codan Sentry-H 6110-MP Reference guide

Calling

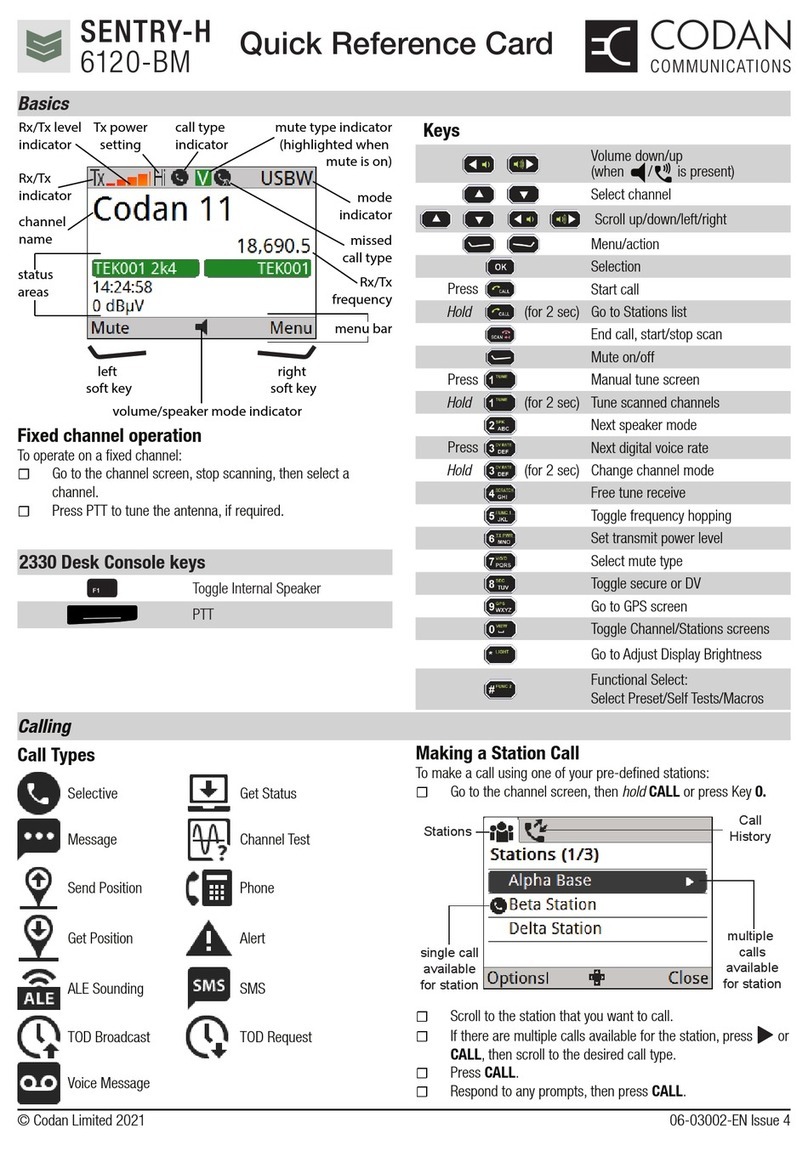

Quick Reference Card
Fixed channel operation
To operate on a xed channel:
☐Go to the channel screen, stop scanning, then select a
channel.
☐Press PTT to tune the antenna, if required.
Discreet mode switch
Rx/Tx level
indicator
Rx/Tx
indicator
channel
name
status areas
left
software key
right
software key
volume/speaker mode indicator
menu bar
mode
indicator
Tx/Rx
frequency
battery level
indicator
missed
call icon
mute type indicator
(highlighted when mute is on)
call type
indicator
Tx power
setting Keys
Volume down/up
(when / is present)
Select channel
Scroll up/down/left/right
Menu/action
Selection
Start call
Go to Stations list
End call, start/stop scan
Mute on/off
Manual tune screen
Tune scanned channels
Next speaker mode
Next digital voice rate
Change channel mode
Free tune receive
Toggle frequency hopping
Set transmit power level
Select mute type
Toggle secure or DV
Go to GPS screen
Toggle Channel/Stations screens
Go to Adjust Display Brightness
Functional Select:
Select Preset/Self Tests/Macros
Stations Call history
Single call
available for
station
Multiple calls
available for
station
Basics
Call Types
Selective Get Status
Message Channel Test
Send Position Phone
Get Position Alert
ALE Sounding SMS
TOD Broadcast TOD Request
Voice Message
Making a Station Call
To make a call using one of your pre-dened stations:
☐Go to the channel screen, then hold CALL or press Key 0.
Stations
Call
History
single call
available
for station
multiple
calls
available
for station
☐Scroll to the station that you want to call.
☐If there are multiple calls available for the station, press or
CALL, then scroll to the desired call type.
☐Press CALL.
☐Respond to any prompts, then press CALL.
© Codan Limited 2021 06-03050-EN Issue 2
Press
Hold
Press
Hold
(for 2 sec)
(for 2 sec)
Press
Hold (for 2 sec)
Pull, then rotate right to
zeroise transceiver
Discreet mode on
(No audio or backlight)
Discreet mode o

Making a call from the Channel screen
To make a call:
☐Go to the channel screen, then press CALL.
missed
call
incoming
call
navigation
indicator
call type HF network
address
outgoing
call
☐Press or to scroll to the call type that you want to
use.
☐Enter a station address to call.
☐If you want to return or repeat a call from the Call Log, press
to scroll to the entry.
☐Press CALL.
Navigating
Making a call from the Call History
To make a call fom the Call History:
☐Go to the channel screen, hold CALL or press Key 0.
☐Ensure that the top tab is selected, then press to see the
Call History.
☐Scroll to the call that you want to return or repeat, then press
CALL.
Making an alert call
CAUTION: Ensure that all information required is set
up for the alert station.
To make an alert call:
☐Hold for 2 sec, then follow any prompts.
Viewing missed calls
To view a missed call:
☐Go to the channel screen, hold CALL, or press Key 0, then
press to see the Call History.
☐Scroll to the missed call that you want to view, then press
OK.
Navigating the menu structure
To navigate the menu structure:
☐To move through the menu structure, press , , , or
to highlight the icon that you want to select, then press
OK.
☐To move through a list of entries at the lowest level of the
menu structure, press or .
☐To go to the top level in the menu structure, do one of the
following:
• Press (Close) to return to the top level of the
menu structure, one level at a time.
• Press PTT to exit to the channel screen, then press
(Menu) to enter the top level of the menu
structure.
Finding a word or value
NOTE: Find is available for selected icons.
To nd a word or value:
☐Highlight the icon in which you want to search, then press
(Find).
☐Start entering the letter and/or number of which you want to
search.
☐Enter more characters to rene your search.
☐Scroll to the entry or value that you want, then press OK. You
are taken to the entry or user data containing the character.
Text editing functions
Press to delete a single character or hold to clear all the
text in the eld
Change character-entry mode
Select special character (press/hold)
Enter a space
PTT
Abort editing/exit
Shortcuts
+ 0 Adjust Display Brightness
+ 1 Toggle next available theme
+ 2 Toggle advanced view
+ 3 Select language
+ Abandon mode
References
Sentry®-H 6110-MP Transceiver Operator Guide (Codan part number 15-04200-EN)
