ReLite Led

Italiano

3

Index

1. Packaging and transportation .............................................................................................Pag. 4

1.1Packaging.........................................................................................................................................Pag.4

1.2 Transportation ............................................................................................................................Pag. 4

2. General information .................................................................................................................. Pag. 4

2.1 Safety informations .................................................................................................................. Pag. 4

2.2 Warranty conditions ................................................................................................................ Pag. 5

2.3 EC norms ..................................................................................................................................... Pag. 5

3. Product specifications ...............................................................................................................Pag. 6

3.1 Technical characteristics ..........................................................................................................Pag. 6

3.2 Dimensions ................................................................................................................................. Pag. 6

3.3 Unit’s main components .........................................................................................................Pag. 7

4. Installation .......................................................................................................................................Pag. 8

4.1 Mechanical installation ............................................................................................................Pag. 8

5. Powering up ....................................................................................................................................Pag. 9

5.1 Operating voltage and frequency ....................................................................................... Pag. 9

6. Turning on the ReLite Led .......................................................................................................Pag. 9

7. Spare parts ....................................................................................................................................... Pag. 9

8. Maintenance ................................................................................................................................ Pag. 10

8.1 Periodic cleaning .....................................................................................................................Pag. 10

8.2 Periodic control ........................................................................................................................Pag. 10

9. F.A.Q. and answers .................................................................................................................. Pag. 10

10. Usage warnings ..................................................................................................................... Pag. 11

Italiano

4

Congratulations on having purchased a Coemar product. You have assured yourself of a

fixture of the highest quality, both in componentry and in the technology used. We renew

our invitation to you to complete the service information on the previous page, to expedite

any request for service information or spares (in case of problems encountered either during,

or subsequent to, installation). This information will assist in providing prompt and accurate

advice from your Coemar service centre. Following the instructions and procedures outlined

in this manual will ensure the maximum efficiency of this product for years to come.

1. Packaging and transportation

1.1 Packaging

Open the packaging and make sure that no part of the equipment has suffered any damage

during the transportation. In case of damage to the fixture, contact your currier and your

supplier immediately by telephone, fax or email, and inform them you will formally notify

them in writing through registered letter.

Packing list

Make sure the packaging contains:

1 ReLite Led

1 Instruction manual

2. General information

2.1 Important Safety information

Fire prevention:

1. Never locate the fixture on any flammable surface.

2. Minimum distance from flammable materials: 0,5m.

3. Minimum distance from the closet illuminable surface: 0,5m.

4. Replace any blown or damaged fuse only with those of identical values.

Refer to the schematic diagram if there is any doubt.

5. Connect the projector, where the ReLite Led is installed, to mains power

protected by a thermal magnetic circuit breaker.

Prevention from electric shock:

1. Presence of high voltage inside of the fixture. Insulate the fixture from

mains supply before opening or performing any function which involves

touching the inside of the fixture, including lamp replacement.

2. For the connection to the mains, adhere strictly to the guidelines outlined

in this manual.

1.2 Transportation

The ReLite Led must be transported exclusively in its original packaging.

Italiano

5

3. The level of technology of ReLite Led requires the use of specialised

personnel for all service applications; refer all work to your authorised

Coemar service centre.

4. A good earth connection is essential for the proper functioning of the

projector. Never connect the fixture if there is no earth connection.

5. Mains cables must not come into contact with other cables.

6. Do not operate the projector with wet hands or in an area where water

is present.

7. The fixture must never be located in an exposed position, or in areas of

extreme humidity.

Safety:

1. The external surfaces of the unit, at various points, may reach 60°C. Never

handle the unit until at least 10 minutes have elapsed since the LED was

turned off.

2. Never install the fixture in an enclosed area lacking sufficient air flow; the

room temperature must not exceed 45°C.

3. The projector contains electronic and electrical components which must

under no circumstances be in contact with water, oil or any other liquid.

Failure to do so will compromise the proper functioning of the projector.

2.2 Warranty conditions

1. The fixture is under warranty for 36 months from the purchase date against factory

defections.

2. Damage ought to unskillfulness, inappropriate use, or lack of suggested maintenance

are excluded from the warranty.

3. Warranty expires when the projector is opened by unauthorized personnel.

4. Warranty doesn’t include the replacement of the fixture.

5. Serial number and model of the fixture are necessary to retrieve informations and

assistance from the dealer.

2.3 EC norms

The projector meets all fundamental applicable EC requirements.

Italiano

6

3.2 Dimensions

3.1 Technical characteristics

3. Product specifications

Power supply 110-230Vac, 50-60Hz

Maximum current 0.5 A (CRI 97) - 0.7 A (CRI 90) @ 230 Vac

Power factor Cosϕ= 0.98

Power consumption 160 W (CRI 97 version) - 115 W (CRI 90 version)

Color temperature Fixed white CCT at 3200 K or 5600 K

Weight 0.8 Kg (1.7 lbs.)

Operating Ta (°C/F) range -20 to 45°C (-4 to 113°F)

Termal protection at 65°C/149°F

Connectors G22 - GX9.5 - G38 - GY9.5 - GY16

Audio noise dbA 14

IP rating IP20

107 mm

4.21 in

24 mm

0.94 in

28.4 mm

1.12 in

134 mm

5.28 in

110 mm

4.33 in

91 mm

3.58 in

Italiano

7

C

A

B

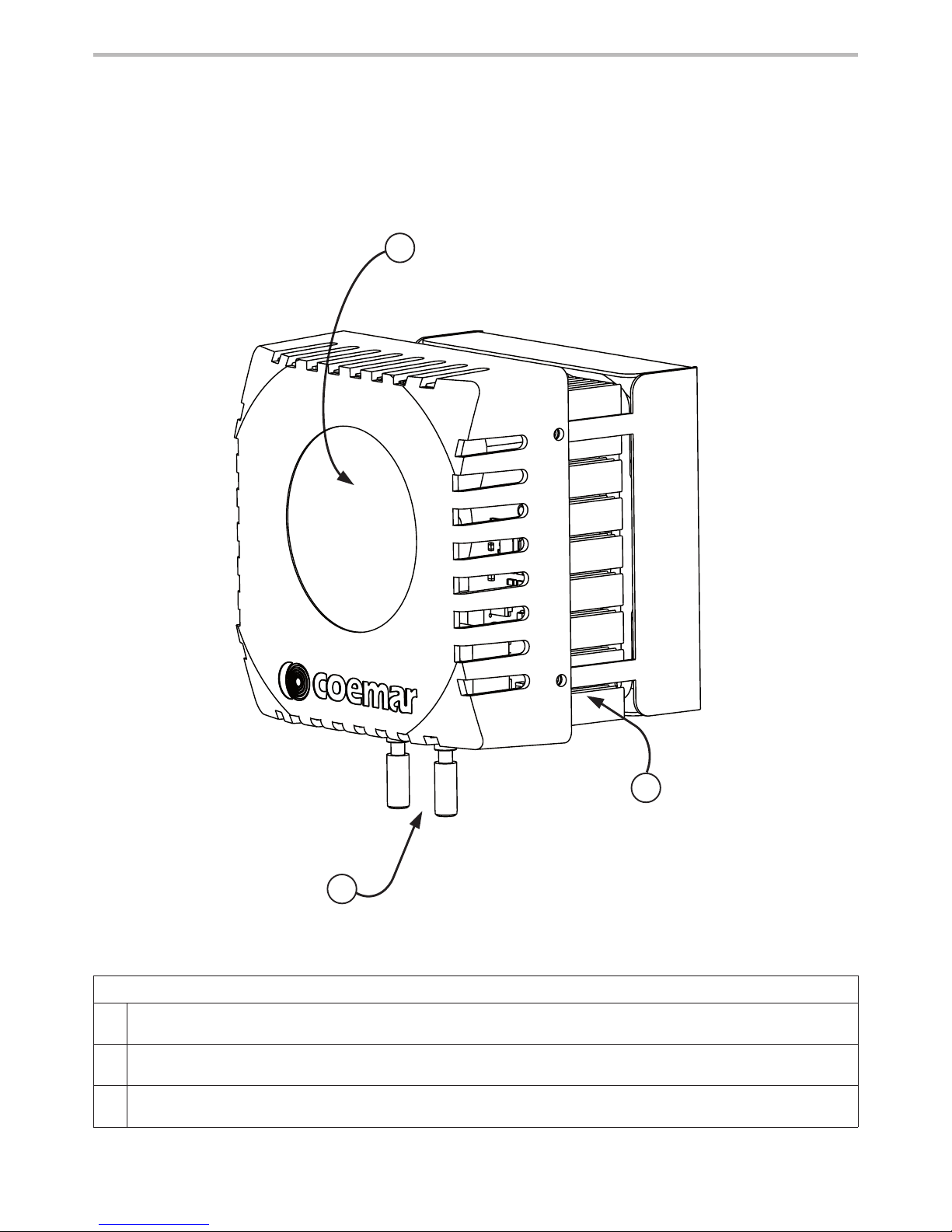

Components description

ALed

BHeatsink

CPin Base

3.3 Unit’s main components

Italiano

8

4. Installation

4.1 Mechanical installation

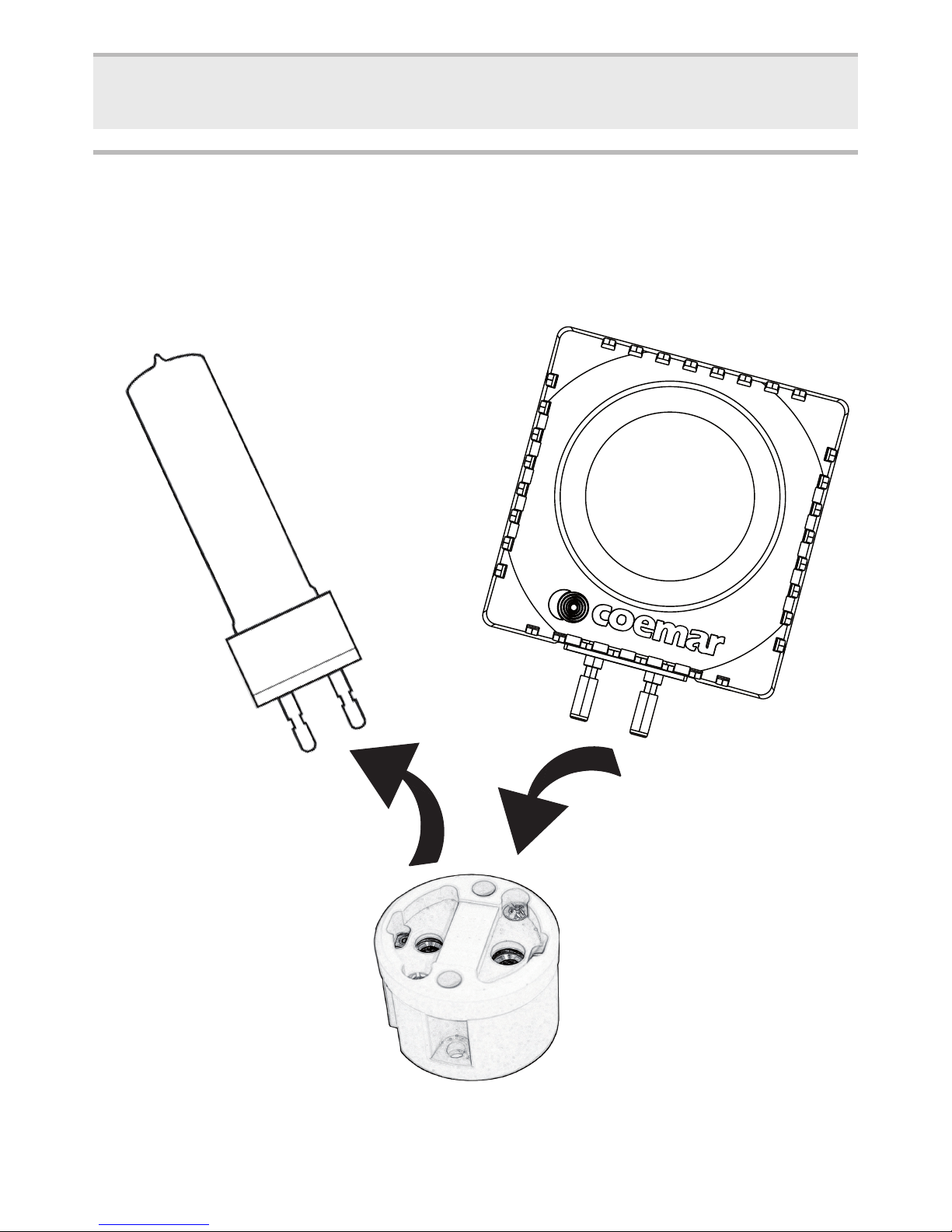

With ReLite Led will be possible to give new life to your projector, simply replacing the old

lamp with the ReLite Led.

Italiano

9

5. Powering up

5.1 Operating voltage and frequency

The unit may operates at voltages ranges from 110 to 230 Vac at a frequency of 50 or

60 Hz. It is not needed to effect any setup procedures: ReLite Led will automatically adjust

its operation to suit any frequency or voltage within this range.

Warning!!

•The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to

regulatory norms is strongly recommended.

•Ensure that the mains characteristics are within the recommended range for the

use of ReLite Led.

•All connections should be carried out by a suitably qualified personnel.

6. Turning on the ReLite Led

After having followed the preceding steps described, proceed with the power supply and

turn on the projector, in which is installed the ReLite Led, connecting it to the mains power.

All ReLite Led’s spare parts are available from your Coemar service centers. Specifying in

detail the projector model and the replacement part requested, will help the service center

to serve you in the best way.

7. Spare parts

Italiano

10

8. Maintenance

8.1 Periodic cleaning

Front glass

Even a fine layer of dust can reduce the luminous output and alter the compactness of

the beam. Regularly clean all filters and lenses using a soft cotton cloth, dampened with a

specialist lens cleaning solution.

Cleaning of the unit

Use a soft brush or a common vacuum cleaner or a source of compressed air for removing

dust. For the cleaning of the housing use a soft cloth and a non-aggressive cleaner. Check

that the fan and heat exchanger must be perfectly clean.

8.2 Periodic controls

Mechanical components

Check the correct working of the mechanical parts and, if needed, replace them. Make

sure the projector is not mechanically damaged. If necessary, replace the worn parts.

Question Possible solution

ReLite Led does not emitt

light

Projector not powered:

• Make sure the power cord is plugged in or test the

input voltage in the projector in which is installed

ReLite Led;

• Make sure the ReLite Led is well inserted into the

socket.

The following list shows common issues that may be simply solved. If issues persist, the unit

must be repaired by qualified personnel or just contact your Coemar service near you.

9. F.A.Q. and answers

Italiano

11

10. Usage warnings

1. It is recommended to activate the preheat function throw the power unit, in this way

when the Led is off the fan will be on.

2. The strobe function is not allowed.

• When the preheat is active the ReLite’s shutdown and its ignition can not be less than

one second, in case the preheat is not active, the shutdown and its ignition can not

be less than four seconds.

Italiano

12

User notes

................................................................................................

Italiano

13

User notes

................................................................................................

14

Italiano

Information on disposal of the equipment

The equipment at the end of its useful life must be disposed of at an appropriate recycling center for

waste electrical and electronic equipment. The treatment and disposal of environmentally friendly,

helps prevent potential negative environmental and health and promote the reuse and / or recycling of

materials making up the equipment. Illegal disposal by the user includes the application of administrative

sanctions provided by law.

Coemar Lighting s.r.l.

Via Carpenedolo 90

46043 Castiglione delle Stiviere, Mantova, Italia

tel. +39 0376/1514412 - fax +39 0376/1514380

[email protected]

Coemar reserves the right to effect modifications without notification

Coemar ReLile LED User manual
