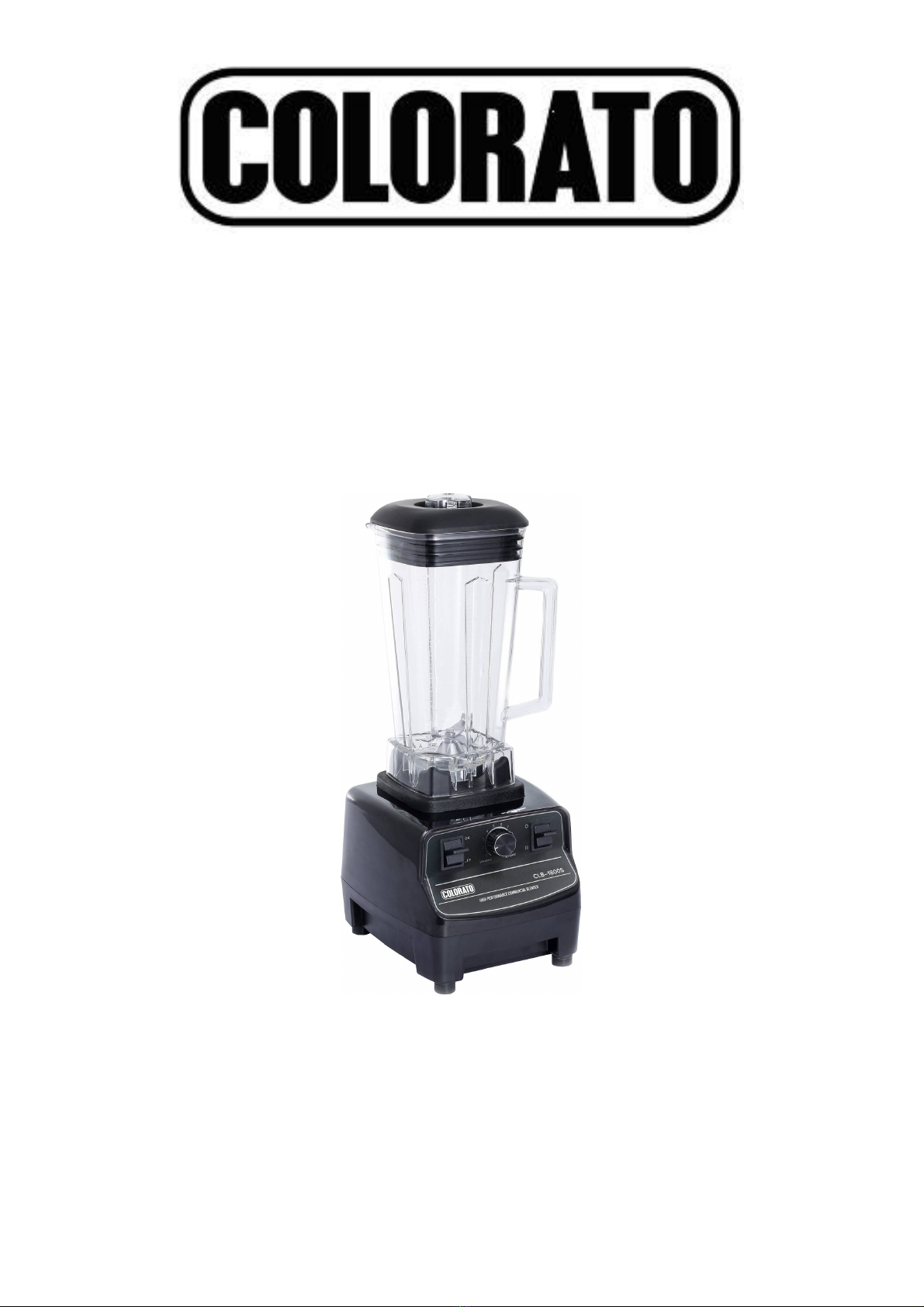

COLORATO CLB-1800S User manual

www.colorato.net
INSTRUCTION MANUAL
OF COMMERCIAL BLENDER
MODEL: CLB-1800S
Read carefully these instructions before using the appliance and
save them for future reference

1
Contents
COLORATO recommends safety first ……….……………………………………….. 2
Important safeguards for your blender …………………………………………….... 2
Important safeguards for all electrical appliances…………………………………. 3
Know your blender……………………………………………………………………….. 4
Exploded view of Spare Parts.…………………………………...…….………………. 5
Operating your blender……..……………………………………………………………
Technical Parameters….…………………………………………………………………
6
7
Disassembling your blender for cleaning, care and storage…………………….. 8
Tips on how to use your blender…………………………………..………………….. 9
Suggested uses for your blender…………..………………………………………….. 10
Recipes..……………………………………………………………………………………. 10
Trouble shooting chart……………………….………………………………………….. 11
Guarantee of product’s good operation……..…………………..………….............. 12

2
COLORATO recommends safety first
We at COLORATO are very safety conscious. We design and manufacture
consumer products with the safety of you, our valued customer foremost in mind.
In addition, we ask that you exercise a degree of care when using any electrical
appliance and adhere to the following precautions:
Important safeguards for your blender
 Carefully read all instructions before
operation and save for future reference.
 Remove any packaging material and
promotional stickers before using the
blender for the first time.
 Do not place the blender near the edge of
a bench or table during operation. Ensure
that surface is level, clean and free of
water, flour etc. Vibration during operation
may cause the appliance to move.
 Do not place this appliance on or near a
hot gas or electric burner, or where it could
touch a heated oven.
 Always ensure the blender is properly
assembled before use. Refer to assembly
and operation (page 6).
 Use only the blender jug and lid supplied
with the blender.
 Always ensure the blender lid is firmly
positioned on the blender jug before
operating.
 Do not leave the blender unattended when
in use.
 Ensure that the switch in the control panel
is in OFF position and then unplug from
the power outlet before attaching the
blender or attempting to move the
appliance, or when the blender is not in
use and before cleaning and storing.
 Do not operate the appliance continuously
for more than 3 minutes. After the 3
minutes, stop for one minute before you
continue.
 Never place your fingers or utensils inside
the blender without unplugging the unit
from the power outlet.
 Be careful when handling the blending
blade as the blade is very sharp. Mis-
handling of the blade may cause injury.
 Keep hands, hair, clothing, as well as
spatulas and other utensils away from the
blender jug during operation.
 Do not remove blender jug from the motor
base whilst in operation. Remove the jug
only when the appliance is completely off.
 To protect against electric shock do not
immerse the motor base, plug or cord in
water or any other liquid.
 Do not use the blender for anything other
than food and/or beverage preparation.
 Do not process boiling liquids; allow to
cool before placing into the blender jug.
Make sure the motor and blade have
completely stopped, the POWER switch is
pressed down and it is unplugged from the
power outlet before disassembling.
 Keep the appliance clean. Refer to care
and cleaning (page 8).

3
Important safeguards for all electrical appliances
 Fully unwind the cord before use.
 To protect against electric shock, do not
immerse cord, plug or motor base in water
or any other liquid.
 Do not let the cord hand over the edge of a
table or counter, touch hot surfaces or
become knotted.
 This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by a
responsible person to ensure they can use
the appliance safely.
 Young children should be supervised to
ensure that they do not play with the
appliance.
 It is recommended to regularly inspect the
appliance. Do not use the appliance if the
power supply cord, plug or appliance
becomes damaged in any way. Return the
entire appliance to the nearest authorized
COLORATO Service Centre for
examination and / or repair.
 Any maintenance other than cleaning
should be performed at a COLORATO
authorized Service Centre.
 This appliance is for professional use. Do
not use this appliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors.
ROHS
The symbol on the product means that at the end of its life, the appliance has not to be
considered a common waste. It is a special waste and has to be demolished in specific
recovery and disposal area, as prescribed by the EC Directive 2002/96/EC(WEEE). By
disposing this product correctly, you can avoid negative consequences for the environment
and for the human health, due to the presence of potentially dangerous substances in the
product.
Attention

4
Know your Blender

5

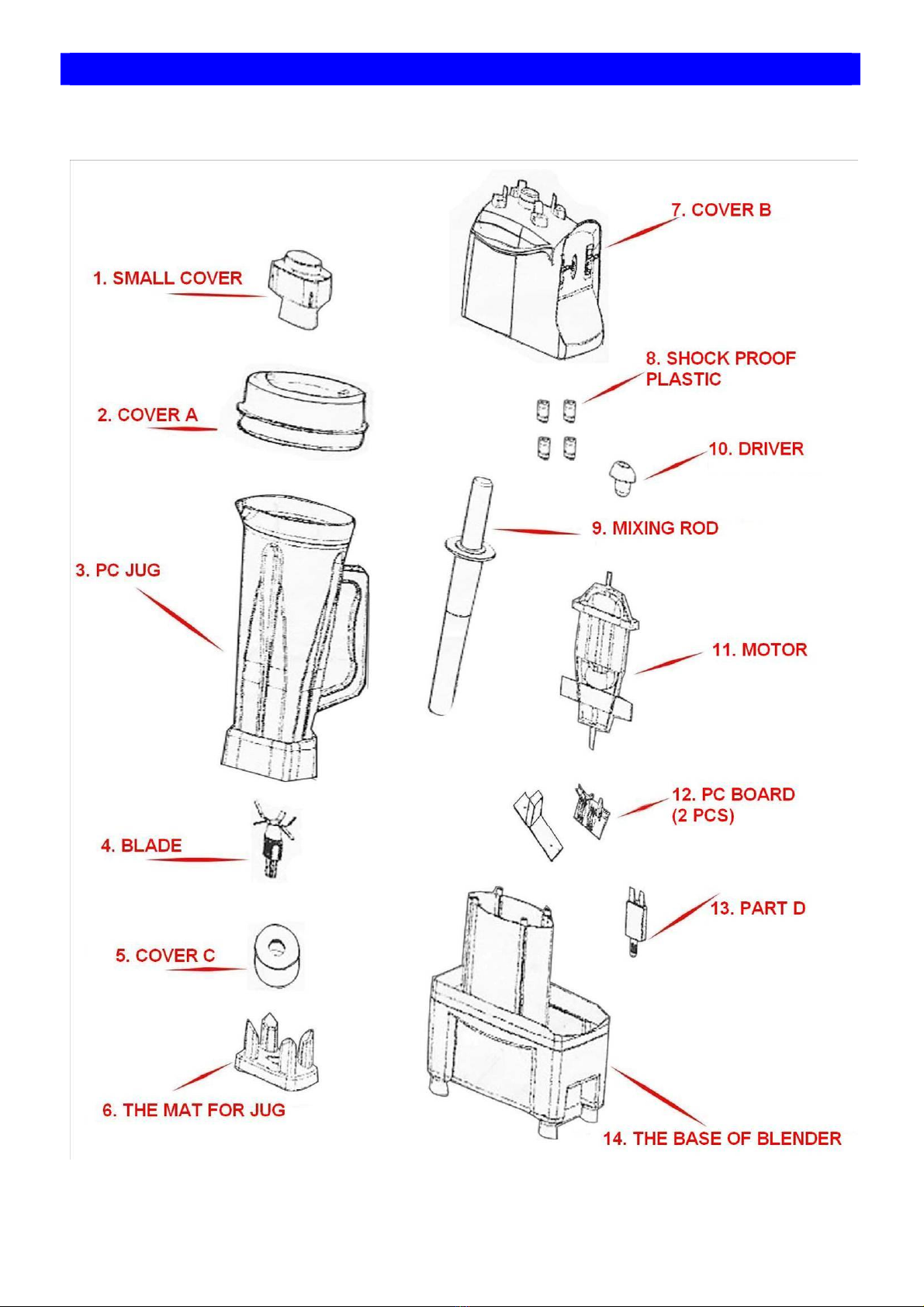

Exploded view of Spare Parts

6
Operating your Blender
Before first use
Before using your blender for the first time,
remove any packaging material and
promotional labels. Ensure the appliance is
switched off and the power cord is unplugged
from the power outlet. Wash the lid, blender
jug, mixing rod and blade assembly of the
blender in warm soapy water, with a soft cloth.
Rinse and dry thoroughly. Do not place parts
in the dishwasher. The motor base can be
wiped with a damp cloth to remove any dirt.
Dry thoroughly.
When first using the Blender, you may
notice an odour coming from the motor.
This is normal and will dissipate with use.
All processing blades are extremely sharp.
Avoid any contact with hands.
Note
Assembling and attaching the
blender
5. Select the required speed function by
choosing either the Pulse operation by
pressing down the PULSE switch, either the
Continuous Operation, by lifting the
POWER switch. Speed can be changed at
any time during the blending process by
adjusting the Variable Speed Regulator
from the MINIMUM to the MAXIMUM. Press
down the POWER switch or let the PULSE
switch to stop blending.
6. For ingredients that require short bursts of
power, use the switch of the PULSE
function. Press the PULSE switch down for
short bursts until blending is complete.
7. The ice crush requires the highest speed
and is performed with the Pulse Operation
switch.
8. At the end of use, press down the POWER
switch or let the PULSE switch and unplug
the power cord from the power outlet.
Important- To crush ice
Place 1 cup of frozen ice cubes into the
Blender jug. Replace lid and press the PULSE
switch down. Once a snowy textured ice is
achieved, let the switch in order to stop the ice
crushing. This will take approximately 15
seconds.
During the blending process, ingredients may
stick to the sides of the Blender jug. To push
the food back onto the blades, press the
POWER switch down and unplug the power
cord from the power outlet. Remove the lid and
use a plastic spatula to scrape down the sides
of the jug. Replace the lid before
recommencing blending.
If any moisture of liquid appears on top of the
motor base, press the POWER switch down
and unplug the power cord from the power
outlet. Remove the blender jug. Wipe the motor
base immediately with paper toweling and
check the blender jug is correctly assembled.
1. Place the motor base on a flat, dry surface
such as a bench top. Ensure that the motor
is switched off and the power cord is
unplugged from the power outlet.
2. Turn the blender jug upright and insert on to
the motor base.
3. Add food or liquid into the blender jug.
Place the blender lid firmly into position on
the top of the blender jug.
4. Plug the power cord into a 230 / 240 V
power outlet and either lift the Switch of
Continuous Operation (POWER), or press
down the Switch of Pulse Operation
(PULSE). Always use one of the two
switches and never both of them together.
Note
NEVER PLACE ANYTHING OTHER THAN FOODS AND LIQUIDS IN THE
BLENDER WHILST THE MOTOR IS RUNNING.

7
Technical Parameters
Model CLB-1800S
Voltage 220-240V~50 Hz
Capacity of the Jug 2 L
Endurance of the Jug -40ºC~99 ºC
Power of the Motor 1800 W
Net Weight 4.5 kg
Blades 2.0 mm, #304 stainless steel
Length of cord 1.7 M
Dimensions 190 x 220 x 480 mm (WxDxH)
Protector Current protector,
Thermal protector for Motor
Rounds of the motor/ r.p.m. Minimum 11000 ~ maximum 28000
* The appliance with 220V is available in 10A plug.

8
Disassembling your blender for cleaning, care and storage
Storage
Store the Blender on the top of the
workbench. The blender jug and lids can be
assembled and stored on top of the motor
base or next to it.
The chopping blade is extremely sharp!!
Use caution when handling and storing
these parts.
Note
Cleaning after use
1. Always ensure the blender is OFF by
pressing the POWER switch down or letting
the PULSE switch and unplugging the
power cord from the power outlet.
2. Remove the blender jug from the motor
base by grasping the handle and lifting the
jug in an upward direction.
Cleaning the motor base
1. Wipe the motor base with a soft, damp
cloth, and then dry thoroughly.
2. Wipe any excess food particles from the
power cord.
Cleaning the blender jug, inner lid
and lid
 Wash all parts in warm soapy water and dry
with a soft cloth. Use a kitchen bottle brush
to dislodge stubborn foods. Rinse and dry
thoroughly.
Do not use abrasive souring pads or
cleaners when cleaning the parts of motor
base as they may scratch the surface.
Note
Removing stubborn or strong food
stains and odours
Strong smelling foods such as garlic, fish and
some vegetables such as carrots may leave
an odour or stain on the blender jug and lid.
To remove, soak blender jug and lid for 5
minutes in 100 ml bleach dissolved in 2 litres
water. Then wash with a mild detergent and
warm water, rinse well and dry thoroughly.

9
Tips on how to use your Blender
Do
 Use the switch of Continuous Operation at
the low speeds of the Variable Speed
Regulator for emulsions such as
mayonnaise, dressings, marinades and
foods that require mixing until just
combined, such as batters.
 Use the switch of Continuous Operation at
the high speeds for pureeing, drink or
cocktail making.
 Use the switch of the Pulse operation for
foods that only require short bursts of power
such as chopping nuts.
 Use the PULSE switch for ice crushing.
 Ensure all parts have been thoroughly
washed, rinsed and dried before assembly.
 Ensure the Blender is correctly assembled
before operating.
 Ensure the base of the blender jug is
thoroughly dry before placing onto the
motor base.
 Ensure the Blender is placed on a clean,
dry and level surface to operate.
 Ensure liquid ingredients are placed into the
blender before solid ingredients, except
where specified in recipes.
 Ensure all foods are cut into cubes (approx.
2-3 cm squares) where appropriate to
achieve an even result.
 Use a plastic or rubber spatula to dislodge
food from sides of the jug. Always ensure
that the blender is turned off by pressing the
POWER switch down and unplugging the
power cord from the power outlet. Ensure
blades have stopped rotating. Do not use
metal utensils as they may damage the
blades or blender jug.
Don’t
 For normal blending tasks, for example,
mayonnaise, dressings etc., do not operate
for longer than 1 minute at one time without
turning off the blender and stirring the
ingredients, and then continue blending.
 Do not operate the blender at the high
speed for more than 3 minutes. Stop
blending for 1 minute before you continue.
 Do not operate the blender without having
the blender lid in position. To add additional
ingredients whilst blending remove the
inner lid and place ingredients through the
opening in the middle of the lid.
 Do not place any objects, other than food,
into the blender whilst the motor is running.
 Do not use blender jug to store food.
 The blender does not circulate air when
blending; therefore it will not beat egg
whites, knead dough or mash potatoes.
 Do not remove the blender jug while the
blender is operating. Always make sure the
blender is off, by pressing the POWER
switch down or letting the PULSE switch
and unplugging the power cord from the
power outlet.
 Do not overload the blender with more than
the specified quantity of ingredients as
doing so could cause the motor to stall.
Turn the blender off, by pressing the
POWER switch down and letting the
PULSE switch and unplug the power cord
from the power outlet. Remove a portion of
the mixture from the blender jug before
continuing.
 Do not place hot ingredients into the
blender; allow to cool before placing into
the blender jug.

10
Suggested uses for your blender
Crush Ice
Place 1 cup of frozen ice cubes into blender
jug only and blend using the switch of Pulse
Operation for 15 seconds.
Drinks
Fill the container to at least ¼; remember to
leave room to allow froth to form as the drink
is aerated.
Soups, sauces, purees
The most efficient amount to blend will
depend on the food / recipe used. Generally,
the more liquid used, the more can be
processed at one time. Do not place hot
ingredients into the blender; Allow to cool
before pureeing.
Quantities and handy hints
 Do not put more than 2 cups of warm
ingredients into the blender before handling
commences. After the blending process has
begun and the blades are turning you may
slowly add another 1 ½ cups of ingredients
through the opening in the lid if desired.
 Thick mixtures puree more efficiently if the
blender is ¼ to ½ full.
 When using several ingredients, place
liquid ingredients in the blender jug first
unless specified in the recipe.
 When blending thick or dry mixtures it may
be necessary to stop the blender and
scrape down the sides of the blender jug
with a plastic or rubber spatula, once or
twice during blending. Cut all food pieces
into 2 cm cubes where appropriate.
Recipes
Margarita
60 ml Tequila
60 ml Cointreau
80 ml lime juice
12 ice cubes
1. Place Tequila, Cointreau,
lime juice and ice cubes into
blender jug.
2. Set at the Max Speed and
blend until well combined and
ice is crushed.
Serve in salt rimmed glasses.
Rockmelon and pineapple
frappé
1 cup chopped rockmelon
1 cup canned pineapple
pieces
1 cup ice
Mint leaves, to serve
1. Place rockmelon, pineapple
and ice into the blender jug.
2. Set at the max Speed and
blend until all ingredients are
crushed and mixture is
smooth and thick.
3. Serve with chopped mint
leaves.
Strawberry Smoothie
150 g strawberries
250 ml milk
2 scoops vanilla ice cream
Strawberry topping, to
serve
1. Place strawberries, milk
and ice cream into the
blender jug.
2. Set at the Max Speed and
blend until smooth and
combined.
Serve with strawberry topping
drizzled over top.

11
Troubleshooting chart
Follow these steps if the unit fails to operate:
1. Check instructions have been follow closely and correctly
2. Check “Troubleshooting Guide” for possible solutions
3. Check fuse has been blown.
Problem Solution
Motor doesn’t start or blade doesn’t rotate
 Check that the blender jug and lid are securely
locked into position
 Check that the power plug is securely inserted
into the power outlet
 Be sure to press only one function control button
at a time
Food is unevenly chopped Either too much food is being chopped at one time
or the pieces are not small enough. Try cutting
food into smaller pieces of even size and
processing a smaller amount per batch. For best
results the food should be chopped into pieces no
larger than 2 cm.
Food is chopped too fine or is watery The food is over processed. Use brief pulses or
process for a shorter time.
Food sticks to blade Processing too much food. Turn the blender off.
When the blade stops rotating, remove the blender
lid and remove some food with a spatula.
Higher than normal levels of vibration and
container noise
Check blade assembly for loose, damaged or
nicked components and replace.
Leaking from the bottom of the container
The appliance is not working  Double-check to make sure power cord is firm
plugged into the power outlet.
 Check to make sure switches are clean and
moving freely
 The thermal protector may have shut the
machine off. Leave power off for up to 45
minutes. Try circulating air with a fan at the
bottom of the motor base.
Loud noise from blade area Drive socket may be broken. Check for a fine
crack down the center or worn teeth.
In case you cannot make the appliance work after the above suggestions,
contact your supplier to inform you for the service center.

12
