Columbus Fitness S600 User manual

1
Note: Following the principles of sustainable development, we may modify machines
when necessary and will not notice again. It all depends on the actual product.
USER’S MANUAL

2
Contents
Product Brief ………………………………………… 2
Security Precautions and Warnings ……………………………………… 4
Installation Instructions ……………………………………… 7
Using Instructions ………………………………………10
Routine Maintenance …………………………………………15

3
1. Product Brief
Electric Treadmill--S600

4
Main parameters and parts list
Main technical parameters
No.
Parameters Names
Description
1
Input power voltage
AC 220-240V(50/60Hz)
2
Motor power
2.5HP
3
Speed
1.0-10 Km/h
4
Running surface
400*1100 mm
5
Max user weight
110KG
6
Expand dimensions
1330*615*1025mm
Packing list
No.
Name
units
Qty
1
Complete machine
set
1
3
Accessory Bag
pc
1
Accessory bag list
NO.
Name
QTY
NO.
Name
QTY
1
Inner hexagon spanner 5mm
1
6
MP3 cable
1
2
Combination wrench
1
7
ScrewM8*25
2
3
Safety key
1
8
Screw M6*12
4
4
Silicone oil
1
5
Users Manual
1
2. Security Precautions and Warnings
Please read the instructions carefully before use.
Indoor using and storing the treadmill, avoid dampness, and can not be spilled by water.
Please wear suitable clothes and sneakers before exercise. Prohibited to exercise on the
treadmill barefoot.
High power plug must be grounded, electric outlet should have a dedicated circuit, do not share
Tips: Before folding the treadmill, make sure that the gradient is "zero".
Notice:

5
with other electrical equipment.
Keep children away from the machine to avoid accidents.
Avoid too long time and overload operation, otherwise will cause motor and controller
damaged, and will accelerate the deterioration of bearing, running belt and running board.
Should maintain machine on a regular basis.
Keep machine away from dust to avoid strong static.
Please cut the electric power off after using.
Please maintain good ventilation when running.
Please clamp security lock cable on your clothing to make sure the machine stops at emergency
condition.
If you feel not very well when using this machine, please stop and consult a doctor.
Silicone oil must be kept away from children after use.
If power cord is damaged, please contact our qualified maintenance personnel
for service rather than disassemble it at your own discretion.
Forbidden
Don't use the machine in the status of the shell break in or break off （the internal structure
exposed）or under the condition of welding-parts may fall off.
---- Otherwise an accident or injury may happen.
Don't jump up and down in the process of movement.
---- May be injuries caused by the fall.
Don't keep machine in or near moist space such as the bathroom.
Don’t place machine in direct sunlight, or high temperature places such as near a stove or a
heating appliance .
----Otherwise may cause the leakage and burst into flames.
Don't use when the power cord is damaged or power plug pin is loose.
----Otherwise will lead to an electric shock, short circuit or fire.
Don't damage or bent by force or reverse the power cord. Don’t place heavy objects on machine,
don't clamp the power line.
----Otherwise will cause fire or get an electric shock.
!

6
Don't use machine for more than 2 people at the same time, and don't get close to the machine
when it is in use.
---- Or it may be an accident or injury due to falls.
People who can’t express their consciousness or can’t operate the machine by themselves
cannot use the treadmill.
----May occur accident or injury.
Avoid drinking water or pouring water when operation.
---- May cause electric shock and fire. Forbidden!
People who seldom do exercise shouldn't suddenly do intense exercise.
After eating or when feel tired, do not use machine.
---- May lead damage to your health.
This product is suitable for family use, does not apply to schools, gymnasium and so on. ----
There is the danger of injury.
Don’t use when hard objects are in pants pockets.
----May cause accident or injury.
Don’t use when the power plug is on the needle, garbage, or water.
----May cause electric shock, short circuit, or fire. Do not use with wet hands!
when not in use, pull out the power plug from the socket.
----The dust and moisture can age the insulation, and result in leakage fire.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Ground protection system!
This product must be grounded. If the machine is dysfunctional, grounding will provide a good
channel for electric current, in order to reduce the electric shock risk.
This product is equipped with power plug with grounding conductor and plug. Completely
insert the plug to standard socket.
!

7
If the equipment grounding conductor’s connection is improper, it will cause electric shock. If
you have doubts about whether your product is grounded correct or not, please entrust
professional to check.
Please use the socket which has the same shape with the grounding plug. Don’t use plug
adapter.
Scale figure:When installing, you can use the scale bellow to measure the length of screws to
ensure convenient installation.
3. Installation Instructions
When installing, simple fix all screws first, then tighten the screws when the installation of
frame is done.

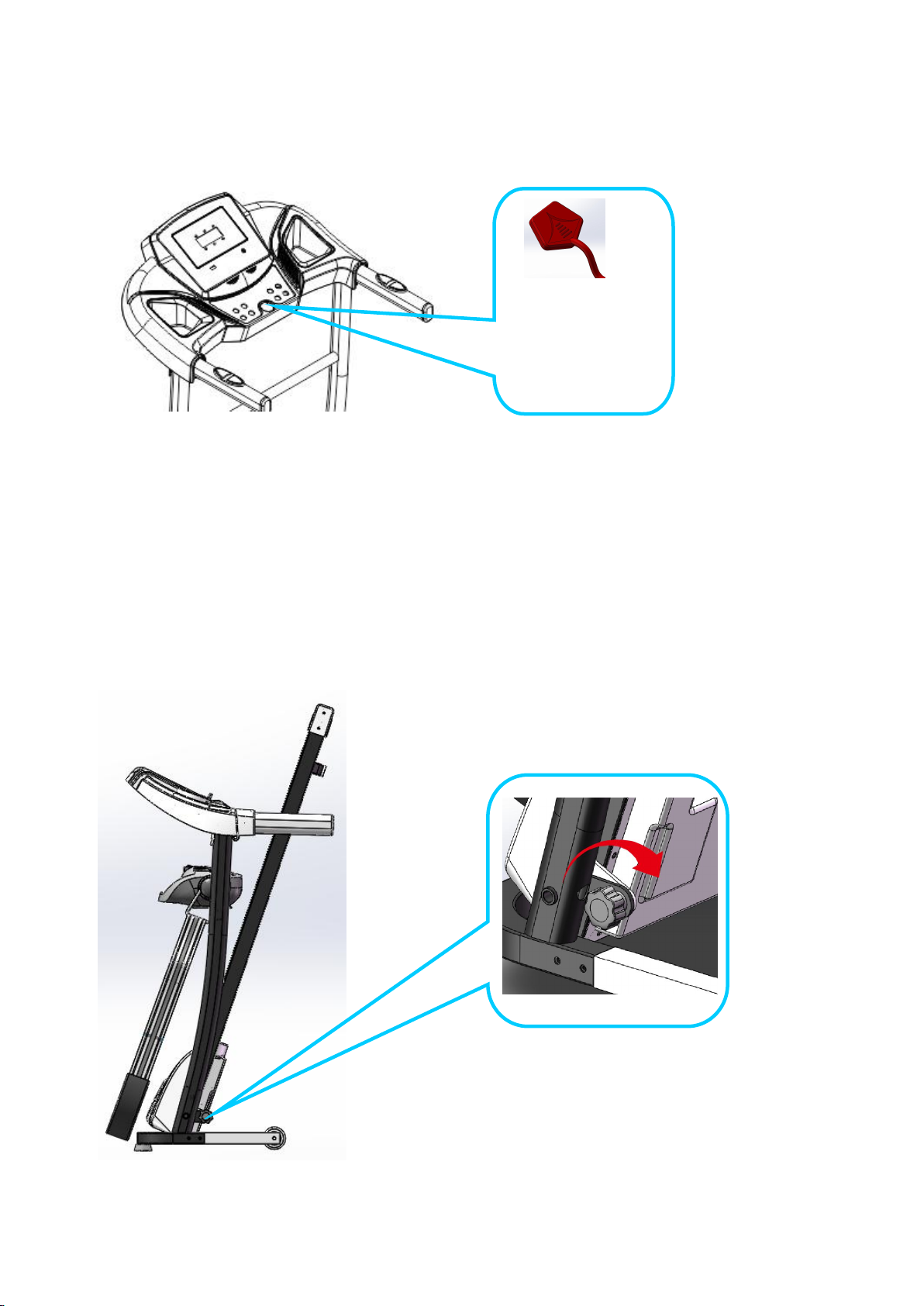

1. Put the machine flat on the ground. Remove the knob with the direction shown in the picture
bellow.Then stand the column sand console with the direction shown in the picture bellow.

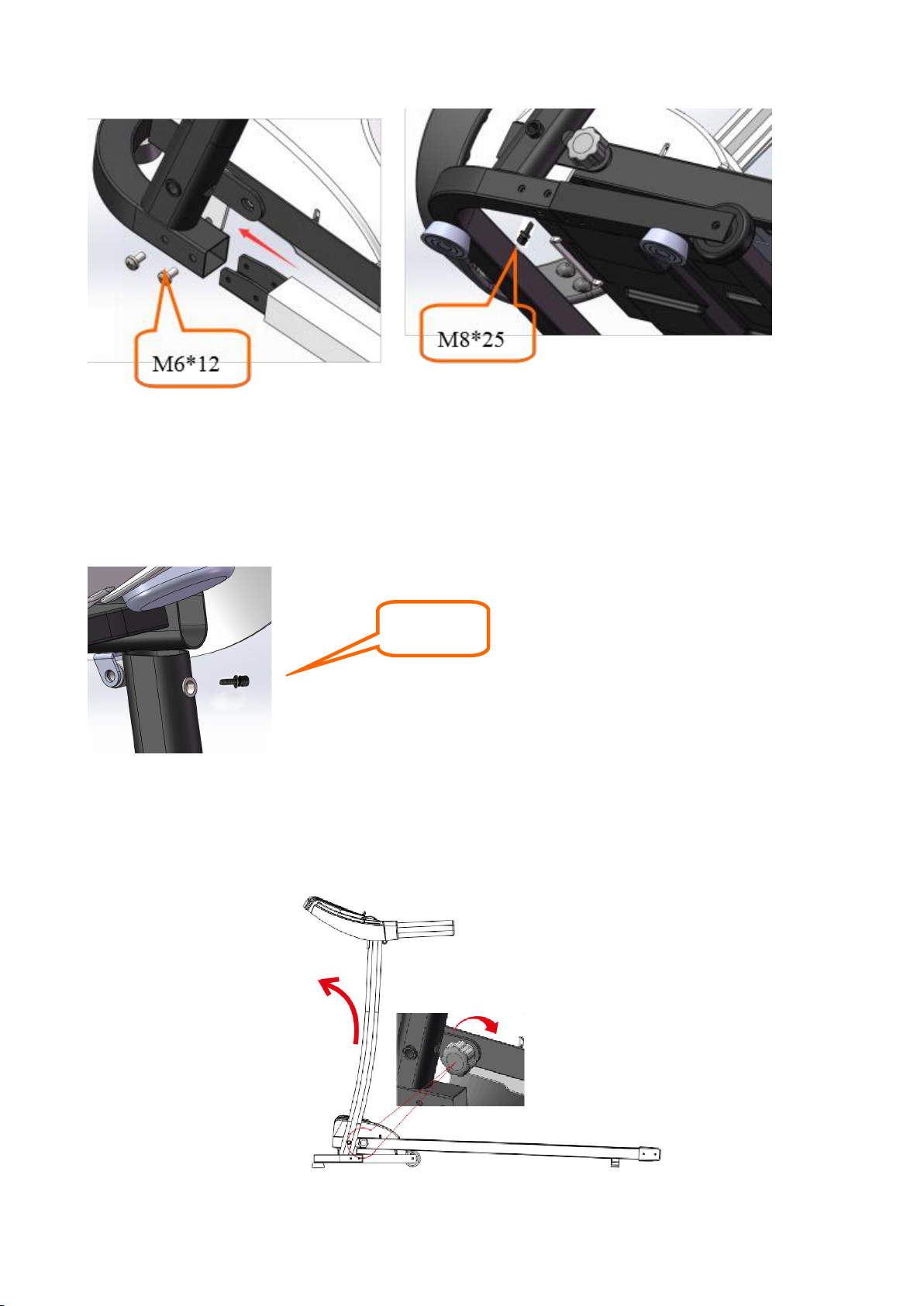

2. Remove the preinstalled screws M8*22 on the support frame and then lock the base with the
holes. Use 5# hexagon wrench and screw M6*12 to lock and fix the base(two screws for each side).

8
3. Hold left& right columns, use 5# hexagon wrench and screw M8*25 to lock the console frame
on the columns(Tighten all screws in above steps, and please notice not to clamp the cable by
column).
4.Use the knob in step one to lock the main base and columns(Rotate clockwise, please refer to the
arrow point direction).Uneven ground may cause trouble when rotate the knob, please lift the
column slightly to left side(as shown bellow).In order to fold the machine easily next time,please
don’t rotate the knob too tight.
Above are steps of single function installation.
M8*25

9
5. Put the safety key on the picture showing yellow area, then press the start button to start the
treadmill.(Notice: The treadmill can only starts when the safety key is put on the yellow area on the
console.)
NOTE: please confirm that all screws are locked uniformly according to the requirements after
installation, and check no part is left out before plugging electricity.
Folding instructions
When the treadmill is not in use, you can lift the running deck and them use knob to lock the
running deck and base, as shown in the picture bellow.
Safety key is in red
color. Please find it
in the accessory bag.

10
4. Using instructions
Using treadmill

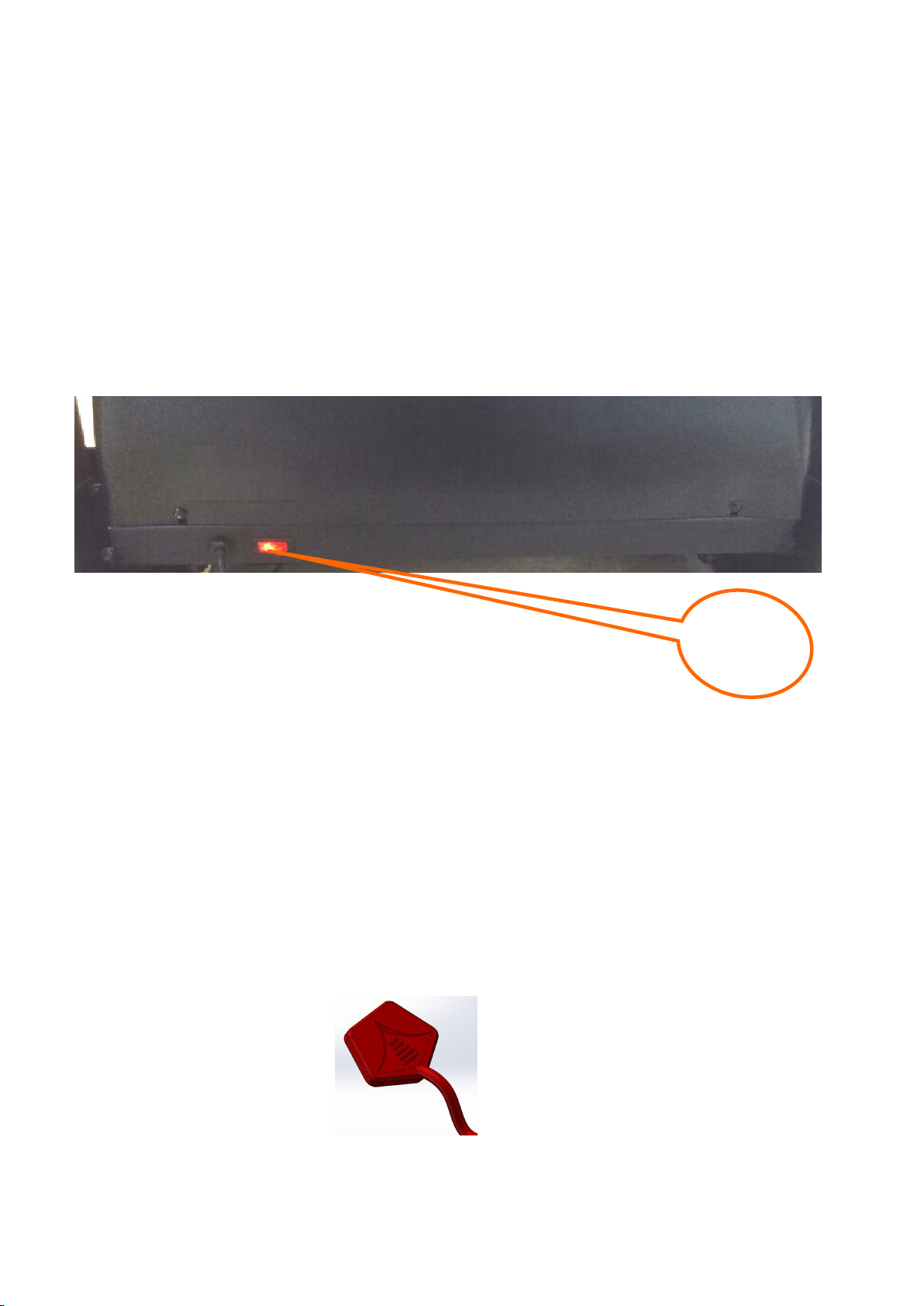

1. Insert the power plug properly and turn on the switch(in red color)(1). When the light is on, there
will be a sound of “Di”, and then the screen will be light up(Systems with TFT screen takes more
time to enter the start interface).
2.Please keep the safety key away from children when the treadmill is not in use.Please put the
silicon oil bottle in places children cannot reach. If it is eaten or split into eyes by mistake, please
use water to wash and consult doctor immediately.
3.Safety key Introduction
The treadmill can only start when the safety key is put on the yellow area of the console. Clip the
safety key on clothes when using the treadmill to prevent accidents. Put the safety key back when
continue using the treadmill.
1

11
2. Console instructions
Sticker:
LED Sticker
Button instructions
Start up Normally starts after 3 seconds of countdown.
Programs 3 fixed programs and 12 automatic programs.
Safety key function
Disconnect the safety key, "E7" shows on the screen. The treadmill stops gradually, and a Di alarm
sound is let out. Put the safety key back, all the data will be cleared in 2 seconds.
Under any circumstance, the treadmill will stop when disconnect the safety key. There will be
prompt information on the screen. Put back the safety key, screen data will be back to the initial
interface.
Key function
1. Start button, Stop button：
When the power is on, press the start button, the screen displays "1.0 km/h", and the treadmill
starts. Stop key: when the treadmill is in running state, press the stop button, all data will be cleared,
and the treadmill gradually comes into a complete stop and returns to the manual mode.
2. Program key
In standby mode,pressing this key can cycle the options from manual mode to P1 to P12 automatic
programs.Manual mode is the system defaulting running mode and the default speed of manual

12
mode is 1.0 Km/h,the highest speed is 10 Km/h.
3. Mode key
In standby mode,press this key can cycle the options of 3 different countdown running mode: time
countdown running mode,distance countdown running mode and calorie countdown running mode.
4. Volume ±key
When connect with mobile phone, press “+” to turn the volume up and press “-” to turn the
volume down.
5. Speed ±key
Use these keys to adjust the speed of the treadmill by 0.1Km/press, press “+” to increase the speed
and “-” to decrease the speed.
Display Function
1. Speed Display.
Display the current running speed value.
2. Time Display
Display the time of manual mode and the countdown time under automatic modes and programs.
3. Distance display
Display cumulative distance under manual mode and programs. Display the distance countdown in
automatic mode.
4. Calorie display
Display cumulative calorie under manual mode and programs. Display the calorie countdown in
automatic mode.
5. Heart rate display
Heart rate value will be shown when the signal is detected.

13
Automatic program
Each program is divided into 10 segments, and the running time of each segment of the program
is evenly distributed. Following is a form of time distribution of 12 programs.
Time
Programs
Set time / 10 = running time of each period
1
2
3
4
5
6
7
8
9
10
P1
SPEED
3
3
6
5
5
4
4
4
4
3
P2
SPEED
3
3
4
4
5
5
5
6
6
4
P3
SPEED
2
4
6
8
7
8
6
2
3
2
P4
SPEED
3
3
5
6
7
6
5
4
3
3
P5
SPEED
3
6
6
6
8
7
7
5
5
4
P6
SPEED
2
6
5
4
8
7
5
3
3
2
P7
SPEED
2
9
9
7
7
6
5
3
2
2
P8
SPEED
2
4
4
4
5
6
8
8
6
2
P9
SPEED
2
4
5
5
6
5
6
3
3
2
P10
SPEED
2
5
7
5
8
6
5
2
4
3
P11
SPEED
2
5
6
7
8
9
10
5
3
2
P12
SPEED
2
3
5
6
8
6
9
6
5
3
3 Modes’ parameter setting
Set the initial time countdown to 15 minutes. The initial setting of calorie countdown is 50 kcal.
The initial setting of distance countdown is 1.0 kilometers.Cycle order: time, distance and calorie.

14
Code Meaning of error messages
Error code
Description
Solution
E1
Communication Abnormal:
when the power is on, the
connection between lower
controller and the console is
abnormal.
Possible Cause: the communication between the lower controller
and console is blocked, check each joints between the controller
and console, make sure that each core is fully plugged in. Check
the connection line, replace it if it’s damaged.
E2
No signal from motor.
Possible Cause:
Check the motor cable to see whether it is connected well or not,
if not, connect the motor wire again.
Check the motor cable to see whether it is damaged or has a burnt
smell, if yes, replace the motor.
E5
Over current protection:
In working , the lower
controller detects the current
to be over 6A for more than
3 seconds.
Possible Cause:
Overloading leads to excessive current, and the system stops out of
self-protection, or some part is stuck, causing the motor to stop.
Adjust the treadmill and restart it. Check if there is liquid or burnt
smell while the motor is running, if yes, replace the motor; check if
the controller has a burnt smell, if yes, replace the controller; check
the power supply voltage, if it does not match the specifications,
change into correct voltage and test the machine again.
E6
Explosion-proof impact
protection: the abnormal
voltage or motor cause the
faulty of circuit that drive the
motor.
Possible Cause:
Check if the power supply voltage is 50% lower than normal
voltage ，use the correct voltage and test the machine again；check
if the controller has a burnt smell and replace the controller; Check
if the motor cable is connected and connect the motor wire again.
E7
No safety key
Put the safety key on the right place.

15
5.Routine Maintenance
Warning: Before cleaning or maintaining products, please be sure the power plug of the
treadmill is pulled out.
Cleaning: Comprehensive cleaning will extend the using life of the electric treadmill.
Remove dust periodically in order to keep the parts clean. Be sure to clean running belt with both
sides of the exposed portion, which will reduce the accumulation of impurities. Make sure to wear
clean athletic shoes to avoid carrying the dirty matters into running board and belt. Treadmill belts
shall be cleaned by a damp cloth with soap. And please pay attention to avoid to wet the electrical
components and running belt.
Warning:Make sure power plug disconnect before moving motor cover away, clean the motor at
least once a year.
Running belt specialized lubricant
This electric treadmill’s running board and running belt has been lubricated in factory. Friction
between the running belt and running board has a great influence to the using life and the
performance of the electric treadmill, therefore regular applying of lubricant is needed. We advise
you to check the board regularly. If the board’s surface is damaged, please contact our customer
service center.
We advise using lubricant between running belt and running board with following schedule:
Lightweight user (use less than 3 hours a week) once per month;
Heavyweight use (use more than 7 hours a week) once every half month.
1.In order to better safeguard your electric treadmill and extend the life of the machine, it is
recommended that after your continued use of two hours, turn off the machine and let it rest for 10
minutes before using again.
2.If the treadmill belt is too loose, there will be skid phenomenons while running; if it’s too tight, it
may reduces motor performance and harden the abrasion of roller and the running belt. You can lift
two sides of the running belt for 50-75mm when the tightness is appropriate.
Running with adjusted alignment and tightness
In order to better use the treadmill and make the treadmill functions work better, it is necessary for
you to adjust the running belt into the best condition.
Running Belt alignment
Put electric treadmill flat on the ground.
Make the electric treadmill run at a speed of about 6-8km/hour .
If the running belt is closer to the right, rotate the right adjusting bolt with 1/2 turn clockwise,
then rotate the left adjusting bolt with 1/2 turn counter-clockwise. (Picture A)
If the running belt is closer to the left, rotate the left adjusting bolt with 1/2 turn clockwise, then
rotate the right adjusting bolt with 1/2 turn counter-clockwise. (Picture B)

16

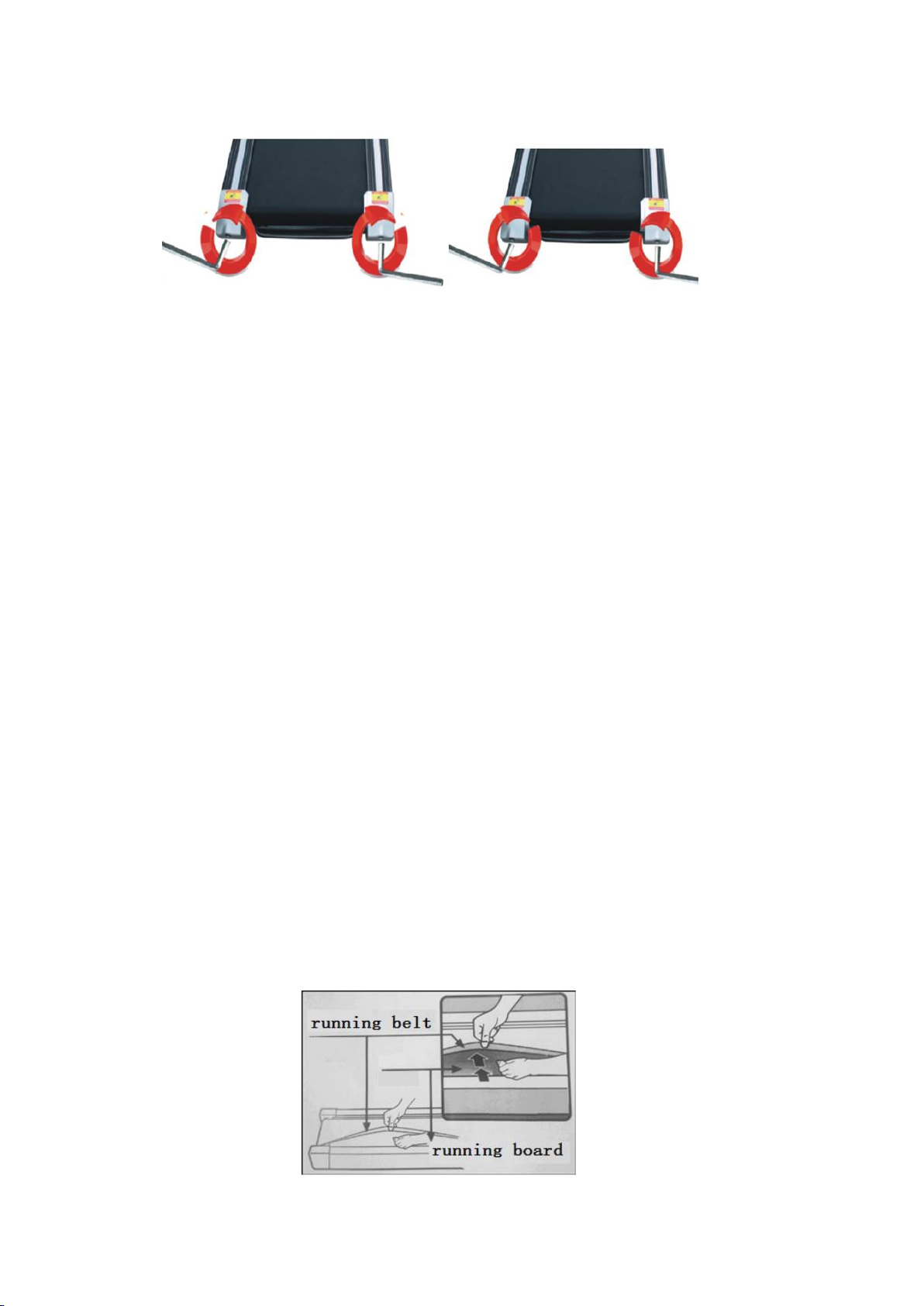

Picture A Picture B
Multi-wedge Belt Tension Adjusting
When you use the treadmill for a long time, the multi-wedge belt becomes loose because of the
abrasion, then you have to do some appropriate adjustment to facilitate the safe use.
Judgment: the feeling of running with the occasional pause phenomenon, which indicating that the
treadmill belt or multi-wedge belt are a little loose and further affirmation need to be made.
Method of judging which part is loose: Remove the four screws on protective cover, make the
treadmill run at a speed of 1 km/h, and then stand on the running belt, grip the armrests, and tread
the treadmill belt slightly.( we advise treading the treadmill belts with the user's own weight)
A. The instantaneous step can not stop the belt, the tightness is appropriate.
B. If your instantaneous step stops the running belt, but the multi-wedge belt and former roller is
still runing, it indicates that the running belt is loose and appropriate adjustments must be made to
facilitate the safe use
C. If you observe that the instantaneous step makes the treadmill belt and multi-wedge belt stop, but
the motor is still running, it indicates that the multi-wedge belt is loose and appropriate adjustments
must be made to facilitate the the safe use
Step 2:Use a wrench to adjust the screws on the motor base according the the condition. Meanwhile,
gently flip the multi-wedge belt between the motor shaft and the front roller, if it is too loose, you
can flip the multi-wedge belt by 100%; if it is too tight, the degree for you to flip the belt is very
limited. It is appropriate to flip the multi-wedge belt by 80% after adjustment. Please adjust the
tightness of the multi-wedge belt into the state that it could be flipped by 80%.
Step 3: Finally lock the motor base,and install the front cover.
Applying silicone oil
Step 1: Lift the running belt slightly.
Step 2: Open the silicone oil bottle, squeeze the silicone oil on the sides of running board , as shown
in the following figure:
