COM 21 DOXport 1110 User manual

DOXport™1110 Cable Modem
User’s Guide

ii DOXport 1110 User’s Guide
Trademark Acknowledgment
Copyright © Com21, Inc. 2000.
Com21 is a registered trademark of Com21, Inc (“Com21”). The Com21 logo, DOXport,
and the Red Door Device are trademarks of Com21. All rights reserved. All other trade
names or trademarks are the property of their respective holders.
The purchase and use of a Com21 product does not convey a license under any patent
rights, copyrights, trademark rights or any other intellectual property rights of Com21. All
rights reserved. Authorized customers of Com21 may print copies of this documentation
for internal use only. Except as expressly provided herein, no part of this documentation
may be reproduced, stored in a retrieval system, or transmitted, in any form or by any
means, electronic, mechanical, photocopying, or otherwise, without the prior written
permission of Com21.
Part Number: 271-0117-00
Printed in the U.S.A.
September 2000

iii
Contact Information
If you need help installing your modem, you can contact Com21 by telephone or Internet:
Phone: [phone]
Website: www.com21.com
Important Rules for Safe Operation
Please read and follow the instructions in this manual. Use the AC adapter that is provided
with the modem.
FCC Compliance
This DOCSIS cable modem has been tested and found to comply with the limits for a Class B
personal computer and peripherals, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a particular
installation. If this unit does cause harmful interference to radio or television reception, which
can be determined by turning the unit off and on, the user is encouraged to try to correct the
interference by taking one or more of the following measures:
• Increase the distance between this unit and receiver.
• Connect this unit to a circuit that is isolated from the receiver circuit.

iv DOXport 1110 User’s Guide

Ta b l e o f C o n t e n t s v
Reliance Fundamentals
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Your DOXport 1110 Cable Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installing the Cable Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Configuring TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Verifying Your IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
LED Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
LED Acquisition States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting with LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Checking the USB Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DOXport 1110 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table of Contents

vi DOXport 1110 User’s Guide

Reliance Fundamentals
List of Tables ix
List of Tables
Table 1. DOXport 1110 Rear Panel Ports .......................................................................................2
Table 2. DOXport 1110 LEDs........................................................................................................13
Table 3. LED Troubleshooting .......................................................................................................15
Table 4. Specifications.......................................................................................................................19

x DOXport 1110 User’s Guide

Reliance Fundamentals
List of Figures vii
List of Figures
Figure 1. Package Contents ................................................................................................................1
Figure 2. DOXport 1110 with Detachable Stand ...........................................................................2
Figure 3. Rear Panel Ports ..................................................................................................................2
Figure 4. Cabling Diagram with Ethernet Configuration ..............................................................4
Figure 5. Cabling Diagram with USB Configuration .....................................................................5
Figure 6. USB Driver Self-Install.......................................................................................................5
Figure 7. Add New Hardware Wizard ..............................................................................................6
Figure 8. Search for Best Driver........................................................................................................7
Figure 9. Select CD-ROM Drive.......................................................................................................7
Figure 10. Install USB Driver.............................................................................................................8
Figure 11. Finish Installing USB Driver...........................................................................................8
Figure 12. Network Window..............................................................................................................9
Figure 13. Select Network Component Type Window................................................................10
Figure 14. Select Network Protocol Window................................................................................10
Figure 15. Network Window............................................................................................................11
Figure 16. TCP/IP Properties Window .........................................................................................11
Figure 17. Verifying IP Address ......................................................................................................12
Figure 18. LED states........................................................................................................................14
Figure 19. Device Manager...............................................................................................................16
Figure 20. USB Device with Warning Symbol ..............................................................................17
Figure 21. Removing USB Driver ...................................................................................................18

viii DOXport 1110 User’s Guide

Introduction 1
Introduction
Your DOXport 1110 Cable Modem
Your DOXport 1110 cable modem gives you high-speed, always on access to the Internet
through your cable TV (CATV) network. The DOXport 1110 works on any cable system that
complies with the Data Over Cable Services Interface Specifications (DOCSIS).
Package Contents
Check the contents of the package. It should contain the items shown in Figure 1.
Please contact the place of purchase if any of the above listed items are missing or damaged. If
your cable modem was obtained directly from your cable operator, it may have been bulk
packaged without the cables, setup sheet, and user’s guide.
Before You Start
Before you install your DOXport 1110, you need the following items. These items are not
supplied with the DOXport 1110.
1. DOCSIS cable modem service from your local service provider
2. CATV (cable TV) outlet
3. Two-way CATV splitter
4. Two RG6 coaxial cables; one cable connects the CATV outlet to the 2-way
splitter and the other cable connects one output of the splitter to your cable
modem
5. Computer with 10 Base-T Ethernet LAN port OR computer with functional
USB port running Windows 98/Me/2000
6. TCP/IP protocol stack
Figure 1. Package Contents
DOXport 1110
Modem
with Stand
Setup
Sheet
CD-ROM
USB Cable
User's Guide
AC
Adapter
Ethernet
Cable
A00247

2 DOXport 1110 User’s Guide
Installing the Cable Modem
Place your DOXport 1110 cable modem in an area that will not block any of its ventilation
holes. In order to hold the modem in an upright position (as shown below), use the included
stand.
Figure 3 shows the rear panel ports for Ethernet, USB, Power, and RF (cable).
Figure 2. DOXport 1110 with Detachable Stand
Figure 3. Rear Panel Ports
Table 1: DOXport 1110 Rear Panel Ports
Port Interface
DC 15VDC@1A input
USB USB 1.1 B-type connector
10/100 10/100 Base-T RJ45
CATV F-type coaxial connector
A00262
A00261

Installing the Cable Modem 3

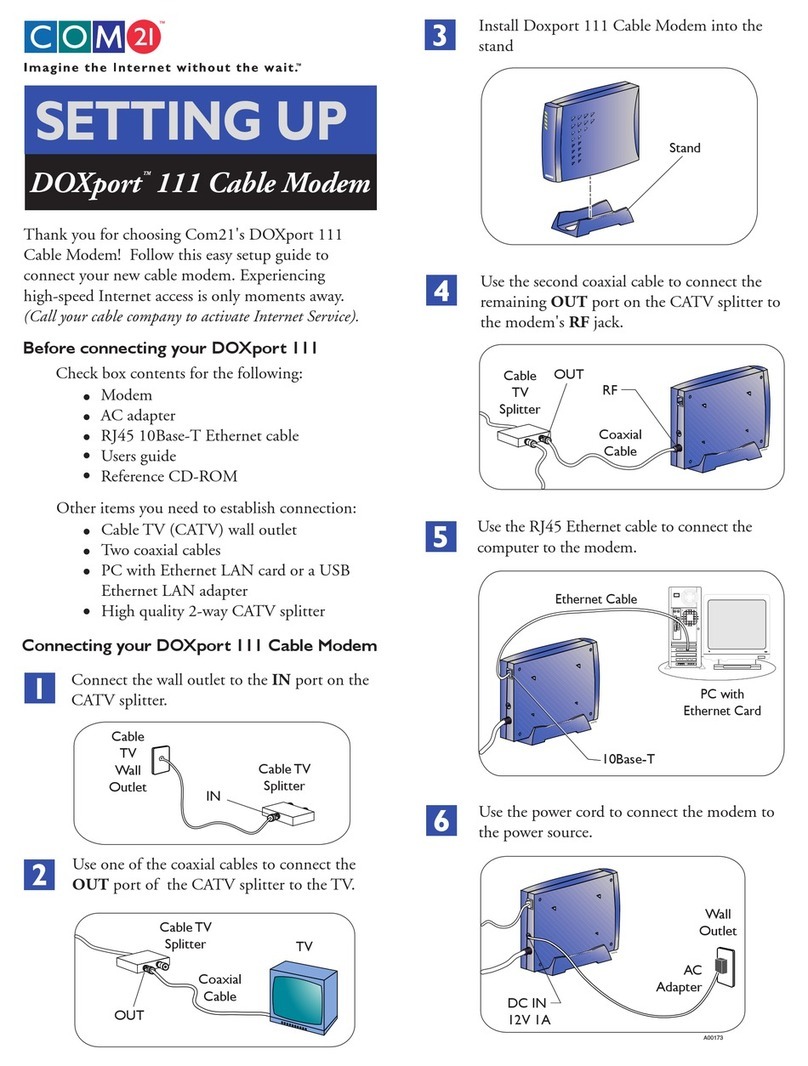

The setup sheet provided in your package and/or on the CD provides an illustrated step-by-
step procedure for setting up your modem. To summarize:
1. Make sure all “Before you start” requirements are met.
2. Look at the label on the bottom of the cable modem. This label shows the serial
number, the MAC (Media Access Control) address of your cable modem, and
the MAC address of the USB port. These numbers are unique to your modem.
Write them in the spaces below; you may need them for installation and future
reference. The CATV network uses the MAC addresses to communicate with
your modem.
Serial number _________________________
Modem MAC address___________________
USB MAC address _____________________
3. Connect the cable TV outlet to the input connector of a two-way CATV splitter
using an RG6 coaxial cable.
4. Connect a coaxial cable from one of the output connectors of the splitter to the
CATV port on the cable modem rear panel. The other output connector on the
splitter may be connected to other devices, such as your television or VCR.
5. Connect your computer to the cable modem using the Ethernet or USB port.
If you use your computer’s Ethernet port:
a. Connect one end of the Ethernet cable to your computer’s Ethernet port.
b. Connect the other end of the Ethernet cable to the Ethernet port on the
modem (labeled “10/100”).
c. Connect the 15VDC power adapter to the power port on the cable modem
rear panel (labeled “DC”). Plug the adapter into a power outlet.
d. Your configuration should look like Figure 4.

4 DOXport 1110 User’s Guide
e. Your modem will now begin the auto-acquisition process. Refer to “LED
Acquisition States” on page 13.
f. Go to step 6 on page 9.
If you use your Windows 98/Me/2000 computer’s USB port (self-install
procedure):
The self-install procedure is recommended; the manual install procedure (refer to
page 6) is for an advanced user.
a. Plug the rectangular-end of the USB cable into your computer’s
USB port, and the square-end of the USB cable into the USB port of
the DOXport 1110 (labeled “USB” ).
b. Your configuration should look like Figure 5.
Figure 4. Cabling diagram with Ethernet Configuration
A00250
DOXport 1110
Modem
PC with
Ethernet Card
Wall Outlet
AC
Adapter
CATV
Outlet
Cable TV
Splitter
Television
Coaxial
Cable
Ethernet
Cable
USB
10/100

Installing the Cable Modem 5
c. Once the USB cable is connected between the DOXport 1110 and the PC,
the computer will detect the newly added USB device and install the
necessary drivers automatically. (The DOXport 1110 USB drivers are
stored in the Reference CD, so make sure the CD is in the computer CD-
ROM drive. If prompted, enter the drive letter of the CD-ROM).
d. Follow the on-screen prompts to finish the USB driver installation.
Figure 5. Cabling Diagram with USB Configuration
Figure 6. USB Driver Self-Install

6 DOXport 1110 User’s Guide
e. Reboot the computer when the installation is finished.
— Click START -> SHUT DOWN -> RESTART.
f. Your modem will now begin the auto-acquisition process. Refer to “LED
Acquisition States” on page 13.
g. Go to step 6 on page 9.
Using your Windows 98/Me/2000 computer’s USB port (manual procedure):
a. Plug the rectangular-end of the USB cable into your computer’s
USB port, and the square-end of the USB cable into the USB port of
the DOXport 1110 (labeled “USB” ).
b. Once the USB cable is connected, the computer will detect the newly
added USB device and prompt for the USB driver installation. Click OK
to begin the installation.
c. Follow the on-screen prompt instructions and enter the drive letter of the
DOXport 1110 Reference CD-ROM, on which the USB device driver and
support driver are located.
d. After the networking device driver is installed, the networking support
driver is also needed. Follow the on-screen prompt to complete the
installation.
e. Click Next to the next prompt
o
Figure 7. Add New Hardware Wizard

Installing the Cable Modem 7
f. Select the recommended option ‘Search for the best drivers for your
device’, then click Next.
g. Select CD-ROM drive, in which the drivers are stored, then click Next.
Figure 8. Search for Best Driver
[
Figure 9. Select CD-ROM Drive

8 DOXport 1110 User’s Guide
h. The computer will display the device driver it found. Click Next.
i. Click Finish to complete the installation.
j. Reboot the computer when the installation is finished.
— Click START -> SHUT DOWN -> RESTART
Figure 10. Install USB Driver
Figure 11. Finish Installing USB Driver

Configuring TCP/IP 9
k. Your modem will now begin the auto-acquisition process. Refer to “LED
Acquisition States” on page 13 for details.
Now that you have connected the PC and the DOXport 1110, perform the
following step:
6. Configure the network parameters of your computer based on the instructions
provided by your cable operator. Refer to “Configuring TCP/IP” on page 9 and
“Verifying Your IP Address” on page 12 for information on how to configure
TCP/IP and check your IP address in Windows.
Configuring TCP/IP
With the modem connected, make sure that you have your computer configured for TCP/IP
and check for an IP address. The following instructions are for Windows 98 using Ethernet. If
you are using a different operating system, or computer interface, refer to that system’s user’s
guide.
Perform the following steps:
1. On the Windows desktop, click Start.
2. Select Settings and then Control Panel from the pop-up menu. Double-click
the Network icon on the Control Panel window. The Network window
appears, as shown in Figure 12.
Figure 12. Network Window

10 DOXport 1110 User’s Guide
3. Select the Configuration tab on the Network window.
4. Check to see if TCP/IP has been installed for the Ethernet card. If TCP/IP
appears in the list of network components, it is installed. Select it and proceed
to step 8. If it doesn't appear on the list, click Add and continue with step 5.
5. Double-click the PROTOCOL option on the SELECT NETWORK
COMPONENT TYPE window (Figure 13).
6. Click MICROSOFT in the MANUFACTURERS section and then click
TCP/IP in the NETWORK PROTOCOL section on the SELECT
NETWORK PROTOCOL window (Figure 14).
7. Click OK.
Figure 13. Select Network Component Type Window
Figure 14. Select Network Protocol Window
