Coma FW-C2800 User manual

FW-C2800 Fixed Wireless Phone
User Manual
Please read the manual carefully before operating!

Content
Ⅰ. INTRODUCTION......................................................................................................1
II. INSTALLATION AND KEYS DESCRIPTION ...........................................................2
2.1. INSTALLATION............................................................................................................2
2.2. KEYS DESCRIPTION...................................................................................................3
III. MAKING CALLS ......................................................................................................5
3.1. MAKING CALLS..........................................................................................................5
3.2. PLACING APAYMENT PHONE CALL ON CONTROLLER ..................................................6
3.3.WHEN THE PHONE RINGS..........................................................................................7
3.4. ENDING THE CALL.....................................................................................................7
IV. MENU OPERATION—PAYMENT MODE................................................................8
4.1. SECURITY.................................................................................................................8
4.2. SETTINGS .................................................................................................................9
4.3.APPLICATIONS.........................................................................................................11
V. MENU OPERATION—FREE MODE......................................................................15
5.1. PHONEBOOK...........................................................................................................15
5.2. CALL LOGS .............................................................................................................15
5.3. MESSAGING............................................................................................................16
5.4.ALARM CLOCK ........................................................................................................17
5.5. SECURITY (SAME AS THE PAYMENT MODE)................................................................17
5.6. SETTINGS (SAME AS THE PAYMENT MODE)................................................................17
5.7.APPLICATIONS (SAME AS THE PAYMENT MODE)..........................................................17

FW-C2800 User Manual
1
Version: FW-C2800-20100316
Ⅰ. Introduction
Thank you for purchasing of our CDMA Fixed Wireless Phone. The Phone has been designed to
operate with the latest digital communication technology, the so called Code Division Multiple
Access (CDMA). The CDMA technology has many advanced features and provides excellent
voice quality.
The Phone has advanced features as follows:
Large, easy to read, backlit LCD with status icons
Choice of 19 ring sounds, Power On/Off
Two Way SMS, Voice Mail and caller ID
Large ergonomically designed Keyboard
Long Battery stand-by and talk time
Menu driven interface for easy operation and configuration
Last Number Redial
Adjustable ring and voice volume
AC Power Supply
Speaker Phone
CDMA technology allows privacy of the call
Optional accessories available for greater convenience and enhanced functionality
Easy Service and Repair

FW-C2800 User Manual
2
Version: FW-C2800-20100316
II. Installation and Keys Description
2.1. Installation
Before using your new phone, follow these steps:
1) Connect the coiled cord to the handset and to the telephone base unit. (if it is connected, this
step should be neglected).
2) Attach the antenna to the mating connector on the base. (if it is connected, this step should be
neglected).
3) Turn the phone upside down and remove the battery cover.
4) Insert a valid SIM card into the SIM card holder, carefully noting the proper orientation.
(Contacts facing down and the notch in the SIM card aligned with the notch in the SIM card
holder).
5) Insert the battery pack (2) into the battery slot and connect the battery pack connector (1) to
the mating connector (3).
6) Replace the battery cover, and return the phone to an upright position.
7) Connect the AC Adapter DC plug to the telephone DC jack and plug the AC Adapter into an
AC outlet.
8) Place the phone on a flat, stable surface such as a table; or a desk or mount the phone onto
the wall. Place the antenna in a vertical position.
9) Slide the ON/OFF switch to ON. Press the Hand Free key and hold it for 5 seconds, the LCD
should light up and text should be displayed. If not, recheck all connections above.
3

FW-C2800 User Manual
3
Version: FW-C2800-20100316

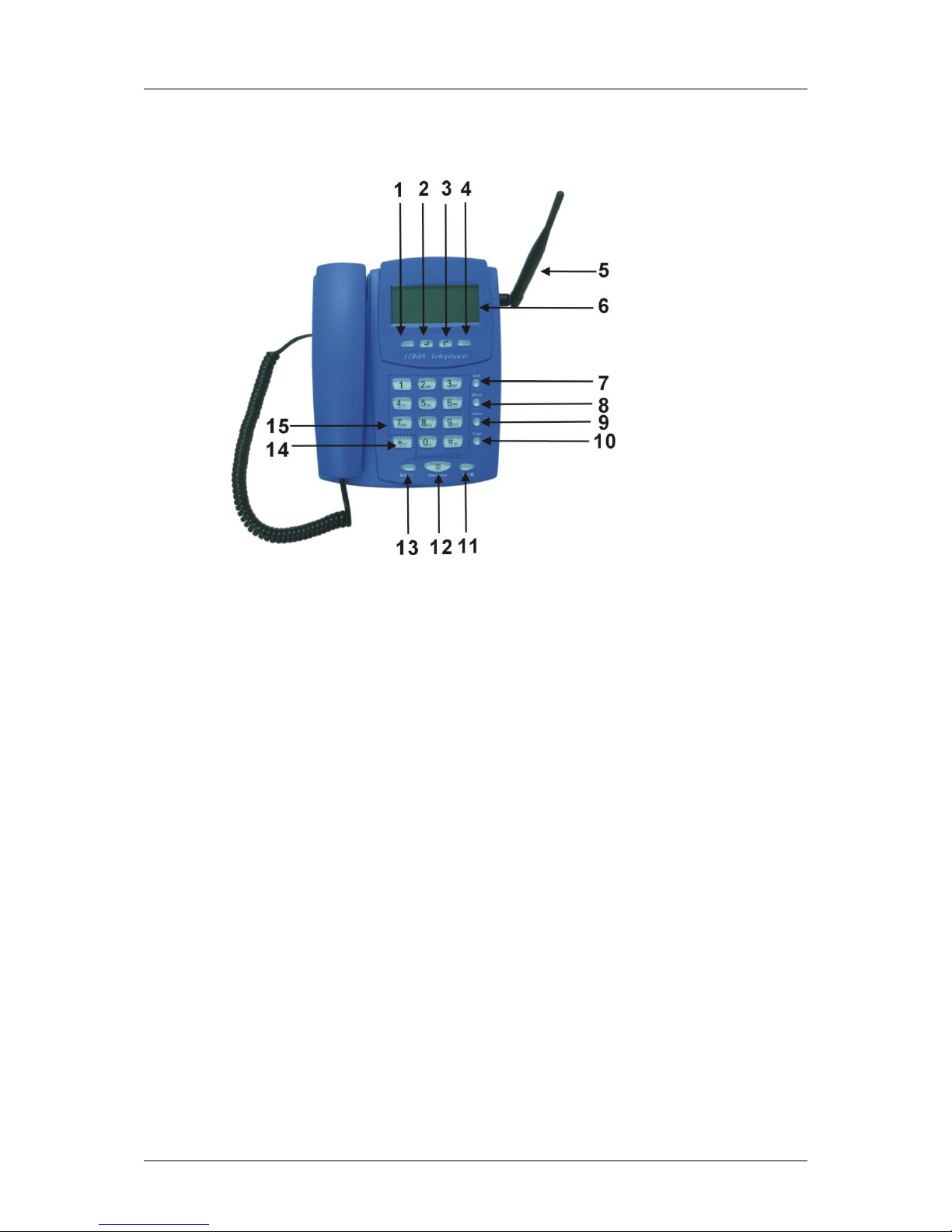

2.2. Keys Description
Top View
（1）Left key/Logs/Prepaid/CallMgr: Programmable shortcut key. In payment mode, this key
is used as Prepaid key. When the SMS BILLis selected as “Activate”, this key is used as
“CallMgr” to call the manager number. In free mode, this key is used as Logs key.
（2）Navigation key 1: During menu operation, this key is used to navigate the menu; during
hand free or off-hook mode, this key is used to increase the volume of the handset or
the ringer.
（3）Navigation key 2: During menu operation, this key is used to navigate the menu; during
hand free or off-hook mode, this key is used to decrease the volume of the handset or
the ringer.
（4）Right key/Book/Postpaid key: Programmable shortcut key. In payment mode, this key is
used as Postpaid key. In free mode, this key is used as Book key.
（5）Antenna: the antenna increases the signal strength of the phone.
（6）LCD: The Liquid Crystal Display provides the interface for the user.
（7）Quit: Press this key to go back to the upper level menu.
（8）Menu: In free mode, press this key to access the Menu directly when the phone is in
standby state. In payment mode, press this key to View Sale and Menu.
（9）Alarm: Press this key to access the Alarm Time Settings directly (only available in free

FW-C2800 User Manual
4
Version: FW-C2800-20100316
mode).
（10）Logs: Press this key to access the Call Logs directly when the phone is in standby state
(only available in free mode).
（11）Dial: Press this key to access the Dialed Calls directly when the phone is in standby
state; this key is also used to dial out the inputted number.
（12）Hand Free: Press the button to make or receive a call without picking up the handset.
Press this button once more to end the call. This key is also used as a power on/off key;
press and hold it for about 5 seconds to turn on/off the power.
（13）Bill/ : In free mode, press this key to access the Messaging menu directly; In payment
mode, when SMS BILL is selected as “Activate”, press this key for downloading bill.
（14）【﹡】 key : Press this key to toggle between the text input modes when editing
message. It is also used as the keypad unlock key when the keypad has been locked.
（15）Alphanumeric keys (0-9, #): The keys are used for dialing a phone number, and typing a
message.
Back View
(1) USB Port (unavailable) (2) Controller Port
(3) Power Switch (4) DC in

FW-C2800 User Manual
5
Version: FW-C2800-20100316
III. Making Calls
3.1. Making Calls
3.1.1. Make a local call (In free mode)
Pick up the handset or press【Hand Free】button.
Enter the phone numbers and press【Dial】, or wait 5 seconds for the numbers to be
automatically dialed.
3.1.2. Make a local call（In payment mode）
Prepaid mode:
Press Prepaid key, input the prepaid value and press OK.
The LCD will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call”and the user could print or view
the details; or press “Other call “to initiate a new call.
Postpaid mode:
Press Postpaid mode, the LCD will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “to initiate a new call.
3.1.3. Making a STD call
The operation is the same as above, but the inputted number has to be prefixed with the area
code.

FW-C2800 User Manual
6
Version: FW-C2800-20100316
3.1.4. Make an IDD call
The operation is the same as above, but the inputted number has to be prefixed with the country
code and area code.
Note: press “0” and hold it for a second then the LCD will display the IDD call icon “+”.
3.2. Placing a Payment Phone Call on Controller
3.2.1. Prepaid
Connect the controller with the phone and activate the controller.
Press【F2: Prepaid】on the controller; key in prepaid value with the numeric keys and then
Press【F5: Finish】to confirm the value input.
The LCD of the phone will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “to initiate a new call.
3.2.2. Postpaid
Connect the controller with the phone and activate the controller.
Press【F1: Postpaid】on the controller.
The LCD of the phone will display “You can dial your first call”.
Pick up the handset or press the Hand Free key.
Input the phone number and press then Dial key to dial out the number.
After the call, the LCD will display the Call Bill. Press “No call” and the user could print or view
the details; or press “Other call “ to initiate a new call.
See controller activation at 4.3.1.1 Call Metering Mode
See controller operation at Remote Display Unit/ Controller Brief User Guide.

FW-C2800 User Manual
7
Version: FW-C2800-20100316
3.3. When the Phone Rings
When the phone rings the display will indicate the incoming call numbers or associated name (if
stored in the phone book) of the person calling. Here are the options:
Answer the call by raising the handset; or
Answer the call by pressing the【Hand Free】button.
3.4. Ending the Call
Put down the handset when you answer the call by picking up the handset; or
Press【Hand Free】button when you answer the call by pressing 【Hand Free】button.
Press “Quit” to exit or “Hand Free” key to go back to the standby state.

FW-C2800 User Manual
8
Version: FW-C2800-20100316
IV. Menu Operation—Payment Mode
When the phone is in standby, press Menu key to enter the main menu, the LCD will display as
below:
Press “OK” to enter “2. Menu” and the LCD will display as below:
In the payment mode, the main menu has only three items: Security, Settings and Applications.
4.1. Security
Use the navigation keys to highlight “Security” in the main menu interface and then press “OK” to
enter the “Security” menu, the LCD will display:
4.1.1. Lock Phone Keypad: Highlight this menu and then press “OK” to lock the keypad (if the
user password has existed, the password/code is required before the lock).
Menu: Security
Back OK
Security
1. Lock Phone Keypad
2. Auto Lock Keypad
3. Change User Password
4. Clear User Password
Back OK
Other Option
1. View Sales
2. Menu
Back OK
Menu: Security
Back OK
